Novogratz DL8417-6 User manual

Model No:
UPC CODE:
NOTE:
Lot number:
(TAKEN FROM CARTON)
_____________________________________
THIS INSTRUCTION BOOKLET
0-65857-19828-7
INSTRUCTION MANUAL
DL8417-6
CHEST
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
Date of purchase:
_______ / _______ / _______
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE RETAILER.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [e-mail]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

Assembly will require two people.
To avoid unnecessary damage, when levelers have been extended, DO NOT drag across surface when moving. Be sure to lift
and carry the item to its location.
WARNING: Should this product become damaged, and/or components are broken or
missing, DO NOT USE.
Estimated assembly time: 60 minutes.
CARE, CLEANING AND MAINTENANCE
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used occasionally to clean surface. Dry immediately.
Do not use any abrasives that may damage finish. Excessive exposure to sunlight and extreme changes in temperature and moisture can
damage wood furniture.
Check all bolts, screws and fasteners periodically and tighten them if necessary.
1-YEAR LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty
covers 1 year from the date of original purchase from authorized retailers. This warranty is valid only upon presentation of proof of
purchase. This is solely limited to the repair or replacement of defective furniture components and no assembly labor is included. This
warranty does not apply to any product which has been improperly assembled, subjected to misuse or abuse or which has been altered or
repaired in any way. The warranty does not cover wearing, tearing, fading or splitting of the fabric (where applicable). This warranty gives
you specific legal rights and you may also have other rights which vary from State to State or Province to Province.
Can accommodate a flat screen television no wider than 43"
CUSTOMER SERVICE
A Phillips head screw driver is not included.
CAUTION: Adult assembly required.
You can also contact us by writing to the address listed below. Please include the product model number, color and a detailed description
of your enquiry.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
NOTES AND INSTALLATION
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to the product finish.
Use the wall safety strap provided to secure the unit to the wall.
DO NOT use power tools.

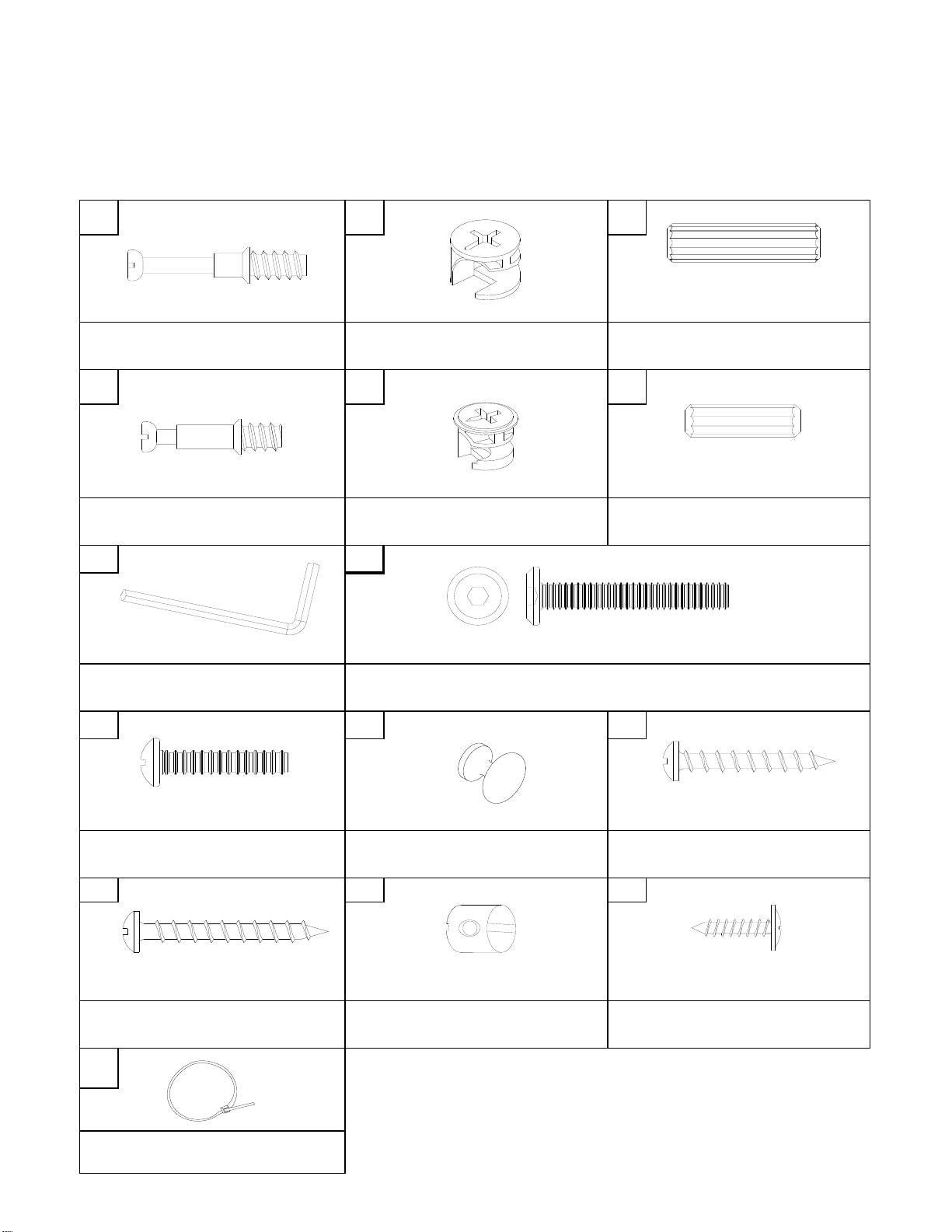

HARDWARE LIST
1 2 3
4 5 6
7 8
910 11
12 13 14
15
SAFETY STRAP
2 PACKS
CAM BOLT
20 PCS
WOOD DOWEL
24 PCS
ALLEN KEY
1 PC
CAM BOLT
24 PCS
CAM LOCK
24 PCS
M3 X 15mm
BOLT
18 PCS
Ø1/4" X 40mm
Ø8 X 4 X 35mm
Ø8 X 8mm
SCREW
12 PCS
CHEST
DL8417-6
Ø8 X 30mm
Ø6 X 20mm
WOOD DOWEL
28 PCS
CAM LOCK
20 PCS
PLASTIC BARREL NUT
12 PCS
SCREW
14 PCS
BOLT
6 PCS
Ø8 X 4 X 30mm
KNOB
6 PCS
SCREW
2 PCS
Ø9 X 4 X 20mm
SHORT SCREW
2 PCS
LONG SCREW
2 PCS
4 PCS SAFETY WALL STRAP
MOUNTING BRACKET 2 PCS
S

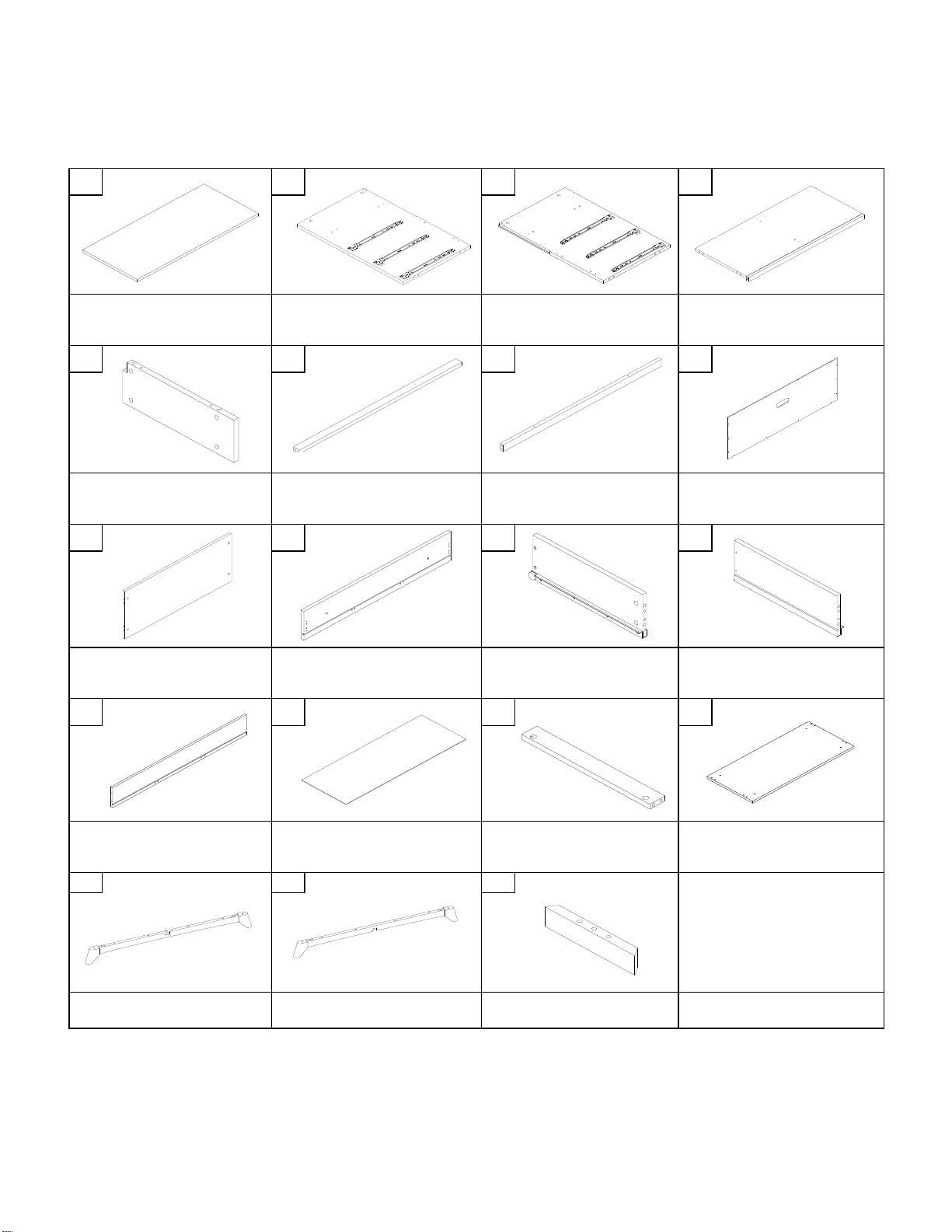

PARTS LIST
A B C D
E F G H
I J K L
M N O P
Q R S
DRAWER BOTTOM
1 PC
BOTTOM PANEL
BACK BOTTOM PANEL
TOP PANEL
3 PCS
DRAWER BOTTOM RAIL
3 PCS
3 PCS
DRAWER FRONT
SHELF
1 PC
CHEST
DL8417-6
3 PCS
3 PCS
6 PCS
1PC
DRAWER BACK
BACK TOP PANEL
BACK TOP RAIL
DRAWER RIGHT SIDE
FRONT RAIL
1 PC
DRAWER LEFT SIDE
1 PC
LEFT SIDE PANEL
1 PC
1 PC
1 PC
DIVIDER
1 PC
1 PC
RIGHT SIDE PANEL
1 PC
1 PC
2 PCS
BASE BOTTOM RAIL
BASE TOP RAIL
STRETCHER RAIL

STEP 1
CHEST
DL8417-6
Insert cam bolt (1) into the left and right side panel (B & C) and shelf (D) using a Phillips head
screwdriver (not included) as shown.
D
1
C
B
1
1
114 PCS

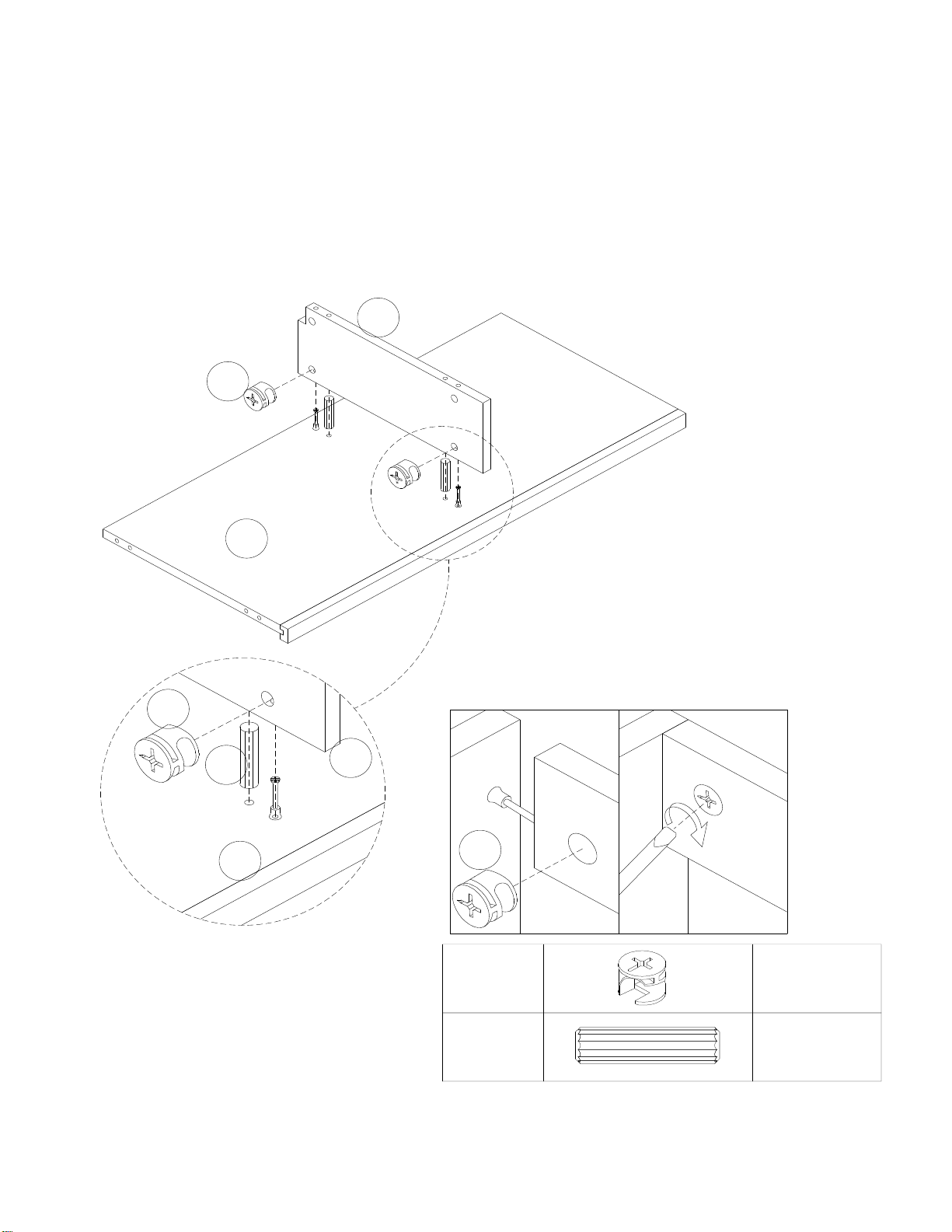

STEP 2
CHEST
DL8417-6
Insert cam locks (2) and wood dowels (3) into the divider (E) as shown.
Attach the divider (E) to shelf panel (D) by rotating the cam locks (2) 1/2 turn clockwise using a Phillips
head screwdriver (not included).
3
2
2 PCS
2 PCS
2
E
D
3
D
E
2
2

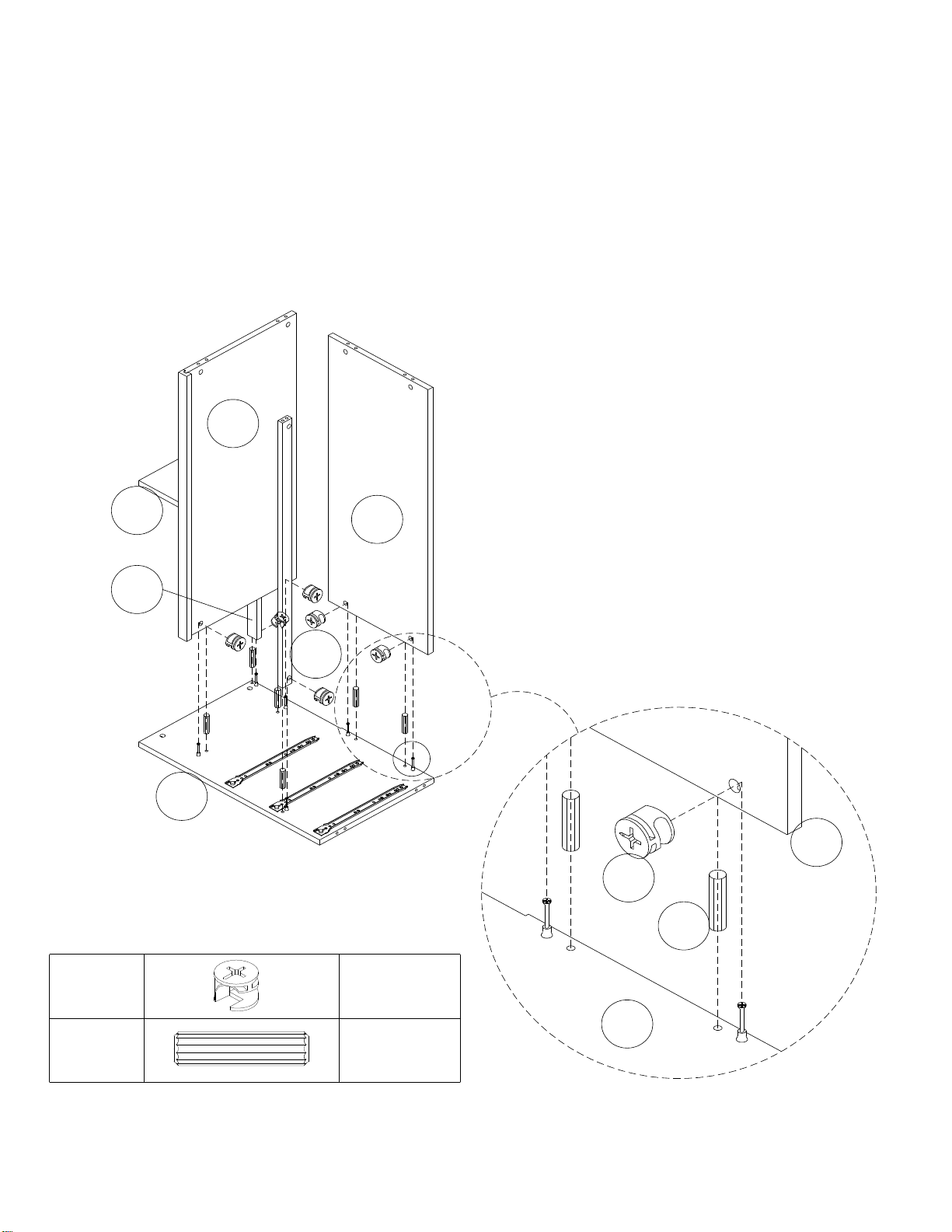

STEP 3
CHEST
DL8417-6
Insert cam locks (2) and wood dowels (3) into shelf (D), front rail (F), back top rail (G), back bottom
panel (I) and left side panel (B) as shown.
Attach all parts to left side panel (B) and secure by rotating the cam locks (2) 1/2 turn clockwise using a
Phillips head screwdriver (not included).
2I
3
B
B
D
G
F
I
E
3
2
6 PCS
6 PCS

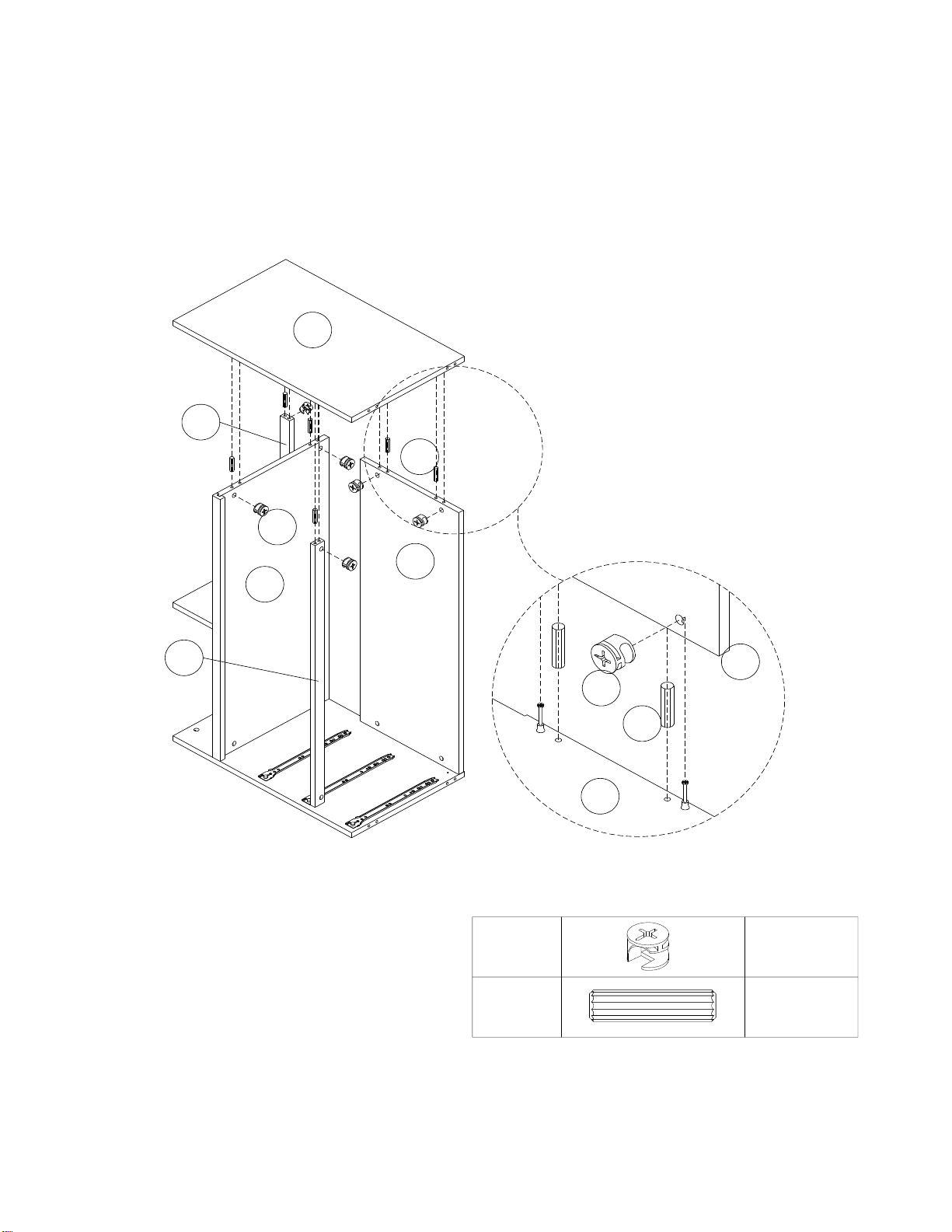

STEP 4
CHEST
DL8417-6
Repeat step 3 to attach the right side panel (C) to the assembled unit.
F
D
C
G3
I
2
3
C
2I
3
2
6 PCS
6 PCS

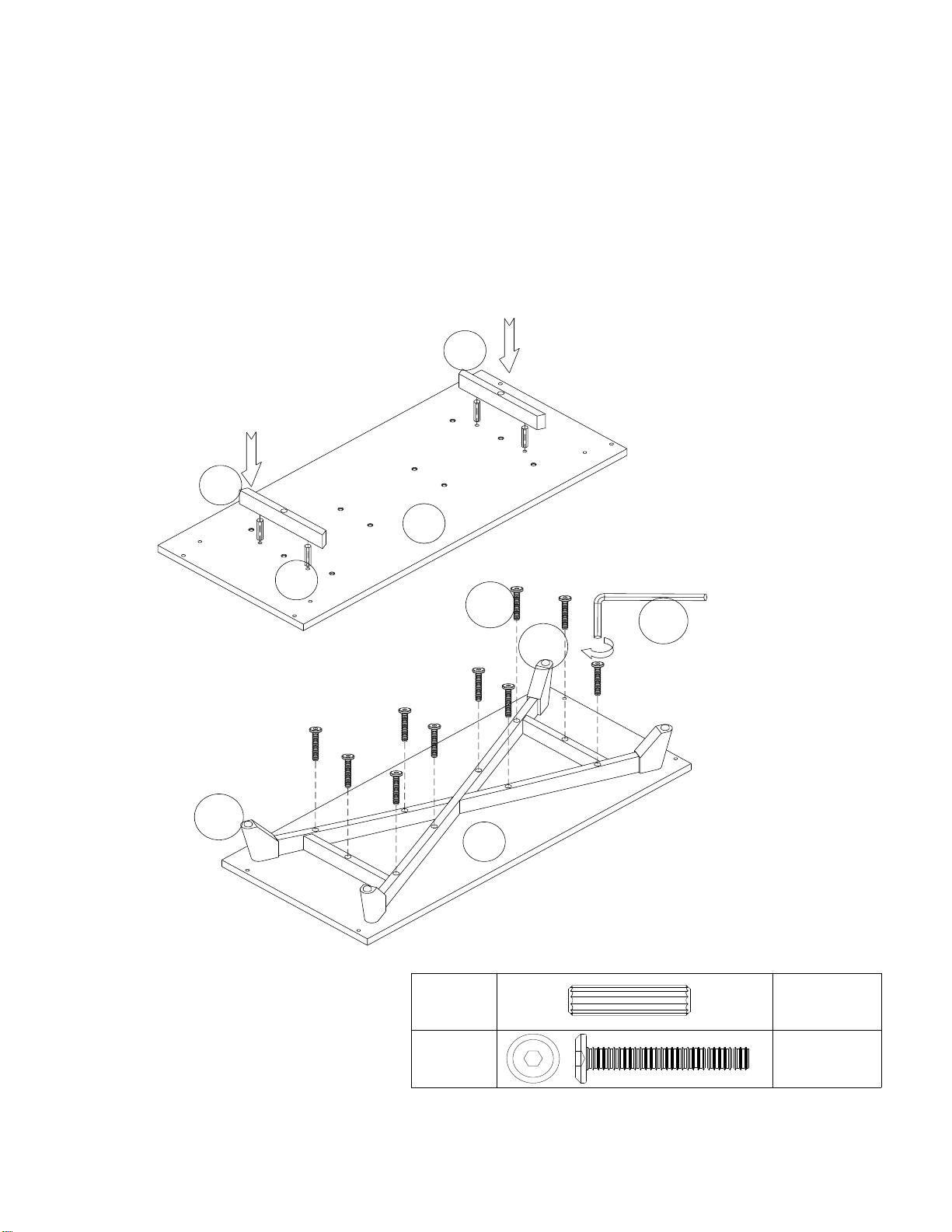

STEP 5
CHEST
DL8417-6
Insert wood dowels (3) into the bottom panel (P) as shown.
Attach stretcher rails (S) to the bottom panel (P).
Attach base rails (Q & R) to the bottom panel (P) with bolts (8) as shown. Use Allen key (7) to tighten the
bolts.
Q
R
S
S
8
P
37
P
4 PCS
3
10 PCS
8

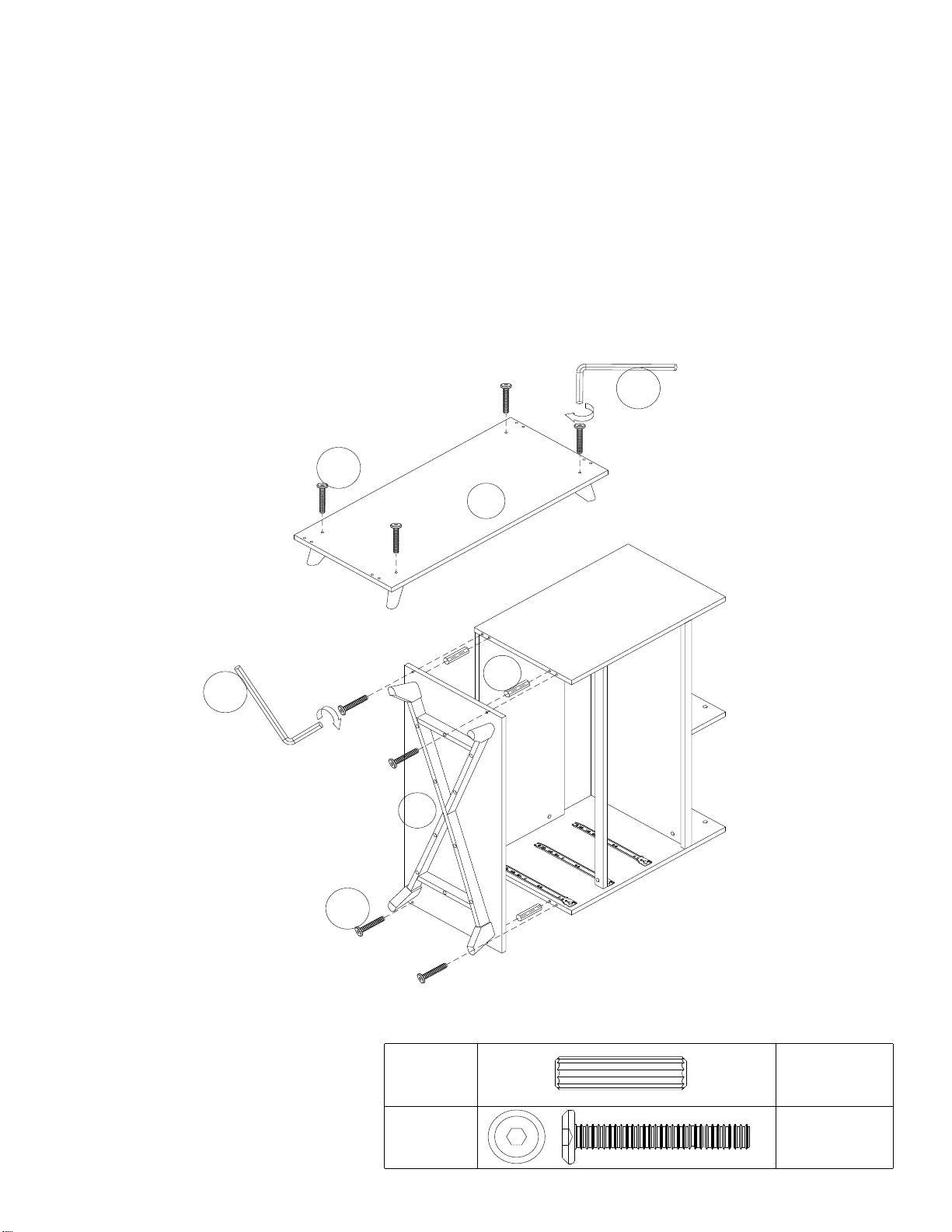

STEP 6
CHEST
DL8417-6
Turn the bottom panel (P) upright. Further secure the base rails (Q & R) to bottom panel (P) with bolts (8) as
shown. Use Allen key (7) to tighten the bolts.
Attach bottom panel (P) to side panels (B & C) with wood dowels (3) and bolts (8) using Allen key (7).
8
3
8 PCS
4 PCS
P
8
P
8
3
7
7

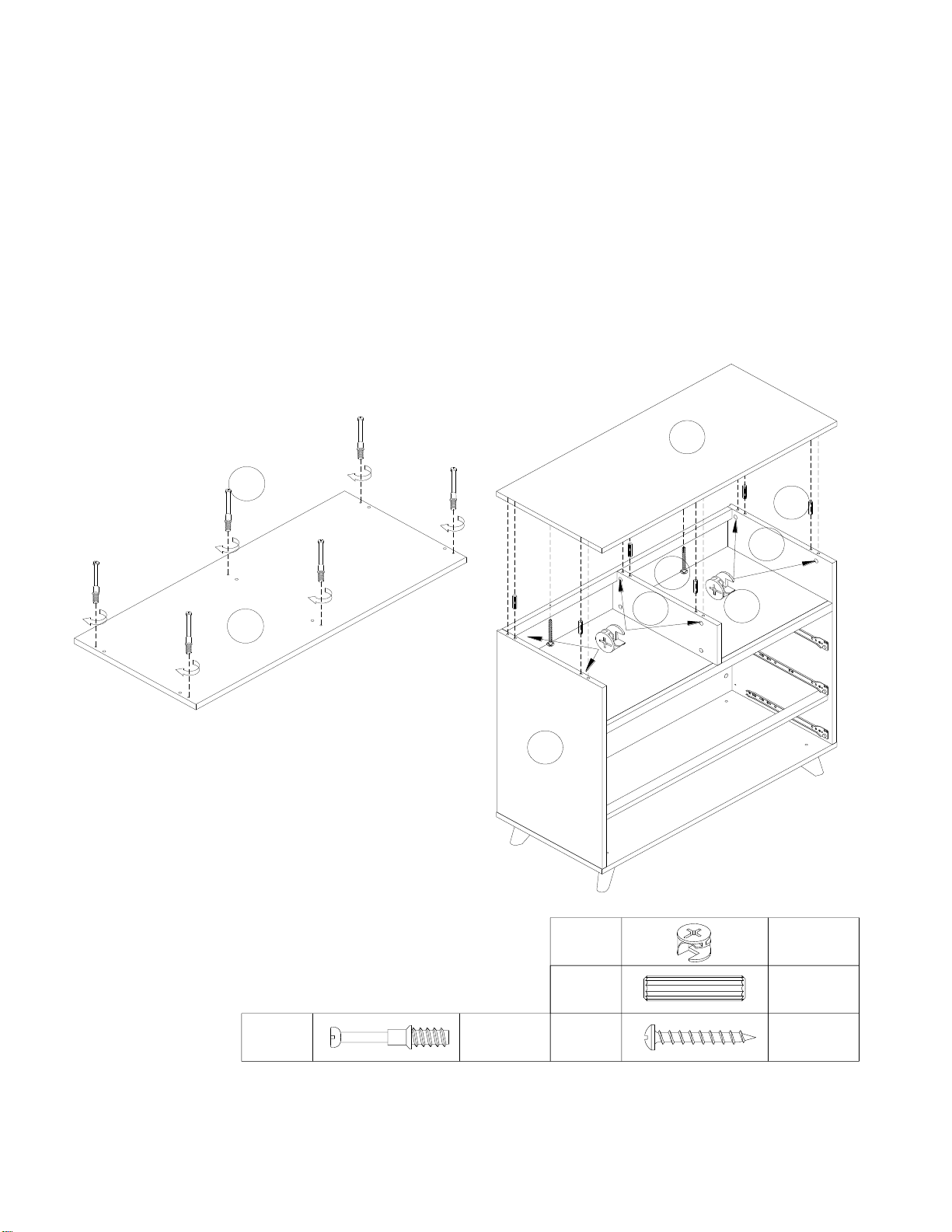

STEP 7
CHEST
DL8417-6
Insert cam bolts (1) into top panel (A) using a Phillips head screwdriver (not included) as shown.
Insert cam locks (2) and wood dowels (3) to the side panels (B & C) and divider (E) as shown.
Secure the top panel (A) to the assembled unit with screws (11) and by rotating the cam locks (2) 1/2
turn clockwise using a Phillips head screwdriver (not included).
2
11
3
B
E
A
C
A
1
6 PCS
12 PCS 11
6 PCS
2
6 PCS
3

STEP 8
CHEST
DL8417-6
Attach back top panel (H) to the assembled unit with screws (14) as shown.
Use a Phillips head screwdriver (not included) to tighten the screws.
14 14 PCS
H
14

STEP 9
Insert cam bolts (4) into the drawer fronts (J) as shown.
Insert wood dowels (6) and cam locks (5) into the drawer left and right sides (K & L) as shown.
Secure the drawer sides (K & L) to drawer fronts (J) by rotating the cam locks (5) 1/2 turn clockwise
using a Phillips head screwdriver (not included).
CHEST
DL8417-6
4
K
J
L
4
S
5
S
6
5
5
S
6
S
J
6
12 PCS
12 PCS
4
S
18 PCS
5

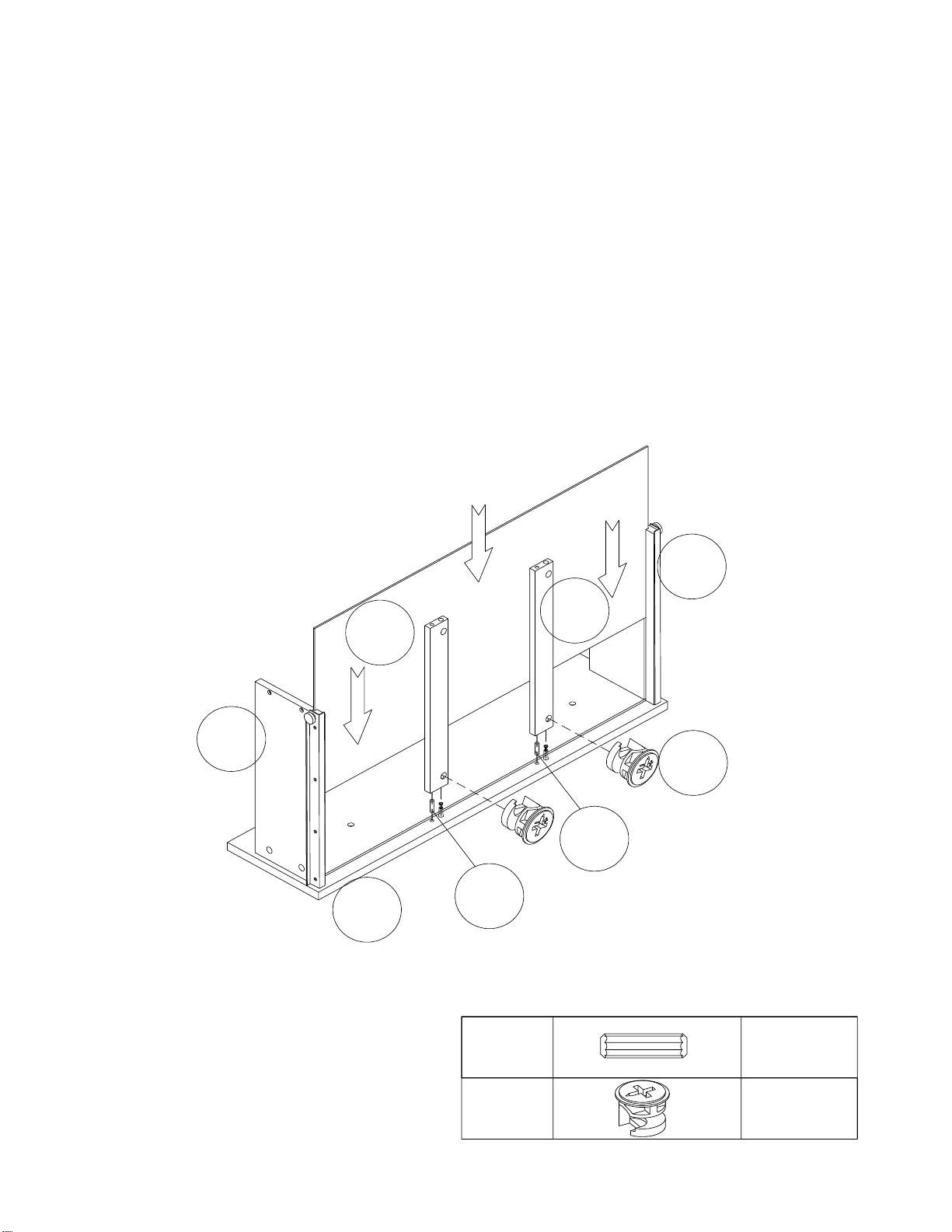

STEP 10
CHEST
DL8417-6
Slide the drawer bottom (N) into the grooves of drawer left and right sides and drawer front.
Insert wood dowels (6) and cam locks (5) into the drawer bottom rails (O) as shown in figure 1.
Secure drawer bottom rails (O) to drawer front by rotating the cam locks (5) 1/2 turn clockwise
using a Phillips head screwdriver (not included).
S
6 PCS
6
5
6 PCS
O
5
L
N
6
K
J6
Figure1

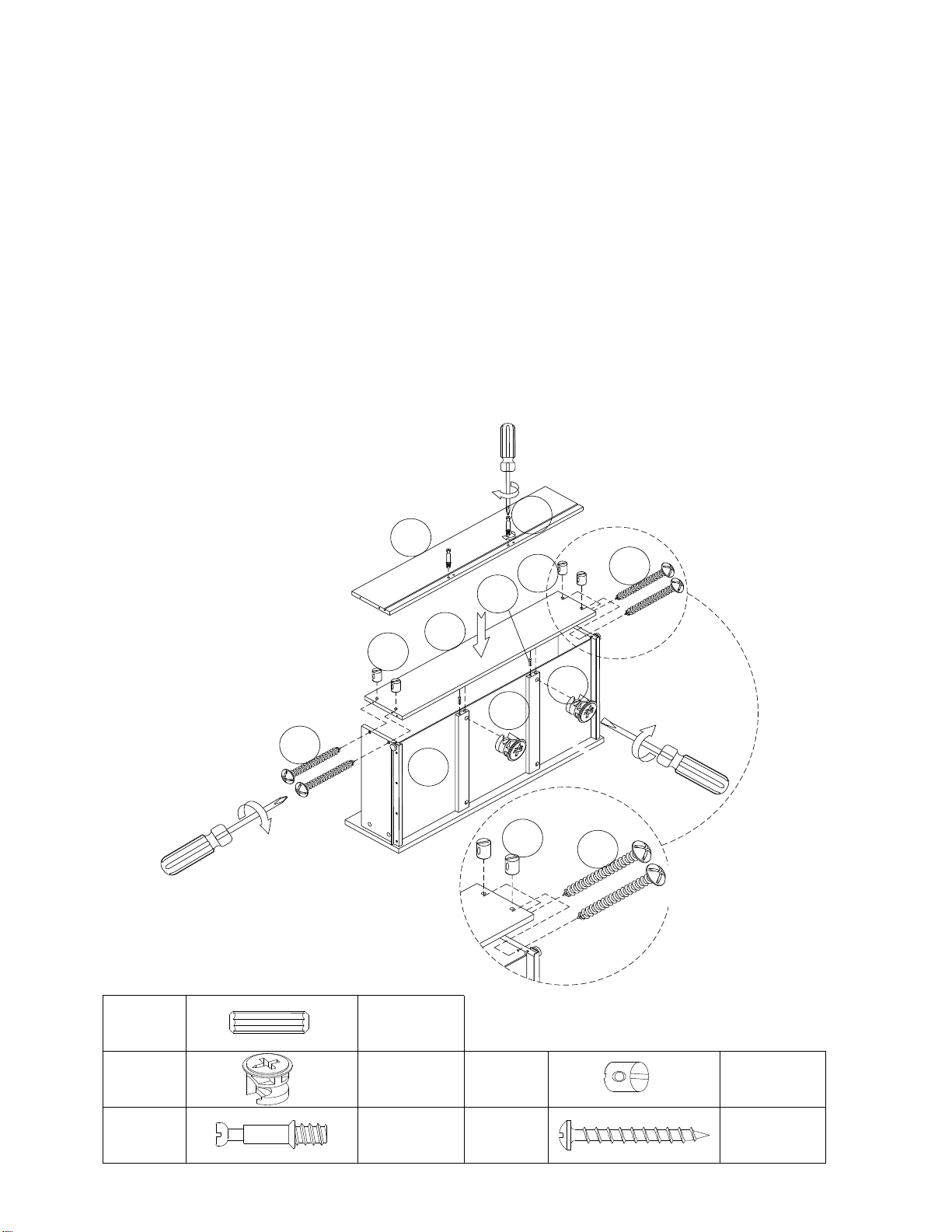

STEP 11
CHEST
DL8417-6
Insert cam bolts (4) into drawer back (M) as shown.
Insert wood dowels (6) and cam locks (5) into the drawer bottom rails (O) as shown.
Attach drawer back (M) to the drawer sides with screws (12) and plastic barrel nuts (13).
Secure
drawer bottom rail (O) to drawer back (M) by rotating the cam locks (5) 1/2 turn clockwise
using a Phillips head screwdriver (not included).
Repeat above steps for other drawers.
6 PCS
S
4
12 PCS
6 PCS 12 PCS
66 PCS
13
12
5
M
* USE FLAT HEAD
SCREWDRIVER (NOT
INCLUDED) TO ALIGN
PLASTIC BARREL
NUT WITH SCREW.
13
13 12
Figure 2
6
4
5
12 O
N
M13 12

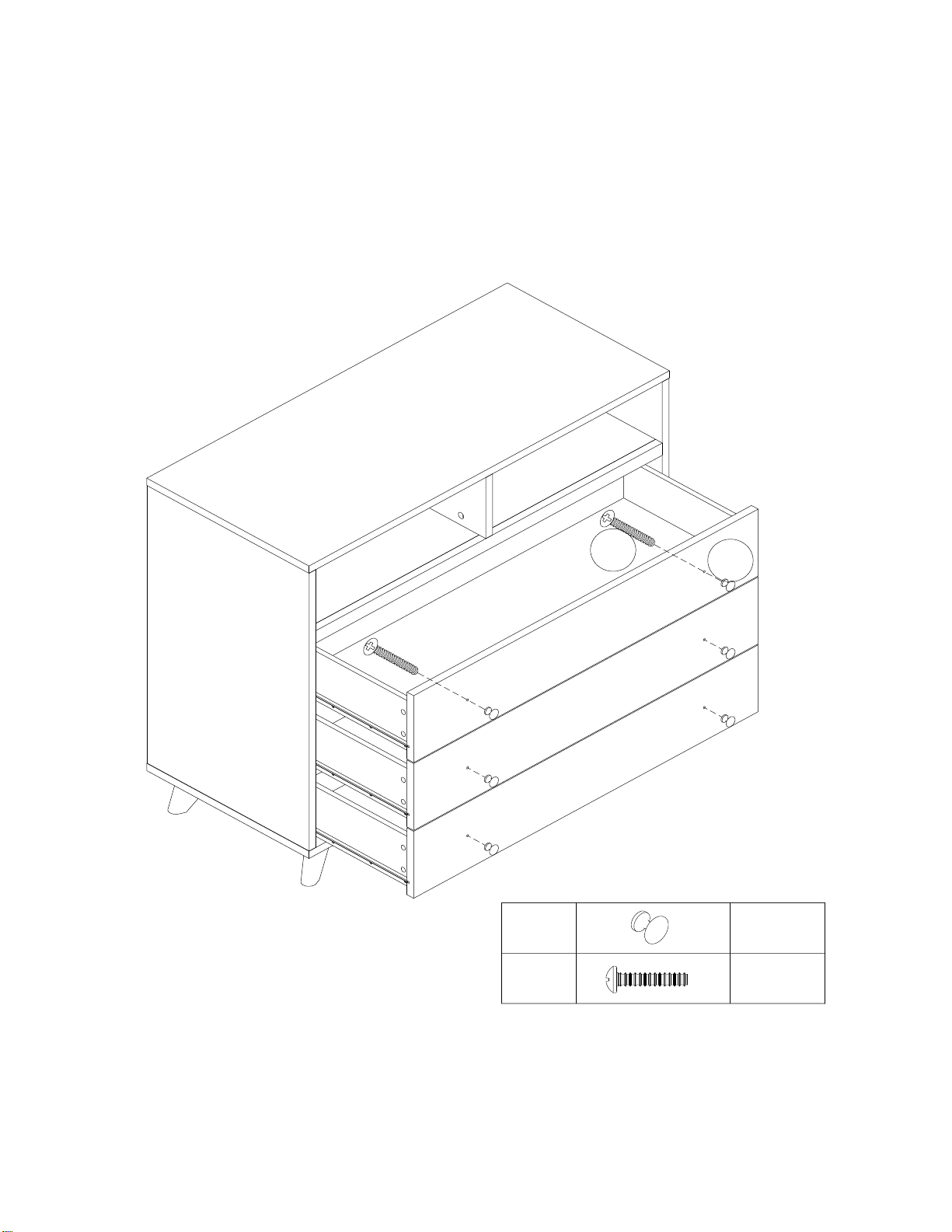

STEP 12
CHEST
DL8417-6
Insert all drawers into the assembled unit.
Attach knobs (10) with bolts (9) using a Phillips head screwdriver (not included).
10
9
6 PCS
10 6 PCS
9

That's it! You've finished assembling your Chest
CHEST
DL8417-6

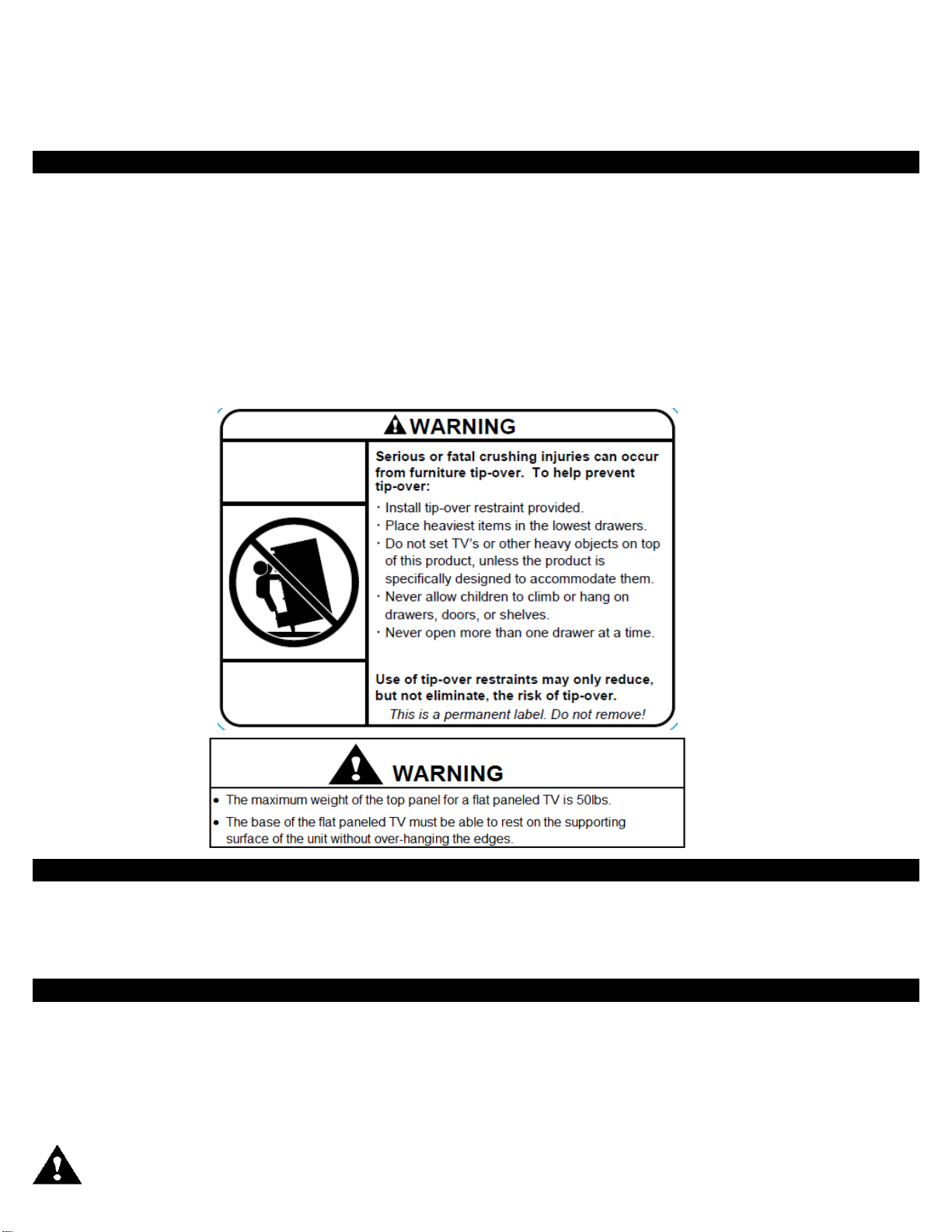

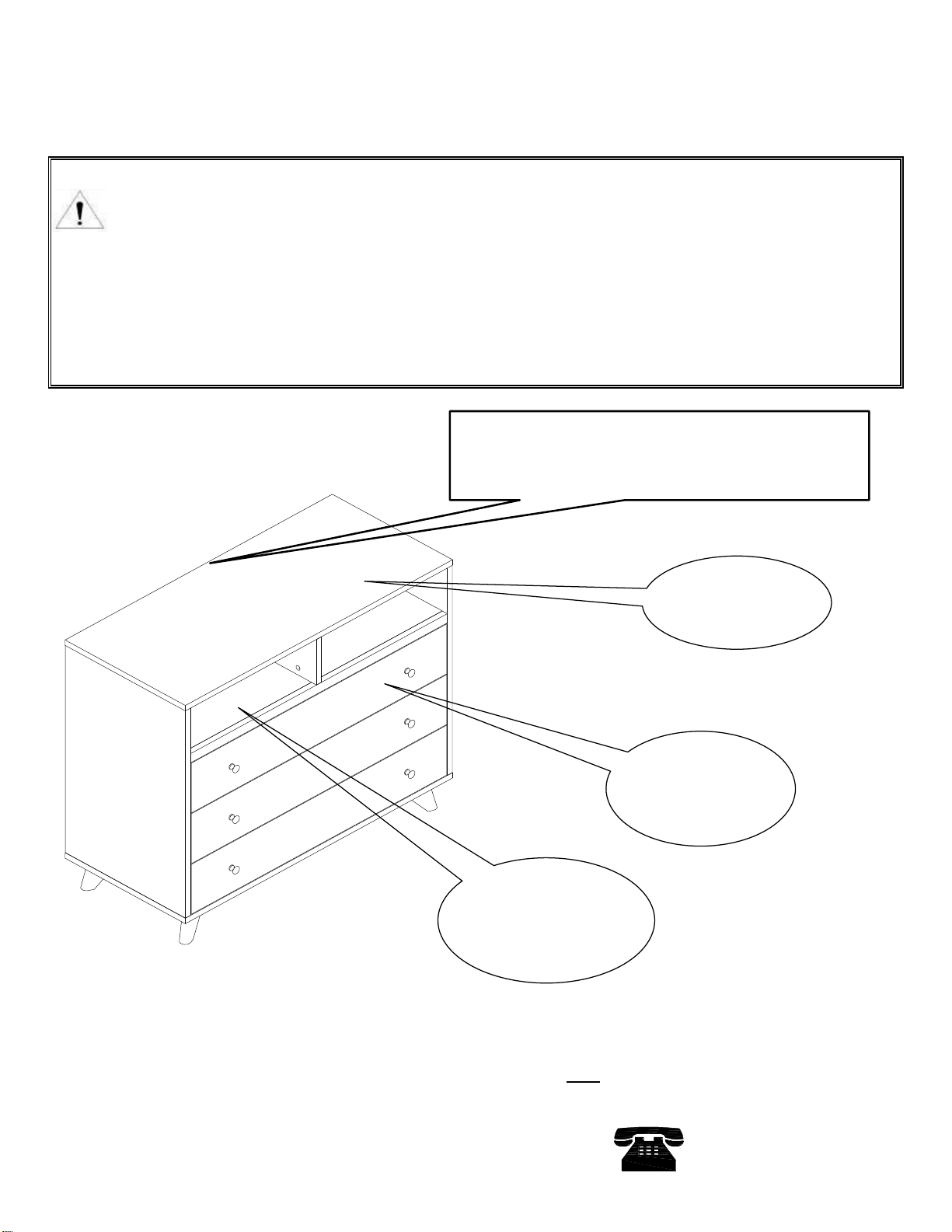

CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
A warning label has been provided with
this unit. This is where we recommend to
place the label on the unit.
DO NOT RETURN PRODUCT TO THE RETAILER
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Top Panel
Maximum
weight 50 lbs.
Maximum
weight for each
drawer
Maximum weight
for each shelf
15 lbs.

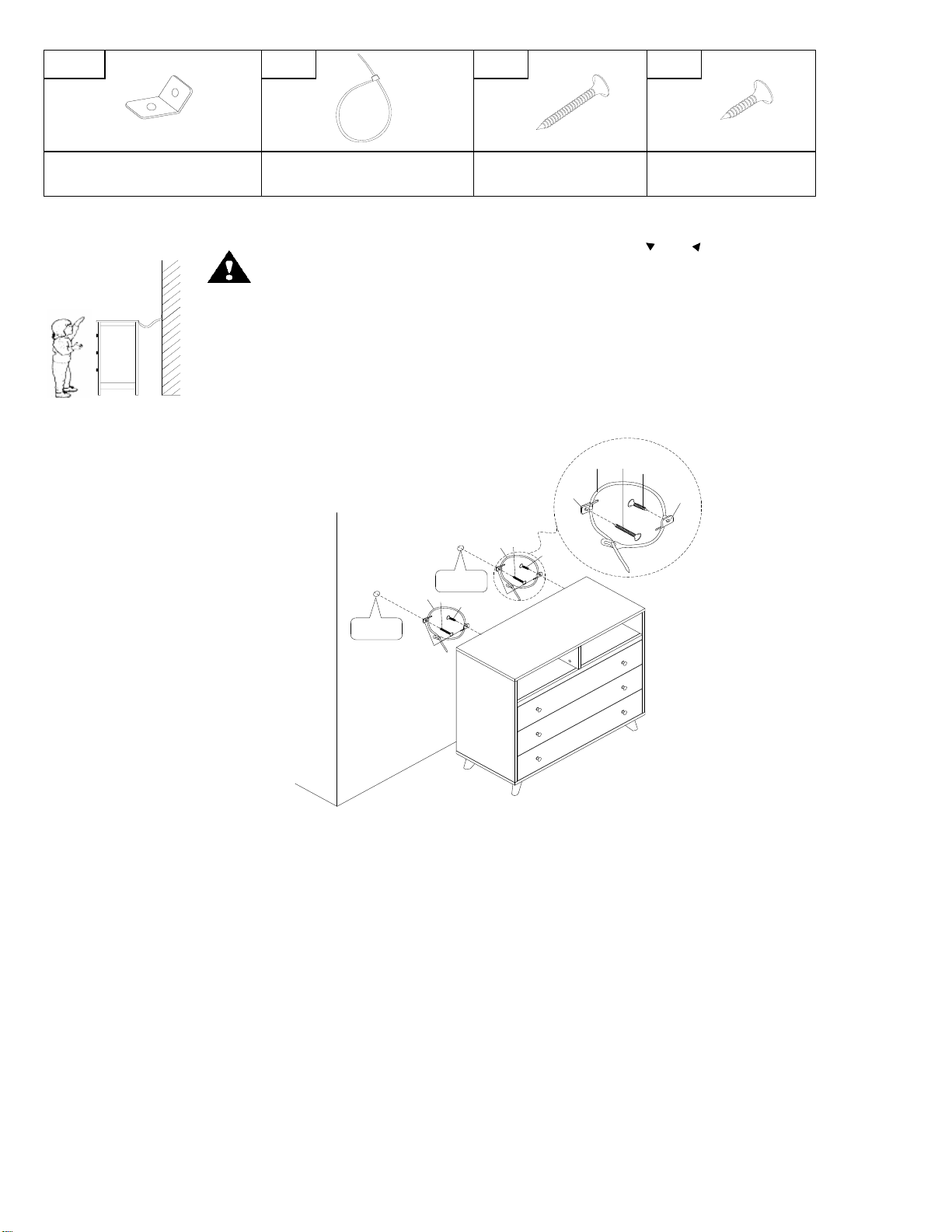

Furniture Wall Safety Strap
A B C D
TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED.
NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE
USING THIS PRODUCT AND KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, PLEASE
CALL OUR CUSTOMER SERVICE NUMBER: 1-800-295-1980.
MOUNTING BRACKET
4 PCS
SAFETY WALL STRAP
2 PCS
LONG SCREW
2 PCS
SHORT SCREW
2 PCS
WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE FURNITURE MAY
TIP OVER. PLEASE INSTALL THE SAFETY WALL STRAP BEHIND THE
FURNITURE TO ENSURE SAFETY.
Step 1:
ATTACH A MOUNTING BRACKET (A) SECURELY TO THE BACK EDGE OF THE FURNITURE USING THE
SHORT SCREW (D), THROUGH THE SMALLER HOLE.
Step 2:
LOCATE THE OTHER MOUNTING BRACKET (A) ON THE WALL OVER A WALL STUD AND 2 INCHES BELOW
THE MOUNTING BRACKET SECURED TO THE BACK OF YOUR UNIT. ATTACH TO THE WALL STUD USING
THE LONG SCREW (C) PROVIDED, THROUGH THE SMALLER HOLE.
Step 3:
PLACE THE FURNITURE INTO POSITION SO BOTH MOUNTING BRACKETS ARE VERTICALLY IN LINE. LACE
THE END OF THE SAFETY WALL STRAP (B) THROUGH THE LARGER HOLE IN EACH MOUNTING BRACKET
(A). BRING BOTH ENDS TOGETHER AND SLIDE THE FLAT END THROUGH THE LOCKING END AND DRAW IT
THROUGH UNTIL ALL SLACK IS REMOVED.
Step 4:
CONFIRM THAT THE STRAP IS SECURELY LACED AND LOCKED.
TO MOVE THE FURNITURE AFTER THE SAFETY WALL STRAP HAS BEEN INSTALLED, SIMPLY
REMOVE THE SCREW FROM THE WALL TO LOOSEN THE SAFETY WALL STRAP.
A
B
B
A
B
HOLE
C
A
C
HOLE
B
A
D
D
BD
C
A
A
B

Modelo No:
DL8417-6
CODIGO UPC
0-65857-19828-7
NOTA:
ESTE MANUAL DE INSTRUCCIONES
CONTIENE INFORMACIÓN DE
SEGURIDAD IMPORTANTE. POR
FAVOR LÉALA Y CONSÉRVELA
PARA REFERENCIA FUTURA.
Numero de lote:
(TOMADO DEL CARTON)
___________________
MANUAL DE INSTRUCCIONES
CÓMODA
Fecha de compra:
_______ / _______ / _______
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de servicio a
la clientela. Reemplazaremos la pieza SIN cargo.
Tel #: [phone]
Correo electrónico: [email protected]

*
*
*
* El destornillador en cruz no está incluido.
*
*
* El armado y la manipulación pueden requerir dos personas.
*Puede acomodar un televisor de pantalla plana de no más de 43 "
*
* El tiempo de armado se estima en 60 minutos.

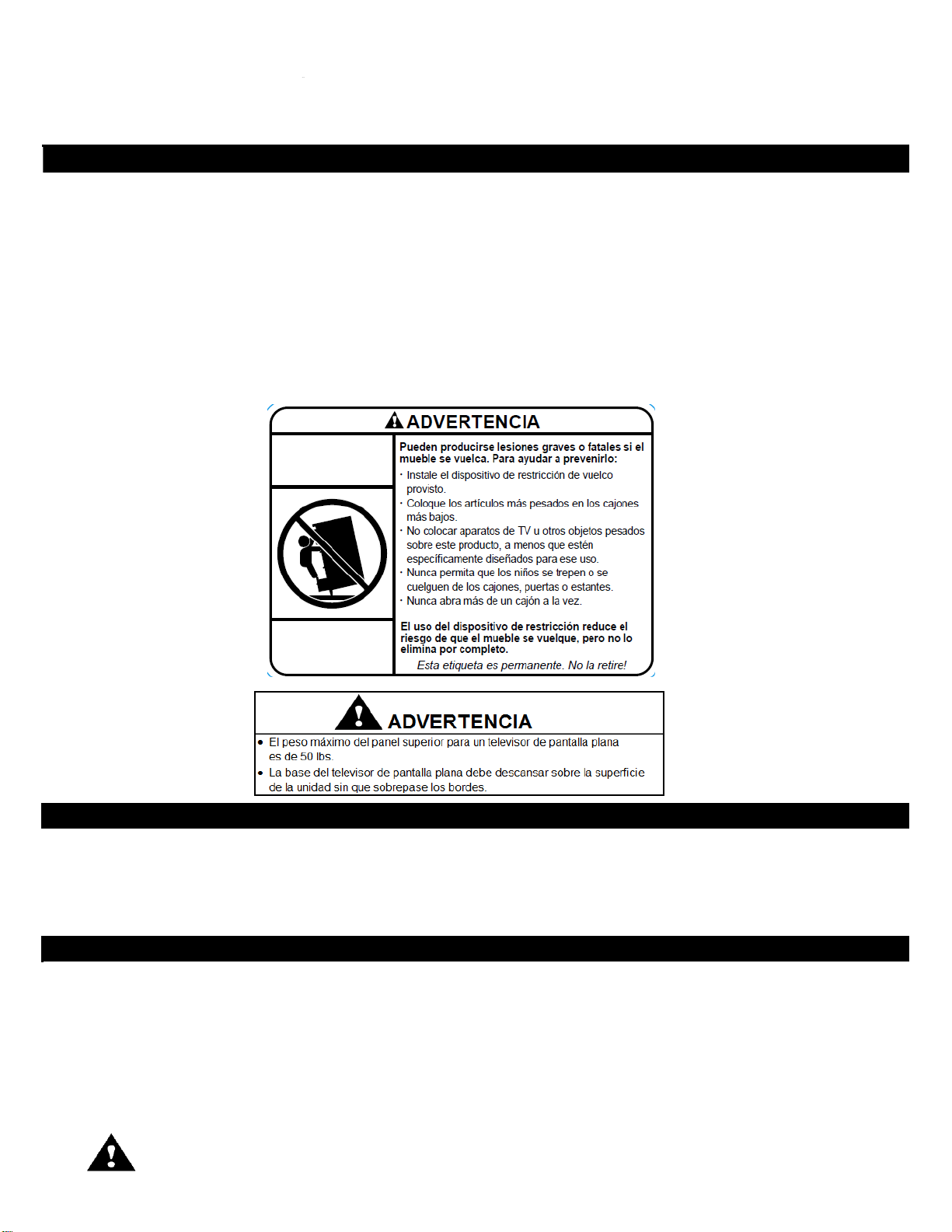

ADVERTENCIA: Si este producto está dañado y/o ciertas piezas
faltan o están rotas, NO LO USE.
Para evitar dañar la superficie, una vez instalados los niveladores, NO arrastrar el mueble para desplazarlo. Asegúrese de
levantarlo.
CUIDADO, LIMPIEZA Y MANTENIMIENTO
Límpiela regularmente con un paño suave para evitar la acumulación de suciedad. Ocasionalmente se puede usar un paño
húmedo para limpiar la superficie. Séquela inmediatamente. No utilice productos abrasivos que puedan dañar la terminación.
Una exposición excesiva a la luz del sol y a cambios extremos de temperatura y humedad puede dañar los muebles de madera.
Verifique las arandelas/tornillos periódicamente y ajústelos si es necesario.
GARANTÍA LIMITADA DE 1 AÑO
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se compromete a remediar cualquier defecto
de este tipo. Esta garantía cubre 1 año a partir de la fecha de compra original. Esta garantía es válida solamente con presentación
de una prueba de compra. Esto se limita a la reparación o reemplazo de componentes defectuosos del mueble y no se incluye
ningún trabajo de ensamblaje. Esta garantía no se aplica a ningún producto que haya sido mal ensamblado, sujeto a mal uso o
abuso, o que haya sido alterado o reparado de cualquier manera. Cualquier uso, rotura o pérdida de color de la tela no están
incluidos en esta garantía (donde corresponda). Esta garantía le da derechos legales específicas y usted puede también tener
otros derechos que varían de estado a estado o de provincia a provincia.
Antes de comenzar a armarla, asegúrese de identificar todas las piezas y componentes
Ensamble sobre una superficie suave, lisa para evitar daños en el acabado del producto.
Utilice la correa de seguridad provista para fijar el mueble a la pared.
NO USE herramientas eléctricas.
PRECAUCIÓN: Requiere ser armado por un adulto.
NOTAS E INSTALACIÓN
SERVICIO AL CLIENTE
También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya el número de modelo del producto, el color y una
descripción detallada de su pregunta.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
