U s e r ’s m a n u a l
( s h o rt f o rm )
NVIP-2DN5001D/IR-1P
NVIP-3DN5001D/IR-1P
NVIP-5DN5001D/IR-1P

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
2
IMPORTANT SAFEGUARDS AND WARNINGS
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with requirements of the following directives and national regulations
implementing the directives:
Electromagnetic compatibility EMC 2004/108/EC.
Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical
equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as
75VDC and 1500VDC.
WEEE Directive 2002/96/EC
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic
Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will
help to prevent potential negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. It shall be handed over to the applicable collection point for used up electrical and
electronic equipment for recycling purpose. For more information about recycling of this product, please contact
your local authorities, your household waste disposal service or the shop where you purchased the product.
RoHS Directive 2002/95/EC
Out of concern for human health protection and friendly environment, we assure that our products
falling under RoHS Directive regulations, regarding the restriction of the use of hazardous
substances in electrical and electronic equipment, have been designed and manufactured in
compliance with the above mentioned regulations. Simultaneously, we claim that our products have
been tested and do not contain hazardous substances whose exceeding limits could have negative
impact on human health or natural environment
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed for self
installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices
during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN
USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES
NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE
CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR
THE RESULTS OF SUCH AN ACTION.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
3
IMPORTANT SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDISPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQEUSTED TO FAMILIARIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER
-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and operating
instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is
necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s
manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,
damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not
recommended since it may lead to heat build-up and damaging the device itself as a consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly
mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted
by qualified personnel with proper authorization, in accordance with this user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with those
specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera
from a power sources with unknown parameters, unstable or not meeting producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions described in the
manual in question may change without further notice. We strongly suggest visiting the www.novuscctv.com
website in order to access the newest manual
Data included in the following user’s manual is up to date at the time of printing. AAT Holding Sp z o.o. holds
exclusive rights to modify this manual. The producer reserves the rights for device specification modification
and change in the design without prior notice.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
4
TABLE OF CONTENTS.....................................................................................................4
1. FOREWORD INFORMATION .....................................................................................5
1.1. General Characteristics........................................................................................5
1.2. Specification .......................................................................................................6
1.3. Camera dimension ..............................................................................................7
1.4. Package contents..................................................................................................7
2. START-UP AND INITIAL IP CAMERA CONFIGURATION .................................8
2.1. Description of connectors and control tools ........................................................8
2.2 Mounting the camera ............................................................................................9
2.3. Focus and zoom adjustment ..............................................................................10
2.4. Starting the IP camera........................................................................................11
2.5. Initial configuration via the Web browser.........................................................12
3. NETWORK CONNECTION VIA WEB BROSWER ...............................................13
3.1. Recommended PC specification for web browser .............................................13
3.2. Connection with IP camera via web browser.....................................................13
4. WWW INTERFACE - WORKING WITH IP CAMERA.........................................15
4.1. Displaying live pictures......................................................................................15
5. ELECTRIC CONNECTORS AND ACCESORIES .................................................17
5.1. Connecting power supply to the camera. ..........................................................17
5.2. Camera control - RS-485....................................................................................17
5.3. Connecting alarm input and output ....................................................................17
5.4. SD card installation ...........................................................................................18
6. RESTORING FACTORY DEFAULTS .....................................................................19
6.1. Restoring factory defaults by software means ...................................................19
6.2. Restoring hardware defaults by hardware means...............................................19
TABLE OF CONTENTS

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
5
1. FOREWORD INFORMATION
1.1. General Characteristics
Imager resolution: 2.0 megapixels (NVIP-2DN5001D/IR-1P)
3.0 megapixels (NVIP-3DN5001D/IR-1P)
5.0 megapixels (NVIP-5DN5001D/IR-1P)
Mechanical IR cut filter
IR operation capability
Min. Illumination from: 0,01 lx/F=1.2 (NVIP-2DN5001D/IR-1P)
0,005 lx/F=1.2 (NVIP-3DN5001D/IR-1P)
0,01 lx/F=1.2 (NVIP-5DN5001D/IR-1P)
Digital Slow Shutter (DSS)
Digital Noise Reduction (DNR)
Lens type: Auto iris DC, f=3,3 ~ 12mm F=1.2
Built-in IR illuminator, 12 LEDs
Privacy zones: 5
Compression: H.264, M-JPEG
Max video processing resolution: 1920 x 1080 (NVIP-2DN5001D/IR-1P)
2048 x 1536 (NVIP-3DN5001D/IR-1P)
2592 x 1944 (NVIP-5DN5001D/IR-1P)
Double streaming: resolution, speed and quality defined individually for each video stream
RTP/RTSP protocol support for video transmission
Pre & post-alarm functions
Hardware motion detection
Built-in webserver: camera configuration through the website
MicroSD/SDHC card support
1 alarm input and 1 alarm output
Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,
saving file on NAS, saving file on SD card
Network protocol support : ONVIF 2.2)/Profile S, HTTP, TCP/IP, IPv4/v6, UDP/IP, RTSP, FTP,
DHCP, NTP, PPoE, SMTP
Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,
playback and remote IP devices administration
Power supply: 12VDC, PoE (Power over Ethernet)
FOREWORD INFORMATION

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
6
1.2. Specification
FOREWORD INFORMATION
NVIP-2DN5001D/IR-1P NVIP-3DN5001D/IR-1P NVIP-5DN5001D/IR-1P
Pick-up Element 2 MPX, CMOS imager, 1/2.8”,
progressive scan 3 MPX, CMOS imager, 1/3”, progressive scan 5 MPX, CMOS imager, 1/2.5”, progressive scan
Number of Effective Pixels 1920 (H) x 1080 (V) 2048 (H) x 1536 (V) 2592 (H) x 1944 (V)
Min. Illumination 0.1 lx/F=1.2 - color mode, 0.01 lx/F=1.2 –color mode DSS,
0 lx - IR on
0.5 lx/F=1.2 - color mode,
0.005 lx/F=1.2 - color mode DSS,
0 lx - IR on
0.5 lx/F=1.2 - color mode,
0.01 lx/F=1.2 - B/W mode DSS,
0 lx - IR on
Digital Slow Shutter (DSS) x 5
Digital Noise Reduction (DNR) Yes
LENS
Type Auto iris DC, f=3.3 ~ 12 mm/F=1.2
Angle of View (H) 85° ~ 35°71° ~ 29°88° ~ 36°
DAY/NIGHT
Type Mechanical IR cut filter
Switching Mode Auto/manual /time set
NETWORK
Stream Resolution
1920 x 1080 (FULL HD),
1280 x 720 (HD ), 720 x 576 (D1)
640 x 480 (VGA), 640 x 360,
352 x 288 (CIF),
320 x 240 (QVGA),
176 x 144 (QCIF)
2048 x 1536 (QXGA),
1920 x 1080 (FULL HD),
1280 x 720 (HD ), 720 x 576 (D1)
640 x 480 (VGA), 640 x 360,
352 x 288 (CIF),
320 x 240 (QVGA),
176 x 144 (QCIF)
2592 x 1944, 2048 x 1536,
1920 x 1080 (FULL HD),
1280 x 720 (HD ), 720 x 576 (D1)
640 x 480 (VGA), 640 x 360,
352 x 288 (CIF),
320 x 240 (QVGA),
176 x 144 (QCIF)
Frame Rate 30 fps for 1920 x 1080 and lower
resolutions
20 fps for 2048 x 1536,
30 fps for 1920 x 1080 and lower
resolutions
10 fps dla 2592 x 1944,
20 fps for 2048 x 1536,
30 fps for 1920 x 1080 and lower
resolutions
Multistreaming Mode 2 streams
Video/Audio Compression H.264, MPEG4, M-JPEG/G.711, µ-LAW
Network Protocols Support ONVIF (2.2)/Profile S, HTTP, TCP/IP, UDP, FTP, DHCP, NTP, RTSP, RTP, SMTP
PC Software NOVUS NMS, Internet Explorer
OTHER FUNCTIONS
OSD IE browser, Polish, English, Russian, other
Privacy Zones 5
Motion Detection Yes
Prealarm/Postalarm 5 MB / 86400 s
System Reaction to Alarm Events E-mail, saving file on FTP server, saving file on NAS, saving file to SD card, output activation
IR LED
Number 12
Range 20 m
Angle 120°
INTERFACES
Video Output RCA, 1.0 Vp-p, 75 Ohm - maintenance only
Audio Input/Output 1 x RCA/1 x RCA
Alarm Input/Output 1/1
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
INSTALLATION PARAMETERS
Dimensions (mm) 130 (Ø) x 112 (H)
Weight 550 g
Enclosure Plastic, white
Power Supply PoE, 12 VDC
Power Consumption 5W, 12,5W (IR on)
Operating Temperature -10°C ~ 55°C

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
7
FOREWORD INFORMATION

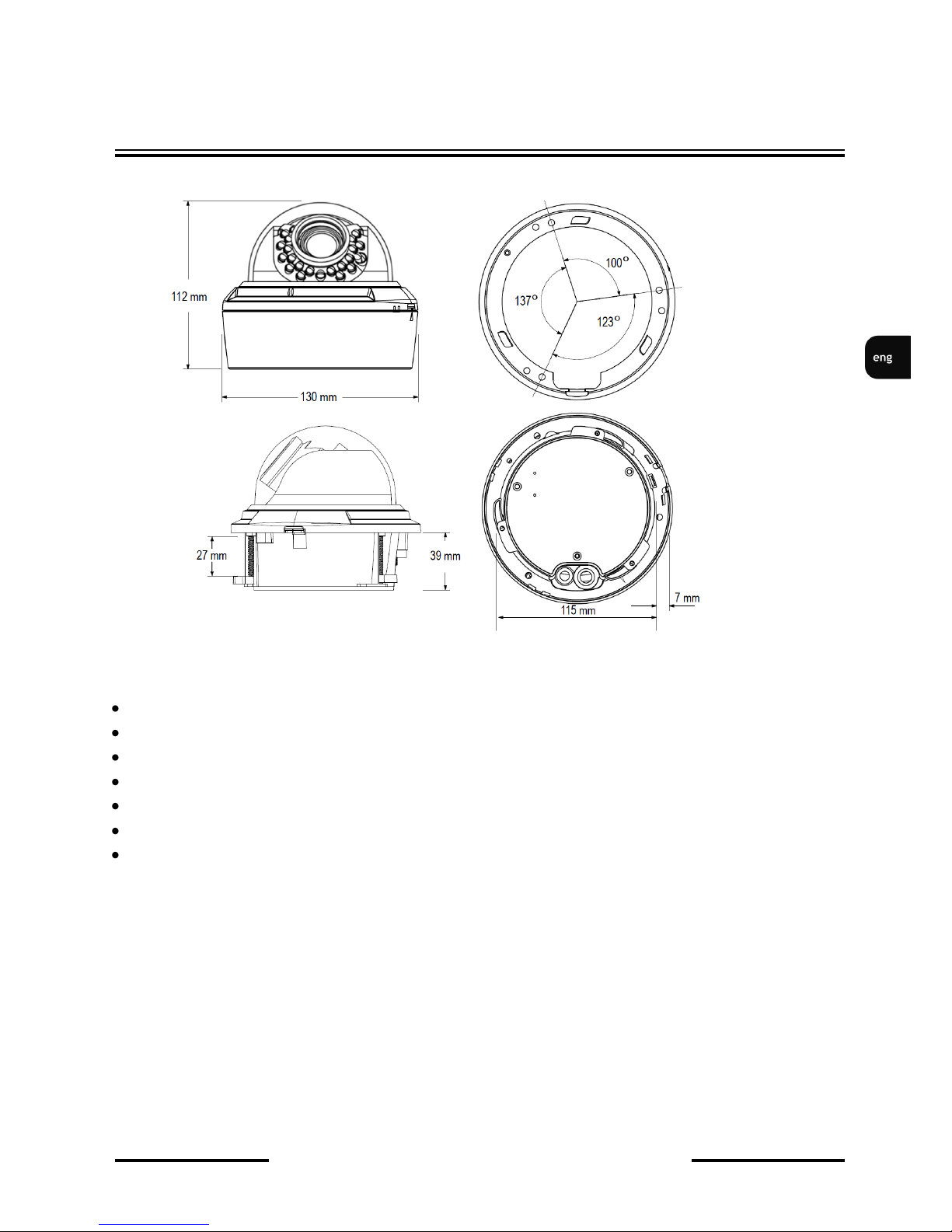

1.3. Camera dimensions
1.4. Package contents
After you open the package make sure that the following elements are inside:
IP camera
Accessories bag
RJ-45 Coupler
BNC Test Cable
Short version of user’s manual
CD containing manual and software
Mounting template
If any of these have been damaged during transport, pack all the elements back into the original box
and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches
the temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular in-
puts, outputs and adjusting elements that the device is equipped with.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
8
1.4. Package contents
After you open the package make sure that the following elements are inside:
IP camera
230 VAC / 12 VDC power supply
Accessories bag
Short version of user’s manual
CD containing manual and software
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2. START-UP AND INITIAL IP CAMERA CONFIGURATION
2.1. Description of connectors and control tools
START-UP AND INITIAL CAMERA CONFIGURATION
1
5
2
3
4
6
7
8
9
10
12 11
Cable overview with connectors description:
1. Audio input (RCA)
2. Audio output (RCA)
3. Power supply 12VDC
4. 100 Mb/s Ethernet port (RJ-45 connector)
5. Alarm COM0 (orange)
6. Alarm IN0 (yellow)
7. Alarm OUT1 (grey)
8. Alarm COM1 (purple)
9. RS485 RX+ (brown) - function unavailable
10. RS485 RX- (white) - function unavailable
11. RS485 TX+ (blue) - function unavailable
12. RS485 RX- (white-black) - function unavailable
1. Lens 6. Focus
2. IR LED 7. BNC analog output - maintenance only
3. MicroSD card slot 8. Reset button
4. Light sensor 9. Microphone
5. Zoom
9
8
7
6
5
4
3
21

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
9
2.2. Camera mounting
1. Press down on the tab marked with an arrow to lift up the dome cover slightly. While pressing on
tab, twist the dome cover counter clockwise just a few degrees to release dome cover from back clips.
Lift off the cover.
There are three ways to mount camera:
Method 1: Direct Attach Install
2a. Use the included mounting template or the camera to mark holes for
the mounting screws.
3a. Drill holes in marked places.
4a. Use 3 pieces of M3x72 screws to mount the camera directly to the
mounting surface.
Method 2: Camera Base Install
2b. Use the included mounting template to mark holes for the
mounting screws.
3b. Drill holes in marked places.
4b. Remove the camera base by unscrewing the 3 base
locking screws, and turn camera module approx. 5
degrees counterclockwise to detach camera base from
the camera module.
5b. Install the base to the correct holes as indicated on the mount template using the M4x32 screws.
6b. Mount camera base and screw 3 base locking screws.
Method 3:
2c. Cut mounting hole into surface using provided mount cut-out template.
3c. Insert camera into cutout. Make sure that the mounting arms are not
extended.
4c. Turn screwdriver clockwise to move mounting arms down until they
make contact with inner mounting surface.
7. Re-attach the camera cover, until it snaps into place.
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
10

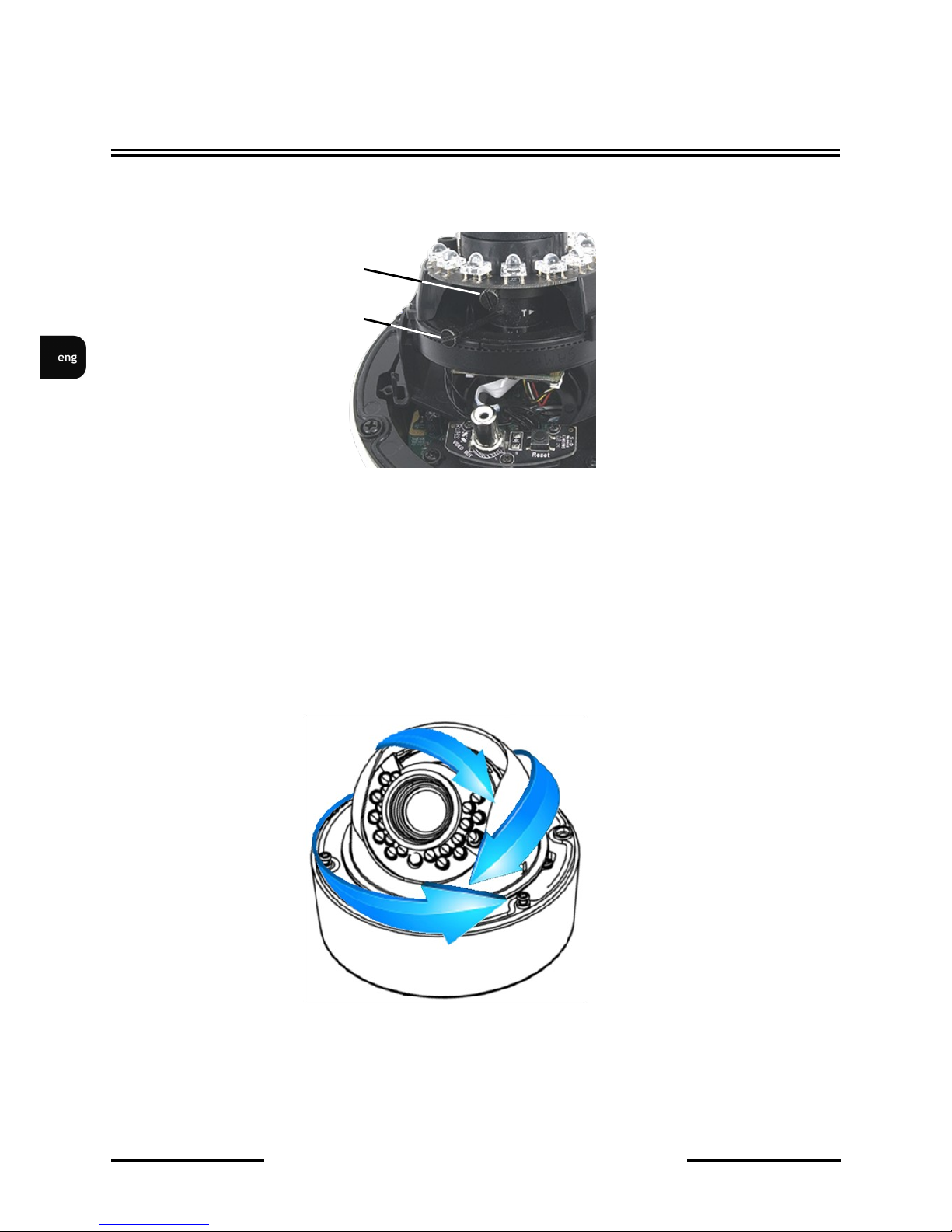

2.3 Zoom and focus adjustment
1. Press down on the tab marked with an arrow to lift up the dome cover slightly. While pressing on
tab, twist the dome cover counter clockwise just a few degrees to release dome cover from back
clips. Lift off the cover.
2. Adjust zoom and focus.
3. Re-attach the camera cover, until it snaps into place.
Camera module is placed on a mount allowing 3-axis module position adjustment.
WARNING!
Please pay attention to wires connecting camera module with camera body, while you are
adjusting camera module position.
START-UP AND INITIAL CAMERA CONFIGURATION
Zoom
Focus

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
11
2.4. Starting the IP camera
To run NOVUS IP camera you have to connect ethernet cable between camera and network switch
with PoE support (IEEE 802.3af).
You can also connect it directly via power supply adapter with parameters compatible with camera
power supply specification.
After connecting power supply initialization process is started, which takes about 2 minutes.
The recommended way to start an IP camera and perform its configuration is connect directly to the
network switch which is not connected to other devices. To obtain further information about network
configuration parameters (IP address, gateway, network mask, etc.) please contact your network
administrator.
Network connection using switch with PoE support.
Network connection using switch and external power supply.
START-UP AND INITIAL CAMERA CONFIGURATION
Power supply and
network transmission
ComputerIP Camera Network Switch
PoE
Network transmission
IP Camera
Network transmission
Network Switch Computer
Network transmission

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
12

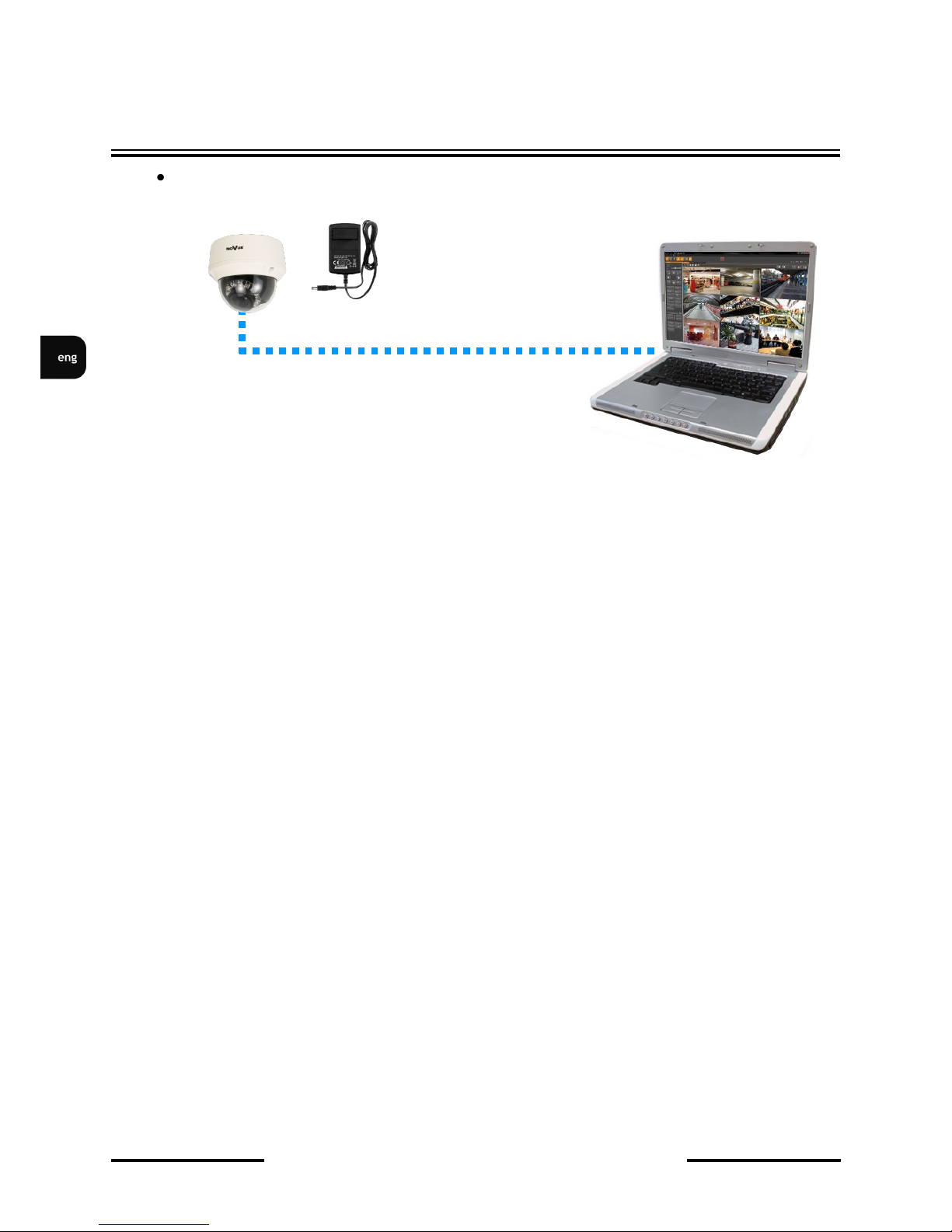

Network connection using external power supply, directly to the computer.
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user’s
manual.
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
2.5. Initial configuration via the web browser
The default network settings for NVIP-… IP camera series are :
1. IP address= 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to set PC IP address appropriately, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera is from
range 192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same
addresses for camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CAMERA CONFIGURATION
IP Camera
Network transmission - cross over cable
Computer

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
13
NETWORK CONNECTION VIA WEB BROWSER
3. NETWORK CONNECTION VIA WEB BROSWER
3.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming image display in 1920x1080
resolution and 25 fps speed.
1. CPU Intel Pentium IV 3 GHz or newer
2. RAM Memory min. 512 MB
3. VGA card (any displaying Direct 3D with min. 128 MB RAM memory)
4. OS Windows XP / Windows Vista / Windows 7 / Windows 8
5. Direct X version 9.0 or newer
6. Network card 10/100/1000 Mb/s
3.2. Connection with IP camera via the web browser
You have to enter camera IP address in the Internet browser address bar. If IP address is correct user
login window will be displayed:
Default user is root and default password is pass.
In the Language box you can change the display language (English, Polish or Russian). The default
language is English.
For safety reasons, it is recommended to change default user name and password.
It is possible to connect to the camera using Internet Explorer, Mozilla Firefox, Chrome or Opera
browsers. Running the IP camera in this browsers are very similar.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
14
NETWORK CONNECTION VIA WEB BROWSER
If your computer has Flash Player ins t a ll ed, the main screen for the camera web interface opens.
From here you can view and configure the ca m e ra .
NOTE: If your computer does not have Flash Player ins t a ll ed, you will be prompted t o select if y o u
would like t o use Activ eX or Flash Play er t o connect to the ca m e ra:
Click Click here to shift playing life video with short delay widget! to play live video with ActiveX
control to reduce latency (recommended): Uses an ActiveX plug-in to connect to the camera. To
install the plug-in, click on the video area, and select Install this Add-on for all users on this
computer, and follow the prompts.
NOTE: Please open the Security settings of IE browser, and enable the Download unsigned
ActiveX controls.
Click Please download the latest version of Flash Player to play live video: Opens a link to
download Flash Player from Adobe’s website. After completing the installation, restart your
browser and reconnect to the camera.
NOTE: When working in Windows Vista/7/8 the ActiveX applet may be blocked by Windows
Defender or User account control. In such case you should allow to run this applet, or simply disable
these functions.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
15
NETWORK CONNECTION VIA WEB BROWSER
NOTE: If you are running Windows Vista/7/8 with Internet Explorer 11, the ActiveX applet can be
blocked through browser security settings. In this situation, you should: add the IP address of the ca-
mera to the view of compatibility (Tools -> Compatibility View Settings, click Add).
Then, in the security settings options, add the camera address to trusted sites and lower the security
level to a minimum.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
16
NETWORK CONNECTION VIA WEB BROWSER
After making the changes, restart the browser, re-connect to the camera and log on.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
17
4. WWW INTERFACE - WORKING WITH IP CAMERA

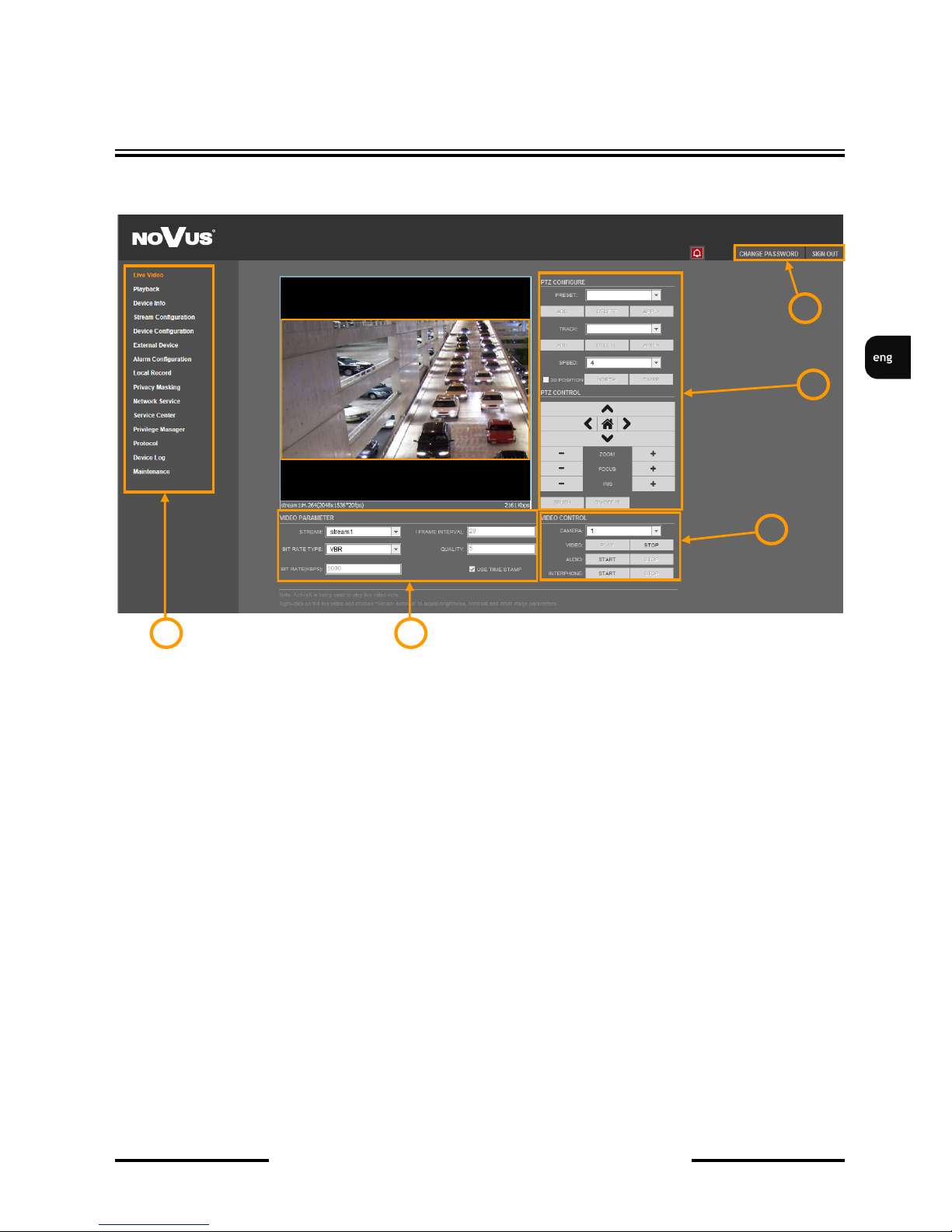

4.1. Displaying live pictures
1. Camera settings
Live Video - Live video preview
Playback - Local recordings playback
Device Info - Device information
Stream Configuration - Video and audio settings for each stream
Device Configuration - Device configuration (e.g. Local Network, Date&Time)
External Device - External device configuration (function unavailable)
Alarm Configuration - Alarm Configuration (Motion alarm, Alarm I/O)
Local Record - Local Record Configuration
Privacy Masking - Configuration up to 5 privacy masks
Network Service - Network services configuration (e.g. DDNS)
Service Center - Service center configuration (e.g. SMTP)
Privilege Manager - Users and groups management
Protocol - Protocols settings (e.g. ONVIF)
Device Log - Device Log contains: Operation Log, Alarm Log and Collect Log
Maintenance - Device Restart and restoring Default Settings
WWW INTERFACE - WORKING WITH IP CAMERA
3.
4.
1. 2.
5.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
18
WWW INTERFACE - WORKING WITH IP CAMERA
2. Video Parameter
Stream - Stream ID (choose one from available streams)
Bite Rate Type - Information about bit rate type
Bit Rate (kbps) - Information about bit rate
I Frame Interval - Information about I frame interval
Quality - Information about quality
USE TIME STAMP - Video buffer (increases delay when enabled, maximum delay is 5s)
NOTICE: USE TIME STAMP function will not be available when using Flash instead of Activex.
3. Camera Control
Function unavailable.
4. Menu bar
Change Password - Change users password
NOTICE: Default password "pass" can be restored only after restoring default settings of the camera)
Sign Out - Log out from camera
5. Video Control
Camera - Default number of the camera is 1.
Video - Turn on/off video
Audio - Turn on/off audio
Interphone - Turn on/off Interphone
NOTICE: Audio and Interphone functions will not be available when using Flash instead of Activex.

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
19
5. ELECTRIC CONNECTORS AND ACCESORIES
5.1. Connecting power supply to the camera.
Camera can be supplied using external power supply unit corresponding with the camera parameters or
by using RJ45 network socket and PoE (IEEE 802.3af) power supply unit.
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user’s
manual.
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
5.2. Camera control - RS-485
Function unavailable.
5.3. Connecting alarm inputs/outputs.
Alarm input
Camera activates alarm only when alarm input receives 12VDC.
Alarm input connection
WARNING!
Please pay attention to proper polarization while you are connecting alarm input.
ELECTRIC CONNECTORS AND ACCESORIES
Alarm
input (-)
Alarm COM0
(orange)
IP Camera
Alarm
input (+)
Alarm IN0
(yellow)
Switch/sensor
Input
power
supply
12VDC
_ +

NVIP-2DN5001D/IR-1P, NVIP-3DN5001D/IR-1P, NVIP-5DN5001D/IR-1P User’s manual
(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
20
Alarm output
Camera alarm output is an relay output type.
Alarm output relay maximum load: 12 VDC / 300mA.
Alarm output electric connections
5.4 SD card installation
Camera supports microSD/SDHC cards up to a maximum size of 64GB. SanDisk™ or Kingston™
brand microSD/SDHC cards are recommended. In order to install the card properly, please follow the
instructions below:
Turn the camera off
Press down on the tab marked with an arrow to lift up the dome cover slightly. While pressing on
tab, twist the dome cover counter clockwise just a few degrees to release dome cover from back
clips. Lift off the cover.
Mount SD card in the socket located at the camera’s base, according to the picture:
Re-attach the camera cover, until it snaps into place.
Turn the camera on
Check the SD card by checking its capacity in the Local Record -> Record Directory tab.
ELECTRIC CONNECTORS AND ACCESORIES
Alarm
Output (-)
Alarm COM1
(purple)
Alarm
Output (+)
Alarm OUT1
(grey)
Indicator
power
supply
Indicator
IP Camera
SD card slot
