Novus NVIP-4DN2001H/IR-1P User manual

U ser’s manual
( short form)
NVIP-4DN2001H/IR-1P

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
2
IMPORTANT SAFEGUARDS AND WARNINGS
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with requirements of the following directives
and national regulations implementing the directives:
 Electromagnetic compatibility EMC 2004/108/EC.
 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to
electrical equipment designed for use with a voltage rating of between 50VAC and
1000VAC as well as 75VDC and 1500VDC.
WEEE Directive 2012/19/UE
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste
Electrical and Electronic Equipment (2002/96/EC) and further amendments. By ensuring
this product is disposed of correctly, you will help to prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. It shall be handed over to the applicable collection point for
used up electrical and electronic equipment for recycling purpose. For more information about
recycling of this product, please contact your local authorities, your household waste disposal service
or the shop where you purchased the product.
RoHS Directive 2011/65/UE
Information concerning the restriction of use of hazardous substances in electrical electronic
equipment.
Out of concern for human health protection and friendly environment, we assure that our
products falling under RoHS Directive regulations, regarding the restriction of the use of
hazardous substances in electrical and electronic equipment, have been designed and
manufactured in compliance with the above mentioned regulations. Simultaneously, we
claim that our products have been tested and do not contain hazardous substances whose
exceeding limits could have negative impact on human health or natural environment
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed
for self installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other
devices during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING
THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
3
IMPORTANT SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS SHORT MANUAL IS AN INDESPENSIBLE CONDITION OF A
PROPER DEVICE ISTALLATION AND CONFIGURATION. YOU ARE KINDLY REQUSTED TO
FAMILIRIZE YOURSELF WITH THE FULL USER MANUAL PRIOR TO FURTHER DEVICE
EXPLOATATION. FULL USER MANUAL IS AVAILABLE ON www.novus.com/en
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO
USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE
PERSONNEL MAY OPEN THE UNIT.
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,
bath tubs, damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)
is not recommended since it may lead to heat build-up and damaging the device itself as a
consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to
supply the camera from a power sources with unknown parameters, unstable or not meeting
producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions
described in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest manual

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
4
TABLE OF CONTENTS.................................................................................................4
1. FOREWORD INFORMATION..................................................................................5
1.1. General characteristics .....................................................................................5
1.2. Technical specification ....................................................................................6
1.3. Camera dimension ...........................................................................................7
1.4. Package contents..............................................................................................7
2. START-UP AND INITIAL IP CAMERA CONFIGURATION ................................8
2.1. Description of connectors.................................................................................8
2.2. Connecting ethernet cable ................................................................................8
2.3. Camera mounting.............................................................................................9
2.4. Starting the IP camera ....................................................................................10
2.5. Initial configuration via web browser .............................................................11
3. NETWORK CONNECTION UTILIZING WEB BROSWER ...............................12
3.1. Recommended PC specification for web browser............................................12
3.2. Connection with IP camera via web browser...................................................12
4. USING AND CONFIGURING..................................................................................14
4.1. Remote Preview Interface. ..............................................................................14
5. ELECTRIC CONNECTORS ..................................................................................16
5.1. Connecting power supply to the camera. ........................................................16
6. RESTORING FACTORY DEFAULTS ..................................................................16
6.1. Restore factory defaults via web browser ........................................................16
TABLE OF CONTENTS

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
5
1. FOREWORD INFORMATION
1.1. General Characteristics
 Imager resolution: 4 megapixels
 Mechanical IR cut filter, IR operation capability
 Min. Illumination from 0 lx with IR LED on
 Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions
 Digital Noise Reduction (DNR)
 Lens type: standard, f=2.8mm/F=2.1
 Built-in LED illuminator: 18 pcs LED
 Compression: H.264/H265
 Max video processing resolution: 2592x1520
 Multi streaming: three independently configurable streams
 Stream parameters: compression, resolution, speed and quality defined individually for each
video stream
 RTP/RTSP protocol support for video transmission
 Hardware motion detection
 Hardware sabotage detection (lens shade)
 Built-in webserver: camera configuration through the website
 Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server
 Advanced image analysis functions: Perimeter Intrusion Detection, Line Crossing Detection,
Stationary Object Detection
 Four privacy zones
 Eight definable Region of Interest
 Power supply: 12VDC, PoE (Power over Ethernet 802.3af)
Information
Depending on the type of recorder/registration system, the range of features and options may vary. Full
list of camera functionality available from a given type of recorder is included in the instruction manual
on www.novus.com/en
FOREWORD INFORMATION

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
6
1.2. Technical specification
FOREWORD INFORMATION
Image Sensor 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels 2592 (H) x 1520 (V)
Min. Illumination 0.15 lx/F2.1 - color mode, 0 lx (IR on) - B/W mode
Electronic Shutter auto/manual: 1/5 s ~ 1/20000 s
Digital Slow Shutter (DSS) up to 1/5 s
Wide Dynamic Range (WDR) yes (double scan sensor) , 90dB
Digital Noise Reduction (DNR) 3D
Defog Function (F-DNR) yes
LENS
Lens Type standard, f=2.8 mm/F2.1
DAY/NIGHT
Switching Type mechanical IR cut filter
Switching Mode auto, manual
Switching Delay 1 ~ 36 s
Visible Light Sensor yes
NETWORK
Stream Resolution
2592 x 1520, 2304 x 1296, 2048 x 1520, 1920 x 1080 (Full HD),
1280 x 960, 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA),
320 x 240 (QVGA)
Frame Rate 20 fps for 2592 x 1520, 30 fps for 2048 x 1520 and lower
resolutions
Multistreaming Mode 3 streams
Video/Audio Compression H.264, H.265/-
Number of Simultaneous Connections max. 10
Bandwidth 63 Mb/s in total
Network Protocols Support HTTP, TCP/IP, IPv4, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP,
UPnP, SMTP
ONVIF Protocol Support Profile S (ONVIF 2.6)
Camera Configuration from Internet Explorer, Firefox, browser
languages: Polish, English, Russian, and others
Compatible Software NMS
OTHER FUNCTIONS
Privacy Zones 4
Motion Detection yes
Region of interest (ROI) 8
Video Content Analysis (VCA)
tamper detection, abandoned object detection, object
disappearance detection, line cross detection, zone entrance
detection
Image Processing 90˚ image rotation, 180˚ image rotation, mirror effect, corridor
mode
System Reaction to Alarm Events e-mail with attachment, saving file on FTP server
IR LED
LED Number 18
Range 30 m
INTERFACES
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
INSTALLATION PARAMETERS
Dimensions (mm) with bracket: 69 (Ф) x 139 (L)
Weight 0.4 kg
Degree of Protection IP 66
Enclosure aluminium, white, fully cable manged wall mount bracket in-set
included
Power Supply PoE, 12 VDC
Power Consumption 2 W, 5 W (IR on)
Operating Temperature -35°C ~ 60°C

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
7
FOREWORD INFORMATION
1.3. Camera dimensions
Camera NVIP-4DN2001H/IR-1P
Dimensions in the drawing are given in millimeters
1.4. Package contents
After you open the package make sure that the following elements are inside:
 IP camera
 Accessories bag
 Short version of user’s manual
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches
the temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
8
1.4. Package contents
After you open the package make sure that the following elements are inside:
 IP camera
 230 VAC / 12 VDC power supply
 Accessories bag
 Short version of user’s manual
 CD containing manual and software
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2. START-UP AND INITIAL CAMERA CONFIGURATION
2.1. Description of connectors
1. Power supply 12VDC
2. 100 Mb/s Ethernet port (RJ-45 hermetic connector)
2.2. Connecting ethernet cable
To maintain tightness of ethernet cable connection, please follow instruction below:
1. Unscrew the nut (b) from the connector cover (a), mount the sealing ring on the socket (c)
2. Route the network cable through the components (a) and (b). Plug the RJ-45 connector into the
socket (c)
3. Screw the connector cover (a) on the socket (c). Inside the upper part of the connector cover (a) push
in to the stop the seal of the cable (d) - the seal is cut to insert on the network cable.
4. Tighten up to the stop nut (b)
WARNING!
Camera power supply connector is not hermetic. User should seal this connector by himself.
START-UP AND INITIAL CAMERA CONFIGURATION
1
2
b a
b
a
c
d

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
9
2.3. Camera mounting
To mount a camera please follow the instructions below:
 Put the bracket to the wall in a desired mounting place (with cable hole). Taking the bracket’s
base screw holes as a pattern, mark future drilling holes for screws using a punch.
 Drill holes in accordance with previously done markings and base hole placement.
 Mount the camera with bracket on the ceiling/wall with three supplied self tapping screws.
 Loosen screws “A”.
 Adjust camera position.
 Tighten screws “A”.
WARNING!
Please note that the wall or ceiling must have enough strength to support the IP Camera.
WARNING!
In order to obtain declared degree of protection please seal the camera bracket to prevent water
getting inside. Furthermore, when installing the bracket on rough/uneven surfaces, please
additionally seal the junction with appropriate sealing mass. Please pay special attention to any
mounting holes and if they are a loop-through ones, seal them too.
WARNING!
The declared degree of protection of the camera relates to its housing and does not take into
account the possibility of moisture infiltration into the interior of the camera by connecting
cables. Connection cables protection through i.e. sealing up is the responsibility of the camera
installer. The manufacturer is not liable for any damages to the camera caused as a result of
failing in performing that activity by installer, which also means that camera damaged in that
way is not subject to warranty repairs.
START-UP AND INITIAL IP CAMERA CONFIGURATION
A

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
10
START-UP AND INITIAL CAMERA CONFIGURATION
2.4. Starting the IP camera
To run NOVUS IP camera you have to connect ethernet cable between camera and network switch.
To power it up you can connect it directly via power supply adapter with parameters compatible with
camera power supply specification, or camera can be powered with PoE (IEEE 802.3af ) compatible
switch.
After connecting power supply it takes about 30 seconds to start camera. Then You can proceed to
connect to the camera via web browser.
The recommended way to start an IP camera and perform its configuration is a connection directly
to the network switch which is not connected to other devices. To obtain further information about
network configuration parameters (IP address, gateway, network mask, etc.) please contact your
network administrator.
 Connection utilising network switch with PoE support
 Connection utilising external power supply and network switch
Computer
IP camera
Power supply and network
transmission Network transmission
Network PoE switch
IP camera
Network transmission
Network transmission
Network switch Computer

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
11
START-UP AND INITIAL CAMERA CONFIGURATION
 Connection utilising external power supply directly to the computer
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
Caution:
It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not
compatible with IEEE 802.3af standard (items called “passive PoE power supply”). Damages that
results from the usage of improper power supply source are not covered by the warranty.
2.5. Initial configuration via the web browser
The default network settings for NVIP-4DN2001H/IR-1P camera are:
1. IP address= 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
IP Camera
Network transmission - cross over cable
Computer

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
12
NETWORK CONNECTION UTILIZING WEB BROWSER
3. NETWORK CONNECTION UTILIZING WEB BROSWER
3.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming smooth image display
in 2592x1520 resolution and 20 fps speed.
1. CPU Intel Core i3 3 GHz or newer
2. RAM Memory min. 4 GB
3. Graphic card NVIDIA GeForce 1 GHz
4. OS Windows XP / VISTA / Windows 7 / 8
5. Network card 10/100/1000 Mb/s
3.2. Connection with IP camera via web browser

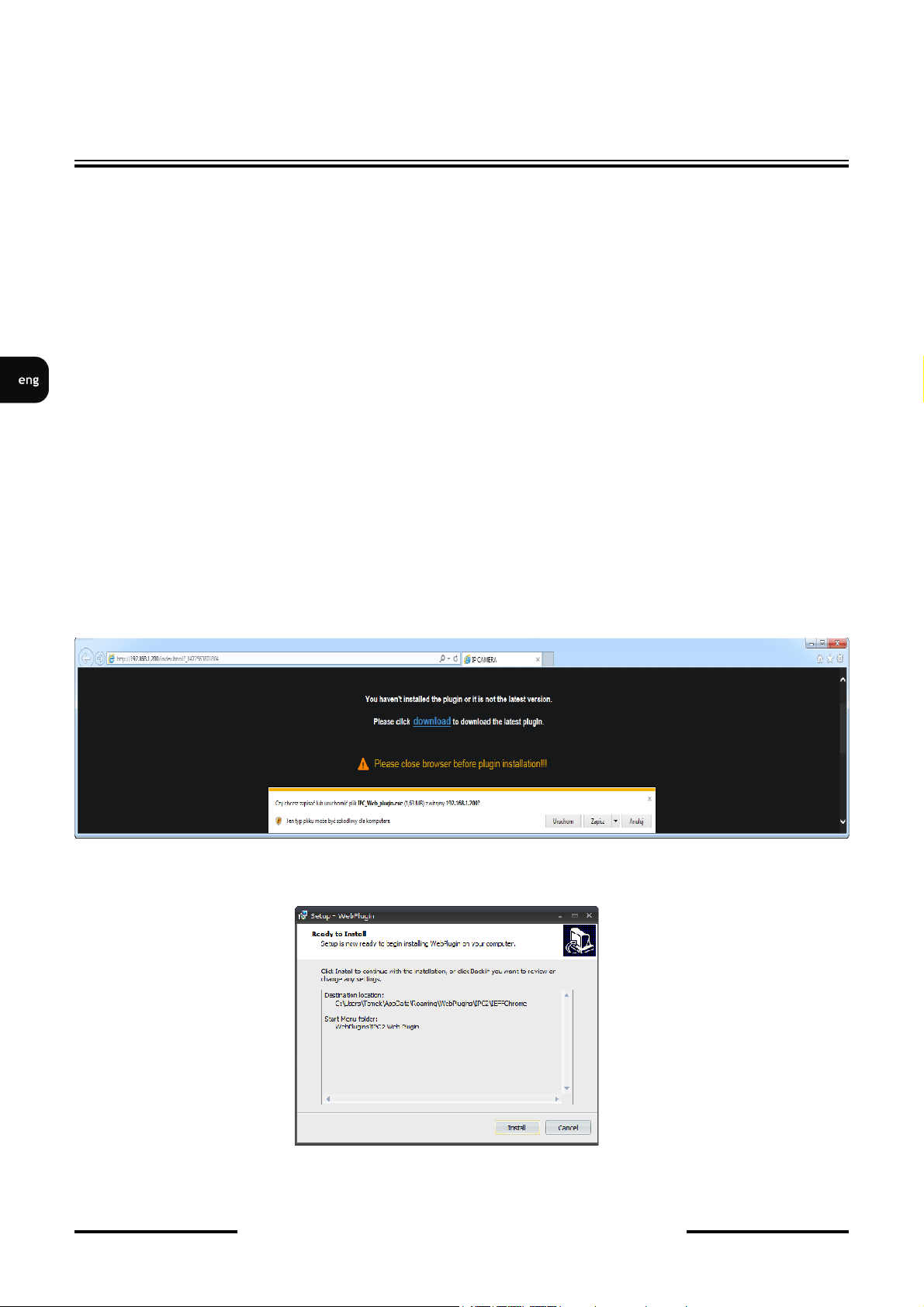

You have to enter camera IP address in the address bar. When you connect to the camera, web browser
will download the applet for displaying images from the camera. In Internet Explorer before the first
logon you need to install "IPC Web plugin.exe." addition. To do this, please click on the link
"Download" and when you get the download window, click "Run" button.
When the addition installer window appears, temporarily close the browser and click "Install" button.
After installation, launch a web browser and connect to the camera.

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
13
If the installation fails, changing security settings for the IE browser is required. In order to do that,
please choose: Tools > Internet options > Security tab > Custom level and:
 Under Download unsigned ActiveX controls - select either Enable or Prompt
 Under Initialize and script ActiveX controls not marked as safe - select Enable or Prompt
You can also add the camera’s IP address to “trusted zone” and set lowest security level for it.
In addition, when working in Windows Vista / 7 / 8 the ActiveX applet may be blocked by Windows
Defender or User account control. In such case you should allow to run this applet, or simply disable
these functions.

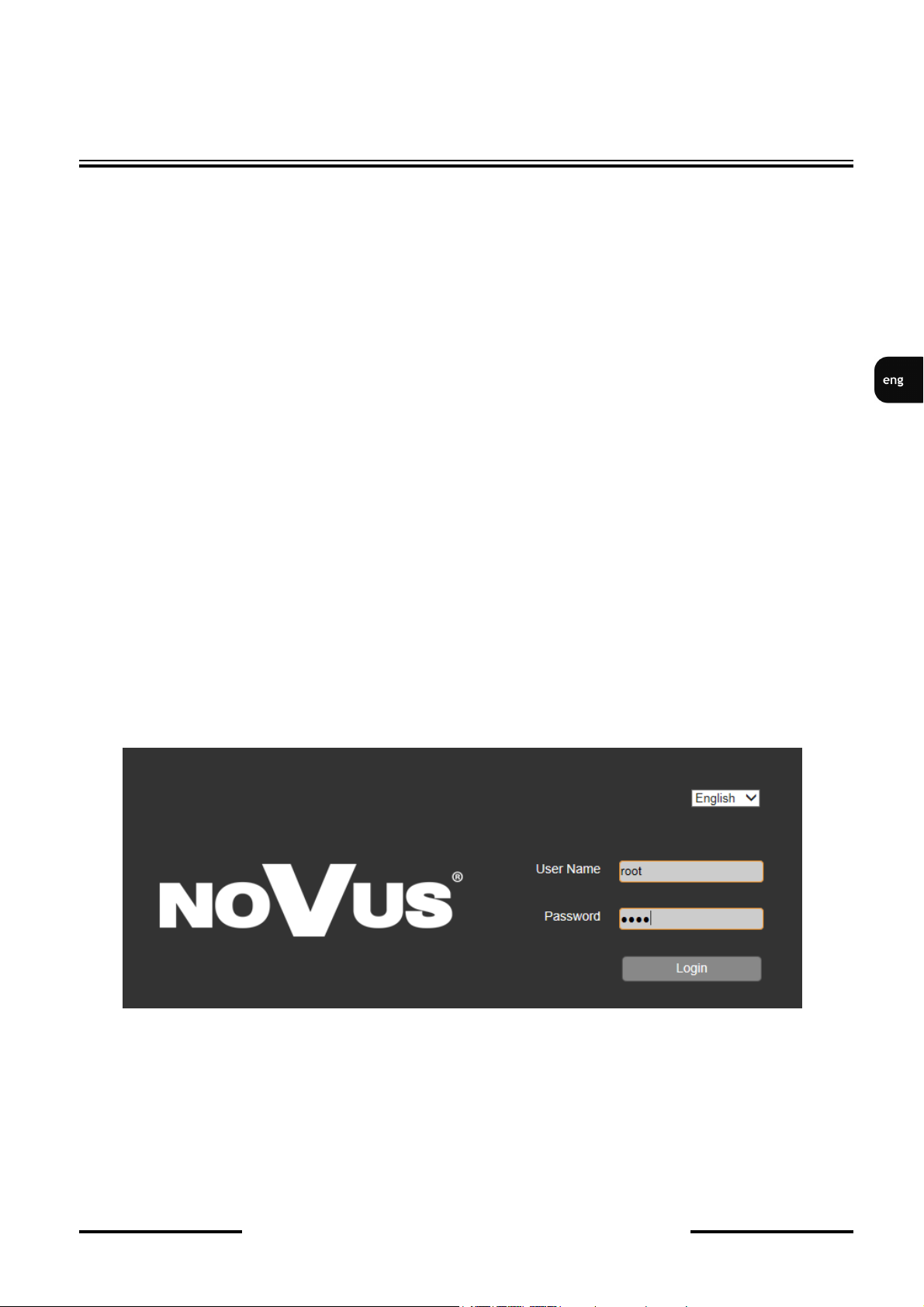

When the addition is installed it will be possible to log into the camera. On the login page, enter your
login information. Here you can also change the language of the camera interface.
For safety reasons, we recommend to change the default values. New user name and password should
be remembered or saved in a safe place.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
14
4. USING AND CONFIGURING
4.1. The Remote Preview Interface
1. The selection buttons to select the stream to be displayed in the Remote Preview window.
2. Icons to set the size and aspect ratio:
3. Buttons for selecting the operating mode and configure the camera:
Live - Enables preview live stream
Remote Setting - displays the configuration panel camera
Local Setting - displays the configuration panel of paths to snapshots folders
4. Icon to access to the camera:
USING AND CONFIGURING
- sets the original aspect ratio
- fits the image to the browser window
- displays information about the logged in user and the version of the applet
- logout from the camera
4.
5.
8.
1. 3.
6.
2.
7.

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
15
USING AND CONFIGURING

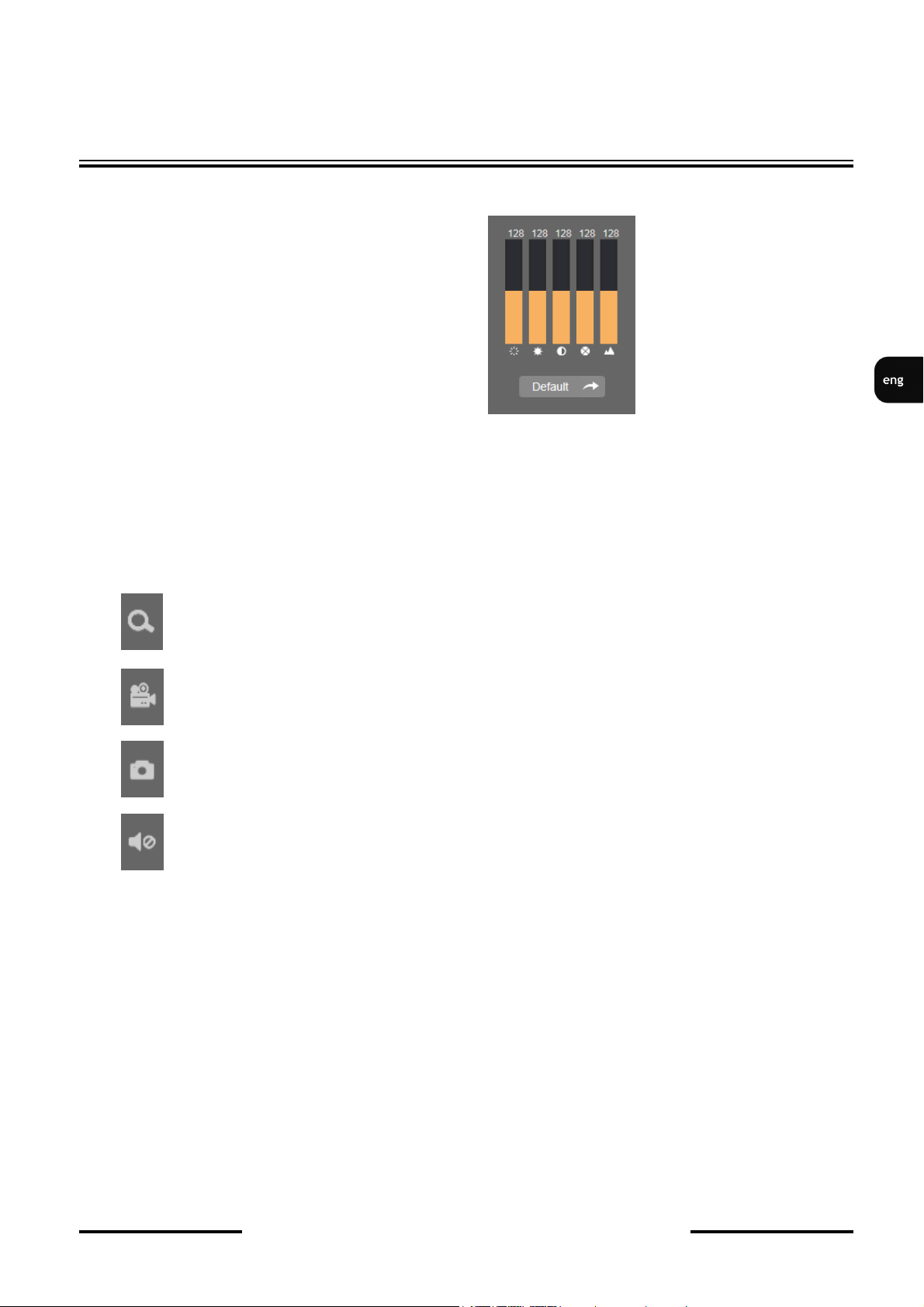

5. Enable/disable panel to set the image parameters:
The panel is the ability to adjust the hue,
brightness, contrast, color saturation and
sharpness (clarity).
6. Enable/disable live preview
7. Live Preview window.
Double-clicking the left mouse button on the preview window enables and disables the display
of the image on the full screen.
8. Additional features control icons:
Information
A description of all functions of the camera is included in the full user manual, posted on the product
page on www.novus.com/en
- enables and disables enlarge the picture
- enables and disables the record a video stream on your computer
- performs a screenshot and saves on your computer
- option inactive

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
16
ELECTRIC CONNECTORS AND RESTORING FACTORY DEFAULTS
5. ELECTRIC CONNECTORS
5.1. Connecting power supply to the camera.
Camera can be supplied using external power supply unit corresponding with the camera parameters or
by using RJ45 network socket and PoE (802.3af) power supply unit.
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user’s
manual.
WARNING!
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
6. RESTORING FACTORY DEFAULTS
6.1. Restoring factory defaults
Camera NVIP-4DN2001H/IR-1P allows you to reset your settings to the factory values. To restore the
camera settings to the default, go to the "Load Default" tab (Remote Setting -> Advanced -> Load
Default). Then select options and functions of the camera whose settings are to be reset and press the
"Save" button.
After about 30 seconds, you can re-connect to the camera (at the current IP address, as long as it was
not reset network settings or on the default IP address).

NVIP-4DN2001H/IR-1P - User’s manual (short form) ver 1.5
All rights reserved © AAT Holding S.A.
17
NOTES

21.07.2017 TF, MK v1.5
AAT Holding S.A., ul. Puławska 431, 02-801 Warszawa, Polska
tel.: [phone], faks: 22 546 07 59
www.novuscctv.com

i nstr u k c j a o b s ługi
( skró co na )
NVIP-4DN2001H/IR-1P

NVIP-4DN2001H/IR-1P - Skrócona instrukcja obsługi wer. 1.5
Wszelkie prawa zastrzeżone © AAT Holding S.A.
2
UWAGI I OSTRZEŻENIA
Dyrektywy EMC (2004/108/EC) i LVD (2006/95/EC)
Oznakowanie CE
Nasze produkty spełniają wymagania zawarte w dyrektywach oraz przepisach krajowych
wprowadzających dyrektywy:
Kompatybilność elektromagnetyczna EMC 2004/108/EC.
Niskonapięciowa LVD 2006/95/EC. Dyrektywa ma zastosowanie do sprzętu
elektrycznego przeznaczonego do użytkowania przy napięciu nominalnym od 50VAC do 1000VAC
oraz od 75VDC do 1500VDC.
Dyrektywa WEEE 2012/19/UE
Informacja dla użytkowników o pozbywaniu się urządzeń elektrycznych i elektronicznych
Niniejszy produkt został oznakowany zgodnie z Dyrektywą WEEE (2002/96/EC) oraz
późniejszymi zmianami, dotyczącą zużytego sprzętu elektrycznego
i elektronicznego. Zapewniając prawidłowe złomowanie przyczyniają się Państwo
do ograniczenia ryzyka wystąpienia negatywnego wpływu produktu na środowisko i
zdrowie ludzi, które mogłoby zaistnieć w przypadku niewłaściwej utylizacji urządzenia.
Symbol umieszczony na produkcie lub dołączonych do niego dokumentach oznacza,
że nasz produkt nie jest klasyfikowany jako odpad z gospodarstwa domowego. Urządzenie należy
oddać do odpowiedniego punktu utylizacji odpadów w celu recyklingu. Aby uzyskać dodatkowe
informacje dotyczące recyklingu niniejszego produktu należy skontaktować się
z przedstawicielem władz lokalnych, dostawcą usług utylizacji odpadów lub sklepem, gdzie nabyto
produkt.
Dyrektywa RoHS 2011/65/UE
Informacja dla użytkowników dotycząca ograniczenia użycia substancji niebezpiecznych w
sprzęcie elektrycznym elektronicznym.
W trosce o ochronę zdrowia ludzi oraz przyjazne środowisko zapewniamy, że nasze
produkty podlegające przepisom dyrektywy RoHS, dotyczącej użycia substancji
niebezpiecznych w sprzęcie elektrycznym i elektronicznym, zostały zaprojektowane
i wyprodukowane zgodnie z wymaganiami tej dyrektywy. Jednocześnie zapewniamy, że
nasze produkty zostały przetestowane i nie zawierają substancji niebezpiecznych
w ilościach mogących niekorzystnie wpływać na zdrowie człowieka lub środowisko naturalne.
Informacja
Urządzenie, jako element profesjonalnego systemu telewizji dozorowej służącego do nadzoru
i kontroli, nie jest przeznaczone do samodzielnego montażu w gospodarstwach domowych przez osoby
nie posiadające specjalistycznej wiedzy.
Wyłączenie odpowiedzialności w przypadku uszkodzenia danych zawartych na dysku lub innych
urządzeniach:
Producent nie ponosi odpowiedzialności w razie uszkodzenia lub utraty w trakcie eksploatacji Produktu
danych zawartych na dyskach lub innych urządzeniach.
Obowiązek konsultowania się z Producentem przed wykonaniem czynności nieprzewidzianej
instrukcją obsługi albo innymi dokumentami:
Przed wykonaniem czynności, która nie jest przewidziana dla danego Produktu w instrukcji obsługi,
innych dokumentach dołączonych do Produktu lub nie wynika ze zwykłego przeznaczenia Produktu,
należy, pod rygorem wyłączenia odpowiedzialności Producenta za następstwa takiej czynności,
skontaktować się z Producentem.
