Novus Nms nvr 3-t-iii User guide

NMS NVR 3-T-III

NMS NVR 5-T-III

NMS NVR 7-T-III

NMS NVR 3-4U-III

NMS NVR 5-4U-III

NMS NVR 7-4U-III

NVSO 3-T-III

NVSO 5-T-III

NVSO 7-T-III

NVSO 3-4U-III

NVSO 5-4U-III

NVSO 7-4U-III

Start-up guide

2

User Manual for NMS NVR and NVSO version 1.2

2

TERMS OF USE

To ensure stability and correct operation of the devices, they are sold as a whole. Making any

modifications described below is equivalent to tampering with the device by the User and forfeiting the

warranty. All damages resulting from the modification of the device by the User will be payable.

1. Do not enable, install, update operating systems installed on devices;

2. Do not enable, install, or update drivers for component components of devices;

3. Do not enable the Windows Firewall "Firewall", Windows Defender;

4. Do not install anti-virus software, firewalls etc.;

5. Do not install software provided by third parties;

6. Do not carry out repairs yourself;

7. Do not modify the units without the manufacturer's authorization;

8. Do not make copies of system disks to other media and move, modify or perform any other tasks

related to OS disks;

9. Do not modify the BIOS settings, such as "Overclocking", "RAID" redundancy, etc .;

10. Do not connec devices to internet without appropriate security hardware, exposing them to the

risk of malware installation ;

11. Do not update the motherboard Bios and other firmware of the other components of the unit;

12. Periodically clean all air inlets and outlets of the unit to maximize airflow;

13. Periodic maintenance of system should be made;

3

User Manual for NMS NVR and NVSO version 1.2

3

NOTES AND WARNINGS

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

DIRECTIVE 2014/35/EU OF THE EUROPEAN PARLIAMENT

AND OF THE COUNCIL of 26 February 2014 on the harmonisation

of the laws of the Member States relating to the making available on the mar-

ket of electrical equipment designed for use within certain voltage limits.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT

AND OF THE COUNCIL of 26 February 2014 on the harmonisation

of the laws of the Member States relating to electromagnetic compatibility

(OJ L 96, 29.3.2014, p. 79–106, with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENTAND OF

THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment

(WEEE) (OJ L 197, 24.7.2012, p. 38–71,with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT

AND OF THE COUNCIL of 8 June 2011 on the restriction of the use

of certain hazardous substances in electrical and electronic equipment

(OJ L 174, 1.7.2011, p. 88–110, with changes)

4

User Manual for NMS NVR and NVSO version 1.2

4

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A

PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE

YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER

DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO

USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE

PERSONNEL MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN

PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE

PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE

PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF

EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN

ACTION.

IMPORTANT SAFEGUARDS AND WARNINGS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a

direct influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer

is forbidden;

7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers

etc.) is not recommended since it may lead to heat build-up and damaging the device itself

as a consequence;

8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual;

SAFETY CONDITIONS

5

User Manual for NMS NVR and NVSO version 1.2

5

SAFETY CONDITIONS

9. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the

camera from a power sources with unknown parameters, unstable or not meeting producer’s

requirements;

10. Signal cables (conducting TV or / and telemetric signal) should be placed in a way excluding the

possibility of damaging them by accident. Special attention must be paid to cables getting from the

camera and connecting the power supply;

11. To avoid equipment damage, whole TV circuit should be equipped with properly made

discharge-, overload- and lightning protection devices. Usage of separating transformers is advised;

12. Electric installation supplying the device should be designed to meet the specifications given

by the producer in such a way that overloading is impossible;

13. User cannot repair or upgrade the equipment himself. All maintenance actions and repairs should

be conducted only by qualified service personnel;

14. Unplug the camera from the power source immediately and contact the proper maintenance

department when the following occurs:

 Damages to the power cord or to the plug itself;

 Liquids getting inside the device or exposure to strong mechanical shock;

 Device behaves in a way not described in the manual and all adjustments approved by the

manufacturer and possible to apply by user himself, seem not to have any effect;

 Camera is damaged;

 Atypical behaviour of the camera components may be seen (heard).

15. In necessity of repairs attention to using only original replacement parts (with their parameters

in accordance with those specified by the producer) should be paid. Non-licensed service and non

-genuine replacement parts may cause fire or electrocution;

16. After maintenance activities tests should be run to ensure proper operation of all the functional

components of the device.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN

PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT

DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST

BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S

RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION

6

User Manual for NMS NVR and NVSO version 1.2

6

I. OVERALL CHARACTERISTICS

1. BOX CONTENT

Each described unit should have:

• Main Unit

• Power cord

• Keyboard and mouse

• Manual

ATTENTION !!!

Before starting installation of main unit please check the contents of the kit with the above list. If any

discrepancies are found, the installation should be abandoned and the distributor contacted. .

2. SPECIFICATION

The table below presents the differences between NMS NVR and NVSO workstations.

Other parameters of the units are identical. .

ATTENTION!!!

To support more than two monitors, it is necessary to use the Display Port output.

An additional license key is required to support more than 1 RTSP channel and 1 ONVIF channel.

INTRODUCTORY INFORMATION

Unit OS Unit OS

NMS NVR 3-4U-III Windows 10 IoT NVSO 3-4U-III Windows 10 Pro

NMS NVR 3-T-III Windows 10 IoT NVSO 3-T-III Windows 10 Pro

NMS NVR 5-4U-III Windows 10 IoT NVSO 5-4U-III Windows 10 Pro

NMS NVR 5-T-III Windows 10 IoT NVSO 5-T-III Windows 10 Pro

NMS NVR 7-4U-III Windows 10 IoT NVSO 7-4U-III Windows 10 Pro

NMS NVR 7-T-III Windows 10 IoT NVSO 7-T-III Windows 10 Pro

7

User Manual for NMS NVR and NVSO version 1.2

7

2.1 NMS NVR-3-T-III

2.2 NMS NVR 3-4U-III

SPECIFICATIONS

DISPLAY

Monitor Output 1 x HDMI 2.0b, 1 x Display Port 1.4, 1 x Dual link DVI-D (up to 3 monitors simultaneously)

Maximum Resolution 3 x 4K UltraHD

AUDIO

Audio input 1 x Line in (3,5mm), 1 x Mic in(3,5mm)

Audio Output 1 x Line (3,5mm), 1 x HDMI, 1 x Display Port

Audio Input/Output in Cameras Supports audio input/output build in cameras

HDD

Internal storage for system 1 x SSD NVMe

Internal Storage for Recording 6 available bays for 3,5" HDD surveillance grade storage media

NETWORK

Network Interface 1 x Ethernet - RJ45 interface, 10/100/1000/2500 Mbit/s

ADDITIONAL INTERFACES

USB Ports 4 x USB 2.0, 4 x USB 3.2, 1 x USB 3.2 Type-C

OPERATING SYSTEM

Operating System Microsoft Windows 10 IoT

Recording and Surveillance System NMS (Novus Management System)

Additional Software Internet Explorer

INSTALLATION PARAMETERS

Dimensions 160mm (W) x 428mm(H) x 410mm (D)

Weight 10 kg (without HDDs for recording)

Power Supply built in 700W, with 230VAC input

Power consumption/heatprint 250W/200W (without HDD for recording)

Operating Temperature 5°C ~ 35°C

DISPLAY

Monitor Output 1 x HDMI 2.0b, 1 x Display Port 1.4, 1 x Dual link DVI-D (up to 3 monitors simultaneously)

Maximum Resolution 3 x 4K UltraHD

AUDIO

Audio input 1 x Line in (3,5mm), 1 x Mic in(3,5mm)

Audio Output 1 x Line (3,5mm), 1 x HDMI, 1 x Display Port

Audio Input/Output in Cameras Supports audio input/output build in cameras

HDD

Internal storage for system 1 x SSD NVMe

Internal Storage for Recording 6 available bays for 3,5" HDD surveillance grade storage media

NETWORK

Network Interface 1 x Ethernet - RJ45 interface, 10/100/1000/2500 Mbit/s

ADDITIONAL INTERFACES

USB Ports 4 x USB 2.0, 4 x USB 3.2, 1 x USB 3.2 Type-C

OPERATING SYSTEM

Operating System Microsoft Windows 10 IoT

Recording and Surveillance System NMS (Novus Management System)

Additional Software Internet Explorer

INSTALLATION PARAMETERS

Dimensions 427mm (W) x 177mm(H) x 450mm (D)

Weight 20 kg (without HDDs for recording)

Power Supply built in 700W, with 230VAC input

Power consumption/heatprint 250W/200W (without HDD for recording)

Operating Temperature 5°C ~ 35°C

RACK Mount 19” 4U

8

User Manual for NMS NVR and NVSO version 1.2

8

2.3 NMS NVR-5-T-III

2.4 NMS NVR 5-4U-III

SPECIFICATIONS

DISPLAY

Monitor Output 1 x HDMI 2.0b, 1 x Display Port 1.4, 1 x Dual link DVI-D (up to 3 monitors simultaneously)

Maximum Resolution 3 x 4K UltraHD

AUDIO

Audio input 1 x Line in (3,5mm), 1 x Mic in(3,5mm)

Audio Output 1 x Line (3,5mm), 1 x HDMI, 1 x Display Port

Audio Input/Output in Cameras Supports audio input/output build in cameras

HDD

Internal storage for system 1 x SSD NVMe

Internal Storage for Recording 6 available bays for 3,5" HDD surveillance grade storage media

NETWORK

Network Interface 1 x Ethernet - RJ45 interface, 10/100/1000/2500 Mbit/s

ADDITIONAL INTERFACES

USB Ports 4 x USB 2.0, 4 x USB 3.2, 1 x USB 3.2 Type-C

OPERATING SYSTEM

Operating System Microsoft Windows 10 IoT

Recording and Surveillance System NMS (Novus Management System)

Additional Software Internet Explorer

INSTALLATION PARAMETERS

Dimensions 160mm (W) x 428mm(H) x 410mm (D)

Weight 10 kg (without HDDs for recording)

Power Supply built in 700W, with 230VAC input

Power consumption/heatprint 260W/210W (without HDD for recording)

Operating Temperature 5°C ~ 35°C

DISPLAY

Monitor Output 1 x HDMI 2.0b, 1 x Display Port 1.4, 1 x Dual link DVI-D (up to 3 monitors simultaneously)

Maximum Resolution 3 x 4K UltraHD

AUDIO

Audio input 1 x Line in (3,5mm), 1 x Mic in(3,5mm)

Audio Output 1 x Line (3,5mm), 1 x HDMI, 1 x Display Port

Audio Input/Output in Cameras Supports audio input/output build in cameras

HDD

Internal storage for system 1 x SSD NVMe

Internal Storage for Recording 6 available bays for 3,5" HDD surveillance grade storage media

NETWORK

Network Interface 1 x Ethernet - RJ45 interface, 10/100/1000/2500 Mbit/s

ADDITIONAL INTERFACES

USB Ports 4 x USB 2.0, 4 x USB 3.2, 1 x USB 3.2 Type-C

OPERATING SYSTEM

Operating System Microsoft Windows 10 IoT

Recording and Surveillance System NMS (Novus Management System)

Additional Software Internet Explorer

INSTALLATION PARAMETERS

Dimensions 427mm (W) x 177mm(H) x 450mm (D)

Weight 20 kg (without HDDs for recording)

Power Supply built in 700W, with 230VAC input

Power consumption/heatprint 260W/210W (without HDD for recording)

Operating Temperature 5°C ~ 35°C

RACK Mount 19” 4U

9

User Manual for NMS NVR and NVSO version 1.2

9

2.5 NMS NVR-7-T-III

2.6 NMS NVR 7-4U-III

SPECIFICATIONS

DISPLAY

Monitor Output 1 x HDMI 2.0b, 1 x Display Port 1.4, 1 x Dual link DVI-D (up to 3 monitors simultaneously)

Maximum Resolution 3 x 4K UltraHD

AUDIO

Audio input 1 x Line in (3,5mm), 1 x Mic in(3,5mm)

Audio Output 1 x Line (3,5mm), 1 x HDMI, 1 x Display Port

Audio Input/Output in Cameras Supports audio input/output build in cameras

HDD

Internal storage for system 1 x SSD NVMe

Internal Storage for Recording 6 available bays for 3,5" HDD surveillance grade storage media

NETWORK

Network Interface 1 x Ethernet - RJ45 interface, 10/100/1000 Mbit/s

1 x Ethernet - RJ45 interface, 10/100/1000/2500 Mbit/s

ADDITIONAL INTERFACES

USB Ports 4 x USB 2.0, 4 x USB 3.2, 1 x USB 3.2 Type-C

OPERATING SYSTEM

Operating System Microsoft Windows 10 IoT

Recording and Surveillance System NMS (Novus Management System)

Additional Software Internet Explorer

INSTALLATION PARAMETERS

Dimensions 185mm (W) x 408mm(H) x 475mm (D)

Weight 10 kg (without HDDs for recording)

Power Supply built in 700W, with 230VAC input

Power consumption/heatprint 280W/230W (without HDD for recording)

Operating Temperature 5°C ~ 35°C

DISPLAY

Monitor Output 1 x HDMI 2.0b, 1 x Display Port 1.4, 1 x Dual link DVI-D (up to 3 monitors simultaneously)

Maximum Resolution 3 x 4K UltraHD

AUDIO

Audio input 1 x Line in (3,5mm), 1 x Mic in(3,5mm)

Audio Output 1 x Line (3,5mm), 1 x HDMI, 1 x Display Port

Audio Input/Output in Cameras Supports audio input/output build in cameras

HDD

Internal storage for system 1 x SSD NVMe

Internal Storage for Recording 6 available bays for 3,5" HDD surveillance grade storage media

NETWORK

Network Interface 1 x Ethernet - RJ45 interface, 10/100/1000 Mbit/s

1 x Ethernet - RJ45 interface, 10/100/1000/2500 Mbit/s

ADDITIONAL INTERFACES

USB Ports 4 x USB 2.0, 4 x USB 3.2, 1 x USB 3.2 Type-C

OPERATING SYSTEM

Operating System Microsoft Windows 10 IoT

Recording and Surveillance System NMS (Novus Management System)

Additional Software Internet Explorer

INSTALLATION PARAMETERS

Dimensions 428mm (W) x 178mm(H) x 505mm (D)

Weight 24 kg (without HDDs for recording)

Power Supply built in 700W, with 230VAC input

Power consumption/heatprint 280W/230W (without HDD for recording)

Operating Temperature 5°C ~ 35°C

RACK Mount 19” 4U

10

User Manual for NMS NVR and NVSO version 1.2

10

DANE TECHNICZNE

3. CONNECTORS

3.1 GPU CONNECTORS

To connect monitors use only connectors available on graphics cards.

Do not use the monitor outputs available on the motherboard.

3.2 MOTHERBOARD CONNECTOR

1. USB 2.0

2. USB 3.2 Type C

3. USB 3.2 Type A gen.2

4. USB 3.2 Type A gen.1

5. Optical port S/PDIF

6. Audio connectors (mini-Jack 3,5mm)

7. Ethernet RJ45 (up to 2,5Gb/s)

3.3 ADDITIONAL ETHERNET CARD CONNECTIONS

Applies to: NMS NVR 7-T-III, NMS NVR 7-4U-III, NVSO 7-T-III, NVSO 7-4U-III.

A

F

CONNECTORS

HDMI 2.0b Display Port 1.4Dual link DVI-D

6

12345

7

Złącze Ethernet RJ45

11

User Manual for NMS NVR and NVSO version 1.2

11

CONNECTORS

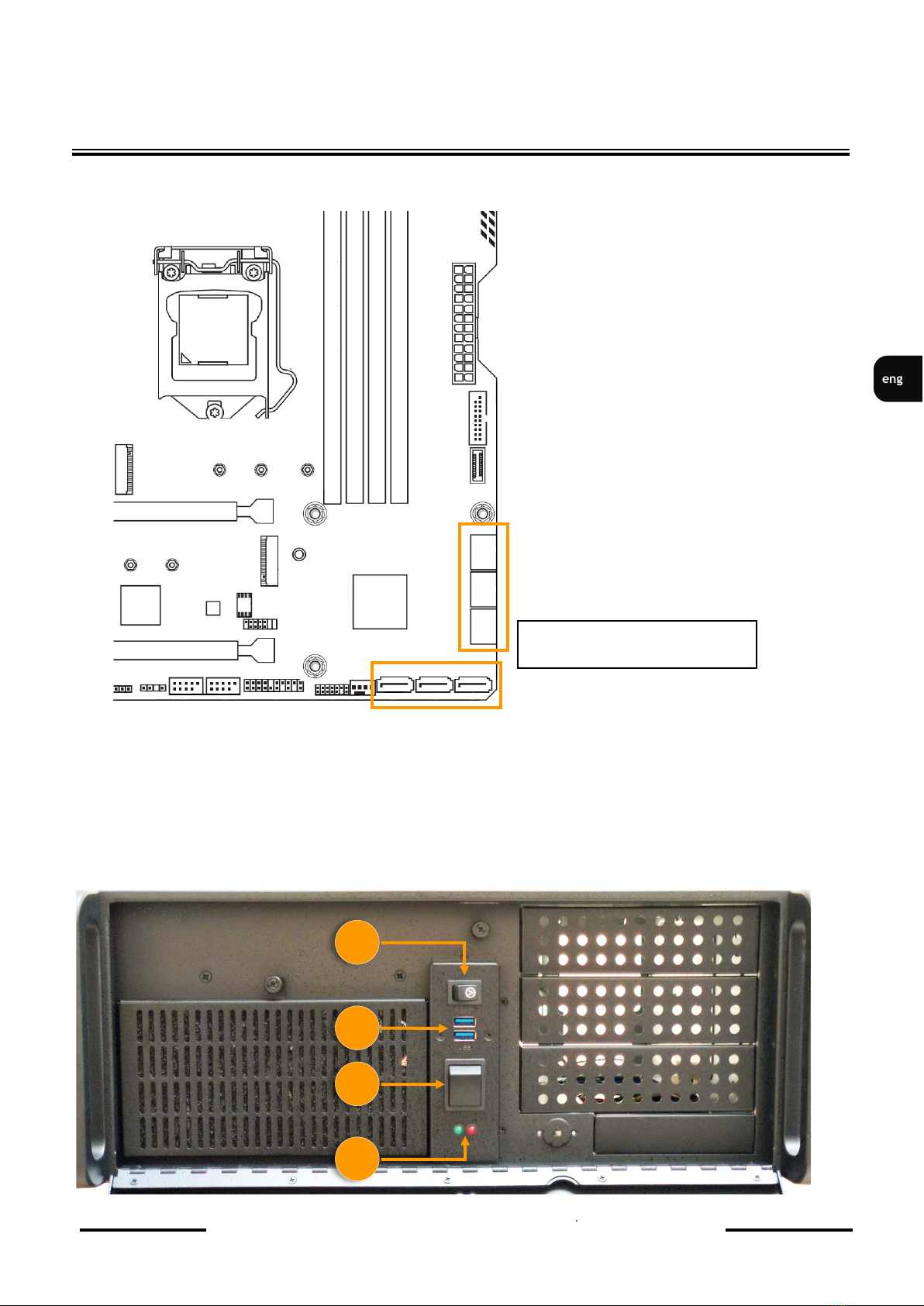

3.4 SATA PORTS

3.5 FRONT PANEL CONNECTIONS AND DISK MOUNTING PROCEDURE

Applies to: NMS NVR 7-4U-III, NVSO 7-4U-III

1. Reset Button

2. Front USB connectors

3. ON/OFF Button

4. Indicator lights for system operation and disk activity

SATA Ports (up to 6 Gb/s)

1

2

3

4

12

User Manual for NMS NVR and NVSO version 1.2

12

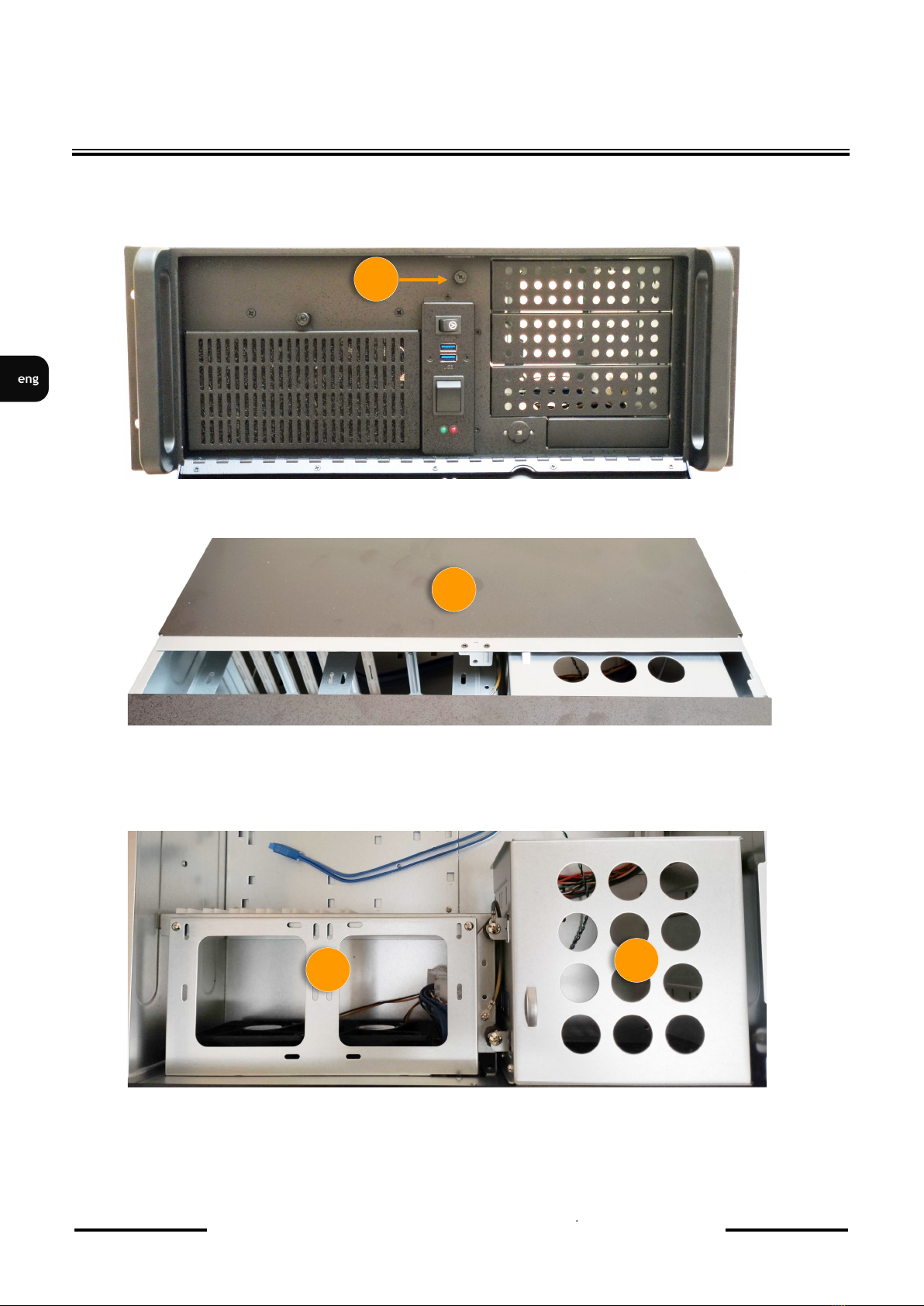

DISK MOUNTING PROCEDURE

To perform the correct installation of the HDD:

1. Remove the upper part of the housing by unscrewing the fixing screw (1) on the front panel.

2. Then remove the upper part of the housing (2) by sliding it backwards.

3. The first two HDDs are mounted on the shelf visible on the left (3), the other HDDs can be

mounted in bays on the right (4) using the mounting kits supplied with the unit.

A

1

2

34

13

User Manual for NMS NVR and NVSO version 1.2

13

DISK MOUNTING PROCEDURE

4. To remove the shelf for the first two HDDs, unscrew 4 screws, the first two (1) are inside the

housing, the others in the front part (2).

5. The installation of the disks is as follows, the disks must be screwed securely. For this use all

four threaded holes in the disks (3). Fastening discs with a smaller number of bolts may damage

them during transport or during operation due to vibrations of the whole unit.

C

1

2

33

14

User Manual for NMS NVR and NVSO version 1.2

14

DISK MOUNTING PROCEDURE

6. After fixing the discs to the mounting bracket, it must be secured in the chassis.

7. A 3.5 "to 5.25" adapter should be used to mount additional drives. For mounting the HDD to the

adapter and subsequent mounting to the chassis , use only the supplied screws.

15

User Manual for NMS NVR and NVSO version 1.2

15

DISK MOUNTING PROCEDURE

8. After attaching the disk adapters, remove the drive cage from the chassis by removing the

fastening screws (1) and be cautious of the grounding wire.

The cage has four drive bays, three of them are 5.25" and should accommodate drives equipped with

3.5" to 5.25" converters, while the lowest space is 3.5" and is designed for a drive without a converter.

9. After removing the disk cage install previously prepared drives starting from the upper part of

the cage.

10. Then screw the cage with the mounted disks back to the chassis and remember to attach the

grounding wire.

5,25”

3,5”

1

16

User Manual for NMS NVR and NVSO version 1.2

16

CONNECTORS

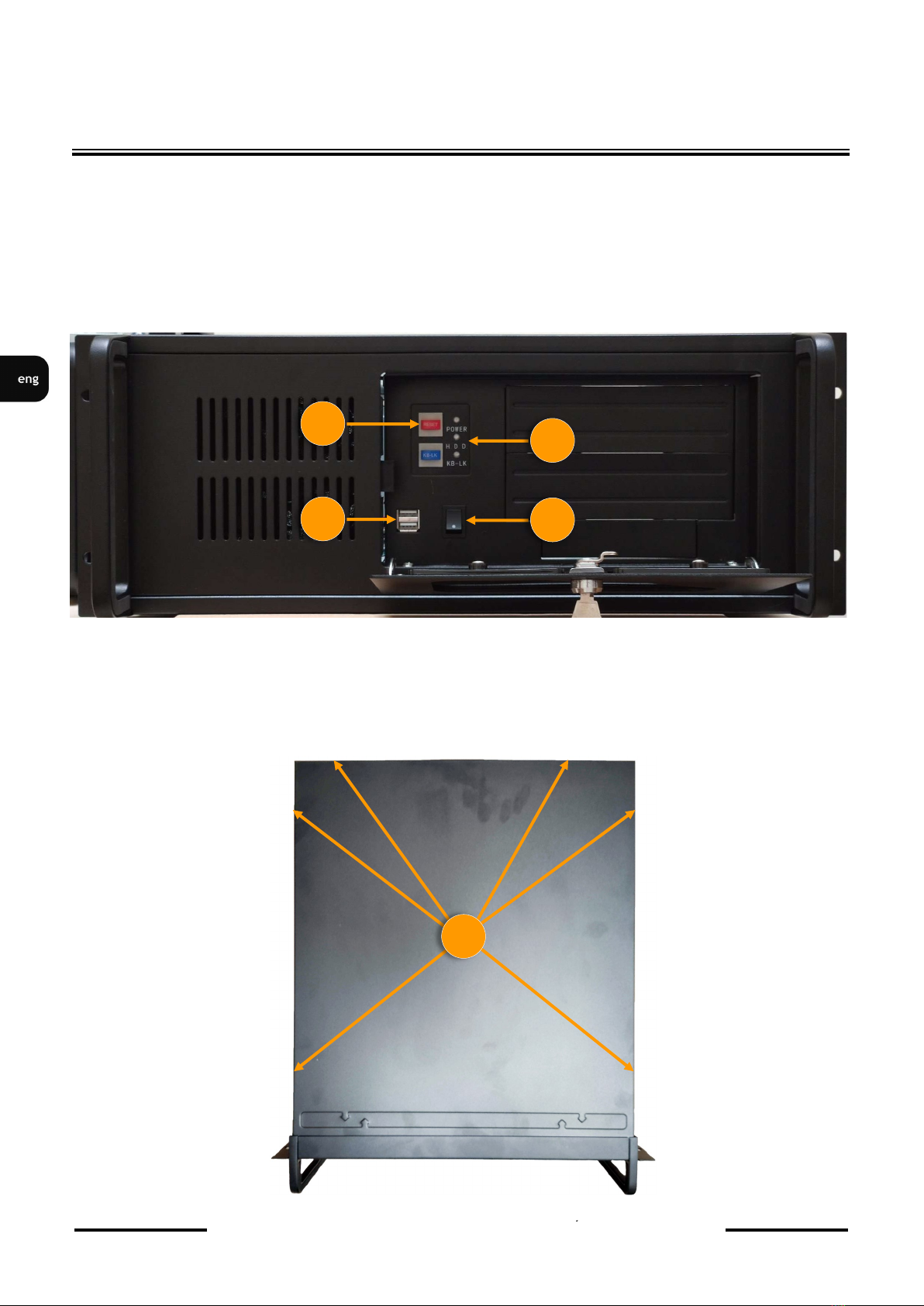

3.6 FRONT PANEL CONNECTIONS AND DISK MOUNTING PROCEDURE

Applies to: NMS NVR 3-4U-III, NMS NVR 5-4U-III, NVSO 3-4U-III , NVSO 5-4U-III

1. Reset Button

2. Front USB connectors

3. On/Off button

4. Indicator lights for system operation and disk activity

To perform the correct installation of hard drives:

1. Remove the upper part of the chassis by unscrewing the fixing screws (5), then slide out the

upper part of the chassis.

1

2

4

3

5

17

User Manual for NMS NVR and NVSO version 1.2

17

DANE TECHNICZNE

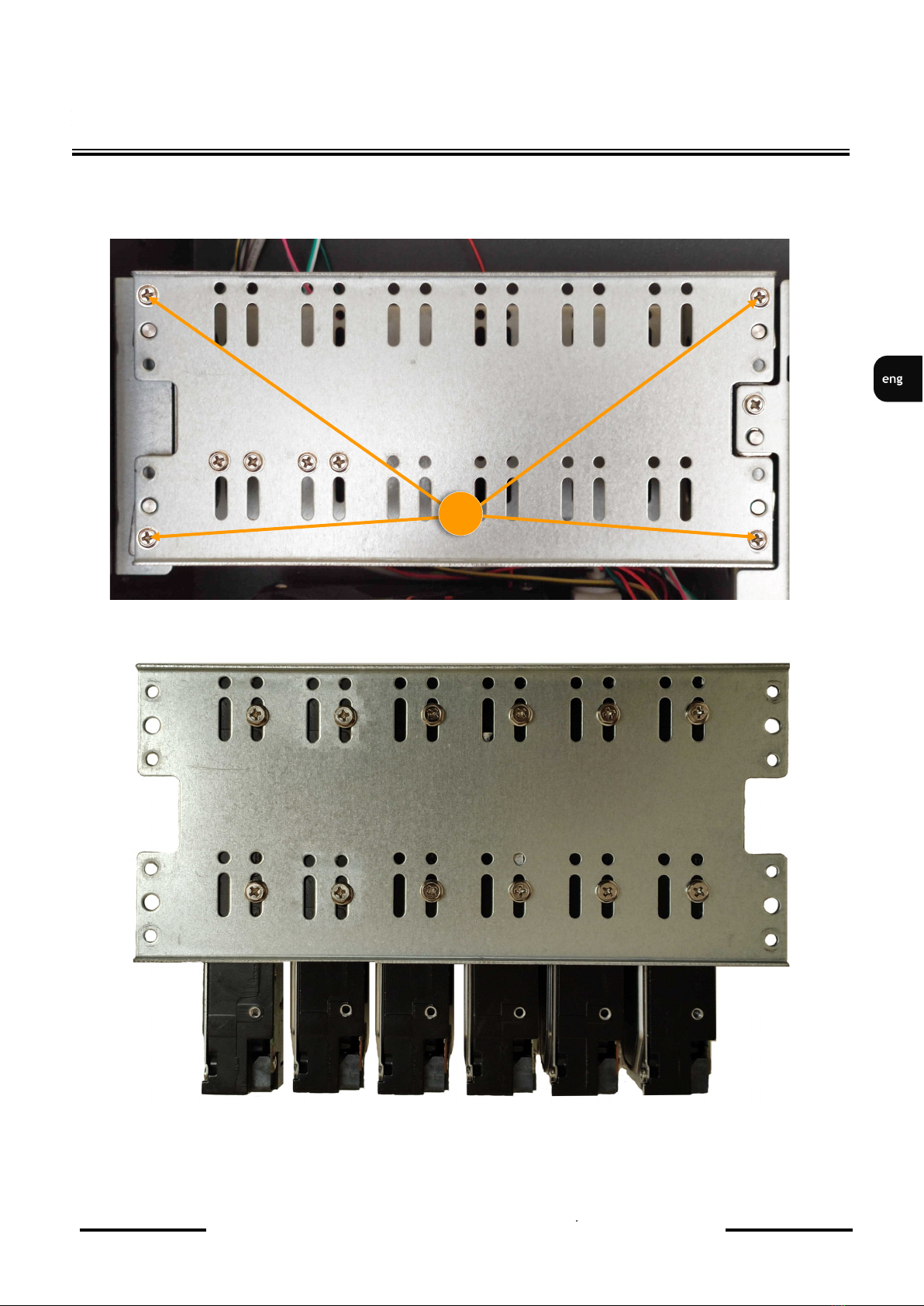

2. The drives are mounted in a dedicated cage, which is attached to the chassis using four screws (6).

3. Picture below shows how to proper mount the disks.

3. After mounting the drives, mount the cage back to the chassis, being careful to not damage the

cables coming to the front panel of the unit.

DISK MOUNTING PROCEDURE

B

6

18

User Manual for NMS NVR and NVSO version 1.2

18

CONNECTORS

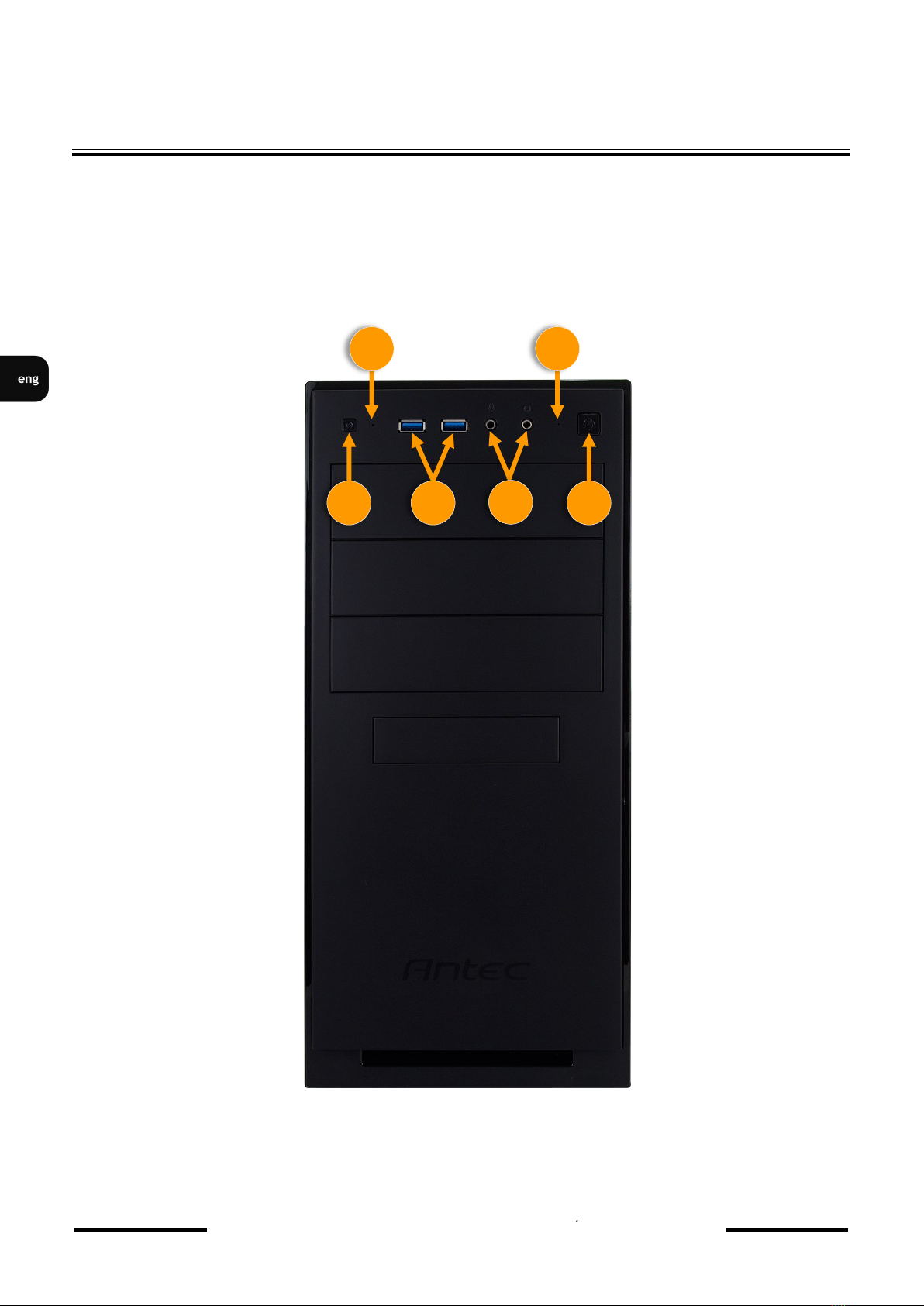

3.7 FRONT PANEL CONNECTIONS AND DISK MOUNTING PROCEDURE

Applies to: NMS NVR 7-T-III, NVSO 7-T-III

1. Reset Button

2. Indicator lights for system operation and disk activity

3. Front USB connectors

4. Audio I/O (3,5mm Jack)

5. On/Off Button

1

22

345

19

User Manual for NMS NVR and NVSO version 1.2

19

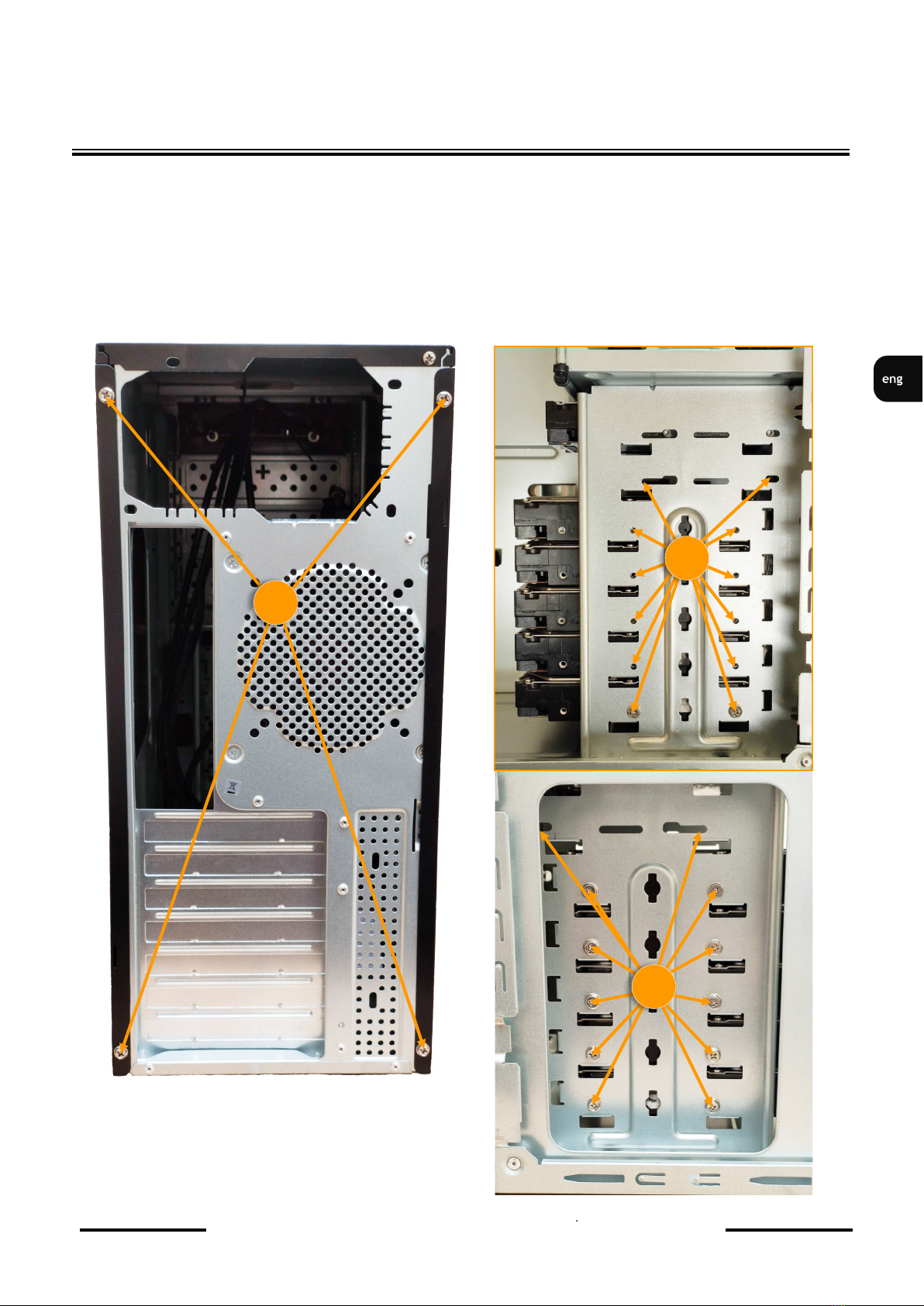

DISK MOUNTING PROCEDURE

To perform the correct installation of hard drives:

1. Remove the side panels by unscrewing the screws (a).

2. The drives are mounted in a dedicated cage which is in the front part of the chassis by using

screws (b), repeat the operation on the other side of the housing (c).

a

b

c

20

User Manual for NMS NVR and NVSO version 1.2

20

DANE TECHNICZNE

3.8 FRONT PANEL CONNECTIONS AND DISK MOUNTING PROCEDURE

Applies to: NMS NVR 3-T-III, NMS NVR 5-T-III, NVSO 3-T-III , NVSO 5-T-III

1. On/Off Button

2. Reset Button

3. Indicator lights for system operation and disk activity

4. Front USB connectors

5. Audio I/O (3,5mm Jack)

CONNECTORS

2

3

1

4

5

Novus NMS NVR 3-T-III User guide

Popular Tuner manuals by other brands
