Novus NHDR-6004-H1 User manual

User’s ma n ual
(sh o r t)
NHDR-6004-H1
NHDR-6008-H1
NHDR-6016-H1
NHDR-6116-H2

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
2
IMPORTANT SAFEGUARDS AND WARNINGS
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed for self installation in households by
individuals without technical knowledge. The manufacturer is not responsible for defects and damages resulted from improper or
inconsistent with user’s manual installation of the device in the system.
ATTENTION!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT PROVISIONED FOR THE GIVEN PRODUCT IN ITS USER’S MANUAL AND OTHER DOCUMENTS
DELIVERED WITH THE PRODUCT, OR THAT ARISES FROM THE NORMAL APPLICATION OF THE PRODUCT, ITS MANUFACTURER MUST BE CONTACTED
OR THE RESPONSIBILITY OF THE MANUFACTURER FOR THE RESULTS OF SUCH AN ACTION SHELL BE EXCLUDED.
1. Prior to undertaking any action please consult the following manual and read all the safety and operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct influence on user’s safety and durability and
reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is forbidden;
7. You are not allowed to use the device in high humidity environment (i.e. close to swimming pools, bath tubs, damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not recommended since it may lead to heat
build-up and damaging the device itself as a consequence;
9. Mounting the device on unstable surface or using not recommended mounts is forbidden. Improperly mounted device may cause a fatal accident or
may be seriously damaged itself. The device must be mounted by qualied personnel with proper authorization, in accordance with this user’s
manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with those specied by the producer in the devices
technical datasheet. Therefore, it is forbidden to supply the devices from a power sources with unknown parameters, unstable or not meeting
producer’s requirements;
11. You cannot allow any metal objects get inside the recorder. It might cause serious damage. If a metal object gets inside the device contact the
authorised Novus service immediately.
12. The manufacturer does not bear responsibility for damage or loss of data stored on HDDs or other media occurred during the usage of the product.
Due to the product being constantly enhanced and optimized, certain parameters and functions described in the manual in question may change
without further notice.
We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual .
Technical changes reserved without prior notice and printing errors possible.
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT
AND OF THE COUNCIL of 26 February 2014 on the harmonisation
of the laws of the Member States relating to electromagnetic compatibility
(OJ L 96, 29.3.2014, p. 79–106, with changes)
DIRECTIVE 2014/35/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 26 February 2014 on the harmonization
of the laws of the Member States relating to the making available on the market of electrical
equipment designed for use within certain voltage limits.
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE) (OJ L 197, 24.7.2012, p. 38–71,with changes)
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 8 June 2011 on the restriction of the use
of certain hazardous substances in electrical and electronic equipment
(OJ L 174, 1.7.2011, p. 88–110, with changes)

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
3
FOREWORD INFORMATION
1. FOREWORD INFORMATION
1.1. Network recorder’s technical data
NHDR-6004-H1
Video
Video Input 4 x BNC
Operating mode AHD 5Mpx, TVI 5Mpx, CVI 4Mpx, analog 960H
Monitor Output main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD), 1 x BNC,
spot: 1 x BNC interchangeably to main output
IP Streams hybrid mode: 4 x BNC + 2 x IP
IP mode: 0 x BNC + 6 x IP
Supported IP resolution max. 2592 x 1944
Audio
Audio Input/Output 1 x RCA (Line-in)/1 x HDMI, 1 x RCA
Recording
Compression H.264, H.265
Recording Speed
120 fps (1280 x 720 - HD),
120 fps (960 x 1080 - 1080p Lite),
60 fps (1920 x 1080 - FullHD),
60 fps (1280 x 1440 - 4Mpx Lite),
40 fps (1280 x 1944 - 5Mpx Lite),
IP recording speed hybrid mode: 60fps
IP mode: 180fps
IP stream size hybrid mode: 16 Mb/s in total from all IP cameras
IP mode: 36 Mb/s in total from all IP cameras
Recording Mode continuous, triggered by: REC/PANIC button, motion detection, image analysis
Schedule individual settings for: each camera, each day of the week, configuration with an accuracy of: 1 min, possibi-
lity of combining individual recording modes
Prealarm/postalarm up to 5 s/up to 10 min
Playback
Playback speed 120 fps
IP playback speed 120 fps
Recorded Data Search by date/time, events, image analysis events, motion in a defined area, tags
Backup
Backup Methods USB port (HDD or Flash memory), network
Backup File Format AVI, RPAS (player included)
Storage
Internal storage available mount: 1 x HDD 3.5” SATA
Total Internal Capacity 6 TB
Alarm
Motion Detection 18 x 22 grid, individual settings of sensitivity
System Reaction to Alarm Events buzzer, e-mail, recording activation, PTZ, Full Screen
Intelligent image analysis
Supported functions Exception, Line cross, Zone entrance, Abandoned object, Object disappearance
Number of channels 0 x BNC, 6 x IP (3000 and 6000 Serie)
Network
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Network Protocols Support HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP, P2P
PC/MAC Software NMS, Internet Explorer, DVR-6000 Viewer/-
Mobile applications SuperLive Plus (iPhone, Android)
Max. Number of Connections with DVR 5 (live monitoring: 5, playback: 5, configuration: 5) , live monitoring up to 10 mainstreams, 24 substreams,
playback up to 5 streams
Bandwidth 40 Mb/s in total to all client workstations
PTZ
PTZ Ports 1 x RS-485
PTZ Protocols Pelco-D, Pelco-P
PTZ Functions pan/tilt/zoom, preset commands, patterns
COAX
COAX Functions menu, zoom, focus, PTZ
Auxiliary Interfaces
USB Ports 2 x USB 2.0
Operating system
Operating System Linux
OSD languages: Polish, English, Russian, others
Control IR remote controller, PC mouse (in-set included), network
System Diagnostic automatic control of: HDDs, camera connection loss
Bezpieczeństwo password protection, IP filtering
Installation parameters
Dimensions (mm) 255 (W) x 42 (H) x 222 (D)
Weight 0.73 kg (without HDD)
Power Supply 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included)
Power Consumption 20 W (with 1 HDD)
Operating Temperature -10°C ~ 50°C

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
4
IMPORTANT SAFEGUARDS AND WARNINGS
NHDR-6008-H1
Video
Video Input 8 x BNC
Operating mode AHD 5Mpx, TVI 5Mpx, CVI 5Mpx, analog 960H
Monitor Output main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD), 1 x BNC
spot: 1 x BNC interchangeably to main output
IP Streams hybrid mode: 8 x BNC + 4 x IP
IP mode: 0 x BNC + 12 x IP
Supported IP resolution max. 2592 x 1944
Audio
Audio Input/Output 1 x RCA (Line-in)/1 x HDMI, 1 x RCA
Recording
Compression H.264, H.265
Recording Speed
240 fps (1280 x 720 - HD),
240 fps (960 x 1080 - 1080p Lite),
120 fps (1920 x 1080 - FullHD),
120 fps (1280 x 1440 - 4Mpx Lite)
80 fps (1280 x 1944 - 5Mpx Lite)
IP recording speed hybrid mode: 120fps
IP mode: 360fps
IP stream size hybrid mode: 32 Mb/s in total from all IP cameras
IP mode: 60 Mb/s in total from all IP cameras
Recording Mode continuous, triggered by: REC/PANIC button, alarm input, motion detection, image analysis
Schedule individual settings for: each camera, each day of the week, configuration with an accuracy of: 1 min, possibi-
lity of combining individual recording modes
Prealarm/postalarm up to 5 s/up to 10 min
Playback
Playback speed 240 fps
IP playback speed 240 fps
Recorded Data Search by date/time, events, image analysis events, motion in a defined area, tags
Backup
Backup Methods USB port (HDD or Flash memory), network
Backup File Format AVI, RPAS (player included)
Storage
Internal storage available mount: 1 x HDD 3.5” SATA
Total Internal Capacity 6 TB
Alarm
Motion Detection 18 x 22 grid, individual settings of sensitivity
System Reaction to Alarm Events buzzer, e-mail, recording activation, PTZ, Full Screen
Intelligent image analysis
Supported functions Exception, Line cross, Zone entrance, Abandoned object, Object disappearance
Number of channels 0 x BNC, 12 x IP (3000 and 6000 Serie)
Network
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Network Protocols Support HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP, P2P
PC/MAC Software NMS, Internet Explorer, NVR-6000 Viewer/-
Mobile applications SuperLive Plus (iPhone, Android)
Max. Number of Connections with DVR 5 (live monitoring: 5, playback: 5, configuration: 5) , live monitoring up to 16 mainstreams, 48 substreams,
playback up to 8 streams
Bandwidth 60 Mb/s in total to all client workstations
PTZ
PTZ Ports 1 x RS-485
PTZ Protocols Pelco-D, Pelco-P
PTZ Functions pan/tilt/zoom, preset commands, patterns
COAX
COAX Functions menu, zoom, focus, PTZ
Auxiliary Interfaces
USB Ports 2 x USB 2.0,
Operating system
Operating System Linux
OSD languages: Polish, English, Russian, others
Control IR remote controller, PC mouse (in-set included), network
System Diagnostic automatic control of: HDDs, camera connection loss
Bezpieczeństwo password protection, IP filtering
Installation parameters
Dimensions (mm) 255 (W) x 42 (H) x 233 (D)
Weight 0.77 kg (without HDD)
Power Supply 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included)
Power Consumption 20 W (with 1 HDD)
Operating Temperature -10°C ~ 50°C

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
5
FOREWORD INFORMATION
NHDR-6016-H1
Video
Video Input 16 x BNC
Operating mode AHD 5Mpx, TVI 5Mpx, CVI 5Mpx, analog 960H
Monitor Output main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD), 1 x BNC
IP Streams hybrid mode: 16 x BNC + 8 x IP
IP mode: 0 x BNC + 24 x IP
Supported IP resolution max. 2592 x 1944
Audio
Audio Input/Output 1 x RCA (Line-in)/1 x HDMI, 1 x RCA
Recording
Compression H.264, H.265
Recording Speed
480 fps (1280 x 720 - HD),
480 fps (960 x 1080 - 1080p Lite)
240 fps (1920 x 1080 - FullHD),
240 fps (1280 x 1440 - 4Mpx Lite)
160 fps (1280 x 1944 - 5Mpx Lite)
IP recording speed hybrid mode: 240fps
IP stream size hybrid mode: 32 Mb/s in total from all IP cameras
IP mode: 64 Mb/s in total from all IP cameras
Recording Mode continuous, triggered by: REC/PANIC button, motion detection, image analysis
Schedule individual settings for: each camera, each day of the week, configuration with an accuracy of: 1 min, po-
ssibility of combining individual recording modes
Prealarm/postalarm up to 5 s/up to 10 min
Playback
Playback speed 480 fps
IP playback speed 480 fps
Recorded Data Search by date/time, events, image analysis events, motion in a defined area, tags
Backup
Backup Methods USB port (HDD or Flash memory), network
Backup File Format AVI, RPAS (player included)
Storage
Internal storage available mount: 1 x HDD 3.5” SATA
Total Internal Capacity 6 TB
Alarm
Motion Detection 18 x 22 grid, individual settings of sensitivity
System Reaction to Alarm Events buzzer, e-mail, recording activation, PTZ, Full Screen
Intelligent image analysis
Supported functions Exception, Line cross, Zone entrance, Abandoned object, Object disappearance
Number of channels 0 x BNC, 24 x IP (3000 and 6000 Serie)
Network
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Network Protocols Support HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP, P2P
PC/MAC Software NMS, Internet Explorer, NVR-6000 Viewer/-
Mobile applications SuperLive Plus (iPhone, Android)
Max. Number of Connections with DVR 10 (live monitoring: 10, playback: 8, configuration: 10) , live monitoring up to 28 mainstreams, 96 substre-
ams, playback up to 8 streams
Bandwidth 80 Mb/s in total to all client workstations
PTZ
PTZ Ports 1 x RS-485
PTZ Protocols Pelco-D, Pelco-P
PTZ Functions pan/tilt/zoom, preset commands, patterns
COAX
COAX Functions menu, zoom, focus, PTZ
Auxiliary Interfaces
USB Ports 2 x USB 2.0,
Operating system
Operating System Linux
OSD languages: Polish, English, Russian, others
Control IR remote controller, PC mouse (in-set included), network
System Diagnostic automatic control of: HDDs, camera connection loss
Bezpieczeństwo password protection, IP filtering
Installation parameters
Dimensions (mm) 255 (W) x 42 (H) x 234 (D)
Weight 730 kg (without HDD)
Power Supply 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included)
Power Consumption 20 W (with 1 HDD)
Operating Temperature -10°C ~ 50°C

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
6
IMPORTANT SAFEGUARDS AND WARNINGS
NHDR-6116-H2
Video
Video Input 16 x BNC
Operating mode AHD 5Mpx, TVI 5Mpx, CVI 5Mpx, analog 960H
Monitor Output main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD), 1 x BNC
spot: 1 x BNC interchangeably to main output
IP Streams hybrid mode: 16 x BNC + 8 x IP
IP mode: 0 x BNC + 24 x IP
Supported IP resolution max. 2592 x 1944
Audio
Audio Input/Output 8 x RCA (Line-in)/1 x HDMI, 1 x RCA
Recording
Compression H.264, H.265
Recording Speed
480 fps (1280 x 720 - HD),
480 fps (960 x 1080 - 1080p Lite),
240 fps (1920 x 1080 - FullHD),
240 fps (1280 x 1440 - 4Mpx Lite)
160 fps (1280 x 1944 - 5Mpx Lite)
IP recording speed hybrid mode: 240fps
IP mode: 720fps
IP stream size hybrid mode: 32 Mb/s in total from all IP cameras
IP mode: 64 Mb/s in total from all IP cameras
Recording Mode continuous, triggered by: REC/PANIC button, alarm input, motion detection, image analysis
Schedule individual settings for: each camera, each day of the week, configuration with an accuracy of: 1 min, possibility of
combining individual recording modes
Prealarm/postalarm up to 5 s/up to 10 min
Playback
Playback speed 480 fps
IP playback speed 480 fps
Recorded Data Search by date/time, events, image analysis events, motion in a defined area, tags
Backup
Backup Methods USB port (HDD or Flash memory), network
Backup File Format AVI, RPAS (player included)
Storage
Internal storage available mount: 2 x HDD 3.5” SATA
Total Internal Capacity 16 TB
Alarm
Alarm Input/Output 16/4 relay type
Motion Detection 18 x 22 grid, individual settings of sensitivity
System Reaction to Alarm Events buzzer, e-mail, recording activation, PTZ, Full Screen
Intelligent image analysis
Supported functions Exception, Line cross, Zone entrance, Abandoned object, Object disappearance
Number of channels 0 x BNC, 24 x IP (3000 and 6000 Serie)
Network
Network Interface 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
Network Protocols Support HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP, P2P
PC/MAC Software NMS, Internet Explorer, NVR-6000 Viewer/-
Mobile applications SuperLive Plus (iPhone, Android)
Max. Number of Connections with
DVR
10 (live monitoring: 10, playback: 10, configuration: 10) , live monitoring up to 28 mainstreams, 96 substreams, play-
back up to 8 streams
Bandwidth 96 Mb/s in total to all client workstations
PTZ
PTZ Ports 1 x RS-485
PTZ Protocols Pelco-D, Pelco-P
PTZ Functions pan/tilt/zoom, preset commands, patterns
COAX
COAX Functions menu, zoom, focus, PTZ
Auxiliary Interfaces
USB Ports 2 x USB 2.0,
Operating system
Operating System Linux
OSD languages: Polish, English, Russian, others
Control IR remote controller, PC mouse (in-set included), network
System Diagnostic automatic control of: HDDs, camera connection loss
Bezpieczeństwo password protection, IP filtering
Installation parameters
Dimensions (mm) 380 (W) x 45 (H) x 268 (D)
Weight 1.82 kg (without HDD)
Power Supply 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included)
Power Consumption 48 W (with 1 HDD)
Operating Temperature -10°C ~ 50°C

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
7
FOREWORD INFORMATION
1.2. Main characteristics
• Supports resolution up to 3840 x 2160
• Support high definition analog cameras (720p, 1080p, 4MPX, 5MPX Lite) AHD, TVI, CVI.
• Support for IP cameras up to 5MPX (hybrid mode).
• Supported protocols: ONVIF
• Mounting up to 1 disk inside (NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1) or 2 disks
inside (NHDR-6016-H2)
• H.264 and H.265 compression algorithm.
• Possibility to connect RTSP streams from cameras as an IP channel
• The ability to export recordings via a USB port and through a computer network.
• Software: NVR-6000 Viewer (for remote administration, preview and viewing of recordings).
• The device can be operated using a USB computer mouse, remote control.
• Power supply: 12V DC (100 ~ 240 VAC / 12 VDC power adapter included)
WARNING!
ONVIF protocol support was verified with IP cameras based on ONVIF ver. 2.2 and compatible
with the "PROFILE S".
Implementation of the ONVIF protocol by different manufacturers may vary by some functions,
which can make them work improperly or not in accordance with expectation. AAT HOLDING
Company is not responsible for incompatibility problems resulting from cameras of other brands
than NOVUS, which are using ONVIF protocol. If you are using ONVIF protocol cameras other
than NOVUS brand it is recommended to test each time whether required functions work
correctly.
1.3. Package contents
Unpack the device carefully. After unpacking, please ensure that package contains the following items:
• Network Video Recorder
• USB Mouse
• Power supply
• User’s manual (short)
• Screws for screwing the hard disk
If any of the elements has been damaged during transport, pack all the elements back into the original
packaging and contact your supplier.

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
8
STARTING THE DEVICE
2. STARTING THE DEVICE
2.1 Electrical connection and other back panel elements.
1. VIDEO IN: BNC Video inputs for connecting video signal from cameras
2. AUDIO IN: Audio mono inputs to connect microphones
3. CVBS: CVBS Video output
4. HDMI: Main monitor connector, use the HDMI cable to connect monitor
5. VGA: VGA monitor connection
6. LAN: RJ-45 connector port to connect to the local network and internet
5
4 3
2
6
7
8
9
10
1
5
4
3
2
6
7
8
9
1
10
5
4
2
7
8
9
1
10 3 6
4
2
7
8
6
1
3
11
5
9
10
12
NHDR-6004-H1
NHDR-6008-H1
NHDR-6016-H1
NHDR-6116-H2

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
9
STARTING THE DEVICE
7. USB: USB port for external Flash memory and other USB devices
8. RS485: RS-485 bus connector for PTZ cameras
9. DC 12V: Recorder power supply connection socket
10. AUDIO OUT: Audio output for connecting a local speaker with an amplifier
11. CONNECTORS: Alarm input / output connector block
12. E-SATA: Sockets for connecting E-SATA devices
2.2 HDD mounting
The NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1 recorders allow mounting one internal disk
and the NHDR-6116-H2 recorder two disks inside.
WARNING!
In order to find information regarding the compatible models of HDDs and their maximum
capacities, please contact Novus distributor or check the information presented at
www.novuscctv.com. AAT HOLDING Company is not responsible for any problems from using
not recommended hard drives.
The list of compatible HDDs contains all the HDDs that can be used with a given NHDR
including HDDs designed for office use - so called desktop disks. However, due to the fact that
reliability of the recording process and data safety are paramount factors of any CCTV system,
we strongly advise to use HDDs designed for continuous (24/7) operation.
You need to format disks if they were used in a different device. All data saved on HDD prior to
format will be lost.
WARNING: !
Before removing cover unplug the power cord from the NHDR. When NHDR is turned on before
disconnecting the power cord, shut down the recorder using the NHDR menu.
For NHDR-6004-H1, NHDR-6008-H1 NHDR-6116-H1

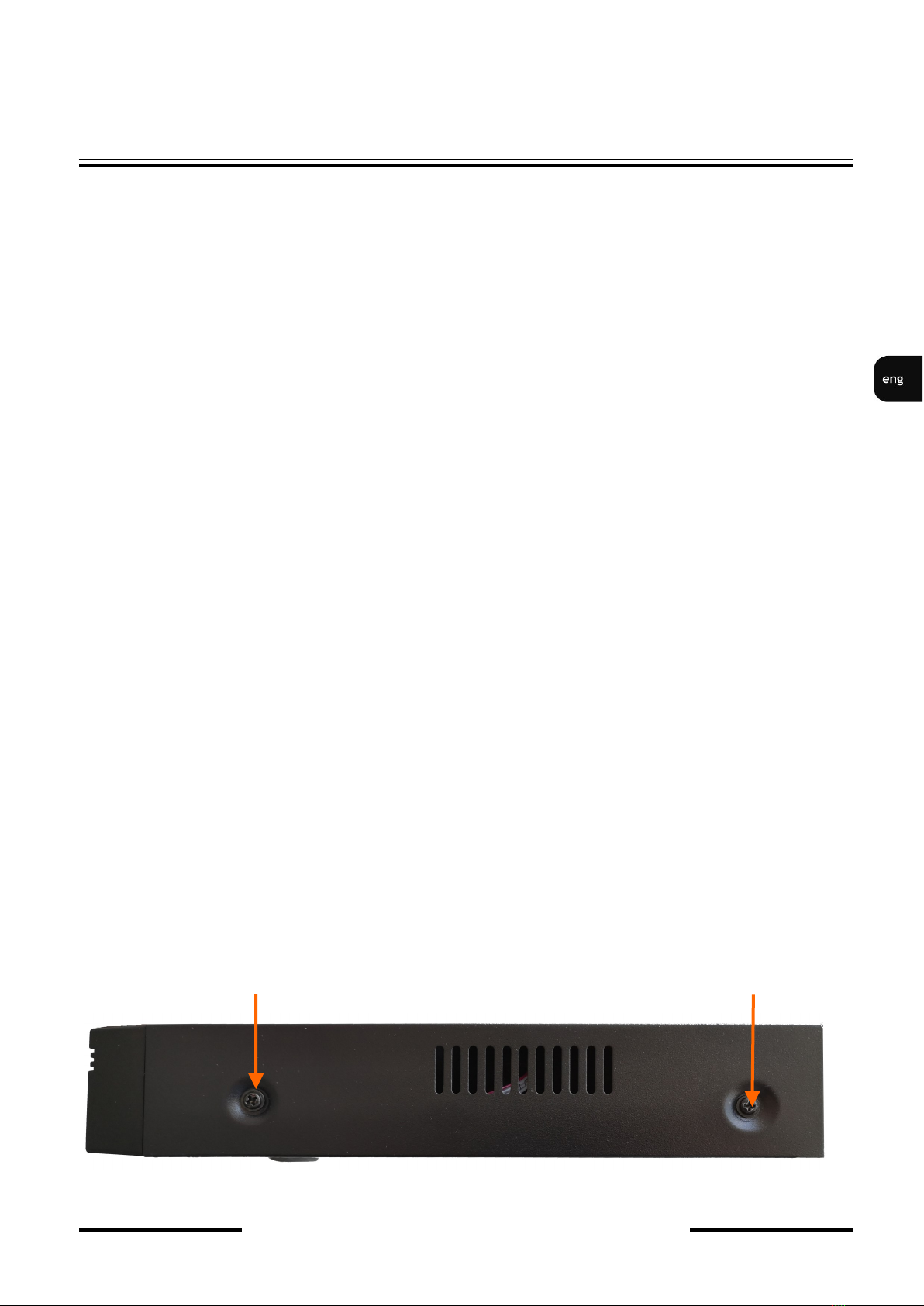

In order to mount the hard drives, after unscrewing four screws (two screws on the side of the housing)
in the places shown in the photo below, remove the recorder housing by sliding it back and then lifting
it up.

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
10
STARTING THE DEVICE

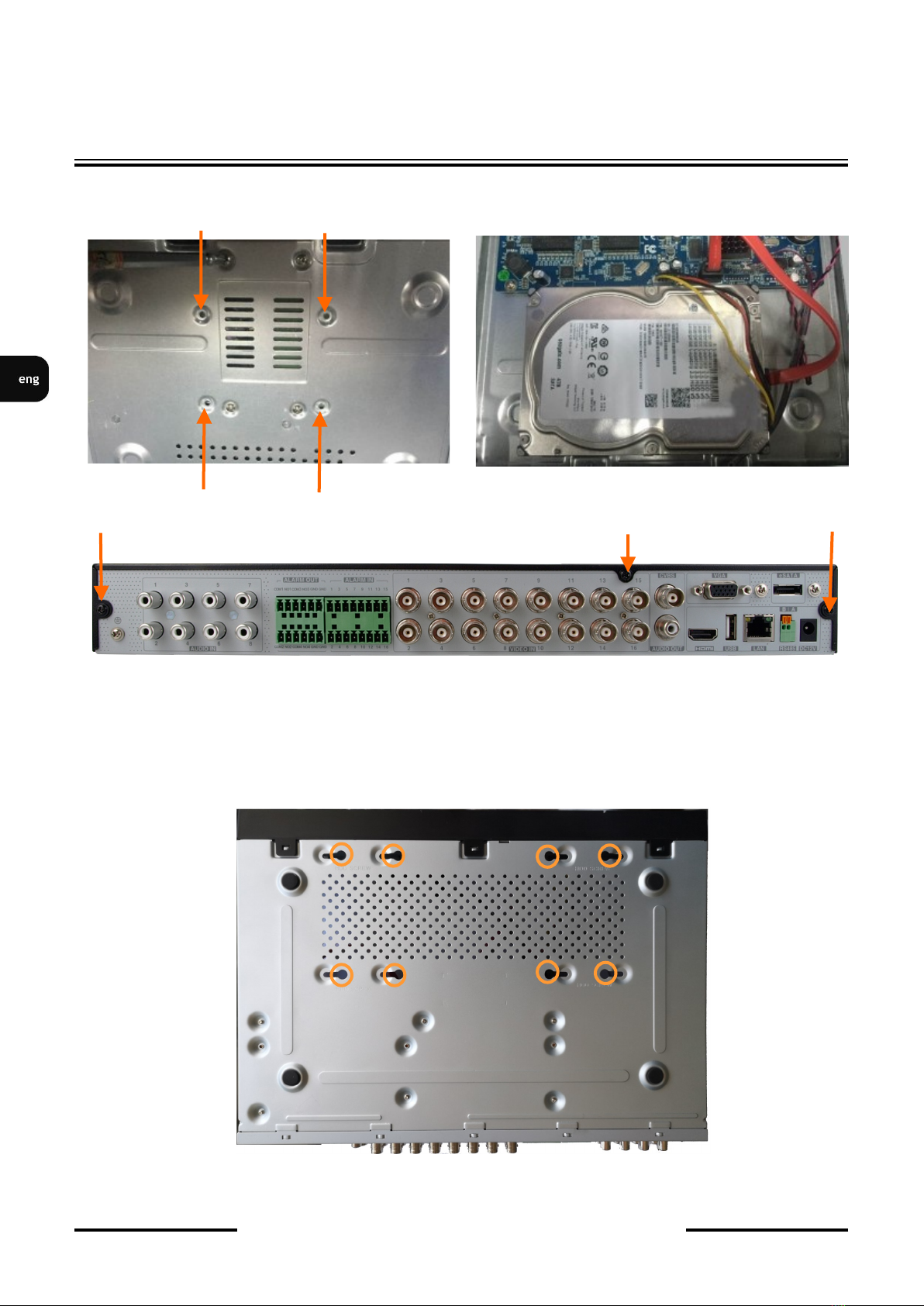

After removing the case, mount the disk using mounting screws supplied in the set (4 pcs.). And then
connect the power cord and signal.The recorder casing has 6 holes enabling adaptation to hard disk
mounting holes.
After connecting the hard drive mount the cover, start the NHDR to check and format the hard drive.
For the NHDR-6116-H2 recorder, unscrew the three screws on the back of the recorder housing.
After connecting the hard disk drive, mount the recorder housing and run it to check the correct
connections and format the hard disk drive.
After removing the casing, mount the disk using mounting screws (4 pcs.) For each disk mounted.

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
11
STARTING THE DEVICE
After screwing the disks, connect the power and signal cables to the disks.
After connecting the hard disk drive, mount the recorder housing and run it to check the correct
connections and format the hard disk drive.
WARNING:
If the disk used has been used in another device, it must be formatted. The formatting process
results in the loss of data saved on the disk.
2.3. Connecting the power supply.
To start please connect provided power cord in the rear power port of the NHDR. Initialization lasts
approximately 60 seconds. During this time executing any device functions and pressing any buttons is
prohibited. To shut down the device please use the menu.
CAUTION:
Make connection when the power is not applied.
Do not place the power cord under the carpet or rug. The power cord is usually earth-grounded.
However, even if it's not earth-grounded, never modify it on your own for earth-grounding.
Make sure that power adapter is placed near of NHDR and secured from accidental
disconnection.
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
12
STARTING THE DEVICE
2.4. Connecting monitor
The recorders have HDMI and VGA connectors.
Following resolutions are supported for HDMI output : 1280x1024, 1920x1080.
WARNING :
Emergency switching of the screen resolution is possible after pressing the right mouse button
after more than 5 seconds until you hear a sound signal from the recorder.
2.5. Connecting camera and Network
AHD cameras should be connected by coaxial cable to BNC connectors of the recorder.
The maximum cable length between the recorder and camera depends on the quality of the cable and
the mode used.
The recorder requires the use of a switch to connect IP cameras. The permissible cable distance from
the switch to each network device is 100m. Cameras, Internet and other devices should be connected
as shown below. We recommend configuring the cameras before connecting to the recorder as
described in the camera user's manual. Please remember that the cameras should be addressed with a
unique IP address supported by the recorder. Connecting cameras and network devices to the recorder
Before configuring the connection of cameras in the recorder, we recommend using a PC to configure
the cameras in accordance with the camera instructions.
NETWORK
SWITCH
INTERNET PC
NOVUS NHDR
IP CAMERAS
INTERNET
AHD CAMERAS

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
13
NHDR OPERATING
2.6. Connecting external devices
• Connecting audio ports
Audio output signal normally are above 200mV 1kΩ. You can connect to it the audio amplifier with the
external speakers.
• Connecting USB devices
The NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1 recorders have 2 USB 2.0 ports on the rear
panel. NHDR-6116-H2 has 1 USB 2.0 port on the front panel and 1 USB 2.0 port on the rear panel.
The ports allow you to connect a USB memory, mouse and other compatible USB devices.
3. NHDR OPERATING
3.1. Front panel description
1. POWER Power supply signaling diode
1. IR PORT Infrared receiver for remote control
- REC - recording started
- NET - network activity
- PWR - power supplay activity
2. USB USB 2.0 port for connecting a mouse with a USB connector or Flash
memory for copying recordings.
3.2. Controlling via USB mouse
It is possible to control NHDR via an USB mouse connected to the USB port. Double-click on any
camera in split screen display mode switches the display to full-screen mode. Subsequent double-click
returns to previous display mode. Move cursor to the top or click the right key of mouse to bring up
MAIN MENU and select START icon.
Certain positions allow to select them via mouse scroll. Depending on NHDR operating mode, pressing
1
2
3 4

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
14
3.3. First start
After the first start of the NHDR, a window is displayed that allows you to select the language used in
the menu (window on the left) and the location of the device in (window on the right). Left clicking in
one window changes the settings.
To go to the next menu, click on NEXT button.
The next wizard window allows you to set time parameters such as TIME ZONE, SYSTEM TIME,
DATE FORMAT, TIME FORMAT, DST, SYNCHRONOUS, NTP SERVER and VIDEO FORMAT.
After making your selection, click NEXT to open next page. .
NHDR OPERATING

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
15

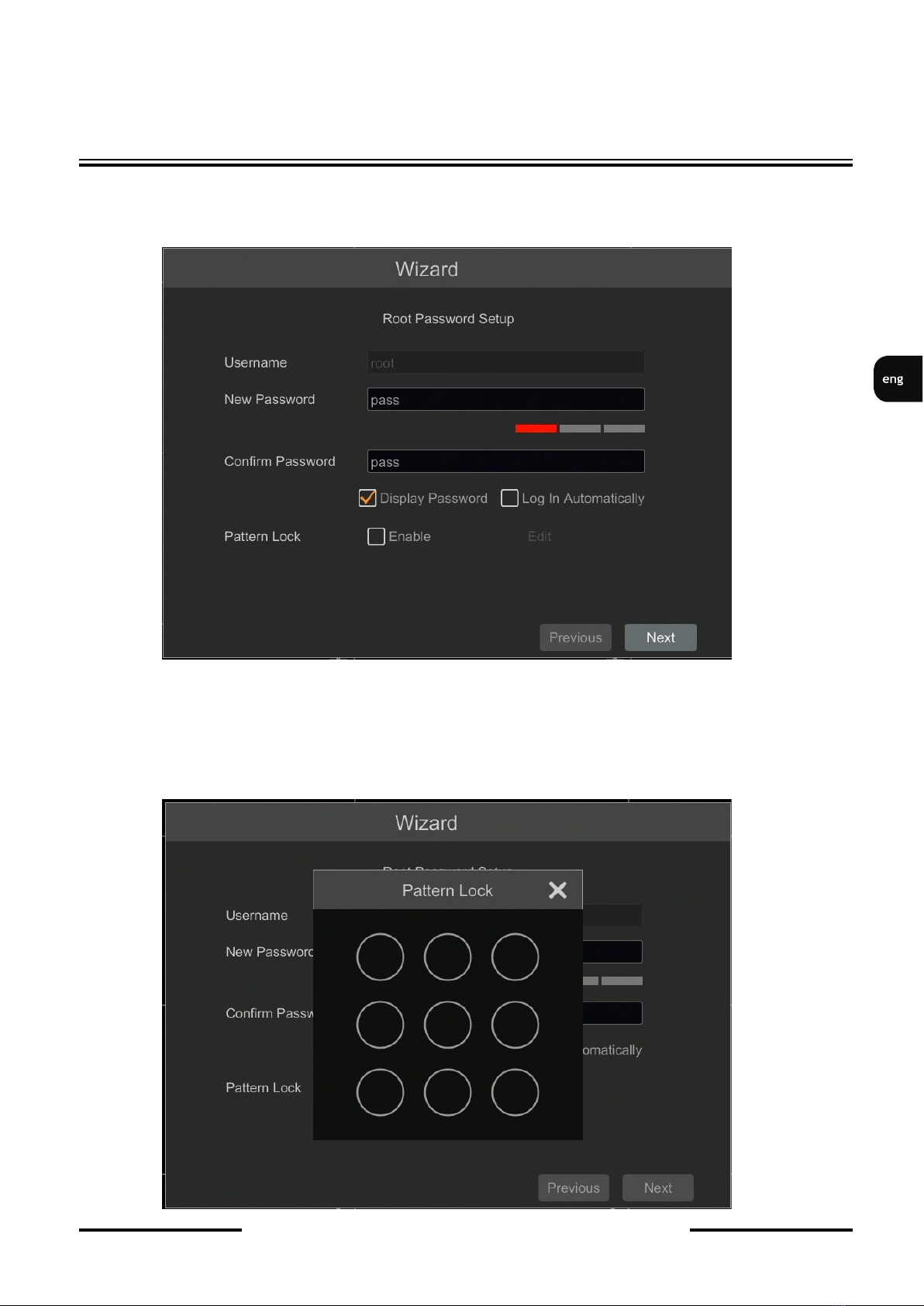

In the password change wizard, you must change the password. The password must be at least 8
characters long. It should contain a number, uppercase and lowercase. They must be entered on the on-
screen keyboard available after clicking on NEW PASSWORD and CONFIRM PASSWORD.
To display the entered password, check the DISPLAY PASSWORD box. Checking in the
AUTOMATICALLY LOG IN field will automatically log the user into the system after starting the
recorder. By selecting the ENABLE field in the GRAPHICAL LOCK row, you can start the user
unblocking setting by using a graphic pattern instead of entering the password. To start the graphic sign
settings, click on the EDIT button. Then, holding the left mouse button, move the cursor between the
displayed wheels and mark the pattern that will be used to unlock the device twice.
NHDR OPERATING

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
16
After clicking the NEXT button, a window appears that allows you to set a set of questions and
answers that can unlock access to the recorder when root password is unknow.
To add a question, click the QUESTION field to enter a question using the keyboard. Then click on
the ANSWER field to enter the answer to the question. Clicking on the ADD button adds a set of
questions and answers. Clicking the NEXT button takes you to the window in which information
about the disk connected to the recorder is displayed.
If information about the unavailability of the disk is displayed in the STATUS field, format the disk
by clicking the FORMAT button. A window appears asking you for confirmation of disk formating
proces.
NOTE: Formatting a disk will lose information stored on the disk.
NHDR OPERATING

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
17
Pressing the OK button confirms the intention to format the disk.
To start formatting, enter a username and password for a user with administrator rights.
After entering the username and password, press the FORMAT NOW button. After successful
formatting, the disk should have the status "READ AND WRITE".
NHDR OPERATING

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
18
3.4. Wizzard setup
When the NHDR is started for the first time, the settings wizard window is displayed. In order to
properly configure the recorder, please follow the procedure given:
Information:
Recommended setting values for cameras can be found in the "Camera compatibility table" available
at www.novuscctv.com. If you set the wrong values, you may not be able to find, connect cameras or
get a smooth image without distortion.
Before you start working with the network recorder, you should perform the initial configuration of
the device. Click the WIZARD SETUP button to start the wizard
I. By default, the recorder has the IP address and DNS settings download from the DHCP server
enabled. If the address retrieval fails, the recorder is available at 192.168.1.100 with the subnet mask
of 255.255.255.0. The displayed menu allows you to change the settings after uncheck the GET IP
ADDRESS FROM DHCP box and the GET DNS AUTOMATICALLY field. The following network
recorder settings are available, such as: IP (default 192.168.1.100) Subnet mask (default setting is
255.255.255.0). If the NHDR needs to be connected to the Internet (for remote access, sending emails,
etc.), the IP addresses for Gateway and for Primary and Secondary DNS. You can change the default
HTTP and HTTPS ports intended for displaying the device's web panel as well as RTSP ports and
server data port. The parameter changes should be confirmed with the NEXT button
NHDR OPERATING

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
19

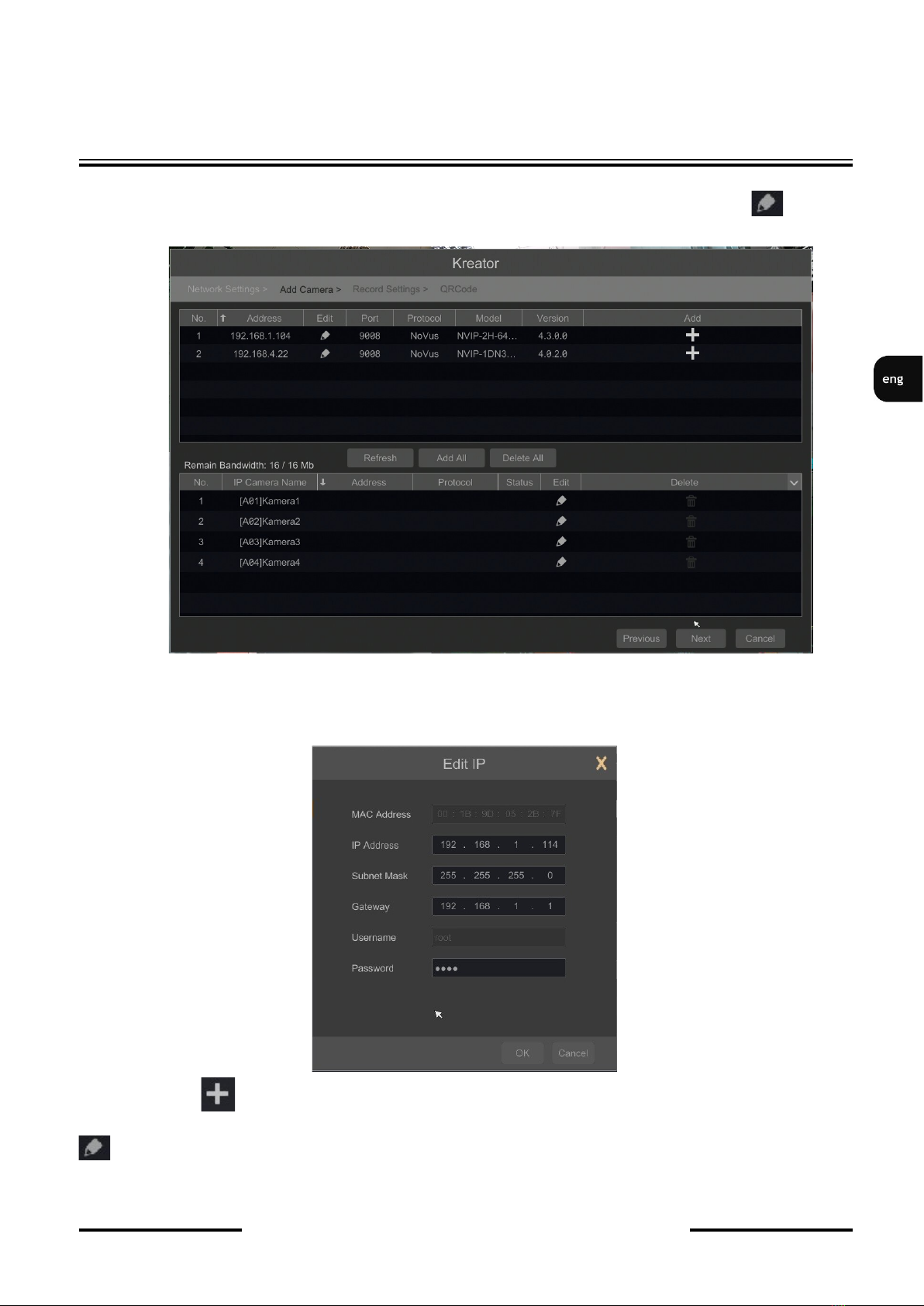

II. Add Camera: Allows you to configure the camera and add them to the recorder. Upper window
displays a discovered camera by the NHDR. To change the addressable cameras, click on the icon
in the column EDIT (This works with cameras NOVUS IP 3000 and 6000 series only).
Enter the address in the IP ADDRESS and set the masks in the SUBNET MASK then press the OK
button to save the settings.
Press the button to add a camera to the system.
Added camera will be displayed on the bottom of the menu list. To edit the connection settings of the
camera, press the EDIT column.
NHDR OPERATING

NHDR-6004-H1, NHDR-6008-H1, NHDR-6016-H1, NHDR-6116-H2
User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
20

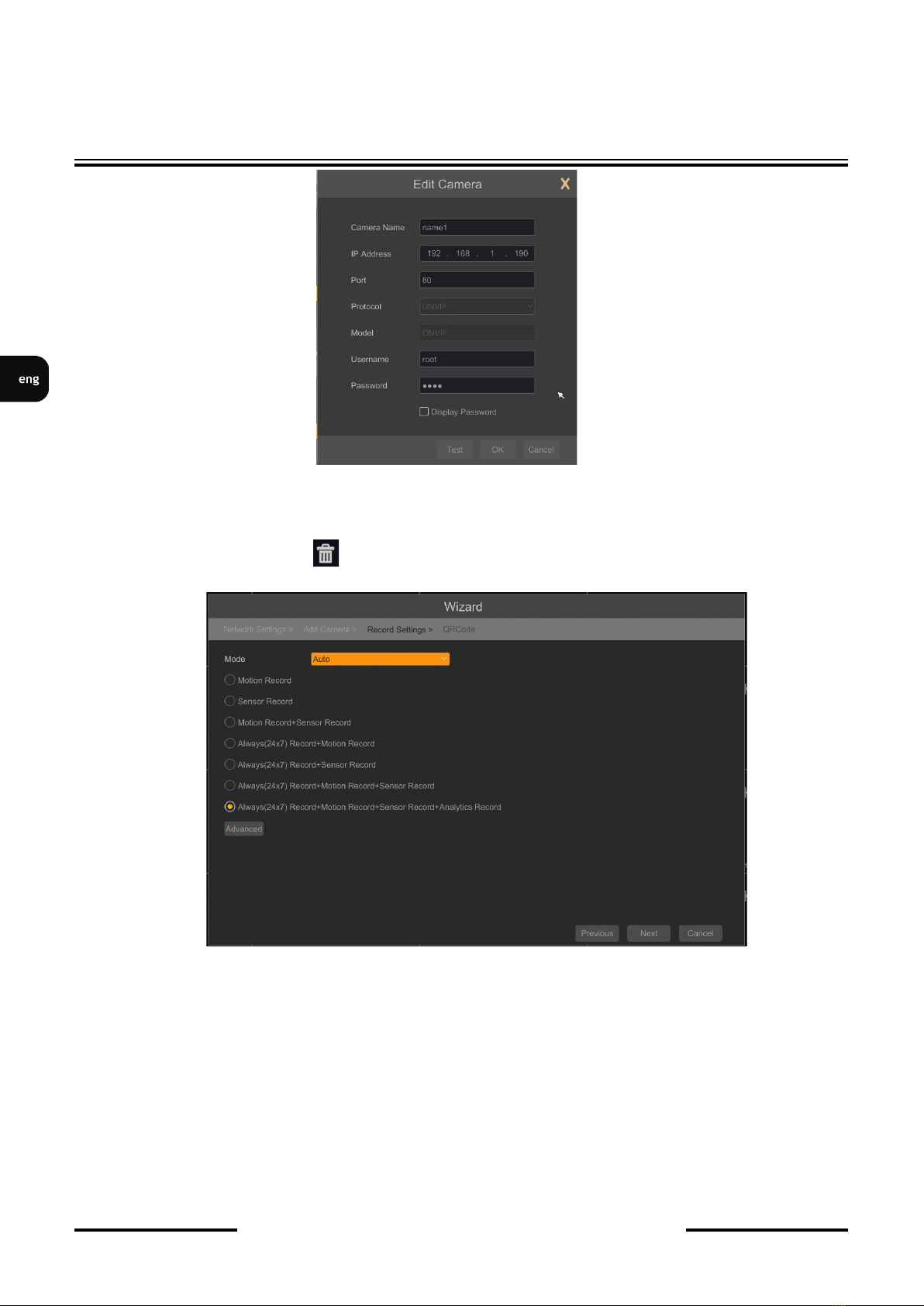

If you are having problems connecting to the camera, you must enter the correct user name in the
USER NAME and password in the PASSWORD field and then press the OK button to save the
settings. If the NHDR is connected to the camera STATUS is displayed as Connected. To remove a
camera from the list, press the in DELETE column.
IV. Record Settings :
You can set one of the modes:
MANUAL RECORD SETTINGS - You can set the recording time from the moment you select the
manual recording from 1 minute to 1 hour or manually off recording.
AUTO - set all the cameras on one of the following modes :
- MOTION RECORD - starts recording after receiving motion detection information from the
camera.
- SENSOR RECORD - starts recording after alarm generated on alarm input
- MOTION RECORD + SENSOR RECORD - starts recording after motion detecion alarm and after
alarm from alarm inputs
NHDR OPERATING
