Overview
Introduction
Usage: Solar luminous dot connected with Led for outdoor facades, with no
cabling.
The Mika stud is standalone thanks to a solar panel and a battery.
LEDs’ color: Colors RGB + White 4000 K.
Structure: Tempered glass frame thickness 10 mm + machined aluminum
frame.
Battery LiFePO4.
Solar panel Sunpower Back Contact.
Operating temperatures: -10°C / + 60°C.
Class III –IP67 –IK09 –CE.
Product lifespan over 20 years.
The Mika stud exists in two versions, differing essentially in their size.
-Mika Mini :
Dimensions: 76 x 40.5 mm.
Weight: 300 g.
-Mika Max :
Dimensions: 110 x 47 mm.
Weight: 900 g.
4
Introduction
Unpacking
Check all parts for damage.
Do not put the product into service in case of damaged solar panel or LED.
The identification number of your Mika stud is indicated on a label under the
product.
Tempered glass frame
LED
Solar panel
Machined aluminum frame
containing the electronic
components.
5
Fixture positioning tips
Operation
Choose a suitable location where sunlight can directly reach the solar panel.
Avoid obscuration by eaves or trees.
In the northern hemisphere, favor installation to the south of obstacles (on
facades or on the ground), or to the east or west. Do not install due north.
In the southern hemisphere, favor installation to the north of obstacles, to
the east or to the west. Do not install due south.
Recommendations
The most critical time for solar lighting is winter.
Days are shorter than in summer, and the sun is lower in the sky. Therefore,
it is advisable to assess the correct positioning of a solar lighting device in
winter, to avoid shadow areas.
It is advisable to draw up a layout plan of the site before installation. You can
indicate the location of the devices there, making sure to note their
identification numbers indicated on their labels.
Example
In winter, the sun is 21°in Bordeaux, France at noon. A 2-meter-high wall
then has a shadow cast of 5 meters directed towards the North.
In summer, the sun is 68°in Bordeaux, France at noon. A 2-meter-high wall
then has a shadow of 70 cm directed towards the North.
In Bordeaux in winter, the sun rises in the southeast at 7:30 a.m. and sets in
the southwest at 4:30 p.m.
In Bordeaux in summer, the sun rises in the northeast at 4:30 a.m. and sets in
the northwest at 8 p.m.
More information: www.sunearthtools.com/dp/tools/pos_sun.php?lang=en
6
Control with the Nowatt Lighting application
Operation
Download the Nowatt Lighting app
The Nowatt Lighting application is free to download from the Play Store and
the Apple Store. You can download it on a Smartphone or a tablet.
Activate your Bluetooth connection
Start the Nowatt Lighting application on your Smartphone
The app asks you for permission to access Bluetooth. Tap "Allow" then "OK".
Home page
Products are divided into two groups: those you have
already logged into are listed at the top in "My
Modules". Others are listed below in "New Modules".
To connect to a device, click on its identification
number shown in the menu.
Enter your password
Nowatt Lighting will communicate a password by
default in the user guide delivered with the device.
You can change the password to secure your product
in the settings.
It is important to check with the person in charge
of programming that the modified password will
be recorded and distributed to those responsible
for the project.
MIKA STUD PM110 -RGBW
ON OFF
7
Operation
Homepage information
Identification number of your
product
Battery charge status
Your module may display a 0%
state of charge on startup. Wait
a few seconds for the actual
percentage to display.
Mode : OFF / Activated /
Demo
Settings
All scenarios
available in the
app
Identification of the model of
your product
Select a color
Tap "ON" then "Custom Color" at the bottom of
the page to select your color.
Use the color wheel or RGBW sliders, then press
"Save" to save your color.
To delete a color, long press on the color box
and then press "yes".
8
Utilisation
Select a light animation
Tap "Scenario".
Select a light effect from the 8 choices available.
9
Operation
Confirm your product settings
If you selected a Monochrome scenario, confirm the
color.

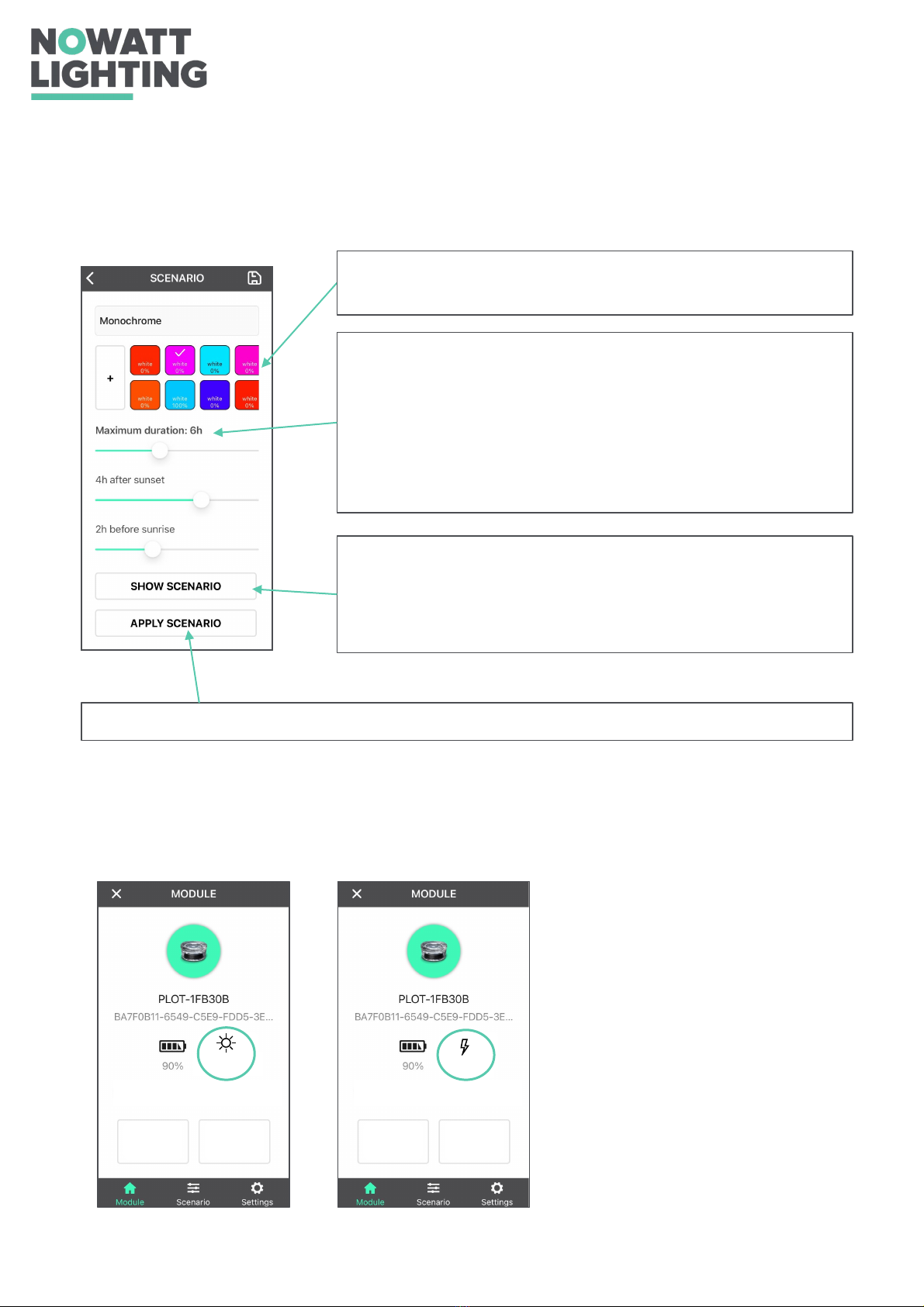

Select the operating time of your device with the
sliders:
-Total duration of use
-Number of hours after sunset
-Number of hours before sunrise
Check your program with demo mode by tapping
“Show Scenario". Please note that this only allows
you to view the light effect. The scenario is not
saved for the following nights.
Tap "Apply Scenario" to save it. It will light up every night with this scenario.
Check your programming
MIKA STUD PM110 -RGBW
ON OFF
Activated
MIKA STUD PM110 -RGBW
ON OFF
Demo
If the home page indicates
OFF or Demo, your scenario is
not saved, you must repeat
the previous steps.
10
Grouping function
Operation
The grouping function allows you to create groups to send the same scenario
to several devices simultaneously (within the range of Bluetooth). However,
this operation does not allow synchronized operation of the devices. They
receive the same scenario, at the same time, but they do not communicate
with each other. They remain independent.

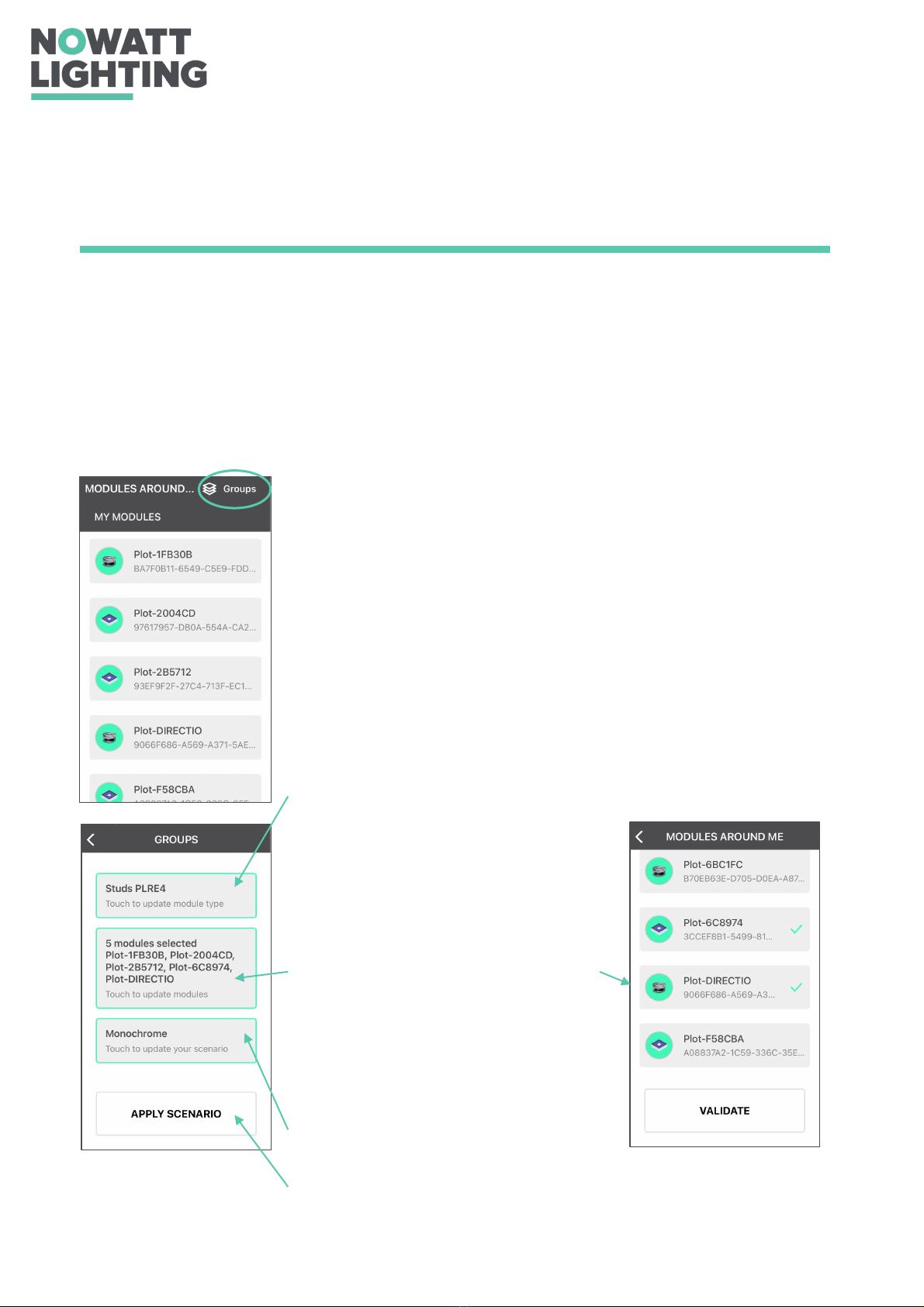

1. Tap “Groups”.
2. Select the type of products
you want to group.
3. Enter the products you
want to include in the group.
Warning: only the products for
which you have previously
entered the password during
a first connection can be
grouped.
4. Choose your scenario.
5. Apply the scenario.
11
Front installation
Installation
Wall-mounted installation
The Mika stud can be installed protruding from facades using the D20 fixing
piece (M8x30).
Screw the D20 fixing to the back of the Mika stud using the M4 screws
provided and an Allen key.
Place an M8x30 insert complementary to the D20 fixing and adapted to your
façade, at the location where you wish to place the Mika stud.
Screw the Mika stud into the insert.
12
Cleaning and care
Maintenance and care
The product requires no maintenance.
Regular checks for damage can increase the lifespan of the product.
Removing dirt can help increase product performance.
Risk of material damage
Unsuitable detergents may damage the luminaire.
Check surface tolerance with detergents.
If there is dirt or weather deposits on the solar collector, clean the glass
plate with a soft cloth and mild detergent.
Waste management
Please observe the legal obligations relating to waste management.
Return old devices to your dealers or directly to Nowatt Lighting.
Do not dispose of old devices with unsorted household waste.
Do not throw old devices into fire or water.
CE declaration of conformity
This product complies with the requirements of the following standards, laws
and directives:
-Electromagnetic Compatibility Directive 2004/108/EC
-RoHS Directive 2001/65/EC
-Batteries and Accumulators Act (BattG)
-WEEE Electrical and Electronic Devices Directive 2012/19/EU
13
Warranty
Maintenance and care
Nowatt Lighting products are manufactured with the utmost care.
The function and safety of this product have been tested according to the
currently valid directives, with a final inspection.
Nowatt Lighting guarantees faultless condition and operation.
The warranty period is 24 months and begins on the day of sale to the
customer.
It includes the elimination of defects resulting from a defect in material or
construction.
The warranty will be provided at our discretion by repair or exchange of
defective parts.
The warranty does not apply to wearing parts.
The warranty does not apply to damage or defects due to improper use or
maintenance.
Consequential damage to other objects is excluded from the warranty.
The warranty only applies if the undisassembled device is returned
accompanied by a brief description of the defect and a receipt or invoice
bearing the date of purchase and the seller's stamp.
Please send the product properly packaged to the after-sales service.
In the event of faults not covered by the guarantee, contact your point of
sale to find out if a repair of the device is possible.
