Brighter Smart Spot 150 LED User manual

1
Smart Spot 150 LED
Spot
-
LED Spot
This product manual contains important information about the
safe installation and use of this projector. Please read and follow
these instructions carefully and keep this manual in a safe place
User manual
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions..........................................................................................................................................3
2. Unpacking.......................................................................................................................................................3
3. Features & Specifications ...............................................................................................................................4
4. Photometric Data ...........................................................................................................................................5
5. Operating Instructions....................................................................................................................................6
6. Installation......................................................................................................................................................6
7. DMX-512 Control Connections.......................................................................................................................7
8. Menu Operations ...........................................................................................................................................9
9. DMX Channels ..............................................................................................................................................10
10. Maintenance and Cleaning.........................................................................................................................11
STATEMENT
The product has full capability and intact packing when it leaves factory. All the users
should comply with provided warnings and manual. Any damages caused by misuse are
not included in our guarantee. We cannot be responsible for any malfunctions & problems
owing to ignoring the manual.

3
1. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe
operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written
in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do not switch it on
immediately. The arising condensation could damage the device. Leave the device switched off until it has
reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell or smell may arise. This is a normal process and does not
necessary mean that the device is defective. It should decrease gradually. Please don’t project the beam
onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for smooth
air flow, so there should be no shelter for fans and ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer of his service agent or a similar qualified person in order to avoid a hazard.
2. Unpacking
Thank you for choosing our LED 150W moving head light. For your own safety, please read this manual
before installing the device. This manual covers the important information on installation and applications.
Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well
for future needs.
The LED 150W is made of a new type of high temperature strength of engineering plastic and cast aluminium
casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying
with international standard DMX512 protocol. It’s available independently controlled and linkable with each
other for operation. And it is applicable for large-scale live performances, theatre, studio, nightclubs and
discos.

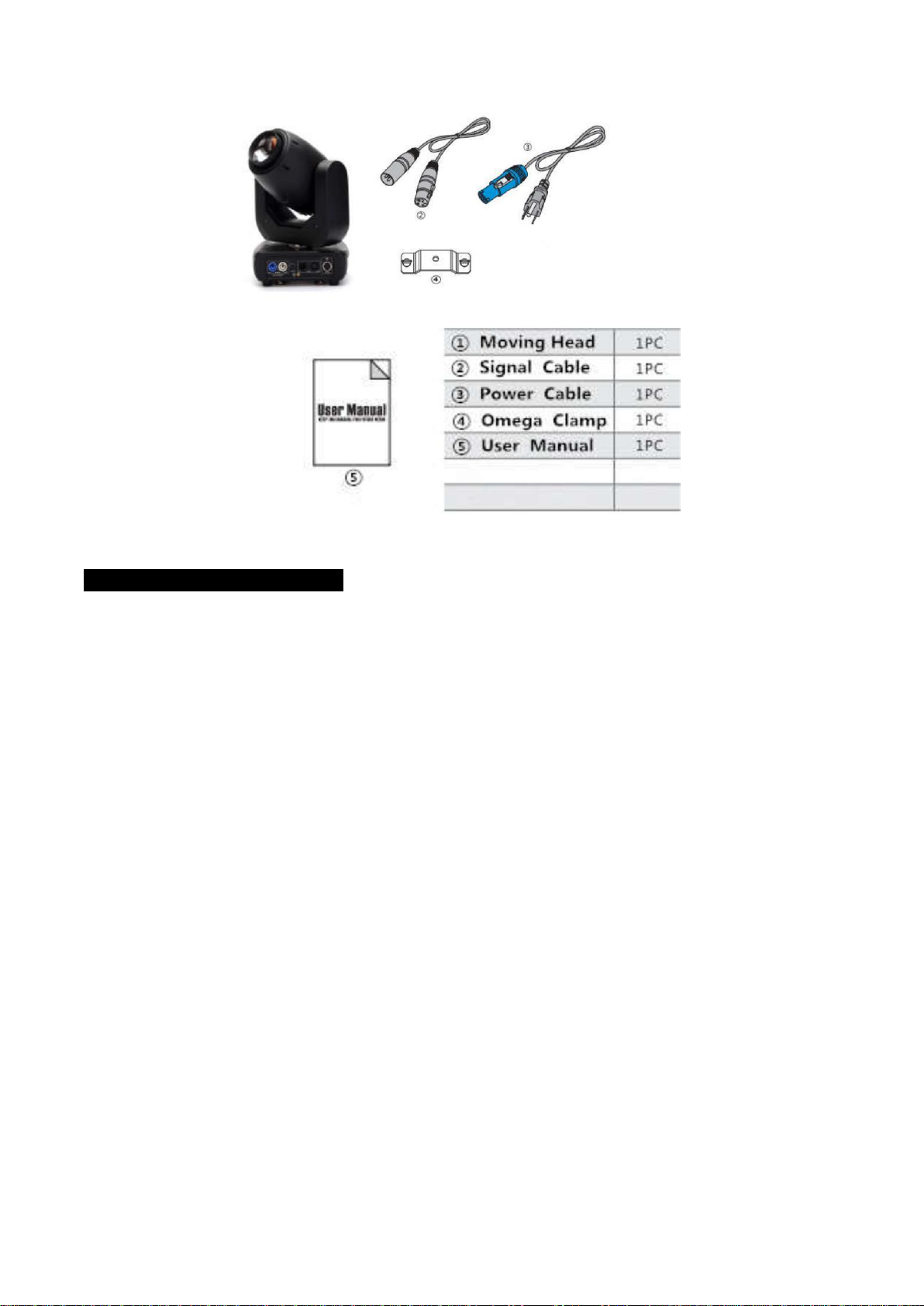

The 150W Moving head light which features high brightness and stability. Please carefully unpack it when
you receive the fixture and check whether it is damaged during the transportation. And please check
whether the following items are included inside the box:

4
3. Features & Specifications
Features
150W High Output White LED
50,000 hours lifespan and low power consumption
Beam Angle 15°, focus function
High light output, 3450LUX@5M at White light
Temperature protect function, when the internal Temperature is up to 40° and then the
fans begin to work, when the internal temperature is up to 70°and the brightness reduce
half.
Color Wheel: 7 colors +white, rotation with variable direction and speed
1 static Gobo Wheel: 8 gobos +white, wheel rotation and shake
1 Rotation Gobo Wheel: 6 gobos +white, wheel rotation and shake
Prism: 3-facet Prism, bi-directionally rotatable at variable speeds
High speed strobe effect with 1-25 flashers per second
Internal program available
16/14/12/10 DMX Channels USITT DMX-512
DMX 512, master-slave and sound activated controllable or auto operation
Colorful LCD display
Efficient low noise fan cooling system
POWERCON IN/OUT
3-pin XLR connectors IN/OUT
Two 1/4 turn fastening Omega Clamps
IP 20 protection rating

5
Specifications:
Input Voltage: AC90-260V 50/60Hz
Light Source: 150W High Output White LED
Control Signal: DMX 512, master-slave and sound activated or auto operation
Control Channel: 16/14/12/10 DMX Channels USITT DMX-512
Power Consumption:250W
Dimensions: 270(D)*270(W)*470(H)mm
Packing size: 305(D)*305(W)*500(H)mm
Net Weight: 11.5kg, Gross Weight:14kg
4. Photometric Data

6
5. Operating Instructions
The moving head is for spot effect for on-site decoration purpose.
Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
This light should be keep away from strong shaking during any transportation or movement.
Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
Don’t expose the fixture in overheat, moisture or environment with too much dust when installing it.
And don’t lay any power cables on the floor. Or it might cause electronics shock to the people.
Make sure the installation place is in good safety condition before installing the fixture.
Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
Make sure the lens are in good condition. It’s recommended to replace the units if there are any
damages or severe scratch.
Make sure the fixture is operated by qualified personnel who know the fixture before using.
Keep the original packages if any second shipments is needed.
Don’t try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
6. Installation
Cautions: For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas
were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point
load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an appropriate
safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at least 0.5m
(1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or
injury in the event the clamp fails.
Mounting points:
Overhead mounting requires extensive experience, including amongst others calculating working load limits,
a fine knowledge of the installation material being used, and periodic safety inspection of all installation
material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper
installation can result in bodily injury.

7
Be sure to complete all rigging and installation procedures before connecting the main power cord to the
appropriate wall outlet.
Clamp Mounting: The LED moving head provides a unique mounting bracket assembly that integrates the
bottom of the base, and the safety cable rigging point in one unit (see the illustration below). When
mounting this fixture to truss be sure to secure an appropriately rated clamp to the included omega bracket
using a M10 screw fitted through the centre hole of the “omega bracket”. As an added safety measure be
sure to attach at least one properly rated safety cable to the fixture, using safety cable rigging point
integrated in the base assembly.
Regardless of the rigging option you choose for your LED moving head, always be sure to secure your fixture
with a safety cable. The fixture providers a built-in rigging point for a safety cable on the hanging bracket as
illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a
safety cable to a carrying handle.

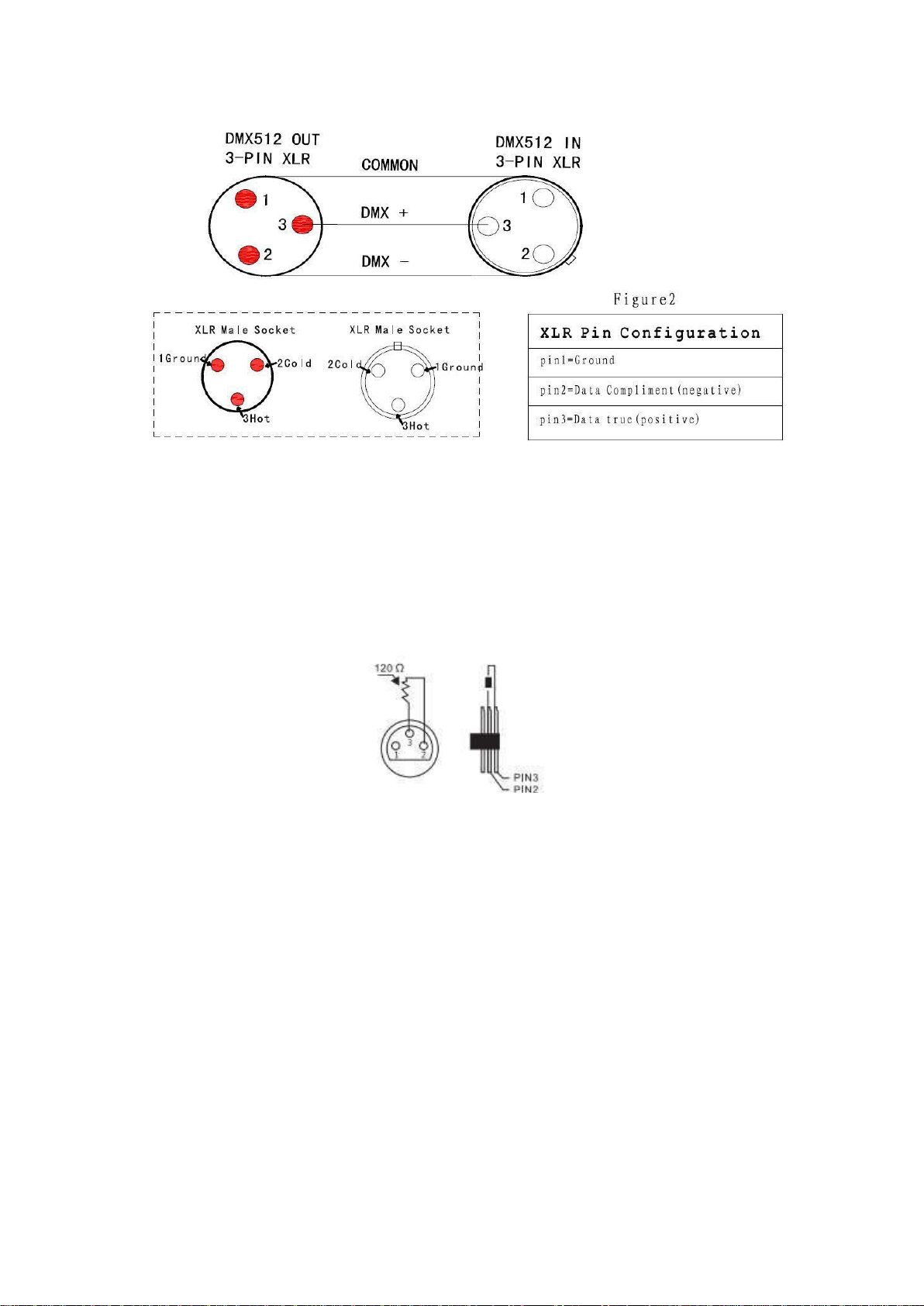

7. DMX-512 Control Connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the
male 3-pin XLR input of the moving head. You can chain multiple moving head together through serial
linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please
refer to the diagram below.

8
For installations where the DMX cable has to run a long distance or is in an electrically noisy enviroment,
such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of
the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the
chain. Please see illustrations below:

9
8. Menu Operations

10
9. DMX Channels
CH10
CH12
14CH
16CH
Function
Channel
Value
Description
CH1
CH1
CH1
CH1
Pan
0-255
0-540°
CH2
CH2
Pan fine
0-255
Pan Fine
CH2
CH2
CH3
CH3
Tilt
0-255
0-270°
CH4
CH4
Tilt Fine
0-255
Tilt Fine
CH3
CH3
CH5
CH5
X, Y speed
0-255
From fast to slow
CH4
CH4
CH6
CH6
LED Dimmer
0-255
From dark to bright
CH5
CH5
CH7
CH7
LED Strobe
0-7
Turn on
8-250
Strobe from slow to fast
251-255
Turn On
CH6
CH6
CH8
CH8
7 color +
white
0-15
White Lighting
16-31
Color 1
32-47
Color 2
48-63
Color 3
64-79
Color 4
80-95
Color 5
96-111
Color 6
112-127
Color 7
128-191
CW from slow to fast
192-255
CCW from slow to fast
CH7
CH7
CH9
CH9
8 Static
Gobos
+White
0-6
Open
7-13.
Gobo 1
14-20
Gobo 2
21-27
Gobo 3
28-34
Gobo 4
35-41
Gobo 5
42-48
Gobo 6
49-55
Gobo 7
56-63
Gobo 8
64-70
Gobo 8 shake speed from slow to fast
71-77
Gobo 7 shake speed from slow to fast
78-84
Gobo 6 shake speed from slow to fast
85-91
Gobo 5 shake speed from slow to fast
92-98
Gobo 4 shake speed from slow to fast
99-105
Gobo 3 shake speed from slow to fast
106-112
Gobo 2 shake speed from slow to fast
113-119
Gobo 1 shake speed from slow to fast
120-127
Open
128-191
Gobo Rotate CCW slow to fast
192-255
Gobo Rotate CW slow to fast

11
CH8
CH10
6 Rotation
Gobos
+ White
0-15
open
16-31
Gobo1
32-47
Gobo2
48-63
Gobo3
64-79
Gobo4
80-95
Gobo5
96-127
Gobo6
128-191
Gobo Rotate CW slow to fast
192-255
Gobo Rotate CCW slow to fast
CH9
CH11
Gobo
Rotation
0-15
open
16-95
Gobo Fine 0-360
CH8
CH10
CH10
CH12
Focus
0-255
Gobo hazy to clear
CH9
CH11
CH11
CH13
Prism
0-63
Open
64-255
Prism In
CH10
CH12
CH12
CH14
Prism
Rotation
0-15
Stop
16-135
Rotate CW slow > fast
136-255
Rotate CCW slow > fast
CH13
CH15
Self-setting
Program
0-7
No action
8-131
Auto mode
132-255
Sound mode
CH14
CH16
Reset
250-253
Reset
10. Maintenance and Cleaning
The following points have to be considered during the inspection:
All screws for installing the devices or parts of the device have to be tightly connected and must not be
corroded.
There must not be any deformations on the housing, color lenses, fixations and installation spots
(ceiling, suspension, trussing).
Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.
The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled
installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the
lights.
Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of
dust.
Clean the fan each week.

12
A detailed electric check by approved electrical engineer each three month, make sure that the circuit
contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend to clean the device frequently. Please use a moist, lint-free cloth. Never use alcohol
solvents.
There are no serviceable parts inside the device. Please refer to the instructions under “Installation
instructions”.
If you need any spare parts, please order genuine parts from your local dealer.
