NSF AC10-PC User manual

1
AC10-PC
Refrigerated Liquid
Dis
p
ensers
Service Manual
D-19-030RevA

2
Model Products Function Button Panels Weight Dimensions Capacity
AC10-PC 1 portion control 1, 3, 4, 5 60 lbs 17¾ x 9½ x 24 1 x 2½ gal (1 x 10 L)
NOTES: All Dimensions are in inches, with standard 1” legs installed.
Power Supply – all dispensers: 120 VAC, 1 ph, 60 Hz, 3 amp
A.C. Dispensing Equipment Inc.
100 Dispensing Way
Sackville, Nova Scotia Canada
B4C 4H2
Technical Assistance Center:
1-888-777-9990 or 1-902-865-9602
OR [email protected]

3
Table of Contents
Dispenser Components 2
Specifications 2
Safety Precautions 4
Inspection for Damage 4
Reshipment 4
Uncrating the Dispenser 5
Electrical Requirements 5
Servicing – Electrical 5
Servicing – Refrigeration 5
Installation of the Dispenser 5
1. OPERATIONS
Clean Before First Use 6
Starting the Dispenser 6
Loading the Dispenser 6
Loading Product Bags 7
To Remove an Empty Product Bag or Tank 8
To Dispense 8
Button Panels 8
Red Indicator Light 9

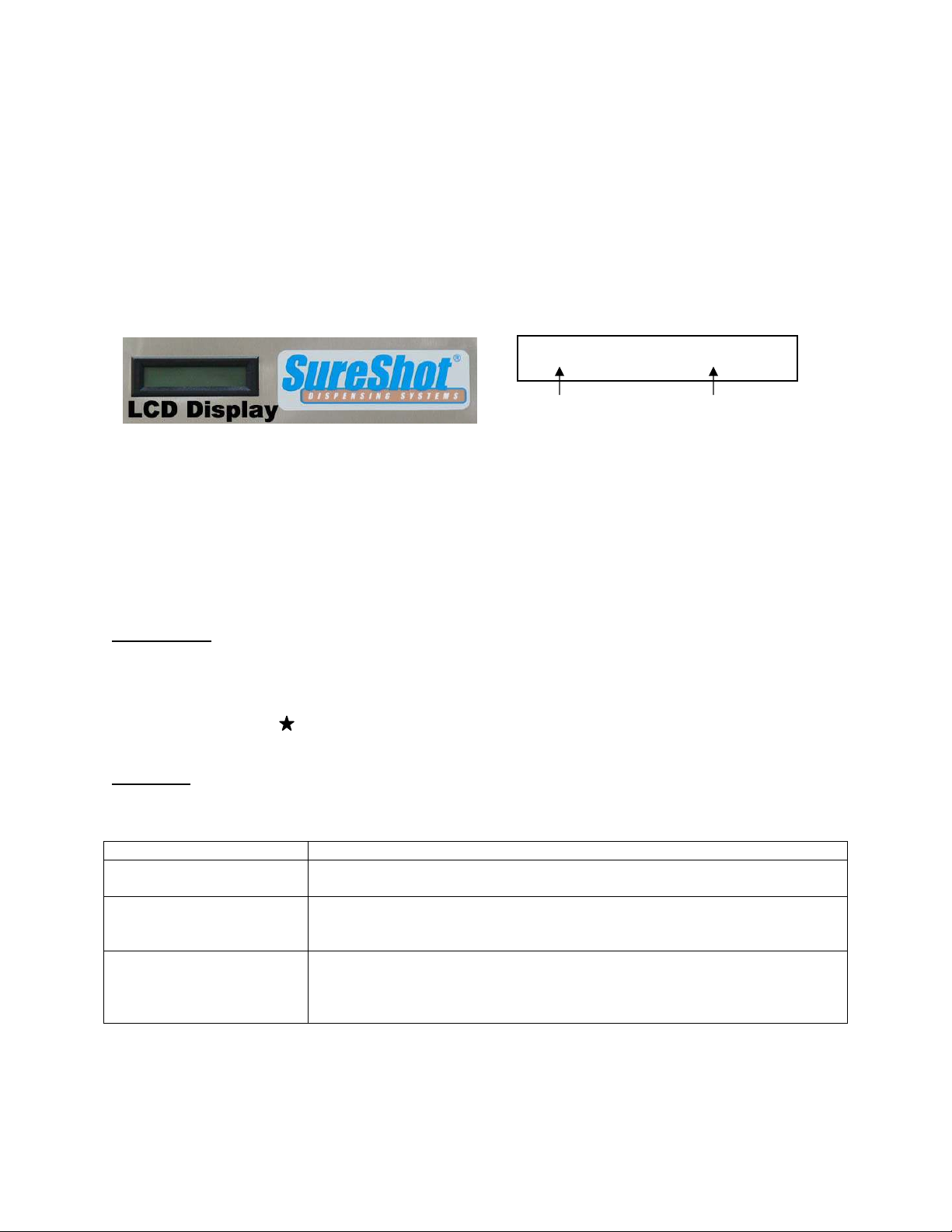

LCD Display 9
2. CLEANING
Recommended Cleaning Schedule 10
Cleaning – Catch Tray 10
Cleaning – Valve Area 10
Cleaning – Exterior of Dispenser 10
Cleaning – Dispensing Valve Area 11
Cleaning – Dispensing Valve Assembly 12
Cleaning – Product Tanks & Caps 13
Cleaning – Product Case 13
Cleaning – Refrigerated Compartment 13
Cleaning – Condenser 13
3. REFRIGERATION SYSTEM 14
Temperature Control Adjustment 14
Dispenser Running Too Cold 15
Dispenser Running Too Warm 15
4. MAINTENANCE
To Reset the Power on the Dispenser 16
General Maintenance 16
5. TECHNICAL SERVICE

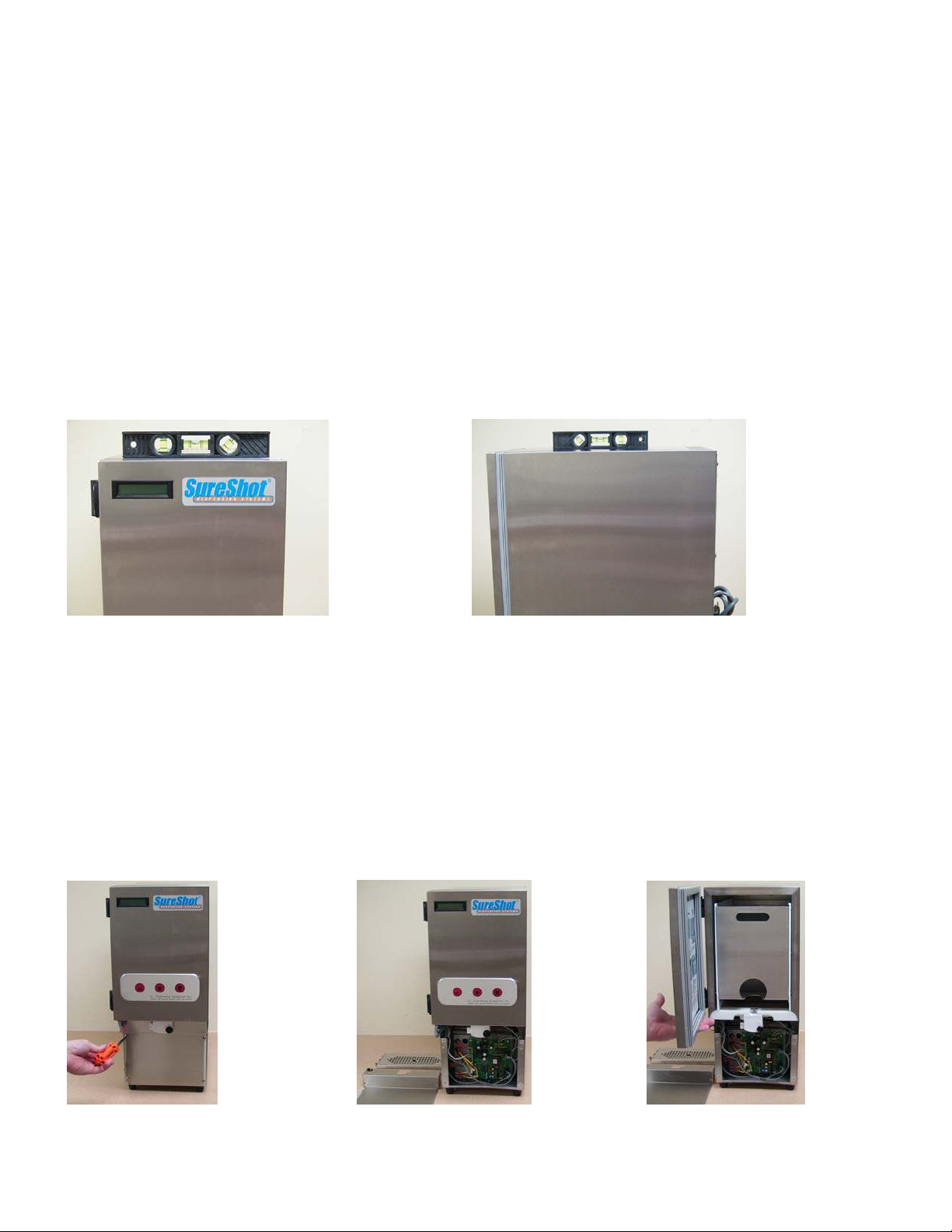

Level Dispenser 17
Remove Valve Cover 17
Remove Dispenser Door 17
Remove & Replace LCD Display 18
Remove & Replace Valve 19
Remove & Replace Valve Thermistor 19
Remove & Replace Display Thermistor 20

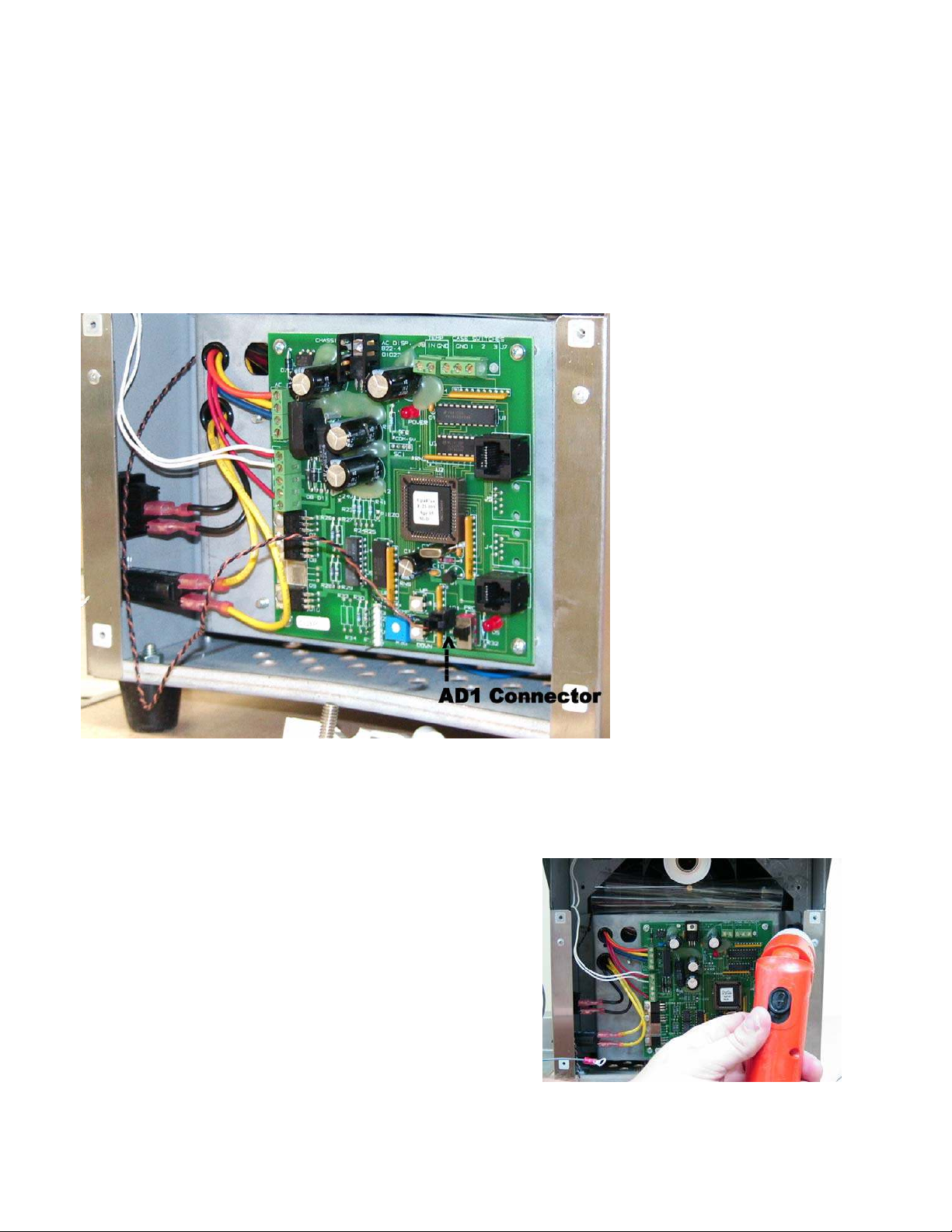

Remove & Replace Circuit Board 20
Remove & Replace Compressor Relay 21
Remove & Replace Transformer 21
Remove & Replace Circuit Breaker 22
Remove & Replace ON/OFF Switch 22
Remove & Replace Solenoid 23
Remove & Replace Condenser Fan 24
Remove Back Panel 24
Replace Electrical Cord 24
6. CHECKS AND ADJUSTMENTS
AC Outlet for 120 VAC 25
AC 120 VAC input to Transformer 25
AC 24/12 VAC output to PCB from Transformer 25
DC 2.8 Æ3.8 VDC input of Valve Thermistor 26
Resistance of Valve Thermistor 26
DC 2.8 Æ3.8 VDC input of Display Thermistor 26
Resistance of Display Thermistor 26
38 DVC output to Solenoid 27
38 DVC output to the Compressor Relay 27
120 VAC input to Compressor Back 27
Proximity Switch Continuity Check 28
Quantity Volume Checks 28
To Adjust Dispense Amounts 28
Displayed Temperature Offset Check 29
Displayed Temperature Adjustment 29
Gas Pressure Check 29
7. DIAGRAMS
Wiring Diagram 30
Electrical System 31
Circuit Board – labeled picture 32
General Assembly 33
8. PARTS LIST 34
9. TROUBLESHOOTING
Dispenser is not level 35
No power at the plug 35
Dispenser will not turn on 35
Dispenser will not dispense product 35
Dispenser is not dispensing proper amount
of product 36
Valve is sticky 36
Valve door is broken 36
Dispenser is warm on exterior 37
Dispenser is warm on interior 37
Dispenser is too cold 37
Frost buildup in refrigeration compartment 37
Dispenser is leaking product 38
LCD does not come on 38
10. WARRANTY 39
Document # D-19-030 RevA

4
AC10-PC LIQUID DISPENSERS - OPERATIONS
The AC10-PC SureShot Dispensing Systems® Liquid Dispensers provide refrigerated liquids such as
cream, whole milk, skim milk, in automatically controlled portions. Product selections are made using touch
buttons on the front panel. Each button is pre-set independently at our factory to dispense a specified amount
of refrigerated product in accurate, portion-controlled quantities to your company’s specifications. The product
is stored in a sanitary, refrigerated compartment within the dispenser.
The AC10-PC model will dispense a dairy product in up to five different sizes from touch buttons on
the front of the dispenser.
Operating the dispenser is a simple two-step process:
1. Place cup under the product delivery tube.
2. Press button for the desired quantity of dairy product.
Safety Precautions
• Always plug the dispenser into an approved electrical outlet.
• The dispenser includes a microcontroller and must be operated on
grounded electrical wiring at all times.
• Unplug the dispenser from its electrical source before servicing.
• Do not immerse the dispenser in water.
• Observe all safety precautions with this dispenser that you would
with any electrical appliance.
INSPECTION FOR DAMAGE
When you receive the dispenser, inspect the exterior of the shipping container for damage. Note any
damage in detail.
Uncrate the dispenser at once (see instructions below). Examine the dispenser for damage. Report any
damage to the transportation company immediately. File a claim for damages promptly.
Your immediate inspection protects you against loss since A. C. Dispensing Equipment Inc. is not
responsible for damages incurred during shipment.
RESHIPMENT
Packaging for re-shipment is done in the reverse order of uncrating. If packaging is not available, it can be
purchased locally, or from our factory by request. Any damage occurring in transit of the returned goods
caused by improper packaging is not considered a defect covered by Warranty.
NOTE: The Warranty will be null and void if the dispenser is serviced by unqualified personnel. Service under
Warranty must be approved and dispatched by A. C. Dispensing Equipment Inc. before the service technician
is dispatched. Contact the SureShot Dispensing Systems® Technical Assistance Center at 1-888-777-9990 or
1-902-865-9602 for approval. The customer is responsible for all costs not approved by A. C. Dispensing
Equipment Inc.

5
UNCRATING THE DISPENSER
CAUTION: Always lift the dispenser from the bottom. Do not lift the dispenser by the door.
To uncrate:
1. Make sure the box is positioned with the arrow pointing upward.
2. Cut the packing straps at the top of the box.
3. Lift the top tray off the box.
4. Lift the center sleeve off the box.
5. Remove the protective corner inserts from the bottom tray.
6. Lift the dispenser by its bottom out of the tray. Always use two people to lift the dispenser.
7. Remove the plastic protective covering from the stainless steel exterior of the dispenser,
by peeling it off. To peel, hold the dispenser firmly at the top and peel from top to bottom.
8. Prior to use, read the Operations Manual. Store it for future use.
NOTE: The carton top, sleeve, and bottom tray may be stored for future shipping.
ELECTRICAL REQUIREMENTS
Be sure the current at the power source receptacle is: 120 VAC, single phase, 3 Amp, 60 Hz.
The power cord is furnished with a UL-approved 3-prong attachment plug. This plug is designed to fit a
receptacle with provisions for a grounding stud. The dispenser includes a microcontroller and must be
operated on grounded electrical wiring at all times. Failure to do so will void the Warranty.
SERVICING - ELECTRICAL
Electrical servicing must be carried out by a qualified technician. The Warranty will be null and void if the
dispenser is serviced by unqualified personnel. If you need assistance, call the SureShot Dispensing
Systems® Technical Assistance Center at 1-888-777-9990 or 1-902-865-9602.
SERVICING - REFRIGERATION
Any servicing of the refrigeration system must be carried out by a qualified technician. The Warranty will be
null and void if the refrigeration system is serviced by unqualified personnel. If you need assistance, call the
SureShot Dispensing Systems® Technical Assistance Center at 1-888-777-9990 or 1-902-865-9602.
INSTALLATION AND LOCATION OF THE DISPENSER
1. Location of Dispenser:
•Place the dispenser where it will best serve your operation.
•Counters, platforms, or shelves should be strong enough to support the dispenser and full
containers of product. The empty AC10-PC dispenser weighs 60 pounds.
•Place the dispenser at the appropriate serving height so that people drawing product from the
dispenser can operate the buttons as well as easily place and remove cups.
•Leave clear space around the dispenser, approximately 1 inch (2.5 cm) on all sides.
•Do not place the dispenser too close to a source of heat or moisture. Allow a minimum 1 inch
(2.5 cm) airspace between machines at all times. The performance and efficiency of the
refrigeration system will be reduced if the dispenser is placed too close to a heat-generating
machine, such as a coffeemaker.
•Do not block the vents at the top rear of the dispenser. The vents must be free and open to
ensure proper operation of the ventilation system and to prevent over-heating and damage to the
system.
•The dispenser must be placed on a level surface or leveled by adjusting the legs. Not all
dispensers have adjustable legs. The dispenser must be level, left to right and front to back, to
dispense accurate quantities and to ensure proper functioning of the refrigeration system.
•Do not remove the legs or rubber feet from the dispenser or allow the dispenser to sit flat on the
counter. Airflow and circulation under the machine are essential for the proper operation of the
refrigeration system. Make sure the legs at the four corners of the bottom of the dispenser are in
place. If one has loosened during shipping, re-tighten it. Some dispenser models have
adjustable legs and these legs are secure even though they may appear to be loose. Removal of
the legs automatically voids the Warranty.

6
1. OPERATIONS
CLEAN BEFORE FIRST USE OF THE DISPENSER
•Make sure you clean the dispenser thoroughly. See Cleaning Instructions for the Exterior of the
Dispenser and the Dispenser Components on pages 10 - 13.
CAUTION: Before starting the dispenser, make certain that all Installation instructions have been
followed and that the dispenser has been sitting upright for a minimum of 3 hours.
STARTING THE DISPENSER
To start the dispenser:
1. Plug the power cord into the proper electrical outlet.
2. Turn the Power Switch “ON”. The power switch is located at the lower left of the dispenser.
Make sure the dispenser door is closed.
Push one of the product buttons on the front panel and listen to hear the valve open and close. This
confirms that the dispenser is operating. The button panel on the front of the dispenser may have a
power LED which glows green when the dispenser is on.
3. Allow the dispenser to run empty for one hour to achieve a cold temperature before placing product
containers in the dispenser. The temperature control has been pre-set at the factory.
You can feel the cold temperature by placing your hand on the top or back wall of the refrigeration
compartment.
4. If the dispenser does not appear to be getting cold, check to make sure that it is plugged in and that
the power source is active. If the dispenser still does not operate, immediately call the SureShot
Dispensing Systems® Technical Assistance Center Technical Assistance Center at 1-888-777-9990 or
1-902-865-9602.
LOADING THE DISPENSER
•Ensure the dispenser has achieved proper operating temperature by running empty for one hour
before loading product to be dispensed.
•Product being placed inside the refrigeration compartment should be cooler than 41 ºF or 5 ºC.
•The product is supplied in sanitary pre-packaged bags with attached delivery tubes. The bags are
placed in product cases that are placed within the refrigeration compartment.
.

7
LOADING: Product Bags
NOTE: Product may be loaded in bags, bags in boxes, or in tanks.
•All product tanks must be cleaned properly, sanitized with an approved sanitizing solution
according to the manufacturer’s specifications, and air-dried before they are loaded into
dispensers. Follow cleaning instructions on page 13.
•Tanks are to be loaded into the dispenser with the power switch ON.
•Tanks should be filled with chilled product before they are loaded
into the dispenser. Fill to the FULL level with product chilled to 41 °F
(5 °C) or less.
•Sanitize your hands or wear clean gloves to install product tank,
tank cover, and delivery tube.
Sanitize your hands or wear clean gloves to load the dispenser.
1. Place the bagged product in the product case provided with
the dispenser. Make sure the bag fitment is positioned so
the product delivery tube is inserted through the opening at
the bottom front of the case and is perpendicular to the
dispensing valve.
2. Open the door to the refrigerated product compartment.
3. Open the valve door by unscrewing the black knob in a
counter-clockwise motion to loosen the screw.
4. Insert the product case into the refrigerated product
compartment, with the tube facing out to the front.
5. Make sure there are no kinks or twists in the product delivery
tube.
6. Remove the polyethylene film covering the product delivery
tube.
7. Align the product delivery tube in the central vertical groove of
the valve block.
Do not pull or stretch the product delivery tube.
8. Close the valve door, making sure the product delivery tube is
in the vertical groove and is not kinked or pinched.
9. While holding the valve door closed with one hand, tighten
the knob-screw in a clockwise motion until the door is snug.
Do not over- tighten the screw.
10. Close the refrigerated product compartment door.
11. Squeeze the product delivery tube just below the valve with
all fingertips.
12. While squeezing the tube, press the “small” product quantity
button on the front door button panel once only. This will
cause the valve to operate once and relieve pressure in the
tube.
13. Use sharp scissors or a sharp knife to carefully cut the
product delivery tube at a 45° angle at a maximum length of
5/8” from the bottom of the valve block.
Discard the cut portion of the tube.
The dispenser is ready for use.
Loading product bag
Tube alignment
Cut tube

8
To Remove an Empty Product Bag or Tank:
1. Place a container under the dispensing valve to catch any residual product and to prevent spills.
2. Open the valve door by unscrewing the knob in a counter-clockwise motion.
3. Remove the empty bag or tank while pinching the product delivery tube so that it does not drip.
Discard the empty product bag.
4. EMPTY TANK: Wash, rinse, sanitize and air-dry the product tank, using cleaning instructions on
page 13.
OPERATING INSTRUCTIONS – AC10-PC Dispensers
•Make certain all initial Set-Up instructions have been followed before operating the
dispenser.
•The product and volume to be dispensed are selected by pressing buttons on the Button
Panel on the front door of the dispenser.
•Select buttons as required.
To Dispense Product:
1. Place cup under product delivery tube.
2. Press button to select product quantity to be dispensed.
BUTTON PANEL
Select the size button for the quantity to be dispensed.
One Size
Three Sizes: 1 2 3
small medium large
Four Sizes: Small Medium Large X-Large
Five Buttons:
Four Sizes: TOP: Small Medium Large X-Large
BOTTOM: Modifier Button
1. Press Modifier Button to dispense quantities for modifier amounts
2. Press top row button to select size of product dispensed

9
RED INDICATOR LIGHT
Some dispensers have a 5-button panel. The bottom row button is a Modifier Button for dispensing
quantities for specialty Modifier amounts. The Modifier Button has a Red Indicator Light (red LED) at the
top.
The Indicator Light will light for three seconds after the Modifier Button is pressed, to indicate that the size
selected will be dispensed in Modifier amounts.
The Indicator Light will flash to indicate the Modifier Button is in program mode (see page 28).
LCD DISPLAY – AC10-PC Dispensers
Operation Temperature
SureShot Dispensing Systems ® liquid dispensers use a Liquid Crystal Display in the upper left corner of
the dispenser door to show the current dispenser function.
Note: not all dispensers have an LCD.
Information is displayed in two parts:
Operation – shows the current operating function of the dispenser
Temperature – shows the internal temperature of the refrigeration compartment. (NOTE: this is the
compartment temperature in Celsius or Fahrenheit degrees, not the product temperature.)
Temperature:
Continuously shows the internal temperature status of the refrigeration compartment in Celsius or
Fahrenheit degrees, at your company’s specifications. The display changes every 3 seconds.
Examples: 37 F 37 degrees Fahrenheit
(blank) refrigeration system off
refrigeration system on
DEF defrost cycle in progress
Operation:
Press the button to Select Product. The LCD shows the operational status of that product tank or case:
Display Operational Status
SureShot 37 F indicates the dispenser is ready to dispense
and the internal compartment temperature is 37 °Fahrenheit
TR1 If the valve door is opened and closed, the dispenser resets the product
level for the case or tank dispensed by that valve. This display shows that
the level has been reset to Full for the tank/case.
Small
Medium
Large
Extra Large
Indicates the size selected, if Size button is pressed.
The LCD displays the size to be dispensed to your company’s specification.
Not all dispensers have the Extra Large option.
NOTES:
•Display returns to SureShot, the default display, after 3 seconds.
SureShot 37 F

10
2. CLEANING
Cleaning of tanks is a 4-stage process: Rinse, wash, rinse, sanitize.
All 4 stages must be followed, in sequence, to complete cleaning.
RECOMMENDED CLEANING SCHEDULE:
DISPENSER PART FREQUENCY SEE PAGES
Catch Tray Daily 10
Exterior Daily 10
Valve area Daily 10
Exterior Daily 10
Dispensing valves - PC Once a month, or as needed 11, 12
Product Case Every time valve is cleaned, or as required 13
Refrigerated Product Compartment Every time a new product bag or tank is loaded 13
Condenser Every 6 months 13
CLEANING: Catch Tray
Note: Not all dispensers have a catch tray.
For some dispensers, the catch tray is a separate accessory placed at the front of the dispenser.
For some dispensers, the catch tray is attached at the front and must be removed for cleaning,
by lifting it up and off.
1. Rinse the tray with lukewarm potable water.
2. Place the tray in a hot water wash at a minimum water temperature of 140 ºF or 60 ºC.
•A good quality general cleaner should be added to the hot wash water at the concentrations
recommended by the detergent supplier.
3. Wash thoroughly, using a bottle brush to reach all the corners and crevices.
•If a dishwasher is available at the location, this step may be carried out by placing the tray in
the dishwasher and washing on the pot cycle.
4. After washing, rinse the tray well with lukewarm potable water.
5. Turn the tray upside down. Air dry.
CLEANING: Valve Area
1. Turn the dispenser OFF.
2. Open the door to the refrigerated product compartment.
3. Thoroughly wipe the area around the valve with a warm, soapy cloth or a sanitized handiwipe to
remove any splashes or product build-up.
•Keep the valve area clean for proper sanitation and to ensure proper product delivery.
•If the valve area is not clean, the valve may stick and not deliver product accurately.
•Clean the valve assembly once a week, when the tank is empty.
•Wipe the valve area clean daily.
4. Wipe the area with a damp cloth to remove any soap residue.
5. Air dry thoroughly.
6. Close door to refrigerated product compartment.
7. Turn the dispenser ON.
CLEANING: Exterior of Dispenser
NOTE: Do not use any abrasive materials.
1. Use a soft, dry cloth to wipe down the exterior surfaces of the dispenser to maintain the
lustre of the stainless steel finish.
2. Wash the stainless steel exterior surfaces of the dispenser with warm, soapy water.
3. Rinse with warm clear water.
•If the water is hard, wipe the dispenser dry with a soft cloth to prevent water spotting.
•Stainless steel polish may be used if it is sprayed on a cloth before the cloth is used to wipe
down the exterior surfaces of the dispenser.
•The front of the dispenser should be wiped clean daily.
Do not spray any liquid, such as a cleaner, in or around the valve area.
Liquid could damage electrical components located behind the valve.

11
CLEANING: Valve Area & Valves – Portion-Controlled Dispensers
•The area around the product delivery valve must be kept clean, for proper sanitation and for the
proper delivery of calibrated product amounts. If the valve area is not clean, the valve may stick
and not deliver product accurately, or at all.
•The area around the product delivery valve should be wiped clean daily.
•It is necessary to remove the valve from the dispenser and take the valve apart to clean it (we
recommend once a month or as needed), but it is an easy process if you follow the steps
outlined on the following pages.
Valve Spring Retainer
Valve Spring
Valve Plunger
Valve Door Insert
Valve Door – Front
Valve Door Knob Screw
Flat-head Screw 1x
Machine Screw 2x
Valve Door – Back
Reed Switch/
Thermistor Wire
Front Panel
Valve Block
Pan-head Screw 4x

12
Valve Assembly
CLEANING: Remove & Clean Dispensing Valve Assembly
NOTES: Prepare a container of warm, soapy water before you
take the valve apart for cleaning.
Be careful not to dislodge the cable during cleaning.
1. Turn the power to the dispenser OFF.
2. Open the dispenser door to the refrigerated product compartment.
3. Remove the product tanks by following the instructions on page ____.
4. Remove the catch tray (if applicable) by lifting it up and off.
5. Remove the 4 pan-head screws (+) that secure the front splash panel
(valve cover) in place and carefully remove the panel. It is located below
the white plastic valves that hold the product dispensing tubes. It is held in
place by 4 phillips-head screws (+).
Thoroughly wash the splash panel.
6. Open the valve door: unscrew the black knob in a counter-clockwise
motion.
7. Remove the phillips-head screw at the top of the metal valve insert. Do
not misplace the screw. Wipe clean.
8. Remove the 2 phillips-head screws at the upper corners of the valve block.
Do not misplace the screws. Wipe clean.
9. Gently remove the white valve body, using an even force.
Hold the valve carefully with one hand so that the thermistor wire will not be
broken or damaged.
Do not let the valve dangle freely. Hold it in your hands.
NOTE: The valve body can only be moved the length of the thermistor
wire.
10. Remove the plunger and spring.
Rinse, wash, rinse, sanitize, and air dry the plunger and the spring
11. Wipe the spring cup clean.
12. Clean the white plastic sections of the valve block, using a small
brush with warm, soapy water.
Rinse, sanitize, and air dry the white plastic sections of the valve
block with the plunger and spring. Air dry thoroughly.
13. Reassemble the spring, the plunger, and the valve body.
14. Align the valve body with the plunger. Move back into place.
15. Replace the 2 phillips-head screws. Tighten until snug.
Do not over-tighten the screws.
16. Replace phillips-head screw at the top of the metal valve insert.
This screw must fit snugly to ensure proper operation of the
refrigeration system. Do not over-tighten the screw.
17. Close the valve door.
18. Secure the door by tightening the knob-screw in a clockwise
motion until the door is snug. Do not over-tighten the screw.
19. Re-install 4 phillips-head screws to secure the front panel in place.
20. Wipe the product compartment clean.
21. Close the refrigerated product compartment door.
22. Turn dispenser ON.
23. Push any “size” button.
Listen for the valve door open and close to ensure that the valve
is operating properly.
24. Load new product and dispense.
Step 5
Step 6
Step 7
Step 9
Step 10
Step 13

13
CLEANING: Product Tanks and Caps
Product tanks and covers are made of either stainless steel or plastic. Tanks and caps may be
washed in a dishwasher or by hand according to provincial and state regulations. If washing by hand, a
pot brush is recommended.
Product tanks must be washed and sanitized in a dishwasher or by hand every time the tank is
removed from the dispenser and placed in the dispenser. Cleaning requirements may be specified by
company policy or local regulation. Comply with their specifications.
To clean the product tank:
1. When the product has run out, remove the tank from the dispenser. Remove the product
delivery tube from the tank.
Discard the tube.
Rinse the tank, including the cover, with lukewarm potable water.
2. Place the tank and cover in a hot water wash at a minimum water temperature of 140 ºF or 60 ºC.
•A good quality general cleaner should be added to the hot wash water at the concentrations
recommended by the detergent supplier.
Wash thoroughly, using a bottle brush to reach all the corners and crevices.
Wash the outlet spout area, using a small bottle brush.
•If a dishwasher is available at the location, this step may be carried out by placing the tank and
cover in the dishwasher and washing on the pot cycle.
3. After the tank and cover have been washed, rinse well with lukewarm potable water.
4. Turn the tank and cover upside down. Air dry.
5. Before refilling the tank with product, sanitize the tank and cover with mild sanitizer such as
chlorine at 100 ppm, or a product recommended by your detergent supplier.
Let the tank and cover drain before filling with product. Do not rinse.
6. Just before filling the tank, apply a new white dairy tube to the outlet spout of the tank.
7. The tank may be pre-filled before it is required, but the tank and contents must be stored,
with the cover on, in a refrigerator until placed in the dispenser.
CLEANING: Product Case
Product cases hold the pre-bagged product. The cases are made of a metal front, back, and
bottom,
with plastic sides. Cases must be washed by hand according to provincial or state regulations. When
washing by hand, a pot brush is recommended.
Make sure the case is cleaned each time the valve is cleaned, or more frequently, if required.
To clean the product case:
1. Remove the product case from the refrigeration compartment of the dispenser.
2. Wash with hot, soapy water or an approved sanitary cleaning product, according to provincial or
state regulations.
3. Rinse with hot, clear water to remove soap residue.
4. Dry thoroughly.
CLEANING: Refrigerated Product Compartment of Dispenser
Wipe the compartment clean each time a new product bag or tank is loaded. This will remove
any
condensation that may accumulate within the compartment.
1. Each time a new product bag or tank is loaded, check the refrigerated product compartment for ice
build-up. If ice has accumulated in the refrigerated product compartment, gently remove and discard
the ice. It will be easier to remove ice if you turn the dispenser off for 10 – 15 minutes.
2. Wipe the interior down with a soft cloth
3. Dry thoroughly.
CLEANING: The Condenser
Every 6 months, remove the back panel of the dispenser and inspect the condenser. If
necessary,
clean the condenser using a vacuum, to prevent any damage to the condenser coil.

14
3. REFRIGERATION SYSTEM AND TEMPERATURE ADJUSTMENT
REFRIGERATION SYSTEM
•The refrigeration system is a hermetically sealed system which uses environmentally friendly R134-A
refrigerant.
•If recharging of the system is required, the refrigeration technician should refer to the A. C. Dispensing
Equipment Inc. Machine Identification Label located on the left side of the dispenser for details on the quantity of
refrigerant used.
•The condenser is located at the rear of the dispenser behind the back panel.
•The evaporator is incorporated within the stainless steel walls of the refrigerated product compartment, i.e. cold-
wall evaporation system.
•The compressor is located below the storage compartment and is accessible through the back panel.
TEMPERATURE CONTROL ADJUSTMENT
Each SureShot Dispensing Systems® dispenser is pre-set at our factory to meet your operating standards.
These settings should not require adjustment.
The temperature in the refrigerated product compartment is set at our factory for normal use in the North
American food service industry. The temperature is set to maintain the product within the range of 35 ºF to 40 ºF (1.6 ºC
to 4.4 ºC). The temperature is controlled by an adjustable thermostat. The adjustment pot for this thermostat is located
at the middle of the right side of the circuit board. (See page 15)
1. Open the door to the refrigerated product compartment.
2. Remove the 4 pan-head screws that secure the front splash panel/valve cover in place and carefully remove the
front splash panel/valve cover. It is located below the white plastic valves that hold the product tubes. It is held in
place by 4 Phillips screws (+).
3. When this cover is removed, locate the Circuit Board that has electronic components on it. A red LED light should
be (ON) indicating that there is power supplied to the board.
4. Locate the Temp. Adj. (R36 - Temperature adjustment) Pot, which is on the middle bottom of the circuit board. It is
a blue plastic square, approximately ½” square. It has a white circular center with a slot.
5. From the factory, this Temp. Adj. slot adjustment would have been set vertical (at 12 and 6 o’clock if you were to
compare it to hands on a clock).
6. Follow the instructions on page 15 for adjustments, depending on whether your dispenser is running too cold or too
warm.
Refrigerated
Compartment
Condenser
Fan
Compressor
Filter/Dryer
Capillary Tube

15
Circuit Board
If The Dispenser Is Running Too Cold:
To increase the temperature or to make it warmer, turn the white center slot left or counterclockwise 1 hour to 11
o’clock. Allow this adjustment to take effect for 3 hours.
If still not warm enough, adjust the Temperature Adjust to 10 o’clock and repeat the wait time. You can further
adjust the temperature to 9 o’clock. Do not adjust further.
If, after these adjustments are made, your unit is still running too cold, please call SureShot Dispensing Systems®
Technical Assistance Center at 1-888-777-9990 or 1-902-865-9602 during your 1-year warranty period or a qualified
Refrigeration Technician after your warranty period has expired.
If The Dispenser Is Running Too Warm:
To decrease the temperature or to make it colder, turn the white center slot right or clockwise 1 hour to 1 o’clock.
Allow this adjustment to take effect for 3 hours.
If still not cold enough, adjust the Temperature Adjust to 2 o’clock and repeat the wait time. You can further adjust
the temperature to 3 o’clock. Do not adjust further.
If, after these adjustments are made, your unit is still running too warm, please call SureShot Dispensing
Systems® Technical Assistance Center at 1-888-777-9990 or 1-902-865-9602 during your 1-year warranty period or a
qualified Refrigeration Technician after your warranty period has expired.
Temperature Adjust R 36 Program

16
4. MAINTENANCE
To Reset the Power on the Dispenser:
1. Locate the Power Control ON/OFF switch on the front left of the dispenser.
2. Turn OFF the Power Control ON/OFF switch.
3. Locate the 3 Amp circuit breaker above the Power Control on/off switch.
4. Depress the 3 Amp circuit breaker to make sure it has not popped.
•No white should be showing. If white is showing on the top of the breaker, it is tripped.
•It will make a clicking noise when depressed.
5. Turn back ON the Power Control ON/OFF switch.
General Maintenance
•Gently remove ice build-up, if any ice forms. Ice build-up could indicate an improper temperature setting or an
improperly sealed door.
If the dispenser has accumulated ice or frost at the top of the refrigerated product compartment, it is best to
remove it by hand during a defrost cycle, which runs automatically and will be indicated on the LCD display panel
(DEF). Forming ice does not necessarily mean the temperature of the product is too cold.
Ice may be removed during a product change: unplug the dispenser. Leave the door open for about 15 minutes
to allow the ice to soften. Remove the ice by hand.
If a temperature adjustment is required, follow the instructions on page 15. If further assistance is required,
contact the SureShot Dispensing Systems® Technical Assistance Center at 1-888-777-9990 or 1-902-865-9602.
•If you have difficulty closing the door, check for ice buildup and remove to ensure proper operation.
•Check the door gaskets, to ensure there are no cuts or gaps. The door must close tightly to ensure proper
refrigeration.
Check the operation of the fan, being careful not to cut or injure fingers. The fan is located on the right side of the
dispenser, behind the front panel (See page 14). If the fan is not operating, call SureShot Dispensing Systems®
Technical Assistance Center at 1-888-777-9990 or 1-902-865-9602 for assistance.
Caution: Keep the dispenser level at all times. Do not tip the dispenser while it is operating. Tipping will damage the
compressor and prevent proper operation of the refrigeration system.

17
5. TECHNICAL SERVICE
Leveling Dispenser
•The dispenser must be placed on a level surface or leveled by adjusting the legs. The dispenser must be
level to dispense accurate quantities and to ensure proper functioning of the refrigeration system. Not all
dispensers have adjustable legs. Some models have plastic feet, which are not adjustable.
•Do not remove the legs or feet from the dispenser or allow the dispenser to sit flat on the counter. Airflow
and circulation under the machine are essential for the proper operation of the refrigeration system. Make
sure the legs or feet at the four corners of the bottom of the dispenser are in place. Some dispenser models
have adjustable legs and these legs are secure even though they may appear to be loose. If one has
loosened during shipping, re-tighten it.
•Removal of the legs automatically voids the Warranty.
1. Place the dispenser on the countertop.
2. Level the dispenser:
For dispensers with plastic feet: level the countertop.
For dispensers with adjustable legs: Adjust the legs by hand-turning them slightly until the dispenser is level.
•To ensure the dispenser is level, place a bubble level on the top of the dispenser to guide you during the
adjustments.
•Do not allow the dispenser to be tilted backwards.
Remove Valve Cover
1. Remove the 4 Phillips screws holding the cover in place.
2. Pull the cover down and out.
Remove Dispenser Door
1. Turn the power switch OFF.
2. Remove the lower valve cover, by removing the 4 screws.
3. Unplug the door cord(s) – one or two cords, depending on the dispenser model.
4. Remove the ground wire.
5. Firmly grasp the dispenser door with two hands and lift the door straight up
6. Replace the door, using steps in the reverse order of the removal.
7. Turn the power switch back ON.
Level – left to right Level – front to back
Step 1 Step 2 Step 3

18
Remove & Replace LCD Display
1. Turn the power switch OFF.
2. Open the dispenser door.
3. Lift the inside door gasket to expose the 10 hex-headed screws.
4. Remove the steel back panel from the door by removing the 10 screws.
5. Identify the display: it will be located under a piece of tape.
6. Lift the tape – do not discard tape.
7. Unplug the old Display Connector from the 10-Pin Header.
8. Remove the old Display.
9. Install and plug in the new display.
10. Place tape back over the display. Use UL-approved tape to completely cover the display back.
11. Re-install the steel back panel and gasket by replacing the 10 screws.
12. Restore the inside door gasket.
13. Install and close the dispenser door.
14. Turn the power switch back ON.
Step 3 Step 4 Step 5
Step 6 Step 7 Step 8 Step 9
Step 10 Step 11 Step 12

19
Remove & Replace Valve
To Remove & Clean Valve Assembly – See Operations – Cleaning Valve, page ____ OR
1. Turn the power switch OFF.
2. Remove the valve cover by removing the 4 Phillips screws.
3. Open the valve front and remove the 3 Phillips pan-head screws.
4. Gently pull the valve forward. Be careful to extract any wires along with the valve.
5. Disconnect all wires from Circuit Board.
6. Pull the aluminum insert forward from the back of the valve. If wires are attached to the aluminum
insert, pull these along with the insert when extracting.
NOTE: to resume use of the dispenser, you must replace the valve, following the reverse order of steps and then turn the
power switch back ON.

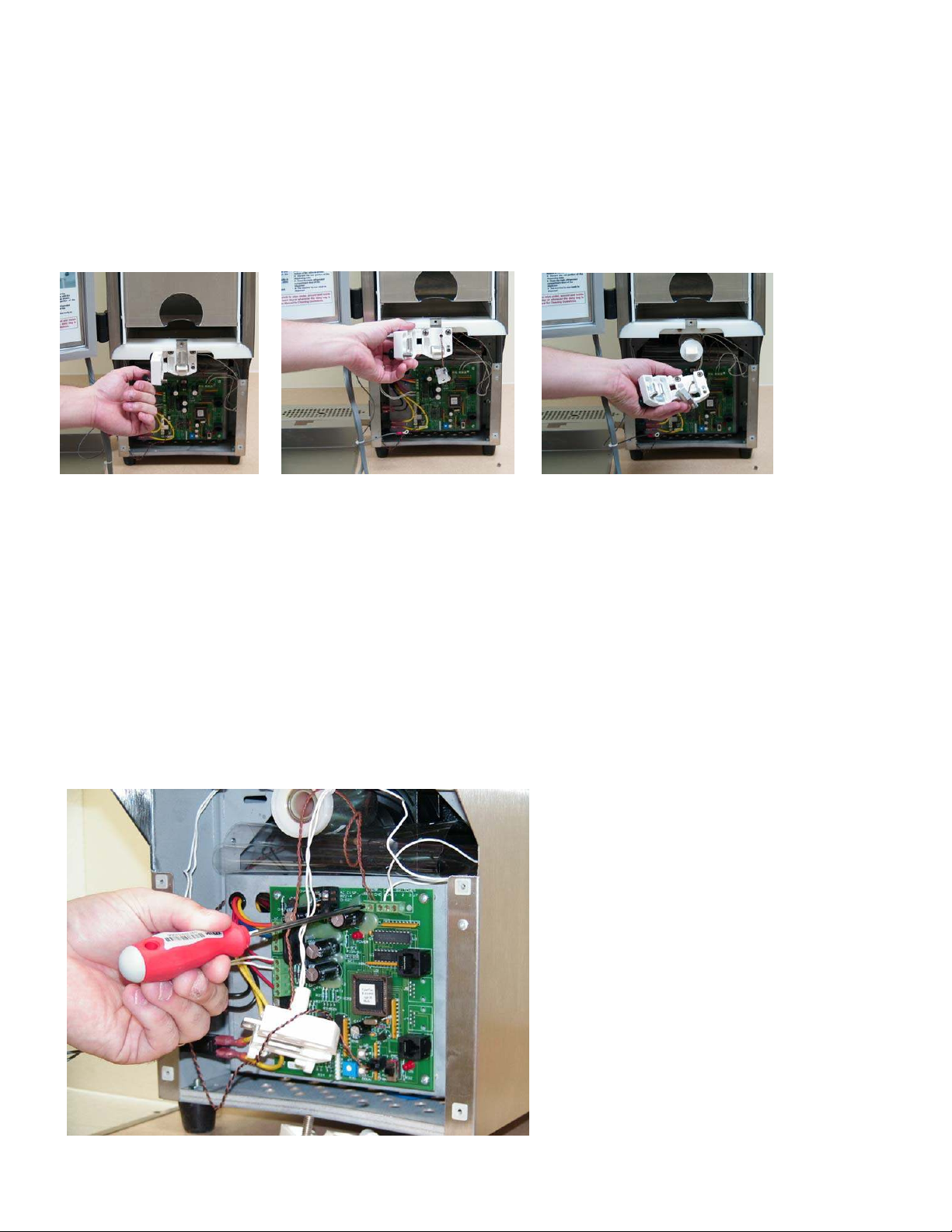

Remove & Replace Valve Thermistor
1. Turn the power switch OFF.
2. Remove the valve cover – remove the 4 Phillips screws.
3. Open the valve front - remove the 3 Phillips pan-head screws.
4. Gently pull the valve forward.
Be careful to extract any wires along with the valve.
5. Disconnect all thermistor wires from the Circuit Board.
6. Pull the aluminum insert that contains the thermistor forward
from the back of the valve.
7. Replace the valve thermistor following the reverse order of steps.
8. Replace the valve cover.
9. Turn the power switch back ON.
Step 3 Step 4 Step 6
Step 5

20
Remove & Replace Display Thermistor
1. Turn the power switch OFF and unplug dispenser.
2. Remove the valve cover – remove the 4 Phillips screws.
3. Locate and disconnect the 2 grey and black wires (or 2 black wires) coming from AD1 connector found
at the lower right corner of the circuit board.
4. Follow the 2 wires back and locate the screw in the Display Thermistor.
5. Turn the lower section of the Display Thermistor counter-clockwise and extract.
6. Replace the Display Thermistor. Make sure it is tightened snugly by hand for proper contact to inner box.
7. Reconnect to Circuit Board
8. Replace the valve cover.
9. Plug in the dispenser.
10 Turn the power switch back ON.
Remove & Replace Circuit Board
1. Turn the power switch OFF and unplug dispenser.
2. Remove the valve cover – remove the 4 Phillips screws.
3. Locate the Circuit Board directly behind the valve cover.
4. Disconnect all wires. We recommend that you write
down the location of each wire before disconnecting.
5. Remove the four (4) small Phillips screws that secure
the Circuit Board to the Electrical Panel.
5. Replace the Circuit Board.
6. Reconnect all wires to their proper locations on the Circuit Board.
7. Check the Temperature Adjust Pot on the Circuit Board,
to ensure it is in the 12 o’clock position.
8. Replace the valve cover.
9. Plug in the dispenser.
10. Turn the power switch back ON.
11. Check operation to ensure dispense buttons are working and
the dispenser temperature is cooling properly.
Step 3
