Nubbaum Hebetechnik 2.50 SE Operator's manual

2.50 SE
Automotive Lift date: 12-1998
Manual date: 06.12.1998
Version: electronic
Operating Instruction and Documentation
Serial-number:........................................................
Nußbaum Hebetechnik GmbH & Co.KG//Korker Strasse 24//D-77694 Kehl-Bodersweier//Tel:
+49(0)7853/8990 Fax: [phone] / 87 87//E-mail: [e-mail]//http://www.nussbaum-lifts.de
Retailer address /Phone

Operating Instruction and Documentation
2.50 SE
- 2-
Table of contents
Foreword................................................................................................................................................ 3
1. Introduction............................................................................................................................................. 5
2. Master document of the lift..................................................................................................................... 6
2.1 Manufacturer ................................................................................................................................... 6
2.2 Application....................................................................................................................................... 6
2.3 Changes of construction................................................................................................................... 6
2.4 Changing of the installation place ................................................................................................... 6
2.5 CE-certificate/attestation of conformity.......................................................................................... 7
3. Technical Information............................................................................................................................. 8
3.1 Technical ratings.............................................................................................................................. 8
3.2 Safety devices.................................................................................................................................. 8
4. Safety regulations.................................................................................................................................... 9
5. Operating instructions.............................................................................................................................. 10
5.1 Positioning the vehicle..................................................................................................................... 10
5.2 Synchronism of the automotive lift.................................................................................................. 10
5.3 Lifting the vehicle............................................................................................................................ 11
5.4 Lowering the vehicle........................................................................................................................ 11
5.5 LED display visibly at the operating unit......................................................................................... 12
6. Maintenance............................................................................................................................................ 14
6.1 Maintenance schedule of the automotive lift................................................................................... 14
6.2 Adjust of the polyflex-belt............................................................................................................... 15
6.3 Check the carrying nut system......................................................................................................... 16
6.4 Check of the stability of the automotive lift.................................................................................... 16
7. Troubleshooting....................................................................................................................................... 17
7.1 Emergency lowering in case of power failure.................................................................................. 18
7.2 Driving onto an obstacle.................................................................................................................. 18
7.3 Function of safety device................................................................................................................. 18
7.4 Manually equalisation of the lifting carriage................................................................................... 19
7.5 Adjusting of the “Limit switch“...................................................................................................... 19
8. Installation and Initiation......................................................................................................................... 20
8.1 Installation of the automotive lift..................................................................................................... 20
8.1.1 Erection and doweling of the lift............................................................................................. 20
8.1.2 Electro mounting and current connection................................................................................ 22
A) with using ascending pipe and traverse................................................................................. 22
B) without using ascending pipe and traverse............................................................................ 23
8.1.3 Installation the carrying arms........................................................................................................ 23
8.2 Initiation........................................................................................................................................... 24
8.3 Changing the installation place........................................................................................................ 24
9. Security check.......................................................................................................................................... 24
Appendix
Datasheet..................................................................................................................................................... 26
Foundation plan (version with traverse and ascending pipe)...................................................................... 28
Foundation plan (version without traverse and ascending)......................................................................... 29
Block foundation plan (with ascending pipe and traverse)......................................................................... 30
Selection of dowels (with floor covering)................................................................................................... 31
Selection of dowels (without floor covering).............................................................................................. 32

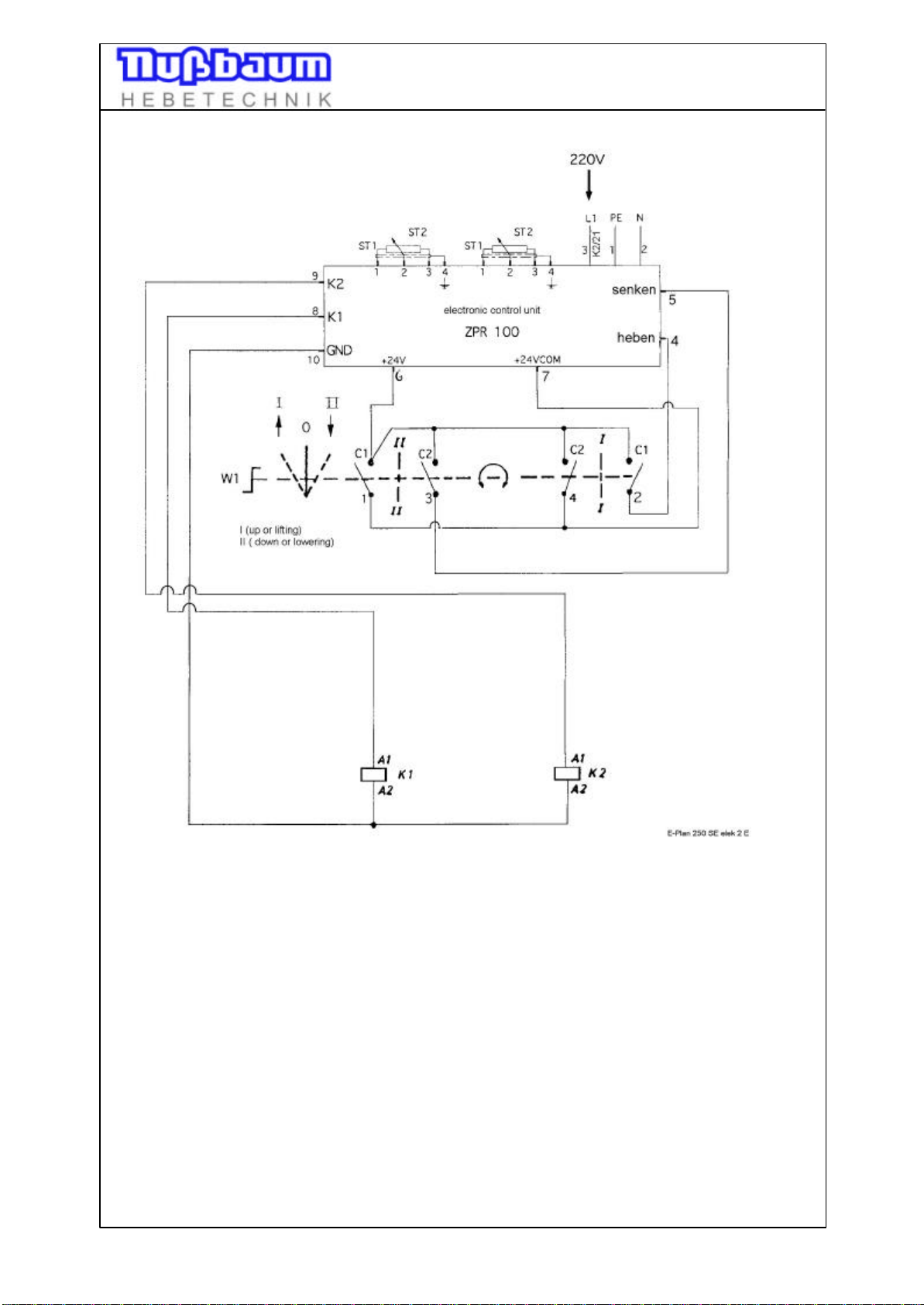

Electrical diagram drawing Part 1............................................................................................................... 33
Electrical diagram drawing Part 2............................................................................................................... 34
Record of installation................................................................................................................................... 35
Record of handing over............................................................................................................................... 36
Document "First security check before Installation"................................................................................... 37
Document "Regular security check"........................................................................................................... 38
Document "Extraordinary security check".................................................................................................. 45

Operating Instruction and Documentation
2.50 SE
- 3-
Foreword
Nussbaum-Lifts are a result of long-standing experiences.
The high quality and the superior concept guarantee them reliability, a long lift time and the
economic business.
To avoid unnecessary damages and dangers, read the operating instruction attentive and
observe the contents.
Another or the described purpose going out use is not valid when not as agreed.
This is valid particularly for climb and go.
Company Nussbaum is not liable for damages arising from this. The user carries the risk
alonely.
For the use belonged:
- to observe all the notice in the operating instruction and
- the following of the inspection and maintenance work and the prescribed tests.
-The instruction for use have to be observed by all persons working with the lift.
-Especially the chapter “Safety/accident Prevention“ has to be observed.
- In addition to the safety remarks of the instructions for use the regulations and
instructions being valid at the place of operation have to be considered.
Obligations of the operator:
The operator is obliged to allow only those persons complying to the following requirement to
work at the unit
- being well acquainted with the basic regulations concerning labour safety and accident
prevention and being trained to operate the unit.
- having read and understood the chapter concerning safety and warning instructions and
confirmed that by their signature.
Dangers when operating with the lift:
The Nußbaum-Lifts are designed and built according to technical standard and the approved
regulations for technical security. Yet, danger for body and life of the operator may turn up
when using the lift inexpertly.
The lift must only be operated :
-for its appropriate use
-in unobjectionable condition concerning technical security.

Operating Instruction and Documentation
2.50 SE
- 4-
Organising requirements
-The instructions for use are constantly to be kept at the place of operation being at hand
at any time.
- In addition to the instructions for use rules pertaining to other regulations i.e. accident
prevention and environmental rules are to be observed and directed.
- Safety- and danger alert operation of personal is occasionally and by observing the
instructions for use to be controlled.
-As far as required and ordered by regulations personal protective equipment is to be
used
- All safety- and danger-hints at the lift are to be observed!
- Spare parts must comply with technical requirements laid down by the manufacturer.
This is only warranted with original parts.
Consider time intervals given or fixed in instructions for use for repeated
tests/inspections.
Maintenanceworks, remedy of faults and disposal
-Fixed Adjusting-, maintenance- and inspectionworks and time intervals including
Details for exchange of parts/part components as mentioned in the instructions for use
are to be adhered.
These works must only be carried out by expert personal.
- After maintenance- and repair works loose screw connections must always be firmly
tightend!

Operating Instruction and Documentation
2.50 SE
- 5-
Filling out and undersigned and copying this sheet and send the original to the
lift manufacturer. The copy remains in the Manual.
Otto Nussbaum Hebetechnik GmbH & Co.KG
Korker Strasse 24
77694 Kehl-Bodersweier
Germany
Record of installation
The automotive lift 2.50 SE with the
serial number:............................................ was installed on:...............................................
at the firm:................................................. at:.....................................................................
the safety was checked and the lift was started.
The installation was effected from the operating authority/competent (please delete as applicable).
The safety of the automotive lift was checked from the competent before the initial operation.
The operating authority attest the installation of the automotive lift, the competent attest the
correct initial operation.
............................................ ..................................................... ............................................
date name of the operating authority signature of the operating authority
............................................ ..................................................... ............................................
date name of the competent person signature of the competent person
Your customer service:.................................................................................................................
.......................................................................................................................................................

Operating Instruction and Documentation
2.50 SE
- 6-
Record of handing over
The automotive lift 2.50 SE with the
serial number:............................................ was installed on:...............................................
at the firm:................................................. at:.....................................................................
the safety was checked and the lift was started.
The persons below were introduced after the installation of the automotive lift. The
introduction was carried out from an erector of the lift-manufacturer or from a franchised
dealer (competent person).
............................................ ..................................................... ............................................
date name signature
............................................ ..................................................... ............................................
date name signature
............................................ ..................................................... ............................................
date name signature
............................................ ..................................................... ............................................
date name signature
............................................ ..................................................... ............................................
date name signature
............................................ ..................................................... ............................................
date name signature
............................................ ..................................................... ............................................
date name of competent signature of the competent
Your customer service:...............................................................................................................
.......................................................................................................................................................

Operating Instruction and Documentation
2.50 SE
- 7-
1.Introduction
The document ”Operating Instructions and Documentation” contains important
information about installation, operation and maintenance of the 2.50 SE/T/MB.
To furnish proof of installation of the automotive lift the form ”Record of Installation”
must be signed and returned to the manufacturer.
To furnish proof of the singular, felt this documentation contains forms. The forms should
be used to document the checks. They should not be removed from this documentation.
Every Changes to the constructionand displacement of the automotive lift must be
registered in the ”Master document” of the lift.
Installation and check of the automotive lift
Only specialist staff is allowed to do work concerning safety and to do the safety checks of
the lift. They are called experts and competent person in this document.
Experts are persons (for example self-employed engineers, experts) which have
received instruction and have experience to check and to test automotive lifts.
They know the relevant labour and accidents prevention regulations.
Competent person are persons who have acquired adequate knowledge and experience
with automotive lifts. They took part in training from the lift-manufacturer
(servicing technicians of the manufacturer or dealer, are competent)
Information of Warning
To show danger and to show important information the three symbols below are used. Pay
attention to those passages, which are marked with these symbols
Danger! This sign indicates danger to life. Inexpert handling of the described
operation may be dangerous to life.
Caution! This sign cautions against possible damage to the automotive lift or
other material defects in case of inexpert handling .
Attention! This sign indicates for an important function or other important
notes.

Operating Instruction and Documentation
2.50 SE
- 8-
2. Master document of the automotive lift
2.1 Lift –manufacturer Otto Nussbaum GmbH & Co.KG
Korker Straße 24
D-77694 Kehl-Bodersweier
Germany
2.2 Application
The automotive lift 2.50 SE is a lifting stage for lifting and repairing vehicles with a laden
weight of 5000 kg . The max. load distribution is 3:2 in or against the drive-on direction.
It is not allowed to put the load on one or two carrying arms.
It is not allowed to install the standard lift in the a explosive location or wash halls.
After changing the construction and after repair, the lift has to be checked by an expert
again. The operating instruction and the instruction for maintenance have to be observed.
Changes at the construction, repairs and transposement of lift must be registered
in this master document.
2.3 Changes at the construction
Changes at the construction, expert checking, resumption of work (date, kind of
change, signature of the expert)
..................................................................................................................................................
..................................................................................................................................................
..................................................................................................................................................
..................................................................................................................................................
name, address of the expert
........................................................... ............................................................
place, date signature of the expert
2.4 Displacement of the automotive-lift
Displacement of the automotive-lift, expert checking, resumption of work (date, kind
of change, signature of the competent)
..................................................................................................................................................
..................................................................................................................................................
name, address of the competent
........................................................... ............................................................
place, date signature of the competent

Operating Instruction and Documentation
2.50 SE
- 9-
2.5 CE-Certificate/attestation of conformity
The automotive lift 2.50 SE with the serial number...............................................................
Is in accordance with the tested lift (CE-certificate-number 04-205-1381/95)
................................................ ...............................................................
place, date company stamp, signature

Operating Instruction and Documentation
2.50 SE
- 10 -
3. Technical Information
3.1 Technical ratings
Lifting capacity 5000 kg
Load of one carrying arm max. 1500 kg (It is not
allowed to put the load on
one or two carrying
arms.)
Lifting time appr. 40 sec.
Lifting height max. 1870 mm
Line voltage 3 x 400 three phase current
Control tension 230 V
Power rating 2 x 2,2 kW
Sound level 75 dBA
Connection by customer Fuse T16 A / 5 x 1,5 qmm
in accordance with
recommendation
3.2 Safety devices
1. safety switching in case the carrying nut breaks
2. limit stop switch (actuated by electronic control)
3. foot protector
4. synchronism controlled by electronic control system

Operating Instruction and Documentation
2.50 SE
- 11 -
3.3 Data sheet

Operating Instruction and Documentation
2.50 SE
- 12 -

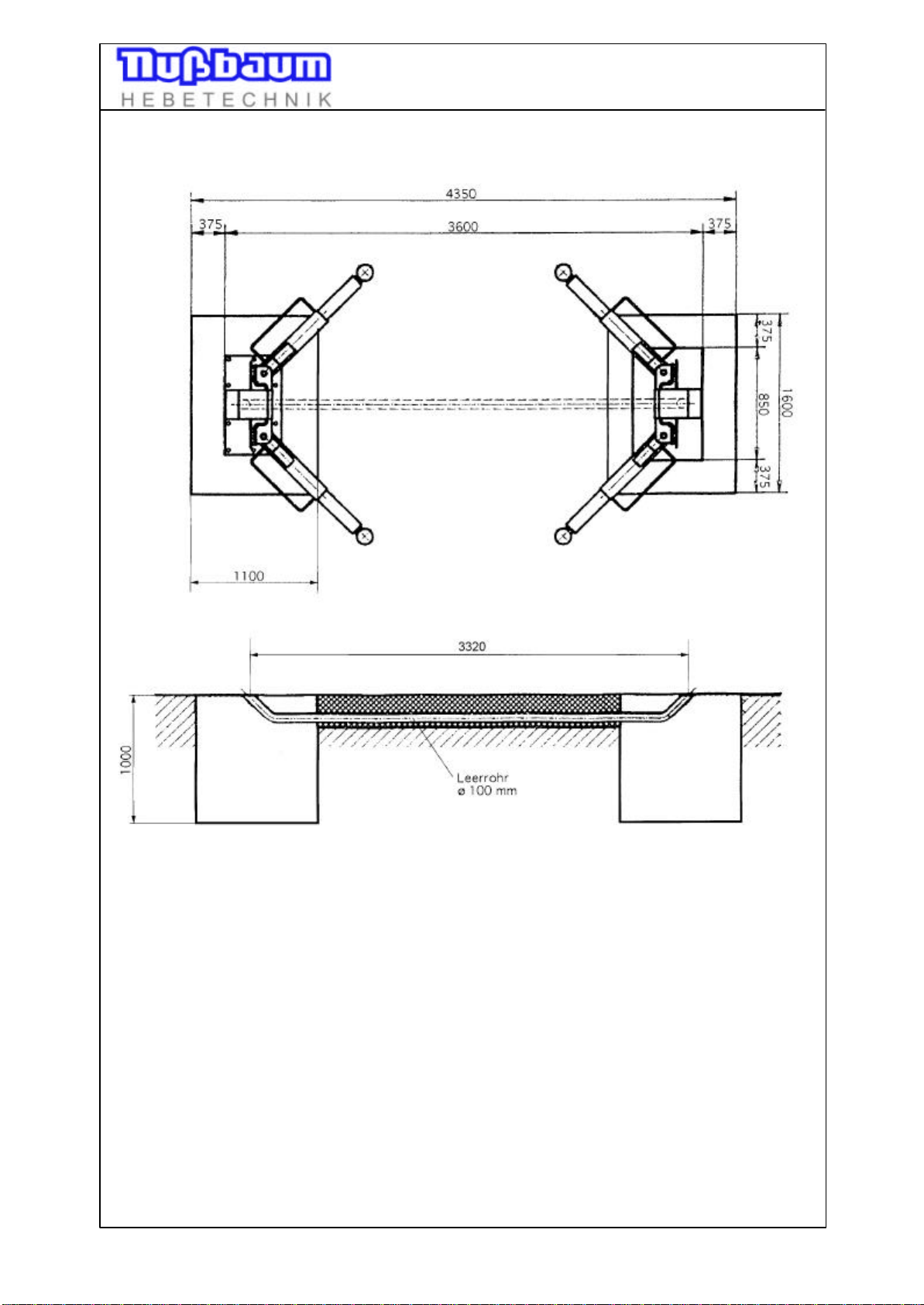

3.4 Foundation diagram

Operating Instruction and Documentation
2.50 SE
- 13 -
Block foundation
Quality of the concrete min. B25
An even installation place has to be provided.
The foundation must be based in a frost resistance depth
Both outside and indoors, where you must reckon with frost.
The reinforcement must be checked by the engineer engaged in statical calculations

Operating Instruction and Documentation
2.50 SE
- 14 -
3.5 Electric diagram

Operating Instruction and Documentation
2.50 SE
- 15 -
Electrical parts list
F01: Thermoswitch in the motor
F02: Thermoswitch in the motor
K1: up contactor
K2: up contactor
M1: Motor 400V, 2,2 kW master side
M2: Motor 400V, 2,2 kW opposite side
W1: reversing switch
St: socket (MB-Version, optional)
BZ: elapsed time (MB-Version, optional)

Operating Instruction and Documentation
2.50 SE
- 16 -
4. Safety regulations
Using automotive lifts for working the regulations of accident EN1493/Aug.98 (CEN/TC
98 „ Automotive lifts”) must be observed.
Especially the following regulations are very important
•During working with the lift the operating instructions must be followed.
•The laden weight of the lifted vehicle mustn’t be more than 5000 kg for automotive lift
2.50 SE, the lifting capacity of one carrying arm mustn’t be more than 1500 kg. It is not
allowed to load only one of the carrying arms.
•Only trained personnel over the age of 18 years old are to operate this lift.
•During lifting or lowering the vehicle it must be observed from the operator.
•Position the pads as described of the vehicle manufacturer under the vehicle.
•Observe the complete lifting and lowering.
•Switch on and switch off the main switch, so that the lifting and lowering movement is
steady and not abrupt.
•It’s not allowed to stay under the lifted or lowered vehicle (except for the operator).
•It’s not allowed to transport passengers on the lift or in the vehicle.
•It’s not allowed to climb onto the lift during lifting or lowering or onto a lifted vehicle.
•The Automotive Lift must be checked from an expert after changes in construction or
after repairing carrying pads.
•It’s not allowed to start with operations at the lift before the main switch is switched off.
•It’s not allowed to install the standard-automotive lift in hazardous location.
5. Operating instructions
The Safety Regulations must be observed during working with the automotive lift.
Read the safety regulations in chapter 4 carefully before working with the lift!
5.1 Lifting the vehicle
•Drive the vehicle in the lift.
•Safeguard the vehicle against rolling away, switch into gear, activate the parking
brake.

Operating Instruction and Documentation
2.50 SE
- 17 -
•Position the adjustable pads under the vehicle which are described by the vehicle
manufacturer.
•Control the dangerous places of the lift and be sure that there are no objects or
people in the immediate area of the lift or on the lift.
•Lift the vehicle free. Check the position of the pads under the vehicle again.
•Press the button “” until the wheels are free.

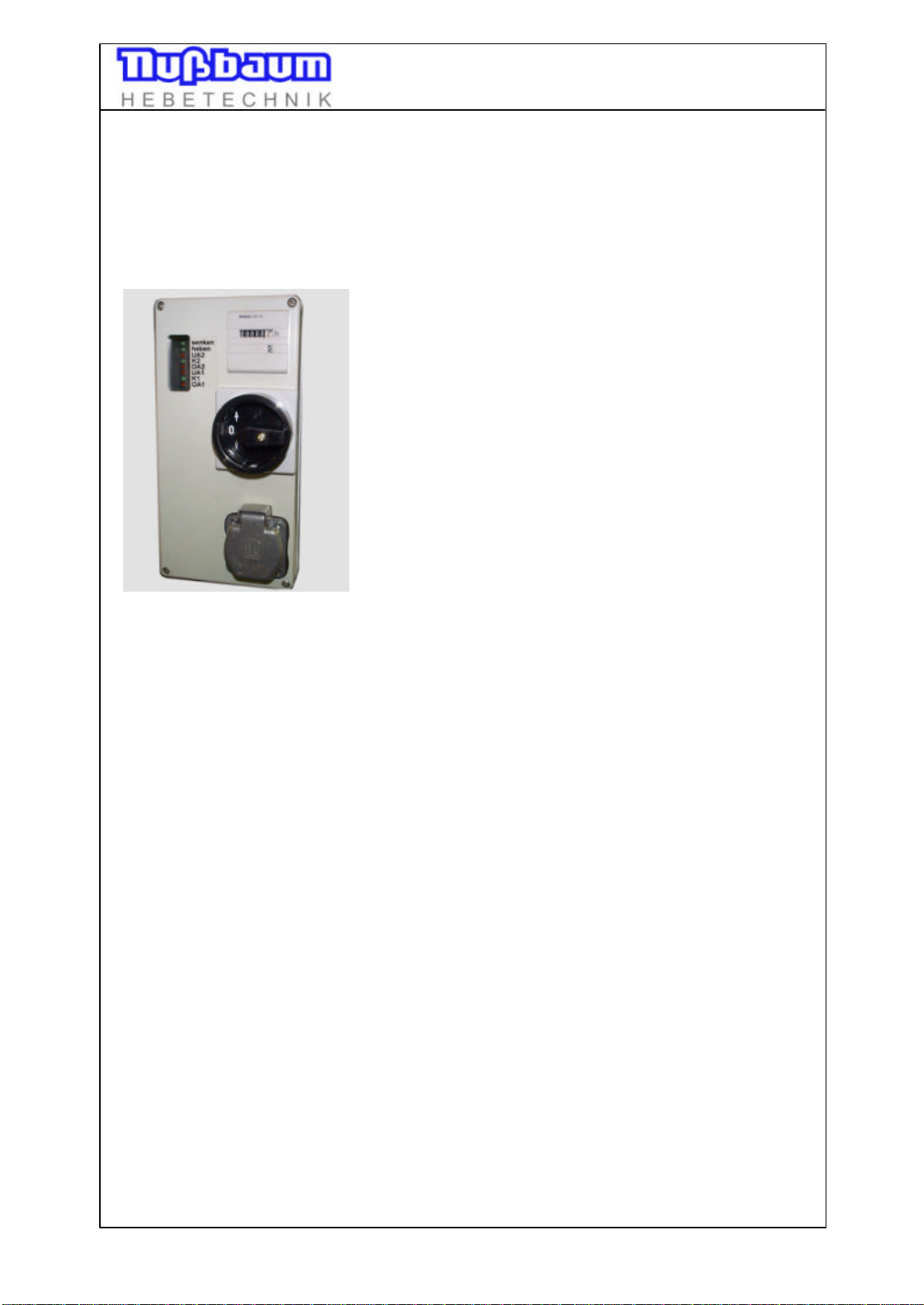

pic. 2) the changing switch
Check the pads under the vehicle again, otherwise the vehicle can fall down.
The Lift can during the lifting depending on load repeatedly adjusting.
5.2 Synchronism of the automotive lift
•The lift is equipped with an electronic synchronism.
•At the two columns are potentiometer which recognizes the actual-position of the
spindle. They recognizes the height of the lift.
•A lifting carriage is faster like the other lifting carriage. The electronic control
system sees the process and stopped the fast carriage so long until both carriage
have the same height again. The permitted regulation range is 18 mm.
5.4 Lowering the vehicle
•Control the dangerous places of the lift and be sure that there are no objects or
people in the immediate area of the lift or on the lift.
•Turn the changing switch in Position „ “ (see pic. 2)
•Lower the lift at the height for working or until the carrying arms reach the
lowest position.
The Lift can during the lowering depending on load repeatedly adjusting.
•If the lift is in the lowest position turn the carrying arms to the outside.

Operating Instruction and Documentation
2.50 SE
- 18 -
5.5 LED - (display visibly) at the operating unit
A position measure system observe the lifting and lowering process. Additional the
functions are made by a visibly display. Find the explanations following:
Operating unit at the column
If following LED s are lighten, means this:
Senken– LED green – the lift is lowering
Heben– LED green – the lift is raising
UA2 – LED red – below limit switch is active (slave side)
K2 - LED green – Motor contactor is active (slave side)
OA2 – LED red – top limit switch is active (slave side)
UA1- LED red – below limit switch is active (master side)
K1 - LED green - Motor contactor is active (master side)
OA1- LED red - top limit switch is active (master side)
(MB Version optional with elapsed time and socket)
Indications at standard function
•raising up:
the following LED lighten: lifting, K1,K2 - lowering glow
•lowering:
the following LED lighten: lowering, K1,K2 – lifting glow
•top position is reached (top limit switch is active):
the following LED lighten: OA1, OA2, lifting – lowering glow
•lower position is reached (below limit switch is active):
the following LED lighten: UA1, UA2, lowering – lifting glow

Operating Instruction and Documentation
2.50 SE
- 19 -

Operating Instruction and Documentation
2.50 SE
- 20 -
6. Troubleshooting
If the lift does not work properly, the reason for this might be quite simple. Please check
the lift for the potential reasons mentioned on the following pages. If the cause of
trouble cannot be found, please call the technical service of the dealer.
A simple fault delimitation can be carried out at the LED-display of the operating unit.
(see the step 5.5 LED-Display visibly at the operating unit).
Repairs at the security devices of the lift as well as repairs and examinations
of the electrical fittings are forbidden.
Problem: The lift does not lifting and not lowering!
possible causes: remedying:
the main switch is not switched on switch it on
the main switch is faulty replace it
the fuse is faulty replace it
the feed line is cut replace it
the motor is overheated let it cool down
the plug is not plugged in plug in
the lift is not in the regulation range equalize manually
Problem: The lift does not lifting!
possible causes: remedying:
the lift is running at 2 phases make sure 3 phases by customer
V-belt is torn/slack check it / replace it
the lifting nut is broken call the service partner
top limit is active lower the lift
Problem: The lift does not lowering!
possible causes: remedying:
the bottom limit switch is active raise the lift
lift is driven on a obstacle equalise manually
6.1 Emergency lowering in case of power failure
In case of power failure the lift can not lowered with the motors. In this case there is the
possibility to lower the lift manually. Draw the main plug or switch off and lock the
main switch and remove the cover of the v-belt pulleys. For this the lift must be turned
down to lowest position at the nut on the top end of the spindle. If the lift is in the
lowest position removes the vehicle.
The emergency lowering must only carried out by persons which are
instructed to using the lift. Please refer to the regulation “Lowering the
vehicle”.
Procedure – emergency lowering
•loose the main plug; switch off the main switch and lock it.
•remove the cover of the v-belt pulleys.
•lower the lift: turn the nuts (every side) alternately 5 cm until the lift has reached
lowest position.
•after the emergency lowering: Do not work with the lift until the faulty parts are
exchanged.
