Over-Center Hydraulic Steel Lift
10,000 lbs Capacity Models 10k53 & 10k65
ASSEMBLY
INSTALLATION
REPLACEMENT PARTS
Copyright 2021 Basta, Inc.
©
10k53 - 10k65
866-GO-BASTA
www.gobasta.com
Basta, Inc. Bellevue WA 98005 USA

Assembly Instructions .........................................................................Pages 6 - 13
First Use / Adjustments ..……………...........................................................Page 14
Parts List and Diagrams.....................................................................Pages 4, 5, 12, 13
Troubleshooting / FAQ .…...........................................................................Page 15
2
INDEX
Warning …………………..............................................................................Pages 2 - 3
Warranty .............................…...........................................................................Page 16
NOTE:Your boat lift is a very heavy piece of equipment. Improper use could result in
serious injury or death. For the safety of people and property please review the safety
guidelines below for your new boat lift.
Do not exceed the maximum weight capacity
specified for the lift. SEE PAGE 14.
Passengers should stand clear of the lift and not
be aboard when the lift is in operation.
Do not play on or near the lift.
Leave your automatic bilge pump turned on the
automatic setting to prevent the accumulation of
rain water.
Service your lift regularly.
Do not service the unit with the boat on the lift.
Use a mooring line for additional security.
Only use Basta Marine approved oil in lift.
Special biodegradable non-toxic hydraulic fluid
Visually inspect all parts and assemblies for
defects and damage prior to assembling the
lift.
Do not install the lift alone.
Install the lift on firm and level ground.
Verify the lower frame of the lift is level
before each use.
Turn the power off during periods of non-use.
This hoist is a heavy piece of equipment please
use with care.
The lift should not be used for any other
purpose besides the lifting of boats & watercraft.
WARNING
part # Y354-0001
3
In the following pages various symbols are used:
indicates an illustration for a procedure.
indicates a major part described in the parts list on pages 4 and 5.
or indicate hardware items shown above and described in the parts list
on pages 4 and 5.
c+d
a
AA
1
After the lift is assembled and installed, all
fasteners should be checked for proper tightness
and reinspected periodically.
INSPECT
the lift monthly
for frayed hoses, loose
fasteners and corrosion
Before Using:
Read this manual
completely!
!
!
!
lift unattended
OIL INJECTED INTO THE SKIN FROM HIGH PRESSURE
LEAKS IN HYDRAULIC SYSTEMS CAN CAUSE SEVERE
INJURY. MOST DAMAGE OCCURS DURING THE FIRST
FEW HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY.
SURGICAL REMOVAL OF OIL MAY BE NECESSARY.
USE ONLY BASTA APPROVED BIODEGRADABLE HYDRAULIC FLUID
Do not exceed the maximum weight capacity
specified for the lift.
MAXIMUM CAPACITY
10,000 LBS
4,500 KG
DANGER
For a full list of patents, go to:
bastaboatlifts.com/patents

Assembly Instructions .........................................................................Pages 6 - 13
First Use / Adjustments ..……………...........................................................Page 14
Parts List and Diagrams.....................................................................Pages 4, 5, 12, 13
Troubleshooting / FAQ .…...........................................................................Page 15
2
INDEX
Warning …………………..............................................................................Pages 2 - 3
Warranty .............................…...........................................................................Page 16
NOTE:Your boat lift is a very heavy piece of equipment. Improper use could result in
serious injury or death. For the safety of people and property please review the safety
guidelines below for your new boat lift.
Do not exceed the maximum weight capacity
specified for the lift. SEE PAGE 14.
Passengers should stand clear of the lift and not
be aboard when the lift is in operation.
Do not play on or near the lift.
Leave your automatic bilge pump turned on the
automatic setting to prevent the accumulation of
rain water.
Service your lift regularly.
Do not service the unit with the boat on the lift.
Use a mooring line for additional security.
Only use Basta Marine approved oil in lift.
Special biodegradable non-toxic hydraulic fluid
Visually inspect all parts and assemblies for
defects and damage prior to assembling the
lift.
Do not install the lift alone.
Install the lift on firm and level ground.
Verify the lower frame of the lift is level
before each use.
Turn the power off during periods of non-use.
This hoist is a heavy piece of equipment please
use with care.
The lift should not be used for any other
purpose besides the lifting of boats & watercraft.
WARNING
part # Y354-0001
3
In the following pages various symbols are used:
indicates an illustration for a procedure.
indicates a major part described in the parts list on pages 4 and 5.
or indicate hardware items shown above and described in the parts list
on pages 4 and 5.
c+d
a
AA
1
After the lift is assembled and installed, all
fasteners should be checked for proper tightness
and reinspected periodically.
INSPECT
the lift monthly
for frayed hoses, loose
fasteners and corrosion
Before Using:
Read this manual
completely!
!
!
!
lift unattended
OIL INJECTED INTO THE SKIN FROM HIGH PRESSURE
LEAKS IN HYDRAULIC SYSTEMS CAN CAUSE SEVERE
INJURY. MOST DAMAGE OCCURS DURING THE FIRST
FEW HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY.
SURGICAL REMOVAL OF OIL MAY BE NECESSARY.
USE ONLY BASTA APPROVED BIODEGRADABLE HYDRAULIC FLUID
Do not exceed the maximum weight capacity
specified for the lift.
MAXIMUM CAPACITY
10,000 LBS
4,500 KG
DANGER
For a full list of patents, go to:
bastaboatlifts.com/patents

4
Assembly Item List Note: Items A-G referred to as sets (i.e., C = bolt, washer, nut)
8
77
10
6
5
11
9
9
9
2
10
10
3
412
110
A
A
A
A
B
B
B
F
F
A
A
A
A
B
B
B
C
C
C
C
D
D
D
D
G
G
A
A
Model # 10k65
Part # A210-6502
E
E
E
E
AFT
FORWARD
Model # 10k53
Part # A210-5302
PART # ITEM # DESCRIPTION QTY PART # ITEM # DESCRIPTION QTY
1
2
3
4
5
5
6
6
7
8
9
10
11
12
Aft Crossmember
Forward Crossmember
Left Side Rail
Right Side Rail
Aft H-Frame (10k65)
Aft H-Frame (10k53)
Forward H-Frame (10k65)
Forward H-Frame (10k53)
Bunk Board Assembly
Bunk Rail
Adjustable Support Leg
Foot Pad
Hydraulic Cylinder Kit
Stop Tube
1
1
1
1
1
1
4
2
4
4
1
2
W110-0023
W110-0022
W104-0018
W104-0019
A431-0013
A431-0023
A431-0014
A431-0024
A428-0041
A427-0026
K200-0073
W116-0006
H310-0019
W106-0001
S362-0008 Nylon Insert Lock Nut 3/8 SS
S166-6812 B Hex Set Screw 5/8 x 1-1/2 SS 12
S103-0919 C Hex Cap Screw 3/4 x 8-1/2 SS 4
S362-0012
S313-0013
S103-0911
S362-0012
S313-0013
F730-0013
S503-0013
S522-0801
Y356-0003
M620-1001
M620-1002
C
C
D
D
D
E
F
F
G
G
G
H
J
K
Nylon Insert Lock Nut 3/4 SS
Washer Flat 3/4 SS
Hex Cap Screw 3/4 x 4-1/2 SS
Nylon Insert Lock Nut 3/4 SS
Washer Flat 3/4 SS
Plastic Cap 2-1/2 Round
Clevis Pin 3/4 x 3-1/2 SS hardened
Ring Type Cotter Pin SS
Anti-seize grease packet
H-frame Bushing (service part)
Bunk Rail Bushing (service part)
4
4
4
4
4
4
4
4
2
2
4
2
4
4
S103-0518 Hex Cap Screw 3/8 x 4-1/2 SS
S313-0008 Washer Flat 3/8 SS
A
A7
8
5
SEE PAGES 12-13 FOR ELECTRICAL AND HYDRAULIC PARTS
1
2
3
4
5
6
A
E
G
C
F
H
B
D
J
K
Pre-installed
(part of )
7
S321-0007 L Washer Lock 5/16, galvanized 16
S312-0007 L Washer Flat 5/16, galvanized 16
S341-0007 L Nut 5/16, galvanized 16
K204-0180 Dual bunk bracket (part of #7) 8
W410-0093 13 Bunk Sub-Assembly (part of #7) 8
14
L
S103-0506
S362-0008
A
A
Hex Cap Screw 3/8 x 1-1/4 SS
Nylon Insert Lock Nut 3/8 SS
32
32
S313-0008 A Washer Flat 3/8 SS 64
6
Pre-installed
(part of )
8
Pre-installed
(part of )
7
5 &
L129-0001 N/A Key fob floats 2
L
7
13
14
15
(Other side)
K204-0181 14
Dual bunk bracket, rev. (part of #7)
8

4
Assembly Item List Note: Items A-G referred to as sets (i.e., C = bolt, washer, nut)
8
77
10
6
5
11
9
9
9
2
10
10
3
412
110
A
A
A
A
B
B
B
F
F
A
A
A
A
B
B
B
C
C
C
C
D
D
D
D
G
G
A
A
Model # 10k65
Part # A210-6502
E
E
E
E
AFT
FORWARD
Model # 10k53
Part # A210-5302
PART # ITEM # DESCRIPTION QTY PART # ITEM # DESCRIPTION QTY
1
2
3
4
5
5
6
6
7
8
9
10
11
12
Aft Crossmember
Forward Crossmember
Left Side Rail
Right Side Rail
Aft H-Frame (10k65)
Aft H-Frame (10k53)
Forward H-Frame (10k65)
Forward H-Frame (10k53)
Bunk Board Assembly
Bunk Rail
Adjustable Support Leg
Foot Pad
Hydraulic Cylinder Kit
Stop Tube
1
1
1
1
1
1
4
2
4
4
1
2
W110-0023
W110-0022
W104-0018
W104-0019
A431-0013
A431-0023
A431-0014
A431-0024
A428-0041
A427-0026
K200-0073
W116-0006
H310-0019
W106-0001
S362-0008 Nylon Insert Lock Nut 3/8 SS
S166-6812 B Hex Set Screw 5/8 x 1-1/2 SS 12
S103-0919 C Hex Cap Screw 3/4 x 8-1/2 SS 4
S362-0012
S313-0013
S103-0911
S362-0012
S313-0013
F730-0013
S503-0013
S522-0801
Y356-0003
M620-1001
M620-1002
C
C
D
D
D
E
F
F
G
G
G
H
J
K
Nylon Insert Lock Nut 3/4 SS
Washer Flat 3/4 SS
Hex Cap Screw 3/4 x 4-1/2 SS
Nylon Insert Lock Nut 3/4 SS
Washer Flat 3/4 SS
Plastic Cap 2-1/2 Round
Clevis Pin 3/4 x 3-1/2 SS hardened
Ring Type Cotter Pin SS
Anti-seize grease packet
H-frame Bushing (service part)
Bunk Rail Bushing (service part)
4
4
4
4
4
4
4
4
2
2
4
2
4
4
S103-0518 Hex Cap Screw 3/8 x 4-1/2 SS
S313-0008 Washer Flat 3/8 SS
A
A7
8
5
SEE PAGES 12-13 FOR ELECTRICAL AND HYDRAULIC PARTS
1
2
3
4
5
6
A
E
G
C
F
H
B
D
J
K
Pre-installed
(part of )
7
S321-0007 L Washer Lock 5/16, galvanized 16
S312-0007 L Washer Flat 5/16, galvanized 16
S341-0007 L Nut 5/16, galvanized 16
K204-0180 Dual bunk bracket (part of #7) 8
W410-0093 13 Bunk Sub-Assembly (part of #7) 8
14
L
S103-0506
S362-0008
A
A
Hex Cap Screw 3/8 x 1-1/4 SS
Nylon Insert Lock Nut 3/8 SS
32
32
S313-0008 A Washer Flat 3/8 SS 64
6
Pre-installed
(part of )
8
Pre-installed
(part of )
7
5 &
L129-0001 N/A Key fob floats 2
L
7
13
14
15
(Other side)
K204-0181 14
Dual bunk bracket, rev. (part of #7)
8

6
ASSEMBLY INSTRUCTIONS
NOTE: assemble lift on level ground.
Foot and Leg Sockets
ASSEMBLY INSTRUCTIONS
1
QTY 12: 5/8 x 1-1/2 hex head set screws
1
NOTE:
tighten set screws A & B
alternately to push leg
securely into corner
of leg socket
AB
1
1
3
2
2
NOTE: use a small amount of 'moly' lube on bolt threads
3
1
7
Aft Crossmember
Forward Crossmember
2
3
QTY 8: 3/8 x 1-1/4 bolts
QTY 16: 3/8 flat washers
QTY 8: 3/8 lock nuts
QTY 8: 3/8 x 1-1/4 bolts
QTY 16: 3/8 flat washers
QTY 8: 3/8 lock nuts
NOTE:
do not tighten bolts
completely until the
H-frames and bunks
have been installed
and squared up in
Step 8
NOTE:
do not tighten bolts
completely until the
H-frames and bunk
rails have been
installed and squared
up in Step 8

6
ASSEMBLY INSTRUCTIONS
NOTE: assemble lift on level ground.
Foot and Leg Sockets
ASSEMBLY INSTRUCTIONS
1
QTY 12: 5/8 x 1-1/2 hex head set screws
1
NOTE:
tighten set screws A & B
alternately to push leg
securely into corner
of leg socket
AB
1
1
3
2
2
NOTE: use a small amount of 'moly' lube on bolt threads
3
1
7
Aft Crossmember
Forward Crossmember
2
3
QTY 8: 3/8 x 1-1/4 bolts
QTY 16: 3/8 flat washers
QTY 8: 3/8 lock nuts
QTY 8: 3/8 x 1-1/4 bolts
QTY 16: 3/8 flat washers
QTY 8: 3/8 lock nuts
NOTE:
do not tighten bolts
completely until the
H-frames and bunks
have been installed
and squared up in
Step 8
NOTE:
do not tighten bolts
completely until the
H-frames and bunk
rails have been
installed and squared
up in Step 8

8
4
6
5
Forward H-Frame
4
QTY 2: 3/4 x 8-1/2 bolts
QTY 2: 3/4 flat washers
QTY 2: 3/4 lock nuts
ASSEMBLY INSTRUCTIONS
NOTE:
remove ties
NOTE: use a small amount of 'moly' lube on bolt threads
9
Stop Tubes
5
QTY 2: 3/8 x 4-1/2 bolts
QTY 4: 3/8 flat washers
QTY 2: 3/8 lock nuts
Aft H-Frame
6
QTY 2: 3/4 x 8-1/2 bolts
QTY 2: 3/4 flat washers
QTY 2: 3/4 lock nuts
10k53 - USE TOP HOLES
10k65 - USE BOTTOM HOLES
FORWARD
NOTE:
remove ties

8
4
6
5
Forward H-Frame
4
QTY 2: 3/4 x 8-1/2 bolts
QTY 2: 3/4 flat washers
QTY 2: 3/4 lock nuts
ASSEMBLY INSTRUCTIONS
NOTE:
remove ties
NOTE: use a small amount of 'moly' lube on bolt threads
9
Stop Tubes
5
QTY 2: 3/8 x 4-1/2 bolts
QTY 4: 3/8 flat washers
QTY 2: 3/8 lock nuts
Aft H-Frame
6
QTY 2: 3/4 x 8-1/2 bolts
QTY 2: 3/4 flat washers
QTY 2: 3/4 lock nuts
10k53 - USE TOP HOLES
10k65 - USE BOTTOM HOLES
FORWARD
NOTE:
remove ties

10
7
9
8
Cylinders
7
QTY 4: 3/4 x 3-1/2 clevis pins
QTY 4: ring type cotter pins
9
8
ASSEMBLY INSTRUCTIONS
8
Install cylinders with lift in 'down' position and
with hose fittings facing toward center of lift
NOTE: use a small amount of 'moly' lube on bolt threads
11
Bunk Rails
QTY 4: 3/4 x 4-1/2 bolts
QTY 4: 3/4 flat washers
QTY 4: 3/4 lock nuts
Install bunk rails with lift in 'down' position
(Illustration shows lift in 'up' position for visual clarity)
Bunk Boards
QTY 16: 3/8 x 1-1/4 bolts
QTY 32: 3/8 flat washers
QTY 16: 3/8 lock nuts
DECALS FACE OUT
NOTE: after this step, adjust the base
frame to be square and level, then
tighten bolts left loose
in steps 2 & 3
NOTE:
remove ties
9
8
1
2
3
4
A
Y
X
B
C
13
14
L
USE
APPROPRIATE
4 HOLES
USE
APPROPRIATE
2 HOLES
1234
A
B
C
N/AN/A
1234
A
B
C
N/AN/A
A1: 0° Flat A2: 5° - 10°
B1: 10° - 15°
C1: 20° - 25°
B3: 25° - 30°
C3: 35° - 45°
B4: 35° - 40°
B4: 45° - 55°
B2: 20° - 25°
C2: 30° - 35°
NOTE: use whichever combination of holes in
the bunk board brackets and the bunk
rail brackets that fit the boat hull best
θ
Angle Adjusment
Choose hole 1-4 to bolt to slot X
Choose slot A-C to bolt to hole Y

10
7
9
8
Cylinders
7
QTY 4: 3/4 x 3-1/2 clevis pins
QTY 4: ring type cotter pins
9
8
ASSEMBLY INSTRUCTIONS
8
Install cylinders with lift in 'down' position and
with hose fittings facing toward center of lift
NOTE: use a small amount of 'moly' lube on bolt threads
11
Bunk Rails
QTY 4: 3/4 x 4-1/2 bolts
QTY 4: 3/4 flat washers
QTY 4: 3/4 lock nuts
Install bunk rails with lift in 'down' position
(Illustration shows lift in 'up' position for visual clarity)
Bunk Boards
QTY 16: 3/8 x 1-1/4 bolts
QTY 32: 3/8 flat washers
QTY 16: 3/8 lock nuts
DECALS FACE OUT
NOTE: after this step, adjust the base
frame to be square and level, then
tighten bolts left loose
in steps 2 & 3
NOTE:
remove ties
9
8
1
2
3
4
A
Y
X
B
C
13
14
L
USE
APPROPRIATE
4 HOLES
USE
APPROPRIATE
2 HOLES
1234
A
B
C
N/AN/A
1234
A
B
C
N/AN/A
A1: 0° Flat A2: 5° - 10°
B1: 10° - 15°
C1: 20° - 25°
B3: 25° - 30°
C3: 35° - 45°
B4: 35° - 40°
B4: 45° - 55°
B2: 20° - 25°
C2: 30° - 35°
NOTE: use whichever combination of holes in
the bunk board brackets and the bunk
rail brackets that fit the boat hull best
θ
Angle Adjusment
Choose hole 1-4 to bolt to slot X
Choose slot A-C to bolt to hole Y

12 13
10 NOTE: always turn unit OFF when not in use
7. Test the lift on dry ground using the Up/Down Switch
and the Key Fob Transmitters. Inspect the system
for leaks.
1. The Hydraulic Power Unit will arrive fully assembled.
Make sure all the connections are snug to prevent
leaks or loss of power to the unit.
Install a Group 31 Deep Discharge AGM Battery as
shown above. Be sure to connect the Red Battery
Cable to the p ositive terminal and the Black Battery
Cable to the negative terminal.
NOTE: Ensure battery cables are correctly connected
4. Slide the Hydraulic Hose Assembly through the
access hole in the side of the fiberglass Enclosure
and attach the ends to their corresponding
Quick Couplers.
and their terminals are tight (use a wrench).
CONNECT POWER UNIT
Ensure each Quick Coupler is
completely seated and tight with
no gap at the connection joint.
Connection must be tight to open internal
check valve and allow fluid to flow. USE PLIERS
DO NOT SUBMERSE
Keep inside dry
5. Plug the cable from the Solar Panel into the connector
with yellow & black wires that comes from the Solar
Controller (shown on next page).
NO GAP!
Prevent unauthorized use -
KEEP BOX LOCKED
2.
COMPLETE POWER PACKAGE
# H653-0017
power
switch
POSITIVE BATTERY
CABLE (RED)
# R711-1010
NEGATIVE BATTERY
CABLE (BLACK)
# R711-1005
remote
receiver
up/down
switch
MALE QUICK COUPLER
# H700-0024
FEMALE QUICK COUPLER
# H700-0025
6. Read Operating Instructions on Page 14.
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
3. Replace the reservoir tank shipping plug with the
included breather plug.
solar
controller
one
inch
hydraulic fluid level with
lift in DOWN position
breather
cap
REPLACE SHIPPING PLUG
WITH BREATHER CAP
(ATTACHED TO CONTROL PANEL)
pre-charged with
hydraulic fluid
Hydraulic Cylinder Assembly
#H310-0019
(Item #11 on pg 4)
Hose Assemblies
#H111-0004 (4X)
Hydraulic
Fitting Kit
#H791-0006
Hose Assembly
#H123-0042
Cylinder
#H402-5305
(2X)
28
# R811-0010
Remote Control Receiver
with Fobs
Remote Key Fobs
POWER UNIT
ASSEMBLY
# H603-0017 Please order replacement parts by PART NO. and DESCRIPTION
pre-wired
with wiring
harness
Hydraulic Fluid (quart)
BATTERY SAFETY IS IMPORTANT
Follow all battery manufacturer’s
warnings and safety information.
Padlock
not included
SOLAR PANEL ASSEMBLY
# R281-0004
ENCLOSURE
# C243-0003
# R812-0011
# Y354-0001
POWER SYSTEM COMPONENTS
# R283-0002
Solar Controller
Connect to Solar Panel
Connected
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
CONTROL PANEL
ASSEMBLY
# R815-0008
NOTE: pump
appearance
may vary

12 13
10 NOTE: always turn unit OFF when not in use
7. Test the lift on dry ground using the Up/Down Switch
and the Key Fob Transmitters. Inspect the system
for leaks.
1. The Hydraulic Power Unit will arrive fully assembled.
Make sure all the connections are snug to prevent
leaks or loss of power to the unit.
Install a Group 31 Deep Discharge AGM Battery as
shown above. Be sure to connect the Red Battery
Cable to the p ositive terminal and the Black Battery
Cable to the negative terminal.
NOTE: Ensure battery cables are correctly connected
4. Slide the Hydraulic Hose Assembly through the
access hole in the side of the fiberglass Enclosure
and attach the ends to their corresponding
Quick Couplers.
and their terminals are tight (use a wrench).
CONNECT POWER UNIT
Ensure each Quick Coupler is
completely seated and tight with
no gap at the connection joint.
Connection must be tight to open internal
check valve and allow fluid to flow. USE PLIERS
DO NOT SUBMERSE
Keep inside dry
5. Plug the cable from the Solar Panel into the connector
with yellow & black wires that comes from the Solar
Controller (shown on next page).
NO GAP!
Prevent unauthorized use -
KEEP BOX LOCKED
2.
COMPLETE POWER PACKAGE
# H653-0017
power
switch
POSITIVE BATTERY
CABLE (RED)
# R711-1010
NEGATIVE BATTERY
CABLE (BLACK)
# R711-1005
remote
receiver
up/down
switch
MALE QUICK COUPLER
# H700-0024
FEMALE QUICK COUPLER
# H700-0025
6. Read Operating Instructions on Page 14.
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
3. Replace the reservoir tank shipping plug with the
included breather plug.
solar
controller
one
inch
hydraulic fluid level with
lift in DOWN position
breather
cap
REPLACE SHIPPING PLUG
WITH BREATHER CAP
(ATTACHED TO CONTROL PANEL)
pre-charged with
hydraulic fluid
Hydraulic Cylinder Assembly
#H310-0019
(Item #11 on pg 4)
Hose Assemblies
#H111-0004 (4X)
Hydraulic
Fitting Kit
#H791-0006
Hose Assembly
#H123-0042
Cylinder
#H402-5305
(2X)
28
# R811-0010
Remote Control Receiver
with Fobs
Remote Key Fobs
POWER UNIT
ASSEMBLY
# H603-0017 Please order replacement parts by PART NO. and DESCRIPTION
pre-wired
with wiring
harness
Hydraulic Fluid (quart)
BATTERY SAFETY IS IMPORTANT
Follow all battery manufacturer’s
warnings and safety information.
Padlock
not included
SOLAR PANEL ASSEMBLY
# R281-0004
ENCLOSURE
# C243-0003
# R812-0011
# Y354-0001
POWER SYSTEM COMPONENTS
# R283-0002
Solar Controller
Connect to Solar Panel
Connected
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
CONTROL PANEL
ASSEMBLY
# R815-0008
NOTE: pump
appearance
may vary

14
FIRST USE AND ADJUSTMENTS
Follow this “first use section” during your first loading of a boat onto the boat lift.
These are required adjustments to make the lift work correctly.
1. Place the boat over the lift to the following specifications:
a. If your boat is an outboard, inboard/outboard, or V-drive, the transom should be 2 inches off of the ends of the bunk boards.
b. If your boat is a mid-engine or shaft-drive, the transom should be 12 to 24 inches off of the ends of the bunk boards.
Disembark and raise the boat. If more than two inches of settling occurs, STOP, carefully lower the lift to remove the boat and
re-level the lift. Continue repeating this step until the boatlift can be raised into the full Over - Center position without settling.
tm
3. Remove the boat. Verify that the lift frame is level. Re-level the framework if necessary.
NOTE: If you purchase a new boat, be sure it is within the weight capacity limits of the lift. Also remember that
these adjustments will have to be done again to accommodate the new boat.
First test lift on dry ground for oil leaks, remote control function and correct operation.
2.
IMPORTANT: After installation, the legs MUST be adjusted so that the lift frame is level.
Lift must move into Over-Center position when fully raised.
TM

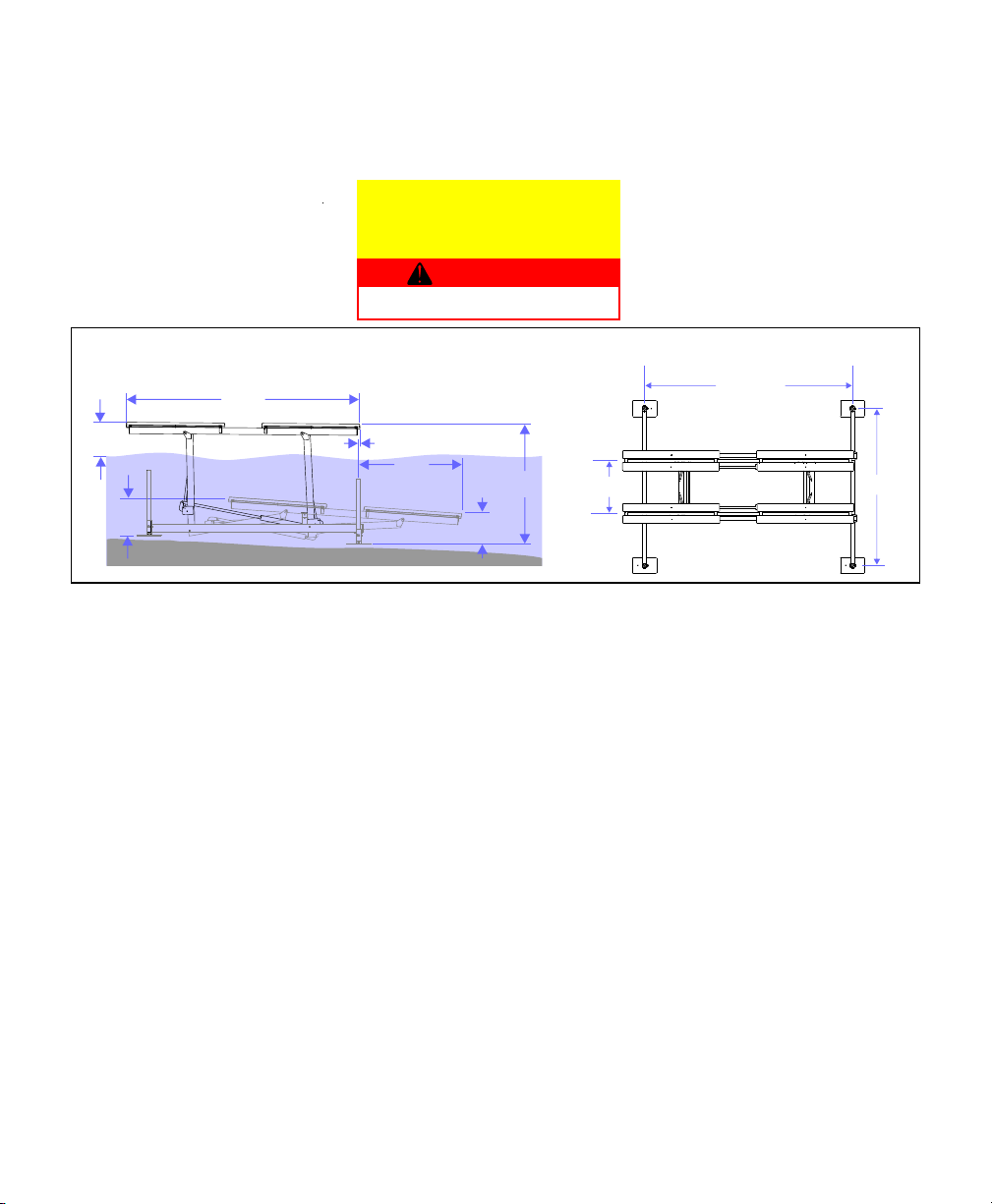

Use these diagrams to help place the lift
15
172”
28”
[27”] 23”
[22”]
76”
[62”] 88”
[75”]
DIMENSIONS EXCLUSIVE TO 10k53
ARE SHOWN IN [BRACKETS] 155”
117”
40”
12”
Do not exceed the maximum weight capacity
specified for the lift.
MAXIMUM CAPACITY
10,000 LBS
4,500 KG
DANGER
TROUBLESHOOTING PROBLEMS AND FAQ TROUBLESHOOTING PROBLEMS AND FAQ
Q: THE PUMP DOESN’T RUN
A: Check the battery charge and recharge if necessary.
A: Check the battery connections, clean and re-secure
if necessary.
Q: THE BATTERY WILL NOT HOLD A CHARGE
A: Verify that the loaded boat is not exceeding the weight
capacity of the lift. If the battery is a flooded-cell type,
check the electrolyte level.
A: Ensure the solar panel is properly connected.
A: Re-align the solar panel for proper exposure to the sun.
A: Recharge the battery with a 10 amp charger and
check the charge again.
A: Have the battery tested. It may be old and
require replacement.
A: If the lift is being used frequently during the day, it
may be necessary to use a 110-volt maintainer/charger.
Q: THE REMOTE CONTROL IS NOT FUNCTIONING
A:
A: Verify that the power unit battery is charged and connections are tight.
A: Reprogram the remote key fobs.
Q: HOW DOES THE REMOTE CONTROL WORK?
Q: DOES THE LIFT HAVE TO GO ALL THE WAY UP?
A: YES - in order for your lift to function as intended the lift
must ALWAYS be stored in the full upright position when
the boat is unattended.
Q: IS MY BOAT SECURE?
A: Yes, once you verify that the lift is Over-Center , switch
off the power and lock the power unit box, there is less
chance of theft.
™
Q: DO I NEED A MOORING LINE?
A: Under most circumstances one mooring line is sufficient
to prevent the boat from drifting away if the lift is
inadvertently lowered or the water level rises.
Q: HOW MUCH SUN DOES THE SOLAR PANEL NEED?
A: The panel should receive constant sun for at least 8 hours a day.
Q: WHAT IF I GET A NEW BOAT?
A: Re-leveling the boat lift may be necessary. A new lift
will be required if the boat exceeds the weight capacity
of your current lift.
Q: THE PUMP RUNS, BUT THE LIFT DOESN’T MOVE
A: Check the 'quick couplers' in the Power Unit. If they are not
screwed together tight enough, built-in check valves will
not allow fluid to flow. See Page 12.
A: Check the fluid level. See Page 12.
Q: IS THE HYDRAULIC FLUID SAFE FOR THE FISH?
A: We use a special low-toxicity hydraulic fluid that is safe
for the environment. This fluid is different than food-grade
oil. Only use Basta Boatlifts approved fluid in your
hydraulic system.
Q: HOW DO I CHANGE THE HYDRAULIC FLUID?
A: Our fluid should not require replacement for a considerable
amount of time. If yours has been contaminated or the
hydraulic power unit has been replaced, visit our web site at
www.gobasta.com for detailed instructions.
POWER-UP
At power-up the remote fob function has a ten second delay.
Failure to wait for this ten seconds can make the wait time much
longer.
LIFT OPERATION
The remote fob is non-functional until it is enabled by
depressing the lower right unlock button momentarily. After
the initial ten second delay, depressing the unlock button enables
operation using the remote fob. The lockout is re-enabled after
60 seconds without a button press.
Lift operation using the fob is limited to 120 seconds of
continuous operation. If a longer cycle is needed it is necessary
to release and then re-depress the button.
LOW BATTERY LOCKOUT
This control incorporates a low voltage lockout which is
intended to protect the battery from abuse and over-discharge.
When the battery drops below the low battery threshold during
pump operation, further activation using the Fob is not allowed.
The battery needs to be checked prior to further operation. The
manual switches will allow the lift to operate if sufficient battery
power is present.
FOB PROGRAMMING
At initial power up there is a five second window when it is
possible to reprogram the receiver to enroll a remote fob. Up to
four fobs may be enrolled. If a fifth fob is enrolled, the first
enrolled fob will fall off the list.
To enroll a fob, turn off the power to the lift for fifteen or more
seconds. When power is turned back on press both the UP and
DOWN buttons on the fob simultaneously. This must be done
within the first five seconds after power is applied.
LIGHTING CIRCUIT
The lighting circuit is activated whenever the lift is operated. The
lights stay on for 2 minutes after the lift is operated
The lights may be manually turned on or off by depressing the
lower left button on the remote Fob. When manually enabled the
lights will automatically turn off after 4 minutes. This is prevents
accidental battery discharge.
STORAGE
Always leave the boat in the fully raised, Over-Center™
position with the power off.
FOR ASSISTANCE OR SERVICE:
Contact your local dealer or call 1 - 866 - GO - BASTA
website: www.gobasta.com email: [email protected]
The battery in the key fob transmitter may be low. Replace it with a
new lithium CR2032. These are widely available at variety, hardware
and even grocery stores. Polarity is marked on the battery holder.
MAINTENANCE
Your Basta Boatlift requires very little maintenance once installed.
Occasionally wipe the solar panel with a clean, damp cloth to preserve its charging performance.
Every 6 months, we recommend:
Verify that the lift frame is level and adjust the legs as necessary.
Inspect the hoses, cylinders and fittings for leaks and wear. Tighten or replace as needed.
Check the wire terminals for snugness and corrosion.
Check the battery and oil levels:
The battery electrolyte in a flooded cell type battery should be slightly above the indicator
ring in each cell. Carefully add DISTILLED water if necessary. Do not over-fill.
AGM type batteries are sealed and do not require maintenance.
The hydraulic fluid level should be about one inch below the top of the reservoir with the lift DOWN.
DO NOT add fluid with the lift in the raised position!
Use only Basta approved fluid. We recommend Chevron Clarity® AW ISO 32 hydraulic fluid.
TM
1/2”

14
FIRST USE AND ADJUSTMENTS
Follow this “first use section” during your first loading of a boat onto the boat lift.
These are required adjustments to make the lift work correctly.
1. Place the boat over the lift to the following specifications:
a. If your boat is an outboard, inboard/outboard, or V-drive, the transom should be 2 inches off of the ends of the bunk boards.
b. If your boat is a mid-engine or shaft-drive, the transom should be 12 to 24 inches off of the ends of the bunk boards.
Disembark and raise the boat. If more than two inches of settling occurs, STOP, carefully lower the lift to remove the boat and
re-level the lift. Continue repeating this step until the boatlift can be raised into the full Over - Center position without settling.
tm
3. Remove the boat. Verify that the lift frame is level. Re-level the framework if necessary.
NOTE: If you purchase a new boat, be sure it is within the weight capacity limits of the lift. Also remember that
these adjustments will have to be done again to accommodate the new boat.
First test lift on dry ground for oil leaks, remote control function and correct operation.
2.
IMPORTANT: After installation, the legs MUST be adjusted so that the lift frame is level.
Lift must move into Over-Center position when fully raised.
TM
Use these diagrams to help place the lift
15
172”
28”
[27”] 23”
[22”]
76”
[62”] 88”
[75”]
DIMENSIONS EXCLUSIVE TO 10k53
ARE SHOWN IN [BRACKETS] 155”
117”
40”
12”
Do not exceed the maximum weight capacity
specified for the lift.
MAXIMUM CAPACITY
10,000 LBS
4,500 KG
DANGER
TROUBLESHOOTING PROBLEMS AND FAQ TROUBLESHOOTING PROBLEMS AND FAQ
Q: THE PUMP DOESN’T RUN
A: Check the battery charge and recharge if necessary.
A: Check the battery connections, clean and re-secure
if necessary.
Q: THE BATTERY WILL NOT HOLD A CHARGE
A: Verify that the loaded boat is not exceeding the weight
capacity of the lift. If the battery is a flooded-cell type,
check the electrolyte level.
A: Ensure the solar panel is properly connected.
A: Re-align the solar panel for proper exposure to the sun.
A: Recharge the battery with a 10 amp charger and
check the charge again.
A: Have the battery tested. It may be old and
require replacement.
A: If the lift is being used frequently during the day, it
may be necessary to use a 110-volt maintainer/charger.
Q: THE REMOTE CONTROL IS NOT FUNCTIONING
A:
A: Verify that the power unit battery is charged and connections are tight.
A: Reprogram the remote key fobs.
Q: HOW DOES THE REMOTE CONTROL WORK?
Q: DOES THE LIFT HAVE TO GO ALL THE WAY UP?
A: YES - in order for your lift to function as intended the lift
must ALWAYS be stored in the full upright position when
the boat is unattended.
Q: IS MY BOAT SECURE?
A: Yes, once you verify that the lift is Over-Center , switch
off the power and lock the power unit box, there is less
chance of theft.
™
Q: DO I NEED A MOORING LINE?
A: Under most circumstances one mooring line is sufficient
to prevent the boat from drifting away if the lift is
inadvertently lowered or the water level rises.
Q: HOW MUCH SUN DOES THE SOLAR PANEL NEED?
A: The panel should receive constant sun for at least 8 hours a day.
Q: WHAT IF I GET A NEW BOAT?
A: Re-leveling the boat lift may be necessary. A new lift
will be required if the boat exceeds the weight capacity
of your current lift.
Q: THE PUMP RUNS, BUT THE LIFT DOESN’T MOVE
A: Check the 'quick couplers' in the Power Unit. If they are not
screwed together tight enough, built-in check valves will
not allow fluid to flow. See Page 12.
A: Check the fluid level. See Page 12.
Q: IS THE HYDRAULIC FLUID SAFE FOR THE FISH?
A: We use a special low-toxicity hydraulic fluid that is safe
for the environment. This fluid is different than food-grade
oil. Only use Basta Boatlifts approved fluid in your
hydraulic system.
Q: HOW DO I CHANGE THE HYDRAULIC FLUID?
A: Our fluid should not require replacement for a considerable
amount of time. If yours has been contaminated or the
hydraulic power unit has been replaced, visit our web site at
www.gobasta.com for detailed instructions.
POWER-UP
At power-up the remote fob function has a ten second delay.
Failure to wait for this ten seconds can make the wait time much
longer.
LIFT OPERATION
The remote fob is non-functional until it is enabled by
depressing the lower right unlock button momentarily. After
the initial ten second delay, depressing the unlock button enables
operation using the remote fob. The lockout is re-enabled after
60 seconds without a button press.
Lift operation using the fob is limited to 120 seconds of
continuous operation. If a longer cycle is needed it is necessary
to release and then re-depress the button.
LOW BATTERY LOCKOUT
This control incorporates a low voltage lockout which is
intended to protect the battery from abuse and over-discharge.
When the battery drops below the low battery threshold during
pump operation, further activation using the Fob is not allowed.
The battery needs to be checked prior to further operation. The
manual switches will allow the lift to operate if sufficient battery
power is present.
FOB PROGRAMMING
At initial power up there is a five second window when it is
possible to reprogram the receiver to enroll a remote fob. Up to
four fobs may be enrolled. If a fifth fob is enrolled, the first
enrolled fob will fall off the list.
To enroll a fob, turn off the power to the lift for fifteen or more
seconds. When power is turned back on press both the UP and
DOWN buttons on the fob simultaneously. This must be done
within the first five seconds after power is applied.
LIGHTING CIRCUIT
The lighting circuit is activated whenever the lift is operated. The
lights stay on for 2 minutes after the lift is operated
The lights may be manually turned on or off by depressing the
lower left button on the remote Fob. When manually enabled the
lights will automatically turn off after 4 minutes. This is prevents
accidental battery discharge.
STORAGE
Always leave the boat in the fully raised, Over-Center™
position with the power off.
FOR ASSISTANCE OR SERVICE:
Contact your local dealer or call 1 - 866 - GO - BASTA
website: www.gobasta.com email: [email protected]
The battery in the key fob transmitter may be low. Replace it with a
new lithium CR2032. These are widely available at variety, hardware
and even grocery stores. Polarity is marked on the battery holder.
MAINTENANCE
Your Basta Boatlift requires very little maintenance once installed.
Occasionally wipe the solar panel with a clean, damp cloth to preserve its charging performance.
Every 6 months, we recommend:
Verify that the lift frame is level and adjust the legs as necessary.
Inspect the hoses, cylinders and fittings for leaks and wear. Tighten or replace as needed.
Check the wire terminals for snugness and corrosion.
Check the battery and oil levels:
The battery electrolyte in a flooded cell type battery should be slightly above the indicator
ring in each cell. Carefully add DISTILLED water if necessary. Do not over-fill.
AGM type batteries are sealed and do not require maintenance.
The hydraulic fluid level should be about one inch below the top of the reservoir with the lift DOWN.
DO NOT add fluid with the lift in the raised position!
Use only Basta approved fluid. We recommend Chevron Clarity® AW ISO 32 hydraulic fluid.
TM
1/2”

16
Basta Boatlifts Limited Warranty
Thank you for investing in one of the finest PWC lifts in the world. We pride
ourselves in knowing our product will safely and reliably be the conduit to your fun
on the water. Welcome to the Basta Boatlifts family and Boat Happy!
Basta Inc. dba Basta Boatlifts (“Company”) warrants its Products (purchased
after January 1, 2020) for non-commercial use for a period of,
. 16 years against manufacturing defects in steel and aluminum
lift frame welds.
. 3 years against defects in materials and workmanship including
hydraulic components, charging system, remote controls, dock box,
bunks, canopies, and accessories.
. 1 year battery warranty when maintained in accordance with
battery manufacturer’s guidance for batteries supplied
by the Company,
to the original Purchaser (“Purchaser”), beginning from date of purchase of the
Product from Company. If the Product is purchased from an authorized Company
Reseller, the warranty term begins upon the date the new Product is sold to the end
Purchaser (“Warranty Start Date”).
Annual inspection of the Product bolts, pins, hydraulics, pump, electronics, and
welds, by a Company employee or Company authorized agent, shall be conducted.
Failure to undertake such maintenance shall constitute “abuse” under Exclusions
below.
Company has the right to modify Products at any time without incurring any
obligation to make the same or similar modifications on Products previously
manufactured or purchased.
Terms And Conditions:
Purchaser must register Product for a valid Warranty. Warranty registration may be
found and submitted at:
https://bastaboatlifts.com/support.
Notice requirements and remedies:
If the Purchaser discovers a defect, the purchaser shall immediately notify the
Company in writing by submission of a Warranty Request form. Warranty Request
forms may be found and submitted at https://bastaboatlifts.com/support. Upon
receipt of a complete Warranty Request form and after confirmation by Company
that the Product is defective, the Company, or its authorized Company dealer or
agent, will, at the Company’s sole discretion:
1- repair the Product or,
2-replace the defective part with a new or reconditioned part, or
3-refund the purchase price of the Product.
Confirmation of the defect shall require that reasonable proof of the defect
be provided by Purchaser to Company or Company authorized agent, and
may include that the Product or part be returned to Company for inspection
at the Company’s initial expense. Replacement parts for Products outside the
United States will be shipped in the next authorized Dealer shipment unless
Purchaser agrees to pay for door to door freight of warranted Product. Warranty
replacement shall not extend the original warranty of the defective Products.
Labor for warranty work to be provided by the Company’s Authorized dealer for a
period of 3 years from Warranty Start Date, provided there is an active Authorized
Dealer within 50 miles of the location of the Product. Labor will not be provided for
direct purchases from Company or when an active Authorized Dealer is not located
within 50 miles of the location of the Product.
Warranty requests received after expiration of warranty term will not be
covered under this warranty regardless of when the defect occurred or was
discovered.
Confirmation of the defect shall require that reasonable proof of the defect be
provided by Purchaser to Company or Company authorized agent, and may include
that the Product or part be Returned to Company for inspection at the Company’s
initial expense. Replacement parts for Products outside the United States will be
shipped in the next authorized Dealer shipment unless Purchaser agrees to pay for
door to door freight of warranted Product. Warranty replacement shall not extend
the original warranty of the defective Products.
Labor for warranty work to be provided by the Company’s Authorized dealer for
a period of 3 years from Warranty Start Date, provided there is an active
Authorized Dealer within 50 miles of the location of the Product. Labor will not be
provided for direct purchases from Company or when an active Authorized Dealer
is not located within 50 miles of the location of the Product.
Warranty requests received after expiration of warranty term will not be covered
under this warranty regardless of when the defect occurred or was discovered.
Exclusions:
Product changes caused by age or environment (such as marine growth,
heat, corrosion or electrolysis) shall not constitute a defect. In addition, this
warranty does not cover or apply to the following: damages caused by or due to
without limitation: accidents, collision, fire, flood, wind, ice, or any other natural
disaster or acts of God, abuse, misuse, overloading, improper watercraft loading,
use when out of level, faulty assembly or installation. Lift components’ fluid levels
and condition, including battery electrolyte (water and acid), hydraulic fluid and
strainer cleaning are maintenance items and are not covered by this warranty.
Sacrificial anodes (zincs), cosmetic concerns and custom coatings are not covered
by this warranty.
Warranty is void if the Product has been modified in any way or if any
Company serial number has been removed or defaced. Product purchased from
Company, but used on non-Company Products are excluded from this warranty.
Limitations:
To the maximum extent permitted by law except as expressly stated herein, there
are no warranties, expressed or implied, by operation of law or otherwise, of the
Product furnished under this Agreement. Seller disclaims any implied warranty of
merchantability or fitness for a particular purpose. The sole remedy for liability of
any kind shall be limited to the remedies provided in this warranty and shall in no
event include any incidental, indirect, special or consequential damages or loss of
use, revenue or profit. Should the company nevertheless be found liable for any
damages, the total liability of the company shall
be limited to the purchase price of the Product.
