Garage Smart Multi-Bike Lifter User manual

1
Installation and User Guide
Garage Smart support – support.garagesmart.com

2
Contents
Safety Information...............................................................................................................................................3
FCC Statement .....................................................................................................................................................4
About the Multi-Bike Lifter ..............................................................................................................................5
Parts Identifier...................................................................................................................................................5
Installation Overview..........................................................................................................................................6
Installing the MyLifter unit............................................................................................................................6
Install the Smart Track ...............................................................................................................................7
Install the MyLifter unit ..............................................................................................................................9
Pair the MyLifter unit with the MyLifter app .................................................................................... 11
Attach the MyLifter cable to the Multi-Bike Lifter frame ........................................................... 12
Limited Lifetime Warranty ......................................................................................................................... 15

3
Safety Information
SAFETY INFORMATION
 Read and follow all safety, installation, and operation instructions.
 Do not operate the Universal XL Lifter while hands or other body parts are
near the system.
 Do not stand under the Universal XL Lifter or items lifted by the system.
 Do not use the Universal XL Lifter to lift people or animals.
 Do not use the Universal XL Lifter to lift or lower items when people or
animals are under the system.
 Always balance the load before attempting to lift it.
 Total lifting capacity for the Universal XL Lifter—including the weight of the
adjustable lifting frame—is 100 pounds.
 If your MyLifter cable is tangled, damaged, or bent, stop using your MyLifter
unit immediately.
WARNING
DO NOT install Garage Smart products in any other manner than specified in the
instructions. To avoid risk of electric shock and other potential injury, DO NOT open
the product casing. This product is for indoor use only. Failure to follow these
safety instructions could result in property damage, serious personal injury, or
death.

4
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
RF WARNING STATEMENT: The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure condition without restriction.
RF Warning Statement
The device has been evaluated to meet general RF exposure requirement. The device can
be used in portable exposure condition without restriction.

5
About the Multi-Bike Lifter
The Multi-Bike Lifter by GarageSmart is designed to lift up to three bicycles with a single
100-pound capacity MyLifter unit. The Multi-Bike Lifter is controlled by your smart device
to lift the bikes off the floor and up to the ceiling with a simple tap on your device screen.

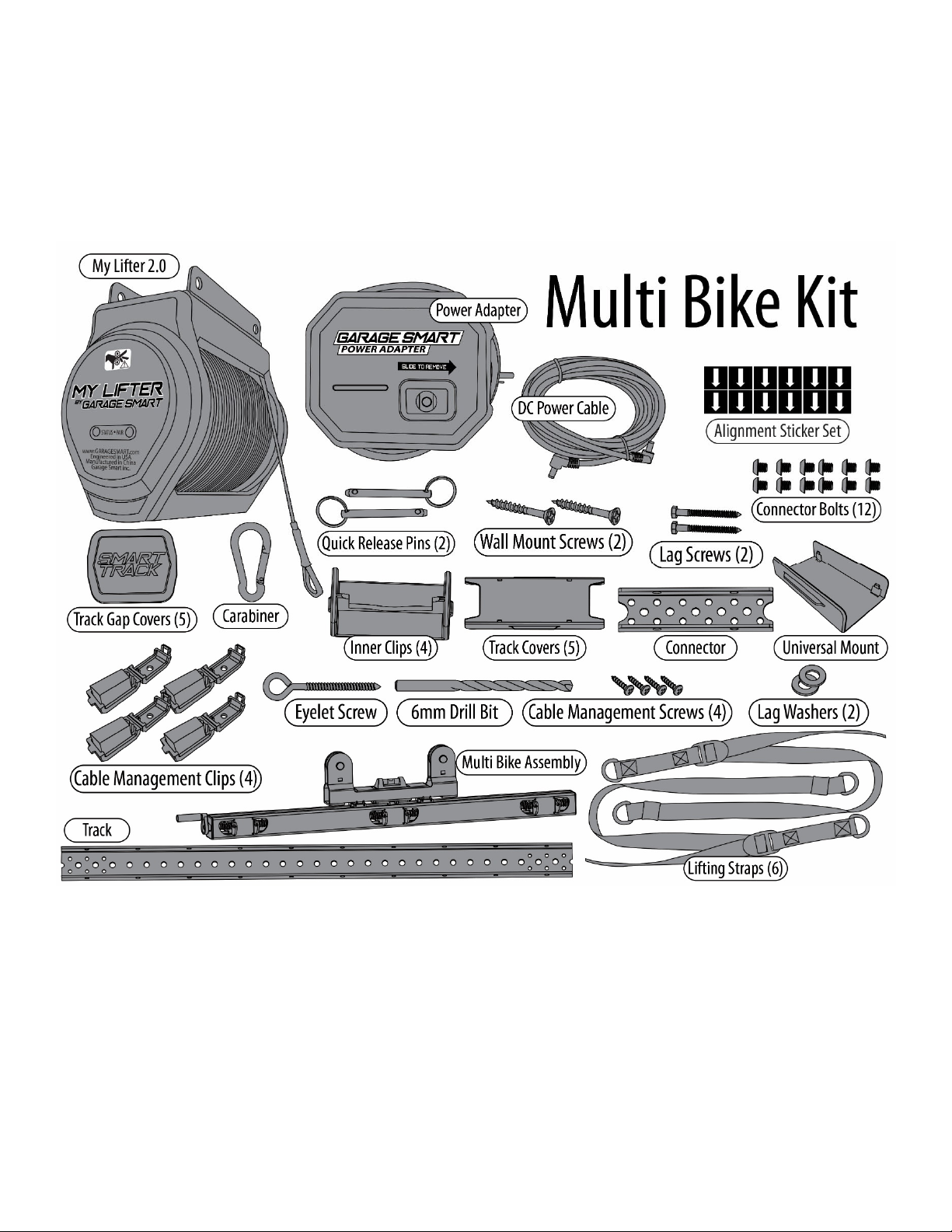

Parts Identifier

6
Installation Overview
With the Multi-Bike Lifter, you can lift one, two, or up to three bicycles with one MyLifter.
The MyLifter can lift a total of 100 pounds. The Multi-Bike Assembly component (see Parts
Identifier) weighs eight pounds. This means that the total weight of the bicycles you want
to lift cannot exceed 92 pounds.
Installing the MyLifter unit
To install the MyLifter unit, you will need the following components from the kit:
 The MyLifter unit
 The Smart Track
 The mounting bracket
 The power adapter and cord
 Two lag screws and washers
 Two wood screws
 Two quick release pins
 The 6 mm drill bit
 Cable management clips
You will need the following tools:
 Pencil
 Stud finder
 Ladder
 Drill
 ½ inch socket or box wrench
 Measuring tape
 Phillips screwdriver

7
Install the Smart Track
Depending on which direction your joists run in your garage and the orientation of the
items you want to lift, you can install the Smart Track across two joists or along a single
joist.
DANGER
DO NOT install Garage Smart products in any other manner than specified in
the instructions. To avoid risk of electric shock and other potential injury, DO
NOT open the product casing. This product is for indoor use only. Failure to
follow these safety instructions could result in property damage, serious
personal injury, or death.
1. Use a stud finder to find a ceiling joist above the bicycles you placed on the floor.
2. Use a stud finder to find and mark the center of the joist:
a. Mark one edge of the joist.
b. Mark the other edge of the joist.
c. Draw an X to mark the center of the joist.
This is called the stud center method, which ensures that the Smart Track and all
other hardware will be installed in the strongest part of the joist.

8
3. Use a pencil to mark the center of the joist.
4. Using the included drill bit, drill a pilot hole at least three inches into the center mark
you made.
5. Hold the Smart Track in place over the pilot hole and screw in one of the included
lag screws and washers. Do not screw it in all the way so you can still move the
other end of the track.
6. Use a stud finder and pencil to find and mark the center of the joist where the other
end of the Smart Track will be attached.
7. Using the Smart Track as a guide, select the hole over the mark you made and drill a
pilot hole at least three inches into the center of the joist.
8. Screw in the other lag screw and washer. Make sure you tighten both lag screws so
the SmartTrack is flush against the ceiling.
DANGER
If the lag screws are not screwed into the center of the ceiling joist, the bikes
could fall and cause property damage, serious personal injury, or death.

9
Install the MyLifter unit
1. Align the holes on the MyLifter bracket with the holes on the Smart Track, leaving
four open holes to the right of the side where the cable comes off the lifter.
2. Insert the included spring pins. Make sure to press the spring pins all the way
through the holes in the MyLifter bracket and the holes on the Smart Track.
3. On the same side of the track where the cable comes off the MyLifter, and on the
side where the DC cable is connected to the MyLifter, hook the carabiner into the
third hole from the lifter.
4. Plug in one end of the DC Power Cable into the Garage Smart Power Adapter.
5. Install the power adapter anywhere on the Smart Track. The universal mount
attached to the bottom of the power adapter lets you easily slide and snap it into
place on the track.
6. Plug the other end of the DC Power Cable into the MyLifter unit.
7. Plug the power adapter into the nearest outlet.

10

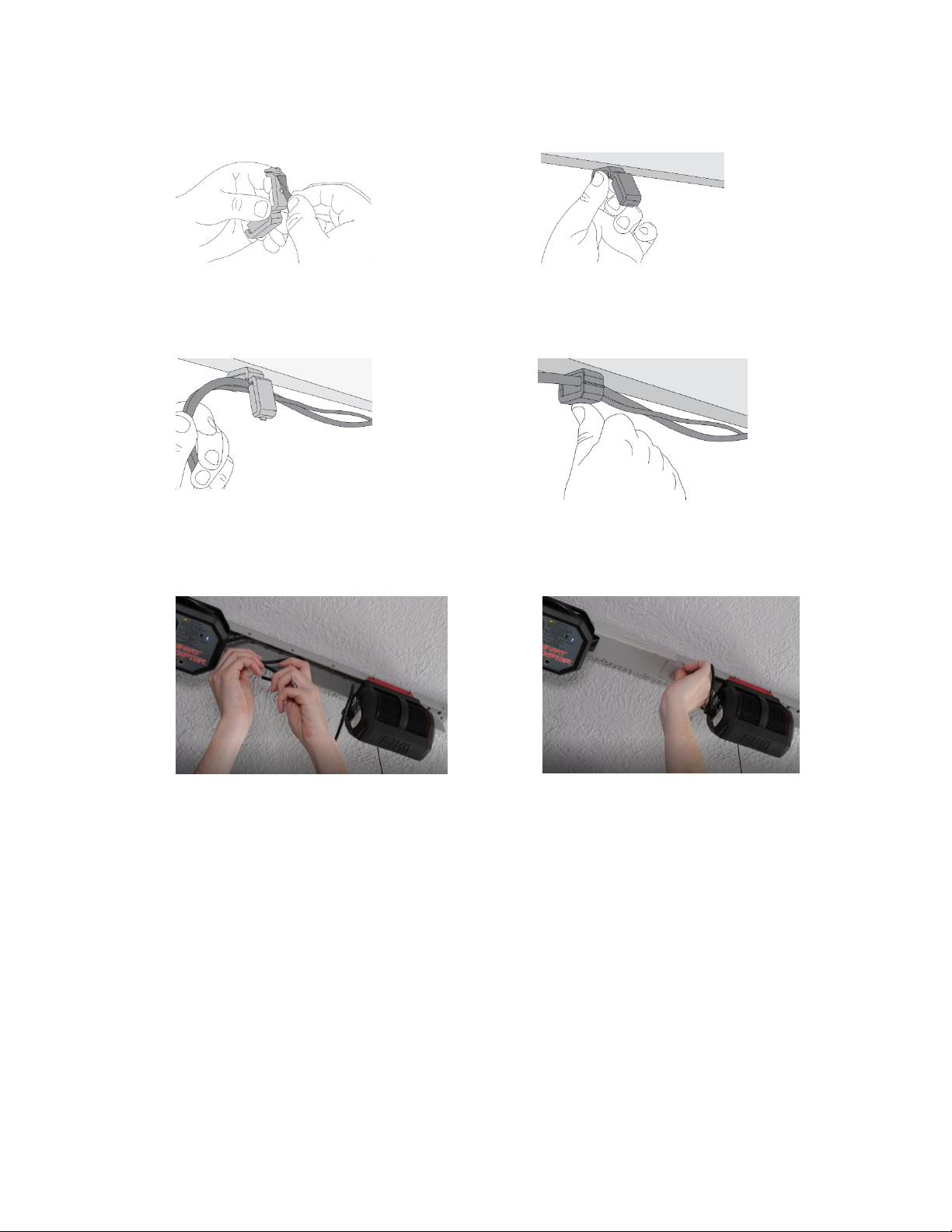

8. Secure and organize the cables.
a. Peel off the adhesive backing from a cable management clip and stick it
where you want.
b. Secure the cable management clip with a screw, place all wires into the clip,
and securely close the clip.
c. You can also organize cables by winding the excess cable around the power
adapter housing. Excess cable can also be stowed in the Smart Track.
d. Use the track covers to support and organize the cables stowed in the Smart
Track.

11

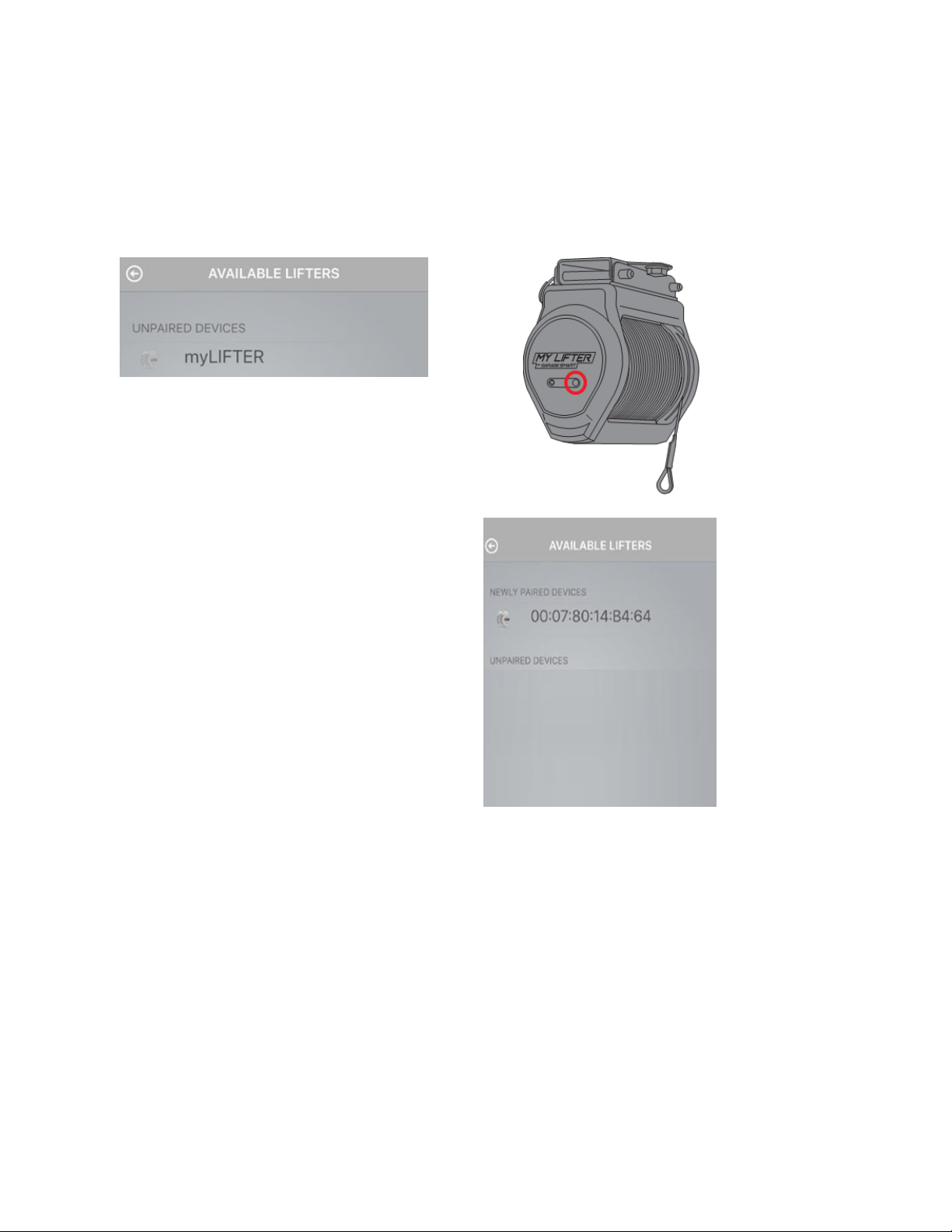

Pair the MyLifter unit with the MyLifter app
1. Download the MyLifter app from the App Store or Google Play.
2. Open the app and tap Add Devices in the bottom right corner.
3. In the Unpaired Devices section, tap your lifter.
4. On the MyLifter unit, press the Pair button. The indicator light should change to a
faster blinking yellow. When the indicator light blinks green, the unit is paired with
your app.
5. In the app, your MyLifter unit should
now appear in the Newly Paired
Devices section
6. Tap the back arrow in the upper left
hand corner to go to the main
screen.
7. To change the name of the lifter, tap
Edit.
a. (Android users) Tap the pencil
icon, type a new name, and tap
Submit.
b. (iOS users) Tap the lifter you
want to rename, type the new
name, and select Save.

12
Attach the MyLifter cable to the Multi-Bike Lifter frame
1. In the MyLifter app, tap the name of your MyLifter unit to go to the Device Control
screen.

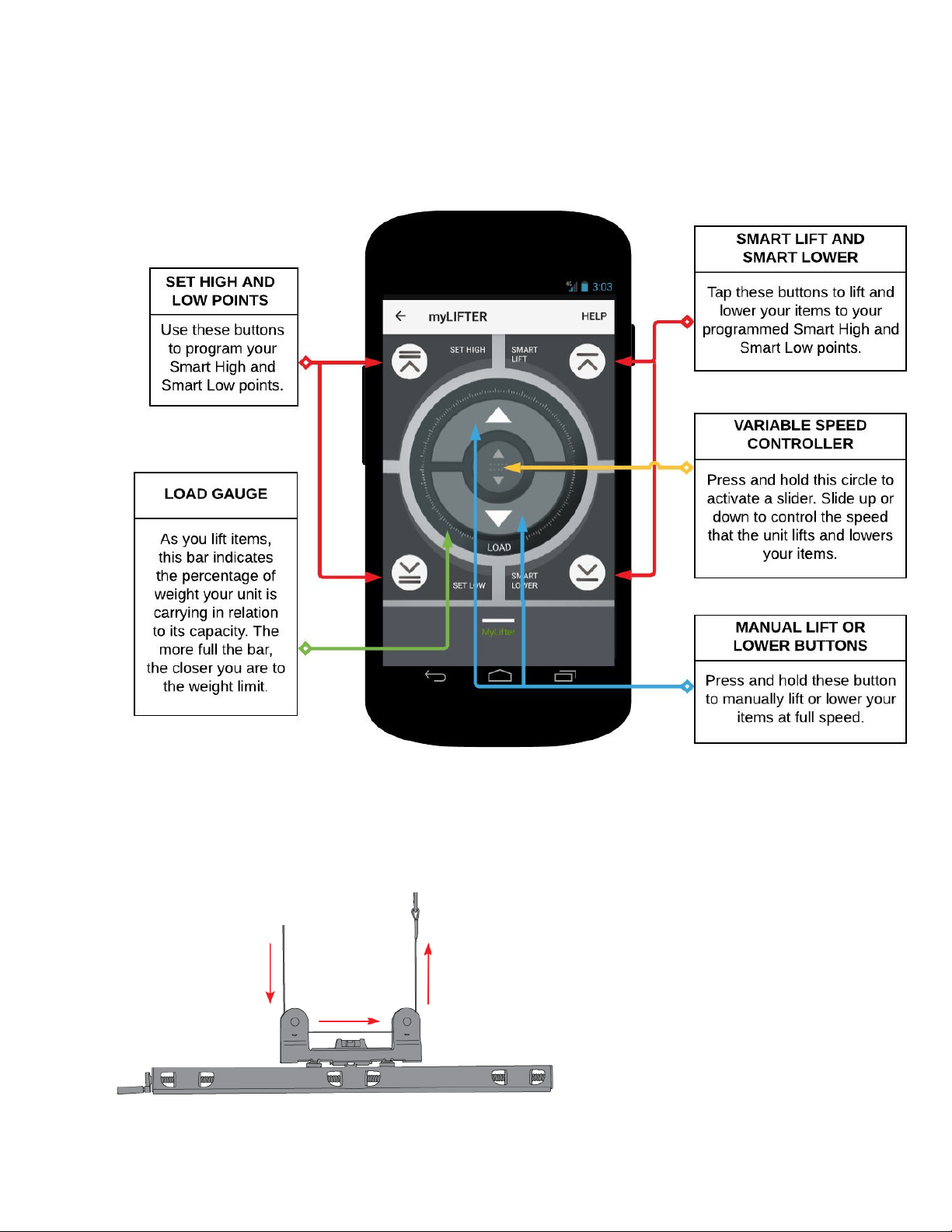

The Device Control screen looks similar to the image shown below:
2. Press the Manual Lower button to lower the cable.
3. Run the cable under both pulleys on the frame and hook the cable to the carabiner
on the Smart Track.

13
4. Place your bicycles under the Multi-Bike Lifter with the middle bike facing the
opposite direction from the two outside bikes.
DANGER
The total weight of the bikes and the Multi-Bike Lifter cannot exceed 100
pounds. Attempting to lift more than 100 pounds may cause property damage,
serious personal injury, or death.
5. Using the six D-Ring lifting straps, secure your bicycles to the lifter frame by looping
the straps through the spokes of the wheels and back to an adjacent hook on the
lifter frame.
6. Tighten the straps to make each bike level with the ground.
7. Turn the crank handle on the Multi-Bike Lifter frame to make each bike level with
the others. Use the level on the balancing frame to find the balance point.
8. When you think the lifter frame is balanced, use the MyLifter app to lift the bike a
few inches off the floor.
9. If the load is not balanced and the lifter frame is not level, turn the crank handle until
everything is level.
10. When the bikes are level and the load is balanced, place an arrow sticker on the
pulley slider and another one on the lifter frame.

14
Placing the stickers ensures that you can quickly find the balance point every time
simply by lining up the stickers.
NOTICE
 If you plan to use only one or two of the bikes at a time, you can use the
remaining stickers to indicate the balancing points for each scenario.
 If one bike is used more often than the others, you may want to place it
in the center. This may allow the lifter to stay balanced when the center
bike is removed without needing to reposition the frame.
 Bikes of varying sizes should be positioned the same each time or the
sticker placement will not indicate the correct balance points.
11. Use the Device Control screen on the MyLifter app to lift the bikes until the wheels
are barely touching the floor.
12. In the MyLifter app, tap the Set Low button to set the smart low point.
13. Tap the Manual Lift Up button to lift the bikes to the ceiling, making sure to leave
six inches of ceiling clearance.
CAUTION
When you use the Manual Lift Up button, make sure you do not run the pulley frame
into the MyLifter. Running the pulley frame into the lifter could cause damage to the
lifter, damage personal property, or cause personal injury.
14. Tap the Set High button to set your smart high point.
Now you can easily lift or lower your bikes with the simple tap of a button.

15
Limited Lifetime Warranty
Garage Smart offers a Limited Lifetime Warranty on all products. If a defect in the
hardware, or any component thereof, occurs Garage Smart will repair or replace the
system, or the defective component. There is no cost to you beyond the cost of shipping
the defective item to us. If your Garage Smart product is defective, we will send
replacement parts or, at our option, replace it at no charge to you after the defective
product is returned to Garage Smart. If we send replacement parts for your Garage Smart
product, we may use new or reconditioned parts. If we choose to replace your Garage
Smart product, we may replace it with a new or reconditioned one of the same or similar
design.
Who makes this warranty?
Garage Smart
Who is covered?
This warranty extends only to the original purchaser of the product. This warranty is
intended for natural persons only and does not extend to any corporation, limited liability
company, or commercial entity.
What is covered?
Any defect in material and workmanship from personal, normal household use in
accordance with the User Guide.
Warranty does not cover
This warranty does not cover installation commercial use, defects resulting from
accidents, damage while in transit to our service location or damage resulting from
altercations misuses or abuse, lack of proper maintenance, unauthorized repair or
modifications of the product, affixing of any attachment not provided with the product,
staples through wiring, pinched or broken wires, broken cables power outages, use of
extension cords, missing or damaged parts or discounted clearance, final sale or taped
cartons, fire, flood, acts of God, or failure to follow the User Guide. This warranty is the
only one we will give on your Garage Smart Product. There are no other express
warranties.
Where and how to obtain warranty service
You can obtain warranty service from Garage Smart at the address indicated below. It is
your responsibility to deliver or ship the defective product to us at your date of purchase
and a description of the claimed defect, prior to the expiration of the warranty period. To
obtain information regarding this warranty, you may contact us by mail, email, or phone.
Garage Smart
3000 Sierra Vista Way
Provo, UT 84606
[email protected] or [phone]

16
Exceptions and exclusions
This warranty does not include damage or defects resulting from misuse, accident, failure
to maintain, or any other causes following your purchased of the product. Use of the Lifter
system with any other system or components (including affixing non Garage Smart
attachments or accessories) voids this warranty. Failure to follow the User Guide in
installation or use of the Lifter system voids the warranty. Unauthorized repair or
modification voids the warranty.
The Lifter system is intended for personal, indoor, home use. Garage Smart does not
warrant its lift system for commercial use, and any such use voids the warranty.
TO THE GREATEST EXTENT PERMITTED BY LAW, THIS WARRANTY IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSLY SET FORTH HEREIN, WHETHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF
MERCHANT ABILITY AND FINESS FOR A PARTICULAR PURPOSE.
Limitation of Liability: THE SOLE REMEDIES AFFORDED UNDER THIS WARRANTYARE
REPAIR, REPLACEMENT, OR, IF REPAIR OR REPLACEMENT IS NOT COMMERCIALLY
PRACTICABLE OR CANNOT BE TIMELY MADE, A REFUND OF THE PURCHASE PRICE. IN
NO EVENT SHALL THE LIABILITY OF GARAGE SMART RELATED TO ANY PRODUCT
EXCEED THE PURCHASE PRICE OF THE PRODUCT. YOUR USE OF GARAGE SMART
PRODUCTS IS AT YOUR SOLE RISK. GARAGE SMART SHALL NOT BE LIABLE UNDER
ANY CIRCUMSTANCES FOR CONSEQUENTIAL, INDIRECT, SPECIAL, OR INCIDENTAL 42
DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OF ANY GARAGE
SMART PRODUCT. (SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.)
Other legal rights
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state.
