NUE POWERPAC 1212 User manual

powerpac 1212
USER GUIDE

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
WHATS IN THE BOX
powerpac solar charge
cable
Ac charger
User manual

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
WHATS IN THE BOX GLOSSARY
The following terms are used in this document to indicate various levels of potential harm
that may be caused by improper operation.
NOTICE
The instructions, if not properly followed, may result in property damage and minor physical
damage.
WARNING
The instructions, if not properly followed, may result in property damage, major accident
and serious injury.
Read the ENTIRE user manual to be familiar with the features of this product before operating.
Failure to operate the product correctly may result in damage to the product or personal
property and cause serious injury. New Use Energy Solutions, Inc. (NUE) will not assume
any legal responsibility. DO NOT use the product with incompatible components or alter
the product in any way without following the instructions provided by NUE. Otherwise, you
cannot get aer-sales service from NUE under warranty condition. These Safety Guidelines
include instructions for safety, operation and maintenance. It is important to read and
follow all the instructions and warnings in the user manual before assembly, setup or use
the product.
1. Keep PowerPac and the accessories dry and do not expose them to high heat.
2. Never disassemble, puncture, shock, crash, or incinerate the product or the accessories.
3. Recycle and dispose of PowerPac in accordance with the local regulations.
4. Pay attention to safety when handling the PowerPac.
5. People with disabilities or children should use the machine under the protection of the
supervisor.

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
PRODUCT SAFETY GUIDELINES PRODUCT SAFETY GUIDELINES
Improper use may result in re, property damage or personal injury. Make sure
to use the product according to the following safety rules and guidelines.
Product use:
1. Do not expose PowerPac to any liquid. Keep the PowerPac away from rain or any liquid. Do not drop the
PowerPac into water. If the battery in the PowerPac comes into contact with water, it may cause chemical
decomposition of the battery. This may cause the battery to catch re or explode.
2. Never use or charge swollen, leaky, or damaged batteries. If your battery is abnormal, contact NUE support
or a NUE authorized dealer for further assistance.
3. Never install or remove a battery from the PowerPac when it is turned on.
4. Never disassemble or pierce the product in any way. Otherwise, it may leak, catch on re, or explode.
5. DO NOT use the product if it was involved in a crash or a heavy bump.
6. Do not attempt to open or tamper with the internal wiring of the unit. This will void any warranty claims.
7. If the product falls into the water during use, take the product out immediately and put it in a safe and
open area. Keep a safe distance from it until it is completely dry. Never use it again and dispose it properly
as described in the Battery Disposal section below.
8. Do not allow pins, wires or other metal pieces to insert to the device case, outlets or controls. Metal pieces
may short circuit the product causing a re.
9. Avoid collision. DO NOT place heavy objects next tothe unit so that a collision may occur rupturing the
unit’s case.
WARNING Product Charging
1. Always the use NUE provided charger. NUE takes no responsibility for any damage caused by using non-
NUE charger.
2. When charging, please place the product on the ground away from any ammable or combustible
materials. To prevent accidents, never leave the PowerPac in an area where it can be tampered with by an
untrained individual or falling object, water, etc.
3. The PowerPac’s temperature may exceed the charging temperature range of -4ºF to 140ºF (-20 to 60°C)
during long heavy loads. DO NOT charge the PowerPac immediately aer a long heavy load (or in any other
situation)until it cools down to room temperature.

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
Product Storage and Transportation:
1. Keep the product out of the reach of children.
2. If a low-battery warning appears, charge the battery before storing it. Long-term storage in an uncharged
state may cause damage to the PowerPac’s batteries. The batteries will enter hibernation mode if the unit is
depleted and then stored for a long time. Recharging the product can bring the battery out of hibernation,
but storage in hibernation mode will damage the batteries.
3. DO NOT store the product near a heat source, such as a car in direct sunlight, a re source, or a heating
stove.
4. Store the product in dry environments. DO NOT place the product where it may contact with water.
5. Never transport a product with a battery power level higher than 50%. Follow all applicable ground and air
transportation regulations. Do not ship unless certied under the applicable ground or air (e.g. DOT (USA),
NFMTC (Canada), IATA (Intl. Air)) laws and under contract for hazmat shipping with your shipper of choice.
Battery Disposal:
1. Dispose of the product at a site approved for lithium ion battery recycling or disposa only aer a complete
discharge. Batteries are hazardous chemicals. Please strictly follow your local regulations regarding
battery disposal. Only dispose of the PowerPac in a location that accepts Lithium Batteries and DO NOT
dispose of it in general garbage.
2. Dispose of the product immediately if it cannot be powered on aer over-discharging.
Product Maintenance:
1. Never store the product in environments below -4° F (-20°C) or above 140° F (60°C).
2. Battery life may be reduced if not used for a long time.
3. Fully charge and discharge the battery at least once every 3 months to maintain battery health.
Travel Notice:
It is forbidden to carry lithium batteries and equipment with a capacity greater than 160Wh on airplane due to
the regulation, THAT INCLUDES THIS UNIT.
WARNING:
Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
PRODUCT SAFETY GUIDELINES PRODUCT SAFETY GUIDELINES

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
POWERPAC USE GUIDE
INTRODUCTION 7
FEATURES 8
LCD DISPLAY 12
SOLAR PANEL CONNECTION 13
TECHNICAL SPECIFICATIONS 14
HOW TO RECHARGE 16
FAQs 16
POWERPAC CONTINUOUS USE 18
PRODUCT IMAGES 19

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
INTRODUCTION
NOTICE:
Please note:
To turn ON/OFF PowerPac, you need to PRESS & HOLD the Power Button. To turn on the AC power outlet,
you need to PRESS & HOLD the AC Button aer turning on PowerPac. This is designed purposefully: it will
save the battery life, so that your PowerPac’s power is available when you need it.
Battery Maintenance
Get to know your PowerPac. Follow this step-by-step introduction to each of PowerPac’s ports, buttons,
display screens and more.
Technical Specications
Understanding the specs that make PowerPac such a cutting-edge product.
How to Charge PowerPac
Everything you need to know about recharging your PowerPac via AC charger, solar charge cable.
FAQs
Answers to you some of the most important questions about how to take care of your PowerPac, store your
PowerPac, and safely use your PowerPac.
What’s in the Box:
What is included in your purchase. If your purchase does not include these items, please contact us at
www.newuseenergy.com
NOTICE:
Please note:
To turn ON/OFF PowerPac, you need to PRESS & HOLD the Power Button. To turn on the AC power outlet,
you need to PRESS & HOLD the AC Button aer turning on PowerPac. This is designed purposefully: it will
save the battery life, so that your PowerPac’s power is available when you need it.
Battery Maintenance
Get to know your PowerPac. Follow this step-by-step introduction to each of PowerPac’s ports, buttons,
display screens and more.
Technical Specications
Understanding the specs that make PowerPac such a cutting-edge product.
How to Charge PowerPac
Everything you need to know about recharging your PowerPac via AC charger, solar charge cable.
FAQs
Answers to you some of the most important questions about how to take care of your PowerPac, store your
PowerPac, and safely use your PowerPac.
What’s in the Box:
What is included in your purchase. If your purchase does not include these items, please contact us at
www.newuseenergy.com

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
FEATURES

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
1. LCD Display
Displays the various conditions of the product. The screen will turn of aer 5 mins. You can turn it on by
pressing ON/OFF button.
2. 5V USB Output Ports
Charge a wide array of devices such as your iPhone, tablet, speakers, or anything that needs to be charged
through a USB-A Port. The USB Output icon will appear on LCD Display when a USB port is in use.
3. Fast Charge QC 3.0 Output Ports
Charge a wide array of devices such as your iPhone, tablet, speakers, or anything that needs to be charged
through a USB Port. The USB Output icon will appear on LCD Display when a USB port is in use. Fast charge
enabled devices can be charged at a maximum speed of 18W. If your device does not support fast charging,
the device will charge in regular speed.
4. Fast Charge Type-C Output Ports
Devices that charge through a Type-C port, such as a MacBook Pro, Android phone, etc. can be charged by
the PowerPac Type-C port. The Type-C Output icon will appear on LCD Display when a Type-C port is in use.
Fast charge enabled devices can be charged at a maximum speed of 30W. If your device does not support fast
charging, the device will charge in regular speed.
5. Fast Charge Type-C Output Ports
Devices that charge through a Type-C port, such as a MacBook Pro, Android phone, or other devices can be
charged by the PowerPac Type-C port. The Type-C Output icon will appear on LCD display when a Type-C port
is in use. Fast charge enabled devices can be charged at a maximum speed of 60W. If your device does not
support fast charging, the device will charge in regular speed.
6. DC-12V Output Ports
Devices that charge through a DC-12V port, such as a DC12V LED lights and a DC12V Refrigerator, can be
charged through this output. The DC Output icon will appear on the LCD Display when a DC port is in use.
Devices can be charged at a maximum DC12V 7A.
7. Power Switch
Press and short the power button to turn the PowerPac on or o. When the PowerPac is turned on the LCD
Display Screen will light up. To turn the LCD Display Screen ON/OFF and keep PowerPac working, press the
Power button. The corresponding power load icon will automatically light up when the PowerPac senses any
of the output.
FEATURES

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
FEATURES

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
8. Car Outlet
This out charges devices that need car ports to be charged, such as drone batteries. The DC output icon will
appear on the LCD Display when a DC port is in use.
9. DC Input
The PowerPac needs to be charged by the included charger, and the output voltage specication of the charger
is DC 29.2V~ 1-10A.
10. Solar Charge
The solar charge controller charges a maximum of 450W of solar power input through either one, or multiple,
panels/modules.
11. AC ON/OFF Switch
The AC power button controls the AC output of the PowerPac. The AC power needs to be turned on manually.
To enable AC power, press the AC power button. The AC Output icon will appear on the LCD display when an
AC port is in use. If the AC power is not used for more than 3 minutes, The AC output is automatically turned
o.
12. 2 AC Output Sockets (100-120V reigon or 220-240V reigon)
These outlets can charge devices that require 100-120V AC (220-240V edition) wall chargers to be charged such
as laptops, TVs, mini refrigerators, vacuums etc.
13. Ventilation Fans
These fans prevent the PowerPac from overheating.
FEATURESFEATURES

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017

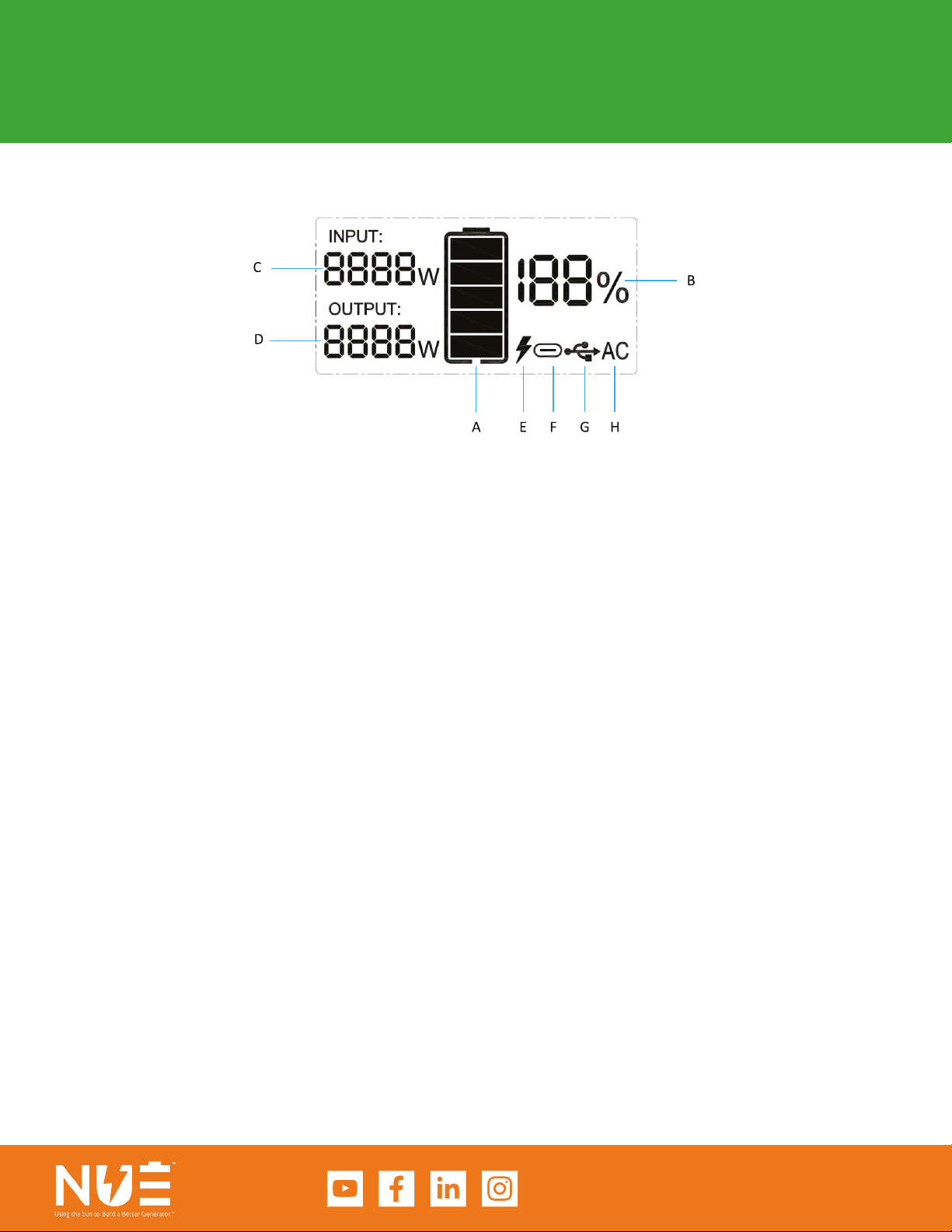

LCD DISPLAY
A. Battery Level Display
The battery capacity display has 5 grids, each representing 20% State of Charge (SOC). When the battery
quantity display has 1 grid remaining, the remaining battery quantity is < 20%. At that point, charge the
PowerPac immediately. Running the PowerPac below 20% SOC regularly may reduce the life of the unit.
B. Battery Level Mark
A percentage display of the capacity. If it displays 0%, charge the PowerPac immediately.
C. Power Input
Shows the current input power of the PowerPac in watts.
D. Power Output
Shows the current output power of the PowerPac in watts.
E. Charging Input Mark
When the lightning icon is lit, it indicates that the battery pack is charging.
F. Type-C Output Mark
When the Type-c icon is on, it indicates that type-c is discharging.
G. USB Output Mark
When the USB icon is on, it indicates that USB is discharging.
H. AC Output Mark
When the AC icon is on, it indicates that there is AC current discharging.

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
SOLAR PANEL CONNECTION
How to recharge the PowerPac with solar panels?
First, please note that we will focus on how to set up a serial connection (up to three panels and the parallel
connection of up to six panels). The PowerPac supports 30-45V DC input. When the input exceeds 45V, the
PowerPac’s overload protection will be triggered. Excessive voltage may damage the product. Users should
follow all the instructions in the manual. NUE does not provide free repair services for any product damage
caused by connecting more solar panels than the unit can handle or incorrectly connecting the product: even
during the warranty period.
Recommended serial connection method
a. Users can connect 1 to 3 solar panels (with more modules) (do not connect more than 2 in series) in series
as shown in the gure below, to the MC4 port.
b. Then, connect to MC4 to EC5 conversion cable.
c. Use EC5 conversion port connect to the EC5 port on PowerPac.
SAMPLE CONFIGURATION
Panels with MC4 connectors can power the PowerPac, as long as the voltage and current (30-45V DC, 450 max)
the panels will be able to recharge PowerPac through the included MC4 to EC5 conversion cable.
EC5 Connector
MC4 Connector
SOLAR PANEL-36V X2
PS01 Charging Port

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
Net Weight 33lbs (15kg)
Dimensions 14.5 x 7.9 x 10.8 inch (L368 x W 200 x H 275mm)
Capacity 1280Wh / 25.6V50Ah
Testing and certication UL (Cells) CE (Cells) UN38.3 FCC RoHS PSE
TECHNICAL SPECIFICATIONS
General Specs
Output
Input
AC Output (x2) 1200W (Surge2400W), 120Vac (60Hz)/230Vac (50Hz)
5V USB Output (x2) 5V DC, 2.4A, 12W Max, per port
QC 3.0 Fast Charge (x2) 5V DC, 9V DC, 12V DC, 2.4A, 28W Max, per port
Type-C Output (x1) 5V 3A DC , 9V 2A DC, 12V 1.5A DC, 18W Max, per port
Type-C Output (x1) 5V DC, 9V DC, 15V DC, 20V DC, 3A, 60W Max, per port
DC 12V Output (x2) 84W,12V DC,7A max
Car Power Output (x1) 94.5W, 13.2V DC, 7A max
AC Charge Input Voltage 100-120Vac (50Hz/60Hz) ONLY!
(International Version 220-240Vac ONLY!)
AC Charge Input Power PowerPac Charge 292W max
Solar Charge Input 450W 30-45V DC 10A continuous 10A max

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
TECHNICAL SPECIFICATIONS
Cell Chemistry LiFePO4 (Lithium Ion Phosphate)
Cell Type 3.2V 50AH
Discharge Temperature -4 to 140°F (-20 to 60°C)
Charge Temperature 32 to 122°F (0 to 50°C)
Discharge Cut-o Voltage 20V±0.5V
Months Self Discharge <3%
Eiciency of Charge 100% @0.5C
Charge Voltage 28.8-29.2V
Discharge Current (Peak) 50A (100A 1-3S)
Storage Temperature 0 °C to 45 °C
Highest Solar conversion rate 93%
Shell material and IP Class ABS+ Aluminum alloy, IP20
Life Span 6,000 Cycles at 80% SOC before failure
Battery

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
HOW TO RECHARGE
How do I recharge my PowerPac?
PS01 has an AC charging port and a EC5 and 5525 charging port located on the side of PowerPac can be charged
through AC power or solar panel. Besides, you can also use solar panels connect in series (no more than two)
and connect the solar charge cable to the EC5 and 5525 solar charging port of PowerPac for charging.
Can PowerPac power my devices while it’s charging?
Yes, the PowerPac can both charge and output power in the same time. When you are charging PowerPac, we
do not recommend connecting an electrical appliance with a power over 500W for discharging.
FAQS
How do I care for the PowerPac?
If you need to clean PowerPac, please use a dryand non-abrasive cloth to clean the outside surface. You can
use cleaners designed for mobile phones or computer screeens can to clean PowerPac, but do not give it a
bath! DO NOT OPEN THE UNIT OR TRY TO CLEAN THE INSIDE.
How do I store the PowerPac?
1. Make sure to recharge PowerPac to around 85%.
2. Find and place your PowerPac in a dry environment without by abrasive objects nearby. For optimal
battery health, store PowerPac in room temperature.
3. Discharge PowerPac to 30% and then recharge to 85% every 3 months for optimal battery life. This can
help prolong the battery life and ensure your PowerPac is ready to recharge the gears at all times.
How to use the PowerPac safely?
1. Please use PowerPac in its operating temperature range. Using PowerPac outside of its optimal operating
temperature range can push the machine beyond its safe and e ective limits. Do not submerge your
PowerPac in water. It is not waterproofed and this will void your warranty.
2. Do not charge the machine right aer it is fully discharged (E.g. 450W keep 120mins). For your safety, please
wait 2 to 3 hours for the product to cool down before charging it!
3. If you attempt to charge PowerPac immediately aer a full discharge, PowerPac will display as an
overheating protection reminder. Please wait 2 to 3 hours for the machine to be cooled down before
recharging it.

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
How do I access the Device’s Bluetooth App?
1. Visit the App store on your Iphone or Samsung device.
2. Search for “BAT-BMS”.
3. Download the app of that name in the “Utilities” category. Remember to
give the app access to your Bluetooth and accessories.
4. Open the app. If your SunCase is nearby, it will appear as a device in the
list. If there are multiple SunCases or NUE brand PowerPacs nearby,
multiple devices will show up. Please use the serial number (which should
be on a sticker on your SunCase) to identify the specic unit you would
like to monitor.
5. Connect to the device you would like to monitor.
6. Open that device on the app. You will be given multiple pages. To get accurate up-to-date information
check the RT page, which should have information direct from the BMS.
Do you have any advice on how to best use the Bluetooth App
for this device?
1. Remember that the capacity meter displayed on this app is the most accurate meter as it is from the
device’s BMS. NUE recommends using it whenever possible.
2. On the Control page you can toggle the charging and discharging switch remotely as well. Please do not
touch the AutoBalance or Heating State portions for this device.
3. Please do not touch the Parameter settings, so as to ensure the safest use of this unit within the preset
parameters.
FAQS

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
POWERPAC CONTINUOUS USE
Cell Phone/Power Tool Charger/
Led Bulb/Router
Desktop Computer/
Large Fridge
CPAP Machine/Ventilator/
Patient Monitor
35L per Minute Water Pump/
5,000 BTU Window Air Conditioner
Starlink System/LED TV/Pellet
Cooker/Small Fridge
Toaster Oven/Chain Saw/
Disc Saw
Operating hours:
100+ Hours
Endless with Solar
Operating hours:
3 Hours
Endless with Solar
Operating hours:
17 Hours
Endless with Solar
Operating hours:
3 Hours
Operating hours:
10 Hours
Endless with Solar
Operating hours:
Up to 5 Hours

P: [phone]
E: [email protected]om
W: newuseenergy.com
A: 3320 W Flower St. Phoenix, AZ 85017
PRODUCT IMAGES

1. Keep the PowerPac and its accessories dry. Do not expose them to high
temperatures.
2. Never disassemble, puncture, shock, crash, or incinerate the product or its
accessories.
3. Recycle and dispose of the product in accordance with local regulations.
4. Pay attention to safety when handling the PowerPac.
5. People with disabilities or children should use the machine under the protection
of a supervisor.
