Nuie WIN321 Assembly instructions

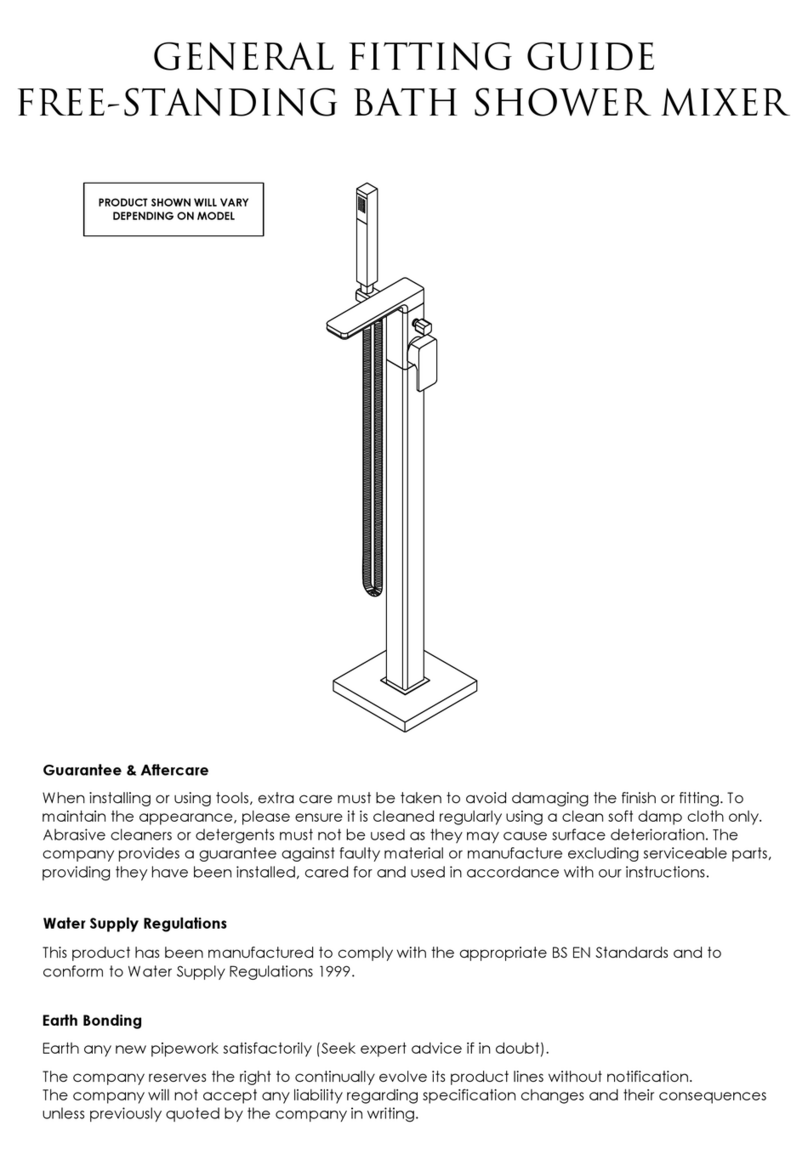

GENERAL FITTING GUIDE
FREE-STANDING BATH SHOWER MIXER
PRODUCT SHOWN WILL VARY
DEPENDING ON MODEL
Guarantee & Aftercare
When installing or using tools, extra care must be taken to avoid damaging the finish or fitting. To
maintain the appearance, please ensure it is cleaned regularly using a clean soft damp cloth only.
Abrasive cleaners or detergents must not be used as they may cause surface deterioration. The
company provides a guarantee against faulty material or manufacture excluding serviceable parts,
providing they have been installed, cared for and used in accordance with our instructions.
The company reserves the right to continually evolve its product lines without notification.
The company will not accept any liability regarding specification changes and their consequences
unless previously quoted by the company in writing.
Water Supply Regulations
This product has been manufactured to comply with the appropriate BS EN Standards and to
conform to Water Supply Regulations 1999.
Earth Bonding
Earth any new pipework satisfactorily (Seek expert advice if in doubt).
www.divapor.com

1. Prior to installation please ensure all the supply pipes have been flushed through to remove any
debris and then ensure the water supply is turned off.
2. We strongly recommend the fitting of isolation valves to the inlet feeds for ease of future
maintenance.
3. Ensure you have all the relevant tools before commencing the installation and take note of any
specific markings on the product to make sure they are installed correctly.
4. Carefully assemble new fitting onto the floor in the correct position in relation to the bath. Make
sure the fixing plate has been secured using suitable fixings for the chosen installation point (Not
supplied).
5. Connect water supply to the inlet connector The HOT supply should always be connected to the
front when viewing the fitting from the front.
Please ensure you take note of any specific markings on the product to make sure they are
installed correctly
6. Ensure fitting is in the 'open' position and turn on the water supply. Allow the tap to run for a few
minutes to flush out any debris.
7. Check all water feed connections to ensure there are no leaks.
8. Check the assembled fit of the product to the floor to ensure there is no water ingress that may
cause water damage after installation.
INLET CONNECTOR COLD
(REAR)
INLET CONNECTOR HOT
(FRONT)
FIXING PLATE
GEN010
