Nula i-Size Guide

1 2
14
15
16
20
17
19
22
23
18 21
Manual Location
12
11
10
9
9
8
7
6
5
4
3
3
2
1
13
(1) (2)

4
(5)(3)
3 4
(4)
2
A
B
C
1
1
2

5 6
(9)
(6)
(7)
12
(8)

7 8
1
2
(12)
(13)
(10)
(11)

9 10
(14)
(15)
1
2
(16)
(17)

11 12
(18)
(19)
1
2
3
2
(20)
(21)
1

13 14
1、Handle
2、Handle button
3、Shoulder pad
4、Crotch pad
5、Buckle
6、Webbing
7、Center function adjustment
8、Adjustment webbing
9、Side webbing guide
10、Canopy
11、Headrest
12、Inner pad
13、Carrier shell
(22)
(23)
Attach With Stroller
Release From Stroller
1
1
2
2

15 16
14、Connecting hook
15、ISOFIX connector
16、ISOFIX release button
17、ISOFIX tube button
18、Release button of carrier from base
19、Base cover
20、Indicator window of green/orange switch
for carrier installed with base
21、Indicator window of ISOFIX locked
22、Adjustment button of support leg
23、Indicator window of support leg worked
：Not to use this CRS in the seating positions where the frontal
airbag is activiated.

12、It is dangerous to use the reclined cradle on an
elevated surface, e.g. a table;
13、This reclined cradle is not intended for prolonged
periods of sleeping
14、Please stop using the cradle after your baby be
capable to sit by himself or herself
17 18
1、This is an "i-Size" Child Restraint System. It is
approved to Regulation No.129, for use in, "i-Size
compatible" vehicle seating positions as indicated by
vehicle manufacturers in the vehicle users’ manual.
2、If in doubt, consult either the child restraint
manufacturer or the retailer.
3、The infant carrier apply to the EN12790:2009 standard.
Notice：
1、Any straps holding the restraint to the vehicle must be
tight, that any support-leg must be in contact with the
vehicle floor, that any straps restraining the child must be
adjusted to the child's body, and that straps should not be
twisted;
2、The rigid items and plastic parts of a child restraint must
be so located and installed that they are not liable, during
everyday use of the vehicle, to become trapped by a
movable seat or in a door of the vehicle;
3、Not to use them in seating positions where an active
frontal airbag installed.
to violent stresses in an accident.
4、The device must be changed when it has been subject
Warning：
5、
and a danger of not following closely the installation
instructions provided by the child restraint manufacturer.
6、Children should not be left in their child restraint system
unattended.
7、Any luggage or othe robjects liable to cause injuries in
the event of a collision must be properly secured.
8、The child restraint shall not be used without the cover;
9、The seat cover should not be replaced with any other
than the one recommended by the manufacturer, because
the cover constitutes an integral part of the restraint
performance.
11 、
10、The user shall also be referred to the vehicle
manufacturer's handbook.
It is dangerous for any alterations or additions to the
device without the approval of the Type Approval Authority,
The instruction manual must be kept in the CRS
location mentioned in the picture3 during its life time；

19 20
15、Take your baby out of the cradle as often as possible
in order to relieve pressure from his or her spine
16、The cradle is not suitable for sleeping for long time,
please use the baby bed instead
17、Please contact with distributor or manufacturer to
replace or supplement the components if they were missed
or damaged.
IMPORTANT
KEEP FOR FUTURE REFERENCE
1、To adjust the carrying handle, simultaneously press the
left and right buttons(1) of picture4 you can lock the
carrying hand in place in 3 positions:
A: Vehicle position in the car or carry position outside of
the car;
B: Cradle position in the desk or lock position attached
with stroller;
C: Rest position in the desk or the position to put the
baby into carrier;
Adjustment:
1、Press the red button of the buckle to release the
harness as picture 9
2、Input the baby on the carrier and lock the harness via
insert the both tongues to the bottom of buckle with an
audible “Click” (Picture 10)
3、Pull cautiously on center adjustment belt in order to
tighten shoulder belts until they fit your baby’s body
(Picture11)
4、Pull up the button (1) and simultaneously push the top
cover of the support leg to the last position. （Picture12）
5、Push the base to connect the car ISOFIX anchors
firmly. The indicator color of the ISOFIX connector turns
into green from orange. (Picture13/14)
6、Push the base to make it be as close to the car chair’s
backrest as possible.

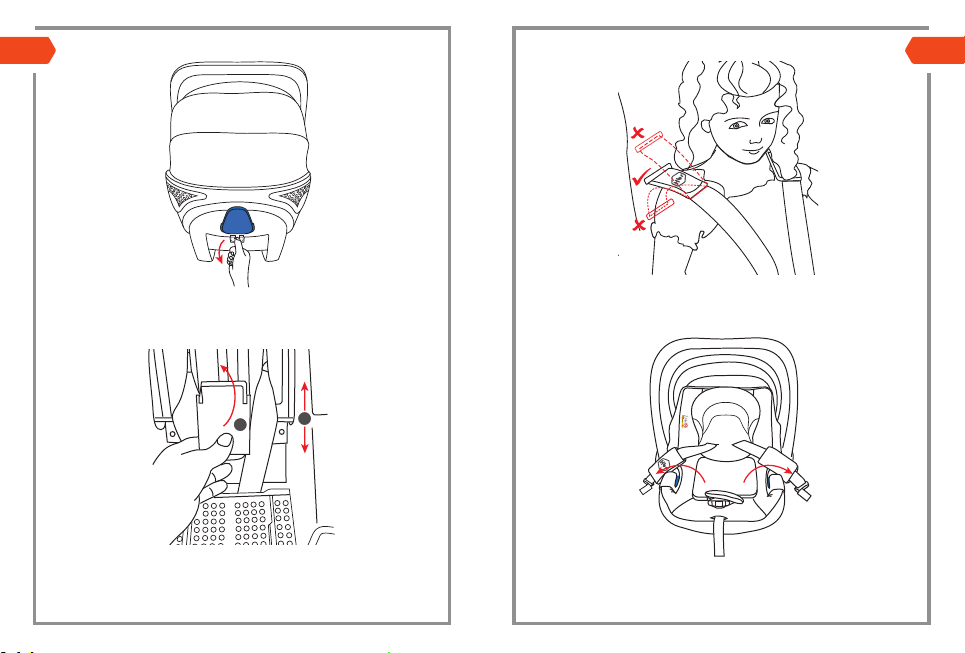

2、Loosen shoulder belts by pressing the adjustment
button on central adjuster and simultaneously pulling both
shoulder belts up upon picture 5
3、Press the button under the central belt guide to open
the manual box, (Picture 6) pull the button up (1)
simultaneously and move down and up to adjust the
headrest and shoulder rest to desired position. (Picture 7)
that headrest at the same lever of the baby shoulder (as
picture 8)
Installation in the car :

21 22
1、Pull the button(1) in and pull up the carrier from the
base simultaneously to release the carrier from the base.
(Picture19)
2、Pull up the button as picture 20;
3、
Cleaning
The cover and the belt can be cleaned with a clean cloth
and some lukewarm soapy water. The plastic parts can be
cleaned with a mild detergent and warm water.
7、Push the button (1) out and move the support leg of
underside simultaneously to make the end of the support
leg to touch the floor of the car compartment firmly. The
color of the indicator in the support leg end cover turn into
green from orange. (Picture15/16)
8、Put the carrier with baby onto the base as (picture
17)The indicator color turn into green from orange (picture
18)
Uninstallation of the carrier and base
Product Maintenance Record
Distributor:
Address:
Product Name
Order Date
User Name
Model
Use duration
User Tel
Problem discribtion1:
Problem discribtion2:
Problem discribtion3:
Solution discribtion1:
Solution discribtion2:
Solution discribtion3:
User signature Date
Maintainer signature Date
Press the orange button as the red arrow 1 direction
simultaneously and pull the button as red arrow 2 direction
to release the two ISOFIX connectors from the vehicle
anchors as picture 21
