Numark MIXDECK EXPRESS BLACK User manual

SPECIFICATION
CD FUNCTION
PITCH RANGE……………………….Press and release the pitch button to cycle through pitch fader settings of +/- 6%, 12%, 25%
and 100%.You can also disable the pitch fader by pressing the pitch button again after
selecting 100%.
PITCH BEND +,-……………………...Allows you to briefly adjust the speed of the music faster or slower for as long as
the button is held.
TIME…………………………………..Toggles the display to show elapsed time, time remaining on the current song, or
time remaining of an entire audio CD.
MODE………………………………....There are two playback modes(Auto-Cue . Continuous).
PROG……………………………….....This button helps you create a program – a sequence of tracks to play continuously.
CUE…………........................................Returns and pauses the music at the last set cue point.
PLAY/PAUSE........................................Starts or resumes playback if the Deck is paused. Pauses playback if the Deck is playing.
LOOP IN/OUT / RELOOP………….....These buttons are used to define your beginning and ending loop points (LOOP IN and
LOOP OUT) or to replay or restart your loop (RELOOP).
TRACK…………………………………Used to skip from track to track, for folder navigation and as an "enter" button.
TAP……………….…………………….Pressing this button in time with the beat will help the built-in BPM counter detect the
proper tempo. Holding the button for 2 seconds will cause the BPM counter to
reset and recalculate.
SCRATCH………………………………Turns scratch mode on or off.
SEARCH……………………………......When engaged, search mode will allow you to use the center of the jog wheel to
quickly scan through the current track.
REVERSE…………………..…….…....Press this button to reverse playback of the track (the button will be lit). Press it again to
return to Normal playback.
BRAKE……………………….....…......Press this button to activate braking (the button will be lit).
SOURCE……………………….............Press the SOURCE button to choose which audio source you want to play
(CD, USB A, USB B, or USB MIDI controller).
EJECT……………….………………….Press this button to eject the CD.
SERVICE MANUAL
MODEL:MIXDECK EXPRESS BLACK

MIXER FUNCTION
1.INPUT………………………………RCA (LINE/PHONO Unbalance) x 1 pair
1/4” TRS JACK (MIC) x 1 pair
2.OUTPUT……………………………RCA (MASTER1/MASTER2) x 2 pair
1/4” TRS JACK (MASTER Balance) x 1 pair
1/4” TRS JACK (PHONE) x 1 pair
1/8” JACK (PHONE) x 1 pair
3.Replaceable Xfader
4.7 segment meter LED’s for each channel and separate 2x7 segment for master
AUDIO OUTPUT STANDARD
OUTPUT LEVEL..............................7 ± 0.5Vrms (1KHz 0dB)
S/N RATIO…………………………MORE THAN 80dB
FREQUENCY RESPONSE……......20Hz~20KHz ± 2 dB
CHANNEL SEPARATION…………MORE THAN 60dB
CHANNEL BALACE……………… ± 1dB
HARMONIC DISTORTION………..LESS THAN 0.09%

DISASSEMBLY PROCEDURES

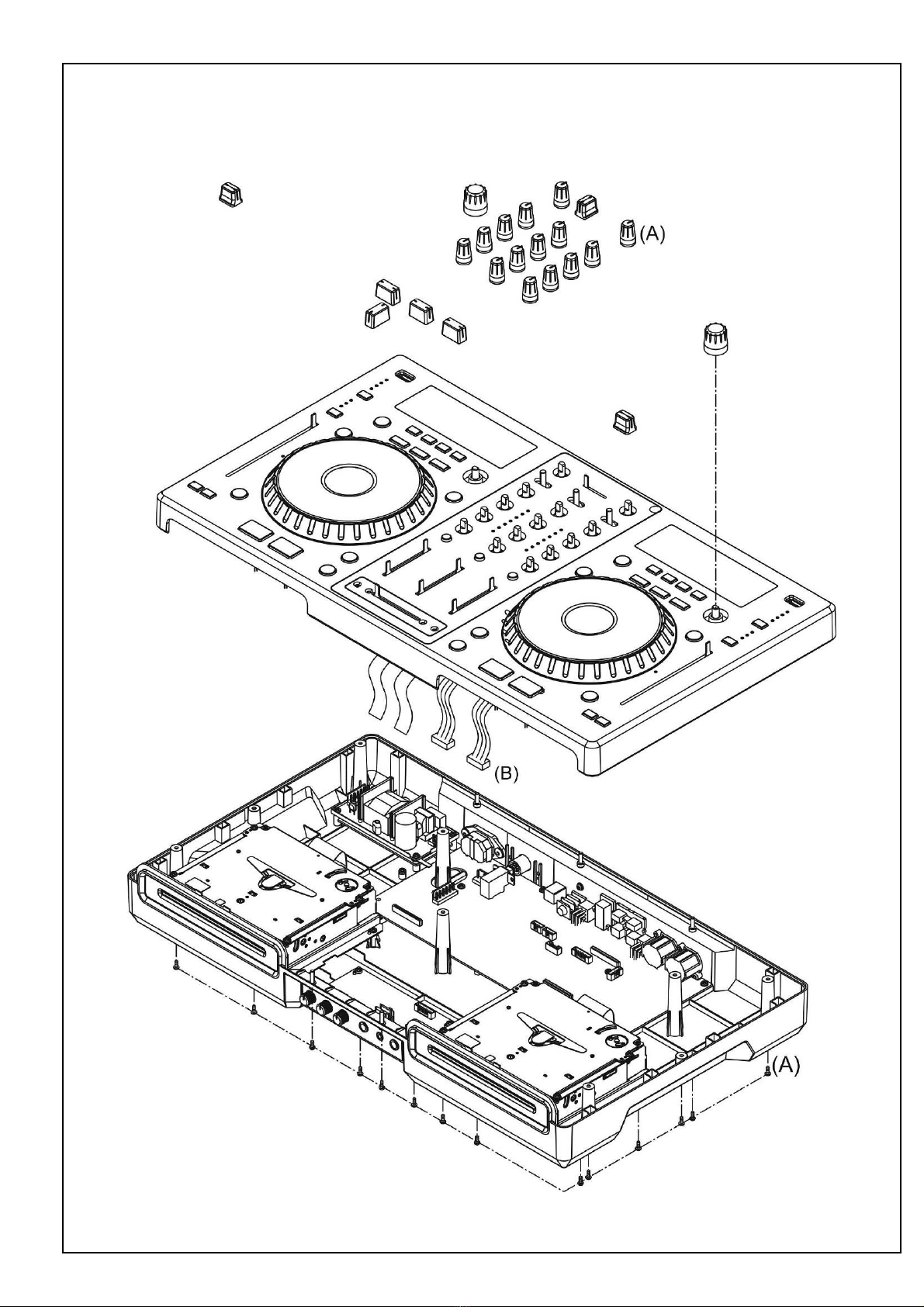

1. REMOVAL OF CABINET AND BOTTOM CHASSIS. (Fig1)
(A) REMOVE THE 16 PCS KNOB AND 7 PCS VR CAP AND 14 PCS SCREWS.
(B) REMOVE THE 4 PCS CONNECTORS BEFORE REMOVAL OF CABINET.
Fig.1

2.REMOVAL OF FRONT PCB AND SLOT-IN LOADER ASSEMBLY. (Fig.2)
(A) REMOVE THE 4 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF FRONT PCB ASSEMBLY.
(B) REMOVE THE 8 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF SLOT-IN LOADER
ASSEMBLY.
(C) REMOVE THE 16 PCS SCREWS BEFORE REMOVAL OF FIXED PLATE(R/L).
Fig.2
3.REMOVAL OF SWITCHING POWER AND MAIN PCB ASSEMBLY.(Fig3)
(A) REMOVE THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF SWITCHING POWER
ASSEMBLY.
(B) REMOVE THE 14 PCS SCREWS AND 1 PC GND WIRE BEFORE REMOVAL OF S MAIN PCB ASSEMBLY.
Fig.3

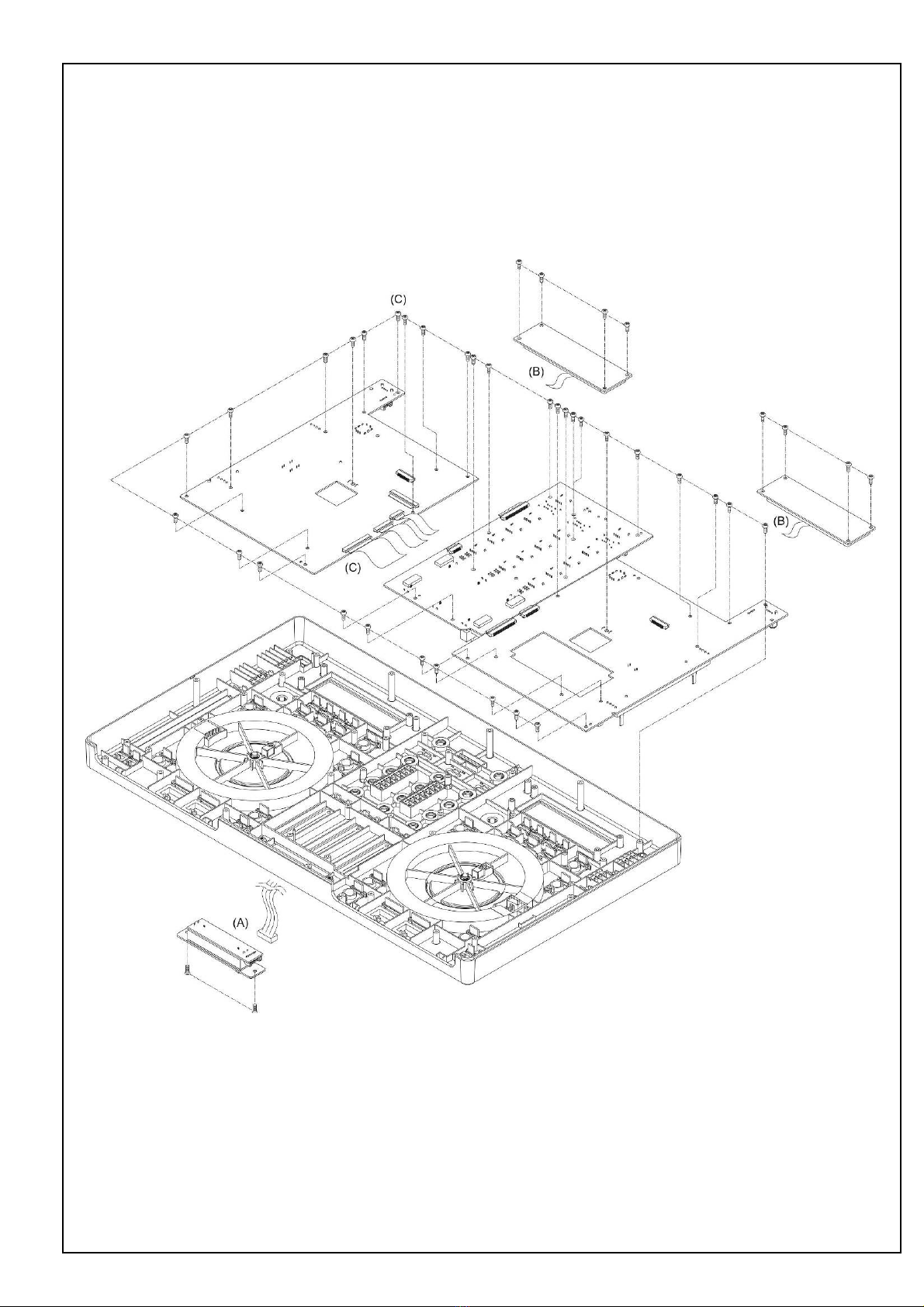

4.REMOVAL OF LCM PCB AND MI ER PCB AND RIGHT \ LEFT CTRL PCB AND CROSS FADER PCB
ASSEMBLY.(Fig4)
(A) REMOVE THE 2 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF CROSS FADER PCB
ASSEMBLY.
(B) REMOVE THE 8 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF LCM PCB ASSEMBLY.
(C) REMOVE THE 32 PCS SCREWS AND 3 PCS CONNECTORS BEFORE REMOVAL OF MIXER PCB AND RIGHT
\ LEFT CTRL PCB ASSEMBLY.
Fig.4

]

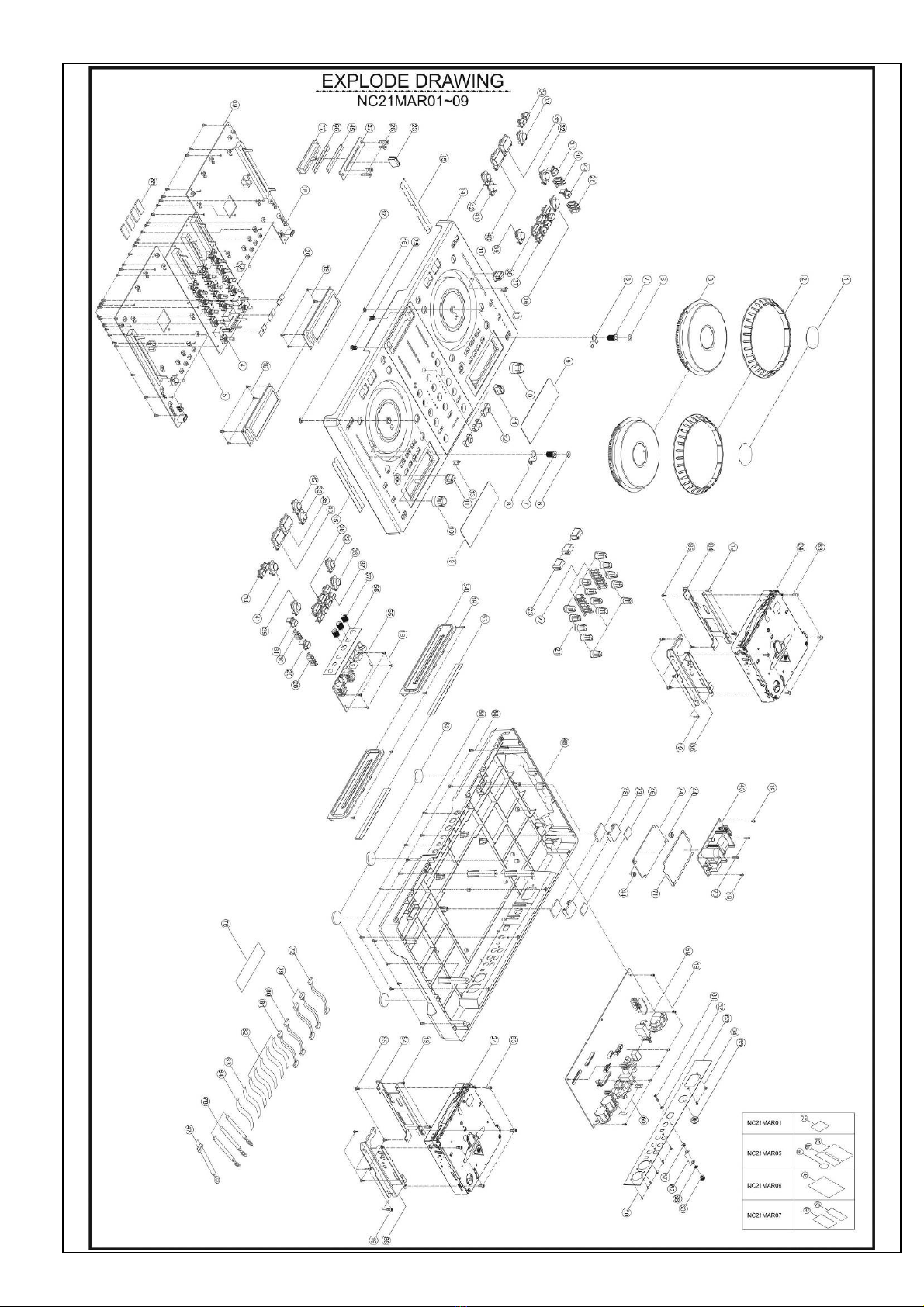

LEVEL
P/N DESCRIPTION QTY REF
0.1 BAGL-55A CABLE CLIP 55L 3 78
0.1 BART-K00701 Rotate Knob 3 57
0.1 CA040218002 Usb Cable 1.8M A/B Black 1
0.1 CN0100000506 Flat Cable GND Wire Black φ3. 1 47
0.1 CN0100001013 Flat Cable GND Wire Black φ3. 2
0.1 CN0639602001 Flat Cable 6Pin Pitch 3.96mm S 1 80
0.1 DWR201003 Dual Isolation Cable 2Pin Pitc 1 81
0.1 ERE75 E Ring 5mm 2 16
0.1 EVA1104431 EVA 4
0.1 FFC1010000501 FFC 10Pin Pitch
： 1.0mm Length 1
0.1 FFC1610001501 FFC 16Pin Pitch:1.0mm Length:1 1
0.1 FFC3010001502 FFC 30Pin Pitch:1.0mm Length:1 3
0.1 FFC3010002001 FFC 30Pin Pitch:1mm Length:200 1 82
0.1 FFC3010002502 FFC 30Pin Pitch
： 1.0mm Length 1
0.1 LAC22MAR1054 Serial Number Label 1 76
0.1 LAC32MAR252 INDICATEN LABEL(CS) (05) 1 88
0.1 LAC42MAR350 LABEL (05) 1 87
0.1 LAP62MAR342 Label (07) 1 87
0.1 LAC62MAR1055 Bar Code Label(CODE 39) (01) 1
0.1 LAC62MAR1056 Bar Code Label 2
0.1 LAC63MAR1059 TUV SUD Label (01) 1 75
0.1 LAC52MAR254 WARNING LABEL (05) 1 75
0.1 LAC67MAR303 SAFETY LABEL (06) 1 75
0.1 LAC51MAR1065 PSE Warning Label (07) 1 75
0.1 LAC67MAR681 Label(Circle Limpid) 2
0.1 LAC67YAH261 Label φ8mm Green 1
0.1 LCM0901AXEWN-00 Liquid Crystal Display Module 2
0.1 MT0504435 Fixed Plate(R) 2
0.1 MT0504436 Fixed Plate(L) 2
0.1 MT0701836 EARTHED METAL 2 8
0.1 MT0703213 HEAT SINK 2 73
0.1 MT0705517 Copper 2 25
0.1 MT1105551 Copper 2 7
0.1 MT1105555 Copper 2 44
0.1 MT113006508 Plate-Printing(painting) 1 27
..2 MT1130065 FRONT PANEL (CROSS FADER) 1
0.1 NM0604402 Velvet Carpet 2 53
0.1 NM0704404 Velvet Carpet 2 60
0.1 NM1104406 VELVET CARPET 1 45
0.1 NM1104415 VELVET CARPET 3 20
0.1 NM1104417 Velvet Carpet 2 15
0.1 NP211MAR156 Front Plate 1 56
0.1 NP211MAR157 behind Plate 1 63
0.1 NP211MAR158 Display Plate 2 9
0.1 NP211MAR177 Isolate Plate 1 71
0.1 NP211MAR251 Wheel Plate 2 1
0.1 NUT01030IID Nut 1 67
0.1 NUT05030ICU Nut 1 69

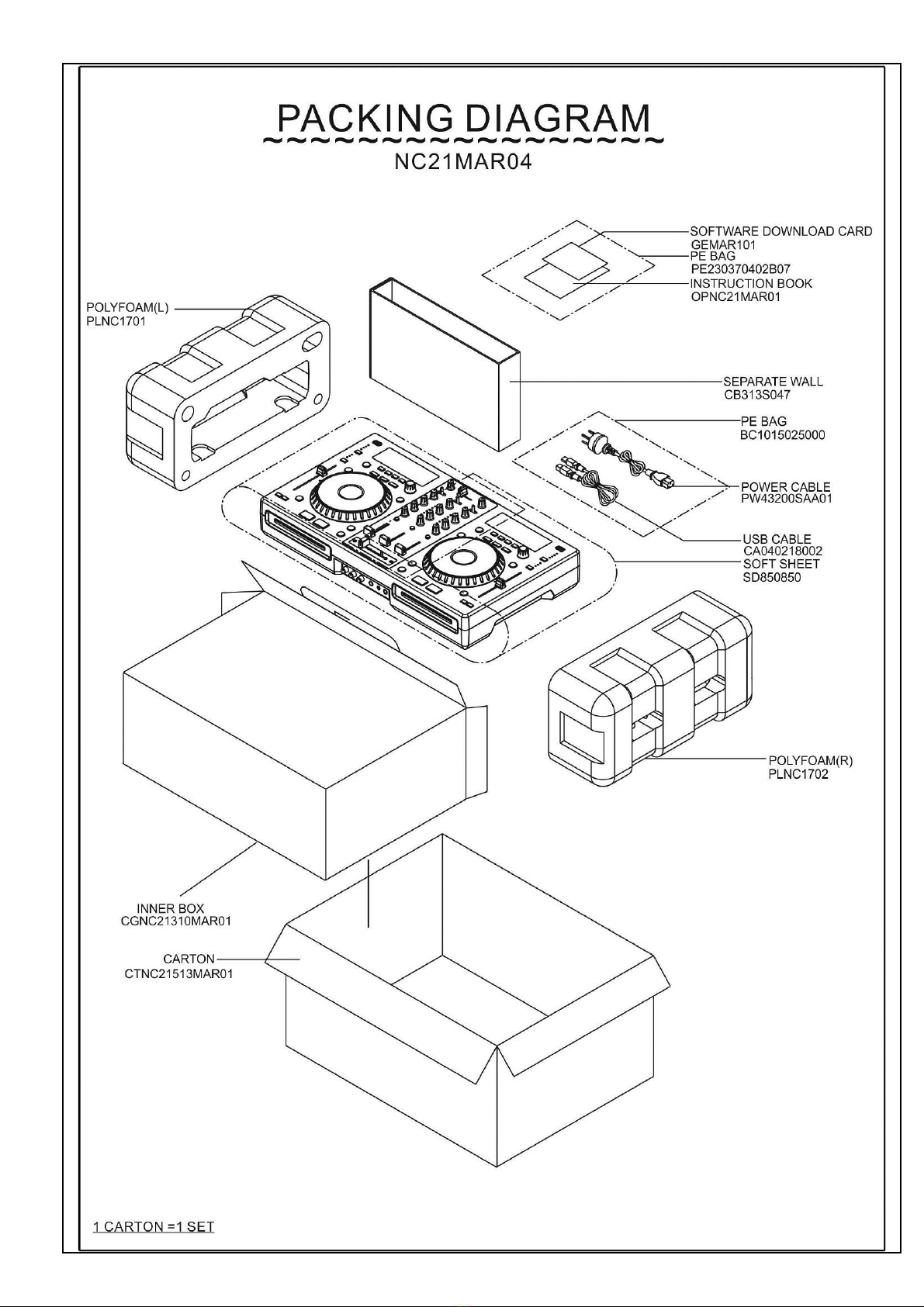

0.1 PNC21MAR01 Pack Assembly (01) 1
PNC21MAR02 Pack Assembly (02) 1
PNC21MAR03 Pack Assembly (03) 1
PNC21MAR04 Pack Assembly (04) 1
PNC21MAR05 Pack Assembly (05) 1
PNC21MAR06 Pack Assembly (06) 1
PNC21MAR07 Pack Assembly (07) 1
PNC21MAR08 Pack Assembly (08) 1
PNC21MAR09 Pack Assembly (09) 1
..2 BC1015025000 Bubble Pad 1
..2 CB313S047 Separate Wall 1
..2 CGNC21310MAR02 Inner Box 1
..2 CTNC21513MAR01 Carton 1
NC21MAR01~09 BOM

..2 GEMAR59 CARD (05) 1
..2 GEMAR90 Ouarantee Card (09) 1
..2 GEMAR91 Ouarantee Card (09) 1
..2 GEMAR101 Card 1
..2 OPNC21MAR01 Instruction Book 1
..2 OPNK14MAR07
Operation Manual(V17.9) (01)(02)(03)(05)(06)(07)(08)
1
OPNK14MAR08 Operation Manual (09) 1
..2 PE230370402B07 Poly Bag 230*370mm 1
..2 PLNC1701 Polyfoam(Left) 1
..2 PLNC1702 Polyfoam(Right) 1
..2 SD850850 Soft Sheet 1
0.1 PT061072102 Knob (Power) 1 65
..2 PT0610721 Knob(Power) 1
0.1 PT0710624615 Button Printing 2 38
..2 PT07106246 Button 2
0.1 PT0710624701 Button(SCRATCH) 2 33
..2 PT07106247 Button 2
0.1 PT0710624703 Button(SEARCH) 2 41
..2 PT07106247 Button 2
0.1 PT0710624709 Button (BRAKE) Printing 2 39
..2 PT07106247 Button 2
0.1 PT0710624710 Button(REVERSE)Printing 2 32
..2 PT07106247 Button 2
0.1 PT0710625211 Button Printing 2 29
..2 PT07106252 Button 2
0.1 PT0710625212 Button Printing 2 31
..2 PT07106252 Button 2
0.1 PT0710625304 Button Printing 2 42
..2 PT07106253 Button 2
0.1 PT0710625305 Button Printing 2 36
..2 PT07106253 Button 2
0.1 PT110291401 DECK FRONT PANEL PAINTING 2 54
..2 PT1102914 DECK FRONT PANEL 2
0.1 PT1104423601 Wheel Frame(Painting) 2 2
..2 PT11044236 Wheel Frame 2
0.1 PT1110611303 VR Cap(Printing) 3 11
..2 PT11106113 KNOB 3
0.1 PT1110621602 Button Printing 2 34
..2 PT11106216 Button 2
0.1 PT1110624901 VR Cap(Printing) 4 23
..2 PT11106249 VR KNOB 4
0.1 PT1110630302 Button(PROG)Printing 2 37
..2 PT11106303 Button 2
0.1 PT1110631101 Button (CUE) Printing 3 12
..2 PT11106311 Button (CUE) 3
0.1 PT11106312 Lamp 2 22
0.1 PT11106315 Knob 2 10
0.1 PT1110636210 Button Printing 2 35
..2 PT11106362 Button 2
0.1 PT1110636212 Button Printing 2 40
..2 PT11106362 Button 2
0.1 PT11106579 Lid(LED) 2 13
0.1 PT11106580 Lid 2 28
0.1 PT11106581 Lid 2 30
0.1 PT1110738 Wheel 2 3
..2 MT1105534 Jog Axis 2
0.1 PT113028801 Cabinet(Painting Printing) 1 14
..2 LAC67MAR789 Label 2
..2 PT1130288 Cabinet 1
0.1 PT113039203 Buttom Plate(Painting & Printi 1 49
..2 PT1130392 Buttom Plate 1
0.1 PW63200UC01 Ac Power Supply Cord Long 2.0m UL+CSA (01) 1
UP301-104 AC Power Supply Cord Long 1.83m EU (02)
PW53200UK03 AC Power Supply Cord Long 2.0m UK (03)

PW43200SAA01 AC Power Supply Cord Long 2.0m SAA (04)
PW43200AR01 AC Power Supply Cord Long 2.0m AR (05)
PW33200KS01 AC Power Supply Cord Long 2.0m KS (06)
PW22200JIS02 AC Power Supply Cord Long 2.0m JIS (07)
PW43200SAA01 AC Power Supply Cord Long 2.0m SAA(08)
0.1 RU0704441 Heat Conductive Rubber 2 48
0.1 RU0730605 RUBBER FOOT 4 52
0.1 RU1104413 RUBBER 2 46
0.1 SC0305FIBI Screw φ3X5MM 4 26
0.1 SC0306RINI SCREW M3X6 PPN 8
0.1 SC0308BIBI Screw ST BID30*08STL BZN 2 64
0.1 SC0308PBBI Screw M3X8 PBB Tapping 6 50
0.1 SC0308PBNI Screw 66 19
0.1 SC0310RBBI Screw M3X10 PPB Tapping 9 58
0.1 SC0314PBNI Screw M3X14 PPN Tapping 2 70
0.1 SC0314PMJI Screw M3X14 PPN 1 61
0.1 SC0316PBBI SCREW M3X16 PPB TAPPING 5 51
0.1 SC2606RINI SCREW M2.6X6 PPN 8
0.1 SPSSNPY041 SWITCHING POWER(INTERNAL) 5V/3 1 43
0.1 TWPT11106441 Knob Assembly 14 21
..2 PT11106441 Knob 14
..2 PT11106449 Decorative 14
0.1 WR0920002001 Isolation Cable 9 pin Single R 1 72
0.1 WRUSB05200030W1 Isolation Cable USB 2.0 5Pin S 2
0.1 WS073307IC Washer Flat 3 62
0.1 WS1306505 Washer FLAT 13*6.5*0.5MM 2 6
0.1 WS663309IC Spring Washer 3# 1 68
0.1 TWBACDM-M105C03 Slot-in Loader Assembly(RoHM) 2 24
..2 BACDM-M105C Slot-in Loader CDM-M105C-200 2
..2 LA67YH47 WARNING LABEL 2
..2 SC0204BIPI Screw M2X4 PBN 8
..2 WS663309IC Spring Washer 3# 8
..2 TWPC15C00801 SERVO PCB Assembly 1
...3 CS102K5003X7R CCAP SMD 1nF/50V 10% 0603 X7R 3 C106,CC1,4
...3 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X7R 3 C110,CC5,8
...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 24 C102,104,107,113~115,117,121,123,125,127,
129,130,132,134~136,140~142,144~147
...3 CS182K5003X7R CCAP SMD 1.8nF/50V 10% 0603 X7R 1 C105
...3 CS300J5003NPO CCAP SMD 30pF/50V 5% 0603 NPO 2 C118,119
...3 CS471J5003NPO CCAP SMD 470pF/50V 5% 0603 NPO 1 C137
...3 CS681J5003NPO CCAP SMD 680pF/50V 5% 0603 NPO 1 C126
...3 DIPHIR928-6C-F Infrared radiate diode 2 LED100,101
...3 ECS10616B Capacitor Electrolytic 10uF/16V 1 C122
...3 ECS10716D Capacitor Electrolytic 100uF/16V 10 C101,103,108,109,116,120,128,131,133,143
...3 ECS22450B ECAP 0.22uF/50V 4*5.4mm SMD 1 C112
...3 ECS33550B Capacitor Electrolytic SMD 3.3uF/50V 1 C111
...3 FCN1T1003001 FCN Down Touch ZIF SMD Pitch=1.0mm 1 FCN102
...3 FCN2T1001701 FCN Dual Touch SMD Pitch=1.0mm 1 FCN101
...3 ICBA033FP IC BA033FP 1 IC103
...3 ICBA5968FP IC BA5968FP 1 IC102
...3 ICBU9543KV IC BU9543KV 1 IC101
...3 PC15C008 ROHM Servo PCB 1 -
...3 RS000010J03 RESISTOR 0Ω5% SMD 0603 2 R121,131
...3 RS001410F03 RESISTOR 14Ω1% SMD 0603 1 R154
...3 RS001K10F03 RESISTOR 1K 1% SMD 0603 2 R107,115
...3 RS001M10F03 RESISTOR 1M 1% SMD 0603 1 R119
...3 RS002010F03 RESISTOR 20Ω1% SMD 0603 2 R132,155
...3 RS002210F03 RESISTOR 22Ω1% SMD 0603 1 R120
...3 RS010010F03 RESISTOR 100Ω1% SMD 0603 6 R112~114,116~118
...3 RS010K10F03 RESISTOR 10K 1% SMD 0603 6 R122,127,129,142,143,150
...3 RS012K10F03 RESISTOR 12K 1% SMD 0603 1 R130
...3 RS015K10F03 RESISTOR 15K 1% SMD 0603 2 R105,106

...3 RS018K10F03 RESISTOR 18K 1% SMD 0603 4 R101~104
...3 RS020K10F03 RESISTOR 20K 1% SMD 0603 2 R148,149
...3 RS022K10F03 RESISTOR 22K 1% SMD 0603 4 R138,139,146,147
...3 RS02K710F03 RESISTOR 2.7K 1% SMD 0603 1 R123
...3 RS033010F03 RESISTOR 330Ω1% SMD 0603 4 R140,141,144,145
...3 RS03K310F03 RESISTOR 3.3K 1% SMD 0603 1 R151
...3 RS043K10F03 RESISTOR 43K 1% SMD 0603 1 R128
...3 RS047010F03 RESISTOR 470Ω1% SMD 0603 2 R111,156
...3 RS04R710F03 RESISTOR 4.7Ω1% SMD 0603 2 R109,110
...3 RS068K10F03 RESISTOR 68K 1% SMD 0603 1 R137
...3 RS06K810F03 RESISTOR 6.8K 1% SMD 0603 1 R124
...3 RS07K510F03 RESISTOR 7.5K 1% SMD 0603 1 R125
...3 RS08K210F03 RESISTOR 8.2K 1% SMD0603 1 R126
...3 RS100K10F03 RESISTOR 100K 1% SMD 0603 1 R108
...3 SW1AB491-310T40 Switch push Single Row SMD 1 SW100
...3 TR2SA1037ASM TRANSISTOR 2SA1037AKR PNP 1 Q101
...3 TR2SC2412KSM TRANSISTOR 2SC2412K NPN 2 Q102,103
...3 XTM16934X6 Crystal 16.9344MHz 49US SMD 1 X101
0.1 TWPC14C02302 Main PCB Assembly 1 59
..2 AL2-71-0074 IC TL074 QUAD OPAMP 2 IC1,2
..2 AL4-08-0402 Con USB 4-Pin Female PC-MNT Ho 1 J1
..2 CN0100000601 Flat Cable GND Wire Y/G Lengt 1 CN1
..2 CS100J5003NPO CCAP SMD 10pF/50V 5% 0603 NPO 4 C506,514,554,563
..2 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 14 C10A,10B,11A,11B,12A,12B,13A,13B,526,53
0,541,550~552
..2 CS102K5003X7R CCAP SMD 1nF/50V 10% 0603 X7R 16 C8A,8B,9A,9B,414A,414B,415A,415B,505,51
0,519,524,536,543,555,561
..2 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X7R 15 C226,228,237~242,244,306~311
..2 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 102
C1,3,5,14A,14B,16,18,30~32,101,103~111,11
3~129,200~214,217~225,227,229~236,243,24
5,303~305,401A,401B,402A,402B,420,429,43
0,432,433,501,509,515,521,529,531,532,537,
545,547,553,557,CC102~107
..2 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 10 C403A,403B,407A,407B,408A,408B,409A,409
B,413A,413B
..2 CS106K1606X7R CCAP SMD 10uF/16V 10% 1206 X7R 2 C17,21
..2 CS150J5003NPO CCAP SMD 15pF/50V 5% 0603 NPO 8 C405A,405B,406A,406B,410A,410B,411A,411
B
..2 CS180J5003NPO CCAP SMD 18pF/50V 5% 0603 NPO 2 C19,20
..2 CS220J5003NPO CCAP SMD 22pF/50V 5% 0603 NPO 2 C215,216
..2 CS221J5003NPO CCAP SMD 220pF/50V 5% 0603 NPO 1 C112
..2 CS273K5003X7R CCAP SMD 0.027uf/50V 10% 0603 X7R 2 C528,539
..2 CS300J5003NPO CCAP SMD 30pF/50V 5% 0603 NPO 12 C100,102,301,302,421~428
..2 CS330J5003NPO CCAP SMD 33pF/50V 5% 0603 NPO 2 C22,23
..2 CS471J5003NPO CCAP SMD 470pF/50V 5% 0603 NPO 4 C404A,404B,412A,412B
..2 CS475K1605X5R CCAP SMD 4.7uF/16V 10% 0805 X5R 3 C2,4,15
..2 CS822K5003X7R CCAP SMD 8.2nF/50V 10% 0603 X7R 2 C527,538
..2 DIEN1N4148WSM Diode SMD 6 D404,405,501~504
..2 DISDMBRD835LT4G Diode 1 D420
..2 EC10616TS Capacitor Electrolytic 10uF/16V 14 C6A,6B,7A,7B,503,511,549,560,EC103,200,2
01,205,403A,403B
..2 EC10625TL Capacitor Electrolytic low-lea 10uF/25V 1 C568
..2 EC10625TS Capacitor Electrolytic 10uF/25V 2 C516,534
..2 EC10716T Capacitor Electrolytic 100uF/16V 7 EC30,31,202~204,420,429
..2 EC10825 Capacitor Electrolytic 1000uF/25V 3 C431,434,435
..2 EC22616T Capacitor Electrolytic 22uF/16V 4 EC401A,401B,402A,402B
..2 EC22725T Capacitor Electrolytic 220uF/25V 1 C569
..2 EC33725TLE Capacitor Electrolytic low ESR 330uF/25V 6 EC422~427
..2 EC47550TS Capacitor Electrolytic 4.7uF/50V 1 EC301
..2 EC47616T Capacitor Electrolytic 47uF/16V 20 C502,508,512,518,522,523,525,533,535,542,5
44,546,548,556,562,564,567,EC101,102,206
..2 EC47716T Capacitor Electrolytic 470uF/16V 1 EC100
..2 FCN2S1003001 FCN Dual Touch 180°Pitch=1.0mm 4 FCN301,302,TE401,501
..2 FSMSMD200 Fuse PTC MSMD200 8V/2A SMD 1 FS100

..2 ICAIC1117-18PY IC REG IC AIC1117-18PY 1 IC100
..2 ICAIC809N46PU IC AIC809N46PU 1 IC302
..2 ICAK4346 IC AK4346 24Bit 6channel DAC V 1 IC3
..2 ICAP1501K5L IC AP1501K5L 1 U420
..2 ICAP7165SPG IC AP7165-SPG-13 1 IC205
..2 ICBA033FP IC BA033FP 2 IC30,204
..2 ICBA05FP IC BA05FP 1 U421
..2 ICBA4558F IC BA4558F 6 IC501~506
..2 ICDA1191F IC DA1191F 2 IC401A,401B
..2 ICDRV602 IC DRV602 2 IC402A,402B
..2 ICDSPB56724AG IC DSPB56724AG 1 IC201
..2 ICK4S281632I IC K4S281632I 1 IC206
..2 ICSN74LV373APWR IC SN74LV373APWR 2 IC202,203
..2 ICSN74LVC3G14 IC SN74LVC3G14 5 IC5,303~306
..2 ICXCBDSP56367 IC XCBDSP56367 1 IC101
..2 ICYH2K09C01M
IC YH2K09C01M (MASK ET5126-YA+PROGRAM LQFP)
1 U100
..2 ICYH2K271 IC YH2K271 (TMP86FS49BFG+Program) 1 IC301
...3 ICMP86FS49BFG-1 IC TMP86FS49BFG Blank 1 -
..2 ICYHFRC269 IC YHFRC269 (MCF51JU32VFM QFN32+Program) 1 IC4
...3 ICMCF51JU32VFM IC MCF51JU32VFM QFN32 1 -
..2 ICYHFRC294 IC YHFRC294 (MX25L8006EM2I-12G+Program) 1 IC200
...3 ICMX25L8006EM2I IC MX25L8006EM2I-12G 1 -
..2 JK6L0670CBKA6A 6.4φPhone JACK 7PIN 90°Fem 1 MIC501
..2 JK7TU-301-AP AC JACK 3P 90°PIN 1 JK1
..2 JKLX-1601HR-3 XLR JACK 3PIN 90°MALE 2 J502,504
..2 LP1020010 PIN JACK 1 JK501
..2 PC14C023 Main PCB 1 -
..2 RJ1019-09 4PIN RCA JACK 1 J501
..2 RS000010J03 RESISTOR 0Ω5% SMD 0603 18 R34,35,134,218,219,230,249,332,502,510,515
,522,531,544,569,576,581,587
..2 RS001K10F03 RESISTOR 1K 1% SMD 0603 10 R252,501,512,519,530,543,555,564,572,584
..2 RS001M10F03 RESISTOR 1M 1% SMD 0603 5 R37,117,248,320,590
..2 RS002710F03 RESISTOR 27Ω1% SMD 0603 6 R41,42,119,120,123,124
..2 RS002K10F03 RESISTOR 2K 1% SMD 0603 1 R253
..2 RS003310F03 RESISTOR 33Ω1% SMD 0603 6 R14,15,133,200,220,225
..2 RS004710F03 RESISTOR 47Ω1% SMD 0603 3 R254,321,322
..2 RS010010F03 RESISTOR 100Ω1% SMD 0603 68
R11A,11B,12A,12B,13,25,26,28~33,36,44,125
,127,132,135~148,151~154,213,216,217,221~
223,236~238,246,402A,402B,412A,412B,413
A,413B,529,539~542,550,560,562,593,594~6
00
..2 RS010K10F03 RESISTOR 10K 1% SMD 0603 114
R7A,7B,8A,8B,16~24,27,38,39,100~115,126,1
28~131,150,155,156,201~212,224,226,233,24
3~245,247,250,301~319,323,325~331,333,33
4~343,345~347,425,508,518,526,532,535,552
,556,559,567,578,589,591
..2 RS015010F03 RESISTOR 150Ω1% SMD 0603 16 R227~229,231,239~242,401A,401B,403A,403
B,404A,404B,405A,405B
..2 RS015K10F03 RESISTOR 15K 1% SMD 0603 9 R4A,4B,6A,6B,43,116,118,121,122
..2 RS01K310F03 RESISTOR 1.3K 1% SMD 0603 1 R426
..2 RS01K510F03 RESISTOR 1.5K 1% SMD 0603 1 R40
..2 RS022010F03 RESISTOR 220Ω1% SMD 0603 8 R214,215,234,235,420~423
..2 RS027010F03 RESISTOR 270Ω1% SMD 0603 1 R324
..2 RS036K10F03 RESISTOR 36K 1% SMD 0603 4 R407A,407B,410A,410B
..2 RS047K10F03 RESISTOR 47K 1% SMD 0603 14 R504,511,517,525,534,536,545,551,561,571,5
77,580,583,588
..2 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 1 R344
..2 RS056010F03 RESISTOR 560Ω1% SMD 0603 1 R149
..2 RS05K110F03 RESISTOR 5.1K 1% SMD 0603 4 R507,521,568,579
..2 RS05K610F03 RESISTOR 5.6K 1% SMD 0603 8 R505,513,523,528,548,554,565,574
..2 RS062K10F03 RESISTOR 62K 1% SMD 0603 4 R406A,406B,411A,411B
..2 RS068K10F03 RESISTOR 68K 1% SMD 0603 4 R408A,408B,409A,409B
..2 RS08K210F03 RESISTOR 8.2K 1% SMD0603 4 R9A,9B,10A,10B
..2 RS09K110F03 RESISTOR 9.1K 1% SMD 0603 2 R557,563
..2 RS100K10F03 RESISTOR 100K 1% SMD 0603 3 R251,538,547

..2 RS4K4210F03 RESISTOR 4.42K 1% SMD 0603 4 R1A,1B,2A,2B
..2 RS560K10F03 RESISTOR 560K 1% SMD 0603 1 R585
..2 RS7K1510F03 RESISTOR 7.15K 1% SMD 0603 1 R424
..2 RS7K3210F03 RESISTOR 7K32±1% SMD 0603 4 R3A,3B,5A,5B
..2 RS8K2510F03 RESISTOR 8.25K 1% SMD 0603 2 R537,546
..2 SW8216-B2C01 Switch Power Push Single Row 1 SW1
..2 SWDS-11L-C2 Switch Slide 2P2T 2 SW501,502
..2 TE10200502 5P CONNECTOR 2 (TE100,101)
..2 TE10200601 6P CONNECTOR 2 (TE102,201)
..2 TE611500101 Connector 1 (G1)
..2 TE612000402 4P CONNECTOR 1 (TE2)
..2 TE612000901 9P CONNECTOR 1 (TE503)
..2 TE613960601 6P CONNECTOR 1 (TE402)
..2 TE617920201 Terminal(2P 3UCDJ) 1 (TE1)
..2 TR2SA1037ASM TRANSISTOR 2SA1037AKR PNP 1 Q509
..2 TR2SD2114KSM TRANSISTOR 2SD2114K NPN 10 Q501~508,510,511
..2 TRMMBT3904LT1 TRANSISTOR MMBT3904LT1 NPN 2 Q1,2
..2 UHDRRI125-101M Inductor, 100UH±20% 1.3A SMD 1 L420
..2 XTM06000X6 Crystal 6MHZ 49US SMD Fundamen 1 X100
..2 XTM08000XA1 Crystal Oscillator 8MHZ 5*3.2m 1 X2
..2 XTM11289X6 Crystal 11.2896MHz 49US SMD Fu 1 X200
..2 XTM16000X6 Crystal 16MHZ 49US SMD Fundame 1 X301
0.1 TWPC14C02401 LEFT CTRL PCB Assembly 1
..2 PC14C024 LEFT CTRL PCB 1
..2 TWPC14C024A01 LEFT CTRL PCB Assembly 1 18
...3 AL2-50-4149 Diode Single 1N4148 100V 200mA 2 D101,102
...3 AL2-51-4403 TRANSISTOR 2N4403 PNP 2 Q102,103
...3 AL2-65-0114 IC 74AHC1G14 1 IC105
...3 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 5 C101,104,108~110
...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 19 C102,103,105~107,111,112,309,CC05~07,09,
11,12,18,19,21,22,28
...3 CS180J5003NPO CCAP SMD 18pF/50V 5% 0603 NPO 1 R145
...3 DIPH574 Photo Sensor 2 SEN101,102
...3 EC10716TS Capacitor Electrolytic 100uF/16V 1 EC101
...3 FCN1T1001602 FCN Down Touch ZIF SMD Pitch=1.0mm 2 FCN104,301
...3 FCN1T1003001 FCN Down Touch ZIF SMD Pitch=1.0mm 1 FCN106
...3 IC74HC595 Integrated Circuit 3 IC101,102,104
...3 ICSN74LVC3G14 IC SN74LVC3G14 SSOP8 1 IC103
...3 JK0SCU101SFN0W A-TYPE USB WHITE(USB1.1) 1 USB101
...3 JW5206T Jumping Wire 110 J1~7,9~82,84~103,105~113
...3 LD-005K6CS LED Blue 1 LED114
...3 LD-005YLN15S LIQUID-EMITTING DIODE AMBER AS 16 LED101~113,115~117
...3 MT0701840 EARTHER METAL 1 (MT1)
...3 RS000004J06 RESISTOR 0Ω5% SMD 1206 7 RS1,3,10,11,15~17
...3 RS000008J05 RESISTOR 0Ω5% SMD 0805 9 RS2,4~9,12,13
...3 RS010010F03 RESISTOR 100Ω1% SMD 0603 2 R149,150
...3 RS010K10F03 RESISTOR 10K 1% SMD 0603 1 R147
...3 RS012K10F03 RESISTOR 12K 1% SMD 0603 2 R140,142
...3 RS015K10F03 RESISTOR 15K 1% SMD 0603 1 R137
...3 RS018010F03 RESISTOR 180Ω1% SMD 0603 9 R101,102,108~111,114~116
...3 RS01K510F03 RESISTOR 1.5K 1% SMD 0603 2 R123,124
...3 RS020K10F03 RESISTOR 20K 1% SMD 0603 1 R134
...3 RS022K10F03 RESISTOR 22K 1% SMD 0603 2 R117,118
...3 RS033010F03 RESISTOR 330Ω1% SMD 0603 2 R119,120
...3 RS036010F03 RESISTOR 360Ω1% SMD 0603 8 R103~107,112,113,143
...3 RS03K310F03 RESISTOR 3.3K 1% SMD 0603 2 R125,126
...3 RS03K910F03 RESISTOR 3.9K 1% SMD 0603 4 R127~130
...3 RS047K10F03 RESISTOR 47K 1% SMD 0603 2 R121,122
...3 RS05K610F03 RESISTOR 5.6K 1% SMD 0603 2 R131,132
...3 RS068K10F03 RESISTOR 68K 1% SMD 0603 1 R146
...3 RS06K810F03 RESISTOR 6.8K 1% SMD 0603 2 R133,135
...3 RS07K510F03 RESISTOR 7.5K 1% SMD 0603 2 R136,138
...3 RS08K210F03 RESISTOR 8.2K 1% SMD0603 2 R139,141

...3 RS100K10F03 RESISTOR 100K 1% SMD 0603 1 R148
...3 SWDC11B2021431 Switch Rotational Encode 20Pul 1 ENC101
...3 SWEVQ11L05R Switch Tact 5mm 160g Horizonta 19 SW101~119
...3 TE622000501 5P CONNECTOR 1 (TE101)
...3 TR2SK1828 Mosfet N-CH 20V MAIN 2-Pin 2 Q101,104
...3 VRS10310016 Potentiometer Slide 10K 2BM 10 1 VR101
..2 TWPC14C024B01 FRONT PCB Assembly 1 55
...3 AL2-71-0074 IC TL074 QUAD OPAMP 1 IC710
...3 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 6 C714,715,719~722
...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 8 C718,723~727,732,733
...3 CS272K5003X7R CCAP SMD 2.7nF/50V 10% 0603 X7R 1 C717
...3 CS331J5003NPO CCAP SMD 330pF/50V 5% 0603 NPO 2 C710,711
...3 DIEN1N4148WSM Diode SMD 4 D710~713
...3 EC10625TL Capacitor Electrolytic low-lea 10uF/25V 1 C740
...3 EC10716T Capacitor Electrolytic 100uF/16V 4 C728~731
...3 EC22616T Capacitor Electrolytic 22uF/16V 2 C734,737
...3 EC22725T Capacitor Electrolytic 220uF/25V 1 C741
...3 EC47616T Capacitor Electrolytic 47uF/16V 3 C712,713,716
...3 ICNJM4556AM IC NJM4556AM 2 IC711,712
...3 JK-3537 3.5mm Phone Jack 9P 90°DIP F 1 JK710
...3 JK6L0670CBKA6A 6.4φPhone JACK 7PIN 90°Fem 2 JK711,MIC710
...3 JW5206T Jumping Wire 8 J8,25,83,104,114~117
...3 RS000004J06 RESISTOR 0Ω5% SMD 1206 1 RS19
...3 RS000008J05 RESISTOR 0Ω5% SMD 0805 5 RS14,18,20,21,23
...3 RS001K10F03 RESISTOR 1K 1% SMD 0603 1 R740
...3 RS006810F03 RESISTOR 68Ω1% SMD 0603 8 R727~734
...3 RS010010F03 RESISTOR 100Ω1% SMD 0603 4 R710,711,742,743
...3 RS010K10F03 RESISTOR 10K 1% SMD 0603 2 R712,713
...3 RS015K10F03 RESISTOR 15K 1% SMD 0603 1 R725
...3 RS01K310F03 RESISTOR 1.3K 1% SMD 0603 4 R716~719
...3 RS02K710F03 RESISTOR 2.7K 1% SMD 0603 2 R715,726
...3 RS03K310F03 RESISTOR 3.3K 1% SMD 0603 1 R724
...3 RS047K10F03 RESISTOR 47K 1% SMD 0603 1 R739
...3 RS05K110F03 RESISTOR 5.1K 1% SMD 0603 4 R720~723
...3 RS05K610F03 RESISTOR 5.6K 1% SMD 0603 4 R735~738
...3 RS100K10F03 RESISTOR 100K 1% SMD 0603 1 R714
...3 RS560K10F03 RESISTOR 560K 1% SMD 0603 1 R741
...3 TE612000901 9P CONNECTOR 1 (TE710)
...3 TR2SA1037ASM TRANSISTOR 2SA1037AKR PNP 1 Q714
...3 TR2SD2114KSM TRANSISTOR 2SD2114K NPN 4 Q710~713
...3 VRR10403003 VR 100KB (CLICK) 2 VR710,711
...3 VRR50303007 VR 50KA 1 VR712
..2 TWPC14C024C01 Shielding PCB Assembly 1 74
0.1 TWPC14C02501 RIGHT CTRL PCB Assembly 1
..2 PC14C025 RIGHT CTRL PCB 1
..2 TWPC14C025A01 RIGHT CTRL PCB Assembly 1 5
...3 AL2-50-4149 Diode Single 1N4148 100V 200mA 2 D201,202
...3 AL2-51-4403 Transistor 2N4403 PNP SOT-23 2 Q201,203
...3 AL2-65-0114 IC 74AHC1G14 SOP-5 1 IC205
...3 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 4 C201,204,208,209
...3 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X 2 C306,307
...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7 25 C202,203,205~207,210,212,301,302,305,310,
311,CC01,02,08,10,13~16,20,23,27,29,30
...3 CS180J5003NPO CCAP SMD 18pF/50V 5% 0603 NPO 1 R245
...3 CS220J5003NPO CCAP SMD 22pF/50V 5% 0603 NPO 1 C308
...3 CS300J5003NPO CCAP SMD 30pF/50V 5% 0603 NPO 2 C303,304
...3 DIPH574 Photo Sensor 2 SEN201,202
...3 EC10716TS Capacitor Electrolytic 100uF/16V 2 EC201,302
...3 EC47550TS Capacitor Electrolytic 4.7uF/50V 1 EC301
...3 FCN1T1001001 FCN Down Touch Pitch 1.0mm 90 1 FCN101
...3 FCN1T1001602 FCN Down Touch ZIF SMD Pitch=1.0mm 2 FCN103,302

...3 FCN1T1003001 FCN Down Touch ZIF SMD Pitch=1.0mm 2 FCN105,303
...3 IC2-77-0103 Touch IC (2-77-0103) 1 IC204
...3 IC74HC595 IC 74HC595 2 IC201,202
...3 ICAIC809N46PU IC AIC809N46PU 1 IC301
...3 ICSN74LVC3G14 IC SN74LVC3G14 1 IC203
...3 ICYH2K261 IC YH2K261 (TMP86FS49BFG+PROGRAM) 1 IC302
....4 ICTMP86FS49BFG IC TMP86FS49BFG Blank 1 -
...3 JK0SCU101SFN0W A-TYPE USB WHITE(USB1.1) 1 USB201
...3 JW5206T Jumping Wire 127 J1~55,57~126,128,129
...3 LD-005K6CS LED Blue 1 LED214
...3 LD-005YLN15S LIQUID-EMITTING DIODE AMBER AS 16 LED118,201~213,215,216
...3 MT0701840 EARTHER METAL 1 (MT1)
...3 RS000004J06 RESISTOR 0Ω5% SMD 1206 2 RS2,3
...3 RS000008J05 RESISTOR 0Ω5% SMD 0805 10 RS1,4~9,11~13
...3 RS001M10F03 RESISTOR 1M 1% SMD 0603 1 R305
...3 RS002210F03 RESISTOR 22Ω1% SMD 0603 30 R322,326~335,339~357
...3 RS010010F03 RESISTOR 100Ω1% SMD 0603 3 R249,250,310
...3 RS010K08F05 RESISTOR 10K 1% SMD 0805 4 R302,307,309,337
...3 RS010K10F03 RESISTOR 10K 1% SMD 0603 21 R243,244,247,303,304,308,311~321,323,324,
325,338
...3 RS012K10F03 RESISTOR 12K 1% SMD 0603 2 R240,242
...3 RS015K10F03 RESISTOR 15K 1% SMD 0603 1 R237
...3 RS018010F03 RESISTOR 180Ω1% SMD 0603 9 R201,202,208~211,214~216
...3 RS01K510F03 RESISTOR 1.5K 1% SMD 0603 2 R223,224
...3 RS020K10F03 RESISTOR 20K 1% SMD 0603 1 R234
...3 RS022K10F03 RESISTOR 22K 1% SMD 0603 2 R217,218
...3 RS027010F03 RESISTOR 270Ω1% SMD 0603 2 R301,306
...3 RS033010F03 RESISTOR 330Ω1% SMD 0603 2 R219,220
...3 RS036010F03 RESISTOR 360Ω1% SMD 0603 8 R203~207,212,213,251
...3 RS03K310F03 RESISTOR 3.3K 1% SMD 0603 2 R225,226
...3 RS03K910F03 RESISTOR 3.9K 1% SMD 0603 4 R227~230
...3 RS047K10F03 RESISTOR 47K 1% SMD 0603 2 R221,222
...3 RS05K610F03 RESISTOR 5.6K 1% SMD 0603 2 R231,232
...3 RS068K10F03 RESISTOR 68K 1% SMD 0603 1 R246
...3 RS06K810F03 RESISTOR 6.8K 1% SMD 0603 2 R233,235
...3 RS07K510F03 RESISTOR 7.5K 1% SMD 0603 2 R236,238
...3 RS08K210F03 RESISTOR 8.2K 1% SMD0603 2 R239,241
...3 RS100K10F03 RESISTOR 100K 1% SMD 0603 1 R248
...3 SWDC11B2021431 Switch Rotational Encode 20Pul 1 ENC201
...3 SWEVQ11L05R Switch Tact 5mm 160g Horizonta 19 SW201~219
...3 TE622000501 5P CONNECTOR 1 (TE201)
...3 TR2SK1828 Mosfet N-CH 20V MAIN 2-Pin 2 Q202,204
...3 VRS10310016 Potentiometer Slide 10K 2BM 10 1 VR201
...3 XTM16000X6 Crystal 16MHZ 49US SMD Fundame 1 X301
..2 TWPC14C025B01 CROSS FADER PCB Assembly 1 77
...3 JW5206T Jumping Wire 1 J127
...3 TE622000701 7P CONNECTOR 1 (TE502)
...3 VRS50304528 Potentiomeper Slide 50K3BX4 45 1 VR506
..2 TWPC14C025C01 Spare PCB Assembly 1 66
0.1 TWPC14C02601 Mixer PCB Assembly 1 4
..2 AL2-71-0074 IC TL074 QUAD OPAMP 6 IC402,403,502,503,602,603
..2 AL2-72-0339 IC LM339 ANALOG COMP 4 IC802,803,805,806
..2 CN0720001004 Flat Cable 12Pin Pitch 2.0mm S 1 TE501
..2 CS100J5003NPO CCAP SMD 10pF/50V 5% 0603 NPO 8 C401,402,501,502,601,602,701,702
..2 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 10 C419,420,519,520,619,620,901,902,907,908
..2 CS102K5003X7R CCAP SMD 1nF/50V 10% 0603 X7R 6 C414,416,514,516,614,616
..2 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 41
C403,404,413,415,421~424,503,504,513,515,
521~524,603,604,613,615,621~624,703,704,8
01,802,805~810,903,904,909,910,CC24~26
..2 CS123K5003X7R CCAP SMD 0.012UF/50V 10% 0603 X7R 6 C417,418,517,518,617,618
..2 CS183K5003X7R CCAP SMD 0.018UF/50V 10% 0603 X7R 6 C408,410,508,510,608,610

..2 CS184K1603X7R CCAP SMD 0.18UF/16V 10% 0603 X7R 6 C407,409,507,509,607,609
..2 DIEN1N4148WSM Diode SMD 4 D801~804
..2 EC10550TS Capacitor Electrolytic 1uF/50V 4 C803,804,811,812
..2 EC10616TS Capacitor Electrolytic 10uF/16V 8 C405,406,505,506,605,606,705,706
..2 EC22616TS Capacitor Electrolytic 22uF/16V 12 C425,426,525,526,625,626,905,906,911~914
..2 EC33550TS Capacitor Electrolytic 3.3uF/50V 6 C411,412,511,512,611,612
..2 FCN1T1001001 FCN Down Touch Pitch 1.0mm 90 1 FCN102
..2 FCN1T1003001 FCN Down Touch ZIF SMD Pitch=1.0mm 1 FCN401
..2 ICBA4558F IC BA4558F 7 IC401,501,601,701,801,901,902
..2 LD-005YLN15S LIQUID-EMITTING DIODE AMBER AS 6 LED901~906
..2 LDKPT-1608SECK Liquid-emitting Diode amber SMD 4 LD803,810,LED802,809
..2 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 2 LED801,808
..2 LDLTST-C190KSKT Liquid-emitting Diode Amber SMD 8 LD804~807,811~814
..2 NM1106125 Velvet Carpet 3 (VR405,505,605)
..2 NM1106129 Velvet Carpet 1 (VR901)
..2 PC14C026 Main PCB 1 -
..2 PT111048005 Fixed Base,LED 6 (LED901~906)
..2 RS001K10F03 RESISTOR 1K 1% SMD 0603 10 R805,806,813,821,901~903,924~926
..2 RS001M10F03 RESISTOR 1M 1% SMD 0603 6 R403,404,503,504,603,604
..2 RS010010F03 RESISTOR 100Ω1% SMD 0603 10 R437~442,703,704,810,811
..2 RS010K10F03 RESISTOR 10K 1% SMD 0603 26 R405,406,431,432,435,436,505,506,531,532,5
35,536,605,606,631,632,635,636,910~91,916
..2 RS015K10F03 RESISTOR 15K 1% SMD 0603 6 R401,402,501,502,601,602
..2 RS016K10F03 RESISTOR 16K 1% SMD 0603 2 R537,538
..2 RS01K810F03 RESISTOR 1.8K 1% SMD 0603 2 R812,820
..2 RS020K10F03 RESISTOR 20K 1% SMD 0603 10 R701,702,904~909,920,921
..2 RS024010F03 RESISTOR 240Ω1% SMD 0603 18 R414,417,420,423,426,429,514,517,520,523,5
26,529,614,617,620,623,626,629
..2 RS024K10F03 RESISTOR 24K 1% SMD 0603 2 R801,802
..2 RS02K710F03 RESISTOR 2.7K 1% SMD 0603 18 R413,416,419,422,425,428,513,516,519,522,5
25,528,613,616,619,622,625,628
..2 RS033K10F03 RESISTOR 33K 1% SMD 0603 2 R742,743
..2 RS039010F03 RESISTOR 390Ω1% SMD 0603 2 R818,826
..2 RS047K10F03 RESISTOR 47K 1% SMD 0603 2 R922,923
..2 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 6 R433,434,533,534,633,634
..2 RS051010F03 RESISTOR 510Ω1% SMD 0603 2 R816,824
..2 RS056010F03 RESISTOR 560Ω1% SMD 0603 2 R817,825
..2 RS056K10F03 RESISTOR 56K 1% SMD 0603 12 R415,418,424,427,515,518,524,527,615,618,6
24,627
..2 RS062010F03 RESISTOR 620Ω1% SMD 0603 2 R815,823
..2 RS062K10F03 RESISTOR 62K 1% SMD 0603 6 R421,430,521,530,621,630
..2 RS068010F03 RESISTOR 680Ω1% SMD 0603 4 R807,809,819,827
..2 RS06K810F03 RESISTOR 6.8K 1% SMD 0603 2 R914,915
..2 RS082010F03 RESISTOR 820Ω1% SMD 0603 2 R814,822
..2 RS100K10F03 RESISTOR 100K 1% SMD 0603 2 R803,804
..2 RS200K10F03 RESISTOR 200K 1% SMD 0603 12 R408,409,411,412,508,509,511,512,608,609,6
11,612
..2 RS270K10F03 RESISTOR 270K 1% SMD 0603 6 R407,410,507,510,607,610
..2 RS330K10F03 RESISTOR 330K 1% SMD 0603 1 R808
..2 SWLBC22M-15K Switch Toggle Dual Row 3 SW401,501,601
..2 SWSFPC14MA01 Switch Push 2P2T Dual Row Lock 3 SW901~903
..2 TRBC857B TRANSISTOR BC857B PNP 3 Q801~803
..2 VRR50301704 Potentiometer Rotary Volume Sh 9 VR402~404,502~504,602~604
..2 VRR50301705 Potentiometer Rotary Volume Sh 2 VR701,902
..2 VRR50301706 Potentiometer Rotary Volume Sh 3 VR401,501,601
..2 VRS50302005 Potentiometer Slide 50KB Trave 1 VR901
..2 VRS50304527 Potentiometer Slide 50KA Trave 3 VR405,505,605

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
D D
C C
B B
A A
Check REV Description
Title:
Size
A3
Number Revision
Date :
File Name:
Sheet of
Design By :
DATEDesignApproval
1
1 6
SCK
1D6 108
D3 105 D2 102
A17 99 A13 93
A8 84
ACI
28
A4 78
PB7
34
SDO0/PC11
4
SDO3/SDI2/PC8
7
SDO4/SDI1/PC7
10
FSR/PC1
13 GNDA 96
HCKT/PC5
16
GNDQ
19 GNDQ 90
PB11
22 GNDA 87
VCCS
25
GNDA 81
PB10
31
GNDA 75
TMS
142
TDO
139
D23
133
D18
124
D15
121
D14
118
D11
115
D7
109
PB1 42
AA2 51
BR 63
AA1 69
A0 72
TCK
141 TDI
140
D17
123 D16
122
D19
125
D20
128
D21
131
D13
117
D10
114
D8
110
D9
113
D12
116
SS
2
D4 106 D0 100 D5 107
A16 98
D1 101
A14 94 A10 88 A12 92 A11 89
ADO
27
PB8
33
TIO0
29
PB6
35
PB9
32
A6 82 A5 79 A2 76 A7 83 A3 77
PB3 40
PB2 41
PB0 43
CAS 52
BB 64
WR 67
AA0 70
RD 68
BG 71
TA 62
D22
132
HERQ
3
GNDS
9
SD02/SDI3/PC9
6SDO1/PC10 5
SDO5/SDI0/PC6
11
VCCS
8
VCCD 103
GNDD 104
VCCQL
18
PB12
21
SCKR/PC0
15
PB15
23
SCKT/PC3
14
HCKR/PC2
17
VCCQH
20
VCCQL 91
VCCQH 95
VCCA 86
PB13
30
GNDS
26
VCCA 80 VCCA 74
PB4 37
MODB/IRQB
136
GNDD
130
GNDQ
127
GNDD
112
GNDH 39
VCCP 45
PE6/SDO5_1/SDI0_1 48
GNDQ 54
VCCC 57
PE0/SCKR_1 60
GNDC 66
MODC/IRQC
135 MODD/IRQD
134
MOSI/HAO
143
MODA/IRQA
137
PE7/SD04_1/SDI1_1
138
VCCD
129
VCCQL
126
VCCD
111
VCCD
119
A15 97
PB5
36
VCCH 38
RESET 44
PCAP 46
GNDP 47
GNDC 58
VCCQL 56
EXTAL 55
PE1/FSR_1 59
PE3/SCK_1 53
FE4/FST_1 50
VCCC 65
A9 85 A1 73
FST/PC4
12
GNDD
120
MISO/SDA
144
PB14
24
PINIT/MMI 61
VCCQH 49
IC101
ICXCBDSP56367
R134
0
SPI-CLK
R135 100
DSP-CS3
B-SERVO-SUBCLK
R115 10K
R136 100
B-SERVO-SUBDATA
DSP-PCMD1 DSP-PCMD2
GND
R137 100
A-SERVO-SUBDATA
R138 100
A-SERVO-DOUT
DSP-LRCK
R139 100
A-SERVO-LRCK
DSP-BCK
R140 100
A-SERVO-DCK
R141 100
A-SERVO-SUBCLK
R142 100
A-SERVO-SUBSYQ
R143 100
A-SERVO-WFCK
R144 100
B-SERVO-SUBSYQ
R145 100
B-SERVO-WFCK
OTG_RESET
OTG_CLK
R146 100
OTG_INSERT-A
R147 100
OTG_DataErr
R148 100
OTG_DataRdy
OTG_D7 OTG_D6 OTG_D5
OTG_D4
DSP 3.3V
GND
OTG_D3
OTG_D2
OTG_D1
OTG_D0
+1.8V
C123 104Z
B-SERVO-DOUT
R151 100
DSP-RDY3
DSP-INT3
R152 100 DSP2-MCLK
R153 100 B-SERVO-LRCK
R154 100 B-SERVO-DCK
OTG_DataRdy
R128 10K
R126 10K
R133 33
SPI-MOSI
SPI-MISO
1
2
3
4
5
6
7
8
9
10
11
12
13 14 15 16 17 18 19 20 21 22 23 24
25
26
27
28
29
30
31
32
33
34
35
36
37 38 39 40 41 42 43 44 45 46 47 48
ICET5126S
USB HOST Controller
U100
OTG_INSERT-A
C106
104Z
R127 100 OTG_RESET
C107
104Z
DSP 3.3V
C104 104Z
DSP 3.3V
OTG_D0 OTG_D1 OTG_D2 OTG_D3 OTG_D4 OTG_D5 OTG_D6
OTG_D7
C105
104Z
EC101
47uF/16V
DSP 3.3V
OTG_DataErr
R125 100
OTG_CLK
OTG_DataRdy
GND
X100
6MHz
R117
1M
C100 30pF
C102
30pF
C101 104Z
R124 27
R123 27
R121 15K R122 15K
DSP 3.3V
+1.8V
C103
104Z
GND
+1.8V
DSP 3.3V
1
2
3
4
5
TE100
R120 27
R119 27
GND
R116 15K
R118 15K
OTG_INSERT-B
R130 10K
R131 10K
R129 10K
OTG_INSERT-B
R132 100
C112 220P
R149 560
C129 104Z
1
2
3
4
5
6
TE102
GND
DSP 3.3V
C110
104Z
C108
104Z
C111
104Z
C115
104Z
C117
104Z
C120
104Z
C128
104Z
C125
104Z
C126
104Z
C127
104Z
C122
104Z
C121
104Z
C119
104Z
C118
104Z
C113
104Z
EC103
10uF/16V C114
104Z
GND
DSP 3.3V +1.8V
Vin
3
GND
1
Vout 2
IC100
AIC1117-18PY
GND
GND
GND
GND
NC21 DSP56367
2015.12.03
DSP2-RST
C124
104Z
R155 10K
R156 10K
R150 10K
GND
C116
104Z
C109 104Z
OTG_D4
OTG_D3
OTG_D2
OTG_D1
OTG_D0
OTG_D7
OTG_D6
OTG_D5
OTG_RESET
OTG_CLK
OTG_INSERT-A
OTG_DataErr
OTG_INSERT-B
R114 10K
R113 10K
R112 10K
R111 10K
R110 10K
R109 10K
R108 10K
R107 10K
R106 10K
R105 10K
R104 10K
R103 10K
DSP 3.3V
EC102
47uF/16V
R102 10K
R101 10K
R100 10K B-SERVO-SUBCLK
A-SERVO-SUBCLK
DSP2-RST
USB1_D-
USB1_D+
USB2_D-
USB2_D+
PC14C023
1
2
3
4
5
TE101
GND
470uF/16V
EC100
VDDUSB
MAIN
FS100
FSMSMD200 D+5V
0
GND
PIC10001 PIC10002
COC100
PIC10101 PIC10102
COC101
PIC10201 PIC10202
COC102
PIC10301
PIC10302
COC103
PIC10401 PIC10402
COC104
PIC10501
PIC10502
COC105
PIC10601
PIC10602
COC106
PIC10701
PIC10702
COC107
PIC10801 PIC10802
COC108
PIC10901 PIC10902
COC109
PIC11001 PIC11002
COC110
PIC11101 PIC11102
COC111
PIC11201 PIC11202
COC112
PIC11301
PIC11302
COC113
PIC11401
PIC11402
COC114
PIC11501
PIC11502
COC115
PIC11601
PIC11602
COC116
PIC11701
PIC11702
COC117
PIC11801
PIC11802
COC118
PIC11901
PIC11902
COC119
PIC12001
PIC12002
COC120
PIC12101
PIC12102
COC121
PIC12201
PIC12202
COC122
PIC12301 PIC12302
COC123
PIC12401 PIC12402
COC124
PIC12501 PIC12502
COC125
PIC12601 PIC12602
COC126
PIC12701 PIC12702
COC127
PIC12801 PIC12802
COC128
PIC12901 PIC12902
COC129
PIEC10001
PIEC10002
COEC100
PIEC10101
PIEC10102
COEC101
PIEC10201
PIEC10202
COEC102
PIEC10301
PIEC10302
COEC103
PIFS10001 PIFS10002
COFS100
PIIC10001
PIIC10002PIIC10003
COIC100
PIIC10101 PIIC10102 PIIC10103 PIIC10104 PIIC10105 PIIC10106 PIIC10107 PIIC10108 PIIC10109 PIIC101010 PIIC101011 PIIC101012 PIIC101013 PIIC101014 PIIC101015 PIIC101016 PIIC101017 PIIC101018 PIIC101019 PIIC101020 PIIC101021 PIIC101022 PIIC101023 PIIC101024 PIIC101025 PIIC101026 PIIC101027 PIIC101028 PIIC101029 PIIC101030 PIIC101031 PIIC101032 PIIC101033 PIIC101034 PIIC101035 PIIC101036
PIIC101037
PIIC101038
PIIC101039
PIIC101040
PIIC101041
PIIC101042
PIIC101043
PIIC101044
PIIC101045
PIIC101046
PIIC101047
PIIC101048
PIIC101049
PIIC101050
PIIC101051
PIIC101052
PIIC101053
PIIC101054
PIIC101055
PIIC101056
PIIC101057
PIIC101058
PIIC101059
PIIC101060
PIIC101061
PIIC101062
PIIC101063
PIIC101064
PIIC101065
PIIC101066
PIIC101067
PIIC101068
PIIC101069
PIIC101070
PIIC101071
PIIC101072
PIIC101073PIIC101074PIIC101075PIIC101076PIIC101077PIIC101078 PIIC101079 PIIC101080PIIC101081PIIC101082PIIC101083PIIC101084PIIC101085 PIIC101086 PIIC101087PIIC101088PIIC101089PIIC101090PIIC101091PIIC101092PIIC101093PIIC101094PIIC101095PIIC101096 PIIC101097 PIIC101098PIIC101099 PIIC1010100PIIC1010101PIIC1010102PIIC1010103 PIIC1010104 PIIC1010105PIIC1010106PIIC1010107PIIC1010108
PIIC1010109
PIIC1010110
PIIC1010111
PIIC1010112
PIIC1010113
PIIC1010114
PIIC1010115
PIIC1010116
PIIC1010117
PIIC1010118
PIIC1010119
PIIC1010120
PIIC1010121
PIIC1010122
PIIC1010123
PIIC1010124
PIIC1010125
PIIC1010126
PIIC1010127
PIIC1010128
PIIC1010129
PIIC1010130
PIIC1010131
PIIC1010132
PIIC1010133
PIIC1010134
PIIC1010135
PIIC1010136
PIIC1010137
PIIC1010138
PIIC1010139
PIIC1010140
PIIC1010141
PIIC1010142
PIIC1010143
PIIC1010144
COIC101
PIR10001 PIR10002
COR100
PIR10101 PIR10102
COR101
PIR10201 PIR10202
COR102
PIR10301 PIR10302
COR103
PIR10401 PIR10402
COR104
PIR10501 PIR10502
COR105
PIR10601 PIR10602
COR106
PIR10701 PIR10702
COR107
PIR10801 PIR10802
COR108
PIR10901 PIR10902
COR109
PIR11001 PIR11002
COR110
PIR11101 PIR11102
COR111
PIR11201 PIR11202
COR112
PIR11301 PIR11302
COR113
PIR11401 PIR11402
COR114
PIR11501 PIR11502
COR115
PIR11601
PIR11602
COR116
PIR11701
PIR11702 COR117
PIR11801
PIR11802
COR118
PIR11901PIR11902
COR119
PIR12001PIR12002
COR120
PIR12101
PIR12102
COR121
PIR12201
PIR12202
COR122
PIR12301 PIR12302
COR123
PIR12401 PIR12402
COR124
PIR12501PIR12502
COR125
PIR12601PIR12602
COR126
PIR12701 PIR12702
COR127
PIR12801PIR12802
COR128
PIR12901 PIR12902
COR129
PIR13001 PIR13002
COR130
PIR13101 PIR13102
COR131
PIR13201 PIR13202
COR132
PIR13301 PIR13302
COR133
PIR13401
PIR13402
COR134
PIR13501
PIR13502
COR135
PIR13601
PIR13602
COR136
PIR13701
PIR13702
COR137
PIR13801
PIR13802
COR138
PIR13901
PIR13902
COR139
PIR14001
PIR14002
COR140
PIR14101
PIR14102
COR141
PIR14201
PIR14202
COR142
PIR14301
PIR14302
COR143
PIR14401
PIR14402
COR144
PIR14501
PIR14502
COR145
PIR14601
PIR14602
COR146
PIR14701
PIR14702
COR147
PIR14801
PIR14802
COR148
PIR14901PIR14902
COR149
PIR15001PIR15002
COR150
PIR15101PIR15102
COR151
PIR15201PIR15202
COR152
PIR15301PIR15302
COR153
PIR15401PIR15402
COR154
PIR15501PIR15502
COR155
PIR15601PIR15602
COR156
PITE10001
PITE10002
PITE10003
PITE10004
PITE10005
COTE100
PITE10101
PITE10102
PITE10103
PITE10104
PITE10105
COTE101
PITE10201
PITE10202
PITE10203
PITE10204
PITE10205
PITE10206
COTE102
PIU10001
PIU10002
PIU10003
PIU10004
PIU10005
PIU10006
PIU10007
PIU10008
PIU10009
PIU100010
PIU100011
PIU100012
PIU100013 PIU100014 PIU100015 PIU100016 PIU100017 PIU100018 PIU100019 PIU100020 PIU100021 PIU100022 PIU100023 PIU100024
PIU100025
PIU100026
PIU100027
PIU100028
PIU100029
PIU100030
PIU100031
PIU100032
PIU100033
PIU100034
PIU100035
PIU100036
PIU100037 PIU100038PIU100039 PIU100040 PIU100041PIU100042PIU100043PIU100044PIU100045PIU100046 PIU100047 PIU100048
COU100
PIX10001
PIX10002
COX100
POA0SERVO0DCK POA0SERVO0DOUT POA0SERVO0LRCK
POA0SERVO0SUBCLK POA0SERVO0SUBDATA POA0SERVO0SUBSYQ POA0SERVO0WFCK
POB0SERVO0DCK
POB0SERVO0DOUT
POB0SERVO0LRCK
POB0SERVO0SUBCLK POB0SERVO0SUBDATA POB0SERVO0SUBSYQ POB0SERVO0WFCK
PODSP20MCLK
PODSP20RST
PODSP0BCK
PODSP0CS3
PODSP0INT3
PODSP0LRCK
PODSP0PCMD1 PODSP0PCMD2
PODSP0RDY3
POOTG0CLK
POOTG0D0
POOTG0D1
POOTG0D2
POOTG0D3
POOTG0D4
POOTG0D5POOTG0D6 POOTG0D7
POOTG0DATAERR POOTG0DATARDY
POOTG0INSERT0APOOTG0INSERT0B
POOTG0RESET
POSPI0CLK
POSPI0MISO
POSPI0MOSI
POUSB10D0
POUSB20D0
