SPECIFICATION SHEET
Architect
Engineer
Contractor
Submitted by Date
Location
ProjectREMARKSQTY.REFERENCE
Broan-NuTone Storage Solutions, 501 S. Wilhite Street, Cleburne, TX 76031 (1-800-325-8351)
MODEL 869 / 870 SERIES
FLUSH MOUNT
MEDICINE CABINETS
Standard builder models - for recessed installation -
Frameless beveled or polished edge swing door
FEATURES
• Recessed installation for standard wall openings
• Easy to clean, one piece, heavy gauge steel construction
• Plate glass mirror
• Rust resistant
• Spring-loaded, magnetic touch latch
• Adjustable steel or glass shelves
• 5/16” projection from wall to face of mirror door
• 1/8” premium float glass mirror with polished or beveled
edge mirror
• Concealed European style hinges
• Reversible for left-hand or right-hand door opening
• Includes mounting hardware
Medicine cabinet shall be NuTone Storage Solutions 869 / 870
Series.
Recessed medicine cabinet shall be of one-piece, heavy gauge
steel construction with a white powder coat baked on finish
after forming.
Cabinet shall have European style concealed hinges and a
magnetic touch latch.
Each cabinet shall include two, or more, adjustable metal pre-
painted or glass shelves.
Cabinet shall be reversible for left-hand or right-hand
installation.
Float glass mirror shall have 1/2” bevel on all sides or all four
edges polished.

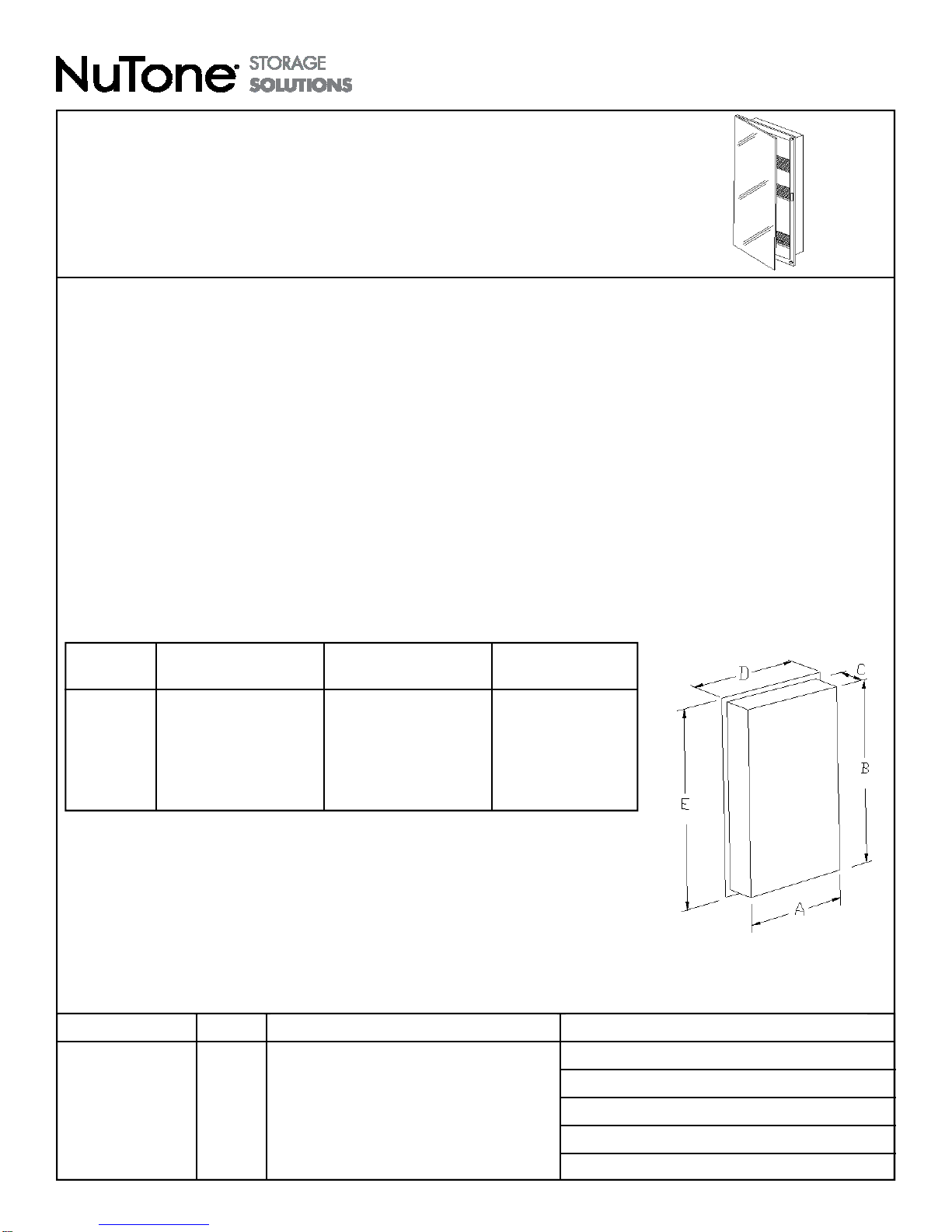

WALL OPENING
A B C OVERALL SIZE D E
MODEL
NO.
869P24WH
869P34WH
870P24WH
870P34WH
14 24 4
14 34 4
14 24 4
14 34 4
15 26
15 36
15 26
15 36
MIRROR
TYPE
POLISH EDGE
POLISH EDGE
BEVELED EDGE
BEVELED EDGE
80-136-01B
Add “G” to indicate glass shelves
TYPICAL SPECIFICATION
