PIPA lite series instructions
IMPORTANT!
KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE:
READ CAREFULLY
Contents
Product Information 2
Product Registration 2
Warranty 2
Contact 2
Child Usage Requirements 3
For use with base 4
Warnings 5
Infant Child Restraint Parts List 8
Base Parts List 10
Product Overview 12
Product Use 17
Installation 19
Cleaning and Maintenance 24

32 PIPA lite series instructions PIPA lite series instructions
Product Information
Model Number:
Manufactured in (date):
Product Registration
All products include a serial label which lists the
product model number and serial number. This label
is located on the base. Before contacting customer
service, please have these numbers available for
reference.
To register your product please visit:
www.nunababy.eu/register-gear
Warranty
We have purposely designed our high-quality
products so that they can grow with both your child
and your family. Because we stand by our product,
our gear is covered by a custom warranty per product,
starting from the day it was purchased. Please
have the proof of purchase, model number and
manufactured in date available when you contact us.
For warranty information please visit:
www.nunababy.eu/warranty
Contact
For replacement parts, service, or additional warranty
questions, please contact our customer service
department.
[e-mail]
www.nunababy.eu
Child Usage Requirements
This product is suitable for use with children who
meet the following requirements:
Mass Group: 0+
Weight: Child weighing under 13kg
(approximately 1.5 years old or under)
In the United Kingdom:
[e-mail]

54 PIPA lite series instructions PIPA lite series instructions
For use
with base
The infant child restraint with Base is a “Semi-
Universal Child Restraint” and should be fitted
using at 3 point adult seat belt approved to UN ECE
regulation 16 or the ISOFIX connections.
For Installation with 3-point-belt
It will fit vehicles fitted with 3-point retractor safety-
belts. Seat positions in other cars may also be suitable
to accept this child restraint. If in doubt, consult either
the child restraint manufacturer or the distributor.
For Installation with ISOFIX System
This is an ISOFIX CHILD RESTRAINT SYSTEM.
It is approved to Regulation NO. 44, 04 series of
amendments for general use in vehicles fitted with
ISOFIX anchorages systems.
It will fit vehicles with positions approved as ISOFIX
positions (as detailed in the vehicle handbook),
depending on the category of the child seat and of the
fixture. If in doubt, consult either the child restraint
manufacturer or vehicle manufacturer.
The ISOFIX size class for which this device is intended
is C and D.
WAR N IN G
Always secure child in child restraint, even on short
trips, as this is when most accidents occur.
Any straps holding the restraint to the vehicle
should be tight, that any straps restraining the child
should be adjusted to the child’s body, and that
straps should not be twisted.
After your child is placed in this Infant child
restraint, the safety belt must be used correctly.
Be sure that the child restraint is installed in such a
way that no part of it interferes with movable seats
or in the operation of vehicle doors.
Before carrying the infant child restraint by hand,
ensure that the child is fastened with the safety
harness, and that the handle is correctly locked in a
vertical position.
Consult the distributor for issues concerning
maintenance, repair and part replacement.
Frequently check the ISOFIX guides for dirt and
clean them if necessary. Reliability can be effected
by ingress of dirt, dust, food particles etc.
NO Infant child restraint can guarantee full
protection from injury in an accident. However,
proper use of this Infant child restraint will reduce
the risk of serious injury or death to your child.
Please keep this child restraint away from sunlight,
otherwise it may be too hot for child’s skin. Always
touch test seat before placing child in it.
Remove this infant child restraint and base from
the vehicle seat when it is not in regular use.
This Infant child restraint is designed ONLY for
child weighing under 13kg.

76 PIPA lite series instructions PIPA lite series instructions
The soft goods should not be replaced with
any besides the ones recommended by the
manufacturer. The soft goods constitute an integral
part of the Infant child restraint performance.
To avoid the risk of falling out, always secure the
child using the safety harness when the child is
placed in infant child restraint, even when the child
restraint is not in the vehicle.
To avoid serious injury or death, NEVER place
infant child restraint on elevated surface seat with
child in it.
The parts of this child restraint should not be
lubricated in any way.
DO NOT put anything other than the recommended
inner cushions in this Infant child restraint.
DO NOT continue to use this child restraint after it
has suffered any type of crash, even a minor one.
Replace immediately as there may be invisible,
structural damage from the crash.
DO NOT use or install this Infant child restraint
until you read and understand the instructions in
this manual and in your vehicle owner’s manual.
DO NOT make any alterations or additions to
any part of the child restraint or base. Do not
use accessories or parts supplied by other
manufacturers. The function of the child restraint
could be altered, resulting in serious injury or
death.
DO NOT use this Infant child restraint if it has
damaged or missing parts.
DO NOT have your child in large/oversized clothes
because this may prevent your child from being
properly and securely fastened by the shoulder
harness straps and the harnesses between thighs.
DO NOT make any modification to this Infant child
restraint or use it along with component parts from
other manufacturers.
DO NOT leave this Infant child restraint or other
items unbelted or unsecured in your vehicle
because unsecured Infant child restraint can be
thrown around and may injure occupants in a sharp
turn, sudden stop, or collision.
DO NOT place rear-facing child restraint on front
seat with air bag. Death or serious injury may
occur. Please reference vehicle owner’s manual for
more information.
DO NOT use this Infant child restraint without the
soft goods.
DO NOT use any load bearing contact points
other than those described in the instructions and
marked on the child restraint.
DO NOT place any objects in the load leg area in
front of your base.
NEVER leave your child unattended with this Infant
child restraint.
NEVER use a second-hand Infant child restraint or
an infant child restraint whose history you do not
know because they may have structural damage
that endangers your child’s safety.
NEVER use ropes or any other substitutes to
secure child restraint in vehicle or to secure child
into child restraint. Only use vehicle belt to secure
child restraint in vehicle.
Please keep the instruction manual in the storage
compartment at the bottom of the base (Shown as
NO.10 on the Base Parts List).

98 PIPA lite series instructions PIPA lite series instructions
*only used with infant car seat ring adapters

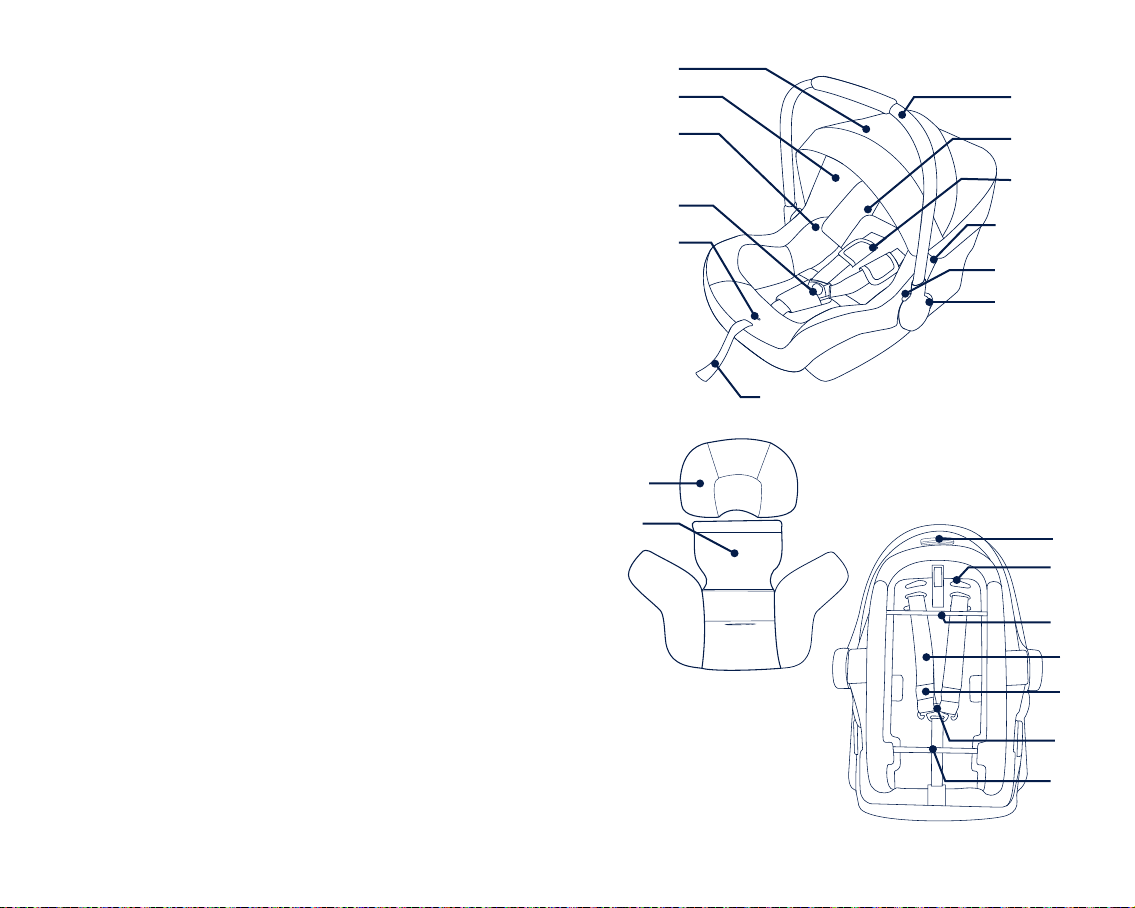

Infant Child Restraint
Parts List
Make sure all parts are available before assembly. If
any part is missing, please contact Nuna (see page 2
for information). No tools are required for assembly.
1 Canopy
2 Seat Pad
3 Body Support (x2)
4 Buckle and
Crotch Pad
5 Harness
Adjustment Button
6 Harness
Adjustment Strap
7 Handle Adjustment
Button
8 Stroller Release
Button A
9 Canopy Release
Button
10 Shoulder Harness
Pads
11 Head Support (x2)
12 Handle
13 Stroller Release
Button B
14 Harness Slots
15 Base Attachment
Bar
16 Harness Straps
17 Shoulder Harness
Loops
18 Junction plate
19 Base Attachment
Bar
4
3
5
7
212
1
10
8
9
11
6
11
313
16
17
14
15
19
18

1110 PIPA lite series instructions PIPA lite series instructions

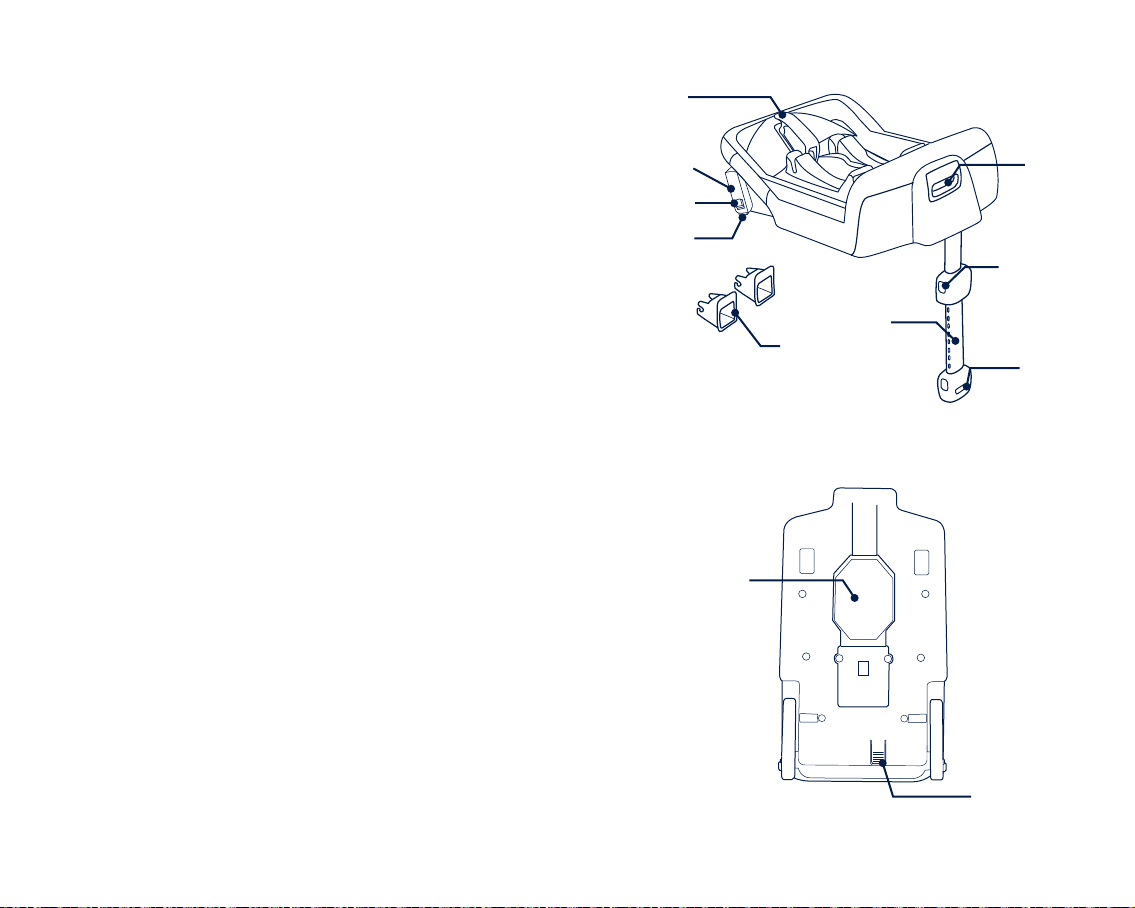

Base Parts List
Make sure all parts are available before assembly. If
any part is missing, please contact Nuna (see page 2
for information). No tools are required for assembly.
1 Vehicle Belt
Lock Off
2 ISOFIX Connector
(lower attachments)
3 Primary ISOFIX
Connector Release
Button
4 Secondary ISOFIX
Connector Release
Button
5 ISOFIX Connector
Guides
6 Load Leg
7 Carrier Release
Button
8 Load Leg Adjustment
Button
9 Load Leg Indicator
10 Instruction Manual
Storage
11 ISOFIX releasing
button
1
2
3
4
5
6
7
8
9
10
11

1312 PIPA lite series instructions PIPA lite series instructions

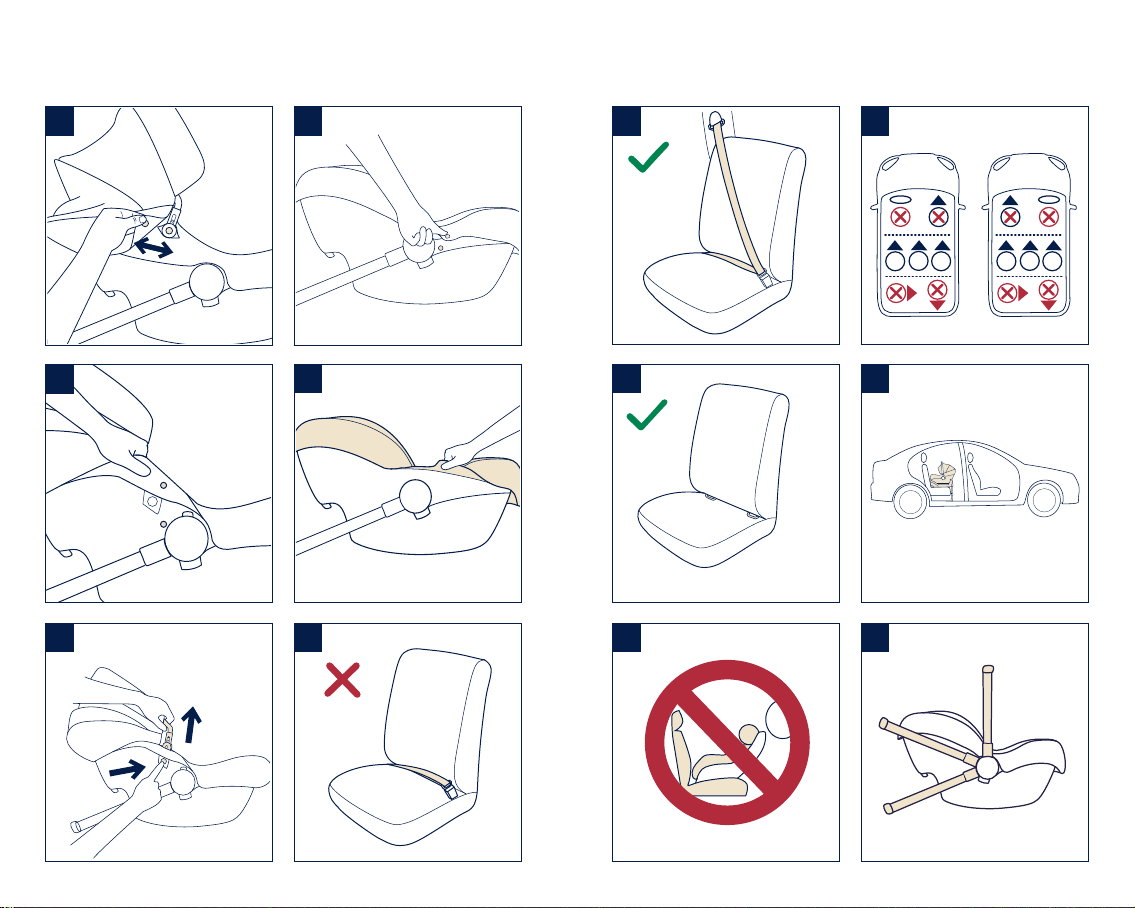

Installation concerns
DO NOT install this infant child restraint on
vehicle seats with 2-Point Retractor Safety Belts
with the Base. (6)
This infant child restraint is suitable for vehicle
seats with a 3-point Retractor Safety Belt with the
Base (7), or ISOFIX anchor points WITH the Base.
(8)
DO NOT place rear-facing child restraint on
front seat with air bag. Death or serious injury
may occur. (9) Please reference vehicle owner’s
manual for more information.
DO NOT install this infant child restraint on
vehicle seats that face sideways or rearward with
respect to the moving direction of the vehicle. (10)
It is recommended to install this infant child
restraint on the rear vehicle seat. (11)
DO NOT install this infant child restraint on
vehicle seats unstable during installation.

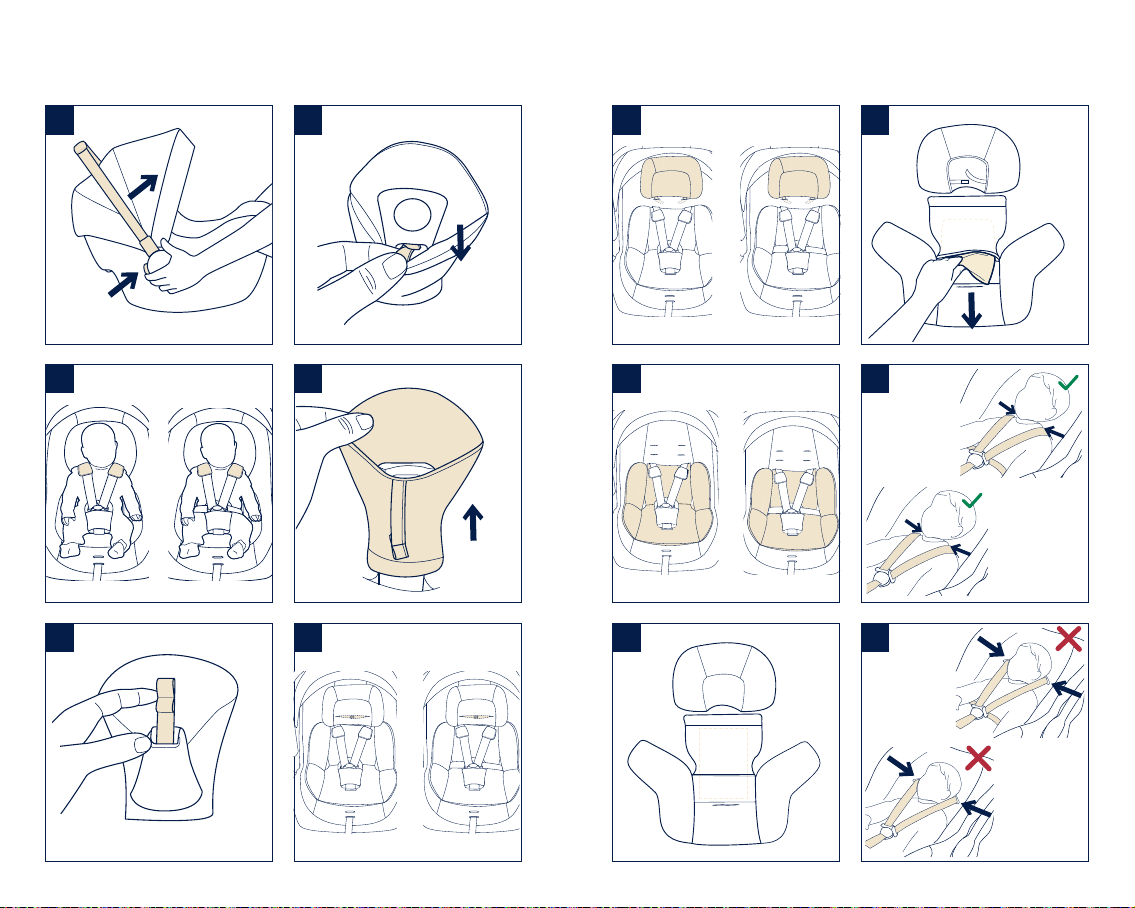

Product Overview
Canopy
1- To attach the canopy, snap the canopy to the
canopy mount on both sides. (1)
2- To open the canopy, pull the canopy toward the
front of the seat, and to close the canopy, push it
back.
3- To remove the canopy, reverse step 1. Then
unsnap the seat pad from the shell and lift fabric
up. (2)
4- Press the canopy release button (3)-1 and pull
canopy through the fabric slot. (3)-2
Repeat on opposite side.
Seat Pad
1- Open the snaps on both sides of the seat. (4)
2- Press the red button to disengage the buckle.
Remove the body support.
3- Remove the seat pad. (5)

1514 PIPA lite series instructions PIPA lite series instructions
Handle Adjustment
1- The infant carrier handle can be adjusted to 3
positions. (12)
2- To adjust the handle position, squeeze handle
adjustment buttons on both sides. (13)-1 Rotate
handle until it clicks into any of the 3 positions.
Handle can be used in vehicle in any locked
position. (13)-2
Be sure handle is locked in the carry position
before lifting Child Restraint by handle. An
unlocked handle could move unexpectedly,
causing injury to child. Handle MUST NOT
contact the vehicle interior (side of car or seat
in front) when installed.
Shoulder Harness Pad
Shoulder harness pads are removable. Unfasten the
hook and loop to remove the shoulder harness pads.
(14)
Crotch Pad
1- Unbuckle the harness and locate the crotch pad
strap. (15)
2- Keep the tab at the end of the crotch pad strap
flat against the strap and then route the crotch
pad strap through the front of the buckle. (16)
3- Pull the crotch pad off the buckle. (17)
Head and Body Support
The head and body supports can be used as
necessary, to provide a snug fit for small babies.
The head support straps cannot go through the
same slots as the harness and should only be
used in the top two harness slot positions.
1- To remove the head support, unfasten the hook
and loop ends behind the seat fabric. (18)
2- Then, pull the head support straps through the
harness slots. (19)
3- To remove the body support, unbuckle the
harness and route the buckle and crotch belt
through the bottom slot of the body support. (20)
4- Foam inside body support is present to ensure
that harness fits child properly. Head and body
support must be used for children 0-6 months.
(21)
5- To remove the low birth weight pillow, unfasten
the hook and loop on the back of the body
support and pull out the pillow. (22)

1716 PIPA lite series instructions PIPA lite series instructions
Shoulder harness position
1-
Tighten harness to fit snugly on child’s shoulders. It
is snug if you cannot pinch a fold in the strap. (23)
2- Harness straps must be at or just below
shoulders. (24)
3- To adjust shoulder harness height, remove child
and loosen harness by pressing the harness
adjustment button (25)-1 while pulling on the
harness strap (25)-2 The harness adjustment
button is located inside the slot on the seat pad.
Shoulder harness
straps height adjustment
Use extreme care in threading the Shoulder Harness
Straps according to the figure. If the Shoulder Harness
Straps are not secure, they will not protect your baby.
The ends of the Shoulder Harness Straps must hang in
front of the junction plate.
Ensure that the shoulder harness straps are not twisted
before reassembling the ends onto the junction plate.
1- Press the adjustment button at the front of the seat
and pull on the shoulder harnesses to loosen them.
(25)
2- At the back of the seat, take the harness ends off
the junction plate. (26)-2
3- Pull the harnesses through the slots in the seat.
Insert them into the appropriate set of slots. (27)
4 - Reassemble the harness ends onto the junction
plate. (28)
The ends of the Shoulder Harness Straps have two
loops.
For a smaller baby, use the upper shoulder harness
loops. (29)
For a larger baby, use the end shoulder harness
loops. (30)
DO NOT allow harness to pass over bars. Repeat
process for second shoulder harness strap.
Product Use
Securing Child in Child Restraint
1- Place buckle tongues into both sides of the seat
in the buckle holders to make placing baby more
convenient. (31)
2- Place child in Child Restraint in seated position.
(32)
3- The child should be seated against both the back
and bottom of the seat with no gap behind the
child. DO NOT allow child to slouch. (33)
Gently guide child’s arms through harness loops.
4- Place the child into the infant child restraint and
lock the buckle. (34)(35)(36)
5- Tighten harness by pulling on the adjuster strap.
Pull any excess harness webbing through the
buckle towards the child’s shoulder and pull on
the adjuster strap. This may need to be repeated
several times for proper fit. (37)

1918 PIPA lite series instructions PIPA lite series instructions
Verify that the harness is snug around the child’s
waist and shoulders.
Harness straps must be at or just below child’s
shoulders to avoid injury. If harness slots need to
be moved, see Shoulder Belts section.
Make sure that nothing interferes with the
harness. Make sure harness is snug around child
and lays flat. Serious injury or death could occur
to a child that is not secured properly.
If child is not secured properly, child could be
ejected in a sudden stop or crash, resulting in
serious injury or death.
Check that Child is Secure
Buckle is fastened.
Harness straps are not twisted.
Harness is snug – A snug harness cannot be
pinched, and should not allow any slack.
Installation
WARNING Serious injury or death
can occur. The seat alone cannot be installed in the
vehicle. It must be installed with the base. (38)
Base Installation Using ISOFIX
(Lower Attachments)
1- Unfold the load leg. (39)
2- Fit the ISOFIX guides with the ISOFIX anchor
points. (40) The ISOFIX guides can protect the
surface of the vehicle seat from being torn. They
can also guide the ISOFIX connectors.
3- Rotate the ISOFIX connectors 180 degrees until
they are pointing in the direction of the ISOFIX
guides. (41)
4- Line up the ISOFIX connectors with the ISOFIX
guides, and then click both ISOFIX connectors
into the ISOFIX anchor points. (42)
Make sure that both ISOFIX connectors are
securely attached to their ISOFIX anchor points.
There should be two audible clicks and the colors
of the indicators on the both ISOFIX connectors
should be completely green. (43)

2120 PIPA lite series instructions PIPA lite series instructions
Check to make sure the base is securely installed
by pulling on the both ISOFIX connectors.
5- After placing the base on the vehicle seat, extend
the load leg to floor. When the load leg indicator
shows green means it is installed correctly, red
means it is installed incorrectly. (44)
The load leg has multiple positions. When the
load leg indicator shows red this means the load
leg is in the wrong position.
Make sure the load leg is secure by pressing
down on the front of the base.
To shorten the load leg, squeeze the load leg
release button and pull the load leg upwards. (44)
The completely assembled base is shown as (45)
The ISOFIX connectors must be attached and
locked onto the ISOFIX anchor points. (45)-1
The load leg must be installed correctly with
green indicator. (45)-2
Check the installation
Base should not move side to side or forward
more than 1” at belt path.
Attaching Child Restraint to Base
1- After child is properly secured in infant carrier,
press child restraint on base and listen for a click.
Pull on child restraint to verify installation. (46)
DO NOT allow child restraint to contact the
vehicle interior (side of car or seat in front) when
installed on base.
2- To release the child restraint, squeeze the carrier
release button (47)-1 located on the base and then
pull the child restraint up. (47)-2
3- To remove the base, first push the base toward
the vehicle seat with a light force. (48)
4- As you push the base toward the vehicle seat,
squeeze the secondary (49)-1 and primary ISOFIX
release buttons (49)-2. For ease of release, push
the secondary button first, then the primary
button.
5- Press the ISOFIX releasing button to fold the
ISOFIX. (50)
Installation with 3-point-belt
1- Open the vehicle belt lock-off and route the
vehicle safety belt through the belt path. (51)
2- Buckle the vehicle belt. Both the shoulder AND
lap belt must be under the blue lock off and belts
must lay flat. (52)
3- While pressing the base into the vehicle seat
(53)-1, tighten the vehicle belt by pulling straight
along the belt path (53)-2, keeping both belts
laying flat in the lock off.

2322 PIPA lite series instructions PIPA lite series instructions
4- While the shoulder belt is tight, hook the bottom
of blue lock off and press to close the lock off on
the shoulder and lap belt. (54)
The installed base is shown as (55)
Please ensure that there is no gap between the
vehicle seat and the bottom of the base.
The safety belt must go under the lock off, not
over the lock off. (55)-1
The safety belt must be locked into the buckle.
(55)-2
The load leg must be installed correctly with
green indicator. (55)-3
The child restraint can not be used if the vehicle
safety belt buckle (female buckle end) is too long
to anchor the child restraint securely. (55)-4
5- After child is properly secured in infant carrier,
press Child Restraint on base and listen for a
click. Pull on Child Restraint to verify installation.
(56)
DO NOT allow Child Restraint to contact the
vehicle door or seat in front of it.
6- To release the Child Restraint, pull the infant
carrier up (57)-2 while squeezing the infant
carrier release button located on the base. (57)-1
7- To remove the base, lift up on the the lock off.
(58)
8- Unbuckle the vehicle belt and un-route the
shoulder and lap belt from the base. (59)
Then remove the base.
Dream Drape™
Included on PIPA lite lx models.
1- Unzip the zipper behind the front canopy bow.
(60)
2- Pull the dream drape™ out of the compartment.
(61)
Attach the dream drape™ to the magnets on each
corner to the front of the carrier.
Installation on a Stroller
This infant carrier can attach to Nuna strollers using
adapters. Instructions are included with the adapters,
which are sold separately.
This infant carrier can also attach to other brands of
strollers using adapters. Please visit nunababy.eu for
more information.

2524 PIPA lite series instructions PIPA lite series instructions
Cleaning and Maintenance
Your infant carrier is a valuable piece of equipment
and deserves careful handling.
For reasons of safety, only use original Nuna parts.
Refer to the care label attached to the soft goods
for washing and drying instructions.
Use only mild detergent, water and a soft cloth to
clean the infant carrier shell, handle and harness
straps. Air dry.
To clean the buckle: rinse using warm water. DO NOT
use any soaps, solvents or lubricants. Using anything
other than water can cause the buckle to malfunction.
Air dry.
Remove the infant child restraint from the vehicle seat
if not in use for a long period of time. Put the infant
child restraint in a cool, dry place and somewhere
your child can not access it.
It is normal for fabric to color from sunlight and to
show wear and tear after a long period of use, even
when used normally.
Check regularly if everything functions properly.
If any parts are torn, broken, or missing, stop using
this product.
©2018 Nuna International B.V. Nuna and all associated logos are trademarks
