Nuvo NVP100 series User manual

1
Player Portfolio Manual
Player Portfolio Models
NV-P100 Zone Player
NV-P200 Zone Player
NV-P3100 Three Zone Player
NV-GW100 Wireless Gateway
NV-CR100 Wireless Controller
Introduction
Welcome to the exciting world of the NuVo Player Portfolio. Now your favorite music
anywhere you want it, anytime you want it is as close as the touch of a button on the
NuVo Wireless Controller or any of your Apple or Android Wi-Fi enabled portable
devices. True high fidelity music from your own personal library or streaming from
the Internet, is more affordable and accessible than you ever imagined.
The Player Portfolio has the flexibility of two amplified WirelessPlayers that easily
connect to the home’s network through the NV-GW100 dual band gateway. The
setup is quick and the communication is very robust. In addition, the NV-P3100 is a
rack mountable component that connects directly to the network and provides a
“hardwired” solution that is perfect for installations that already have traditionally
installed speakers.
This is your guide to quickly and easily filling a home with music.

2

3

4

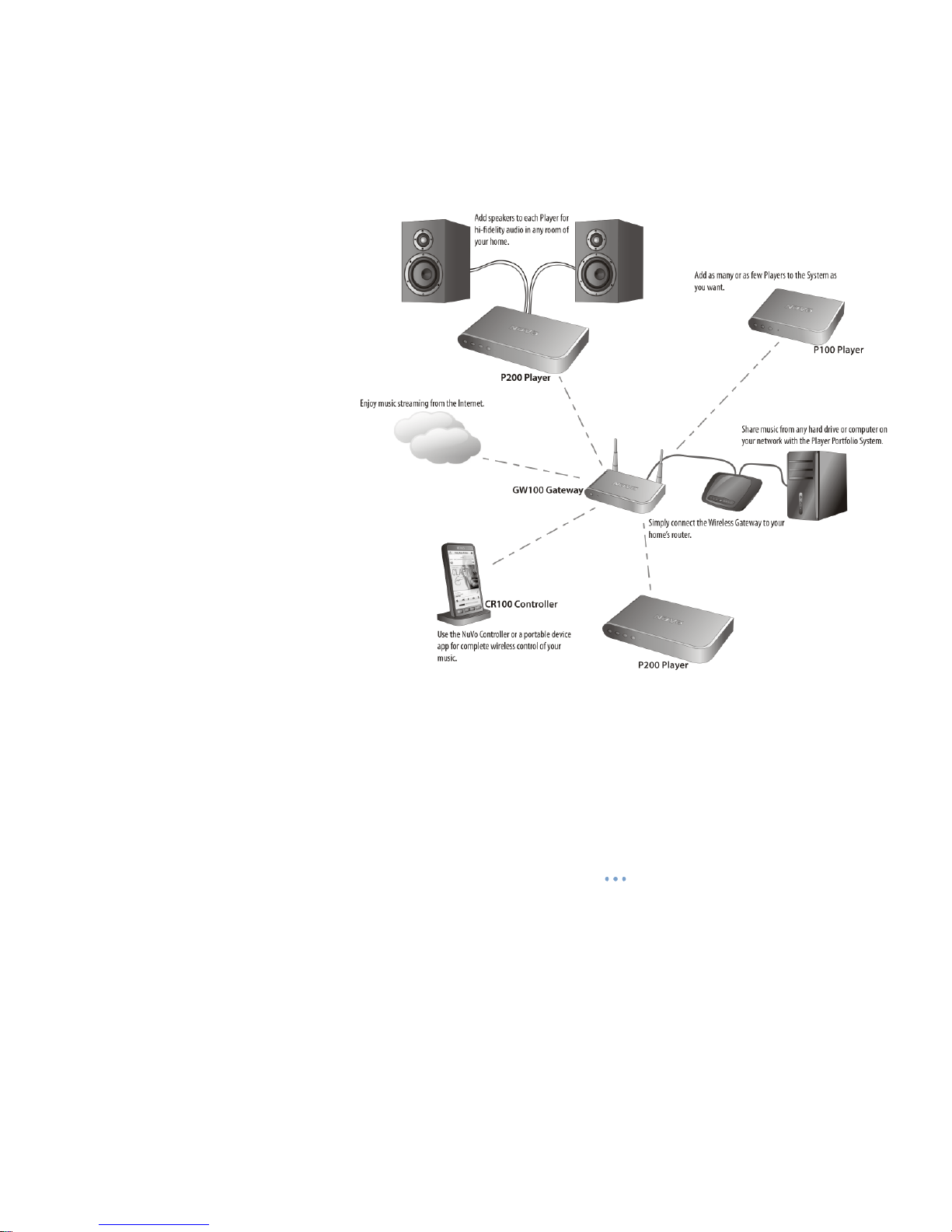

The NuVo Wireless Player Portfolio System is comprised of:
1. Players – NV-P100, NV-P200, or NV-P3100
2. Wireless Gateway – NV-GW100
3. Router and an Internet connection
4. Wireless control – NV-CR100 and / or iPhone, IPad, IPod Touch, Android
phone or Android Tablet

5
NV-P100 Features
1. Ethernet: This RJ-45 port allows for a wired connection directly to the NV-
GW100 Gateway or directly to the network router.
2. USB: Any USB enabled hard drive can share music content with the Player
Portfolio System through this port.
3. Audio In: This 3.5mm stereo input will accept any analog line level audio signal.
The local audio source is amplified by the local Player, as well as providing it as
an additional source selection in any other associated audio zones within the
Player Portfolio System.
4. Audio Out: This 3.5mm stereo output provides the local line level audio signal to
an additional amplifier, powered subwoofer, or headphones.
5. Left and Right Speaker Outputs: These binding posts provide an amplified
local audio signal to any connected speakers. The maximum output of the NV-
P100 is 40 watts stereo.
6. AC Input: The universal power supply will accept 100 – 240VAC, 50-60Hz.

6

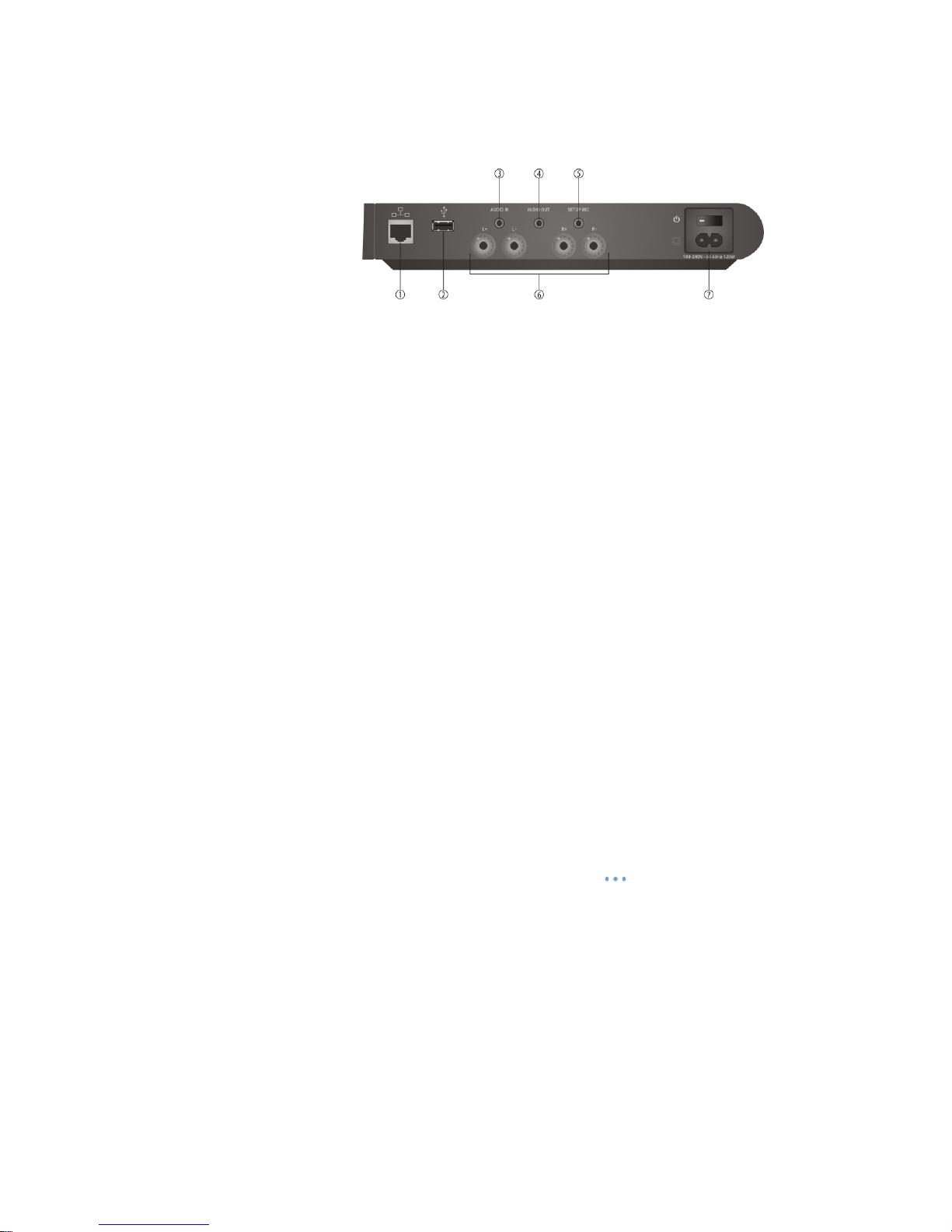

NV-P200 Features
1. Ethernet: This RJ-45 port allows for a wired connection directly to the NV-
GW100 Gateway or directly to the network router.
2. USB: Any USB enabled hard drive can share music content with the Player
Portfolio System through this port.
3. Audio In: This 3.5mm stereo input will accept any analog line level audio signal.
The local audio source is amplified by the local Player, as well as providing it as
an additional source selection in any other associated audio zones within the
Player Portfolio System.
4. Audio Out: This 3.5mm stereo output provides the local line level audio signal to
an additional amplifier, powered subwoofer, or headphones.
5. Setup Mic: This 3.5mm input is designed for the Audyssey® calibration mic.
Audyssey features a roomequalization algorithm built-into the Player Portfolio
user control. This calibration is very useful for compensating for poor room
acoustics or speaker placement. The Audyssey mic is sold separately.
6. Left and Right Speaker Outputs: These binding posts provide an amplified
local audio signal to any connected speakers. The maximum output of the NV-
P200 is 120 watts stereo.
7. AC Input: The universal power supply will accept 100 – 240VAC, 50-60Hz.
.

7
NV-P3100 Features
1. Ethernet: The NV-P3100 is designed to connect directly to the network. The
second port enables multiple P3100’s to share the same network connection
within one system.
2. Speaker: This modular connection provides a maximum 40 watt stereo amplified
signal to the connected speakers. Each zone represents an independent output.
3. Line In: This 3.5mm stereo input will accept any analog line level audio signal.
The local audio source is amplified by the local Player, as well as providing it as
an additional source selection in any other associated audio zones within the
Player Portfolio System. Each zone represents an independent input.
4. Trigger In: This 3.5mm input acts as an input control from external equipment.
Each zone represents an independent input.
5. Line Out: This 3.5mmstereo output provides the local line level audio signal to
an additional amplifier, powered subwoofer, or headphones. Each zone
represents an independent output.
6. Trigger Out: This 3.5mm output acts as a voltage trigger for external equipment.
Each zone represents an independent output.
7. USB: Any USB enabled hard drive can share music content with the Player
Portfolio System through this port. zone represents an independent input.
8. Setup: This button is used for each of the Zone sections in the setup process to
associate the zone control with the network.
9. AC Input: The universal power supply will accept 100 – 240VAC, 50-60Hz.

8
1. Setup/Installation
1.1 Network requirements
A live Internet connection is not necessary for basic functionality and accessing
music that is stored on a hard drive on the network, but keep in mind that a live
access to the Internet is necessary at initial setup.The Player Systemdoes use the
web to verify the user license associated with each Player being installed and will
automatically check for updates to the firmware and software.
A minimum 100Mbps wired network in necessary for proper communication. This
should not be a problem. Today’s network routers are designed to operate in the
Gigabyte range. If this is not the case, you should update the installation’s network
equipment before you proceed with the Player Portfolio setup.
1.2 Connecting the Gateway to the Network
The NV-GW100 Wireless Gateway is the central communication point for the
Wireless Players and control. It requires a standard Ethernet CAT5, CAT5e or CAT6
cable. It should be a standard EIA/TIA 568A or 568B network termination, as shown
in fig. 1. Note that this is a straight-through connection. You should never connect

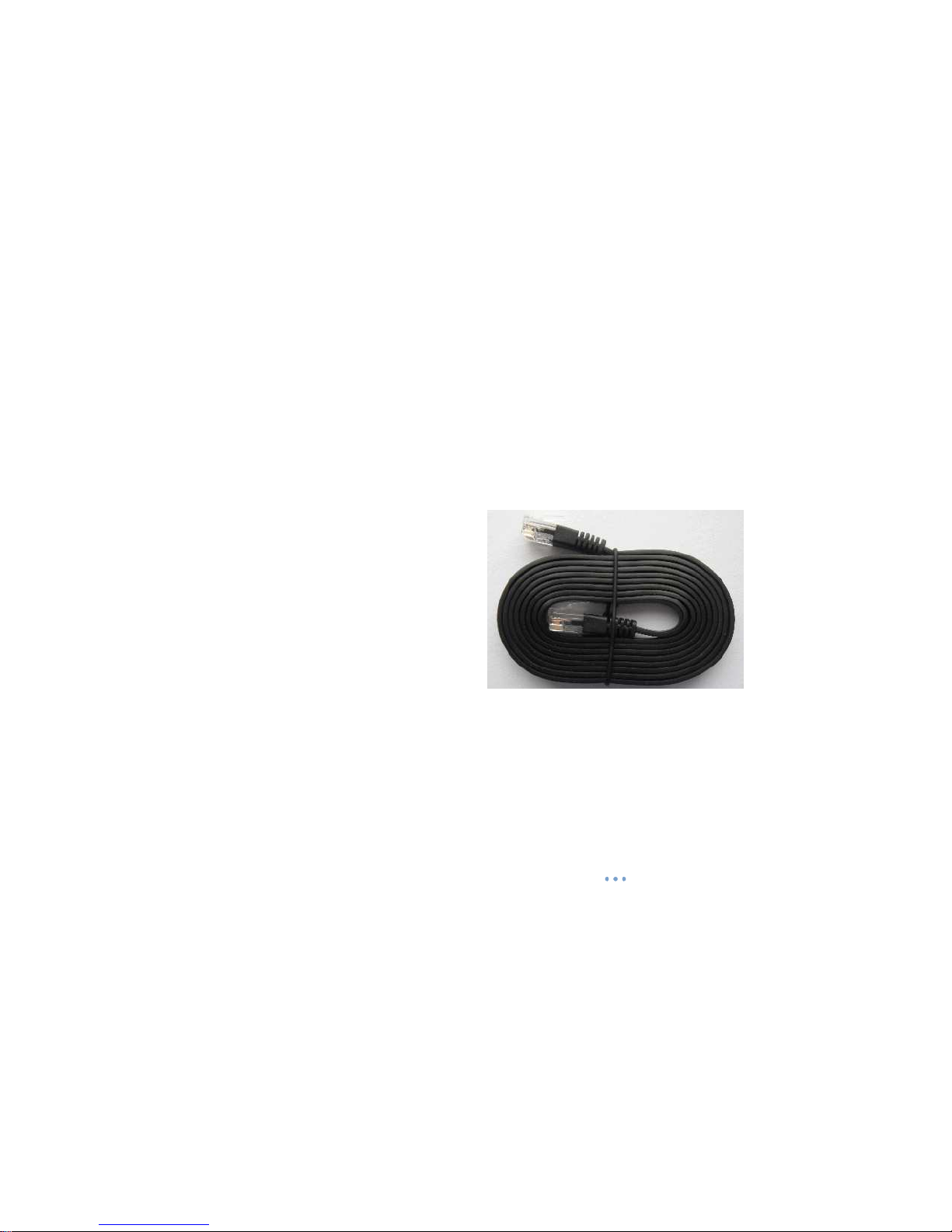

the Gateway using a “crossover” style cable. A CAT5e cable is supplied with the NV-
GW100.
Fig. 1
Make sure that the installation’s router is connected to the network modem (this is
generally supplied by the Internet Service Provider, ISP) with a single CAT5 network
cable, as shown in fig. 2.

9
Fig. 2

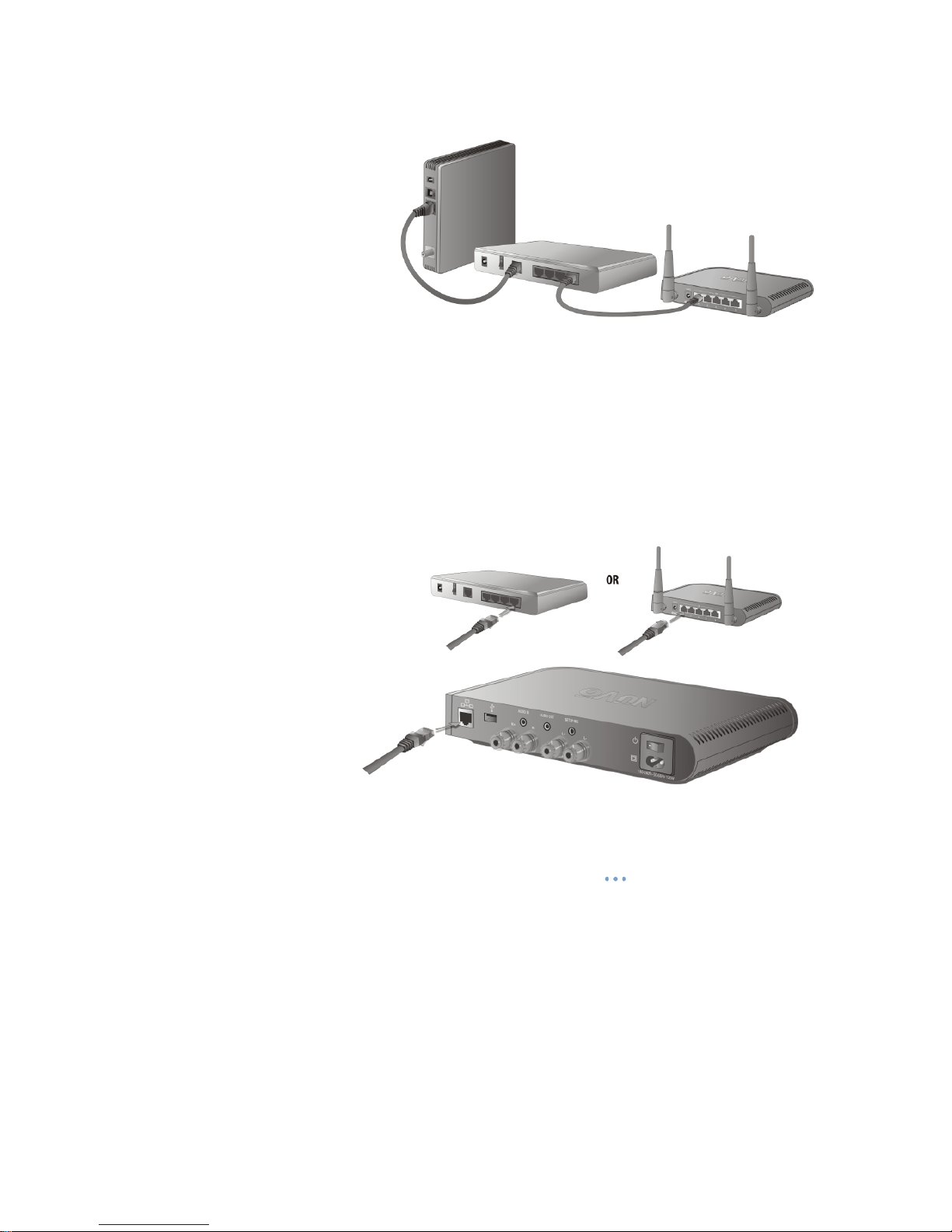

The Gateway has five Ethernet ports and acts as a standard Ethernet switch. Simply
connect a CAT5 with a standard RJ45 modular plug into one of the five ports on the
back of the Gateway and connect the other end into an available port on the back of
the installation’s router, as shown in fig. 3.
Fig. 3
A network switch can also be used for the connection to the Gateway, provided the
switch is connected to the Internet through a network router. Once you have made
the necessary connections, as shown in fig. 4, you are ready to continue with each
audio zone setup.

10
Fig. 4
1.3 Using the Zone Player Ethernet Connection
Each NV-P100 and NV-P200 Zone Player has an individual Ethernet port. This port
allows a standard four twisted pair wire, either CAT5 or CAT6, terminated with a
modular RJ45 plug to “hardwire” the Player directly to the System’s Gateway or
networkrouter, as shown in fig 5.
Fig. 5

11
2. New System Setup
2.1 Launching the control app
Initial setup of the Player Portfolio can be done fromeither the NV-CR100 Wireless
Controller or from the Apple or Android device app. Note that the app must first be
downloaded from either the Apple App Store or the Android Marketplace to your
device prior to system setup. When the applicationis launched, the initial screen will

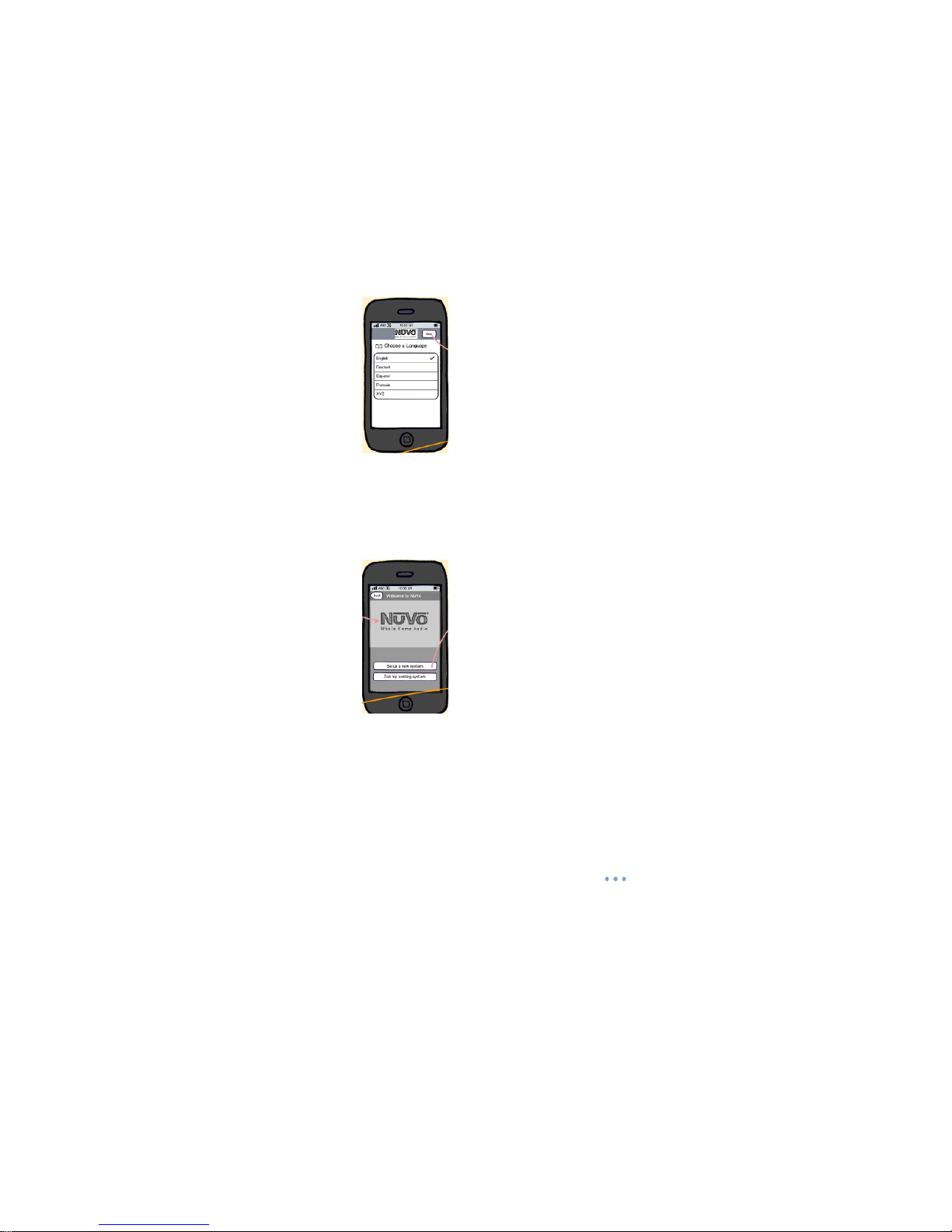

request a language selection (CR100 Controller only), as shown in fig. 6. Select the
appropriate language and touch the“next” button.
Fig. 6
If a language is selected, or if you are setting up the system from either the Apple or
Android app, the next screen will display a choice to“Setup a new system” or “Join
myexisting system”, as shown in fig. 7. Select “Setup a new system”.
Fig. 7

12
2.2 Connecting the NuVo NV-CR100 Controller to the Gateway
Once the Gateway is physically connected to the network you need to connect the
NuVo Controller to the Gateway. This is done fromthe control app.
The Controller will prompt you to physically connect the Gateway, see 1.2
Connecting the Gateway to the Network. Press the “Connect” button on the
Gateway, as shown in fig. 10. The Controller will indicate a good connection.
Fig. 10
2.3 Advanced Setup
Advanced setup isonly required for installations that do not include the wireless
Gateway. The Zone Playerscan be wired directly to the home’s network router or a
networkswitch that is connected to the network’s router, see 1.3 Using the Zone
Player Ethernet Connection.If you are using the Zone Players wirelessly, you
must use the NuVo Gateway.
If you are using the dedicated NV-CR100 NuVo Controller, follow the on-screen
prompts to connect to the appropriate network.This is necessary for communication
when the Gateway is not present.

13
2.4 Join My Existing System
If you are controlling the system with a third party smart phone or tablet and you
have downloaded an app that has never been associated with an existing system,
you will be prompted to join the existing system. Once the process is complete it will
not be necessary to repeat.
3. Add Players to the System
When the connection to the network is complete and communication is established,
a prompt will appear to add zones to the system. When the “Add Zone” button is
touched, you will be given a screen of zone icons. Establishing a new zone is simply
completed by touching the desired zone icon.
Touching the“Edit Zone Name” button will produce a keyboard and the ability to type
a customized name.
3.1 Associating a zone icon with a Zone Player
Each new zone name must be associated with the appropriatePlayer.
Place the Player in its desired location within the home, plug it into an electrical
outlet and place the power switch on the back panel in the ON position. The power
LED on the front panel will flash momentarily while the Player is booting. When it
stops flashing, the Player is ready for operation. Touch the Volume Up and Mute
buttons on the Player simultaneously.
The control app will indicate that the Player is connecting to the System. The control
app will indicate when the Player is connected. Touch the “Next” button and either
select “Add” to repeat the process of adding a new zone, or “Done” indicating that all
of the desired zones have been added to the System. Touch the “Finish” button to
complete the process.
3.2 Connecting Speakers to the Zone Player
Floor standing, in-ceiling, in-wall or bookshelf speakers can be used with the Zone
Players. The Players have a high-end brass 5-way binding post that can be
terminated by unscrewing the post to expose a hole. Insert the stripped portion of the
incoming speaker wire into the hole and screw the post back down onto the wire until
it is firmly secured. Make sure that the positive (red) terminal and negative (black)
are matched to the termination on the speakers. Crossing these will cause the
speakers to be “out of phase” and will severely hamper the speaker’s output.
Another method for termination is to terminate the wire intoa standard“banana”
connector and insert that into the end of the Player’s binding posts left and right for
each speaker.
3.3 Using the Audio Line-in

14
Each Player features a 3.5mm analog audio line-in. This allows anysource capable
of supplying a non-amplified audio signal to become a streaming audio source into
the Player System. The Players are designed to recognize when a device is plugged
in and make it available to the controller as a source selection. To select the source,
go to the menu buttons at the bottom of the Controller interface. Select “More” and
then “Line In” fromthe choices in the menu. A list of zones associated with Players
that have a local source plugged in will appear. Select the appropriate zone name to
begin listening to audio.
3.3.1 Naming the Local Line-in Source
An option for the Local Source input is the ability to give it a specific name. This is
useful if it will be connected as a widely used input into the System. When on the
“Line In” screen, touch the +plus button associated with the local zone name then
select “Rename”. A keyboard will appear so you can type a specific name for the
attached local source.
3.4 Using the Audio Line-out
The Players each have a stereo 3.5mmaudio output. This is useful for supplying the
zone’s audio signal to an additional amplification. This can be a receiver, amplifier
capable of driving multiple pairs of speakers, or for use with headphones or ear
buds. The output is active when the zone is powered on, so using it is as simple as
making the necessary audio connection to the desired amplifier. The outputitself is
variable, meaning its audio output level is controlled by the NuVo Control app.
3.5 Bluetooth
The NV-P200 Player comes with Bluetooth® connectivity.This allows any Bluetooth
enabled device to be paired with aP200 and in turn share anystreaming music with
the Portfolio System. Bluetooth devices have two states, paired and connected.
When a device is Paired means that it is recognized by the P200 and is a“trusted”
device. When music is actually being streamed, it is Connected.
To pair with a NuVo zone, enable Bluetooth on your device. Note the process for
turning the Bluetooth function on will vary with each device manufacturer. By design,
the zones with the Bluetooth enabled P200 Playerswill appear on the device’s
Bluetooth screen. Select a zone fromthe device to pair. Once paired, you can select
any music streaming service to stream through the system. The NuVo control app
will allow that device streamto be selected in any other zone.
An alternate means for pairing can be done by holding the Bluetooth button on the
zone Player until the front panel LED begins to flash blue. That zone should then
appear on your device.

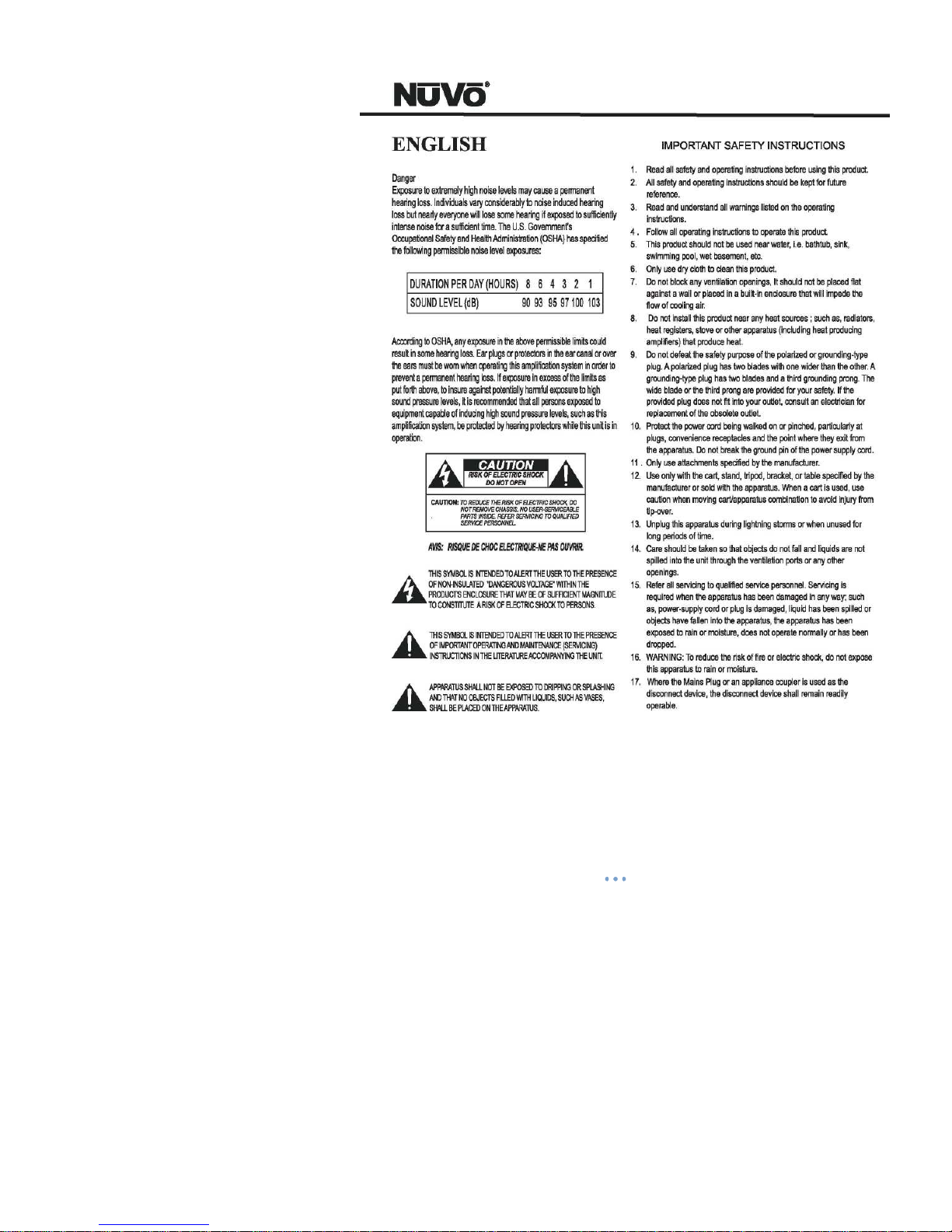

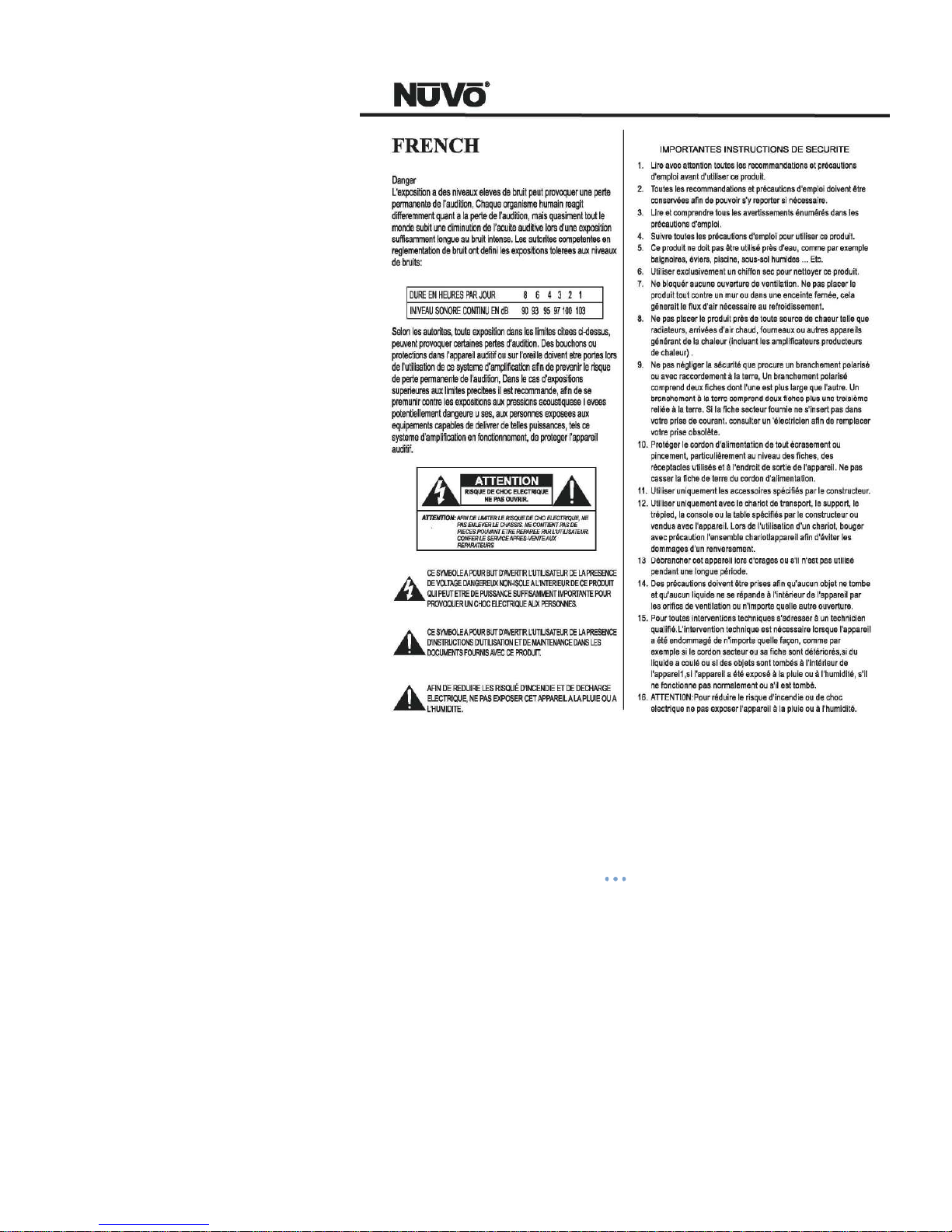

Important Information About
Your Product

This document contains important product safety and regulatory compliance
information. To view more in-depth use and installation instructions please visit
our website at www.nuvotechnologies.com/playermanual.
Contact Us
NuVo Technologies, LLC
3015 Kustom Dr.
Hebron, KY 41048
Toll Free: +1.866.796.4904
Local: +1.859.817.7200
Toll Free Fax: [phone]
Local Fax: [phone]
Email: [email protected]
Online
www.nuvotechnologies.com
Technical Support
Email: [email protected]
2

FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference
that may cause undesired operation. See instructions if interference to radio
or television reception is suspected.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
3

Radio and Television Interference
This audio equipment generates, uses, and can radiate radio-frequency energy. If it is
not installed and used properly – that is, in strict accordance with NuVo’s instructions
– it may cause interference with radio and television reception.
This equipment has been tested and found to comply with the limits for a Class B
digital device in accordance with the specification in Part 15 of FCC rules. These
specifications are designed to provide reasonable protection against such interference
in a residential installation. However, there is no guarantee that interference will not
occur in a particular installation.
You can determine whether your audio system is causing interference by turning it off.
If the interference stops, it was probably caused by the computer or one of the
peripheral devices.
If your audio system does cause interference to radio or television reception, try to
correct the interference by using one or more of the following measures:
•Turn the television or radio antenna until the interference stops.
•Move the audio device to one side or the other of the television or radio
•Move the audio device farther away from the television or radio.
•Plug the audio device into an outlet that is on a different circuit from the
television or radio. (That is, make certain the audio device and the television
or radio are on circuits controlled by different circuit breakers or fuses.)
If necessary, consult NuVo Technical Support, or see the service and support
information available for your NuVo product, or consult an experienced radio/television
technician for additional suggestions.
4

Important: Changes or modification to this product not authorized by NuVo
Technologies, LLC could void the EMC compliance and negate your authority to
operate the product.
This product has demonstrated EMC compliance under conditions that included the
use of compliant peripheral devices, USB cables, and Ethernet network cables
between components.
Responsible party (contact for FCC matters only):
NuVo Technologies, LLC
3015 Kustom Dr.
Hebron, KY 41048
Exposure to Radio Frequency Energy
The radiated output power of this device is well below the FCC and EU radio
frequency exposure limits. However, this device should be operated with a minimum
distance of at least 20 cm between the NuVo Player antennas and a person’s body,
and must not be collocated or operated in conjunction with any other antenna or
transmitter subject to the conditions of the FCC Grant.
FCC Bluetooth Wireless Compliance
This Class B device meets all requirements of the Canadian interference-causing
equipment regulations.
Bluetooth Industry Canada Statement
This Class B device meets all requirements of the Canadian interference-causing
equipment regulations.
Cet appareil de classe b respecte toutes les exigences du Règlement sur
l'équipement de brouilleur canadien.
5

Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil est conforme à Industrie Canada exempts de licence RSS norme.
Opération est soumis aux deux conditions suivantes :
1) Ce dispositif ne peut pas causer de brouillage.
2) Cet appareil doit accepter toute interférence, y compris les interférences
pouvant causer le fonctionnement intempestif du Règlement sur
l'équipement de device.causing.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Est conforme à la norme canadienne ICES-003 classe B.
6
