Nuvo NV-MPS4 User manual

NV-MPS4 and NV-MPS4-E Music Port
Installation Guide

GROUND
CLAMPS
ELECTRIC
SERVICE
ENTRANCE
ANTENNA
DISCHARGE UNIT
NEC SECTION
810-20
GROUNDING
CONDUCTORS
GROUND CLAMPS
POWER SERVICE
GROUPING ELECTRODE
SYSTEM NEC ART 250
PART H
NEC NATIONAL ELECTRICAL CODE
ANTENNA
LEAD-IN
WIRE
SAFETY NOTE:
Where the MAINS plug or appliance
coupler is used as the disconnect
device, the disconnect device shall
remain readily operable

ENGLISH
Danger
Exposure to extremely high noise levels may cause a permanent
hearing loss. Individuals vary considerably to noise induced hearing
loss but nearly everyone will lose some hearing if exposed to sufficiently
intense noise for a sufficient time. The U.S. Government's
Occupational Safety and Health Administration (OSHA) has specified
the following permissible noise level exposures:
According to OSHA, any exposure in the above permissible limits could
result in some hearing loss. Ear plugs or protectors in the ear canal or over
the ears must be worn when operating this amplification system in order to
prevent a permanent hearing loss. If exposure in excess of the limits as
put forth above, to insure against potentially harmful exposure to high
sound pressure levels, it is recommended that all persons exposed to
equipment capable of inducing high sound pressure levels, such as this
amplification system, be protected by hearing protectors while this unit is in
operation.
DURATION PER DAY (HOURS) 8 6 4 3 2 1
SOUND LEVEL (dB) 90 93 95 97 100 103
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF NON-INSULATED "DANGEROUS VOLTAGE" WITHIN THE
PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE UNIT.
1. Read all safety and operating instructions before using this
product.
2. All safety and operating instructions should be kept for future
reference.
3. Read and understand all warnings listed on the operating
instructions.
4 . Follow all operating instructions to operate this product.
5. This product should not be used near water, i.e. bathtub, sink,
swimming pool, wet basement, etc.
6. Only use dry cloth to clean this product.
7. Do not block any ventilation openings, It should not be placed flat
against a wall or placed in a built-in enclosure that will impede the
flow of cooling air.
8. Do not install this product near any heat sources ; such as,
radiators, heat registers, stove or other apparatus (including heat
producing amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding-type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord being walked on or pinched, particularly at
plugs, convenience receptacles and the point where they exit
from the apparatus. Do not break the ground pin of the power
supply cord.
11 . Only use attachments specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Care should be taken so that objects do not fall and liquids are
not spilled into the unit through the ventilation ports or any other
openings.
15. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way;
such as, power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally
or has been dropped.
16. WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE CHASSIS. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
CAUTION
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING
AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.

FRENCH
DURE EN HEURES PAR JOUR 8 6 4 3 2 1
INIVEAU SONORE CONTINU EN dB 90 93 95 97 100 103
Danger
L‘exposition a des niveaux eleves de bruit peut provoquer une perte
permanente de l’audition, Chaque organisme humain reagit
differemment quant a la perte de l’audition, mais quasiment tout le
monde subit une diminution de I’acuite auditive lors d’une exposition
suffisamment longue au bruit intense. Les autorites competentes en
reglementation de bruit ont defini les expositions tolerees aux niveaux
de bruits:
Selon les autorites, toute exposition dans les limites citees ci-dessus,
peuvent provoquer certaines pertes d’audition. Des bouchons ou
protections dans l’appareil auditif ou sur l’oreille doivent etre portes lors
de l’utilisation de ce systeme d’amplification afin de prevenir le risque
de perte permanente de l’audition, Dans le cas d’expositions
superieures aux limites precitees il est recommande, afin de se
premunir contre les expositions aux pressions acoustiquese I evees
potentielIement dangeure u ses, aux personnes exposees aux
equipements capables de delivrer de telles puissances, tels ce
systeme d’amplification en fonctionnement, de proteger l’appareil
auditif.
ATTENTION: AFIN DE LlMlTER LE RISQUE DE CHO ELECTR/QUE, NE
PAS ENLEVER LE CHASSIS. NE CONTIENT PAS DE
PIECES POUVANT ETRE REPAREE PAR L’UTILISATEUR.
CONFER LE SERVICE APRES-VENTE AUX
REPARATEURS
ATTENTION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR.
CE SYMBOLE APOUR BUT D'AVERTIR L'UTILISATEUR DE LAPRESENCE
DE VOLTAGE DANGEREUX NON-ISOLE AL'INTERIEUR DE CE PRODUIT
QUI PEUT ETRE DE PUISSANCE SUFFISAMMENT IMPORTANTE POUR
PROVOQUER UN CHOC ELECTRIQUE AUX PERSONNES.
CE SYMBOLE APOUR BUT D'AVERTIR L'UTILISATEUR DE LA PRESENCE
D'INSTRUCTIONS D'UTILISATION ET DE MAINTENANCE DANS LES
DOCUMENTS FOURNIS AVEC CE PRODUIT.
IMPORTANTES INSTRUCTIONS DE SECURITE
1. Lire avec attention toutes les recommandations et précautions
d'emploi avant d'utiliser ce produit.
2. Toutes les recommandations et précautions d'emploi doivent être
conservées afin de pouvoir s'y reporter si nécessaire.
3. Lire et comprendre tous les avertissements énumérés dans les
précautions d'emploi.
4. Suivre toutes les précautions d'emploi pour utiliser ce produit.
5. Ce produit ne doit pas être utilisé près d'eau, comme par exemple
baignoires, éviers, piscine, sous-sol humides ... Etc.
ée, cela
Protéger
pincement, particulièrement au niveau des fiches, des
réceptacles utilisés et à l'endroit de sortie de l'appareil. Ne pas
casser la fiche de terre du cordon d'alimentation.
11. Utiliser uniquement les accessoires spécifiés par le constructeur.
12. Utiliser uniquement avec le chariot de transport, le support, le
trépied, la console ou la table spécifiés par le constructeur ou
vendus avec l'appareil. Lors de l'utilisation d'un chariot, bouger
avec précaution l'ensemble chariotlappareil afin d'éviter les
dommages d'un renversement.
13 Débrancher cet appareil lors d'orages ou s'il n'est pas utilisé
pendant une longue période.
14. Des précautions doivent être prises afin qu'aucun objet ne tombe
et qu'aucun liquide ne se répande à l'intérieur de l'appareil par
les orifics de ventilation ou n'importe quelle autre ouverture.
15. Pour toutes interventions techniques s'adresser à un technicien
qualifié.L'intervention technique est nécessaire lorsque l'appareil
a été endommagé de n'importe quelle façon, comme par
exemple si le cordon secteur ou sa fiche sont détériorés,si du
liquide a coulé ou si des objets sont tombés à l'intérieur de
l'apparei1,si l'appareil a été exposé à la pluie ou à l'humidité, s'il
ne fonctionne pas normalement ou s'il est tombé.
16. ATTENTI0N:Pour réduire le risque d'incendie ou de choc
electrique ne pas exposer l'appareil à la pluie ou à l'humidité.
6. Utiliser exclusivement un chiffon sec pour nettoyer ce produit.
7. Ne bloquér aucune ouverture de ventilation. Ne pas placer le
produit tout contre un mur ou dans une enceinte fern
gênerait le flux d'air nécessaire au refroidissement.
8. Ne pas placer le produit près de toute source de chaeur telle que
radiateurs, arrivées d'air chaud, fourneaux ou autres appareils
générant de la chaleur (incluant les amplificateurs producteurs
de chaleur) .
9. Ne pas négliger la sécurité que procure un branchement polarisé
ou avec raccordement à la terre, Un branchement polarisé
comprend deux fiches dont l'une est plus large que l'autre. Un
branchement à la terre comprend deux fiches plus une troisième
reliée à la terre. Si la fiche secteur fournie ne s'insert pas dans
votre prise de courant. consulter un 'électricien afin de remplacer
votre prise obsolète.
10. le cordon d'alimentation de tout écrasement ou
AFIN DE REDUIRE LES RISQUÉ D'INCENDIE ET DE DECHARGE
ELECTRIQUE, NE PAS EXPOSER CET APPAREILA LA PLUIE OU A
L'HUMIDITE.

·
NV-MPS4 and MPS4-E Package Contents

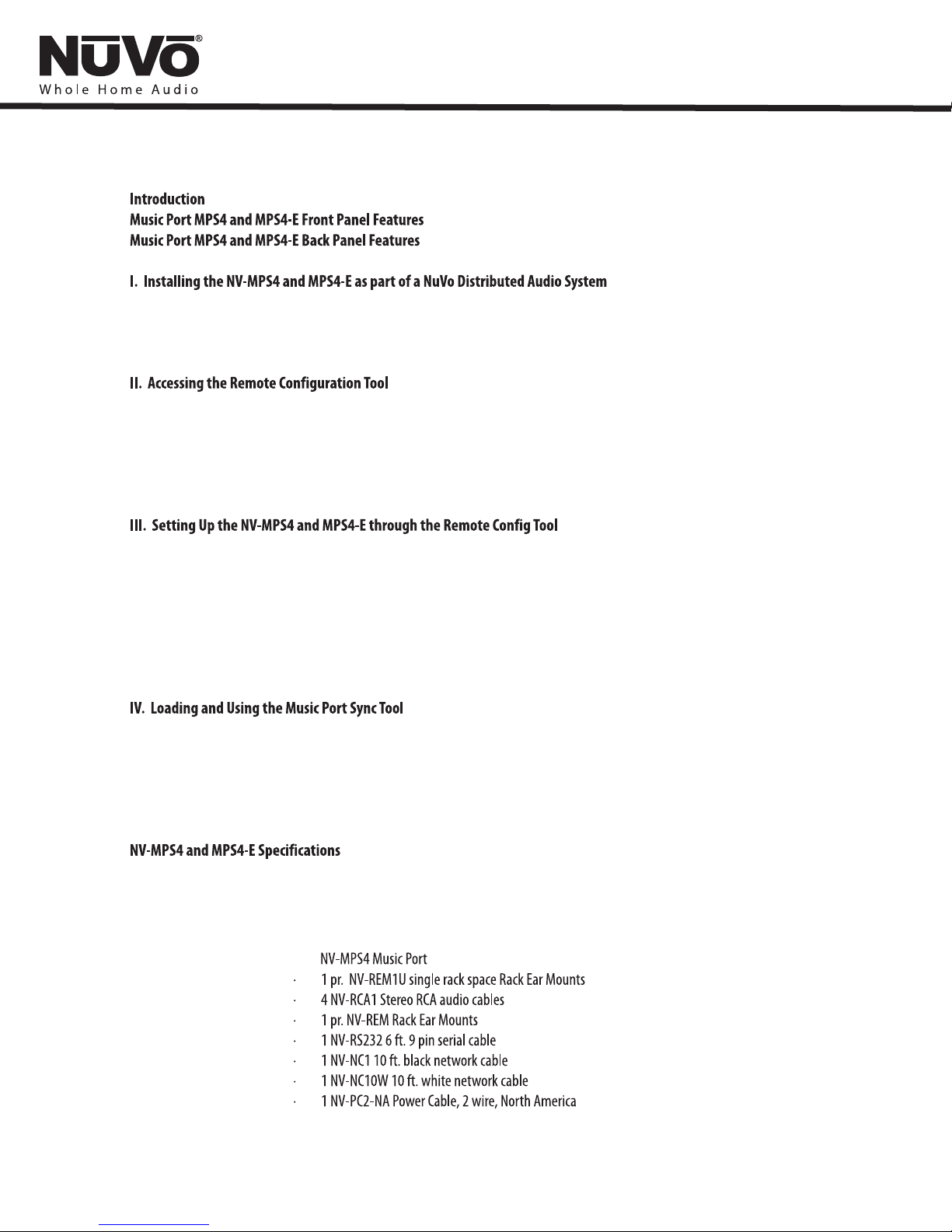

Table of Contents
.........................................................................................................................................................................Page 3
........................................................................................................Page 4
........................................................................................................ Page 5
Audio Outputs ..........................................................................................................................................................................Page 6
NuVoNet Connection ................................................................................................................................................................Page 6
RS232 Connection ....................................................................................................................................................................Page 7
Making a Network Connection .................................................................................................................................................Page 7
Understanding the LAN Error LED .............................................................................................................................................Page 8
Music Port EliteVGA and DVI-D Outputs ...................................................................................................................................Page 8
Accessing the Remote ConfigurationTool from the Local Area Network ...................................................................................Page 8
Finding the IP Address for the NV-MPS4 and MPS4-E ...............................................................................................................Page 9
Machine Settings .....................................................................................................................................................................Page 11
Display (MPS4-E) ......................................................................................................................................................................Page 12
Source Settings (MPS4) ............................................................................................................................................................Page 13
Source Settings (MPS4-E) .........................................................................................................................................................Page 14
Content ....................................................................................................................................................................................Page 14
Scheduling (MPS4-E) ...............................................................................................................................................................Page 16
Firmware ..................................................................................................................................................................................Page 17
Loading the Music Port Sync Tool .............................................................................................................................................Page 18
Status .......................................................................................................................................................................................Page 20
Music ........................................................................................................................................................................................Page 20
Advanced .................................................................................................................................................................................Page 21
Mac Sync ..................................................................................................................................................................................Page 21
.................................................................................................................................Page 22

MODEL NV-MPS4
USB USB
RS232 RS232
ETHERNET
Passthrough
To NuVo NuVoNet
ABC D
LL
R
R
AUDIO
SYSTEM
Music Port Server
R
OUTPUT POWER OUTPUT POWER
20W/6OHM X2 20W/6OHM X2
SYS ON
EXT. MUTE
RR
L
R
VARI AB LE
OUTPU T
FIXED
OUTPU T
SUM1
3033118
CUS
CON FORMS T O
UL ST D.65 00
CER TIFIE D TO
CAN /CSA S TD.E 6006 5
NuVo Tech nolog ies Cin cinna ti Ohio U SA
FUS E:T5 A
120 V 60Hz 5 00W
MODE L NV-I8 DM
SIX SO URCE EI GHT ZON E
AUDI O DISTR IBUTI ON SYST EM
www. nuvo tec hno logi es. com
OUTPUT POWER
OUTPUT POWER
OUTPUT POWER
20W/6OHM X2
20W/6OHM X2
20W/6OHM X2
TIP=L
RING= R
VARI AB LE
OUTPU T
FIXED
OUTPU T
TIP=L
RING= R
VARI AB LE
OUTPU T
FIXED
OUTPU T
TIP=L
RING= R
VARI AB LE
OUTPU T
FIXED
OUTPU T
TIP=L
RING= R
VARI AB LE
OUTPU T
FIXED
OUTPU T
TIP=L
RING= R
VARI AB LE
OUTPU T
VARI AB LE
OUTPU T
FIXED
OUTPU T
FIXED
OUTPU T
TIP=L
RING= R
TIP=L
RING= R
1 2 3 4 5 6
1 2 3 4 5 6
2 3 41 2 3
RS-232
CONNE CT TO
NV-I8X
USE NV-S LC 1
CABLE
CONNE CT TO
NV-I8X
USE NV-S LC 1
CABLE
CONNE CT TO
NV-I8E ZP 1
USE NV-N C1
CABLE
USE CNLY WITH 250V FUSE
456SUM2
5 6 7 8
OUTPUT POWER
20W/6OHM X2
ZONE 6
ZONE 6 ZONE 7 &8
SYST EM ZONE T RIGGER OU TPUTS
SOUR CE LINK
SOUR CE INPUTS
ZONE 1
NuVoNetEMIT TER OUT PUTS DIGI TAL L IN K
ZONE 3 ZONE 4 ZON E 5
ZONE 2 PROG RAM
6
45
31
2
SOUR CE S TATUS INPUTS
1
Dev ice 1
Con nect to
NV-I 8GM
Con cer to EZ P ort
Mod el NV- I8G EZP
www. nuvo tech nolo gies .com
NuVo Tec hnolo gies LL C Hebro n, Kent ucky US A
Dev ice 2 D evice 3
Dev ice 4 De vice 5 Dev ice 6
MENU OK
Modern Rock
Drift-Follow Th
Living For
AM/FM 3:09 pm
LL

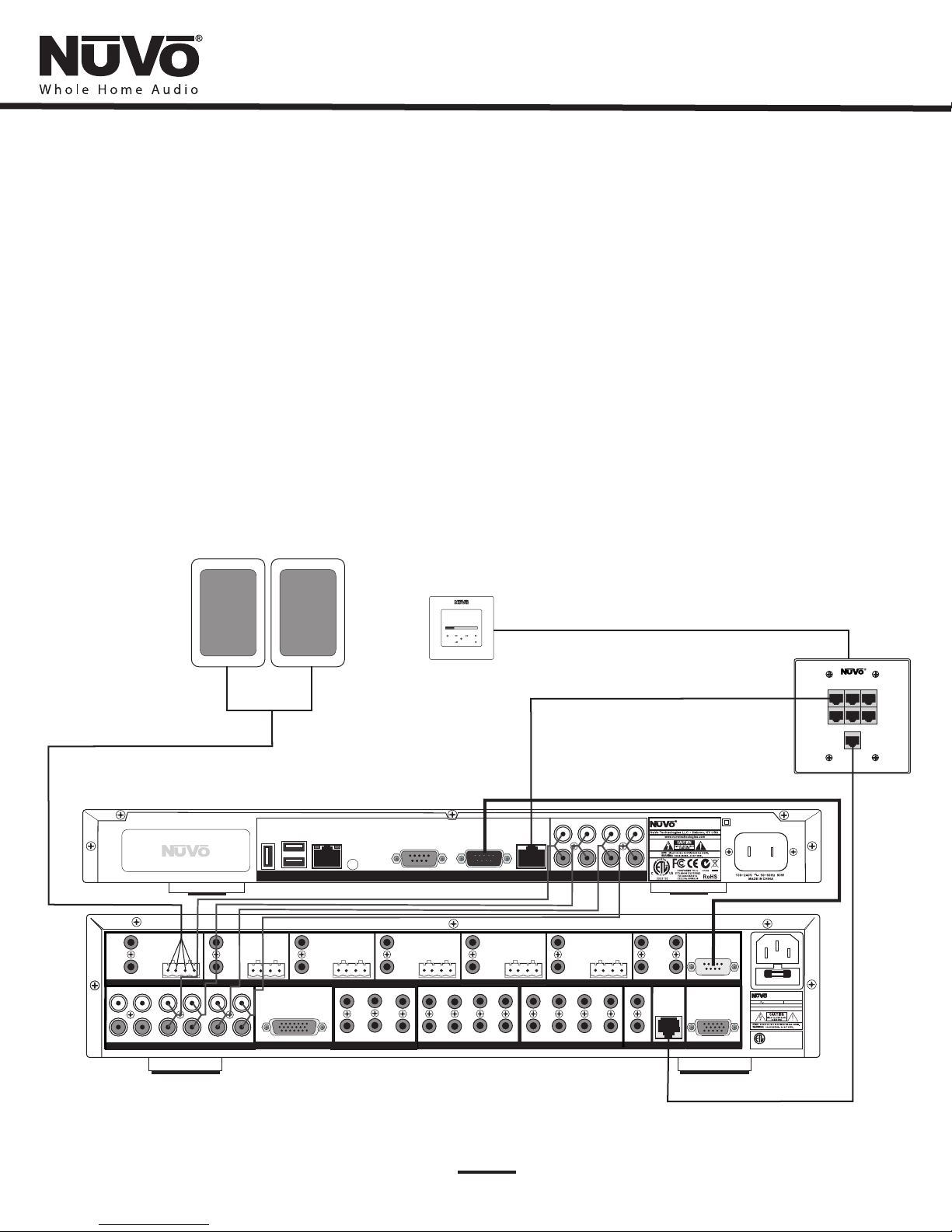

Diagram Shown with the NV-MPS4 Music Port
connected to the Grand Concerto System.
NV-MPS4 Music Port Wiring Diagram
Introduction
The Music Port or Music Port Elite are designed to fully communicate with the NuVo Essentia, Grand Concerto and Renovia Distributed Audio
Systems through its NuVoNet communication protocol. Properly installing the Music Port as a source component will provide full browsing to all of
your personal music (both through iTunes and Media Player) as well as online Internet radio.
Whether across the Web or from its internal hard drive, the Music Port gives you full metadata feedback from any of the NuVo Control Pads, and
when it is controlled through the new NV-CTP36 Touch Pad controller and the iPad/iPhone app control, you will even enjoy full color album art.
Third party IP control, cloud synchronization with all of your music content, music event scheduling and other additional features are available
through the new Music Port Elite.
Through the Music Port, a world of music is at your fingertips.
3

POWE R
1234567 8

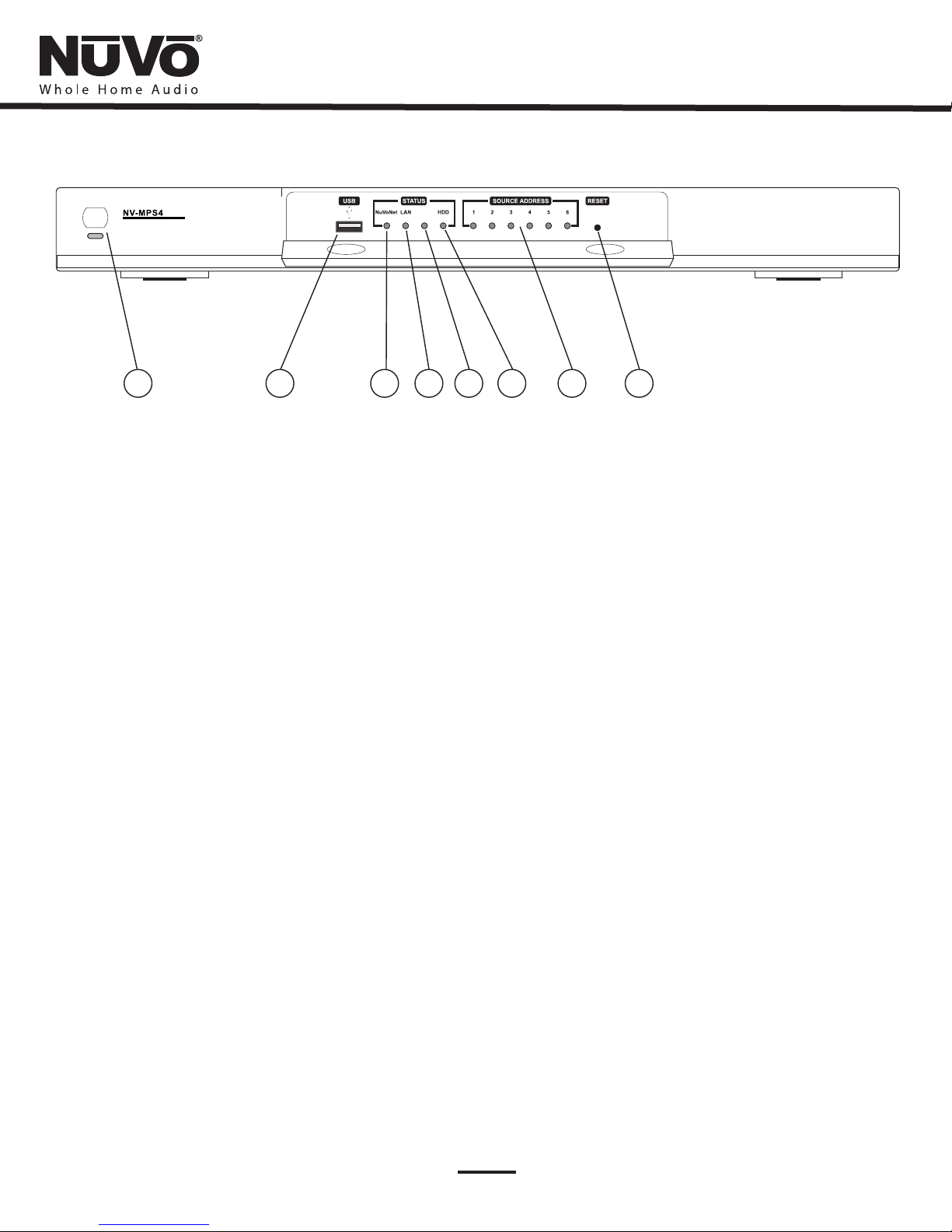

NV-MPS4 and MPS4-E Music Port Front Panel Features
USB Port:
NuVoNet Error LED:
LAN Error LED :
RS232 Error LED:
HDD Status LED:
Source Address LED’s:
Reset Button:
1. Power: This button supplies power to the Music Port when the unit is plugged into an AC power source and the button is pushed.The
associated blue LED will light.
In normal operation it will remain unlit.
2.
3.
4.
5.
6.
7.
8.
This USB port is for use by NuVo Technical Support.
The Music Port is designed to communicate via a CAT5 cable to the NuVo Essentia, Grand Concerto, and Renovia
Distributed Audio Systems.This red LED is designed to light indicating a lack of communication.With normal communication, it will remain unlit.
This red LED will light when there is no Local Area Network signal present at the RJ45 port on the Music Port back
panel, or when there is an interruption in the LAN signal. See page 8,
This red LED will light when the Music Port does not detect a serial connection at its DB9 output on the back panel.
When a serial connection is present and active, the LED will remain unlit.
This green LED will light when the Music Port’s hard drive is active.
These green LED’s 1 - 6 will light indicating the assigned source inputs on the associated NuVo Distributed Audio System.
This recessed button will reset the Music Port’s operating system when it is pushed.
Ethernet
Understanding the LAN Error LED,for a detailed description of the
different error states.
RS232
4
Music Port

MODEL NV-MPS4
USB USB
RS232 RS232
ETHERNET
Passthrough
To NuVo NuVoNet
ABC D
LL
R
R
AUDIO
SYSTEM
Music Port Server
VGA DVI-D
2345678

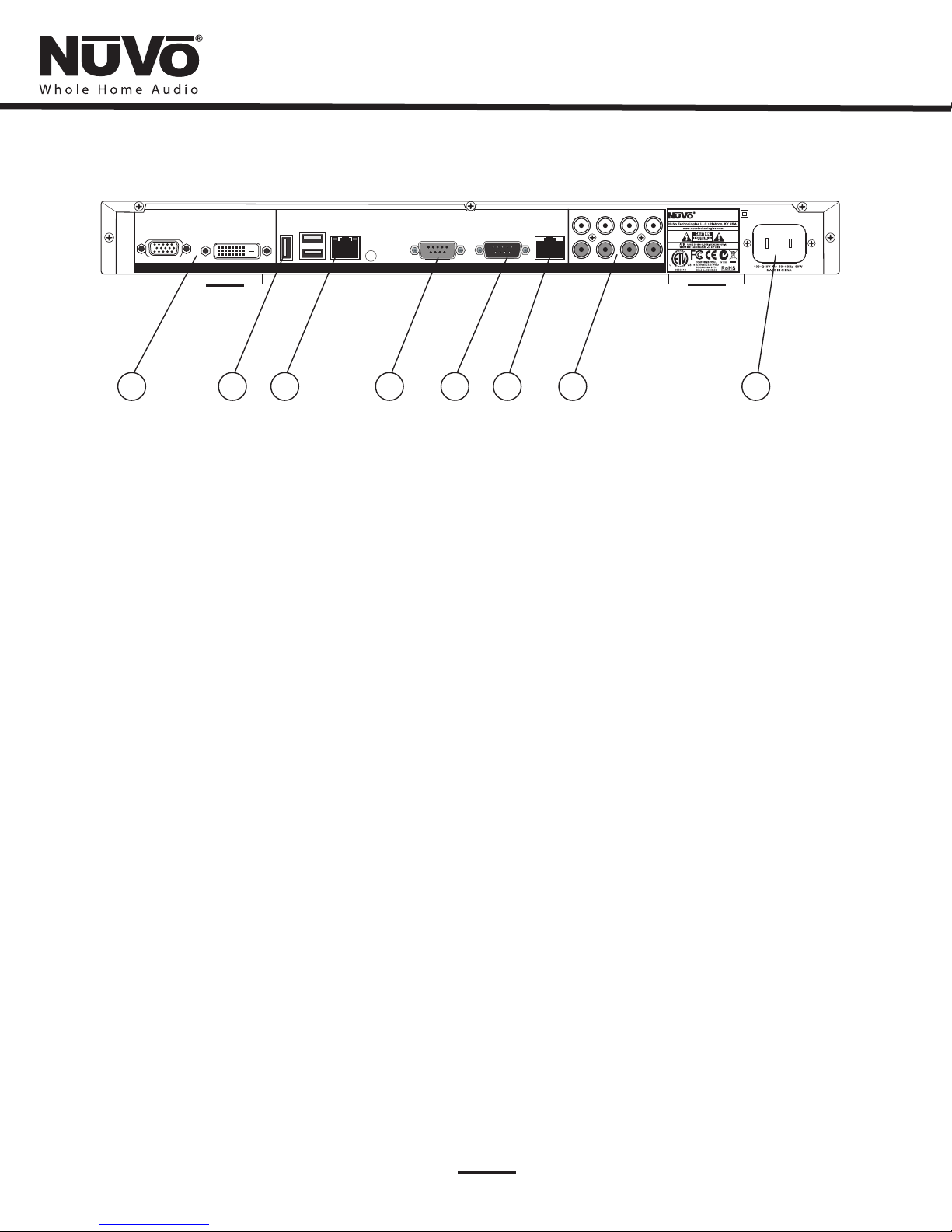

NV-MPS4 and MPS4-E Music Port Back Panel Features
Video Outputs: (
USB Ports:
Ethernet:
Passthrough RS232:
NuVo RS232 :
NuVoNet:
Audio Outputs:
AC Power:
1. Elite only) AVGA or DVI output is available for providing a selected picture slide show or onscreen “now playing”information
for the selected source output.
The USB ports are only for use by NuVo Technical Support.
This RJ45 port allows the Music Port to connect to the home’s network. This enables the music files on the home’s network to be
shared on the Music Port’s hard drive and the streaming of online Internet radio stations.
The NuVo distributed audio systems are capable of being controlled serially by a third party home automation system.This
DB9 input is designed to pass incoming serial commands through to the adjacent RS232 output.This allows both Client interface control from
network computers of the attached NuVo audio system, and third party serial control of the same NuVo system.
This DB9 port connects to the attached NuVo distributed audio system. This allows any computer on the home’s network to operate
the Client interface for control of audio zones, source selection, and access to the music library. It also works with the adjacent Passthrough RS232
port to send control commands from a third party home automation system to the attached NuVo audio system.
This RJ45 port connects to the attached NuVo distributed audio system and allows full source metadata display and control from the
NuVo system Control Pads.
The Music Port has four independent stereo RCA audio outputs that allow its audio streaming content and stored music file
audio signal to be sent to any audio distribution system or amplifier.
A standard detachable IEC power cord supplies power to the NV-MPS4. A switching power supply allows the Music Port to
operate world wide at any voltage.
2.
3.
4.
5.
6.
7.
8.
5
1
VIDEO

I. Installing the NV-MPS4 and MPS4-E as Part of a NuVo Distributed Audio System
The NV-MPS4 will fully communicate as a NuVoNet audio component with a few simple connections. Locate the NV-MPS4 component with the
main component of the NuVo Distributed Audio System. Make all the connections first and plug it into an AC power source and press the Power
button on the front panel.The NV-MPS4 operating system will automatically boot up. You will see considerable activity on the“HDD”hard drive
status LED on the front panel during this process.This will take approximately 60 seconds.
There are four independent audio outputs available to the NuVo System. These will be addressed through the Remote Configuration tool, see
page11 .

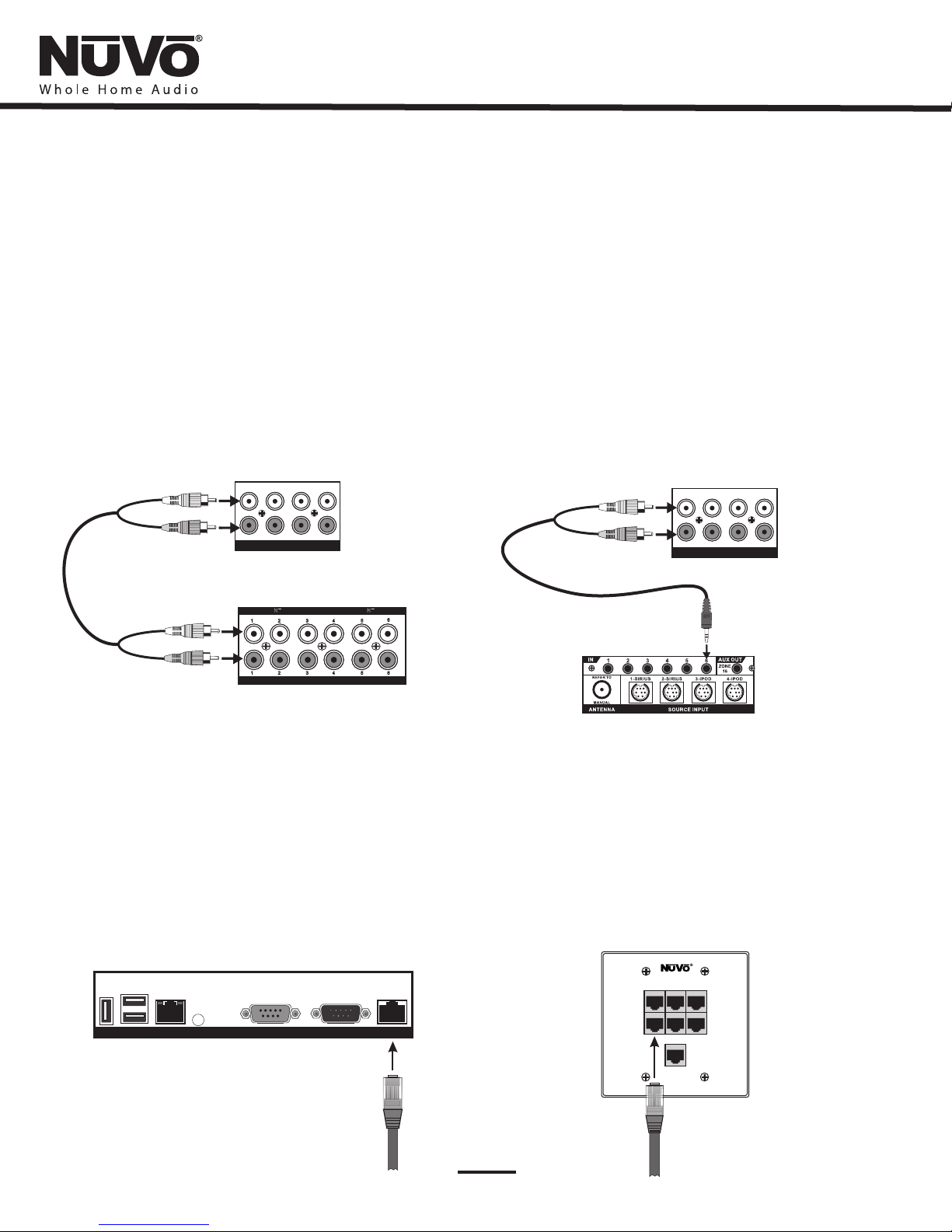

Connect the audio outputs from the NV-MPS4 to the desired audio inputs on the Essentia, Grand Concerto or Renovia System using standard stereo
RCA cables (four are supplied with the NV-MPS4 package) or if you are connecting to the Renovia System, use stereo RCA to stereo mini 3.5 mm
cables, Fig. 1.
Audio Outputs
II.
Setting Up the NV-MPS4 Through the Remote Configuration Tool,
NuVoNet Connection
”
Full communication with the NuVo Distributed Audio Systems is provided through a single CAT5 connection. This requires a standard network CAT5
cable (one is provided in the NV-MPS4 package).
To make this connection to the Essentia or Grand Concerto Systems, plug the CAT5 into the“NuVoNet RJ45 output on the NV-MPS4 back panel and
into one of the“Device”inputs on the Essentia Allport or the Grand Concerto EZ Port. Connect another CAT5 from the Allport or EZ Port“NuVoNet”
output to the input on the NuVo Distributed Audio System, Fig. 2.
6
Fig. 1
A
A
B
B
C
C
D
D
L
L
L
L
R
R
R
R
AUDIO
AUDIO
SOURCE IN PUTS
ZONE 1 ZON E 2
1 2 3 4 5 6
1 2 3 4 5 6
ZONE 1 ZON E 2
NV-MPS4 Audio
Outputs
NV-MPS4 Audio
Outputs
Renovia Audio
Inputs
Essentia or Grand Concerto
Audio Inputs
USB USB
RS232 RS232
ETHERNET
Passthrough
To NuVo NuVoNet
SYSTEM
Devic e 1
Conne ct t o
NV-I8G M
Conce rt o EZ Port
Model N V-I 8GEZP
www. nuv ote chn olo gies .co m
NuVo Tec hnolo gies LL C Hebro n, Kent ucky US A
Devic e 2 De vi ce 3
Devic e 4 Dev ic e 5 De vi ce 6
Fig. 2

If you are installing the Music Port with a Renovia System, plug the CAT5 directly into one of the three“NuVoNet”inputs on the back panel of the
Renovia Source Hub, Fig. 3.
Fig. 3
7
USB
USB
USB
USB
RS232
RS232
RS232
RS232
ETHERNET
ETHERNET
Passthrough
Passthrough
To NuVo
To NuVo
NuVoNet
NuVoNet
SYSTEM
SYSTEM

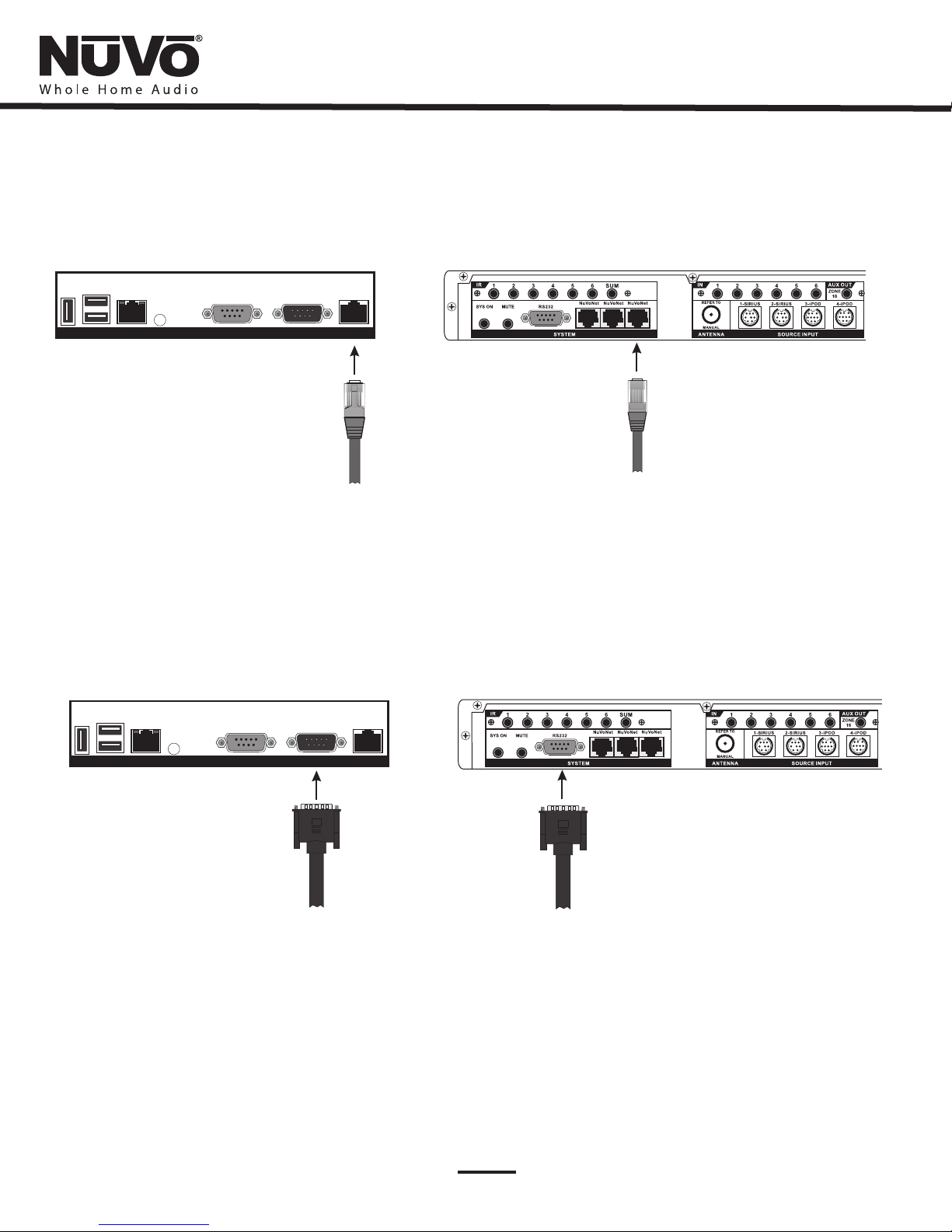

RS232 Connection
A DB9 cable connection is needed between the Music Port and the attached NuVo System to enable full integration of the Music Port. Most often,
this control is the iPhone/iPad app or the network computer Client interface, but it is also important if you are controlling through one of the home
automation control modules. These are currently available for AMX, Crestron and URC from the NuVo Website Dealer Resource Center, Fig. 4. A
passthrough port is available to allow serial control to pass to the common RS232 port on the NuVo System.
II. Accessing the Remote Configuration Tool
The Remote Configuration Tool is a quick, easy setup for the operation of the Music Port. Once configured, it will be fully operational with any of the
NuVoNet Audio Distribution Systems.
Make sure the NV-MPS4 is plugged in, powered on, and connected to the home’s router through its“Ethernet”port. A live Internet connection will
cause the port LED’s to light green, Fig. 5. It is suggested that you use the white CAT5 cable for this purpose to avoid confusing it with the NuVoNet
cables.
Making a Network Conncection
Fig. 4

RS232
8
Understanding the LAN Error LED
LED not lit:
LED solid red:
LED blinking twice:
LED blinking three times:
The front panel of the NV-MPS4 has a red LED designed to alert you to communication issues across its network, Fig. 6. The state of the LED
indicates the nature of the problem.
This indicates good communication. No problem is found.
A cable connection at the“Ethernet”port on the back panel is not detected.
There is no WAN, Wide Area Network detected or no Internet connectivity.
No DHCP server has been found on the local area network.
Music Port Elite VGA and DVI-D Outputs
section III. Setting Up the Music Port Through the Remote
Config Tool, pg. 11 .
The Music Port Elite model has a VGA and DVI-D video output. Either of these can be connected to a local video monitor to display local photos as a
slide show, or display the current“now playing”information for that local zone. The outputs are not simultaneously active, and can only be attached
to a single NuVo zone.The display tab in the Remote Config Tool discussed in
allows the appropriate zone output and content folder selection from the network
Fig. 6
LAN Error LED
Accessing the Remote Configuration Tool from the Local Area Network
Go to your computer and make sure it is connected to the same network as the NV-MPS4 (this is usually a wireless connection). Open an Internet
browser window and type the default name, in the address bar, Fig. 7.music-port/config
Fig. 7
Fig. 5
AB
A:
B:
A green LED indicates that a LAN link has been established. A blinking
green LED indicates LAN activity.
This LED indicates connection speed. Not lit means 10 Mb/s data rate,
solid green is 100 Mb/s data rate and Yellow is 1000 Mb/s data rate.
USB USB
RS232 RS232
ETHERNET
Passthrough
To NuVo NuVoNet
SYSTEM

9
Finding the IP Address for the NV-MPS4 and MPS4-E
If the“music-port”name does not connect, you can look up the IP address assigned to the Music Port and type that into the browser address bar,
i.e.. . 9.192.168.0.124/config,
Fig. 9
To find the address, go to the Menu of a Control Pad in the System. Choose one of the Music Port outputs from a Control Pad. In the Menu, go to
“Source Options”and then select“Source Info”. You will then see the selection“IP Address”. Highlight and press the“OK”button. This will display
the IP address that has been assigned to the Music Port, Fig. 10.
Main Menu
Albums
Genres
Songs
Setup
Playlists
Source Options
Adv. Zone Control
Source Info
Version
IP Address
IP Address
192.168.0.124
OK
Fig. 10
This should open the Remote Configuration Tool, Fig. 8.
Fig. 8

10

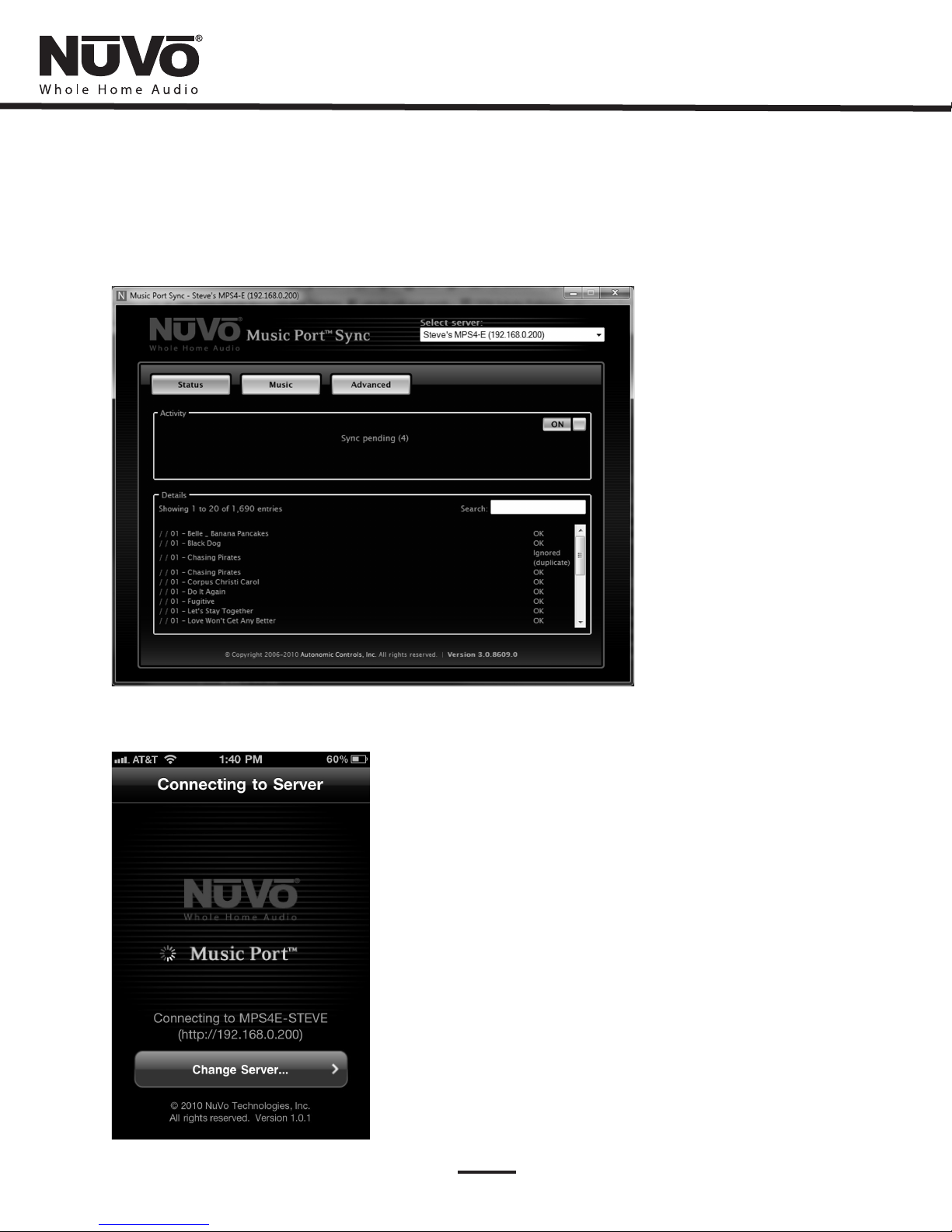

Another alternative is to open the Music Port Sync Tool to discover the NV-MPS4. The IP address will appear in the“Advanced”Tab (note that the
SyncTool must be loaded on your computer), Fig. 11, see section page19 Yet another option is the
startup screen of the iPhone or iPad app, Fig. 12. This screen first appears when the app is opened on an Apple device.
IV. Loading and Using the Music Port Sync Tool, .
Fig. 11
Fig. 12

11
Date and Time: This section allows you to specifiy a time zone and online server for monitoring the current time
from theWeb. If you check the box,“Syncronize NuVo amplifier’s clock”it will automatically update the time on the attached NuVo
Distributed Audio System, Fig. 14.
Fig. 14
III. Setting Up the MPS4 and MPS4-E through the Remote Configuration Tool
Once you have opened the Remote Configuration Tool, setup of the Music Port is easy.
The first tab of the setup utility is Machine Settings.The choices to note here are the Name Identification, time zone settings, for monitoring the
correct time from the web, and a choice of automatically configuring the NV-MPS4 on the home’s network or assigning a static IP address.
This is an option of renaming the Music Port from its default,“music-port”, . This
is the name that will be used to access the server on the network, with the Music Port Client and Music Port
SyncTool, see section .
Machine Settings
Machine Identification:
IV. Loading and Using the Music Port Sync Tool,
Fig. 12
Fig. 13

12
Wired Ethernet:
Logging:
The default is to let the network automatically supply an address to the Music Port when is connected through the
“Ethernet”port. If you choose, you can assign a static address using this drop-down menu, Fig. 15.
This section is for technical support. If instructed to do so by a technical support person, you can upload log files to NuVo
Technical support for troubleshooting purposes.When the“Machine Settings”choices are made, click “Save Changes”.
Fig. 15
Fig. 16
Display (MPS4-E): The Elite model features aVGA and DVI outputs to provide an onscreen“now playing”display and photo slide show. This tab is
to allow selection of the photo content to be displayed and the zone of the attached display, Fig. 16.

13
Photo and Music Shared Folder (MPS4 and MPS4-E)
When the Music Port and the Music Port Elite are connected to a network, it creates a network shared folder for music. In addition, the
Music Port Elite creates a picture folder. Any photos intended for the onscreen display must first be copied to the picture folder. This is
accessed by placing a \\ and the MPS4-E or MPS4 IP address in the“Search”field under the“Start”menu, ie., \\192.168.1.100.This will make
both the music and picture folders (MPS4-E) available, Fig. 17. Any music or picture content to be shared with the associated Music Port can
be directly copied to these folders.
(MPS4-E)
Source Settings (MPS4): This tab simply sets a source address for the way in which you choose to connect the NV-MPS4 to the NuVo System, Fig.
18. When these choices are made, click “Save Changes”. Make sure to select the appropriate number of outputs you intend to use in the“Active
Outputs”drop-down menu.
Fig. 18
Fig. 17

14
Fig. 19

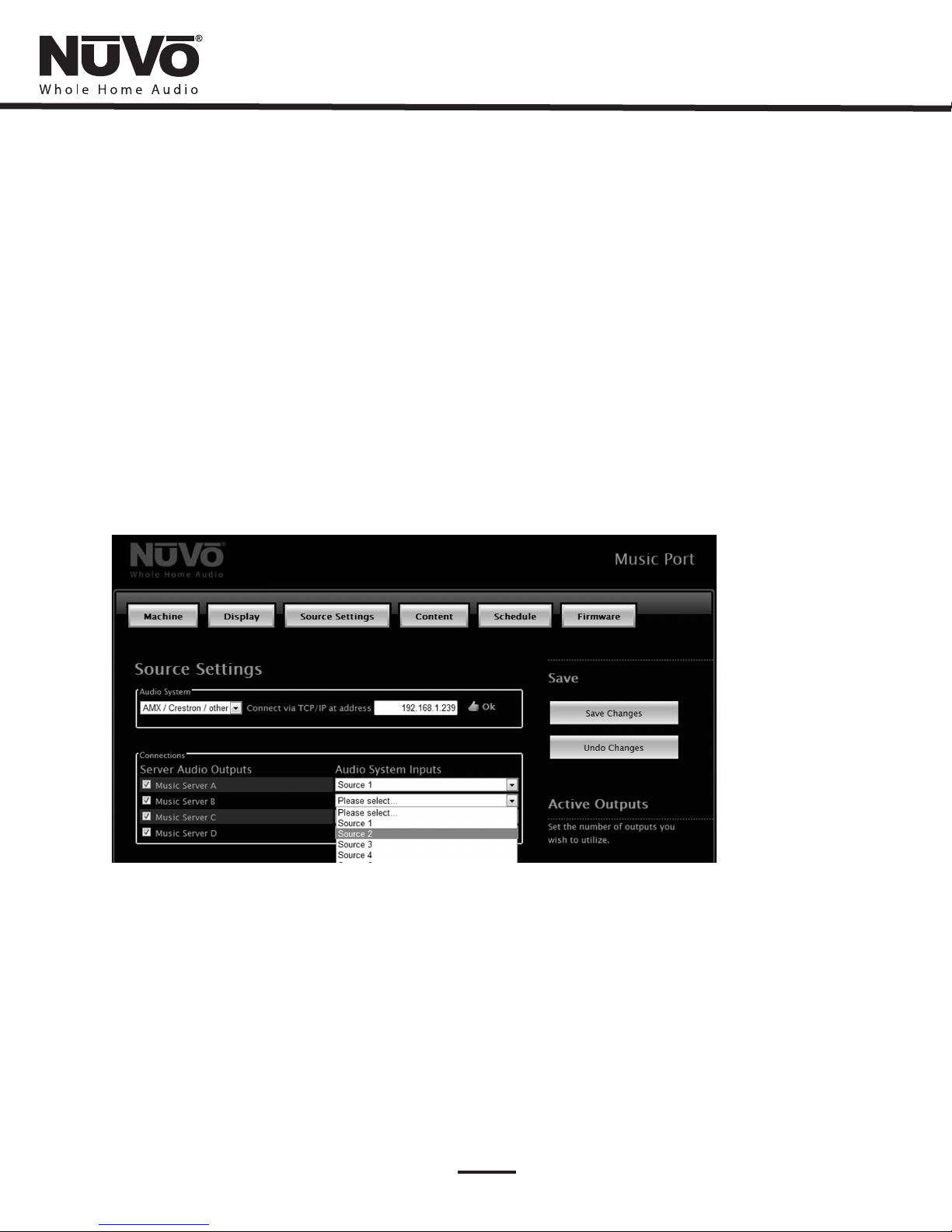

Source Settings (MPS4-E):
None:
NuVo:
AMX/Crestron/other:
The Source Settings tab for the Elite model is slightly different. It has an “Audio System”drop-down menu that sets the
intended control for the Music Port Elite. Part of the Elite’s capability is third party IP based control. There are three potential control choices.
This choice is intended for a strictly“stand-alone”installation which will not use a NuVo Distributed Audio System and NuVo Control
Pads.This control relies on the Apple iPhone, iTouch and iPad devices, or the Client control for network computers or portable flash
enabled Wi Fi devices.This choice does not allow zone selection and control beyond the four audio outputs and music content available
through the Music Port Elite.
This choice sets the MPS4-E for control from any of the NuVo Control Pads and also opens up additional control from third party IP
control.This selection requires a serial cable connection between the MPS4-E and the NuVo System.
This selection is important as full third party IP control is developed for the Music Port Elite. This should be used in
an installation where the MPS4-E is connected to a NuVo System, but zone and source control is strictly done through a third party
automation system. With this choice, it is necessary to associate the MPS4-E with an established IP address for the controlling automation
system, Fig. 19.
Content: Here is where you set the streaming capabilities of the Music Port. Supply the user account information in each of the provider sections
that apply to the intended use of the Music Port. Once this information is entered, click“Save Changes”.
MP3tunes (Elite only):
Access content from my cloud account:
Add content from this server:
An important feature of the Music Port Elite is the ability to synchronize content with a cloud locker. Any
computer or wi fi device can automatically upload content to a“cloud”account. There are two choices for MP3tunes content, Fig. 20.
This choice will allow the MPS4-E to access content that has been added to the MP3tunes
online locker account. The MPS4-E will copy the content to its internal hard drive.
This choice will force the MPS4-E to add all of the music from its internal hard drive to the MP3tunes
online locker.

15
Streaming Internet Radio: As streaming internet services are licensed through the Music Port and Music Port Elite, the prompt for log in
information will be available in the“Content tab”. Some services are free to the user and others require a paid subscription depending on
the provider. Individual accounts must be established through the providers website, Fig 21.
Fig. 21
Fig. 20

16
Scheduling (MPS4-E):
Note that this tab is the only place a scheduled event can
be created or deleted.
This is a utility for creating time, zone, and music selection specific events. The“Add New Schedule”will open a second
window for setting the specific parameters of the event . Any number of scheduled events can be created. Once they are set, they become a
default recurring function. There is also an option for cancelling scheduled events.
, Fig. 23
Contributing Computers:
Network Content (Elite only):
Listed here are all computers synced to the Music Port. To remove a contributing computer click the‘X’listed
to the left of the computer name. This will remove all content contributed by this computer.
The Music Port Elite can stream content from Network Attached Storage (NAS) drives. This is very useful
for users that have a large library of uncompressed music already located on a separate drive on the network.The“Add Network Content”
button allows you to select the desired content location, Fig. 22.
Fig. 22
Fig. 23
