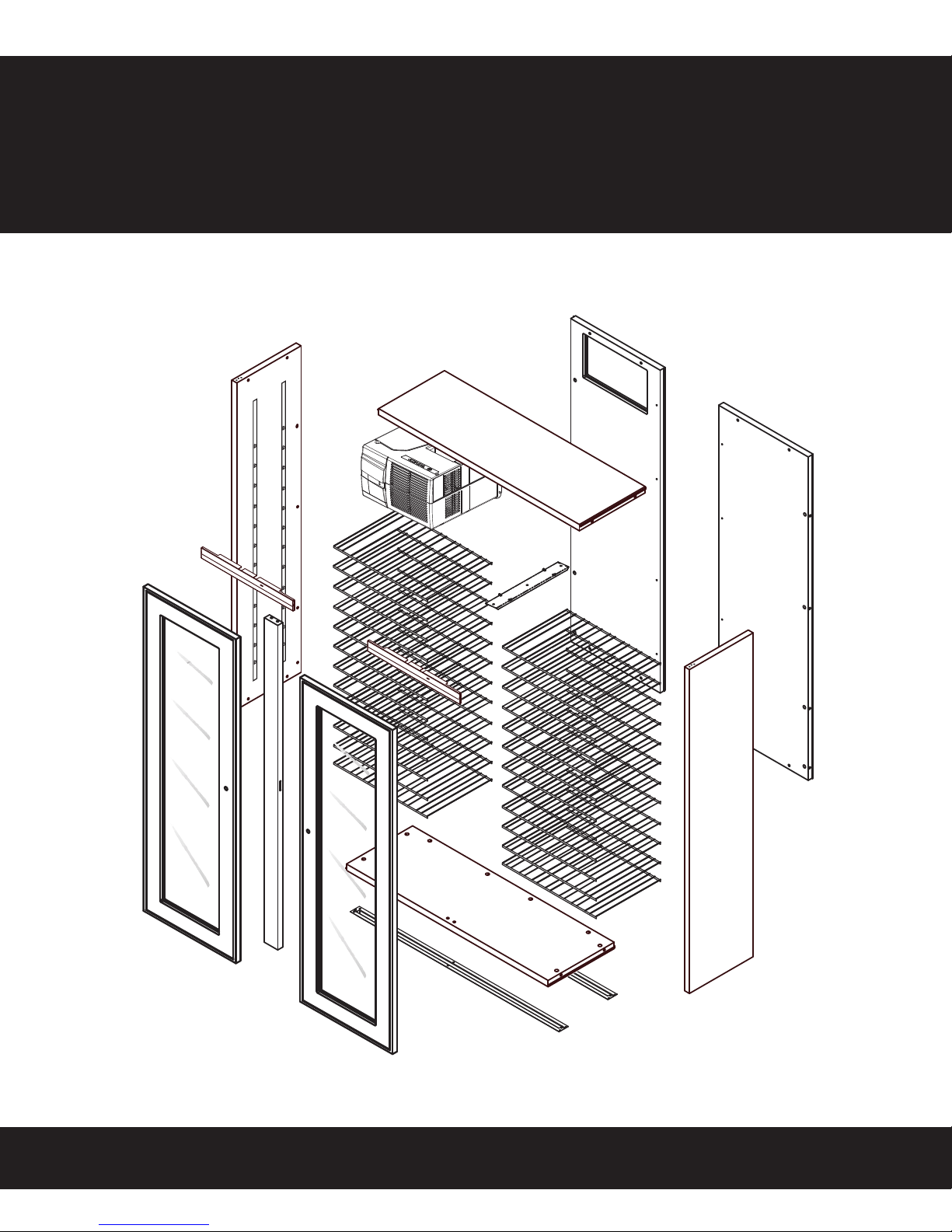

1. LOCATING YOUR WINE CELLAR - Remember, it is not an appliance, it is a piece of furniture
2. AREA FOR ASSEMBLING YOUR WINE CELLAR
Choose a clear 12’ by 12’ area with a level oor and carpeting to help reduce scratching of surfaces.
3. TOOLS
* Hex wrench (included)
* Phillips screwdriver
* Carpenter’s level
* Helper or two is strongly recommended
4. TEST THE COOLING UNIT
Plug it in for a few minutes on a table top, to verify that controls and display are functional, and that
the unit is producing cool air after a few minutes of operation.
Note that the electronic controller has a one-minute cautionary delay between initial plug-in and
start-up of the compressor.
NOTE: Fill out the WARRANTY REGISTRATION FORM with the serial number located on the LEFT
SIDE of unit.
A. Provide 4” minimum clearance for both sides and back, keep the top completely clear.
Under no circumstances should the unit be “built-in” in any way.
B. Never locate your wine cellar outdoors or in an area with extremes of temperature and
humidity.
Garages, attics, unnished basements, laundry rooms, breezeways, closets, bedrooms or
any unventilated room. In other words these units must be installed in air-conditioned
environments which do not “trap” the warm air being exhausted.
C. Temperatures in surrounding area must not exceed 80 °F (25 °C) with humidity levels not
to exceed 70% R.H. (Relative Humidity). Never set your temperatures below default (57ºF)
whenever ambient conditions are warm (above 75ºF) or humid (above 50%R.H.).
D. Outlet power must be a DEDICATED separately fused, grounded, 15 Amp 110 - 120 V line or
7.5 Amp - 240 V line rated for your unit (CHECK BOX OR SERIAL NUMBER LABEL ON UNIT
FOR YOUR LINE VOLTAGE REQUIREMENTS).
E. You must monitor your unit DAILY. If unit is in “Alarm”, unplug the unit inmediately. Always
check for any water (condensate) leaks.
Vintage Keeper will not be liable or responsible for incidental or consequential damages.
(See Warranty).
F. Place unit in a clean area and allow access to the exterior surfaces for periodic vacuuming
of the condensor coil. (See troubleshooting for details.)
G. Always remove all bottles before relocating your wine cellar.
READ BEFORE YOU START

~2~
~3~

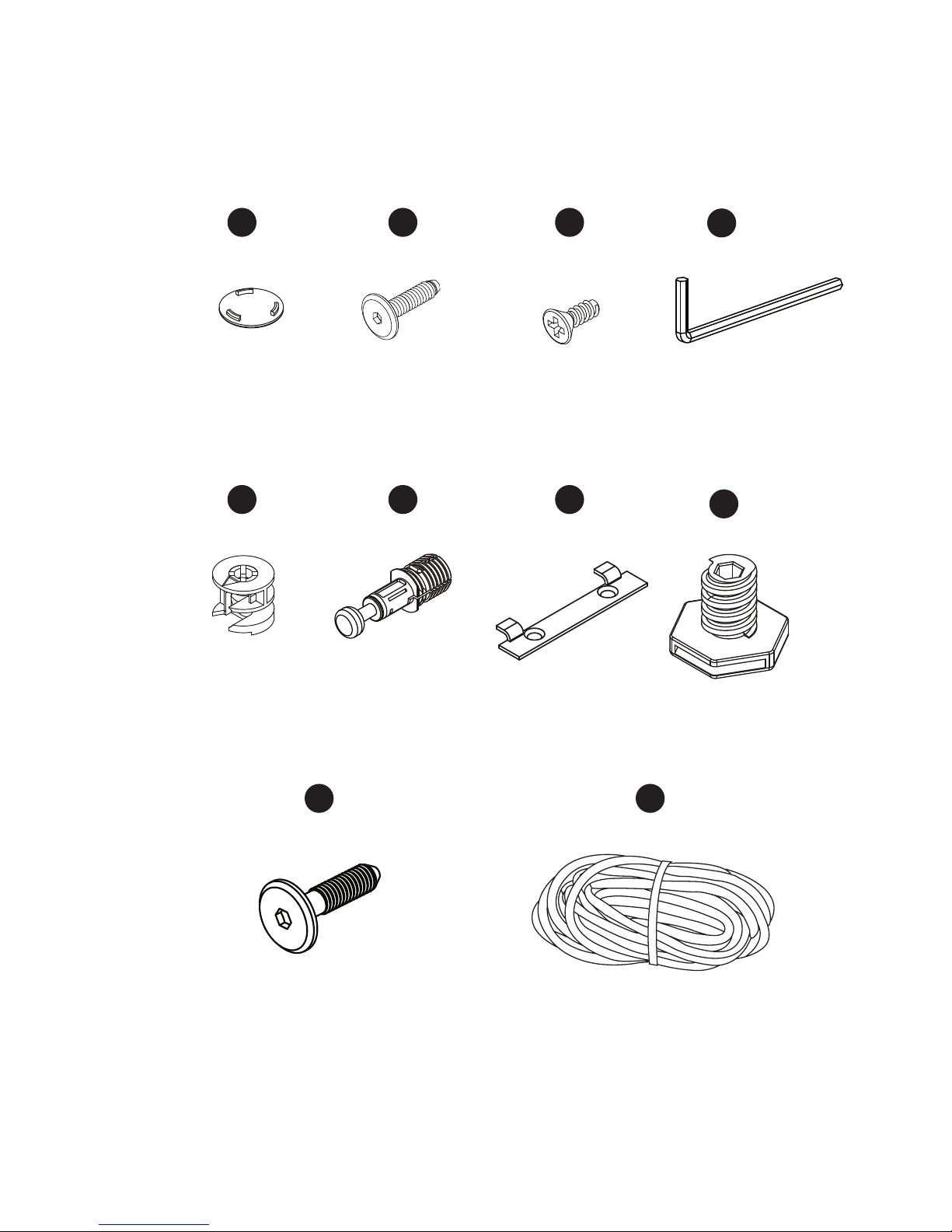

Cam Cap
x 26 (x30)*
Hex bolt
x 22 (x30)*
Coupler screw
x 8
Hex wrench
x 1
Cam
x 24 (x28)*
Cam Pin
x 24 (x28)*
Coupler hanger
x 4
Hinge
x 4
In Cooling Unit Box
Hex Bolt (Flange)
x 2
Panel Insulation Strip
*NOTE : Hardware quantities for Model 500 are indicated in parenthesis.
HARDWARE KIT
C
B
A
G
F
I
E
J
H
D

~4~
~5~

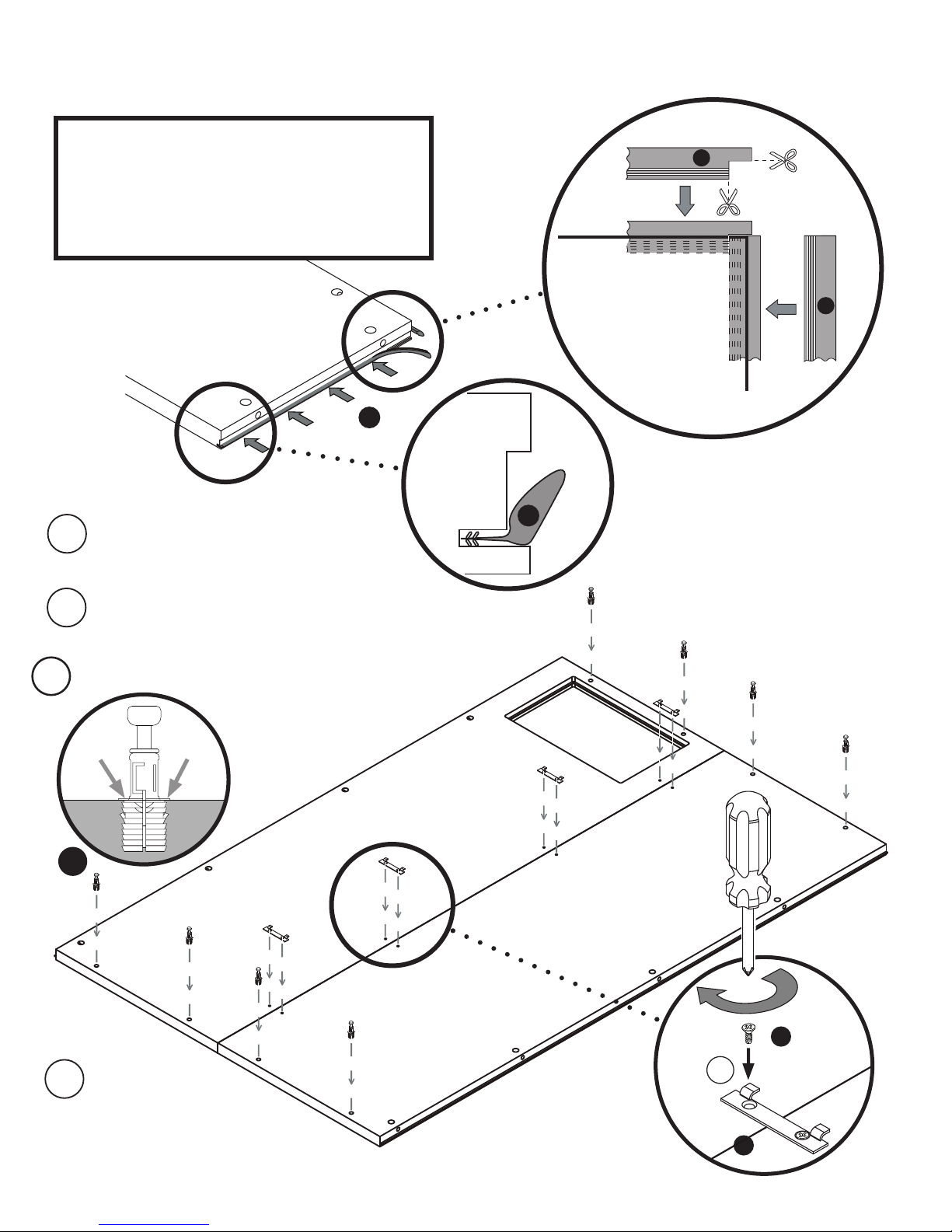

Open Boxes VP6 and VP7.
Install INSULATION STRIP (J) to
Back, Top, and Bottom Panels. PUSH
IN FULLY!
Insert Cam Pins (F) in BACK PANEL’S
predrilled holes down to TAB. (May
require some force)
STEP 1 : PANEL PREPARATION
1
PANEL EDGE
J
CAUTION :
1. Watch for sharp staples on boxes.
2. DO NOT STEP ON PANELS
3. The manual will give a recommended
order to open boxes, it saves time and space.
2
J
J
J
C
G
3
F
Screw in both
screws (C) half
way in Coupler
Hanger (G) to back
panels and tighten
fully when both
screws are in.
3
CAUTION : DO NOT BREAK CAM PIN TABS!
DO NOT HAMMER!
TAB
TAB
BACK PANEL
!

~4~
~5~
Use allen key provided or
#3 phillips screwdriver.
Attach TOP and Bottom to
Back by CAREFULLY aligning
edge holes over Cam Pins
and gently push together to
avoid damaging cam pins. DO
NOT BANG OR SLAP PANELS
TOGETHER!!!
Insert Cam, push all the way
in under panel level (may
require some force) and
make sure Arrow points to
outside edge.
Gently push down to bring
panels together before you
tighten the Cam. Start with
cams at each end.
Cam Arrow faces away from
outside edge when tightened.

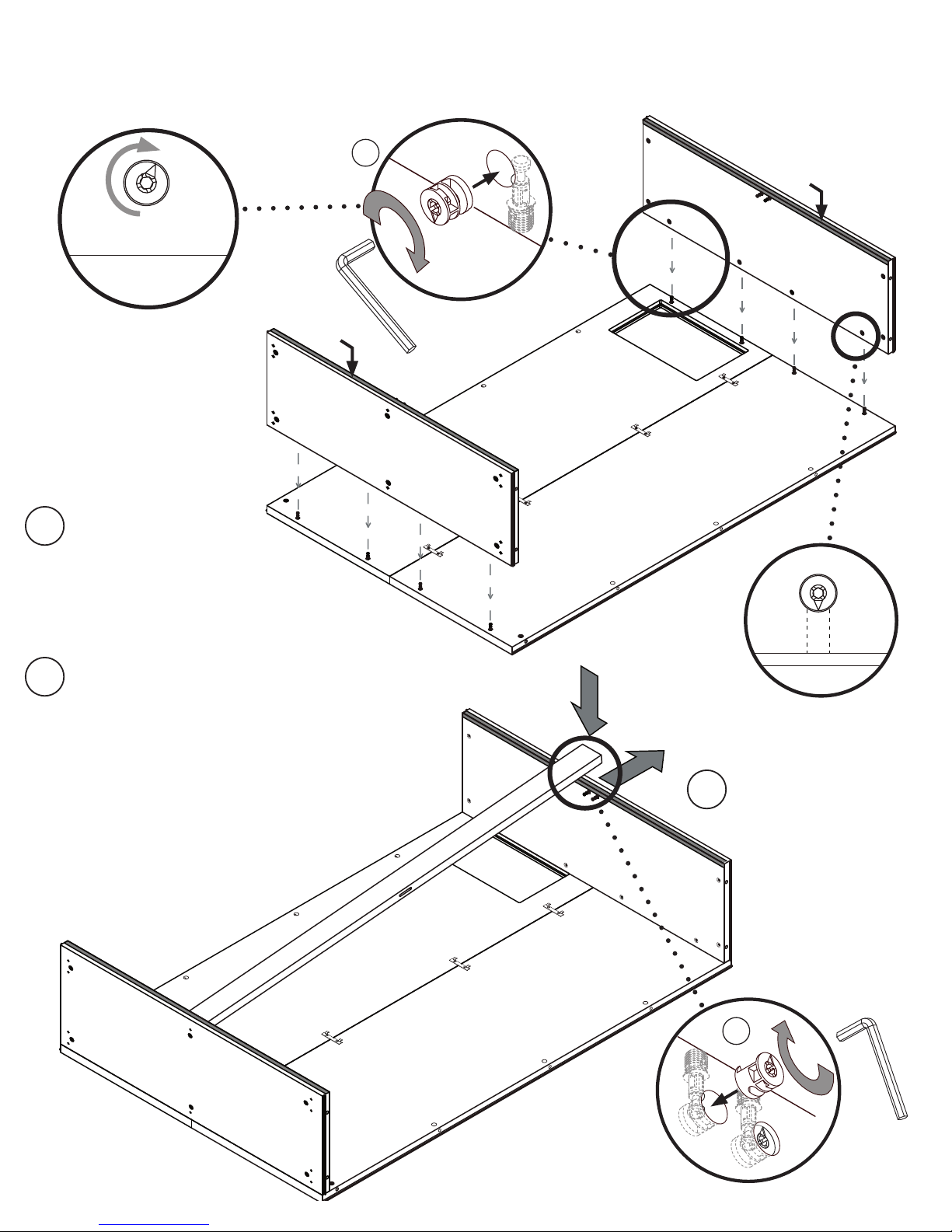

STEP 2 : CABINET ASSEMBLY
1

2
CAM in LOCKED
POSITION
PANEL EDGE
COUPLER BAR
INSIDE
CABINET
2
3
Insert Center COUPLER
BAR by guiding edge
holes over bottom
Cam Pins. Lightly push
out top panel edge to
allow Cam Pins to go in
Coupler Bar. Insert and
tighten Cams.
3
BOTTOM PANEL
BOTTOM PANEL
METAL
METAL

~6~
~7~
Insert Cam Cap (A) in
all Cam Holes.
3

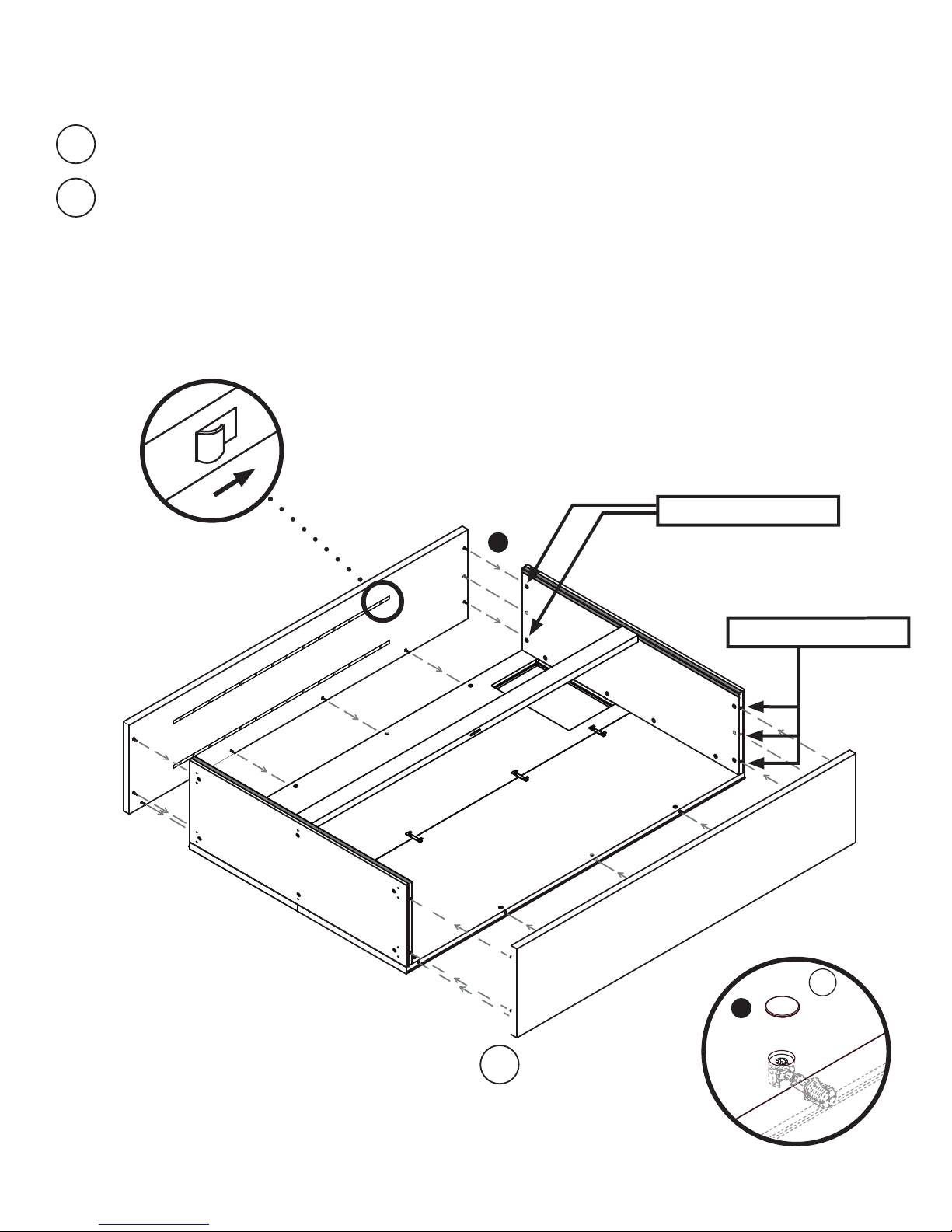

STEP 2 : CABINET ASSEMBLY CONTINUED
TOP !!!
Open Box VP5 or VP2.
Insert Cam Pins (F) in BACK PANEL’S predrilled holes down
to TAB. (May require some force)
Attach SIDES to Back/Bottom/Top by CAREFULLY aligning
edge holes over Cam Pins and gently push together to
avoid damaging cam pins. DO NOT BANG OR SLAP PANELS
TOGETHER!!!
Insert Cam, push all the way in under panel level (may
require some force) and make sure Arrow points to outside
edge., Push Panels together before tightening Cam, use allen
key provided or #3 phillips screwdriver. Start with cams at
1
2

3
A
F
BOTTOM PANEL
2 HOLES FOR MODEL 250
3 HOLES FOR MODEL 500

~6~
~7~
Open Box VP3.
Fasten one HINGE (found in
door box) to the SIDE of the
cabinet
Install four LEGS (H) into
BASES fully in.
Fasten FRONT BASE to
the BOTTOM of the cabinet
(FRONT BASE has to be set
with end tabs away from front
edge)
Fasten BASE with HEX BOLTS
(B)
4
1
3
4
STEP 3 : HINGE,BASE AND LEGS INSTALLATION
Raise cabinet and check for potential air
leaks at panel joints from inside.
2
3
1
H
D
B
NOTE: Fasten base with base tab away from the
front edge, then fasten and adjust the hinge
before fully tightening HEX BOLTS (B)
H
5
5
H
1
2
BOTTOM OF CABINET

~8~
~9~

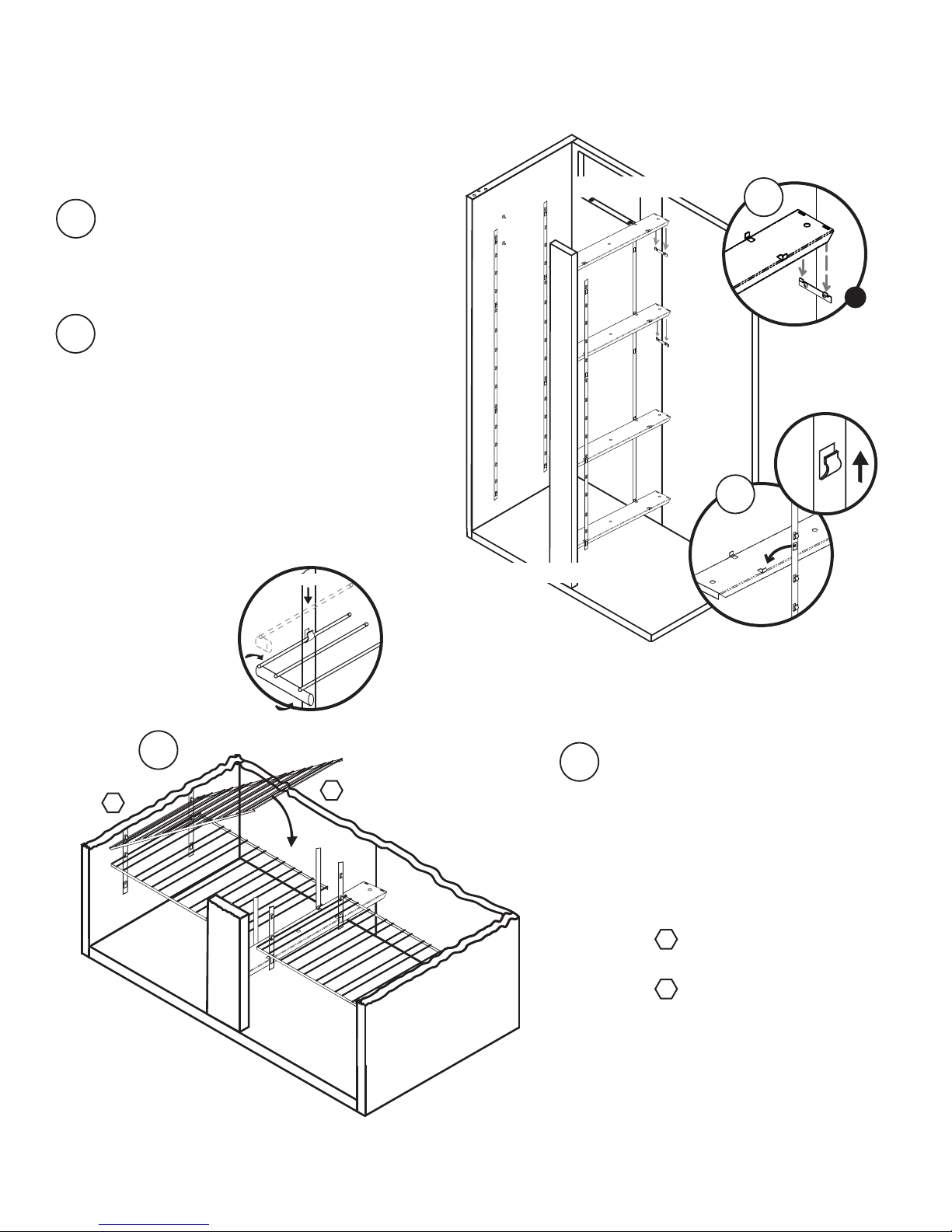

STEP 4 : SHELVES
Open box VP4S or VP4D
Hook SHELVES into hangers start-
ing from the bottom of cabinet, (12
shelves on cooling unit side, 14 on
the other) alternating the two sides
HINT :
CENTER SHELVES ON HANGERS
1
2
Snap SHELVES into
hangers on one side
Push the SHELVES
down to snap into op-
posite side hangers
3
3
12
PRESS
BOTTOM
TOP
1
2
Install COUPLER SHELVES between
the VERTICAL COUPLER and the
BACK PANEL, hook them on the
COUPLER HANGERS (G)
Install 4 HANGERS STRIPS, hook-
ing them to the COUPLER SHELVES
through square holes. (Watch for
orientation, all hooks have to point
upwards).
NOTE : Assure that each of them is
hooked to all 4 shelves
1
2
COUPLER SHELVES
VERTICAL COUPLER
G

~8~
~9~
STEP 5 : COOLING UNIT INSTALLATION
GET HELP BEFORE INSTALLING AND KEEP CHILDREN CLEAR OF CELLAR CONSTRUCTION AREA.
Get helper to help guide unit, keep light cord clear of edge inside cellar and to prevent tipping of cellar. MAKE
SURE INSULATION STRIP IS IN CORRECT ORIENTATION. Run light cord through Cut-out. Slide unit into the back
opening by angling unit A to allow light cord to clear and straighten to push in B . Screw allen bolts (I) through
bottom  ange holes. Make sure unit is level!
1
I
D
NOTE: If unit is operated according to speci cations over ows will not occur. Excess
condensation is only caused by extreme conditions. Unit will shut off at 72 °F and will
restart when temperature drops or unit is repluged. (In this case insert 3/8” O.D. hose
to drain hole, cut to appropriate length.)
Container
Optional (not required)
except as emergency
drain.
CORD MUST
CLEAR OPENING
A
B
SIDE VIEW
DO NOT!!!
KEEP UNIT LEVEL
INSIDE CELLAR
INSULATION
STRIP
CHECK
LEVEL TO
OPENING
STRAIGHTEN AND
PUSH THROUGH
GET HELPER TO
LIFT UNIT LEVEL
AND PULL FROM
INSIDE
(I) x2 Flange
bolts in
cooling unit
box.
SHELF
DO NOT OVER
TIGHTEN

~10~
~11~
STEP 6 : LIGHT AND LIGHT COVER INSTALLATION
4Insert LIGHT COVER to holes pre
drilled on front edge of TOP panel.
2Plug cord to LIGHTS and
1Remove plastic CAP at right end for
only LIGHT , DO NOT remove CAP
from LIGHT .
CAP
1
LIGHT
2
LIGHT
1
2
3Insert LIGHT to LIGHT COVER
12
Cord behind

~10~
~11~
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
4
5
6
7
1
2
3
4
4
5
6
7
1
2
3
4
5
6
7
1
2
3
3
4
5
6
7
1
2
3
4
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
4
5
6
7
1
2
3
4
5
6
7
1
2
3
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
4
4
3
3
4
4
4
Install TOP HINGES with HEX BOLTS (B)
NOTE :
STEP 7 : DOORS INSTALLATION
Insert DOORS onto
BOTTOM HINGES
1
2
1
B
D
2
Adjust  nal position of the door
before tightening the bolts and
move cellar into place, leaving
4” clearance all around cellar.
MAKE SURE CABINET IS AIRTIGHT!
Adjust the level by turning
(counter clockwise) the LEGS (H)
as needed. Use a carpenter’s level.

~12~
~13~
FEATURES: - Default SET temperature 57º F/14º C (ideal for wine storage).
- Calibration option of the temperature sensor.
- Display of actual temperature by request.
- SET temperature range 52ºF-64ºF.
- Digital temperature sensor.
- Dual display Fº/Cº.
- Settings are stored in memory for power failures.
- Pre programed software will reach the quietest most efcient operation.
OPERATION: - The display will show the detected temperature until the temperature will fall within 3º of the SET POINT.
- If the temperature is above the default 57º F + 1º or other preset value, after a delay of 1 minute the fan will
start, followed by the compressor within the next minute.
- The unit will cycle ON/OFF based on the temperature reading. Fan speeds are automatically set by the controller
to achieve optimum performance.
- Minimum ON and OFF cycle times are imposed by software, to prevent "short cycling".
SAFETY FEATURES:
ALARM: - If the temperature exceeds 72º F the unit will shut down, a sound warning will start and the dispaly will blink
alternating with the temperature reading.
- This function is disabled in the rst 4 hours “ Cool Down” period or after any reset for another 4 hours.
- The unit will restart and continue the cooling and cycling if the temperature falls below 72º F.
TO RESET: - Unplug and re plug the unit.
57º 56º
70º 57º
57º 57º
57º 58º
57º 56º
57º 14º
57º 57º
57º F0
F0 F1
F0 -1
Actual temperature: PRESS
SET temperature: PRESS
PRESS and RELEASE
To increase: PRESS once per degree
To decrease: PRESS once per degree
The new value will be memorized and the controller will reset automatically.
PRESS and HOLD until buzzer sounds in 5 seconds
The new value will be memorized and the controller will reset automatically.
PRESS and HOLD while holding PRESS and RELEASE
Wait 5 seconds
USE or
for each degree of offset
DISPLAY EXAMPLE
BEFORE AFTER
TO DISPLAY:
TO MODIFY SET
TEMPERATURE
(range is 52-64ºF):
TO CHAANGE FROM
ºF to ºC: or ºC to ºF
TO CALIBRATE:
CONTROLLER
OPERATION ACTION
NOTE: A negative offset will result in a warmer cabinet and a positive offset will result in a cooler cabinet.
The new value will be memorized and the controller will reset automatically.
CONTROLS : PLUG IT IN (wait one minute) and ENJOY!
57
KEYS
AL
DISPLAY:

~12~
~13~
MAXIMUM CAPACITIES AND LOADING TIPS
8
MODEL 500
220 248�38
40 40
26
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
Max 4" dia.
bottles
Max
3.5" dia.
bottles
3 rows
3" dia.
or 2 rows
4.5" dia.
Max: 506 3" bottles
26
2
12
8
8
4
MODEL 250
110 124�19
20 20
13
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
Max 4" dia.
bottles
Max
3.5" dia.
bottles
3 rows
3" dia.
or 2 rows
4.5" dia.
Max: 253 3" bottles
13
1
4
6
4
Maximum capacities and sample loading arrangements for Vintage Keeper Tuscany wine cellars
are illustrated below. Note the variations in shelf height, to accommodate the widest variety of
bottle types and sizes. Standard Burgundy and Bordeaux bottles are best arranged with necks
facing out; some taller bottles may need to be arranged neck to neck. Never stack bottles more
than two rows high on a shelf; all shelves must be installed as directed. Avoid placing bottles
directly in front of the cooling unit’s circulating fan for more uniform temperature in cabinet.
*WARNING:
Bottles in black will be in the cold air stream and could block airow efciency in some
circumstances (warm or humid areas). This area of the cabinet should have the coldest
temperature and may be used as your “chilling” section.

~14~
~15~
TROUBLE SHOOTING GUIDE
Although each Vintage Keeper cooling unit has been carefully tested at every stage of manufacture, occasional problems
arise, the majority of which are due to rough or careless handling during shipping or installation. Other problems may
derive from improper cabinet assembly, power interruption or surge, low line voltage (less than your unit rating of 105V
or 240V), or failure to clean the unit regularly (see illustration below). The following may help you determine what the
problem may be; what steps you can take to correct it, and what further steps may be required. Additional Trouble-Shoot-
ing information and downloadable documents are available in the “Support” area of our web site: www.koolspace.com
Cleaning the coil
IMPORTANT NOTE:
In order to provide maximum protection for your valuable wine collection, the following steps are highly advisable.
First and foremost, have your wine collection adequately insured. Second, install a battery-powered heat-sensitive alarm
to warn of any loss of cooling due to power interruption. Third, monitor your storage and ambient conditions on a regular,
daily basis. Fourth, install a high quality surge suppressor to protect against sudden power uctuations. Fifth, clean the
unit as directed, on a regular basis, every 3 to 4 months vacuum the cooling unit coils (check our website for more info).
Sixth make sure to check water level in the DRAIN CUP periodically and empty. Be advised, also, that Drobot-Vintage
Keeper cannot in any event be liable or responsible for incidental or consequential damages.
IF: CHECK: THEN:
COOLING UNIT
DOES NOT RUN
AT ALL WHEN
PLUGGED IN
- Is the unit plugged in?
- Is the power supply operational?
- Is the LED display functional?
- Is there any evidence of shipping
damage on the cooling unit or
packaging materials?
- Note that the unit has a 1-minute cautionary delay
between plugging in and full start-up; this is a built-in
safeguard to protect the compressor in the event of
sudden power failure
- Note that the power supply must be a dedicated,
separately-fused and grounded 15 Amp, 120V line or 7.5
_Amp, 240 V line rated for your unit. Must not use an exten-
sion cord. Do not share the outlet with other appliances
- If the unit is receiving power yet fans or compressor fail
to run, unplug for ten minutes, then try again
COOLING UNIT
RUNS BUT DOES
NOT COOL
SUFFICIENTLY
- Is the storage temp properly
set?
- Is the cabinet properly
assembled, with all joints air
tight?
- Is the door properly adjusted to
seal tightly when closed?
- Is airow to and from the
cooling unit unobstructed?
- Is the ambient air temperature
within the specied range?
- Are any exterior surfaces of the
cabinet exposed to sunlight?
- Note that the unit may take a few days to achieve the
desired storage temperature, even in a properly located,
airtight cabinet
- Take steps to reduce ambient temperatures and
compensate for additional heat gain if any cabinet walls
receive direct sunlight
- If gaps are visible at any panel joints, ensure that you
have tightened all cams in all panels, to ensure
an airtight seal as detailed in our instructions
- Take steps to improve circulation of air to and from the unit
- Adjust the door, if necessary, to seal tightly by
re-positioning the upper hinge and improving the cabinet
level
- Increase your SET TEMPERATURE
- Clean the fan and grille areas
- If the problem persists, go to our website at
www.koolspace.com and perform the “cooling unit
diagnostic” in the support section.
Coil is located at the top of
back panel.
Vacuum it periodically

~14~
~15~
LIMITED WARRANTY AND PRODUCT SUPPORT
ONE YEAR LIMITED WARRANTY
If your Koolspace cooling unit or cabinet fails to perform as designed within one year of the date of purchase, VINTAGE KEEPER INC.
warrants that, upon your request, it will be repaired or replaced, at our option, during the one year warranty period. This warranty
applies only to the rst end-user purchaser of a Koolspace unit that is purchased and used in the continental United States or Canada
(excludes Alaska and Hawaii). It is not valid for subsequent purchasers, nor for units in use outside North America. The warranty period
for your Koolspace unit commences on the date you purchased it and expires one year thereafter.
PROOF OF PURCHASE
Within 10 days of purchase, complete and mail, fax or e-mail the registration sheet to VINTAGE KEEPER INC. Alternately, you may reg-
ister your warranty on our Internet web site, www.koolspace.com. WHEN YOU MAKE A WARRANTY CLAIM, YOU MUST
FORWARD A COPY OF YOUR ORIGINAL DATED BILL OF SALE TO ESTABLISH YOUR DATE OF PURCHASE.
IF YOU HAVE A PROBLEM WITH YOUR UNIT
Customer service and warranty problems are handled online at www.koolspace.com. You will nd a comprehensive well-documented
and easy-to-use solution to almost any question or problem you may have. The inquiry forms are lled in on-line and connect you to
our representatives who will process your requests for warranty service. This is the quickest way to solve your problems. If you do not
have access to the internet you may call us from 9:00 a.m to 4:00 p.m EST, to request a WARRANTY CLAIM INFORMATION KIT. We can
fax or mail it to you. You can ll in the enclosed REQUEST FOR RETURN AUTHORIZATION CODE form and return it by mail or fax. We
can then promptly process your claim.
REPLACEMENT ?
At our option we may choose to offer you a replacement part or product rather than a repair. Upon your authorization to accept a
replacement unit and with appropriate security (credit card authorization), we will promptly ship a replacement unit. The replacement
may be a unit that has been reconditioned by VINTAGE KEEPER INC. The unit that needs service must be packed and returned to us,
shipping prepaid. Upon its receipt, we will release your credit card security. Go online to the SUPPORT section on our web site at
www.koolspace.com to request warranty service.
REPAIR ?
If we determine that your unit needs to be repaired rather than replaced we will issue you a Return Authorization Code. Go online to
the SUPPORT section of our web site at www.koolspace.com to request warranty repair service. Please save the original packaging
materials to facilitate shipment. Mark the Return Authorization Code clearly on the outside of the package, enclose a brief note
describing the problem and send the unit, shipping prepaid, to VINTAGE KEEPER INC.
WHAT MUST YOU DO?
Your unit is designed to perform with a minimum amount of user maintenance when installed and operated precisely as directed in
the manual. You are, however, responsible for the required user maintenance described in the manual, specically, regular cleaning of
the condensor coil and fans. Also, you must take steps to protect the unit from sudden power surges. As with any sensitive electronic
device, your Koolspace unit may be damaged by power surges or spikes, including lightning strikes, acts of god, sudden interruptions
or prolonged low-voltage conditions, which are not covered by this Warranty. You must monitor your unit’s performance on a daily
basis. If there is an apparent problem or “Alarm” condition, you must disconnect the power supply to avoid potential damage to your
wine collection. It is your responsibility to insure your wine, and to take all reasonable and necessary precautions to safeguard its
condition.
WHAT THE WARRANTY DOES NOT COVER
This warranty covers only defects in materials and workmanship provided by VINTAGE KEEPER INC. and does not cover equipment
damage or malfunction from misuse, abuse, accident, act of God, or any unauthorized alteration or modication. The product must
have been installed and operated precisely as directed in the manual which accompanies each product. Improper return shipping,
inadequate packaging or shipping damage is not covered unless the unit is packaged and shipped in accordance with Koolspace
replacement procedures. Third party servicing of this product during the warranty period will also void the warranty, as will any evi-
dence of tampering or alteration to the serial number and or the original dated bill of sale.
REPLACEMENT AND REPAIR ARE YOUR ONLY REMEDIES
YOUR ONLY REMEDY UNDER THIS WARRANTY IS THE REPLACEMENT OR REPAIR OF YOUR ELIGIBLE PRODUCT AS DESCRIBED ABOVE. NEITHER
THIS WARRANTY NOR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL EXTEND BEYOND THE ONE-YEAR WARRANTY PERIOD. UNDER NO
CIRCUMSTANCES SHALL VINTAGE KEEPER INC. BE LIABLE FOR ANY SPECIAL INCIDENTAL, INDIRECT OR PUNITIVE DAMAGES OR FOR ANY
CONSEQUENTIAL DAMAGES, INCLUDING SPOILAGE OF WINE, EVEN IF VINTAGE KEEPER INC. KNOWS OR IS INFORMED THAT SUCH DAMAGES
ARE POSSIBLE. IT IS YOUR RESPONSIBILITY TO INSURE YOUR WINE, AND TAKE ALL REASONABLE, NECESSARY PRECAUTIONS TO SAFEGUARD
ITS CONDITION. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. NO RESELLER IS AUTHORIZED TO MODIFY THE TERMS OF THIS WARRANTY. ANY
ADDITIONAL WARRANTY OFFERED BY A RESELLER IS THE SOLE RESPONSIBILITY OF THAT RESELLER.
SERVICE AFTER YOUR WARRANTY EXPIRES
If your unit requires service after the one-year warranty period expires, you may have it serviced locally by any qualied HVAC
technician, or you may purchase a new unit at a special discount under our Extended Warranty Program. Please be ready to provide
model, serial number, credit card number and a copy of your original dated bill of sale. In addition, repair service is always available
direct from us at at rates below the prevailing charges for local service. However, using our Extended Warranty Program for units
under 5 years old will always be a preferable solution to returning a unit for repair. Go online at www.koolspace.com to request
Repair Service or see our Extended Warranty Program.

~16~
Toll free: 1-888-274-8813
www.koolspace.com
250/500
CELLAR nuvo
k o o l s pac e TM
