1 OVERVIEW
NuMaker Uni is an IoT or wearable application development board based on NuMicro®
NANO100NE3BN. The start kit enables quick development, prototype evaluation, and creation of
innovative designs for users. The kit also includes complete source-code examples, which helps
users to build target C code applications quickly.
The NuMaker Uni has built in many components such as a Gyro sensor, a Wi-Fi Module, and a
Bluetooth Module. By these components, developers can create new applications and working
prototypes easily. It also allows users to extend its hardware, like servo motor, LED and
EEPROM. The NuMaker Uni is suitable for a variety of IoT or wearable applications. Developers
can implement applications for IoT such as home security, gas leak warning, smart remote
controller, humidity and temperature monitor, and self-balancing scooter, multicopter. Developers
can also implement applications for wearables such as pedometer, oximeter, heart rate monitor,
electrocardiography (ECG), and smartband.
The NANO100NE3BN is an ultra-low power 32-bit microcontroller embedded with ARM®Cortex®-
M0 core operated at a wide voltage range from 1.8V to 3.6V and runs up to 42 MHz frequency.
Features1.1 The NuMaker Uni offers the following features:
IR Transmitter
IR Receiver
3-axis accelerometer and 3-axis Gyro sensor (MPU6500)
Temperature-Humidity sensor (HTU21D)
ESP-03 –802.11b/g/n Wi-Fi Module
BB2710-29 –Dual Mode Bluetooth Module
R/G/B LED
Extension pins provide SPI, I2C, PWM, and ADC interfaces

NuMaker Uni
Nov 16, 2016 Page 4of 33 Rev 1.01
NUMAKER UNI USER MANUAL
2 INTRODUCTION TO NUMAKER UNI
The NuMaker Uni uses the NANO100NE3BN as the target microcontroller. Figure 2-1 shows the
NuMaker Uni board.
Figure 2-1 NuMaker Uni Board
The NuMaker Uni supports the Nu-Link ICE Adaptor, and uses In-Circuit Programming (ICP)
mode based on the SWD interface. The uvNuMicro® ICP Programming Tool can be used for
developers to develop their software and program the MCU. The NuMaker Uni also supports third
party development tools, such as Keil RVMDK, and IAR EWARM.
The NANO100NE3BN used by the NuMaker Uni can run up to 42MHz, and support 3.7V to 5V
DC connector for 3.7V Lithium battery or 5V power supply. It includes Red/Geen/Blue LED, an
Infrared transmitter and infrared receiver, 3-axis accelerometer & 3-axis gyroscope (MPU6500), a
temperature & humidity sensor (HTU21D), a 802.11b/g/n Wi-Fi module (ESP-03) which supports
TCP, UDP server & client, AP or Station mode, and AT command, and a dual mode Bluetooth 3.0
module (BB2710-29) which supports SPP and GATT profile, and AT command.

NuMaker Uni
Nov 16, 2016 Page 5of 33 Rev 1.01
NUMAKER UNI USER MANUAL
3 INTRODUCTION TO NU-LINK MINI
The Nu-Link Mini is a Debug Adaptor which connects the USB port of your PC to your target system
(via Serial Wired Debug Port) and allows you to program and debug embedded programs on the
target hardware. To use the Nu-Link Mini Debug adaptor with Keil or IAR, please refer to “Nuvoton
NuMicro®IAR ICE Driver User Manual” or Nuvoton NuMicro®Keil ICE Driver User Manual” for details.
Figure 3-1 shows the Nu-Link Mini board.
Figure 3-1 Nu-Link Mini Board

NuMaker Uni
Nov 16, 2016 Page 6of 33 Rev 1.01
NUMAKER UNI USER MANUAL
4 HARDWARE INTRODUCTION
MCU
Cortex®-M0 NANO100NE3BN - 32-bit MCU
Max speed of 42 MHz
128 KB Flash and 16 KB SRAM
Power-down current <1uA
Support SPI, I2C, UART, ADC, PWM, GPIO
Sensor
IR Transmitter
IR Receiver
3-axis accelerometer and 3-axis Gyro sensor (MPU6500)
Temperature-Humidity sensor (HTU21D)
Wireless Module
ESP-03 –802.11b/g/n Wi-Fi Module
Support TCP, UDP Server & Client
Support AP, Station mode
Support AT Command
BB2710-29 –Dual Mode Bluetooth Module
Support SPP and GATT profile
Support UART AT Command
On-Board Devices Interface4.1
Device Name
Component Name
MCU Interface Name
Infrared Receiver
FM-9038
PWM capture: PA13/PWM0_CH1
Infrared Transmitter
IR diode
PWM output : PA12/PWM0_CH0
Inertial Measurement Unit
MPU6500
I2C1: PA11/I2C1-SCL & PA10/I2C1-SDA
Temperature & Humidity
HTU21D
I2C1: PA11/I2C1-SCL & PA10/I2C1-SDA
Wi-Fi module
ESP-03
UART1
Bluetooth module
BB2710-29
UART0

NuMaker Uni
Nov 16, 2016 Page 7of 33 Rev 1.01
NUMAKER UNI USER MANUAL
Board Extension Interfaces4.2
Figure 4-1 NuMaker Uni Pin Diagram
JP1 –ICE interface for Nu-Link Mini
JP1
Interface Signal Name
MCU Pin Assignment
Pin 1
VCC
VCC3
Pin 2
ICE_DAT
ICE_DAT
Pin 3
ICE_CLK
ICE_CK
Pin 4
RESET
nRESET
Pin 5
GND
GND
JP2 –I2C interface (pin assignment matched with the 0.96”I2C OLED module)
JP2
Interface Signal Name
MCU Pin Assignment
Pin 1
VCC
VCC
Pin 2
GND
GND
Pin 3
SCL
I2C0_SCL / PA9
Pin 4
SDA
I2C0_SDA / PA8

NuMaker Uni
Nov 16, 2016 Page 8of 33 Rev 1.01
NUMAKER UNI USER MANUAL
JP5 –UART interface
JP5
Interface Signal Name
MCU Pin Assignment
Pin 1
UART0_TX
UART0_TX / PB1
Pin 2
UART0_RX
UART0_RX / PB0
Pin 3
VCC3
VCC3
Pin 4
GND
GND
Pin 5
UART1_RX
UART1_RX / PB4
Pin 6
UART1_TX
UART1_TX / PB5
JP6 –ADC interface (pin assignment match gas sensor module MQ-2)
JP6
Interface Signal Name
MCU Pin Assignment
Pin 1
ADC_MQ
PA2 / ADC2
Pin 2
ADC_DO
PA1 / ADC1
Pin 3
GND
GND
Pin 4
+5V
+5V
JP7 –TimerCapture interface (pin assignment matched with the ultrasonic sensor module
HC-SR04)
JP7
Interface Signal Name
MCU Pin Assignment
Pin 1
GND
GND
Pin 2
ECHO
PA6 / TC3
Pin 3
TRIG
PA3
Pin 4
+5V
+5V
JP8 –PWM interface
JP8
Interface Signal Name
MCU Pin Assignment
Pin 1
PA15
PA15 / PWM0_CH3
Pin 2
PA14
PA14 / PWM0_CH2
Pin 3
PA13
PA13 / PWM0_CH1
Pin 4
PA12
PA12 / PWM0_CH0
J2 –SPI interface (pin assignment matched with the RF module nRF24L01)
J2
Interface Signal Name
MCU Pin Assignment
Pin 1
GND
GND
Pin 2
VCC3
VCC3

NuMaker Uni
Nov 16, 2016 Page 9of 33 Rev 1.01
NUMAKER UNI USER MANUAL
Pin 3
SPI_CE
PB3
Pin 4
SPI_CS
PC0 / SPI0_SS0
Pin 5
SPI_CLK
PC1 / SPI0_CLK
Pin 6
SPI_MOSI
PC3 / SPI0_MOSI0
Pin 7
SPI_MISO
PC2 / SPI0_MISO0
Pin 8
SPI_IRQ
PB2

NuMaker Uni
Nov 16, 2016 Page 10 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
5 HOW TO START NUMAKER UNI ON IDE
Supported IDE Software5.1
IAR Embedded Workbench
Keil μVision®IDE
Nuvoton Nu-Link Driver Download and Installation5.2 Please visit the Nuvoton company NuMicro®website (http://www.nuvoton.com/NuMicro) to
download “NuMicro®Keil μVision®IDE driver” or “NuMicro®IAR Embedded Workbench driver”
file. When the Nu-Link driver has been downloaded, please unzip the file and execute the “Nu-
Link_Keil_Driver.exe” or “Nu-Link_IAR_Driver.exe” to install the driver.

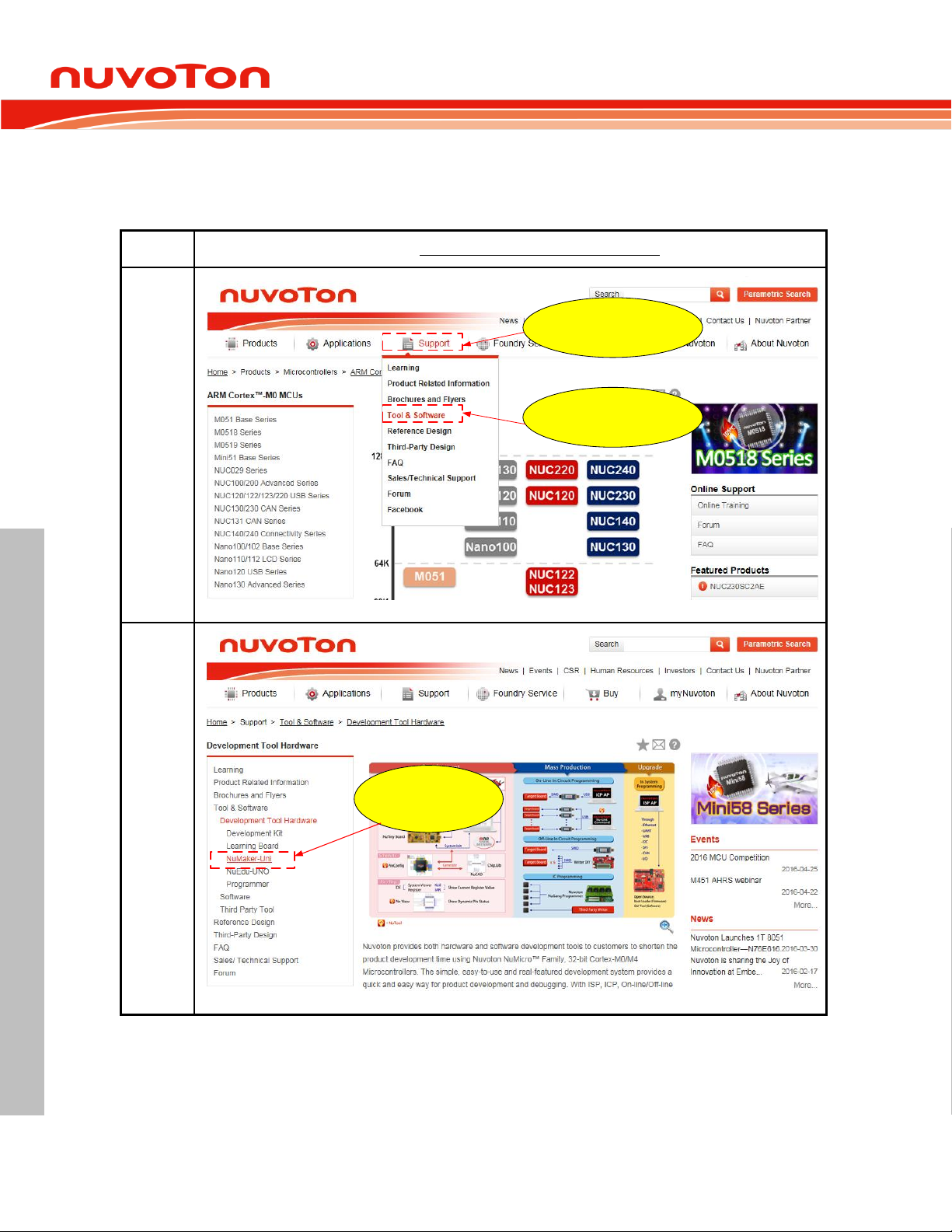

Step1
Visit The Nuvoton NuMicro®Website: HTTP://WWW.NUVOTON.COM/NUMICRO.
Step2
Move to“Support”
Click here to enter
“Tool & Software”

NuMaker Uni
Nov 16, 2016 Page 11 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
Step3
Step4
Click here to
download
the file.
Step5
Download the NuMicro®μVision® IDE driver or NuMicro®IAR Embedded Workbench driver.

NuMaker Uni
Nov 16, 2016 Page 12 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
Hardware Setup5.3 The hardware setup is shown as Figure 5-1.
Figure 5-1 NuMaker Uni Hardware Setup
Starting to Use NuMaker Uni5.4 1. Connect Nu-Link Mini to NuMaker Uni on its ICE port (J2) as of Figure 5-2.
Figure 5-2 NuMaker Uni and Nu-Link Mini Connection

NuMaker Uni
Nov 16, 2016 Page 13 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
2. Connect Nu-Link Mini to PC through the USB cable as Figure 5-3.
Figure 5-3 Blue LED Turns On
After the Nu-Link Mini is connected to PC, PC will start searching USB device, and it will be
recognized as USB ICE shown in the peripheral device window of control panel. Also, the Nu-
Link Mini LED will turn on to indicate the power is supplied from PC.
The Blue LED turns on as shown in Figure 5-3 after the connection from NuMaker Uni to PC
through Nu-Link Mini. It means the R/G/B LED, the Bluetooth Module, the Wi-Fi Module, and
the I2C module is ready to use. For more detail please refer to 6.1.1.

NuMaker Uni
Nov 16, 2016 Page 14 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
Software Download5.5 Please visit the Nuvoton NuMicro®website (http://www.nuvoton.com/NuMicro) to download
NuMaker Uni sample code. The following steps demonstrate how to download sample code of
NuMaker Uni.
Step1
Visit The Nuvoton NuMicro®Website: HTTP://WWW.NUVOTON.COM/NUMICRO.
Step2
Move to “Support”
Click here to enter
“Tool & Software”
Step3
Click here to enter
“NuMaker Uni”

NuMaker Uni
Nov 16, 2016 Page 15 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
Step4
Click here to download
“NuMaker Uni Software”
Step5
Download the SW_MuMaker_Uni_V1.0 Software.

NuMaker Uni
Nov 16, 2016 Page 16 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
Folder Structure5.6 The example demonstrates compiling, downloading and executing sample code on a NuMaker
Uni board. Figure 5-4 lists the NuMaker Uni software (SW_NuMaker_Uni_v1.0.zip) downloaded
from Nuvoton NuMicro®website.
Figure 5-4 Sample Code Directory

NuMaker Uni
Nov 16, 2016 Page 17 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
5.6.1 Using Keil μVision®IDE to Program
The example demonstrates how to download and debug an application on NuMaker Uni board.
1. The example file can be found in the directory list shown in the following figure.
(Default:\SW_NuMaker_Uni_V1.2\NuMaker_Uni_BSP\SampleCode\NuMaker_Uni\proj_IMU_LCD
_pingpong\KEIL)
2. Click “Build”to compile the sample code.

NuMaker Uni
Nov 16, 2016 Page 18 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
3. Click “Download”to download binary code to NuMaker Uni.
4. After download, MCU should be up and running. If not, please reconnect USB cable to
power it up again. In this sample code, it is using IMU to detect motion for controlling the bar
to bounce the ball back, as shown in Figure 5-5.
Note that the start kit does not include the Li-battery and the LCD module.
Figure 5-5 NuMaker Uni Sample Code Running

NuMaker Uni
Nov 16, 2016 Page 19 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
5.6.2 Using IAR Embedded Workbench to Program
The example demonstrates how to download and debug an application on NuMaker Uni board.
1. The example file can be found in the directory list shown in the following figure.
(Default:\SW_NuMaker_Uni_V1.2\NuMaker_Uni_BSP\SampleCode\NuMaker_Uni\proj_IMU_LCD
_pingpong\IAR\)
2. Click “Make”to compile the sample code.

NuMaker Uni
Nov 16, 2016 Page 20 of 33 Rev 1.01
NUMAKER UNI USER MANUAL
3. Click “Download and Debug”to download binary code to NuMaker Uni.
4. After download, MCU should be up and running. If not, please reconnect the USB cable to
power it up again. In this sample code, it is using IMU to detect motion for controlling the bar
to bounce the ball back, as shown in Figure 5-5.
