nVent RAYCHEM WinterGard Mesh User manual

WinterGard Mesh
Surface Snow Melting System
EN Installation and Operation Manual for Surface Snow Melting
CF Manuel d’installation et d’utilisation pour la fonte de neige en surface

2 | nVent.com/RAYCHEM
EN
CF

nVent.com/RAYCHEM | 3
EN
CF
TABLE OF CONTENTS
Important safeguards and warnings ........................................................................................................................................................... 
. General information ............................................................................................................................................................................... 
1.1Use of the manual ...............................................................................................................................................................................................5
1.2WinterGard Mesh applications...........................................................................................................................................................................5
1.3Safety guidelines.................................................................................................................................................................................................5
1.4Electrical codes...................................................................................................................................................................................................5
1.5Approvals.............................................................................................................................................................................................................5
1.6Warranty ..............................................................................................................................................................................................................6
1.7WinterGard Mesh catalog numbers...................................................................................................................................................................6
. Required parts & equipment ................................................................................................................................................................... 
2.1Spacer, junction box, supply lead and caution sign .......................................................................................................................................... 7
2.2Controller ............................................................................................................................................................................................................7
2.3Panels..................................................................................................................................................................................................................7
2.4Conduits..............................................................................................................................................................................................................7
2.5Electrical control equipment..............................................................................................................................................................................7
2.6Storage of WinterGard Mesh ............................................................................................................................................................................. 7
2.7Test equipment ...................................................................................................................................................................................................7
. Installation guidelines & procedures ......................................................................................................................................................
3.1Area to be heated................................................................................................................................................................................................8
3.2Preparing the subsurface...................................................................................................................................................................................9
3.3Conductor resistance and insulation resistance tests.....................................................................................................................................9
3.4WinterGard Mesh installation ..................................................................................................................................................................... 10-14
. System operation.................................................................................................................................................................................. 
. System maintenance ............................................................................................................................................................................ 
. System troubleshooting........................................................................................................................................................................ 

4 | nVent.com/RAYCHEM
EN
CF IMPORTANT SAFEGUARDS AND WARNINGS
WARNING: FIRE AND SHOCK HAZARD
nVent RAYCHEM WinterGard Mesh Surface Snow Melting Systems must be installed correctly to ensure proper operation and to prevent
shock and fire. Read these important warnings and carefully follow all installation instructions.
• Minimum installation temperature of the WinterGard Mesh Surface Snow Melting System is °F(-°C).
• WinterGard Mesh Surface Snow Melting System is rated weather resistant and suitable for installations in wet areas (-WS).
• Approvals and performance of the WinterGard Mesh Surface Snow Melting systems are based on the use of approved components and
accessories.
• To avoid damage to the heating system, do not energize it until it has been completely embedded and the installation has been
completed.
• Ground fault equipment protection must be used on each branch circuit with this heating system in order to minimize the danger of
fire and to comply with the requirements of nVent warranties, agency certifications, and national electrical codes. Arcing may not be
stopped by conventional circuit protection.
• Heating wires must be spaced at least /in (.cm) from any combustible surface.
• Minimum bending radius of the heating wire must not be less than six times its diameter.
• The heating wire must not touch, cross over, or overlap itself.
• De-energize the heating system before installation or servicing.
• The heating system must be properly grounded according to applicable electrical codes.
• Terminations must be kept dry before, during, and after installation.
• Damaged heating systems can cause electrical arcing or fire. If heating wires or terminations are damaged, they must be repaired or
replaced. Contact nVent customer service for assistance.
• Rebar, wire mesh or other conductive materials used to support the heating system or to sit above it must be grounded in accordance
with CSA Standard C., Section  or the National Electrical Code as applicable.
• Megohmmeters operate at high voltage. This voltage is hazardous and possibly lethal. Read and follow all instructions included with
the instrument you are using.
CAUTION: a ground fault protection device must be used with this heating device.
English

nVent.com/RAYCHEM | 5
EN
CF
1. GENERAL INFORMATION
Use of the Manual
This manual covers the installation procedures, testing, and maintenance for nVent RAYCHEM WinterGard Mesh Snow Melting Systems,
accessories, and controls for surface snow melting in concrete, asphalt, and sand or limestone screenings under paving stones*.
This manual assumes that a proper snow melting or anti-icing design has been completed according to nVent's recommendations. Only the
applications described in this manual are approved by nVent for nVent RAYCHEM WinterGard Mesh Surface Snow Melting Systems and only
when used with approved accessories.
The instructions in this manual and the installation instructions included with the control systems, power distribution systems, and
accessories must be followed for the nVent warranty to apply.
For design assistance, technical support, or information regarding other applications not shown here, please contact your nVent
representative or nVent directly.
nVent
7433 Harwin Drive
Houston, TX 77036
USA
Tel [phone]
Fax [phone]
[e-mail]
nVent.com/RAYCHEM
Important: For the nVent warranty and agency approvals to apply, the instructions that are included in this manual and product packages
must be followed.
*Special permission for paver snow melting is required from the Authority Having Jurisdiction.
WinterGard Mesh Applications
Surface Snow Melting: Surface snow melting systems prevent the accumulation of snow on ramps, slabs, driveways, sidewalks, platform
scales, and stairs under typical snow conditions.
Anti-Icing: Anti-icing systems keep the surface temperature above freezing to prevent ice formation.
Safety Guidelines
As with any electrical equipment, the safety and reliability of any system depends on the quality of the products selected and the manner
in which they are installed and maintained. Incorrect design, handling, installation, or maintenance of any of the system components could
damage the Surface Snow Melting System and may result in inadequate snow melting, electric shock, or fire. To minimize these risks and to
ensure that the system performs reliably, read and carefully follow the information, warnings, and instructions in this guide.
Pay special attention to the following:
• Important instructions are marked Important
• Warnings are marked WARNING
Electrical Codes
Article 426 of the National Electrical Code (NEC) and Section 62 of the Canadian Electrical Code (CEC) govern the installation of fixed
outdoor surface snow melting and de-icing systems. All installations must be in compliance with these and any other applicable national
and local codes.
Approvals
WinterGard Mesh systems are approved for use in nonhazardous areas only.

6 | nVent.com/RAYCHEM
EN
CF
Warranty
nVent warrants all nVent RAYCHEM WinterGard Mesh Systems against faulty workmanship and use of defective materials for two (2) years
from the date of purchase. This warranty can be amended only by a written instrument signed by a duly authorized officer of nVent. Buyer’s
exclusive remedy under this warranty shall be to have nVent, within a reasonable time, repair such goods, or supply replacement goods, or
credit Buyer’s account for such goods and accept their return, whichever nVent may elect at its sole discretion. nVent shall in no event be
liable for the cost of removal or installation, for loss or damage to or loss of use of facilities or other property, loss of revenue, loss of use of
revenue, loss of anticipated profits, or other damages or costs of any kind whatsoever, whether direct, indirect, incidental, or consequential.
Notwithstanding the foregoing, nVent shall have no liability whatsoever unless: (a) Buyer promptly notifies nVent in writing after discovery
of an alleged nonconformity and includes a detailed explanation of the alleged nonconformity; (b) buyer promptly returns goods to nVent
postage prepaid, at 250 West Street, Trenton, Ontario, K8V 5S2, Canada or 7433 Harwin Drive, Houston, Texas, 77036, USA; and (c) nVent
examination of such goods establishes to nVent satisfaction that such alleged nonconformities actually exist and occurred in the cause
of proper and normal use and were not caused by accident, misuse, neglect, alteration or improper installation, repair or testing or such
other cause outside of the responsibility of nVent under this Limited Warranty. THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER
REPRESENTATIONS, WARRANTIES, OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT, AND OF ANY OTHER OBLIGATION OR LIABILITY
ON THE PART OF nVent, WHETHER BY STATUTE, CONTRACT, STRICT LIABILITY, TORT OR OTHERWISE. If the goods are a consumer
product in buyer’s jurisdiction, the above exclusion or limitation of incidental or consequential damages and the above disclaimer of implied
warranties may not apply. The term of any such implied warranty is limited to the term of this two-year Limited Warranty. Some jurisdictions
do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply. This warranty gives consumers specific
legal rights, and consumers may also have other rights, which vary by jurisdiction.
WinterGard Mesh Catalog Numbers
The catalog number for WinterGard Mesh encodes the product characteristics as follows:
WM[a]-[bb][cc]
• WM = WinterGard Mesh
• [a] = Voltage
o 1= 120 V
o 2= 240 V
• [bb] = Width (ft)
o 02 = 2ft
o 03 = 3ft
• [cc] = Length (ft)
o 05 = 5ft
o 10 = 10 ft
o 15 = 15 ft
o 20 = 20 ft
o 25 = 25 ft
o 30 = 30 ft
o 35 = 35 ft
o 40 = 40 ft
o 45 = 45 ft
o 50 = 50 ft
o 60 = 60 ft
• Area coverage (ft2) = Width x Length
• Power (W) = Area coverage (ft2) x 50 W/ft2
For example, WM1-0205 is 120 Volts, 2ft wide, 5ft long, 10 ft2area, and 500 Watts.

nVent.com/RAYCHEM | 7
EN
CF
2. REQUIRED PARTS & EQUIPMENT
Spacer, junction box, supply lead and caution sign
When it is necessary to loosen the heating wire from the mesh, the plastics strips (Model EM2-SPACER-PL) will help maintain the correct
spacing 3” (7.6cm). For asphalt layer the metal spacer (Model HARD-SPACER-GALV-25MM-25M) should be used. Extension of the cold leads
needs to be done in a junction box. The connection between the control panel and the junction box is made by a suitable supply lead.
For installation in asphalt, the sensor cables must be protected by a metal conduit pipe or be laid under the asphalt layer in the substrate
underneath. The conduit pipe is sealed at the end so the asphalt cannot seep in. Ensure that the heating wire and the splice and end seal
terminations are completely enveloped by the asphalt without air pockets. Allow asphalt to cool to temperature of approximately 212°F
(100°C) before pouring it within 30" (76 cm) of the terminations. This work needs to be done before the asphalt pouring of the entire surface
will be executed.
Minimum one snow melt caution sign (Model SMCS or SMCS-CF) should be used per system.
Controller
nVent offers control units specially designed for the surface snow melting application. They incorporate combined temperature and moisture
sensors to ensure efficient operation of the system.
Panels
nVent offers a range of standard panels specifically designed for the surface snow melting application. Each panel contains a built in control
unit, plus circuit breakers and a residual current device (RCD).
Conduits
Conduits (not included) are required to protect the cold lead and the sensor connection lead.
Electrical control equipment
If nVent standard panels are not used, addition items will be required to complete the system:
• Contactors
• Circuit breakers
• Residual current device (RCD) 30 mA.
Storage of WinterGard Mesh
Storage temperature range: -40°F to 113°F (-40°C to 45°C). Store all system elements in a clean, dry place.
Test equipment
• Ohmmeter
• 2500 Vdc insulation resistance tester (500 Vdc minimum)

8 | nVent.com/RAYCHEM
EN
CF
3. INSTALLATION GUIDELINES & PROCEDURES
Area to be heated
Determine the exact area to be heated and consider the following factors:
• Ensure the area to be heated complies with the data in the design instructions. See Table 1for product selection.
• Establish junction box location(s) and ensure the connection leads are long enough.
• Inspect and clean the substratum before installation, removing sharp objects that can damage the heating element.
• The heating element must not be shortened or altered.

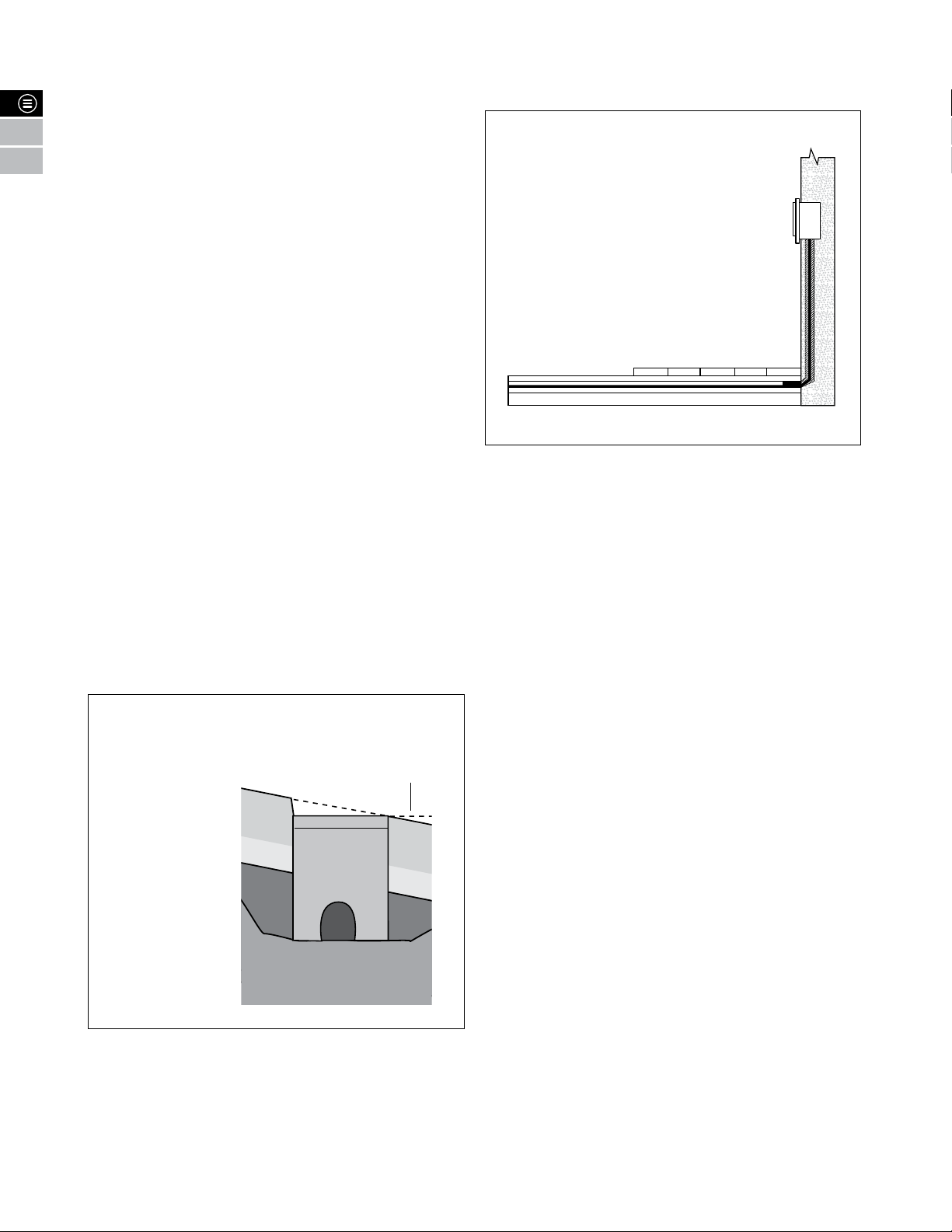

Covered area
Lay the heating cable right
up to the drain-off gutter.
Covered area
Also heat the surfaces on which
braking will occur, e.g. before a
barrier or a magnetic card reader.
Also heat the
drain gutter.
Heat at least three
feet (one meter) into
the covered area, as
incoming vehicles can
bring in snow.
Do not run the heating
mat over expansion joints.

nVent.com/RAYCHEM | 9
EN
CF
Preparing the Subsurface
WinterGard Mesh should be installed on a stable subsurface. In suspended structures the substratum may consist of finished slabs,
prestressed concrete or a suspended structure with poured concrete. WinterGard Mesh can be laid on all subsurfaces.
In the case of poured concrete, ensure that the surface is smooth and all sharp objects are removed. Ramps on a solid substratum do not
require additional thermal insulation.
Appropriate preparations should be made for installing the temperature and moisture sensor.
Conductor Resistance and Insulation Resistance Tests

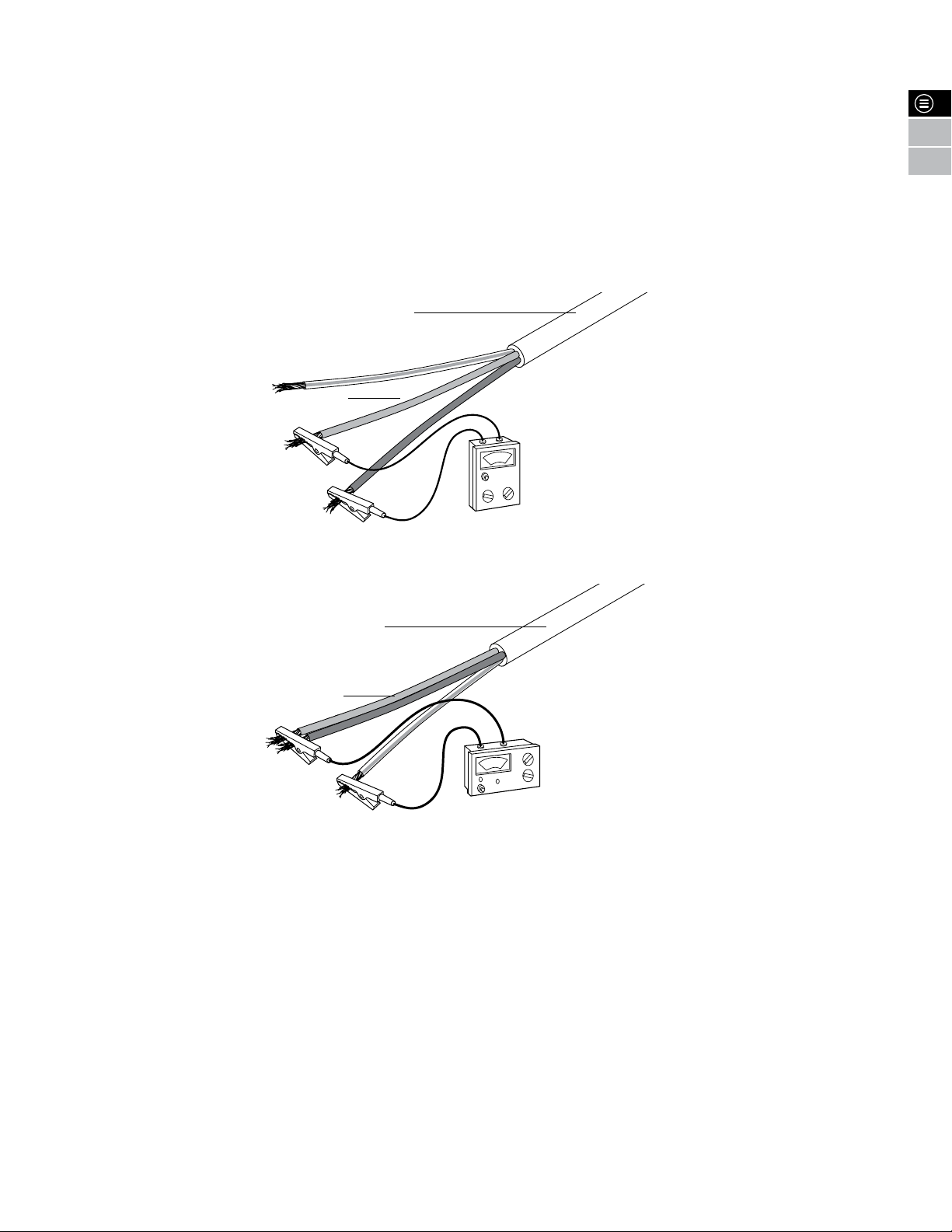

Test WinterGard Mesh by measuring the conductor resistance and the insulation resistance.
Test the conductor resistance with an ohmmeter. The measured resistance should be within -5% to +10% of the nominal resistance values
shown in Table 1.
Cold lead
Conductor
Ohmmeter
Test the insulation resistance with a 2500 Vdc (500 Vdc minimum) insulation resistance tester. The reading should be 100 Mohms or higher.
Cold lead
Conductor
Insulation
resistance
tester
Record all measured values on the Installation Test Record provided.

10 | nVent.com/RAYCHEM
EN
CF
Table : WinterGard Mesh Product Selection
Catalog # Voltage (V) Width (ft) Length (ft) Area (ft)  Power (W)
WM1-0205 120 2 5 10 28.8 500
WM1-0210 120 2 10 20 14.4 1000
WM1-0215 120 2 15 30 9.6 1500
WM1-0220 120 2 20 40 7.2 2000
WM1-0225 120 2 25 50 5.8 2500
WM1-0230 120 2 30 60 4.8 3000
WM1-0310 120 3 10 30 9.6 1500
WM1-0315 120 3 15 45 6.4 2250
WM1-0320 120 3 20 60 4.8 3000
WM2-0205 240 2 5 10 115.2 500
WM2-0210 240 2 10 20 57.6 1000
WM2-0215 240 2 15 30 38.4 1500
WM2-0220 240 2 20 40 28.8 2000
WM2-0225 240 2 25 50 23.0 2500
WM2-0230 240 2 30 60 19.2 3000
WM2-0235 240 2 35 70 16.5 3500
WM2-0240 240 2 40 80 14.4 4000
WM2-0245 240 2 45 90 12.8 4500
WM2-0250 240 2 50 100 11.5 5000
WM2-0260 240 2 60 120 9.6 6000
WM2-0310 240 3 10 30 38.4 1500
WM2-0320 240 3 20 60 19.2 3000
WM2-0325 240 3 25 75 15.4 3750
WM2-0330 240 3 30 90 12.8 4500
WM2-0340 240 3 40 120 9.6 6000
WinterGard Mesh Installation
All connections and electrical testing should be carried out by a qualified electrician. For irregularly shaped areas, it is acceptable to cut the
mesh and adjust the heating element position in order to achieve good coverage; however…
• The heating element must not be cut or damaged
• The heating element must not be crossed over itself
• The heating element must not be installed within 3” (7.6cm) of another section of heating element
• WinterGard Mesh must not installed across expansion joints or across separate concrete slabs
Minimum wire spacing is ” (.cm)
The mesh must be secured to the underlaying surface to prevent movement during the installation. The cold lead cable should be protected
in a conduit. The entire length of heating wire should be covered by wet sand-cement mixture, screed, dry sand, or asphalt depending on the
selected top surface.

nVent.com/RAYCHEM | 11
EN
CF

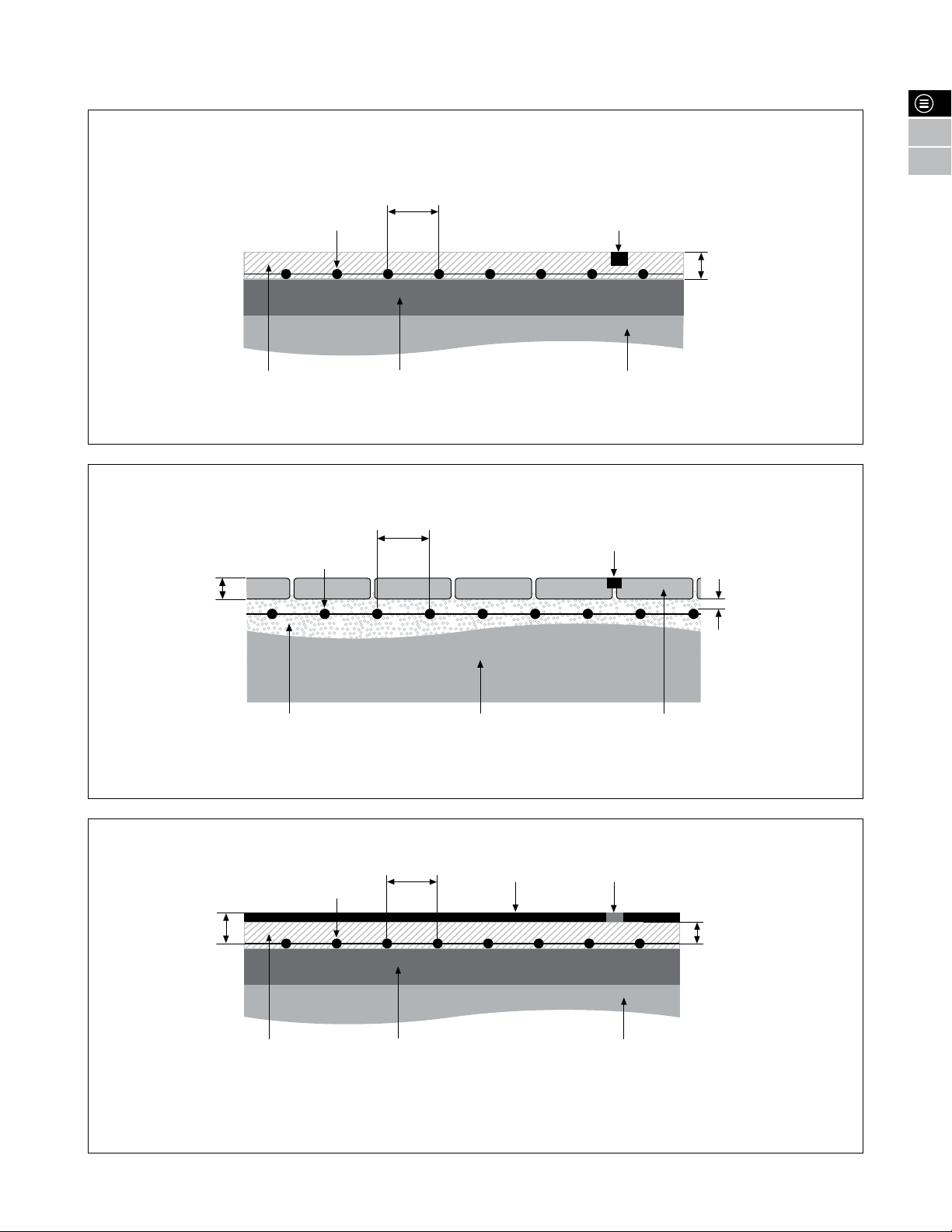

Installation Overviews
Cement screed
ground
2"
3"
SoilConcrete/compacted
substrate
WinterGard
Mesh Temperature and
moisture sensor
Installation in cement screed or asphalt
Sand bed / or cement /
sand mixture
1" to1.5"
3"
Stones / paverSoil ground
WinterGard
Mesh
Max. 2.5"
Temperature and
moisture sensor
Installation under pavers
2"
Cement screed
ground
0.75"
3"
SoilConcrete / compacted
substrate
WinterGard
Mesh
Asphalt layer
1.22"
Temperature and
moisture sensor
• Do not use any heavy equipment, machinery, or vehicles on top of an exposed WinterGard Mesh system.
• If the heating element needs to be loosened from the mesh to achieve good coverage, the installer should use spacers to keep the heating element spacing consistent.
• For installation under pavers (stone or brick), ensure that there is a solid base of 4” to 8” (102 mm to 203 mm) of crushed rock aggregate base and that it is tamped down and
prepared for the mortar pour.
Installation under asphalt

12 | nVent.com/RAYCHEM
EN
CF
Step : Install the sensor lead
Sensor housing/or
wooden block
Heating
cable
Conduit
Concrete/
Screed/
Asphalt
The sensor lead should be routed
through a metal conduit in the
layer below the heating system.
Step : Make provisions for installation of the temperature/
moisture sensor
For sensors comprising a separate housing and sensor, install only the housing at
this stage. For sensors without a separate housing, use a spacer the same size as
the sensor (such as a wooden block) to create a void for the sensor to be installed
into later.
The sensor housing or spacer should be placed mid-way between heating elements
in an open area, away from trees, bushes, or other obstructions that would prevent
precipitation from falling directly on the sensor.
Support the sensor housing or spacer so that it will be vertical and level with the
lowest point of the adjacent surface.
==
50505050
Sensor
Heating
cable
Step : Complete the layer below the heating system
Level with the lowest
adjacent surface Surface Sensor Filling material
Sub surface
Install the subsurface materials
in accordance with applicable
building and electrical codes.
Step : Perform Conductor Resistance and Insulation
Resistance Tests as described in section .
Carry out the resistance tests on each circuit to ensure the product
is within spec prior to installation.
Record the values for each circuit on the Installation Test Record.

nVent.com/RAYCHEM | 13
EN
CF
Step : Install WinterGard Mesh throughout the heated area
2ft / 3ft
xx ft
3"
Laying spacing as given
Spacer
(prestamped plastic strip,
for asphalt metal VIA-Spacer)
Heating cable
3"

14 | nVent.com/RAYCHEM
EN
CF
Step : Inspect the heating system
a) Visually check the heating system for damage.
b) Verify that any loose heating cable is secured with spacers.
c) Verify that the correct cable spacing of 3” (10 cm) has been
maintained and that the heating cable is being kept away from
sharp edges and not crossing expansion joints or across separate
slabs.
d) Verify that the heating system is installed at the correct depth
throughout the heated area.
e) Inspect the connection leads for correct installation.
Step : Complete a detailed sketch of the layout
Record the layout of each circuit, with particular reference to the
position of the connection leads.
Step : Perform conductor resistance and insulation
resistance tests as described in section .
Carry out the resistance tests on each circuit to detect any damage
that may have occurred during installation.
Record the values for each circuit on the Installation Test Record.
Step : Install the surface materials
Install concrete, asphalt, or pavers in accordance with applicable
building and electrical codes.
Step : Perform conductor resistance and insulation
resistance tests as described in section .
Carry out the resistance tests on each circuit to detect any damage
that may have occurred after installation.
Record the values for each circuit on the Installation Test
Record.
Step : Connect and install the moisture sensor
Install the moisture sensor
in accordance with the
manufacturer’s instructions.
Ensure the sensor is mounted
vertically and supported at the
correct height so the top of the
sensor is level with the lowest
adjacent surface.
Level with the lowest
adjacent surface
Step : Connect and install the temperature sensor
Install the temperature
sensor in accordance with the
manufacturer’s instructions.
Step : Complete wiring and install control and monitoring
equipment
Install panels, control units, thermostats and manual control
equipment in accordance with the manufacturers’ instructions.
Step : Perform conductor resistance and insulation
resistance tests as described in section .
Carry out the final resistance tests on each circuit prior to powering
up the system.
Record the values for each circuit on the Installation Test Record.
Step : Perform final system inspection and tests
a) Inspect all wiring for conformance to design drawings.
b) Verify that all protection devices have the correct rating.
c) Perform controller checks in accordance with the manufacturer’s
instructions.
d) Complete required testing in accordance with applicable building
and electrical codes.
Step : Documentation
The installer must supply the operator/owner with the layout
drawing and a copy of the Installation Test Record.

nVent.com/RAYCHEM | 15
EN
CF
4. SYSTEM OPERATION
Operate the system in accordance with the control and monitoring instructions. Max. exposure temperature for WinterGard Mesh: -149°F
(-65°C) (for asphalt pouring, short term exposure up to 464°F (240°C) is allowed).
5. SYSTEM MAINTENANCE
The system has no moving parts and therefore requires minimum maintenance. Refer to and comply with applicable codes and requirements
for the maintenance of electrical equipment. Circuit breakers should be checked periodically. Residual current devices (RCD) should be
tested at least once annually. Periodically inspect the system controls by operating them to ensure that they function correctly.
6. SYSTEM TROUBLESHOOTING
Trouble Shooting Guide
WARNING: Isolate supply before working on any part of the electrical system.
Problem A: Over-current protection (circuit breaker) trips or blows
Probable causes Correction
Electrical fault at:
• connection lead
• damaged heating cable
Locate and rectify the fault and reset or replace protection.
Protection undersized
Re-establish what the current loads are going to be and install new
protection (NB: if protection is replaced, ensure it is compatible with
the supply cable).
Defective protection Replace
Problem B: Residual current device trips
Probable causes Correction
Excessive moisture in junction box Dry out and check seal; replace if necessary.
Perform an insulation resistance test.
Earth fault at:
• connection
• damaged heating cable
Locate and rectify the fault and reset or replace rcd.
Leakage current too high:
power cable or heating cable too long Correct problem and re-design.
Contactor bouncing Replace with higher quality contactor
Voltage spikes in power supply network Reset rcd. If condition persists, use clean power supply.
Defective rcd Replace
Problem C: Ice/snow not melting
Probable causes Correction
Loss of supply current due to over-currentor residual
current device operating. Follow procedures outlined in A and B above.
Loss of supply cable continuity Locate and rectify fault.
Incorrect setting or operation of system controls Replace
Incorrect contactor sizing or damaged contactor Rectify
Problem D: Ice/snow begins to melt, but system turns off too soon
Probable causes Correction
Incorrect setting or operation of system controls. Repair system control unit or set system controls correctly.

16 | nVent.com/RAYCHEM
EN
CF

nVent.com/RAYCHEM | 17
EN
CF
TABLE DES MATIÈRES
Mises en garde et avertissements importants .......................................................................................................................................... 
. Informations générales ........................................................................................................................................................................ 
1.1Utilisation du manuel ........................................................................................................................................................................................ 19
1.2Applications du treillis WinterGard .................................................................................................................................................................. 19
1.3Informations de sécurité .................................................................................................................................................................................. 19
1.4Codes de l’électricité......................................................................................................................................................................................... 19
1.5Approbations..................................................................................................................................................................................................... 19
1.6Garantie .............................................................................................................................................................................................................20
1.7Numéros de catalogue du treillis WinterGard .................................................................................................................................................20
. Pièces et équipement nécessaires........................................................................................................................................................ 
2.1Entretoise, boîte de jonction, câble d’alimentation et panneau d’avertissement ......................................................................................... 21
2.2Régulateur......................................................................................................................................................................................................... 21
2.3Paneaux ............................................................................................................................................................................................................ 21
2.4Conduits............................................................................................................................................................................................................ 21
2.5Appareillage de commande électrique ........................................................................................................................................................... 21
2.6Entreposage du treillis WinterGard.................................................................................................................................................................. 21
2.7Équipement d’essai .......................................................................................................................................................................................... 21
. Directives et procédures d’installation ................................................................................................................................................. 
3.1Surface à chauffer ............................................................................................................................................................................................22
3.2Préparation de la subsurface...........................................................................................................................................................................23
3.3Tests de résistance des conducteurs et de résistance d’isolement .............................................................................................................23
3.4Installation du treillis WinterGard...............................................................................................................................................................24-28
. Opération du système........................................................................................................................................................................... 
. Entretien du système ............................................................................................................................................................................ 
. Dépannage du système......................................................................................................................................................................... 

18 | nVent.com/RAYCHEM
EN
CF
Français canadien
MISES EN GARDE ET AVERTISSEMENTS IMPORTANTS

Les systèmes de fonte de neige de surface du treillis WinterGuard nVent RAYCHEM doivent être installés correctement pour assurer le bon
fonctionnement et éviter les risques d’incendie ou de chocs électriques. Lisez attentivement les mises en garde suivantes et suivez les
instructions d’installation.
• La température d’installation minimale du système de fonte de neige de surface du treillis WinterGard est de 
• Le système de fonte de neige de surface du treillis WinterGard est classé résistant aux intempéries et convient aux installations dans
les zones humides (-WS).
• Les homologations et le rendement des systèmes de fonte de neige de surface du treillis WinterGuard reposent sur l’utilisation de
composants et d’accessoires approuvés.
• Pour éviter d’endommager le système de chauffage, ne le mettez pas sous tension tant qu’il n’a pas été complètement intégré et que
l’installation n’est pas terminée.
• Une protection d’équipement contre les fuites à la terre doit être utilisée sur chaque circuit de dérivation avec ce système de chauffage
afin de minimiser le risque d’incendie et de se conformer aux exigences des garanties nVent, des certifications d’agence et des codes
électriques nationaux. Un disjoncteur ordinaire peut ne pas être assez sensible pour prévenir les arcs continus.
• Les câbles chauffants doivent être à au moins ,/
• Le rayon de courbure minimum du câble chauffant ne doit pas être inférieur à six fois son diamètre.
• Le câble chauffant ne doit pas se toucher, se croiser ou se chevaucher.
• Mettez le système de chauffage hors tension avant l’installation ou l’entretien.
• Le système de chauffage doit être correctement mis à la terre conformément aux codes électriques applicables.
• Les extrémités doivent être gardées au sec avant, pendant et après l’installation.
• Des systèmes chauffants endommagés peuvent provoquer des arcs électriques et des incendies. Si les câbles chauffants ou les
extrémités sont endommagés, ils doivent être réparés ou remplacés. Contactez le service à la clientèel nVent pour obtenir de l’aide.
• Les barres d’armature, treillis métalliques ou autres matériaux conducteurs utilisés pour soutenir le système de chauffage ou sur lequel
ceux-ci sont installés doivent être mis à la terre conformément à la norme CSA C., section  ou au Code national de l’électricité, le
cas échéant.
• Les mégohmmètres fonctionnent à haute tension. Cette tension est dangereuse et peut-être mortelle. Lisez et suivez toutes les
instructions fournies avec l’instrument que vous utilisez.
Un dispositif de protection contre les fuites à la terre doit être utilisé avec cet appareil de chauffage.

nVent.com/RAYCHEM | 19
EN
CF
1. 
Utilisation du manuel
Ce manuel couvre les procédures d’installation, les tests et l’entretien des systèmes de fonte de neige du treillis WinterGard nVent RAYCHEM,
des accessoires et des commandes pour la fonte de neige de surface dans le béton, l’asphalte, le sable ou les couches de calcaire sous les
pierres de pavage*.
Ce manuel suppose qu’un modèle adéquat de système de fonte de neige ou de déglaçage a été installé conformément aux
recommandations de nVent. Seules les applications décrites dans ce manuel sont approuvées par nVent pour les systèmes de fonte de
neige de surface du treillis WinterGard nVent RAYCHEM et seulement lorsqu’elles sont utilisées avec des accessoires approuvés.
Les instructions de ce manuel et les consignes d’installation qui accompagnent les systèmes de contrôle, les systèmes de distribution
électrique et les accessoires doivent être suivies pour que la garantie de nVent s’applique.
Pour une assistance à la conception, un soutien technique ou des renseignements sur d’autres applications non présentées ici, veuillez
communiquer avec votre représentant nVent ou avec nVent directement.
nVent
7433 Harwin Drive
Houston, TX 77036
ÉTATS-UNIS
Tél. [phone]
Fax [phone]
[e-mail]
nVent.com/RAYCHEM
 Pour que la garantie de nVent et les homologations des agences s’appliquent, les instructions fournies dans ce manuel, y
compris les produits et ensembles, doivent être suivies.
* Une autorisation spéciale est requise de l’autorité compétente ayant juridiction pour les applications de fonte de neige sur la chaussée.
Applications du treillis WinterGard
 Les systèmes de déneigement de surface empêchent l’accumulation de neige sur les rampes, les dalles, les
entrées, les trottoirs, les échelles de plateforme et les escaliers dans des conditions de neige typiques.
 Les systèmes de déglaçage maintiennent la température de la surface au-dessus du point de congélation pour prévenir la
formation de glace.
Lignes directrices en matière de sécurité
Comme avec tout équipement électrique, la sécurité et la fiabilité de tout système dépendent de la qualité des produits sélectionnés et d’une
conception, d’une installation et d’un entretien appropriés. La mauvaise conception, une manutention inappropriée, l’installation ou l’entretien
inadéquats de tout composant du système pourrait endommager le système de déneigement de surface et entraîner un déneigement
inadéquat, une décharge électrique ou un incendie. Pour réduire ces risques et assurer un fonctionnement de manière fiable du système,
lisez attentivement les informations, avertissements et instructions présentés dans le guide et suivez-les à la lettre.
Accordez une attention particulière aux éléments suivants:
• Les instructions importantes sont repérées par le terme Avertissement
• Les avertissements portent la mention AVERTISSEMENT
Codes de l’électricité
L’article 426 du National Electrical Code (NEC) et l’article 62 du Code canadien de l’électricité (CCE) régissent l’installation de systèmes fixes
de fonte de neige de surface et de déglaçage à l’extérieur. Toutes les installations doivent être conformes à ces codes et à tout autre code
national et local applicable.
Homologations
Les systèmes de treillis WinterGard sont approuvés pour une utilisation dans des zones non dangereuses uniquement.

20 | nVent.com/RAYCHEM
EN
CF
Garantie
nVent garantit tous les systèmes de treillis WinterGuard nVent RAYCHEM contre les défauts de fabrication et l’utilisation de matériaux
défectueux pendant deux (2) ans à compter de la date d’achat. Cette garantie ne peut être modifiée que par un document écrit signé par un
agent dûment autorisé de nVent. Le seul recours de l’acheteur en vertu de cette garantie consiste à ce que nVent, dans un délai raisonnable,
répare le produit ou fournisse un produit de remplacement ou encore crédite le compte de l’acheteur pour ledit produit et en accepte le
retour, selon l’éventualité retenue par nVent et ce, à sa seule discrétion. nVent ne doit en aucun cas être tenue responsable du coût de la
dépose ou de l’installation, de tout dommage ou perte de jouissance des lieux ou de toute autre propriété, de toute perte de revenu, de
toute perte de l’utilisation des revenus, de la perte de profits anticipés ou de tout dommage ou coût de quelque nature que ce soit, qu’il
s’agisse de dommages directs, indirects, accessoires ou consécutifs. En dépit de ce qui précède, nVent n’assume aucune responsabilité à
moins que: (a) L’acheteur avise rapidement nVent par écrit après avoir découvert toute non-conformité présumée et fournit une explication
détaillée de ladite non-conformité présumée; (b) l’acheteur retourne sans tarder les produits à l’attention de nVent, port payé, à l’adresse
suivante: 250 West Street, Trenton, Ontario, K8V 5S2, Canada ou 7433 Harwin Drive, Houston, Texas, 77036, USA; et (c) l’examen effectué
par nVent desdits produits établit, à la satisfaction de nVent, que les non-conformités présumées existent réellement et sont survenues
suite à l’utilisation normale du produit, non pas suite à un accident, à une mauvaise utilisation, à de la négligence, à une modification, une
réparation ou une vérification ou toute autre cause ne relevant pas du champ de responsabilité de nVent en vertu de la présente garantie
limitée. LA PRÉSENTE GARANTIE TIENT LIEU DE TOUTE REPRÉSENTATION, GARANTIE OU CONDITIONS, EXPRESSES OU IMPLICITES,
Y COMPRIS, SANS TOUTEFOIS S’Y LIMITER, TOUTE GARANTIE IMPLICITE DE QUALITÉ MARCHANDE, À LA CONFORMITÉ À UN USAGE
PARTICULIER ET À L'ABSENCE D'INFRACTIONS, AINSI QUE TOUTE AUTRE OBLIGATION OU RESPONSABILITÉ DE LA PART DE nVent, QUE
CE SOIT PAR RÈGLEMENT, CONTRAT, RESPONSABILITÉ STRICTE, DÉLIT OU AUTREMENT. Si les produits sont considérés comme un produit
de consommation dans la juridiction de l’acheteur, les exclusions et limitations décrites ci-haut en lien avec les dommages accessoires ou
indirects, ainsi que la clause de non-responsabilité des garanties implicites, peuvent ne pas s’appliquer. Les modalités d’une telle garantie
implicite sont limitées aux modalités de la présente garantie de deux (2) ans. Certaines juridictions ne permettent pas de limitation sur la
durée d’une garantie implicite, dans de tels cas, ces limites peuvent ne pas s’appliquer à vous. Cette garantie donne au consommateur des
droits légaux spécifiques et ce dernier peut avoir d’autres droits, lesquels peuvent différer selon la juridiction.
Numéros de catalogue du treillis WinterGard
Le numéro de catalogue du treillis WinterGard encode les caractéristiques du produit comme suit:
WM[a]-[bb][cc]
• WM = treillis WinterGard
• [a] = tension
o 1= 120 V
o 2= 240 V
• [bb] = largeur (pi)
o 02 = 2pi
o 03 = 3pi
• [cc] = longueur (pi)
o 05 = 5pi
o 10 = 10pi
o 15 = 15pi
o 20 = 20pi
o 25 = 25pi
o 30 = 30pi
o 35 = 35pi
o 40 = 40pi
o 45 = 45pi
o 50 = 50pi
o 60 = 60pi
• Surface de couverture (pi2) = largeur x longueur
• Puissance (W) = surface de couverture (pi2) x 50 larg./pi2
Par exemple, WM1-0205 est de 120 V, 2pi de large, 5pi de long, surface de 10 pi2et 500 W.
