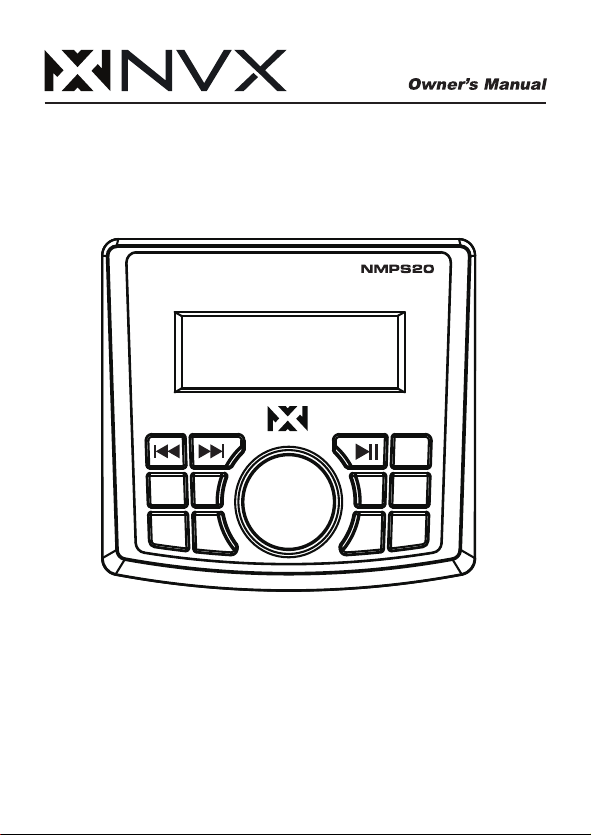

NVX NMPS20 User manual

NMPS20 | Square Style Media Center
Before connecting and operating this unit, please read the manual
carefully and keep it for future reference.
Note: Specifications and design are subject to change without notice
for future improvement.
EQ
MODE
POW BAND APS
RPT LOUD
MONO
MUT

THANK YOU FOR CHOOSING NVX
Thank you for choosing the NVX NMPS20 media center for your boat or
UTV. Whether you are an established audio guru or replacing your
stereo for the first time, this media center is going to change your entire
audio experience on your vehicle. Like all NVX products, the NMPS20
is a product of extensive research, development, and real-world testing
to ensure that they exceed our customer’s expectations for durability
and performance.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following
measures:
° Reorient or relocate the receiving antenna.
° Increase the separation between the equipment and receiver.
° Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
° Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT INSTALLATION NOTE
This unit is for use in places with a negative ground 12V power supply.
Be sure to disconnect the battery’s negative (-) terminal before
starting. This is to prevent short circuits during installation. The use of
unauthorized parts can cause permanent damage to the unit.
1

SECIFICATIONS
MODEL NMPS20
Power Output
Frequency Response
Signal to Noise Ratio
Input Sensitivity
Display Type
Waterproof Rating
Front, Rear, and Sub - Preamp Output
Fuse Rating
Bluetooth Chipset
USB Charging
USB Compatible File System
USB Playback
Tuner Presets
Supported Devices
25W x 4 @ 4 Ohms RMS
20 Hz - 20 kHz
95dB
500mV
Digital LED Backlit LCD Display
IP66
4V
15A
BT 5.0 A2DP
DC 5V 1A
FAT32
MP3/WMA
18 FM / 12 AM
iPhone / Android
2

OPERATION
FUNCTION BUTTON
Power On
Power Off
Volume Up
Volume Down
Seek Next Station
Tune Next/Skip Song
Tune Prev./Previous Song
Play/Pause
Toggle Through Audio Settings
Band Switching: FM1/FM2/FM3/AM1/AM2
Mute On/Off
Switch Between Modes:
Equalizer
Loud On/Off (Increase Highs & Lows)
Mono On/Off
Repeat Song While Using BT/USB
AM/FM/Bluetooth/USB/AUX
Press Power Button (7) Once
Hold Power Button (7) for Two Seconds
Rotate the Volume Knob (4) Clockwise
Rotate the Volume Knob (4) Counterclockwise
Press Automatic Preset Scan Button (1)
Hold Down/Press Next Button (3)
Hold Down/Press Previous Button (2)
Press Play/Pause Button (12)
Tap Middle Button (4) One by One
Press Band Button (6)
Tap Mute Button (12) for On/Off
Press Mode Button (5)
Press EQ Button (9)
Short Press Loud Button (10)
Short Press Mono Button (11)
Short Press Repeat Button (8)
3
EQ
MODE
POW BAND APS
RPT LOUD
MONO
MUT
7
8. Repeat
12. MUTE
9. EQ
12.
10. LOUD
11. MONO

and the "Radio (AM/FM) Operation" should be emboldened
Press the BAND button to switch between FM and AM.
USB/MP3 OPERATION
Insert a USB stick (flash drive) and the unit will read the MP3 and WMA
music files automatically.
BLUETOOTH OPERATION
This unit supports Bluetooth for wireless music streaming from your
iPhone/Android or similar Bluetooth enabled device.
CONNECTION STEPS:
Press the MODE button to switch to “BT PLAY”
Make sure Bluetooth is turned on, on your device
Search for the device called “[NMPS20]” and select it (the connection
should then be automatic)
Once the unit has made a connection with your device for the first time,
it will then automatically connect to your device every time after
whenever you are in the proper range of the media center.
3

WARNING!
Before installing this unit onto any panel, ALWAYS ensure that there is
sufficient clearance behind the panel and that no wiring harnesses,
fuel lines, or any other critical components are exposed or damaged
by the installation. NEVER risk damaging the when cutting your
opening.
4
4.5 in
4.1 in
0.8 in
1.2 in
4.9 in
REAR
BLACK
SUB OUTPUT
WIRED REMOTE
GREEN

WARNING!
Before installing this unit onto any panel, ALWAYS ensure that there is
sufficient clearance behind the panel and that no wiring harnesses, fuel
lines, or any other critical components are exposed or damaged by the
installation. NEVER risk damaging the when cutting your opening.
IMPORTANT INSTALLATION NOTE
This unit is for use in places with a negative ground 12V power supply.
Be sure to disconnect the battery’s negative (-) terminal before starting.
This is to prevent short circuits during installation. The use of unautho-
rized parts can cause permanent damage to the unit.

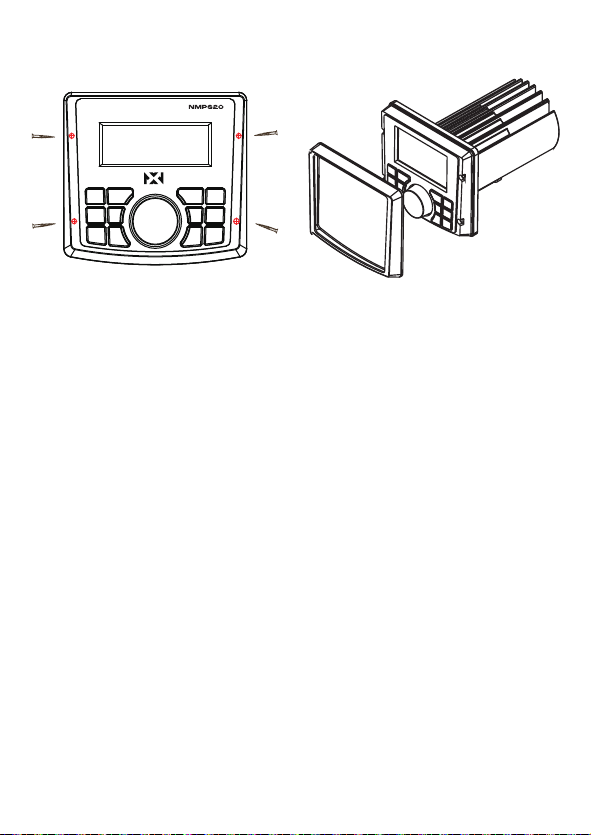

INSTALL INSTRUCTIONS
Be sure to carefully read and understand the instructions before
attempting to install the unit:
1. Attach threaded bolts to the back of the NMPS20
2. Position the mounting bracket over the bolts
3. Place washers over bolts and securely attach nuts
4. Depending on the size of your mounting baffle, you may need to snap
5. off one or more of the metal tabs from the mounting bracket to
6. accommodate the installation
5. Firmly tighten the remaining four screws on the front panel of the unit
5

USB stick is not
reading
1. Improper wiring
2. Fuse is Blown
1. Check to make sure
all wiring is correct
2. Check your fuse to
see if it might be blown
1. Speaker is wired
improperly
The antenna cable
is not connected
properly
Music files are not
properly formatted
Securely insert the
antenna cable into the
back of the source unit
Convert the music files
to MP3 or WMA format
1.Reverse a speaker
connection from
positive to negative; if
the volume improves,
the speaker was out of
phase
No radio reception
Low or no volume
Headunit is not
receiving power
ISSUE CAUSE SOLUTION
TROUBLE SHOOTING
6

NVX offers a limited warranty on this product with the following terms:
MOBILE ELECTRONICS LIMITED WARRANTY
When purchased from an Authorized NVX Dealer, NVX warrants this
product to be free from defects in material and
workmanship under normal use for a period of ONE (1) YEAR from date
of original purchase. If this product is identified as “Refurbished” or “B
Goods”, the warranty is limited to a period of NINETY (90) DAYS from
date of original purchase. In all cases you must have the original receipt.
Should service be necessary under this warranty for any reason due to
manufacturing defect or malfunction during the warranty period, NVX will
repair or replace (at its discretion) the defective merchandise with
equivalent merchandise. Warranty replacements may have cosmetic
scratches and blemishes. Discontinued products may be replaced with
more current equivalent products. This warranty is valid only for
theoriginal purchaser and is not extended to owners ofthe product
subsequent to the original purchaser. Any applicable implied warranties
are limited in duration to a period of the express warranty as provided
herein beginning with the date of the original purchase at retail, and no
warranties, whether express or implied, shall apply to this product
thereafter. Some states do not allow limitations on implied warranties;
therefore, these exclusions may not apply to you. This warranty gives you
specific legal rights; however you may have other rights that vary from
state to state.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
Defective merchandise should be returned to the place of purchase.
Your Authorized NVX Dealer is trained to handle and
expedite any warranty claim. Assistance in locating an Authorized Dealer
can be found at www.nvx.com or by contacting
NVX directly. Alternatively, if it becomes necessary for you to return
defective merchandise directly to NVX, please contact us online at
www.nvx.com/support for a Return Authorization (RMA) number. Be sure
to package all defective items in the original containeror in a package
that will prevent shipping damage and follow the return instructions
below. NVX, 15303 Ventura Blvd., 9th Floor, Sherman Oaks, CA 91403
CONSUMER
LIMITED WARRANTY INFORMATION
7

The RMA number must be clearly marked on the outside of the package.
Please return only defective components. The return of functioning items
increases your return freight charges. Non-defective items received will
be returned freight collect. Include a copy of the original receipt with the
purchase date clearly visible, and a “proof-of-purchase” statement listing
the Customer’s name, Dealer’s name and invoice number, and product
purchased. Warranty expiration on items without proof-ofpurchase will be
determined from type of sale and the manufacturing date code. Freight
must be prepaid; items sent freight collect, or COD, will be refused.
Failure to follow these steps may void your warranty. Any questions can
be directed via email to [email protected] or via mail at the address listed
above.
WHAT IS NOT COVERED?
This warranty is valid only if the product is purchased from an Authorized
NVX Dealer and used for the purpose for which it was
designed. It does not cover:
• Damage due to improper installation and/or subsequent damage to
other components.
• Damage caused by exposure to moisture, excessive heat, chemical
cleaners, and/or UV radiation.
• Damage through negligence, misuse, accident or abuse.
• Repeated returns for the same damage may be considered abuse.
• Any cost or expense related to the removal or reinstallation of product.
• Speakers damaged due to amplifier clipping or distortion.
• Items previously repaired or modified by any unauthorized repair facility.
• Return shipping on non-defective items.
• Products with tampered or missing barcode labels.
• Products returned without a Return Merchandise Authorization (RMA)
number.
• Freight Damage.
• The cost of shipping product to NVX.
• Service or installation performed by anyone other than NVX.
HOW LONG WILL IT TAKE?
NVX strives to maintain a goal of 1 week service for all acoustics
(subwoofers, midrange drivers, tweeters, crossovers, etc)
8

returns. Delays may be incurred if lack of replacement inventory or parts
is encountered.
INTERNATIONAL WARRANTY
Contact your International NVX dealer or distributor concerning specific
procedures for your country’s warranty policies.
NVX.COM
WARNING: This product contains chemicals, including lead or lead compounds,
that are known to the State of California to cause cancer, and birth defects or other
reproductive harm. For more information, go to www.P65Warnings.ca.gov.
California Proposition 65 Warning
