i.MX 8M EVK Board Hardware User's Guide
1.Introduction
This document is the hardware User’s Guide for the
i.MX 8M Evaluation Kit (EVK) based on the NXP
Semiconductor’s i.MX 8MDQLQ Applications
Processor. This board is fully supported by NXP
Semiconductor. This manual includes system setup and
debugging, and provides detailed information on the
overall design and usage of the EVK board from a
hardware system perspective.
1.1. Board overview
The EVK board is a platform designed to showcase the
most commonly used features of the i.MX 8MDQLQ
Applications Processor in a small, low cost package.
The i.MX 8M EVK board is an entry level development
board, which gives the developer the option of
becoming familiar with the processor before investing a
large amount of resources in more specific designs.
Table 1 lists the features of the i.MX 8M EVK board.
NXP Semiconductors
Document Number: IMX8MDQLQ
EVKHUG
User's Guide
Rev. 0, 01/2018
Contents
1. Introduction........................................................................ 1
1.1. Board overview....................................................... 1
1.2. Board contents........................................................ 2
1.3. Board revision history............................................. 2
2. Specifications..................................................................... 3
2.1. Processor................................................................. 4
2.2. Boot mode operations and selections...................... 4
2.3. Power tree............................................................... 6
2.4. LPDDR4 DRAM memory...................................... 8
2.5. SD card slot (J1601) ............................................... 8
2.6. eMMC memory (U601).......................................... 9
2.7. Ethernet connector (J1201)..................................... 9
2.8. USB connector (J901, J903)................................... 9
2.9. Audio input/output (J1101)..................................... 9
2.10. UART connector (J1701)........................................ 9
2.11. JTAG connector (J401)......................................... 10
2.12. Extension port (J1801).......................................... 10
2.13. MIPI-CSI/MIPI-DSI connector (J1501, J1502,
J1503) 10
2.14. User interface buttons........................................... 11
2.15. WiFi/BT (U1301/J1401)....................................... 12
2.16. User interface LED indicators............................... 12
2.17. HDMI connector (J1001)...................................... 12
3. PCB information.............................................................. 13
3.1. EVK design files................................................... 13

Introduction
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
2 NXP Semiconductors
Table 1. Board features
Processor
NXP Applications Processor
MIMX8MQ6DVAJZAA
DRAM memory
Micron 3 GB LPDDR4
MT53B768M32D4NQ-062 WT:B
Mass storage
Micron 16 GB eMMC5.0
MTFC16GAKAECN-2M WT
Micron 32 MB QSPI NOR
MT25QL256ABA1EW9
MicroSD card connector
SD3.0 supported
Power
NXP PMIC PF4210 + Discrete DCDC/LDO
Display interface
HDMI 2.0a Connector
DSI interface (Mini-SAS connector)
Ethernet
1 GB Ethernet with RJ45 connector
USB
x1 USB (2.0/3.0) Type-C connector
x1 USB (2.0/3.0) host connector
Audio connectors
3.5 mm Stereo Headphone output
Debug connectors
JTAG (10-PIN header)
MicroUSB for UART debug
Camera
CSI interface (Mini-SAS connector)
WiFi/Bluetooth
x1 on board WiFi/BT module
x1 M.2 slot (KEY-E type)
Buttons
ONOFF, RESET
LED Indicators
Power status, UART
Expansion Port
FPC connector (SAI ports)
PCB
3.937-inch x 3.937-inch (10 cm x 10 cm), 10-layer board
1.2. Board contents
The i.MX 8M EVK contains the following items:
•i.MX 8M EVK board
•USB Cable (x1 Standard USB TYPE-A to MicroUSB TYPE-B connector; x1 Standard USB
TYPE-A to USB TYPE-C connector)
•12V/5.0A Power Supply
•Quick Start Guide
1.3. Board revision history
•Rev A0/A1
•Rev B1/B2
•Rev B3
The board assembly version will be printed on a label, usually attached to the bottom side. The assembly
version will be the letter designation following the schematic revision: 700-29615 REV _.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
NXP Semiconductors 3
2.Specifications
This section provides the detailed information about the electrical design and practical considerations
that go into the EVK board. Figure 1 describes each block in the high-level block diagram of the EVK
board.

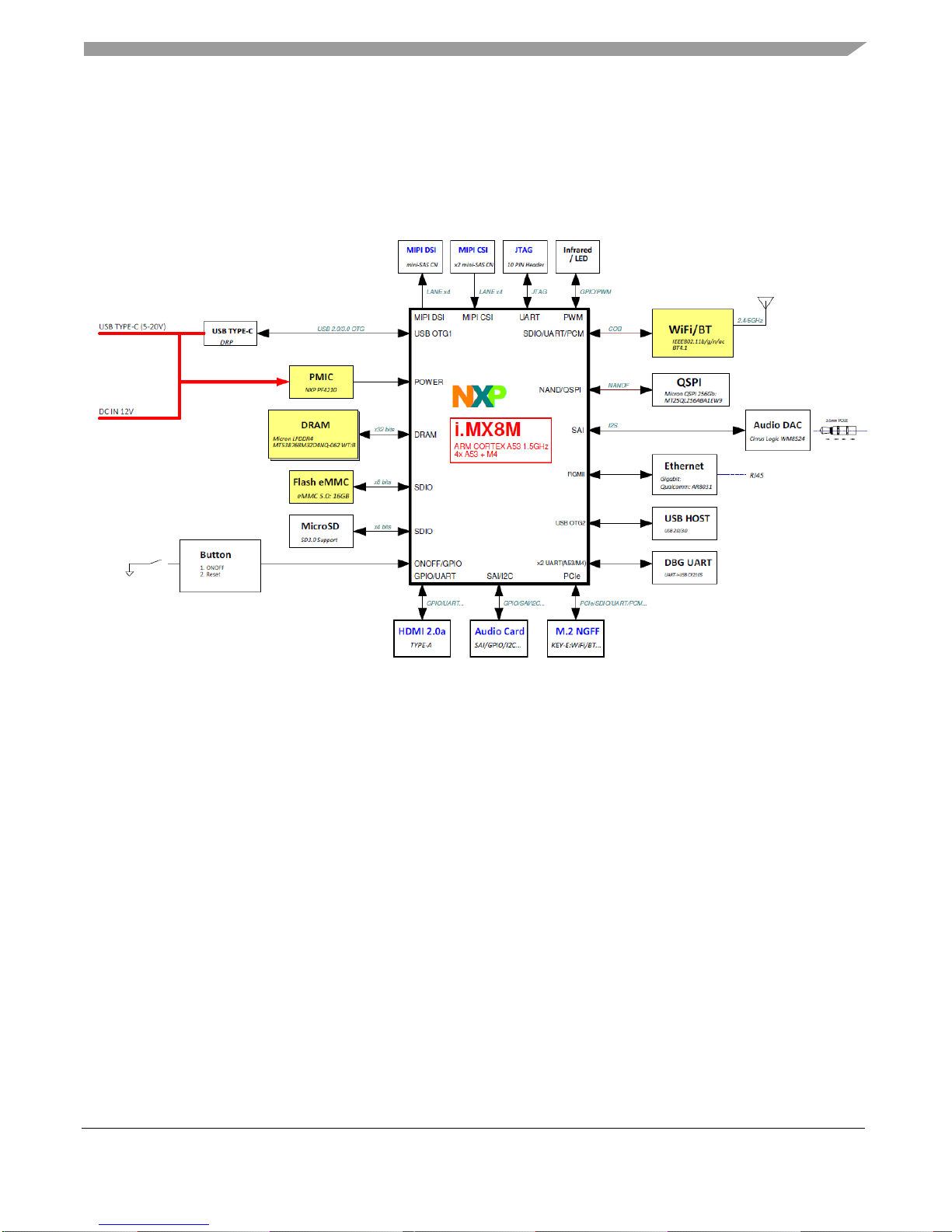

Figure 1. MCIMX8M-EVK block diagram
Figure 2 shows the overview of the i.MX 8M EVK board.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
4 NXP Semiconductors
Figure 2. i.MX 8M EVK board overview
2.1. Processor
The i.MX 8MDQLQ processors represent NXP Semiconductor’s latest achievement in integrated
multimedia-focused products offering high performance processing with a high degree of functional
integration, targeted towards the growing market of connected devices. The i.MX 8MDQLQ processor
features NXP’s advanced implementation of the Quad ARM Cortex®-A53+ ARM Cortex®-M4 core,
which operates at speeds up to 1.5 GHz. i.MX 8MDQLQ includes integrated power management
module that reduces the complexity of external power supply and simplifies the power sequencing. Each
processor provides a 32-bit DDR3/LVDDR3/DDR4/LPDDR4 memory interface and other interfaces for
connecting peripherals, such as HDMI, LCD, WLAN, Bluetooth™, GPS and camera sensors.
For more detailed information about the processor, please refer to the datasheet and reference manual on
www.nxp.com/i.MX8M.
2.2. Boot mode operations and selections
The i.MX 8MDQLQ Applications Processor can be the boot configuration selected on SW802 or by the
boot configuration stored on internal eFUSE. Alternatively, the i.MX 8MDQLQ can download a
program image from a USB connection when configured in serial downloader mode. The method used
to determine where the processor finds its boot information is from two dedicated BOOT MODE pins.
Table 2 shows the values used in the two methods.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
NXP Semiconductors 5
Figure 3. Boot mode
Table 2. Boot mode pin settings
BOOT_MODE1 BOOT_MODE 0 Boot source
0
0
Boot from fuses
0
1
Serial downloader
1
0
Internal boot
1
1
Reserved
It is important for the developer to remember that these two pins are tied to the BOOT modules,
therefore, on i.MX 8M EVK board, use a dual-switch (SW802) to select the input voltage of these two
pins, 0 or 3.3 V. If the developer wants to boot the program Image from the Fuses Mode, the position of
the switch 1 and 2 must be set to OFF, it is the same principle to choose the Serial Downloader Module
or Internal Boot Module to load bootable code into the processor.
If the method of determining the bootable source code is selected to be from the hardware, then the
developer must set the switch S802:MODE0 to OFF, MODE1 to ON, and the four i.MX 8MDQLQ pins
must be set on the EVK board as Table 3 and Figure 4.
Table 3. Boot mode setting
BOOT configuration SW801
Boot from EMMC
0010
Boot from SD2
1100

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
6 NXP Semiconductors
Figure 4. Boot mode setting
On the i.MX 8M EVK board, the default boot mode is from eMMC device. There is one SD connector
on the board. The board will check the eMMC connector first and then the SD connector. If you put the
boot card into SD connector, and set the boot configuration as “BOOT from SD2”, the board will boot
from the SD by default.
NOTE
For more information about the boot module, such as the meaning of
every bit of the Boot Switch, please refer to i.MX 8MDQLQ Reference
Manual on www.nxp.com/i.MX8M.
2.3. Power tree
There is a +12 V external wall power supply that needs to be connected to the i.MX 8M EVK board at
connector J902. The other powers from internal adapters, on the EVK board, use discrete device to
power the system. Figure 5 shows the power tree.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
NXP Semiconductors 7

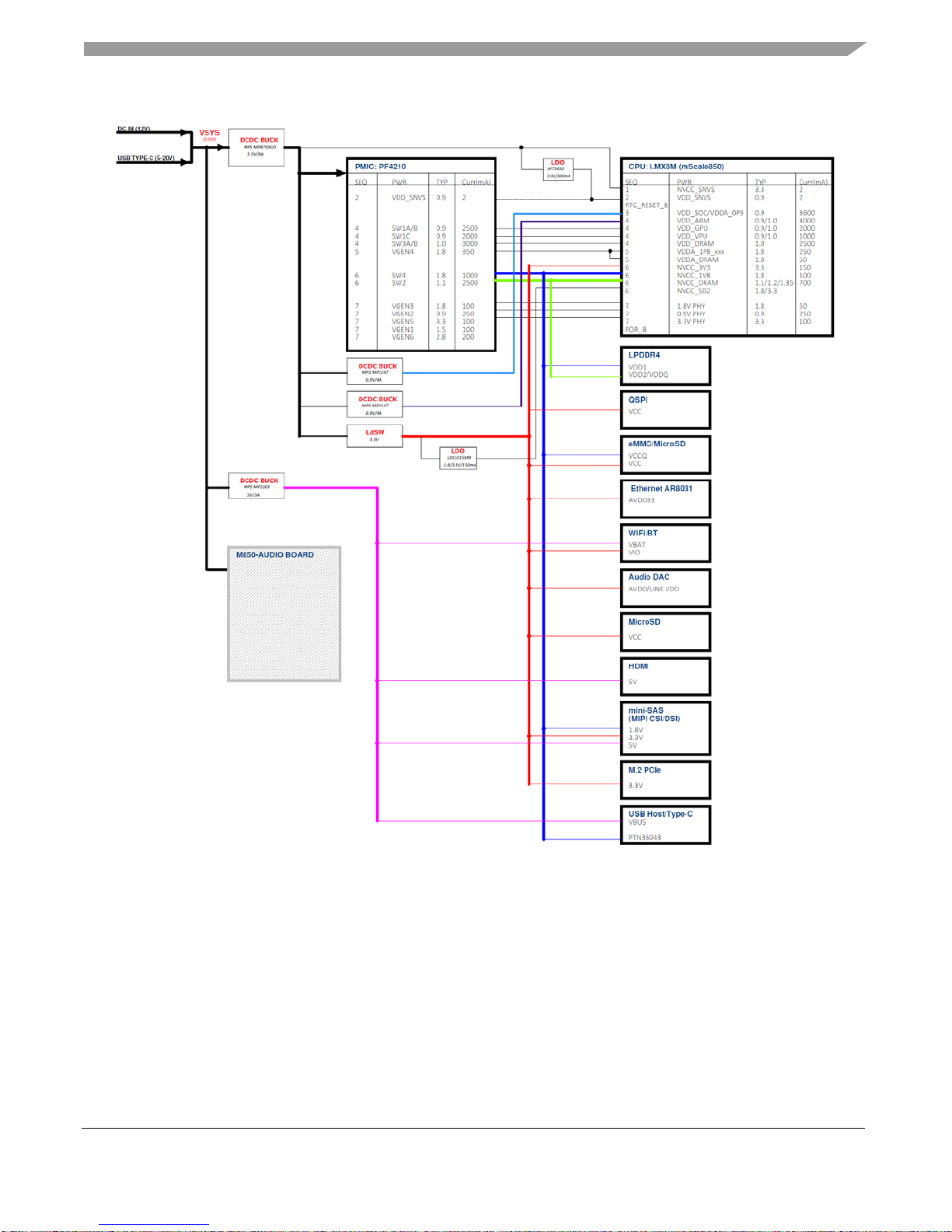

Figure 5. Power tree diagram
In Figure 5, the developer can get all the voltage supply rails used on the EVK board. When some
modules are not working, the developer needs to test whether the voltage of this module is correct.
Table 4 lists the power rails on the board.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
8 NXP Semiconductors
Table 4. Power rails
mScale850 SRC TYPE Value
SEQ PWR rail
1
NVCC_SNVS
3.3
2
VDD_SNVS
0.9
RTC_RESET_B
3
VDD_SOC/VDDA_0P9
DC/DC BUCK
0.9
4
VDD_ARM
DC/DC BUCK
0.9/1.0
4
VDD_GPU
PMIC PF4210
0.9/1.0
4
VDD_VPU
PMIC PF4210
0.9/1.0
4
VDD_DRAM
PMIC PF4210
1.0
5
VDDA_1P8_xxx
PMIC PF4210
1.8
5
VDDA_DRAM
PMIC PF4210
1.8
6
NVCC_3V3
DC/DC BUCK
3.3
6
NVCC_1V8
PMIC PF4210
1.8
6
NVCC_DRAM
PMIC PF4210
1.1/1.2/1.35
7
NVCC_SD2
LDO
1.8/3.3
8
1.8V PHY
PMIC PF4210
1.8
8
0.9V PHY
PMIC PF4210
0.9
8
3.3V PHY
PMIC PF4210
3.3
POR_B
NOTE
If an alternate power supply is used (not the original power supply), it
should be no more than 20 V; otherwise the board will not work.
2.4. LPDDR4 DRAM memory
The i.MX 8M EVK board has one 768 Meg × 32 (4 channels × 16 I/O) LPDDR4 SDRAM chip
(MT53B768M32D4NQ-062 WT:B) for a total of 3 GB RAM memory.
In the physical layout, the LPDDR4 chip is placed on the TOP side, the data traces are not necessarily
connected to the LPDDR4 chips in sequential order, but for ease of routing, are connected as best
determined by the layout and other critical traces.
The DRAM_VREF can be created by a simple voltage divider using 1.5 K Ohm 1% resistors and 0.1uF
capacitors for stability. The relatively smaller-value resistors provide enough current to maintain a
steady mid‐point voltage. The calibration resistors used by the LPDDR4 chips and processor are 240
Ohm 1% resistors.
2.5. SD card slot (J1601)
There is one MicroSD card connectors (J1601) on the i.MX 8M EVK board. J1601 on the i.MX 8M
EVK board is the TF slot for SD2 interface. By default, this MicroSD connector supports one 4-bit
SD3.0 card or MMC card.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
NXP Semiconductors 9
2.6. eMMC memory (U601)
The eMMC interface is connected to uSDHC1 of i.MX 8M. It can support eMMC 5.0, eMMC and hinge
type. MicroSD socket are co-layout, and the eMMC device is populated by default on the EVK board.
To boot from eMMC, you need to change the Boot-mode switch (SW801) settings as shown in Table 3.
2.7. Ethernet connector (J1201)
There is one gigabit Ethernet module on the i.MX 8MDQLQ processor. The developer can use the
ENET connector to send/receive the ENET signals. The Ethernet subsystem of the i.MX 8M EVK board
is provided by the Qualcomm AR8031 Ethernet Transceiver (U1201). The Ethernet Transceiver (or
PHY) receives standard RGMII Ethernet signals from the MAC-NET core of the i.MX 8MDQLQ
Applications Processor. The processor takes care of all Ethernet protocols at the MAC layer and above.
The PHY is only responsible for the Link Layer formatting. The PHY receives the clock signal from the
ENET_TXC pin of i.MX 8MDQLQ processor.
When the developer uses the i.MX 8M EVK board for the first time, he must set the MAC address for
the EVK board. The MAC address is printed on the connector very clearly, and the developer just needs
to set MAC address same as it.
2.8. USB connector (J901, J903)
The i.MX 8MDQLQ Applications Processors contain two USB 2.0/3.0 OTG controllers, with two
integrated USB PHY. On the EVK board, one is used for USB host port and the other for the USB
TYPE-C port.
2.9. Audio input/output (J1101)
The main Audio DAC used on the EVK board is CIRRUS LOGIC Low Power, high quality Stereo
DAC, WM8524. The digital interface between i.MX 8MDQLQ and WM8524 includes three signals:
SYNC_CLK, BCLK, and DACDAT. The i.MX 8MDQLQ also provides the MCLK to WM8960.
i.MX 8M EVK includes one headphone interface (J1101). J1101 is a 3.5 mm 4-pole (or TRRS) phone
jack.
2.10.UART connector (J1701)
The i.MX 8MDQLQ Applications Processor has four independent UART Ports (UART1 – UART4).
Usually the developer can use a DB9 connector and a level shifter such as MAX3232 to complete the
UART debug circuit. Nowadays, many computers may not have a RS-232 DB9 connector, so on the
EVK board, SILICON LABS’s CP2105, there is a USB to Serial UART IC to cover the UART signal to
the USB signal.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
10 NXP Semiconductors
On the EVK board, UART1_TXD & UART1_RXD are used to output serial debugging information for
A53-core. UART2_TXD & UART2_RXD are used to output serial debugging information for M4-core.
No RTS or CTS signals are sent from the Processor to the Debug connector as these signals are ignored
by most applications. The required terminal settings to receive debug information during the boot cycle
are as shown in Table 5.
Table 5. Terminal setting parameters
Data Rate
115,200 Baud
Data bits
8
Parity
None
Stop bits
1
2.11.JTAG connector (J401)
The i.MX 8MDQLQ Applications Processor accepts five JATG signals from an attached debugging
device on dedicated pins. A sixth pin on the processor accepts a board HW configuration input, specific
to the EVK board only. The five JTAG signals used by the processor are:
•JTAG_TCK TAP Clock
•JTAG_TMS TAP Machine State
•JTAG_TDI TAP Data In
•JTAG_TDO TAP Data Out
•JTAG_nTRST TAP Reset Request (Active Low)
2.12.Extension port (J1801)
One Expansion port (J1801) is provided on the EVK board to generate audio card connector, and the
developer can use the processor to perform audio features development.
2.13.MIPI-CSI/MIPI-DSI connector (J1501, J1502, J1503)
The i.MX 8MDQLQ processor supports dual MIPI-CSI and single MIPI-DSI. The connectors are
designed to support camera and LCD. The connectors are as shown in Figure 6.

Specifications
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
NXP Semiconductors 11
Figure 6. MIPI-DSI/CSI connector
2.14.User interface buttons
There are two user interface buttons on the EVK board.
2.14.1.Power button (SW1701)
The chip supports the use of a button input signal to request main SoC power state changes (i.e. ON or
OFF) from the PMU.
ON/OFF can be configured as debounce, OFF-to-ON time, and max timeout. The debounce and OFF-to-
ON time can be configured as 0, 50, 100 and 500 ms. Debounce is used to generate the power-off
interrupt. In the ON state, if ON/OFF button is held longer than the debounce time, the power-off
interrupt is generated. OFF-to-ON time supports the time it takes to request power-on after a button has
been held longer than the configured time. In the OFF state, if ON/OFF button is held longer than the
OFF-to-ON time, the state will transit from OFF to ON. Max timeout can be configured as 5 s, 10 s, 15 s
and disable. Max timeout can also be the time for requesting power down after ON/OFF button has been
held for the defined time.

PCB information
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
12 NXP Semiconductors
2.14.2.Reset button (SW1702)
In the ON state, holding the RESET button (SW1702) will force to reset the power rails except the
VDD_SNVS on the i.MX 8M EVK board. The i.MX 8MDQLQ applications processor will be
immediately turned off and reinitiate a boot cycle from the OFF state.
2.15.WiFi/BT (U1301/J1401)
The MCIMX8M EVK board has two ways to support WiFi/BT function:
1. Chip on board WiFi: LBEE5U91CQ-TEMP;
2. M.2 WiFi/BT card.
Both ways share the same UART interface for BT function, so the BT function cannot be used at the
same time. For WiFi, there are two standalone PCIe interfaces for this purpose, and WiFi function can
be used at the same time.
2.16.User interface LED indicators
There are two LED indicators on the board. These LEDs have the following functions:
•Main Power Supply (D1601)
—Green – CPU is running on OD mode.
—Red – WALL_12V_DC_JACK is provided and SW701 is powered on.
—OFF – The board is powered off.
•UART (D1702/D1703)
—Green light flashing – The UART data transmitted to PC.
—Orange light flashing – The UART data received from PC.
2.17.HDMI connector (J1001)
The i.MX 8M EVK board has a Type-A HDMI connector that can playback 4K video.

PCB information
i.MX 8M EVK Board Hardware User's Guide, User's Guide, Rev. 0, 1/2018
NXP Semiconductors 13
3.PCB information
The overall dimensions of the i.MX 8M EVK board PCB are shown in Figure 3. The EVK board is
made with standard 10-layer technology. The material used was FR-4, and the PCB stack-up
information is shown in Table 6.
Table 6. Board stack up information
Layer Description Coppoer (Oz.) Dielectric thickness (mil)
1
Signal
0.333
Dielectric
TU768P:2.741mil
2
GND
1
Dielectric
TU768P:3.94mil
3
Power
1
Dielectric
TU768P:4.409mil
4
Signal
1
Dielectric
TU768P:3.94mil
5
GND
1
3.0
Dielectric
TU768P:4.491mil
6
Signal
1
Dielectric
TU768P:3.94mil
7
GND
1
Dielectric
TU768P:4.465mil
8
Signal
1
Dielectric
TU768P:3.94mil
9
GND
1
Dielectric
TU768P:2.743mil
10
Signal
0.333
3.1. EVK design files
You can download the schematics, layout file, gerber files, and BOM from www.nxp.com/i.MX8M.
NOTE
The CPU dies when the temperature is over 95°C due to some use cases. It
is strongly recommended to install fans on the heatsink to avoid any
potential damages to the PCBA. You can get fans from
www.nxp.com/i.MX8M.

Document Number: IMX8MDQLQEVKHUG
Rev. 0
1/2018
How to Reach Us:
Home Page:
www.nxp.com/
Web Support:
www.
nxp.com/support
Information in this document is provided solely to enable system and software
implementers to use NXP products. There are no express or implied copyright licenses
granted hereunder to design or fabricate
any integrated circuits based on the
information in this document. NXP reserves the right to make changes without further
notice to any products herein.
NXP makes no warranty, representation, or guarantee regarding the suitability of its
products for any p
articular purpose, nor does NXP assume any liability arising out of
the application or use of any product or circuit, and specifically disclaims any and all
liability, including without limitation consequential or incidental damages. “Typical”
parameters t
hat may be provided in NXP data sheets and/or specifications can and do
vary in different applications, and actual performance may vary over time. All operating
parameters, including “typicals,” must be validated for each customer application by
customer’s
technical experts. NXP does not convey any license under its patent rights
nor the rights of others. NXP sells products pursuant to standard terms and conditions
of sale, which can be found at the following address:
nxp.com/SalesTermsandConditions.
NXP, the NXP logo, NXP SECURE CONNECTIONS FOR A SMARTER WORLD,
Freescale, the Freescale logo are the trademarks
of NXP B.V. All other product or
service names are the property of their respective
owners.
Arm, the Arm logo, and Cortex are registered trademarks of Arm Limited (or its
subsidiaries) in the EU and/or elsewhere. All rights reserved
.
©
2018 NXP B.V.
