NXP Semiconductors PCA9617ADP-ARD User manual

UM11763
PCA9617ADP-ARD user manual
Rev. 1.0 — 22 July 2022 User manual
Document information
Information Content
Keywords PCA9617A, I2C-bus, level translator, repeater, Arduino port, EVK
Abstract The PCA9617ADP-ARD evaluation board is a daughterboard equipped with
an Arduino port, designated for easy testing and design of PCA9617A IC,
level translating FM+ I2C-bus repeater. The board is fully compliant with
IMXRT1050 EVK, LPCXpresso55S69 (LPC55S69-EVK) and i.MX 8M Mini
LPDDR4 EVK (8MMINILPD4-EVK, 8MMINID4-EVK), including GUI software
control. The board can be attached to any device equipped with an Arduino
port.

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
Rev Date Description
v.1.0 20220722 Initial version
Revision history
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
2 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
IMPORTANT NOTICE
For engineering development or evaluation purposes only
NXP provides the product under the following conditions:
This evaluation kit is for use of ENGINEERING DEVELOPMENT OR
EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-
soldered to a printed-circuit board to make it easier to access inputs,
outputs and supply terminals. This evaluation board may be used with any
development system or other source of I/O signals by connecting it to the
host MCU computer board via off-the-shelf cables. This evaluation board
is not a Reference Design and is not intended to represent a final design
recommendation for any particular application. Final device in an application
heavily depends on proper printed-circuit board layout and heat sinking
design as well as attention to supply filtering, transient suppression, and I/O
signal quality.
The product provided may not be complete in terms of required design,
marketing, and or manufacturing related protective considerations, including
product safety measures typically found in the end device incorporating the
product. Due to the open construction of the product, it is the responsibility of
the user to take all appropriate precautions for electric discharge. In order to
minimize risks associated with the customers’ applications, adequate design
and operating safeguards must be provided by the customer to minimize
inherent or procedural hazards. For any safety concerns, contact NXP sales
and technical support services.
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
3 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
1 Introduction
This document describes the PCA9617ADP-ARD evaluation board. The evaluation board
is built around the PCA9617A, a level translating FM+ I2C-bus repeater, produced by
NXP Semiconductors. The evaluation board serves as a daughterboard that can be
connected through an Arduino port to various Arduino compatible (including original
Arduino Uno R3) EVK/motherboards with the purpose of testing and measuring the
characteristics of the PCA9617A Device Under Test (DUT).
The PCA9617ADP-ARD daughterboard tests and measures the static and dynamic
characteristics of the DUT by accessing an I2C EEPROM from the Arduino port through
the PCA9617A level translator.
The DUT is tested for different logic levels applied to both sides of the level translator, by
supplying the PCA9617A IC with two independent voltage programmable power supplies.
The power supplies are controlled by the motherboard (EVK) through the same Arduino
port. Power is delivered from the motherboard (EVK) through the Arduino port also.
Additionally, a GUI (Windows platform) is provided to facilitate the evaluation of the
daughterboard. The GUI is used with the following NXP evaluation boards: IMXRT1050
EVK Board, LPCXpresso55S69 Development Board, and i.MX 8M Mini LPDDR4 EVK
Board.
2 Finding kit resources and information on the NXP web site
NXP Semiconductors provides online resources for evaluation board and its supported
device(s) on http://www.nxp.com.
The information page for PCA9617ADP-ARD evaluation board is at http://http://
www.nxp.com/PCA9617ADP-ARD. The information page provides overview information,
documentation, software and tools, parametrics, ordering information and a Getting
Started tab. The Getting Started tab provides quick-reference information applicable
to using the PCA9617ADP-ARD evaluation board, including the downloadable assets
referenced in this document.
2.1 Collaborate in the NXP community
The NXP community is for sharing ideas and tips, ask and answer technical questions,
and receive input on just about any embedded design topic.
The NXP community is at http://community.nxp.com.
3 Getting ready
Working with the PCA9617ADP-ARD requires the kit contents, additional hardware, and
a Windows PC workstation with installed software.
3.1 Kit contents
•Assembled and tested evaluation board in an antistatic bag
•Quick Start Guide
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
4 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
3.2 Assumptions
Familiarity with the I2C bus is helpful but not required.
3.3 Static handling requirements
CAUTION
This device is sensitive to ElectroStatic Discharge (ESD). Therefore care
should be taken during transport and handling. You must use a ground strap
or touch the PC case or other grounded source before unpacking or handling
the hardware.
3.4 Minimum system requirements
This evaluation board requires a Windows PC workstation. Meeting these minimum
specifications should produce great results when working with this evaluation board.
•Computer with Windows 10
•One USB port (either 3.0 or 2.0 or 1.1 compatible)
•One of three EVK boards (MIMXRT1050-EVK, LPC55S69-EVK, 8MMINILPD4-EVK)
along with the associated firmware/GUI software
•USB cable for power and data connection between PC and EVK board (if not included
in the EVK package)
4 Getting to know the hardware
4.1 PCA9617ADP-ARD features
•Equipped with I2C EEPROM for rapid test and measurements;
•Equipped with programmable power supplies for logic level combination;
•Onboard I2C-bus connector for easy access from external;
•Onboard jumpers for signal isolation of the DUT;
•Equipped with Arduino Uno R3 port for direct connection with Arduino devices;
•Fully compliant with IMXRT1050 EVK board, including GUI (Windows 10);
•Fully compliant with LPCXpresso55S69 dev. board, including GUI (Windows 10);
•Compliant with i.MX Mini LPDDR4 EVK board, including GUI (Windows 10).

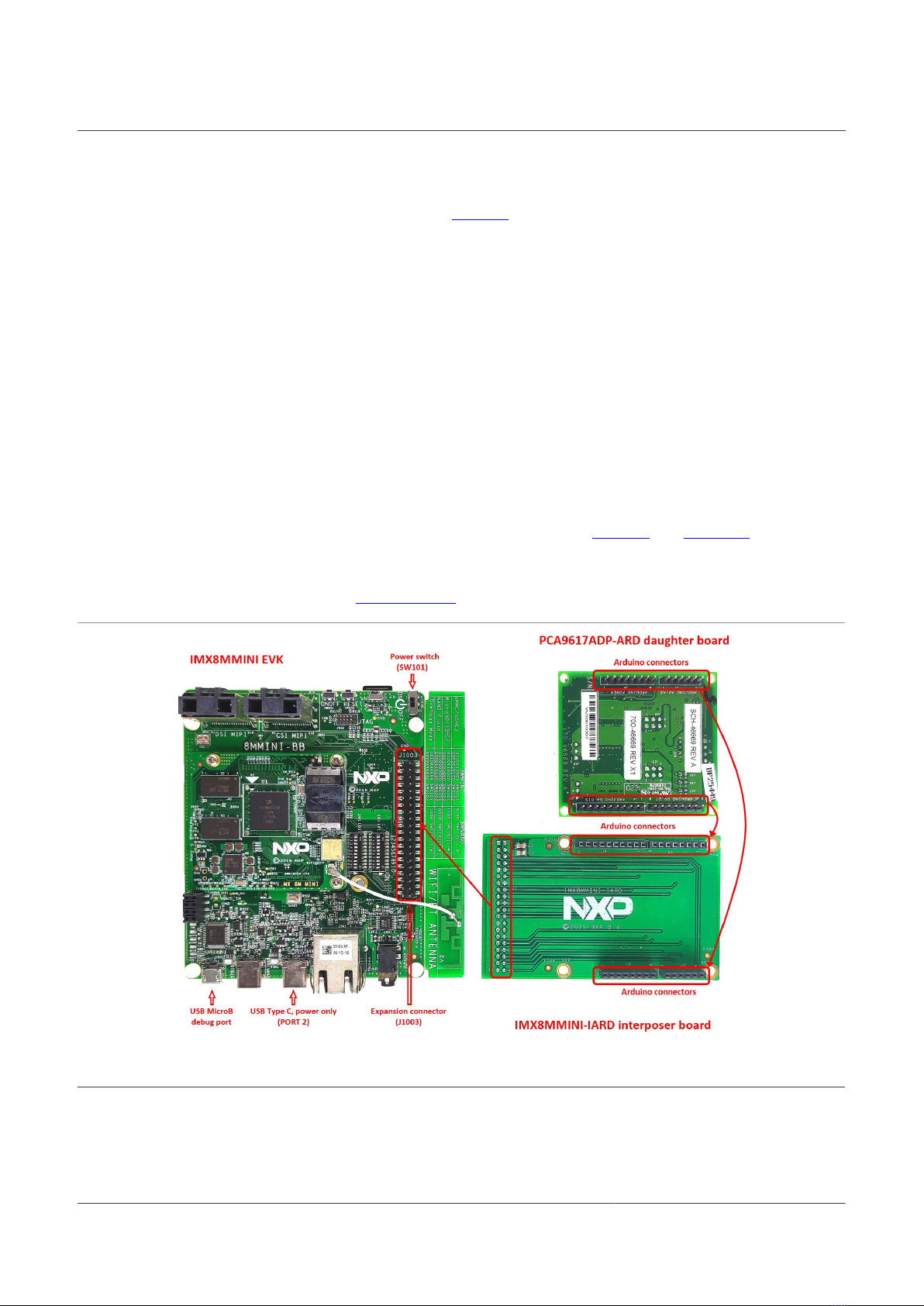

Note: For i.MX Mini LPDDR4 EVK Board it is necessary to use an IMX8MMINI-IARD
interposer board between the EVK and PCA9617ADP-ARD daughterboard (see
IMX8MMINI-IARD User Manual).
4.2 Kit featured components
Figure 1 identifies the main components on the board. The PCA9617A (U6) is placed
in center of the board. In the right side, the user can find the EEPROM (U10) and the
hardware address jumpers (J11, J16, J17) of the DUT (U6). The output enable jumper
(J14) and I2C-bus external connector (J3) are in the bottom side. The programmable
power supplies (LOD 1, LDO 2), along with its additional components, are placed in the
top side of the PCB. Here, the user can find the power LEDs (D1-3.3 V, D2-5 V) and LDO
enable LED (D3).
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
5 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
The Arduino port connectors (J1, J4, J5, J6) are located on the bottom side of the board.
Figure 1. The PCA9617ADP-ARD board picture, top view (up) and bottom view (down)
4.3 Schematic diagram
The schematic diagram of PCA9617ADP-ARD is available at: http://www.nxp.com/
PCA9617ADP-ARD/.
4.4 Arduino port
J1, J4, J5, and J6 are the mated pin headers of the Arduino Uno R3 connectors. The pins
have the same electrical function and are placed on the board so the daughterboard can
be directly inserted into the Arduino port.
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
6 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
The daughterboard uses only eight signal lines. Table 1 shows the pin chart of
connectors, and the lines used in the circuit. See also the SPF-46669_A.pdf schematic
file.
Ref Des # Arduino label PCA9617ADP-ARD function
1 NC Not used
2 IOREF Not used
3 RESET Not used
4 3.3 V Not used
5 5 V Power supply
6 GND Power supply return
7 GND Power supply return
J6 (Power)
8 Vin Not used
1 A0 Not used
2 A1 Not used
3 A2 Not used
4 A3 Not used
5 A4/SDA I2C – SDA
J1 (analog, digital, I2C)
6 A5/SCL I2C – SCL
1 D0/RX DUT OE (output enable)
2 D1/TX MUX2_LDO2_S1
3 D2 MUX2_LDO2_S0
4 D3/PWM MUX1_EN_B
5 D4 MUX1_LDO1_S1
6 D5/PWM MUX1_LDO1_S0
7 D6/PWM Not used
J5 (digital, UART, PWM)
8 D7 Not used
1 D8 Not used
2 D9/PWM Not used
3 D10/SS/PWM Not used
4 D11/MOSI/PWM Not used
5 D12/MISO Not used
6 D13/SCK Not used
7 GND Power supply return
8 AREF Not used
9 A4/SDA Not used
J4 (mixed)
10 A5/SCL Not used
Table 1. Arduino connectors pin chart
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
7 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
The circuit is supplied from the Arduino port through J6 and J4. Pin 4 of J6 is a 3.3
V power supply, while pin 5 of J6 is 5 V power supply. Pin 6 and 7 of J6 and pin
7 of J4 represents the power supply return (ground). LED D1 is the 3.3 V power
supply indicator (VCC_3V3_MAIN power net), and D2 is 5 V power supply indicator
(VCC_5V_MAIN power net). See the SPF-46669_A.pdf schematic file of PCA9617ADP-
ARD daughterboard.
4.5 I2C bus repeater/level translator
Figure 2 shows the I2C-bus repeater and EEPROM section of PCA9617ADP-ARD
schematic diagram. The I2C-bus of the Arduino port (A5 – SCL and A4 – SDA), controlled
by the EVK goes to side “B” of PCA9617A level translator/repeater (U7). U7 (the same
as the DUT) works as an interface between 3.3 V fixed voltage I2C-bus from the Arduino
port and variable voltage I2C-bus of the DUT. Side “A” of U7 is connected to side “A”
of the DUT (U6). The VCCA pins of both ICs are supplied by the LDO1 programmable
power supply (0.8 V to 4.96 V). From side “B” of the DUT (U6), the I2C-bus goes to the
EEPROM (U10). This section of the I2C-bus is also voltage variable; the VCCB pin of U6
and VCC pin of U10 are supplied from LDO2 programmable power supply (2.5 V to 4.96
V). In this way, the user can read/write data from/to EEPROM memory using a host (PC
and EVK) at different voltages across the DUT (PCA9617A level translator). Note that the
EEPROM can operate from 1.7 V to 5.5 V, which is fully compatible with the LDO2 output
voltage range. The jumper headers J15 and J18 allow isolation of the signal pins of the
DUT, so the user can access the level translator directly from outside of the board.
The output enable input of the DUT (pin 5, U6) can be controlled locally from jumper
header J14, or from EVK/GUI. When OE is remote, jumper J14 is placed in position 1-2,
and the OE is controlled through pin 1 of the Arduino connector J1. The OE input has an
internal pullup resistor connected to VCCB pin. Q1 assures the level translation from 3.3
V to VCCB rail voltage.
Jumpers J11, J16, and J17 set the hardware address of the EEPROM memory. The user
should set the I2C control byte accordingly with the hardware address of the EEPROM.
The I2C-bus from the Arduino port can also be accessed from the I2C-bus external
connector (J3). For details, see the SPF-46669_A.pdf schematic file.
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
8 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
Figure 2. PCA9617ADP-ARD – I2C-bus repeater/level translator section
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
9 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
4.6 Programmable power supplies
The PCA9617ADP-ARD contains two programmable power supplies: LDO1 and LDO2.
Figure 3 depicts the LDO sections of the schematic diagram. LDO1 provides the power
for VCCA, and LDO2 supplies VCCB power rail. Both regulators are controlled from the
EVK through the Arduino port.
4.6.1 LDO1
The programmable power supply LDO1 consists of an adjustable voltage regulator
LDK120M (U3), and the analog switch 74HCT4052D (U1). The analog switch selects the
resistor divider ratio in the feedback loop of the voltage regulator (U3). Table 2 shows
the output voltages of LDO1 as a function of switch position. U1 is controlled from the
Arduino port through “MUX1_LDO1_S0”, “MUX1_LDO1_S1”, “MUX1_EN_B” (pins 4, 5,
and 6 of the Arduino connector J5). The jumper header J19 allows the user to interrupt
the VCCA rail, to perform current measurements, or to supply VCCA from external.
MUX1_EN_B MUX1_LDO1_S1 MUX1_LDO1_S0 VCCA
High X (don’t care) X (don’t care) 0.8 V
Low Low Low 1.8 V
Low Low High 2.5 V
Low High Low 3.3 V
Low High High 4.96 V
Table 2. The VCCA programmable voltages
4.6.2 LDO2
The programmable power supply LDO2 is realized with the adjustable voltage regulator
MIC5301 (U4), and the analog switch 74HCT4052D (U2). Similarly, the analog switch
selects the resistor divider ratio in the feedback loop of the voltage regulator (U4). Table 3
shows the output voltages of LDO2 as a function of switch position. U1 is controlled from
the Arduino port through “MUX2_LDO2_S0” and “MUX2_LDO2_S1”, (pins 2 and 3 of the
Arduino connector J5). The control line “MUX2_EN_B” is connected to ground through
pulldown resistor R18. The jumper header J20 allows the user to interrupt the VCCB rail,
to perform current measurements, or to supply VCCB from external.
MUX2_LDO2_S1 MUX2_LDO2_S0 VCCB
Low Low 2.5 V
Low High 3 V
High Low 3.3 V
High High 4.96 V
Table 3. VCCB programmable voltages
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
10 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
Figure 3. PCA9617ADP-ARD – LDO1 (up) and LDO2 (down) section
The enable input for both LDOs (U3 and U4) are controlled through an interlock
loop circuit. Both regulators are disabled when “LDO_EN” are pulled down. This is
accomplished when LDO1 switch (U1) is “2Z/2Y3 – ON” and LDO2 switch (U2) is
“2Z/2Y0 – ON”. This combination is true for VCCA = 4.96 V, and VCCB = 2.5 V. The
onboard LED D3 indicates the LDO enable status.
4.7 Jumpers and test points
The board contains eight jumpers and several test points. Table 4 and Figure 4 detail
the jumper locations and their default configurations. Table 5 describes the test points
located on the PCA9617ADP-ARD board.
Ref Des Label Default Description
1-2: VCCA = VCC_LDOOUT1
J19 VCCA 1-2 OFF: VCCA FROM EXTERNAL
1-2: VCCB = VCC_LDOOUT2
J20 VCCB 1-2 OFF: VCCB FROM EXTERNAL
1-2/3-4: ON
J18 Side A (U6) 1-2/3-4: ON 1-2/3-4: OFF
Table 4. PCA9617ADP-ARD jumpers
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
11 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
Ref Des Label Default Description
1-2/3-4: ON
J15 Side B (U6) 1-2/3-4: ON 1-2/3-4: OFF
2-3: DUT EN = HIGH
1-2: REMOTEJ14 DUT OE 2-3
OPEN – DUT EN = LOW
ON: E0 = 0
J11 EEPROM ADDR (E0) ON OFF: E0 = 1
ON: E1 = 0
J16 EEPROM ADDR (E1) ON OFF: E1 = 1
ON: E2 = 0
J17 EEPROM ADDR (E2) ON OFF: E2 = 1
Table 4. PCA9617ADP-ARD jumpers...continued
Figure 4. PCA9617ADP-ARD Jumper locations
Ref Des Test point/jumper label Description
TP1 SDAB I2C SDA line, side B
TP2 SCLB I2C SCL line, side B
TP3 SCLA I2C SCL line, side A
TP4 SDAA I2C SDA line, side A
Table 5. PCA9617ADP-ARD test points
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
12 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
Ref Des Test point/jumper label Description
TP5 SCL-ARD I2C SCL line, Arduino port
TP7 SDA-ARD I2C SDA line, Arduino port
TP9 VCC_3V3 VCC_3V3 rail
TP10 VCC_5V0 VCC_5V0 rail
TP11 VCC_3V3_MAIN VCC_3V3_MAIN rail
TP12 VCC_5V0_MAIN VCC_5V0_MAIN rail
TP13 VCC_LDOOUT1 VCC_LDOOUT1 rail
TP14 VCC_LDOOUT2 VCC_LDOOUT2 rail
TP15 GND Ground
TP16 GND Ground
TP17 VCCA VCCA rail
TP18 VCCB VCCB rail
Table 5. PCA9617ADP-ARD test points...continued
5 Installing and configuring software tools
PCA9617A_ARD evaluation board is designed and built as a daughterboard able to work
in conjunction with a motherboard equipped with an Arduino port. The board was built to
be fully compatible with the following NXP Evaluation (EVK) boards:
•IMXRT1050 EVK board;
•LPCXpresso55S69 development board;
•i.MX 8M Mini LPDDR4 EVK board
Each of the above-mentioned evaluation/development boards benefit by firmware
support, which can be downloaded from www.nxp.com/. Before starting, the EVK
motherboard must be programmed with the corresponding firmware package.
Additionally, a GUI application (Windows 10) is available for download from the NXP site,
allowing rapid testing and operation of PCA9617ADP-ARD daughterboard through the
one of above mentioned EVKs. The GUI application is common for all three EVKs. The
GUI software is also built to control two daughterboards: the PCA9617ADP-ARD and the
PCA9846PW-ARD (both manufactured by NXP Semiconductors). For details regarding
installation of the EVK firmware and GUI host software on PC please download UM11581
- Arduino Shields GUI and firmware installation available at https://www.nxp.com/docs/
en/user-guide/UM11581.pdf. Once the software is installed, the first step is to select
the correct combination EVK – PCA9617ADP-ARD daughterboard. The board can be
controlled from the GUI interface. See Section 6 and Section 7 for more details regarding
the operation of PCA9617ADP-ARD from GUI software.
6 Configuring the hardware
6.1 Using the PCA9617ADP-ARD with an IMXRT1050 EVK board
Figure 5 shows the required hardware for operation of the PCA9617ADP-ARD
daughterboard with IMXRT1050 EVK. The following items are necessary:
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
13 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
•One IMXRT1050-EVK board
•One PCA9617ADP-ARD daughterboard
•One USB-A/USB Micro-B cable
•A PC with Windows 10 operating system
The IMXRT1050 EVK motherboard can be powered by one of three methods:
1. Connecting an external 5VDC power supply to the barrel power connector (J2) on the
board
2. Connecting a USB cable from the PC to the Micro-B USB connector (J9) on the
board
3. Connecting a USB cable from the PC to the USB connector (J28) on the board.
When the PC is connected in this fashion, the USB port can simultaneously act as a
debug interface. Therefore, by using a single USB cable connected to J28, the EVK
can be powered and linked to the PC for data exchange.
Older USB ports (from the PC) are not able to deliver the necessary current (500 mA).
Use an external power supply (connected to J2) before establishing the communication.
From J1 on the EVK board (see Figure 5) the user can select the power configuration for
the motherboard. For further details, see the i.MX RT1050 Processor Reference Manual
i.MX RT1050 Processor Reference Manual.

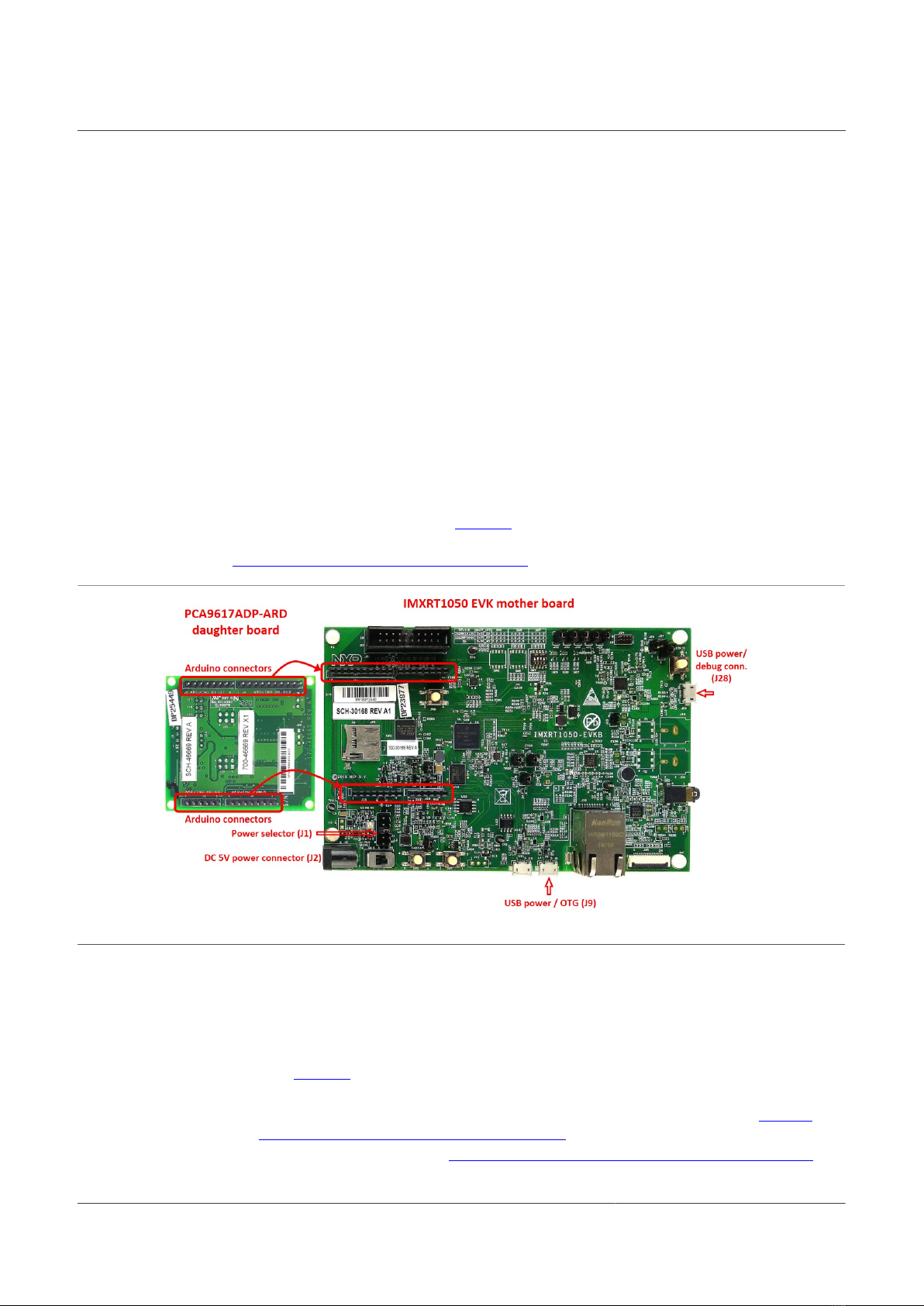

Figure 5. PCA9617ADP-ARD daughterboard and IMXRT1050 EVK board, before starting
To configure the hardware and workstation, complete the following procedure:
1. Configure the suitable power configuration of EVK (J1). If using J28 for power supply,
the J1 jumper shall be placed in position 5-6. If using an external power supply
(connected to J2), the jumper J1 will be placed in position 1-2.
2. Insert the PCA9617ADP-ARD daughterboard on the Arduino connector of the EVK
(see Figure 5).
3. Using USB connector J28, connect the EVK board to a USB port of the computer.
4. Install the IMXRT1050 target firmware (download from NXP site and see Arduino
shields GUI and firmware installation manual for step-by-step instructions).
5. Install GUI application (see Arduino shields GUI and firmware installation manual).
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
14 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
6. Open the GUI application to operate the device from the PC. For details regarding
GUI operation see Section 7.
Figure 5 shows the boards during the operation.
Figure 6. PCA9617ADP-ARD daughterboard/IMXRT1050 EVK board operation
6.2 Using the PCA9617ADP-ARD with an LPCXpresso55S69
development board
Figure 7 shows the required hardware for operation of the PCA9617ADP-ARD and
LPCXpresso55S69 EVK board. This configuration consists of:
•One LPCXpresso55S69 EVK board
•One PCA9617ADP-ARD daughterboard
•One USB-A/USB Micro-B cable
•A PC with Windows 10 operating system
The LPCXpresso55S69 development board is equipped with four USB Micro-B
connectors: P5, P6, P9 and P10. The board can be powered through any USB port.
Using the P6 USB connector to connect the board to the PC simplifies the start-up
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
15 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
operation because P6 is designated for debugging. The USB cable accomplishes two
tasks at the same time: powering the board, and serving as a data link between the EVK
board and PC.
For more details regarding power up and operation of the LPCXpresso55S69
development board, see UM11158 - LPCXpresso55S69/LPCXpresso55S28 Development
Boards User Manual.
Figure 7. PCA9617ADP-ARD daughterboard and LPCXpresso55S69 motherboard, before starting
The following steps describe how to assemble, program, and operate the configuration
shown in Figure 7.
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
16 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
1. Insert the PCA9617ADP-ARD daughterboard to P16 – P19 connectors located
on LPCXpresso55S69 development board (see the marked pins of P16 – P19,
Figure 7);
2. Connect the development board using port P6 USB port of PC;
3. Install the LPCXpresso55S69 target firmware (download from NXP site and read the
EVK_Firmware_And_GUI_Install_Guide_For_Arduino_Boards.pdf instruction file);
4. Install GUI application on PC (see the instruction file called out in the previous step);
5. Open the GUI application to operate the device from the PC. For details regarding
GUI operation see Section 7;
Figure 8 shows the two boards in operation.
Figure 8. PCA9617ADP-ARD daughterboard/LPCXpresso55S69 motherboard operation
6.3 Using the PCA9617ADP-ARD with an i.MX 8M Mini LPDDR4 EVK
board
When an i.MX 8M Mini LPDDR4 EVK board is used with the PCA9617ADP-ARD
board, a third board (IMX8MMINI-IARD interposer board) must be used, especially
designed and built as an EVK – daughterboard interconnection. The EVK board i.MX
8M Mini LPDDR4 is not equipped with an Arduino port; instead it has a 2 x 20 pin
expansion connector (J1003, see i.MX 8M Mini LPDDR4 EVK user manual). J1003 is a
multipurpose port, containing various digital I/O lines, including specialized I2C and SPI
buses. Starting from the expansion connector pin chart, an Arduino port interposer board
was developed with the role of signal-to-signal bridge between the 2 x 20 connector pins
on the i.MX 8M Mini LPDDR4 EVK and the mated connectors of the Arduino port present
on the PCA9617ADP-ARD daughterboard.
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
17 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
To operate the setup, along with the EVK and the daughterboard, a third board must be
included in the setup assembly. Figure 9 shows the necessary boards and how these
boards are connected. The configuration consists of:
•One i.MX 8M Mini LPDDR4 EVK board
•One PCA9617ADP-ARD daughterboard
•One IMX8MMINI-IARD interposer board
•One USB-A/USB-C cable
•One USB-A/USB Micro-B cable
•A PC with Windows 10 operating system
It is recommended to attach the PCA9617ADP-ARD to the Arduino connectors of the
IMX8MMINI-IARD interposer board first, and then the resulting assembly to the i.MX 8M
Mini LPDDR4 EVK. This can be done by plugging J1 connector located on the interposer
board to J1003 connector on the EVK.
To power up the EVK, a USB-C cable connected to port 2 of the EVK is used. The power
switch SW101 on the EVK board must be set to ON position to power up the setup. Data
communication is achieved by routing a separate USB (Micro-B) cable from a USB port
on the PC to the debug port (J901) on the EVK (see Figure 9 and Figure 10).
The user may find details regarding power up and operation of the setup assembly in
8MMINILPDDR4-EVK User Manual and IMX8MMINI-IARD User Manual. The files can be
downloaded from www.nxp.com/.
Figure 9. The assembly PCA9617ADP-ARD daughterboard, IMX8MMINI-IARD interposer board, and i.MX 8M Mini
LPDDR4 EVK, before starting
To configure and operate the setup, follow the below steps:
1. Insert the PCA9617ADP-ARD onto the IMX8MMINI-IARD interposer board Arduino
connectors (located on the top side);
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
18 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
2. Attach IMXMMINI-IARD connector plug J1 (located on the bottom of the board) into
J1003 expansion board located on the top side of i.MX 8M Mini LPDDR4 EVK (see
Figure 9);
3. Powerup the EVK board using a USB-C cable attached to port 2;
4. Connect the EVK to the PC, using a USB Micro-B cable, attached to J901 debug
port;
5. Place SW101 in ON position to power up the boards;
6. Install the MIMXRT1050 target firmware (download UM11581, Arduino shields GUI
and firmware installation manual from NXP site);
7. Install GUI application on the PC (see the instruction file referred in the above step);
8. Open the GUI application to operate the device from the PC. For details regarding
GUI operation see Section 7.
Figure 10. PCA9617ADP-ARD daughterboard/i.MX 8M Mini LPDDR4 EVK board operation
6.4 Using PCA9617ADP-ARD with another device
The PCA9617ADP-ARD daughterboard can be operated with another EVK board, which
has an Arduino port. There are two options to connect the board: using another EVK
equipped with an Arduino port, and an EVK without an Arduino port. In the first case,
firmware shall be developed according to PCA9617A specifications; to operate the board,
attach PCA9617ADP-ARD daughterboard to the EVK. In the second case, using the
Arduino connectors pin chart (Table 1), make the necessary electrical connections (for
power, I2C-bus and control lines), and develop the desired firmware, assuring that it is
compliant with IC specifications. Refer to PCA9617A datasheet to read details about
internal registers of the DUT IC and data exchange between internal controller and the
EVK. Check for correct electrical connections and avoid data conflicts on the signal lines,
to prevent IC damage.
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
19 / 25

NXP Semiconductors UM11763
PCA9617ADP-ARD user manual
7 GUI description
A GUI application is available for the three EVK boards from NXP Semiconductors.
The application is common for all three EVKs described in Section 6, and the following
development boards: PCA9617ADP-ARD and PCA9846PW-ARD.
This section describes the GUI application and how the user can control the
PCA9617ADP-ARD daughterboard from the graphical interface. First, install the GUI
package and software on the PC (Windows 10). For more details, see UM11581.
Once installation is complete, assure that one of the mentioned three EVKs with
attached PCA9617A-ARD daughterboard is connected to a PC and powered-on. Open
“NXP_GUI(PCA9617A,PCA9846)” GUI application. An interface appears as shown in
Figure 11:
The GUI application starts with Settings tab (marked with red arrow). The left side of the
window displays Board settings. The section provides the following settings:
• Select EVK: displays the list of EVKs. Selecting a wrong EVK board causes the
connection to fail and a pop-up window with the message: “Unable to Connect with
EVK” appears on the screen.
• Select COM port: displays port selected for the communication. The port is
automatically selected by the system (COM 3 is selected in Figure 11).
• Select Board: allows the user to select the correct daughterboard (the application can
support two different boards). In Figure 11, the selected board is PCA9617A. Selecting
the wrong daughterboard causes the connection to fail and a pop-up window with the
message: “Unable to Connect with Daughter Card” appears on the screen.
Assuming the correct parameters are chosen, clicking the Connect button establishes
the connection with the EVK. In the bottom side of the GUI window, a status bar shows in
real time the status regarding connection between PC and the EVK.
In the right side of the window is the Device setting section. The following settings are
provided:
• DUT EN: sets the OE status of the DUT, when this parameter is controlled from remote
(J14, jumper in position 1-2). With the Set button the value is written in the internal
register of PCA9617A IC.
• I2C Frequency: displays the I2C-bus clock frequency (100 kHz, 400 kHz, and 1 MHz).
With the Set button the value is written in the internal register of PCA9617A IC.
• EEPROM Address Selection: allows the user to select the hardware address of
PCA9617A.
The Set button writes the new values in the internal registers of PCA9617A IC. When
the Set button is pressed, a pop-up window with the message: “Setting device Set
successfully” appears on the screen. Click “OK” to close the pop-up window.
UM11763 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved.
User manual Rev. 1.0 — 22 July 2022
20 / 25
