NZXT SIGNAL 4K30 User manual

SIGNAL 4K30
EXTERNAL CAPTURE CARD - 4K30 RECORDING, 4K60 HDR & HIGH FRAMERATE PASS THROUGH
ENGLISH

3. CAPTURE CARD OVERVIEW.......05
TABLE OF CONTENTS
1. PREFACE ......................................03
VERSION 1.0
2. PACKAGE CONTENTS................. 04 4. SETTING UP THE CAPTURE CARD .....06

TABLE OF CONTENTS
5. SOFTWARE AND FIRMWARE UPDATES ....12 7. SPECIFICATIONS .........................14
8. APPENDIX .................................. A-1
VERSION 1.0
6. LED INDICATOR CHART...............13

03
SIGNAL 4K30
1. PREFACE
A. Copyright©NZXT, Inc. All Rights Reserved.
This manual including all illustrations and screen captures,
is protected under international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without written
consent of the author.
B. Disclaimer
The information in this document is subject to change
without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. The
manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof
without obligation of the manufacturer to notify any person
of such revision or changes.
C. Trademark Recognition
Product names used in this manual are the properties of their
respective owners and are acknowledged.
D. Support & Services
If you have any questions or problems with the NZXT product you
purchased, please don’t hesitate to contact us using our support
system. Please include a detailed explanation of your problem and
your proof of purchase. For comments and suggestions, you can email
our design team, [e-mail].
Lastly, we would like to thank you for your support by purchasing
this product. For more information about NZXT, please visit us online.
NZXT Website: NZXT.com
E. Safety Instructions
Read through the following Safety Precautions before using the
monitor:
• Keep the plastic packaging bag for the product in a place that
cannot be reached by children.
• Do not touch the plug with wet hands, it may cause electric shock.
• The holes or openings on the capture card are for ventilation. Do
not cover or block the ventilation holes with any objects.
• Do not attempt to disassemble or repair the capture card yourself.

04
SIGNAL 4K30
A. Capture Card
x1
B. 150cm HDMI cable
x1
C. 100cm USB-C to USB-A Cable
x1
D. Quick Start Guide
x1
2. PACKAGE CONTENTS
Scan the QR code or
visit manual.nzxt.com/signal4k30 to
view or download manual.

05
SIGNAL 4K30
TYPE-C IN OUT

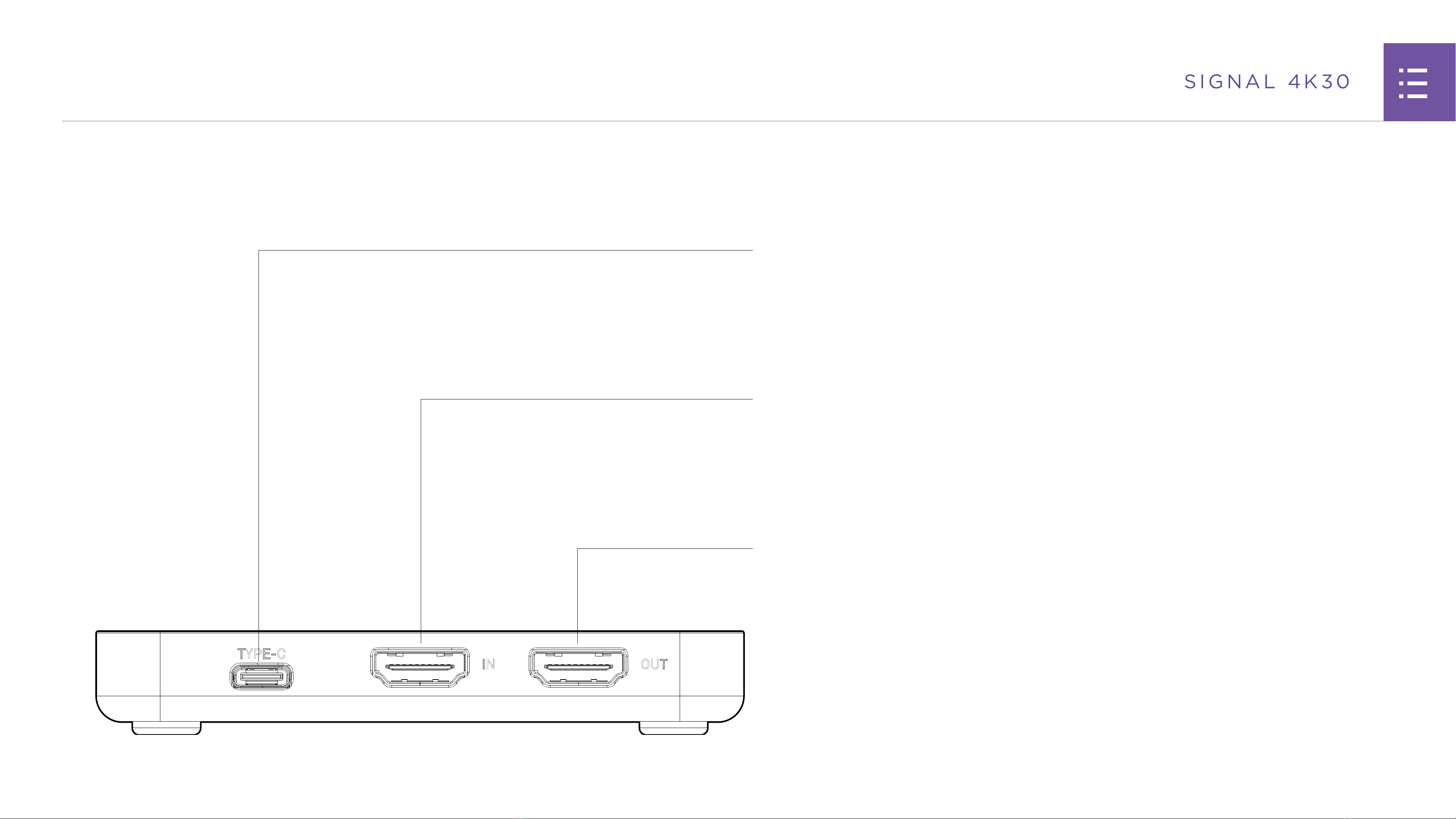

3. CAPTURE CARD OVERVIEW
TYPE-C:
Connect the USB-C end of the included cable to this port
on the capture card. Plug the USB-A end into a USB 3.2
(Gen 1) compatible port on your computer
IN:
Plug the included HDMI cable into this port on the capture
card. Plug the other end into the device you want to
capture such as a gaming PC, console, camera, or mobile
device
OUT:
This port allows for zero-lag passthrough and is optional.
Plug an HDMI 2.0 cable into this port. Plug the other end
into your gaming monitor

06
SIGNAL 4K30
STEP 1
Make sure your PC and the device you want to capture is powered o.
POWERED OFF
4. SETTING UP THE CAPTURE CARD

07
SIGNAL 4K30
SETTING UP THE CAPTURE CARD
TYPE-C
IN OUT
STEP 2
Using the included USB cable, plug in the Type-C
end into the capture card, and the other end into
your computer in a USB 3.2 (Gen 1) compatible.

08
SIGNAL 4K30
SETTING UP THE CAPTURE CARD
TYPE-C
IN OUT
STEP 3
Using the included HDMI cable, plug one end into the “IN”
port on the capture card, and the other end into the device
you want to capture such as a gaming PC, console, camera,
or mobile device.

09
SIGNAL 4K30
STEP 4
Recommended for Console or 2-PC setups: Plug in an HDMI
2.0 cable into the “OUT” port on the capture card, and the
other end of the cable to your gaming monitor. This will allow
zero-lag passthrough of the original signal to game without
compromise.
SETTING UP THE CAPTURE CARD
TYPE-C
IN OUT

10
SIGNAL 4K30
10
STEP 5
Power on your computer and the captured device.
SETTING UP THE CAPTURE CARD

11
SIGNAL 4K30
STEP 6
In your favorite streaming program, add a new video capture
device as a source and look for “NZXT Signal 4K30”
SETTING UP THE CAPTURE CARD

12
SIGNAL 4K30
5. SOFTWARE AND FIRMWARE UPDATES
NZXT will continue releasing software and firmware updates to keep the Signal 4K30 running at the highest level.
Visit www.nzxt.com/downloads for the latest software and firmware updates

LIGHT DESCRIPTION
White Solid Connected to device and working on USB 3.2 (Gen 1)
Red Flashing (1s on/off) Connected to device, but only USB 2.0 compatibility detected
Red Solid Connected to device without HDCP key or firmware update failed
White blinking (0.5s on/off) Firmware update ongoing
White flashing (1s on/off) Connected to device, but no source data detected
13
SIGNAL 4K30
6. LED INDICATOR CHART

LIGHT DESCRIPTION
General Specifications
HDMI 2.0 input and pass through
USB 3.2 (Gen 1) Type C for power and data
Included USB-C to USB-A to connect to computer
2 Channel, 16 bit, 48 kHz Audio
Compliant with HDMI 2.0, HDCP 1.4/2.2 and DVI 1.0 specifications
HDR10 pass through with hardware conversion to SDR color
Maximum Input & Pass Through Compatibiltiy
3840x2160p 60fps HDR
2560x1440p 144fps HDR
2560x1080p 144fps HDR
1920x1080p 240fps HDR
1920x1080i
720p
480p
576p
480i
576i
Stream & Record Resolutions
3840x2160p (30, 25)
2560x1440p (60, 50, 30, 25)
1920x1080p (120, 60, 50, 30, 25)
720p (60, 50, 30, 25)
576p (50, 25)
480p (60, 30)
Audio HDMI: Stereo 16 bit 48K samples/sec
Scaling Hardware downscaling, and upscaling to 1080p
UVC Supported Raw Formats NV12
YUY2 (for up to 1440p) 14
SIGNAL 4K30
7. SPECIFICATIONS

A-1
SIGNAL 4K30
8. APPENDIX
8.1 NZXT Global Warranty Policy ................................. A-2 8.3 Regulatory Notices..........................................................A-11
8.4 Revision History ............................................................... A-128.2 Support and Service....................................................... A-8

A-2
SIGNAL 4K30
8.1 NZXT GLOBAL WARRANTY POLICY
This NZXT Global Warranty Policy governs the sale of products by NZXT to you.
I. WARRANTY LENGTH
Any replacement product will be covered under warranty for the
remainder of the warranty period or thirty days, whichever is longer.
Proof of purchase is required for warranty service.
II. WHO IS PROTECTED
The Warranty covers only NZXT products purchased by the
original consumer.
NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS
Computer Cases 2 Years
Temperature Meters 2 Years
Fans 2 Years
Lighting 2 Years
Accessories 2 Years
Kraken M Coolers 3 Years
Headset/Headphone 2 Years
Headset/Headphone Storage 2 Years
Mixer 2 Years
Motherboards 3 Years
Gold Power Supply 10 Years
Bronze Power Supply 5 Years
Kraken X/Z Coolers 6 Years
Mini ITX Case with PSU, AIO, and Riser Card 3-year warranty on case, riser card, and AIO. 10-year warranty on PSU.
REFURBISHED NZXT PRODUCT WARRANTY LENGTH FOR PARTS
All NZXT Certified Refurbished Products 1 Years

A-3
SIGNAL 4K30
III. WHAT IS AND IS NOT COVERED
Please note that our warranty is not an unconditional guarantee. If
the product, in NZXT’s reasonable opinion, malfunctions within the
warranty period, NZXT will provide you at its sole discretion with a
repaired or replacement product, either new or refurbished, with a
similar function that is equal or greater in value depending on supply.
Our warranty does not cover the following:
• any product or serial number/warranty sticker modification applied
without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident,
abuse, misuse, neglect, fire, water, lightning, or other acts of nature,
unauthorized product modification or failure to follow instructions
included with the product;
• improper installation, unauthorized alterations or modifications, or
repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the
carrier);
• normal wear and tear.
NZXT does not warrant that this product will meet your
requirements. It is your responsibility to determine the suitability
of this product for your purpose. For NZXT Store orders, we cover
two way return shipping for all exchanges and returns. For all other
authorized dealers, NZXT Support does not cover return shipping
and only covers one way shipping from NZXT back to the end
user for exchanges. Two way expedited shipping is provided for all
PSUs covered under the Less Than Three program, indiscriminate
of purchase location, provided the location is an approved NZXT
reseller.
IV. EXCLUSION OF DAMAGES (DISCLAIMER)
NZXT's sole obligation and liability under this warranty is limited to
the repair or replacement of a defective product with either a new or
refurbished product with a similar function that is equal or greater
in value at our option. NZXT shall not, in any event, be liable for
any incidental or consequential damage, including but not limited
to damages resulting from interruption of service and loss of data,
business, or for liability in tort relating to this product or resulting
from its use or possession.
8.1 NZXT GLOBAL WARRANTY POLICY

A-4
SIGNAL 4K30
8.1 NZXT GLOBAL WARRANTY POLICY
V. LIMITATIONS OF IMPLIED WARRANTIEST
There are no other warranties, expressed or implied, including but
not limited to those of merchantability or fitness for a particular
purpose. The duration of implied warranties is limited to the warranty
length specified in Paragraph I.
VI. TO OBTAIN TECHNICAL SUPPORT
If you have already referenced your product owner's manual and still
need help, you may contact us by phone at [phone], by
email at [e-mail], or visit the NZXT Support site at
nzxt.com/customer-support.
VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT
To receive a warranty service for your product when purchased
directly from NZXT, you must submit a request via the NZXT
Support site outlining the problem. If a technician deems the
product defective or requiring testing, you will be required to
provide a copy of your proof of purchase, which will enable you to
submit a Return Merchandise Authorization "RMA" request.
Once approved, you`ll receive an RMA number, upon which you
will be asked to ship the defective item back to NZXT with the
RMA number clearly marked or labelled on the package. NZXT
recommends that appropriate measures are taken to safeguard the
product from damage during shipping.

A-5
SIGNAL 4K30
VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR
CONSUMERS
This warranty gives you specific legal rights. These conditions are
governed and construed in accordance with the laws of California
(with exception of its conflict of law provisions), and the application
of the United Nations Convention of Contracts for the International
Sale of Goods is expressly excluded. The non-exclusive jurisdiction of
the courts of California is agreed, which means that you may bring a
claim to enforce your consumer protection rights in connection with
this Global Warranty in the country which you have your habitual
residence where you may have additional rights. These rights may
vary.
For original consumers who are covered by consumer protection laws
or regulations in their country, state, or province of purchase or, if
different, their country, state, or province of residence, the benefits
conferred by this warranty are in addition to all rights and remedies
conveyed by such consumer protection laws and regulations. To the
extent that liability under such consumer laws can be limited, NZXT’s
liability is limited, and its sole option, to repair or replacement, either
new or refurbished, with a similar function that is equal or greater in
value depending on supply.
In the United Kingdom:
• For NZXT products sold to customers in the UK, during the
expected lifespan of your product your legal rights entitle you to the
following:
> Up to 30 days: if your goods are faulty, then you can get an immediate
refund.
> Up to six months: if your goods can't be repaired or replaced, then you're
entitled to a full refund, in most cases.
> Up to six years: if your goods do not last a reasonable length of time you
may be entitled to some money back.
• If the person seeking to rely on the guarantee is not the original
consumer, the NZXT Warranty will cover the product in relation
to that person provided that they are able to provide proof of the
transfer of the benefit of the guarantee from the original consumer.
• The implied warranties under the Consumer Rights Act 2015 says
that your goods must be as described, fit for all purposes for which
such goods are usually supplied, and of satisfactory quality.
In the EU:
• If you are a consumer and have your habitual residence in the EU,
you additionally enjoy the protection aorded to you by provisions
that cannot be derogated from by agreement by virtue of the law
where you have your habitual residence.
8.1 NZXT GLOBAL WARRANTY POLICY
