Oaxis InkCase i5 User manual

InkCase
For iPhone 5 / 5S
5
i
Quick Start Guide

E-ink Display
Power button / Page button
Micro USB port ( for charging )
Parts and control
Product Introduction
1

Align one side of the iPhone 5 / 5S with
one side of the Inkcase i5, then align the
other sides and press down until the iphone
is seated correctly, as the below gure shown:
You need to charge the device prior to use
it for the rst time or when battery power is
low.
Charge the device using AC adapter with
output 5V, 1A.
Charging through PC may not be able to
fully charge the device due to the low
output charging current from PC USB port.
Please turn the device to standby mode to
shorten the charging process.
It will take about 2 hours to fully charge the
device in standby mode ( LCD o ) .
Press the [ Power ] button to enter into
Standby / Wake up mode.
Connection
Charging the InkCase i5
2
User Manual

The battery status is displayed at the lower
right corner. The status is shown as below:
3
User Manual
Low battery Charging Battery Full
Power On and O the InkCase i5
InkCase Photo
InkCase Photo is a picture
sharing app,you can share your
pictures to InkCase as the second
display of your smart phone.
Press and hold the Power / Page button for
3 seconds to turn on InkCase i5.
It may take a few moments for reader to
turn on and load the content.
If InkCase i5 does not be turn on, charging
is required.
To turn o Inkcase i5, press and hold the
Power button for 3 seconds again.
Getting started
The operations of Inkcase i5 is based on the
Inkcase APPs.

4
1. Download the Inkcase apps by searching
for the key word “InkCase” in APP store ( for
Iphone 5 user ).
2. Download InkCase App from InkCase
website: www.inkcase.com / app
3. Scan the QR Code shown below:
Temporarily, Inkcase i5 only support InkCase
Photo, but other InkCase apps will be updated
later, you can access the InkCase website to
get the information.
When you have successfully downloaded the
InkCase apps, please install them into your
smart phone.
User Manual
Epireader
Epireader is an ebook reading
application, it supports a variety
of formats, and the page mode is
more personalized.
Choose one of the following ways to
download the inkcase apps:
Downloading InkCase Apps

5
Choose one of the below ways to transfer
photos via InkCase Photo:
Using the photo list of InkCase Photo
1. Press and hold the Power / Page button for
3 seconds to turn on the InkCase i5.
2. On your smart phone, tap InkCase Photo
icon to enter into photo list, then follow the
below steps to do
How to use InkCase Photo
User Manual

ʒTap InkCase Photo icon to enter into photo
list, tap a desired photo to be transferred.
6
User Manual

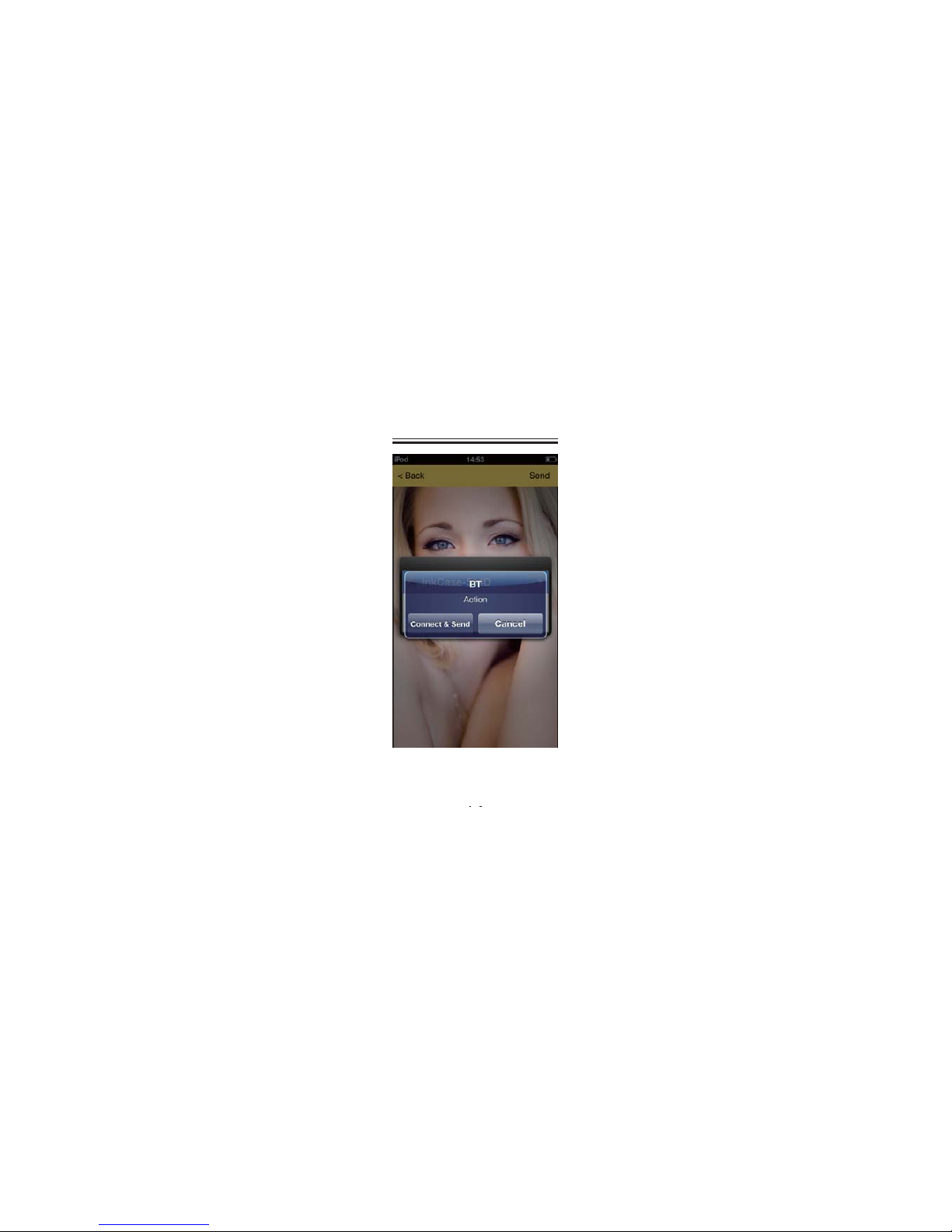

ʓTap “Send”, then it will appear a Bluetooth
connection dialog box.
7
User Manual

ʔTap Inkcase i5 to pair with the smart phone,
upon successful bluetooth connection, the
photo will be automatically sent to Inkcase i5.
8
User Manual

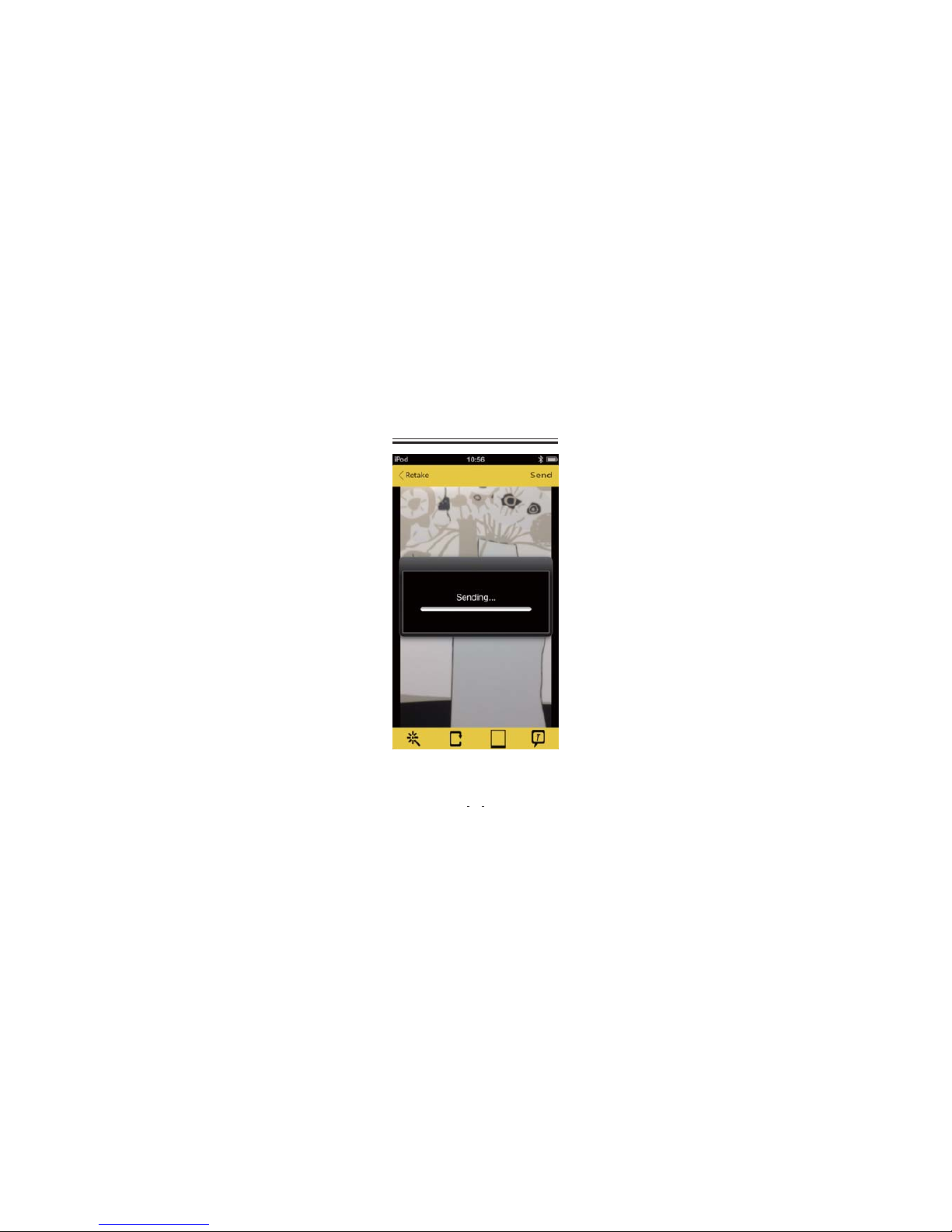

ʕThe photo is being sent. If the transfer time is
more than 15 seconds, tap Back and resend it.
9
User Manual

10
On your smart phone, tap InkCase Photo icon,
then follow the below steps to do.
Using the camera to take photos
ʒTap Camera button at the top right of
the screen to start taking a photo.
User Manual

11
User Manual

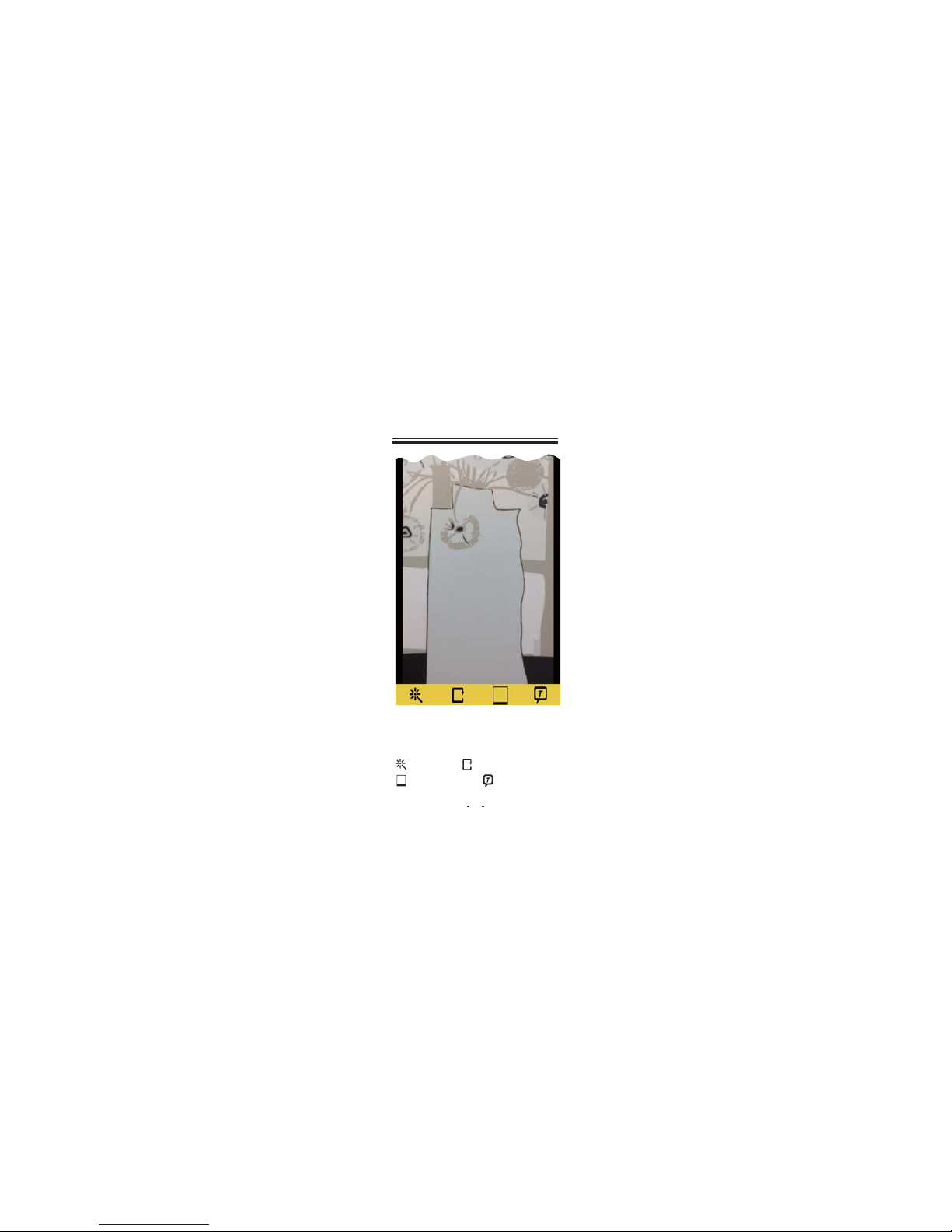

ʓ When you have successfully taken a desired
photo, edit the photo by the onscreen buttons.
Tap “Send”, then it will appear a Bluetooth
connection dialog box , tap InkCase i5 .
Rendering， Rotate，
Add photo frame Add text

ʔThe photo is being sent.
12
User Manual

13
User Manual
How to use InkCase Epireader
From your smart phone, tap InkCase Photo
icon, then follow the below steps to do.
1. Tap at the top left of the screen.
2. Edit the photo by the onscreen buttons.Tap
“Send”, then it will appear a Bluetooth
connection dialog box, tap InkCase i5
3. The picture is being sent.
Using the photo list on the local disk of smart
phone
1. Press and hold the Power / Page button for
3 seconds to turn on the InkCase i5.
2. On your smart phone, tap InkCase
Epireader icon, then follow the below steps
to do.

14

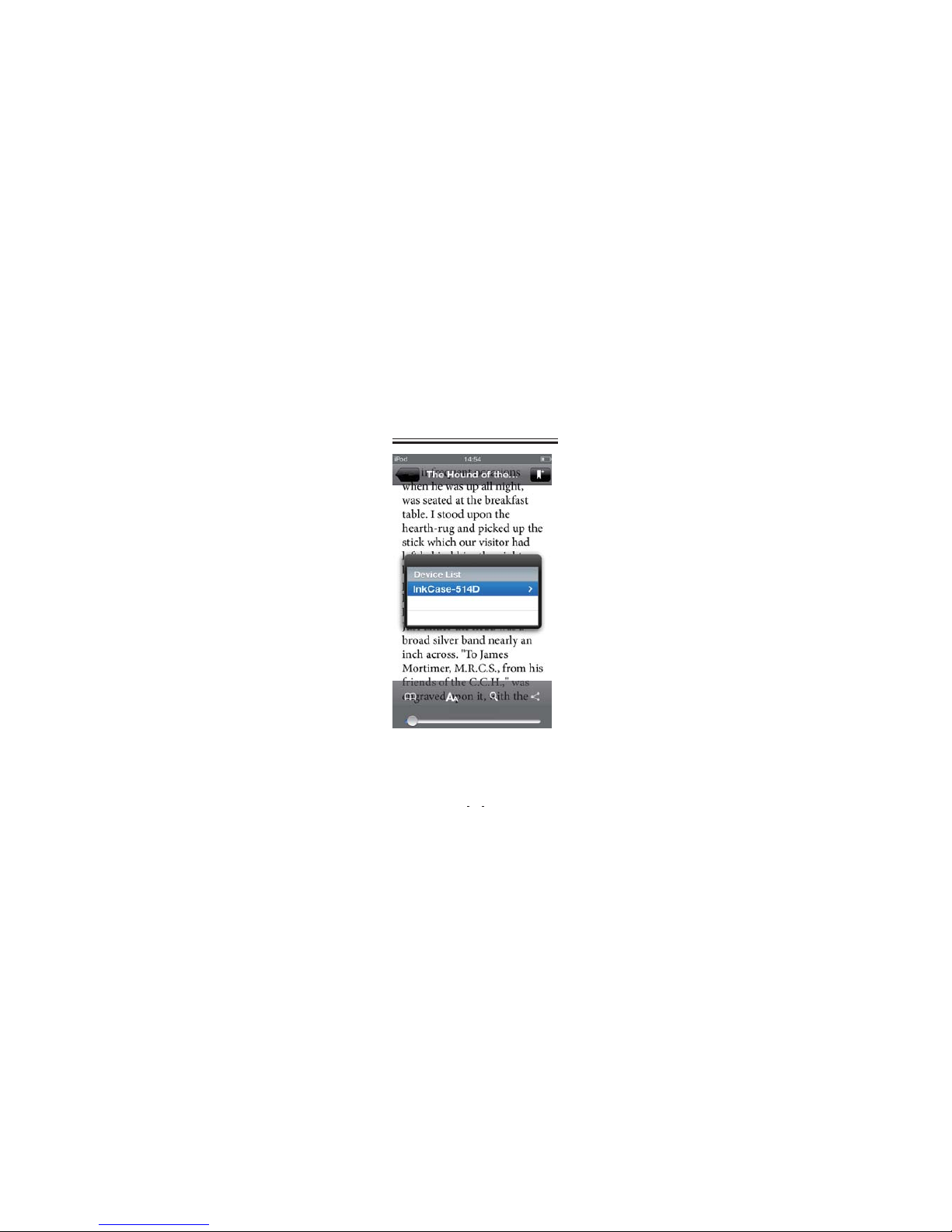

ʒ Tap InkCase Epireader icon and open a
ebook, then tap at the center of the reading
page to display a option menu, select Share,
tap Inkcase i5 to pair with the smart phone,
upon successful bluetooth connection, the
ebook will be automatically sent to Inkcase i5.
User Manual

15
ʓ The ebook is being sent. If the transfer time
is more than 15 seconds, tap any button to
cancel it and resend it.
User Manual

16
User Manual
Power button / Page button
ʔPress your iphone 5/5S volume buttons or
the InkCase home/Page button to trun pages.
Note: In standby mode, you can still transfer the
Photo or ebook into Inkcase i5, and The InkCase
i5 will go to wake up mode automatically.

FAQ
Troubleshooting
Tap Send button, but no bluetooth
connection dialog box appears.
Battery has been fully depleted. Please charge
the InkCase i5 via USB or USB AC Adapter.
The “Sending” is always shown on on the
screen during the le transfer.
It will take a few moments to send the picture
or ebook, If the transfer time is more than 15
seconds, tap the return button to cancel it
then resend it.
Can’t turn page during the ebook reading
on InkCase i5.
The response time on the E-ink display screen
is slightly longer than others, press the Power
/ Page button, a few moments later , it will
turn to the desired reading page.
Don’t press the Power / Page button
continually.
17

18
User Manual
FCC Caution
Any Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate
the equipment.
This device complies with part 15 of the FCC Rules.
Operation is sub ect to the following two conditions:
(1) This device may not cause harmful interference,
and(2) this device must accept any interference
received, including interference that may cause
undesired operation.
ote: This equipment has been tested and found to
comply with the limits for a Class B digital device
j
N
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions,may cause harmfu
l
interference to radio communications. owever,there
harmful interference in a residential installation. This
is no guarantee that interference will not occur in a
H
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures
:

19
User Manual
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
-
-
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver isconnected.
-
Consult the dealer or an experienced radio/TV
technician for help.
This equipment complies with FCC radiation exposure
-
FCC adiation Exposure Statement:
R
limits set forth for an uncontrolled environment .This
transmitter must not be co-located or operating in
con unction with any other antenna or transmitter.
j
