Oceanic OCD-60 User manual

PRODUCT IMAGE
Oceanic Ltd, Pountney Street, Wolverhampton, WV2 4HX
Phone: [phone] [email protected].uk www.oceanic-saunas.co.uk
Sauna & Steam
Heavy Duty Commercial
STEAM GENERATOR
15.06.17

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 2
Steam Generator Manual
Table of contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Important Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
5. Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
5.1. Steam Generator Unit Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5.8. Wiring multiple steam generators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.2. Steam Generator Frame Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.3. Clearance distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.4. Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.5. Steam Generator Parts Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.6. Table 2. OC-D Controller Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.7. Temperature Sensor Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. OC-A Controller Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.1. Generator Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.2. Steam Generator Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.3. Water and Steam Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.4. Installation for controller and temperature probe.. . . . . . . . . . . . . . . . . . . 13
7.5. Installations for power supply and control cable . . . . . . . . . . . . . . . . . . . 13
7.6. Installing a light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8. Steam on Demand Function (Only supplied with commercial generators) . . . . . 14
9. Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10. Testing and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.1. Setting time and temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.2. Steam on Demand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
11. Troubleshooting guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
12.1. Descaling procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13. Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 3
Steam Generator Manual
1. Introduction
Thank you for choosing to buy our Oceanic steam generator, please take the time to read these
instructions before you begin as they contain important information about the installation and
maintenance requirements.
“Oceanic” heavy duty steam generators are available in specications from 6kw to 12kw and are
equipped with a programmable thermostatic controller. The controller is set with the time and
day and allows you to program the generator to turn on and o automatically when you require,
the generator can also bet set to clean itself automatically. Once these settings have been saved
the machine can be left to work on it’s own. The machine still must be checked on a regular basis
for safety.
It is also possible to have the generator working o a push button which you place outside of the
steam room, when customers push the button it illuminates and they get 30 minutes of steam.
The machine can also just work on a count down timer for say the next 90 minutes.
Our display tells you everything that the generator is doing, if it takes in water, heats, reached
temperature, draining, descaling, light on, fan on, timer set.
You can also Lock the keys so other users can’t play with the settings. light of the steam room, the
automatic drain valve, key-lock, alter the temperature display between Centigrade and Fahrenheit;
as well as displaying the steam generator‘s status by the 8 LED’s on the panel, heating, water inlet,
temperature, drain status etc. note also that one “OC-D” controller can control multiple “Oceanic”
steam generators.
Every “Oceanic” steam generator is thoroughly tested before leaving the factory so there may be
the remains of water inside the boiler.
2. Important Notes
• Read the manual before installation and operation.
• This Equipment must be installed by competent person.
• This equipment must be connected to an all pole isolator
• Disconnect the power supply before exposing electrical connections.
• Conrm the correct voltage to your steam generator 1 or 3 phase.
• For hard water areas please use a water softener.
• Water supply must have maximum of 1 bar pressure, we recommend the use of a pressure
reducing valve if necessary
3. Safety Precautions
• Elderly persons, pregnant women, or these suering heart disease, high blood pressure,
diabetes or not in good health are advised to seek medical opinion before using a steam room.
• Do not smoke in the steam room.
• Avoid using the steam room immediately after strenuous exercise.
• Do not use the steam room when under the inuence of alcohol.
• Leave the steam room at once if you feel sleepy, sick or uncomfortable.
• Ensure there is good ventilation for the steam room.
• We do not recommend that children under 16 use this product.
• Commercial operators should post a notice of these precautions in a prominent position.
Steam entering the steam room will be scalding hot; take care to position the inlet nozzle
away from where users will sit and/or provide adequate guarding, post a notice to caution
users.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 4
Steam Generator Manual
4. Steam Generator Parts
4
3
2
1
9
8
765
10
15
11
11
12
13
14
17
18
19
20
16

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 5
Steam Generator Manual
No. Part Description
1 Transformer 240v - 9v + 12v
2 Main Circuit Board Control Centre
3Drain Valve 3/4” Motorised Ball Valve
4Inlet Valve 240v Brass Solenoid Valve
5 Light Connection 230v Light Output Switched by Keypad Max (100w)
6 Fan Connection 230v Fan Output Switched by Keypad Max (100w)
7 Power In Connection Terminal for connection of 230 or 400v power.
8 Earth Connection Earth Connection
9 Relay Circuit Board Electrically operated switches for elements.
10 Overheat switch Boil dry protector operates at 105oC Use Pin to reset
11 Louvers Ventilation
12 Main Power Cable Entry Cable entry and restraint for in coming power.
13 Control lead entry Cable entry for control wire.
14 Descaling Pump
Connection
Socket for descaling pump
15 Information Chart For info on Model, Voltage, Wattage and Ampage.
16 Drain connection 3/4” Female Brass
17 Water In Connection 1/2 Male Brass
18 Acid Inlet Hose Nipple for Silicone Descaling Tube Secure with
cable tie
19 Water Probe Access Water Probe Access Plate
20 Steam Outlets 3/4” male steam outlets. Use brass ttings supplied

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 6
Steam Generator Manual
5. Electrical and plumbing connections
A qualied electrician will have no problem installing this system with the provided wiring
schematic and with the help of the circuit diagram mounted inside the respective control unit.
According to the valid regulations, the electrical connection of the steam generator and the
control box has to be carried out by an authorised electrician. In case of a warranty claim, you are
kindly requested to present a copy of the invoice from the electrician.
Model Power Current
(amps)
Size (mm) Steam
outlet
Water
Inlet
Drain Nozzle
Type
Kw 1N~ 3N~ L W H inches inches inches
Steam On Demand
OCD-60 6 26 8.6 535 260 380 3/4 (2of) 1/2” 1/2” Red
OCD-90 9 39 13 535 260 380 3/4 (2of) 1/2” 1/2” Red
OCD-120 12 52 17.3 535 260 380 3/4 (2of) 1/2” 1/2” Red
3/4”
Steam outlet
Descaler Pump 3/4”
Steam Inlet Nozzles
5m DIN cable main
circuit board to
controller
Temperature Sensor
OC-D Controller
Pressure relief
valve
Steam On Demand
button

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 7
Steam Generator Manual
1
2
3
4
5
6
7
8
11
13
14
16
15
17
18
19
20
No. Part Description Supplied
1 Water inlet 1/2 “ copper pipe (maximum pressure 1bar) Not supplied
2 Pressure reducer valve Set to 1bar maximum. Not supplied
3 Washing machine trap Both drain and steam overow feed into Not supplied
4 Drain 3/4” exible hose Not supplied
5 Steam Overow 1/2” copper pipe Not supplied
6 Descaler inlet Flexible silicon pipe secured with cable tie Supplied
7 Descaling pump Pumps descaling solution into generator Supplied
8 Descaling solution container Large plastic container lled with descaling solution Optional 120L
9 Pressure relief valve Operates if the pressure in the boiler exceeds 1.2kg/
c m2
Supplied
10 Brass T junction 3/4” to 3/4” and 1/2” brass tting to t steam pipe
and pressure relief valve
Supplied
11 Brass T 3/4”T tting for secondary steam outlet Supplied
12 3/4” female cap To block o secondary steam outlet Not supplied
13 Steam pipe Copper pipe from generator to steam inlet
inside steam room (10m max length)
Not supplied
14 Steam inlet nozzle 3/4” nozzle tted inside steam room Supplied
15 Control cable 5m 6 core cable to control keypad Supplied
16 Control keypad To be mounted inside or outside steam room Supplied
17 Lighting circuit 230V cable to lighting circuit (optional) Not supplied
18 Mains input Single or Three phase supply Not supplied
19 Isolator Switch Mains isolator Not supplied
20 Power to descaler pump 230V power cable for descaler pump Supplied
5.1. Connections diagram and table

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 8
Steam Generator Manual
1
1
2
2
5
5
6
6
7
8
13
14
16
15
17
18
19
20
20
3
3
4
Jubilee clip /
cable tie
Jubilee clip /
cable tie

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 9
Steam Generator Manual
Option A
Installation with two steam pipes.
Recommended for generators above 9kw
Option B
Installation with one steam pipe
Use a 3/4” female cap to block o the secondary
outlet
99
10
13
13
13
10
12
11
5.2. Steam Pipe Connection Options
Important note: Steam outlet must not be reduced
Mains in
230V ~ 1N
400V ~ 3N
230V lighting circuit
Isolator
switch
Controller
Low voltage to
Controller
Low voltage to
temperature sensor
5.3. Electrical connection schematic
Refer the the circuit diagram on the following page for further details.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 10
Steam Generator Manual
Note: To use the steam generator in single phase the L1 L2 and L3 must be linked
together with the copper bridges that are supplied
3
D10
(V= DC 5 V)
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
N
L
CONTROL
J12
J13
J14
J15
J16
J17
DRAIN
J18
J9Fr o m Transfor mer
J8
Wa te r Leve l Pr obe
P4
J2
PAN EL
F3AL250V
J11
INP UT
J10
OVERHEAT
J3
Fr o m Master TO S L AVE
J7
R- C ON TROL
D9
J6
TEM P2
D8 D7 D6 D5 D4 D 3 D2 D1
J4
NONC
Water Inlet
AC power adapter
(AC230V /DC24V)
Water Inlet
Valve
Drain
Valve
Descale Liquid
Inlet Pump
OC-S
Controller
JP1
2
7-12Kw Steam Generator Circuit Diagram
2
4
4
oo
Switch C/ F
H1
H2
Tank
22
LN
AC230V/1N
YELLOW/GREEN
BLACK
BLACK
RED RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
WHITE
BLUE
WHITE
L1 L2 L3N
AC400V/3N
Hi-Temp Cut Off
(Manual Reset)
Light(Max=100W
V=230AC)
Fan
(V=230AC)
Transformer
Temp2
2
4
Sensor
Controller
(V=DC5V)
5.4. Circuit Diagram
5.5. Wiring Multiple Generators
If greater power is required one OC-D controller may be used to control two or more steam
generators, e.g. if you need a 24KW steam generator you can use one OC-D controller to control
two 12kw steam generator or three 10kw steam generators.
3
D10
(V = DC5 V)
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
NL
CONTROL
J12
J13
J14
J15
J16
J17
DRAIN
J18
J9
Fr o m Trans for mer
J8
Wa ter Leve l P r obe
P4
J2
PAN EL
F3AL250V
J11
INPUT
J10
OVERHEAT
J3
Fr o m Master TO SL AVE
J7
R-C ON TR OL
D9
J6
TEMP2
D8 D7 D6 D5 D4 D3 D2 D1
J4
NONC
Water Inlet
AC power adapter
(AC230V /DC24V)
Water Inlet
Valve
Drain
Valve
Descale Liquid
Inlet Pump
OC-S
Controller
JP1
2
7-12Kw Steam Generator Circuit Diagram
2
4
4
oo
Switch C/ F
H1
H2
Tank
22
LN
AC230V/1N
YELLOW/GREEN
BLACK
BLACK
RED RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
WHITE
BLUE
WHITE
L1 L2 L3N
AC400V/3N
Hi-Temp Cut Off
(Manual Reset)
Light(Max=100W
V=230AC)
Fan
(V=230AC)
Transformer
Temp2
2
4
Sensor
Controller
(V=DC5V)
3
D10
(V = DC5 V)
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
NL
CONTROL
J12
J13
J14
J15
J16
J17
DRAIN
J18
J9
Fr o m Trans for mer
J8
Wa ter Leve l P r obe
P4
J2
PAN EL
F3AL250V
J11
INPUT
J10
OVERHEAT
J3
Fr o m Master TO SL AVE
J7
R-C ON TR OL
D9
J6
TEMP2
D8 D7 D6 D5 D4 D3 D2 D1
J4
NONC
Water Inlet
AC power adapter
(AC230V /DC24V)
Water Inlet
Valve
Drain
Valve
Descale Liquid
Inlet Pump
OC-S
Controller
JP1
2
7-12Kw Steam Generator Circuit Diagram
2
4
4
oo
Switch C/ F
H1
H2
Tank
22
LN
AC230V/1N
YELLOW/GREEN
BLACK
BLACK
RED RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
WHITE
BLUE
WHITE
L1 L2 L3N
AC400V/3N
Hi-Temp Cut Off
(Manual Reset)
Light(Max=100W
V=230AC)
Fan
(V=230AC)
Transformer
Temp2
2
4
Sensor
Controller
(V=DC5V)
3
D10
(V = DC5 V)
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
AC230V
NL
CONTROL
J12
J13
J14
J15
J16
J17
DRAIN
J18
J9
Fr o m Trans for mer
J8
Wa ter Leve l P r obe
P4
J2
PAN EL
F3AL250V
J11
INPUT
J10
OVERHEAT
J3
Fr o m Master TO SL AVE
J7
R-C ON TR OL
D9
J6
TEMP2
D8 D7 D6 D5 D4 D3 D2 D1
J4
NONC
Water Inlet
AC power adapter
(AC230V /DC24V)
Water Inlet
Valve
Drain
Valve
Descale Liquid
Inlet Pump
OC-S
Controller
JP1
2
7-12Kw Steam Generator Circuit Diagram
2
4
4
oo
Switch C/ F
H1
H2
Tank
22
LN
AC230V/1N
YELLOW/GREEN
BLACK
BLACK
RED RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
WHITE
BLUE
WHITE
L1 L2 L3N
AC400V/3N
Hi-Temp Cut Off
(Manual Reset)
Light(Max=100W
V=230AC)
Fan
(V=230AC)
Transformer
Temp2
2
4
Sensor
Controller
(V=DC5V)
To next slave
Master Slave 1 Slave 2

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 11
Steam Generator Manual
Model A B C D E F
OCD - 60 535 260 380 25 135 45
OCD-90 535 260 380 25 135 45
OCD-120 535 260 380 25 135 45
6. Parameters
6.2. Clearance distances
>200mm
>300mm
>400mm
>500mm
A B
C
E
D
F
6.1. Steam Generator Frame Sizes
6.3. Ventilation
Ensure air ow into area where steam generator is housed.
For commercial use ensure good ventilation from at least two ducts within the housing of the
generator

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 12
Steam Generator Manual
Model Temperature
(OC)
Dimension
(mm)
OC-D 30 - 60 oC 155 x 115 x 20
MODEL Detected Scope Max Cut out
Temperature
Size (mm)
oCoFoCoF L W H
OC-S 0-110 32-230 60 248 76 42 27
6.4. Table 2. OC-D Controller Parameters
6.5. Temperature Sensor Parameters
1800mm
300mm
>500mm
Temperature sensor
Steam nozzle
Diagram to show location of temperature sensor and steam inlet nozzle

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 13
Steam Generator Manual
Generator Model Steam Room
Volume (m3)
OC-60 4.5 - 6
OC-90 6 - 10
OC-120 8 - 12
OC-150 11 - 15
7. Installation
• Isolate the power supply before installation
• Conrm the model you have selected is suitable for your steam room, please refer to chart
below
• Mount the steam inlet nozzle approximately 300mm up from the oor and it should be at least
200mm from person’s body.
• If the steam generator is installed in an inaccessible place ensure that both the electrical
power and water supply can be isolated in an emergency.
• To use the steam generator in single phase the L1 L2 and L3 must be linked together with the
copper bridges that are supplied. See circuit diagram on page 9.
• The minimum water inlet pressure is 0.25 bar (2.5 Mpascals) and the maximum is 2 bar (20
Mpascals), for pressures in excess of this use a reducer before the valve as shown in diagrams
on page 6 and 7.
• The steam pipe from steam generator to steam room should be kept to a minimum, pipes
longer than 3 meters should be insulated to prevent heat loss. Steam pipes will be hot during
use and must be protected against accidental contact. Steam entering the steam room will
be scalding hot; take care to position the inlet nozzle away from where users will sit and/or
provide adequate guarding, post a notice to caution users.
• Keep the number of right angle bends to a minimum and ensure that the run does not create
a trap into which condensate would gather and cause a blockage I.e. the pipe must not go
down and then up.
• There must be no valve or other blockage in the steam pipe
• The steam pipe should be metal of other material that can endure 150°C temperature, copper
pipe is recommended.
• It is not recommended to install the steam generator outdoors or where it might be aected
by frost. Allow for a minimum space of 0.5 cubic meters to install the generator.
• Steam generator should be level side-to-side and front to back and should be installed so that
the arrows on the case point up.
• Do not install the steam generator in close proximity to hazardous substances.
7.1. Generator Size
The table opposite should be referred to for guidance only.
Please note that the size of generator required to heat a
particular size of steam room will vary according to a number
of factors including the type of material used for construction,
the height of the steam room and the ambient temperature.
For lightweight materials such as plastics and laminates 1 KW will
heat up to 1 cubic meter of air for dense materials such as stones
and ceramics which will conduct the heat away more rapidly allow
for up to 2KW per cubic meter of air. Hot air rises so restricting
the height to around 2 meters will ensure the user is sitting in the
steam for higher ceilings you may need to increase the power
requirement.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 14
Steam Generator Manual

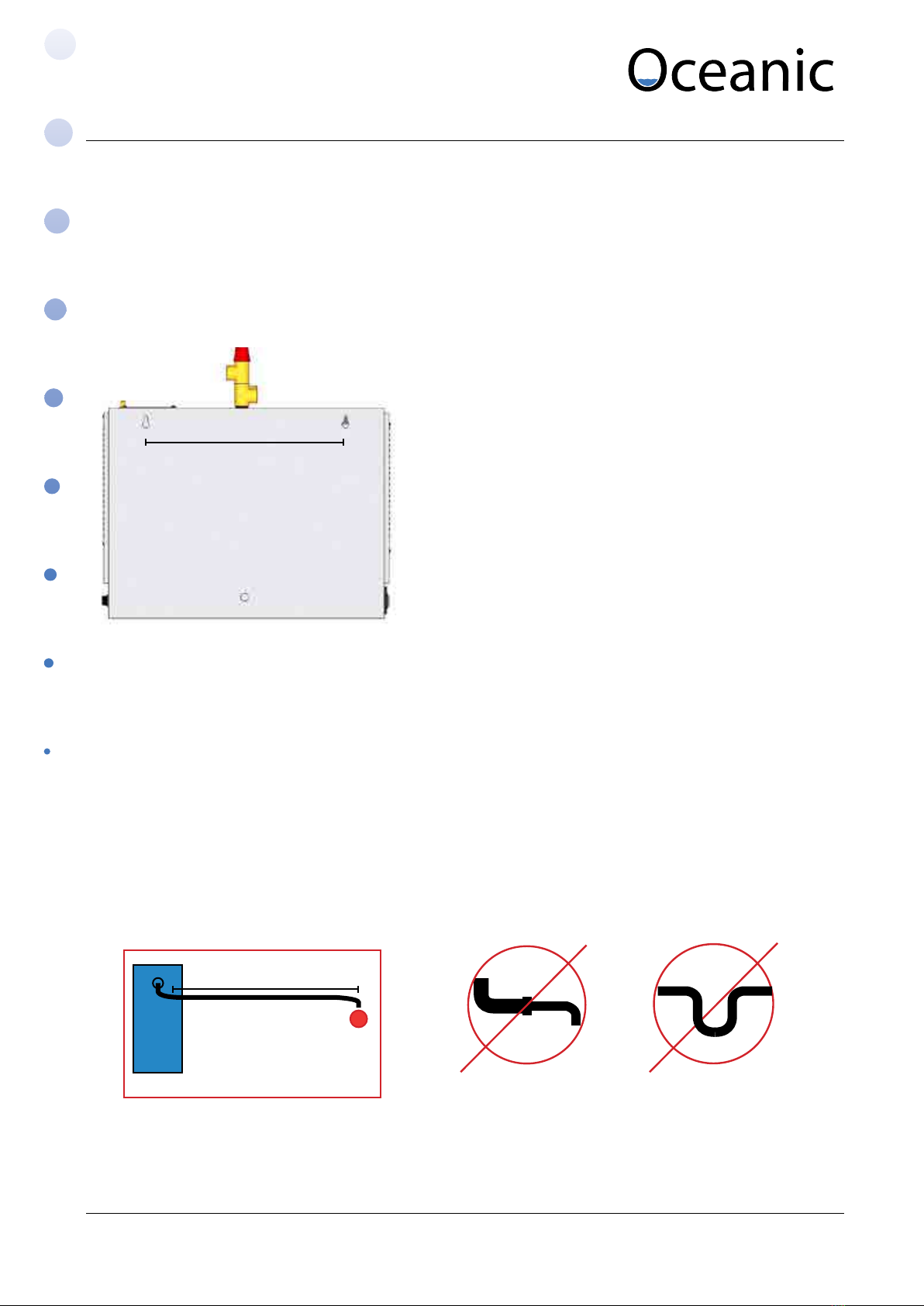

7.2. Steam Generator Location
The steam generator should be installed in dry well ventilated place in close proximity to the steam room. It
can be placed on the oor or hung on wall.
To hang the generator on a wall drill 3 holes 8mm in diameter in accordance with the table below. Fix the top
2 screws in place rst then hang the generator by the 2 keyhole shaped holes in the back plate. Then with the
front cover removed x the 3rd screw to secure the unit in place.
<10m
The steam generator can be installed anywhere that is dry and has an airow.
Example locations:
• Plant Room
• Cupboard in an adjacent room
• In the loft
• Up to 1.5m beneath the unit in a basement
Important notes:
• The steam pipe should be insulated and not travel further than 10 metres
• Do not reduce size of steam pipe at any point
• the steam pipe must not go down and then up, as this will create a trap and damage the
steam generator.
465mm

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 15
Steam Generator Manual
7.3. Water and Steam Connections
i. The water supply pipe and steam pipe should comply with local standards
ii. Connect the water inlet valve of the generator to the mains water supply using a exible
hose with 1/2 inch ttings.
iii. Steam outlet (1/2 inch or 3/4 inch) use the same dimension copper pipe to connect it, if the
steam pipe is longer than 5 meter it should be insulated. During use the steam pipe will
be very hot and must be protected against accidental contact. Note that according to the
location it may be necessary to attach an additional length of pipe to the pressure relief valve
in order to divert the steam ow to a safe direction should the valve operate.
iv. Connect the drain outlet to a suitable drain via a copper pipe with the appropriate ttings.
7.4. Installation for controller and temperature probe.
OC-D controller is waterproof and can be installed inside or outside the steam room according
to customer preference.
i. For a better connection and to eliminate any future connection problems spray connection
uid or aerosol oil spray on the pins of the PS/2 cable(5pin cable) before plugging into the
circuit board.
ii. Ideally the control panel should be installed at a height of approximately 1200mm for ease of
use.
iii. Installation method: Open the front cover of steam generator. Pin the control cable (6 cores)
and temperature sensor cable (2 cores) to the relevant ports.
iv. Control panel installation: pin one end to circuit board ports in steam generator connect the
other end to the controller’s cable.
v. Temperature probe installation: the temperature probe is installed inside the steam room at
approximately 1.2 to 1.5 meters high and away from the steam outlet. Use a 4mm screw x it
in place and then connect to the wire from the controller.
vi. Fix protective cover (supplied) over the temperature
Temperature Sensor
4mm Screw
Cover to protect the temperature sensor

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 16
Steam Generator Manual
7.5. Installations for power supply and control cable
Conrm the correct voltage of power supply and wires.
Remove the knock out for the power cable entry and use a rubber grommet to protect the cable,
connect to the conductors to the correct terminals – for single phase power supply use the copper
bridge connectors, for 3 phase supply remove them. (Extra bridges can be found it provided)
Remove the knock out for the control cable entry and use a rubber grommet to protect the cable,
connect the cable to the relevant port on circuit board.
Ensure the power supply wire and control cable remain separated to prevent magnetic eld of
power supply wire from disturbing control cable signal.
7.6. Installing a light
There is a 230v power supply inside the steam generator labelled“Light”. This is rated to 100w
Max. The button on the keypad will turn this power supply o and on. This power supply is
protected by a fuse on the main circuit board but you can add your own fused spur for extra
protection if you prefer.
7.7. Installing a Fan
Same as above for a light.
7.8. Connecting to descaler
i. OCD Generator is able to run automatically descale cycle by pumping descaling solution
directly into the tank. This can be set to occur at regular intervals using the contoller as
described on page 20.
ii. The pump supplied should be connected via silicon hose to the generator and the container
of descaling solution.
iii. The diagram on pages 6 and 7 show how the descaling solution should be connected via the
pump. Ensure the the ends of the hose are held in place with cable ties.
iv. Both descaling crystals and 120 litre container can be purchased from Oceanic-Saunas.co.uk
8. Steam on Demand Function
Commercial operators may wish to take advantage of the steam on demand function which
will allow customers to press the steam on demand button located inside or outside the steam
room after which the generator will create steam for 30 minutes then return to an idle state until
activated again. This function reduces running costs and frequency of maintenance.
See instructions on page 19 for how to set up the function on the OCD Controller.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 17
Steam Generator Manual
1 Time 24hr
2 Heat Symbol
3 Current Temperature In Room
4 Work Mode e.g Normal, SOD, Auto
5 Centrigrade or Farienheit
6 Set Temperature Has Been Reached
7 Descale Cycle On
8 Draining
9 Water Needed, Filling - Valve Open
If ashing - No Water Supply
10 Generator Has Overheated
11 Fan On
12 Light On
13 Keypad Locked
14 Auto Timer Set
15 Fan On / Decrease (-)
16 Setting
17 Drain (Must Be O) / Increase (+)
18 Light On / Left Scroll
19 Machine On/O / Right Scroll
9. Programmable Controller User Instructions
9.1. Display and Buttons
15 16 17
1918
9.2. Turning On/O
When power has been switched on to the machine the keypad will sound a short beep to indicate that it has
been powered up.
To turn on push
You should now see the default display which should look like this.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 18
Steam Generator Manual
9.3. Time and Day
Push push until you reach Push for ok
You can now use the increase and
decrease, left and right buttons to
set the hours, minutes and day.
9.4. Setting Temperature
i. You can set the temperature between 35 and 600C and between 95 and 1400F.
ii. If you are a novice user we advise to start at around 38oC and when you are comfortable with this
temperature start to increase slowly by 1oC between each bathing session.
Push Push Push
to enter
setting to save
to enter
temperature
settings
Increase
Decrease
or

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 19
Steam Generator Manual
i. Mode A - This is a count
down timer. You can set
for upto 4 hours or for
continuos heating.
iv. Mode B - Steam On
Demand. (Commercial
only) Install a button
outside of the steam
room, when a customer
pushes the button they
get 30 minutes of steam.
With steam on demand
you only need to set the
temperature of the room.
When the red button is
push it will illuminate to let
users know the generator
is working. Once set the
home screen should look
like this.
v. Mode Auto - Program specic
times for the generator to
turn on and o throughout
the day. Once setup machine
will remember to turn on
or o at these same times
everyday.
vi. You can choose in the morning from between 0.00 - 12:00
noon. And in the afternoon from 12:00 - 23:59.
vii. To activate morning(1) or afternoon(2) change the X to a Tick,
now set the time you want the machine to turn on and o. As
you can see above we have set from 6 to 12 in the morning
and from 12 noon to 23:55 at night.
9.5. Working Modes
ii. Change the time using
the up and down keys.
Press to save the
setting
viii.Once setup the home screen
should look like this.
ix. If you isolate power to the
machine it will forget your
settings and go back to
default.
iii. Once set the home screen
should look like this.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] 20
Steam Generator Manual
9.6. Auto Descale
i. Set the machine to automatically descale itself once per week. Once set the machine will
descale itself at the same time every week.
ii. The descaling solution will still need to be topped up, our 120 litre drums will do about
10 descales before relling with acid. Mix 5kgs of acid for the whole 120 litres of acid or
around 40-50gs of acid per litre.
iii. For some operators is may not be neccessary for you to be descaling the generator every
week as you may not be in a hard water area or you may only be operating the machine
for a few hours per day. In this case we advise not to have the machine set up for a regular
descale and to only turn the descaling cycle on when you need it. You must remember
though that once the cycle has been completed you must turn the Tick to a X to turn the
weekly descale o.
To setup
descaling push
Push
to enter
iv. The default is Sunday between midnight 00:00 and 8:00 in
the morning.
v. To activate descale change the X to a Tick.
vi. You can also adjust the day and time that the descale will
operate. We advise a minimum of 4 hours.
vii. Note the screen must be turned o for the descale cycle to
run.
9.7. Drain
i. You won’t ever really need to drain the machine as it automatically drains itself. While steaming
the generator will drain out the water so that there is never a concentrated solution of limescale
in the tank. It will also completely drain and ush itself after it has been turned o. (not isolated)
ii. To drain the machine you rst need the screen to be o, so if it is already on push the On/o
button to turn it o. Now push the Drain button, scree will illuminate and indicate the drain
symbol as shown below on the right.
