Oceanpower OPF138 User manual

Dear Customer,
We from Shenzhen Ocean power food technology Co., ltd. would like to send you our
sincerely wishes and thanks for purchasing one of our soft ice cream machines.
To be able provide our customers with the best possible service we added ISO 9000 and
ISO 14000 into our own quality and environmental system since 2000-07-11.
In addition to the norms from the ISO we also seriously follows the directives of CB and
CQC for the manufacturing of this machine.
Shenzhen Oceanpower food technology co., ltd.
Add: Block C & D, 7 & 8/F, Bldg F3.8, Tian’an CyberPark,
Chegongmiao, Futian District, Shenzhen, China
Post: 518040
Tel: [phone] (100 Lines) ext 8908
Direct nr: [phone]
Fax: [phone]/727/728
http://www.oceanpower.com
http://www.chinafoodol.com
Oceanpower carries out a continuing research, toward further development and
improvement; therefore, the information found in the manual is subject to change without
further notice.
All technical data, pictures and drawings contained in this manual are not binding on the
manufacturer, nor can the manufacturer be held liable for any modifications to the
machine in whole or in part.
1

INDEX
CONVENTIONAL SYMBOLS ............................................................................................... 4
SAFETY ............................................................................................................................ 4
CHAPTER 1, GENERAL INFORMATION .............................5
1.1 GENERAL INFORMATION ............................................................................................ 6
1.1.1 Announcement.................................................................................................... 6
1.1.2 Information to the user....................................................................................... 6
1.2 INFORMATION ABOUT THE MACHINE.......................................................................... 6
1.2.1 General data ...................................................................................................... 6
1.2.2 Machine assembly identification........................................................................ 7
1.2.3 Emergency stop demonstration
： ...................................................................... 8
1.2.4 Discharge door assembly................................................................................... 9
1.2.5 Technical features............................................................................................ 10
1.3 OPERATION CONDITION............................................................................................ 10
1.4 NOISE....................................................................................................................... 10
CHAPTER 2, INSTALLATION...............................................11
2.1 ROOM CONDITIONS .................................................................................................. 12
2.2 ELECTRICAL CONNECTION ....................................................................................... 12
2.3 SAFETY BREAKS....................................................................................................... 12
2.4 ACCESSORIES INSTALLATION................................................................................... 13
2.4.1 Beater and Discharge door installation .......................................................... 13
2.4.2 Installation of drip tray, drip pan and air tube................................................ 14
CHAPTER 3, OPERATING INSTRUKTION ........................15
3.1 THE MACHINE CONTROLS ......................................................................................... 16
3.2 STARTING THE MACHINE.......................................................................................... 17
3.2.1 Filling soft ice cream mixture.......................................................................... 17
3.2.2 Starting the production,................................................................................... 18
CHAPTER 4, CLEANING AND SANITIZING......................19
4.1 WASHING AND SANITIZING ....................................................................................... 20
4.2 DAILY CLEANING ..................................................................................................... 20
4.3 SANITIZING AND CLEANING OF THE MACHINE .......................................................... 21
4.4 DISASSEMBLING, CLEANING AND SANITIZING OF THE DISCHARGE DOOR.................. 22
4.5 DISASSEMBLING, CLEANING AND SANITATION OF THE OF THE BEATER ASSEMBLY... 22
4.5 DISASSEMBLING, CLEANING AND SANITATION OF THE OF THE BEATER ASSEMBLY... 23
2

CHAPTER 5, TROUBLESHOOTING GUIDE.......................24
5.1 PROBLEMS THAT MAY OCCURS DURING OPERATION AND SUGGESTED SOLUTIONS ... 25
5.1.1 Frozen cylinder phenomena............................................................................. 25
5.1.2 Operation conditions that will result in “AUTO”-protection. ........................ 25
5.1.3 The machine do not start.................................................................................. 26
5.1.4 The machine do not stop automatic during AUTO condition.......................... 26
5.1.5 The machine will not stop when pushing STOP button. .................................. 26
5.1.6 The ice cream is too hard or too soft............................................................... 26
5.1.7 Ice cream comes out behind the discharge door. ............................................ 27
5.1.8 Big amount of ice cream in the drip pan.......................................................... 27
5.1.9 Mixture or ice cream leaks from the draw valves............................................ 27
5.1.10 The Ice cream mixture do not flow into the cooling cylinder........................ 27
APPENDIX A..............................................................................29
3

Conventional symbols
Information notice: General information or tips.
Warning: General warning concerning the safety of the operator and the machine.
Warning: Warning that is directly connected with the electrical safety of the operator,
failure to follow this warning may result in electrocution.
Safety
During the use of any kind of industrial equipment or plants, the user must be aware of
that the drive mechanisms, high voltage components, as well as parts subject to high
temperatures may cause serious damage to the user or the environment.
Oceanpower are seriously concerned about the safety of the operator, and therefore only
personal with adequately knowledge’s about our product should be assigned to operate
the machine.
For safe operation of the machine,
DO NOT:
• Operate the soft ice cream machine without reading this manual. Failure to follow
its instruction can cause serious damage to the machine or cause personal injury.
• Operate the soft ice cream machine, if it is not properly grounded. Failure to
follow this instruction may result in electrocution.
• Attempt to remove any parts of the machine or perform any repair, if the machine
power supply to the machine has not been disconnected and the power switch is in
“OFF” position.
• Operate the soft ice cream machine if any of its parts is lose.
4

Chapter 1, General information
\
5

1.1 General information
1.1.1 Announcement
Shenzhen Oceanpower Technology Co., Ltd claims earnestly that this product is
manufactured on the basis of the corporation standard (registered number is
QB/440304L1193-2002) by shenzhen technology supervision station. This standard is
according to the industrial requirement (SB/T10235-1994) in china, the food sanitation
and safety related standards. The design of this machine and its technology is protected
by patent. In addition ，we also seriously follows the directives of CB and CQC for the
manufacturing of this machine.
1.1.2 Information to the user
• For any explanation and information regarding the machine, its spare-parts or how
to operate it, the manufacturer of the machine will be available if any questions
should arise.
• If any problem should occur, please contact our local distributor or the
manufacturer if no distributor is available.
1.2 Information about the machine
1.2.1 General data
OPF serial soft ice cream machine is manufactured and developed by Shenzhen
Oceanpower Technology Co., Ltd. It can be used for production and distribution of one
or two flavored soft ice cream.
It applies the technology from several patents that our company has gained, such as our
unique evaporation cooling technique and the digital control system of the machine. The
machine is fitted with an electronic temperature and consistency control system and the
hardness level of the ice cream can directly be chosen from the control board. The
operative condition of the motor can also be seen in a real-time display for a clear
indication that the machine is working properly.
Oceanpower recommends that high quality ice cream mixes should always be used, like
Oceanpower ice cream powder mixes. It is also possible to use other brands, but if so,
please make sure that the mixes been made by high quality raw materials or ingredients
from reliable or trustworthy suppliers.
Note. Make sure that the milk fat content of a different ice cream mixes than
Oceanpower ice cream mix is about 5 %.
Beside what is mentioned above it is of important to consider:
• Always follow the instruction given by the supplier.
6

• When using ice cream mixes, with a milk fat content of 5 %, do not try to add
more water or sugar, since this may lower the quality of the product or disturb the
operating condition of the machine.
• Always remember to sanitize the machine after it been used, and always keep a
strict hygiene.
• For best customer satisfaction, always taste the product before serving so you are
always sure that you will provide the customer with a first class product.
1.2.2 Machine assembly identification
Drip pan
Control
p
anel
Discharge door
Emer
g
enc
y
switch
Caster-swivel
(
front
)
Drip tray
Hopper Cover
assembl
y
Swivel caster –
rigid (rear)
P
icture 1 ( OPF138/136)
Swivel Caster –
rigid (rear)
Caster-swivel
(
front
)
Drip pan
Emer
g
enc
y
switch
Drip tray
Dischar
g
e doo
r
Control
p
anel
Hopper Cover
assembly
P
icture 2 ( OPF130)
7

1.2.3 Emergency stop demonstration：
P
icture 3 schematic picture of emergency switch
Emergency switch button—the motor will stop immediately after the emergency switch
been switched to “off ”position. During maintenance and adjustment use the emergency
switch in order to prevent the machine from starting unexpectedly. The left position is
“on”, the right position is “off ”.
8

1.2.4 Discharge door assembly
P
icture 4: Schematic picture of the door assembly
Item Name Quantity Item Name Quantity
1 Hand screw 4 7 Center draw valve 1
2 Distribution handle 3 8 Center draw valve O-
ring(φ33×3.1)
1
3 Distribution lever 3 9 O-ring(φ105×5.7) 2
4 Pivot pin 1 10 Discharge door body 1
5 Draw valve O-ring(φ33×3.1) 7 11 Pivot pin nut 1
6 Draw valve 2 12 Design cap 3
9

1.2.5 Technical features
MODEL OPF138 OPF136 OPF130
HOURLY OUTPUT(liter) 38 36 30
TANK CAPACITY(liter) 6.5×2 6.5×2 6.5×2
FLAVOURS 2+mixed 2+mixed 2+mixed
volt 220V 220V 220V
cycles 50/60HZ 50 HZ 50/60HZ
ELECTRICAL
POWER phase 1 1 1
INSTALLED POWER(KW) 2.4 2.2 2
CONDENSER Air Air Air
REFRIGERANT R22 R22 R22
Net 160 156 136
WEIGH IN
KG Gross 178 174 152
Width 555 555 555
Depth 735 735 735
DIMENSIONS
(mm) Hight 1335 1320 947
Width 780 780 780
Depth 880 880 880
PACKING
DIMENSIONS
(mm) Hight 1530 1530 1360
1.3 Operation condition
OPF serial soft ice cream machine has been design and manufactured for making of one-
or two-flavored soft ice cream and should only be used for this purpose. The operation
requirement for OPF series soft ice cream machine is as follows:
• Voltage 220 V (198V~242V)
• Operating air temperature 10 ºC – 38 ºC
• Max relative air humidity 90 %
• Max height above sea level 2000 m
• Normal atmospheric condition
1.4 Noise
The noise level of OPF serial soft ice cream machine is bellow 68 dB.
10

Chapter 2, INSTALLATION
11

2.1 Room conditions
The room used for the operation of the OPF soft ice cream machine must be able to
provide air that can circulate freely, to prevent over-heating. Therefore the distance to the
machine must be at least 200 mm to the closest wall. The space were the machine is
located should be kept clean, in order to prevent dust or other particles to be sucked into
the machine by its fan.
The place where the machine stands should be firm and dry and there should not be any
heat sources within 500 mm to the machine.
NOTE: If the minimum room condition is not followed, it may affect the operation of the
machine and its output capacity.
P
icture 5: the machines
p
lacemen
t
P
icture 6: the machines
s
a
f
et
y
breaks
2.2 Electrical connection
It is of great importance that the power supply to the machine is within the permitted
range 198V~242V, with a current capacity above 16 A, also that the machine can be
properly grounded. If the voltage should be outside the permitted range, then the machine
safety protection will prevent the machine to start and the machine need to be restarted.
The cross-section area of the cable that is connecting the machine with its power source
should be over 2.5mm2 and the length shorter than 6m.
Warning: if the power cable should of any reason be damaged, a skilled technician with
sufficient knowledge and skill should immediately replace it.
Warning: Always ensure that socket of the power source is properly grounded before
connecting the machine.
2.3 Safety breaks
To be able to move the machine freely, it has been equipped with wheels with mechanical
breaks. During operation the wheel breaks should be engaged to prevent the machine to
move.
12

2.4 Accessories installation
IMPORTANT: Remember to clean the soft ice cream machine and its parts, according to
chapter 4.2, before using the machine the first time.
2.4.1 Beater and Discharge door installation
1. Put a thin layer of lubricant on the end section
of the steel shaft as showed in the picture and
pull on the ripple seal ring.
P
icture
7
: beater lubrication
2. Insert the beater assembly into the
cooling cylinder. When it is properly
installed, then if it will spring back if
pushed inward.
P
icture8: the beaters
p
lacemen
t
3. Put a thin layer of lubricant on the o-rings
sealing the Discharge door with the machine.
P
icture 9: the Dischar
g
e doo
r
lubrication
4. To attach the discharge door to the machine, use
the Discharge door body to press up the three
springy touch poles. Finally aim so that the four
holes on the Discharge door body fit into the
four screws on the machine.
P
icture 10: the placement of the discharge door.
Hand screws
Picture 11: the Dischar
g
e doo
r
p
lacemen
t
2
5. Finally, screw the hand screw tight, as is shown
on the picture. Remember to control that the
gap between the discharge door and the
machine is small and that the O-rings is in
place.
13

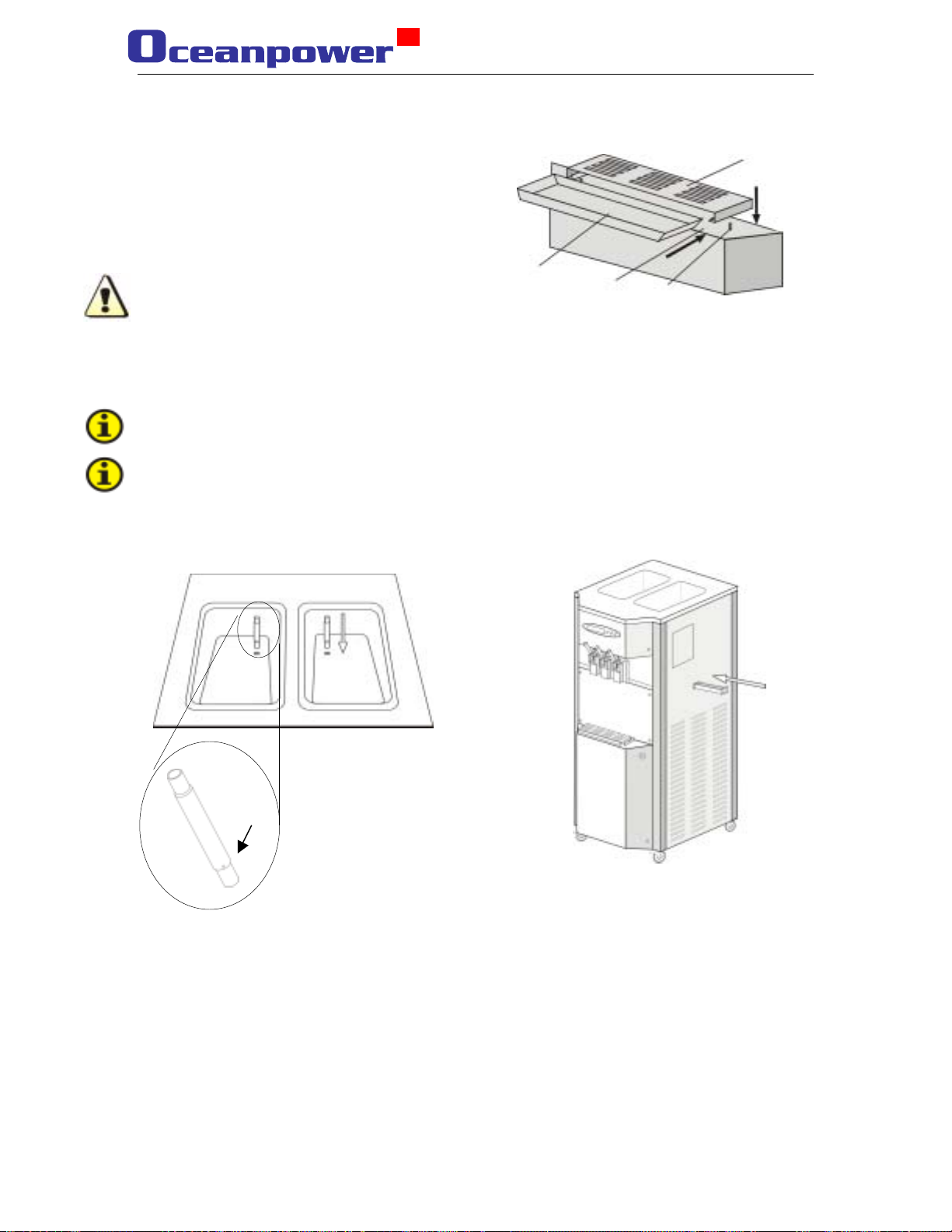

2.4.2 Installation of drip tray, drip pan and air tube
Front desk
Drip tray
Anchor point
Drip tray holder
1. Attach the drip tray holder on its
anchor points.
2. Insert the drip tray into its holder.
Warning: Be careful when handling the
drip tray holder, since sometimes it can
have sharp edges. Picture 12: the drip tray.
3. Insert the two air tubes into its hole in respective hopper container.
4. Insert the drip pan into the hole on the side panel.
NOTE. Please, make sure that the small hole on the air tubes is pointing downward.
NOTE: the function of the air tube is to optimize the flow rate of soft ice cream
mixture into the cooling cylinder.
Picture 13: the air tubes placement Picture 14: the drip pan placement
14

Chapter 3, OPERATING
INSTRUKTION
15

3.1 the machine controls
1. Display of the motors current 2.clean button 3.stop button 4. Button for automatic
operation 5. Button for manual operation 6. Indicator for cleaning condition (green）
7. Indicator for refrigeration condition (blue）8. Indicator for STOP condition (red）
9. Indicator of the hardness level 10. Button to increase the hardness 11 Button to
decrease the hardness
Cleaning—means auto-cleaning, the cylinder and the hoppers
need to be filled with water, the green light indicates the motor is
working.
Auto-operation—The machine will stop automatic, when
temperature and hardness meets the configured condition. If the
temperature rise, the cooling cycle will start automatically and the
blue light will indicate that normal operation occurs.
Manual-operation—Will start the cooling cycle manually, which
is suitable during high workloads, and the blue light will indicate
that normal operation occurs.
Stop—Will stop the machine. Remember that during cleaning or
repair of the machine the machine should be in STOP condition,
the red light indicates this.
Motors current—the screen indicates that the machine is working
and the number indicates the current in the motor. When the
configured number for the certain hardness level is reached, then
the machine will stop automatically; this number represent the
resistance in the cooling cylinder.
Hardness indication—it represents the set hardness value from 0-
7，the bigger the number, the harder products.
Hardness adjusting—adjust the hardness of the product.
16

3.2 Starting the machine
IMPORTANT. Remember to clean and sanitize the machine according the instruction in
chapter 4.2, before the machine is used the first time, to ensure the hygiene.
3.2.1 Filling soft ice cream mixture
1. Ensure that the machine is in STOP condition.
2. Ensure that the beater assembly, the discharge door, the drip tray and the air tube
have been properly installed.
IMPORTANT: This machine has been designed, in the way that both of the cooling
cylinders must be filled with soft ice cream mixture during operation. Make sure to fill
mixture before any of the hoppers is empty.
INFO: to prepare Oceanpowe’s soft ice cream mix for one hopper the following need to
be done:
• Pour 3 L drinkable clean water into a clean container.
• Add 1kg Oceanpower soft ice cream powder slowly while stirring the mix
until it is totally dissolved.
• Let the mix rest for 15 minutes, the effect will be better if the mix is stirred
during the rest.
• Pour the soft ice cream mix into one of the hoppers or put it into a
refrigerator with a temperature of 5-7ºC.
3. Both of the hoppers must be filled with an equally amount of soft ice cream
mixture.
4. Push the CLEAN button, for 10~15 min, to fill the cooling cylinder fully
with soft ice cream mixture. After the mix has stopped bubbling down into the
freezing cylinder, than you can make ice cream flowing the next step
NOTE: Make sure that the little hole on the air tube is in downward position.
IMPORTANT: Always remember to wait for 10~15 min after the soft ice cream mix
been poured into the hoppers to ensure that enough mixture is in the cooling cylinder. If
the cooling cylinder is not filled during operation, then the frozen cylinder phenomena
may occur, see chapter 5.1.1, this may cause serious damage to the machine.
17

3.2.2 Starting the production,
1. First choose the desired hardness level of the product by adjust the value
shown in the hardness indicator window.
NOTE: if you are unsure what value on the hardness is best for your mixture, start with a
hardness level of 4 since this is a middle value.
2. Place a container under one of the drawn valves.
Lower the distribution handle slowly until ice cream
mixture comes out from the design cap and when it
occurs replace the handle to its original position
(This is to remove the air that still may be present in
the cooling cylinder).
Repeat the process for all draw valves and handles.
3. Push the AUTO button; to start the
cooling process of the ice cream, when the resistance in the cooling cylinder is
according to the hardness value, then the machine will stop automatically.
P
icture 15: Ice cream distribution
4. Place a cup or a cone under the design cap.
5. Lower the distribution handle to fill the cup or cone with soft ice cream.
6. Replace the distribution handle when the desired amount of ice cream has
filled the cup or cone.
NOTE: Rotate the cone our cup while the ice cream is coming out from the design cap
NOTE: during high ice cream demand, use the MANUAL operation for maximum
refrigeration efficiency, remember that the refrigeration will not stop automatically, so
the screen of the Motors current need to be checked regularly to ensure that the ice
cream will not become to hard and result in “frozen cylinder”, see chapter 5.1.1 for
explanation.
18

Chapter 4, CLEANING AND
SANITIZING
19

4.1 washing and sanitizing
In order to ensure that the machine is clean, before it is used the first time its parts needs
to be sanitized and washed. The cleaning process is also necessary as a daily routine after
soft ice cream production has been done or if the machine has not been used for a long
time.
WARNING: Before disassembling any parts, always remember to stop and unplug the
machine.
IMPORTANT:
• Because this is a food-producing machine, always remember to keep good
hygiene and to wash and sanitize all parts that have been in contact with the
product after the machine has been used.
• After the cleaning process is done then the parts should be rinsed with bacteria-
free drinking water and thereafter dried.
• The temperature of the water used during cleaning, should never exceed 40 ºC
since it may cause damage to the plastic parts and seal in the machine.
INFO: To prepare Oceanpower sanitizing solution you need to:
• Fill a 5 L container with water.
• Pour one bag of sanitizer into the water.
• Mix the solution for 2 minutes or until all the sanitizer is dissolved.
• The sanitizing solution is ready to be used.
WARNING: Always remember to be careful while handling the sanitizing powder or
solution, since it may cause personal injury or irritation if inhaled or if it get in contact
with sensitive parts of the body (like the eyes).
4.2 Daily cleaning
1. Sanitize and clean the hoppers and the cooling cylinders (chapter 4.3)
2. Sanitize and clean the discharge door (chapter 4.4)
3. Sanitize and clean the beater assembly (chapter 4.5)
4. Clean the machine shell with a cloth drenched in a sanitizer.
5. Clean the drip tray and drip pan with water and sanitizer.
20
