OEM Tools 24816 Service manual

UNPACKING
After unpacking the unit, inspect carefully for any damage
that may have occurred during transit. Check for loose,
missing, or damaged parts. If any damage is observed,
a shipping damage claim must be filed with the carrier.
DO NOT use the OEMTOOLS™ Portable Bucket-Top
Parts Washer if broken, bent, cracked or damaged parts
(including labels) are noted. Any Portable Bucket-Top
Parts Washer that appears damaged in any way, operates
abnormally or is missing parts should be removed from
service immediately. If you suspect that the Portable
Bucket-Top Parts Washer was subjected to shock load
(a load that was dropped suddenly, unexpectedly, etc.),
immediately discontinue use until it has been checked by a
factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your Portable Bucket-Top Parts Washer under
the safest possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling
instructions are not known or not followed. The following safety instructions are to provide the user with the information
necessary for safe use and operation. Please read and retain these instructions for the continued safe use of your tool. Failure
to follow instructions listed below may result in serious injury. In addition, make sure that anyone who uses the equipment
understands and follows these safety instructions as well.
Operating Instructions and Parts Manual 24816
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
PORTABLE BUCKET-TOP
PARTS WASHER
Thank you very much for choosing an OEMTOOLS™Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS™ cannot be responsible for issues
arising from modification. We strongly recommend that this product is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
Explanation of Safety Signal Words
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result
in property damage.
WARNING
1
6/17
2017 OEMTOOLS™

2
Operating Instructions and Parts Manual 24816
PORTABLE BUCKET-TOP
PARTS WASHER
6/17
2017 OEMTOOLS™
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the tool’s
applications and limitations, as well as potential hazards
specific to it.
2. Keep work area clean and well lit. Cluttered or dark work
areas invite accidents.
3. Keep children away. All children should be kept away from
the work area. Never let a child handle a tool without strict
adult supervision.
4. DO NOT operate this tool if under the influence of alcohol or
drugs. Read warning labels on prescriptions to determine if
your judgment or reflexes are impaired while taking drugs. If
there is any doubt, DO NOT attempt to operate.
5. Use safety equipment. Eye protection should be worn at all
times when operating this tool. Use ANSI approved safety
glasses. Everyday eyeglasses are NOT safety glasses. Dust
mask, non-skid safety shoes, hard hat or hearing protection
should be used in appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties, rings,
bracelets or other jewelry may present a potential hazard
when operating this tool. Keep all apparel clear of the tool.
7. DO NOT overreach. Keep proper footing and balance at all
times when operating this tool.
8. Check for damage. Check your tool regularly. If part of the
tool is damaged, it should be carefully inspected to make sure
that it can perform its intended function correctly. If in doubt,
the part should be repaired. Refer all servicing to a qualified
technician. Consult your dealer for advice.
9. Keep away from flammables. DO NOT attempt to operate
this tool near flammable materials or combustibles. Failure to
comply may cause serious injury or death.
10. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the hands
of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Properly maintained tools are less likely to bind and are easier
to control. DO NOT use a damaged tool. Tag damaged tools
“DO NOT USE” until repaired.
14. Check for misalignment or binding of moving parts, breakage
of parts, and any other condition that may affect the tool’s
operation.
15. If damaged, have the tool serviced before using. Many
accidents are caused by poorly maintained tools.
16. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one tool may become hazardous when used
on another tool.
17. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by unqualified
personnel could result in a risk of injury.
18. When servicing a tool, use only identical replacement parts.
Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of injury.
19. Maintain a safe working environment. Keep the work area well
lit. Make sure there is adequate surrounding workspace. Keep
the work area free of obstructions, grease, oil, trash, and other
debris. Do not use this product in a damp or wet location.
20. Maintain labels and nameplates on this product. These carry
important information. If unreadable or missing, contact
OEMTOOLS™ for a replacement.
21. Keep the handle dry, clean, and free from brake fluid, oil,
and grease.
22. Before use, read and understand all warnings, safety
precautions, and instructions as outlined in the vehicle
manufacturer’s service manual. It is beyond the scope of this
manual to properly describe the correct procedure and test
data for each vehicle.
23. Always perform vehicle service in a properly ventilated area.
Never run an engine without proper ventilation for its exhaust.
Stop work and take necessary steps to improve ventilation in
the work area if you develop momentary eye, nose, or throat
irritation as this indicates inadequate ventilation.
24. Engine parts that are in motion and unexpected movement of
a vehicle can injure or kill. When working near moving engine
parts, wear snug fit clothing and keep hands and fingers away
from moving parts.
25. Keep hoses and tools clear of moving parts. Always stay
clear of moving engine parts. Hoses and tools can be thrown
through the air if not kept clear of moving engine parts.
26. The unexpected movement of a vehicle can injure or kill.
When working on vehicles, always set the parking brake or
chock the wheels.
27. Avoid accidental fire and/or explosion. DO NOT smoke near
engine fuel and battery components.
28. The warnings, precautions, and instructions discussed in this
manual cannot cover all possible conditions and situations
that may occur. The operator must understand that common
sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
29. For safety purposes and the prevention of damage to
expensive components, it is advised that the user have an
understanding of basic automotive repair and a working
knowledge of automotive systems.
30. We believe the information contained herein to be reliable.
However, general technical information is given by us without
charge and the user shall employ such information at their
own discretion and risk. We assume no responsibility for
results or damages incurred from the use of such information
in whole or in part. Always refer to specific instructions and
technical information supplied by vehicle manufacturer.
31. The manufacturer declines any and all responsibility for
damage to vehicles or components if said damage is the result
of unskillful handling by the operator or of failure to observe
the basic safety rules set forth in the instruction manual.
32. This equipment is intended only for professional use by
personnel trained in performing the service functions for
which it was designed.
33. This equipment is designed for servicing a variety of engines
in a safe, convenient manner. However, differences in engine
makes and models may make it impossible to use this
equipment as it is intended. DO NOT attempt to force the
use of this equipment on an application for which it is not
designed to perform.
34. The procedures documented in this manual are to serve as
guidelines for the use of this equipment.
35. In addition to these guidelines, always follow the
manufacturer’s recommended procedures when servicing
each unique vehicle.
36. The use of this equipment is simple and straightforward if you
follow the instructions. When operating this equipment, use
common sense, and only use this Portable Bucket-Top Parts
Washer for its intended purpose.

3
Operating Instructions and Parts Manual 24816
PORTABLE BUCKET-TOP
PARTS WASHER
6/17
2017 OEMTOOLS™
PRODUCT DESCRIPTION
The Portable Bucket-Top Parts Washer is designed to attach to
any standard 5-gallon bucket, as an efficient way to clean small
parts and tools.
PRODUCT SPECIFICATIONS
Basin Diameter: 13.5"
Pump: 120VAC, 60 Hz, .23A
Fitment: Standard 5 Gallon Bucket
Hose Length: 46"
Cord Length: 72"
CONTENTS
Washing Basin, Flow-Through Brush, Hose, (2) Hose Clamps,
Submersible Pump.
SPECIFIC SAFETY INSTRUCTIONS
AND WARNINGS
1. The recirculating pump is designed for non-corrosive, water-
based cleaning agents. DO NOT use corrosive, flammable or
solvent-based cleaning agents as the pump will malfunction
and may catch fire.
2. Do Not reuse cleaning solution. Change fluid frequently.
3. Clean the parts washer after each use; flammable and
combustible residues from parts and tools may contaminate
cleaning solution.
4. Do Not leave parts washer unattended while the pump is
plugged-in and operating; the pump may become clogged
and overheat presenting a risk of fire.
5. Always wear chemical resistant gloves, ANSI approved
eye protection, and respiratory protection while using parts
washer. Even water-based cleaning agents, when mishandled,
can present health risk or cause injury.
6. Always operate parts washer in an illuminated, well-ventilated
indoor environment.

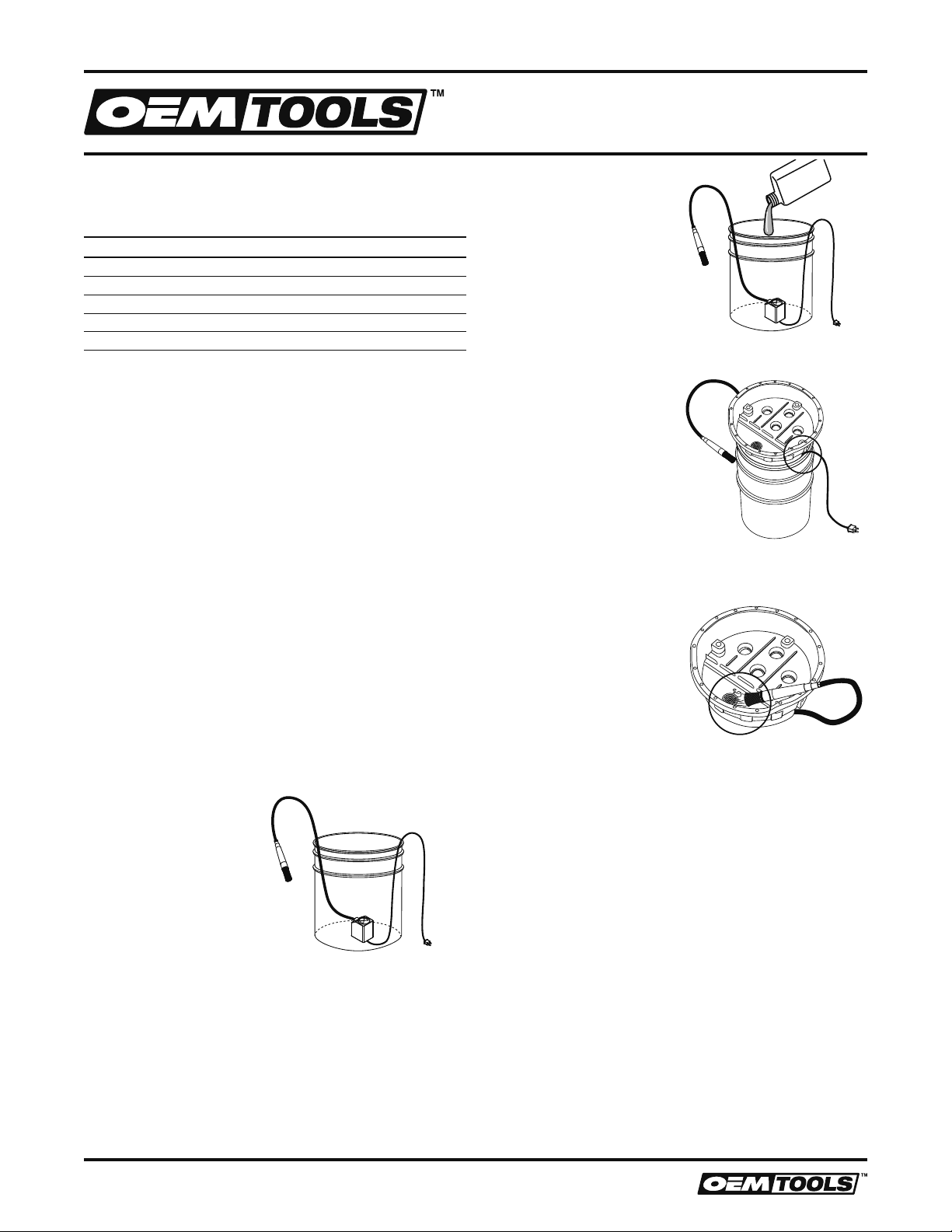

OPERATION
1. Set a standard 5-gallon bucket onto a clean, protected work
surface capable of supporting the bucket and washer at
capacity.
2. Place the pump in the
bottom of the bucket
with the intake facing
the center, and cord
closest to the wall of
the bucket. Press the
top of the pump to
establish suction.
3. Fill the bucket with the
desired amount of cleaning
solution; the pump must be
completely submerged in
order to operate.
4. Place the washing basin onto
the top of the bucket, so that
the power cord and hose
feed through the slotted point
on the basin. If the hose is
pinched, the parts washer will
not operate.
5. Set the cleaning brush into the basin.
6. Plug the pump into a
grounded, GFCI protected
outlet. Cleaning solution will
flow through the brush.
7. After one hour of use, inspect the pump to ensure the pump
is not clogged. Replace the used cleaning solution with new
cleaning solution.
8. When finished, place the brush into the basin, and unplug
the pump. Clean the pump, washer and hose after use.
Dispose of used cleaning solution in accordance with
Federal/State/Local laws.
MAINTENANCE
After each use, check the pump intake. If the intake becomes
dirty and clogged, performance will diminish and may cause
malfunction. To clean the pump, you can remove the casing
over the intake. Ensure all parts are securely attached before
attempting to operate.
STORAGE
Store the portable parts washer in an upright position and in
a clean, dry area. Do not store near flammable items or open
flames.
DISPOSAL
At the end of the useful life of the Portable Bucket-Top Parts
Washer, dispose of the components according to all Federal/
State/Local laws.

4
Operating Instructions and Parts Manual 24816
PORTABLE BUCKET-TOP
PARTS WASHER
6/17
2017 OEMTOOLS™
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
Figure Description Quantity
A Parts Washer
Basin
1
B Pump 1
C Pump Cord 1
D Pump Hose 1
E Hose Clamps 2
F Flow Through
Brush
1
G Suction Cups 4
PARTS LIST
OEMTOOLS™90 DAYS LIMITED WARRANTY
For 90 days from the original purchase of this product, OEMTOOLS™will warranty this item. If you find any defect in material or workmanship, through normal
usage, return it to the place of purchase or to OEMTOOLS™for repair or replacement at our discretion. In order to obtain this service, send your tool and proof
of purchase, transportation pre-paid, to OEMTOOLS Q.A. Dept., 3580 E. Raines Road #3, Memphis, TN 38118. We will not be responsible for lost or damaged
goods during transportation; please insure your package. If our inspection verifies the defect, we will either repair or replace the product at our election, or we
may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we
determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS™does not provide warranty for products labeled other than OEM®or OEMTOOLS™. OEMTOOLS™will not provide any warranty for products
subjected to abnormal use. Abnormal use includes (but is not limited to) abuse, accident, alteration, neglect, and unauthorized or unreasonable use or repairs.
This warranty does not cover bits, blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits, files,
and batteries as necessary. OEMTOOLS™reserves the right to make any changes in construction or design at any time without any obligation in incorporating
such changes to tools or equipment previously sold.
OEMTOOLS™makes every effort to ensure that its products meet high quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or
indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear or to
lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our
product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
Consumable components such as batteries are not covered by the warranty.
This warranty will be invalidated by (but not limited to) the following:
• Failure to follow instructions in the User’s Manual
• Accidental and/or unreasonable use or misuse
• Mishandling
• Over-charging or overloading
Don’t forget to register your new OEMTOOLS™product at www.oem-tools.com.
• Extended storage without recharging
• Repairs by an un-authorized person or any modification
• Normal wear or accident
Note: Not all components of the Portable Bucket-Top Parts
Washer are replacement items, but are illustrated as a
convenient reference for location and position in the assembly
sequence. The manufacturer and/or distributor have provided
the parts list and assembly diagram in this manual as a reference
tool only. Neither the manufacturer nor distributor makes any
representation or warranty of any kind to the buyer that he or
she is qualified to make any repairs to the product, or that he or
she is qualified to replace any parts of the product. In fact, the
manufacturer and/or distributor expressly states that all repairs
and parts replacements should be undertaken by certified and
licensed technicians, and not by the buyer. The buyer assumes
all risk and liability arising out of his or her repairs to the original
product or replacement parts thereto, or arising out of his or her
installation of replacement parts thereto.
B
C
F
E
G
