OEM CH-4100 User manual

•
II
C EE

Table of Contents
2
Safety Information 3
Care and Installation 4
Wiring Diagram 5
Controls 6
Remote Control 7
Monitor Operation 8
Monitor Operation 9
General Operation
10
Main Access Menu 11
General Set Up Menu 12

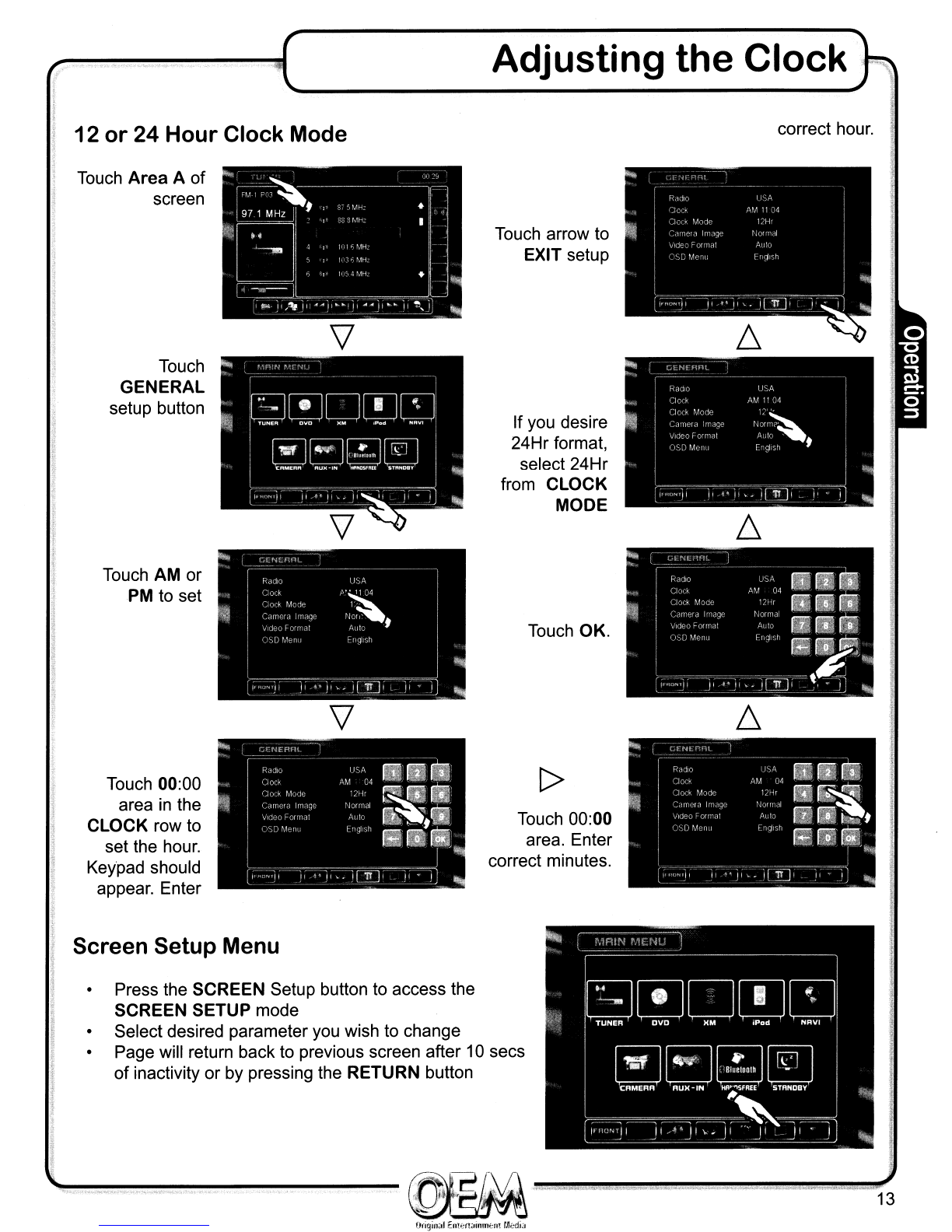

Adjusting the Clock 13
Screen Setup 14
Audio Signal Processing (ASP) 15
AM/FM Tuner Operation 16 -17
DVD Information
18
Initializing Parking Brake 19
DVD Operation 20
DVD Controls 21
DVD Search Function 22
DVD Setup Menu -Language 23
DVD Setup Menu -Video
24
DVD Setup Menu -Ratings 25
DVD Setup Menu -Audio 26
DVD Setup Menu -Speakers 27
DVD Setup Menu -Surround Iand II 28
CDIDVD/MP3/WMA Information 29
CD Operation 30
MP3IWMA Operation 31
iPod Operation 32-33
XM Radio Operation 34-35
Bluetooth Operation 36-37
Navigation
38
Muli-Zone Operation 39
Multi-Zone AM/FM Tuner 40
Mulit-Zone XM Radio
41
Mulit-Zone iPod Operation .42
Limited One Year Warranty 43
Troubleshooting 44-45
Notes 46
Specifications 47

Safety Information A
Please read all instructions prior to installation and operation -------------....
It is highly recommended to have aprofessional installer or an authorized dealer install your
CH-4100 multimedia receiver.
This
product is only for use in vehicles with 12VDC negative ground only.
The
DVD video display of the in-dash unit will not operate while the vehicle is moving. This is
asafetyfeature to prevent
driver distraction. In-dash DVD video functions will only operate
when vehicle is in Park and the parking brake is engaged.
It is illegal in most states for the
driver to view video while the vehicle is in motion.
AWARNINGS to prevent injury or damage to unit:
1) This model incorporates amotorized moving monitor. Before final installation make sure the
monitor will not obstruct the dash, shifter or any other controls.
2) The Yellow/Blue lead must
be connected to the brake switch circuit in order for the in-dash video
safety feature to function properly. Failure to properly install this safety feature could cause
the driver to distracted, which could result
in serious injury or death to the vehicle's occupants,
persons outside the vehicle and/or property damage.
3) Do not install the unit in aspot exposed to direct sunlight or excessive heat.
4) Make sure to ground the unit securely to the vehicle chassis ground
5) Use only the hardware and wire harness provided.
6) When extending the ignition, battery or ground cables, make sure to use automotive-grade cables
or other cables with an area
of O. 75mm (AWG 18) or more to prevent voltage drops.
7)
To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
8) When replacing afuse, only use anew one with the prescribed rating. Using afuse with the wrong
rating may cause the unit to malfunction and may result
in afire.
9) Do not remove the top or bottom covers
of the unit.
10) Do not subject the unit to excessive shock and avoid impact to the LCD monitor.
11) Do not touch the liquid crystal fluid ifthe LCD
is damaged or broken. The liquid crystal fluid may
be hazardous to your health or fatal. Ifthe liquid crystal fluid from the LCD contacts your body or
clothing, wash it off with soap immediately.
12) Do not get water, other liquids or cleaning fluid on the unit.
13) Only a5" (12cm) compact disc may be used
in the disc player. Never insert any foreign object into
the disc player as the mechanism can
be damaged. This includes the use of a 3" (8cm) CD-single,
either with or without an adaptor. This type
of damage is not covered by the Warranty on this
product.
~===~~
Origin<tl Entf::ft~inm€'m tJlediit
3

4
Care and Installation
Care and Maintenance
1) To clean the monitor or front panel, wipe only with adry silicone cloth or soft cloth and neutral
detergent. Do not use astiff cloth, or volatile solvents such as paint thinner and alcohol. They can
scratch the surface
of the panel and/or remove the printing.
2) It is recommended to use acleaning disc
in this unit more frequently then the player in your home,
since your vehicle is exposed to different environmental conditions.
3) When the temperature
of the unit falls (as in winter), the liquid crystal inside the screen will become
darker than usual. Normal brightness will return after using the monitor for awhile.
4) Under damp conditions or when the vehicle warms up during cold weather, condensation may
become visible on the LCD panel. Until the moisture has evaporated, the screen may not work
properly.
5) Ifthe temperature inside the player gets too hot, aprotective circuit automatically stops play
of the
disc. Ifthis occurs, allow the unit to cool before operating the player again.
6) Ifthe temperature inside the vehicle is extremely hot
or cold, the CD player may not operate
properly. Before using the player, allow the inside
of the vehicle to reach normal temperature.
FCC Compliance:
This device complies with part 15 of the FCC rules and regulations. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Disconnectthe Battery:
To prevent short circuit, turn offthe ignition and remove the negative (-) battery cable prior to installation.
Installation Help
1. If you experience problems during installation, consult your nearest OEM ItfiDIO dealer.
2. If the unit malfunctions, reset the unit as described on page 6first. If the problem still persists, consult
your nearest
OEM RADIO dealer or call tech assistance @1-877-305-8972.

VIOEOQAME
(NOT INCLUDED)
GROUND
Wiring Diagram
IPodCAIILE
(INCLUDED)
YEllOW
~------'
XM DIRECT TUNER: AND ANTENNA
(NOT INCLUDED)
~-r==~ .. ~a
WHITE
~ED
GRAY
~==~
TO REVERSE
LAMP
FUTURE
USE
BLUE(+)
'----------------- as::::~___,_,_,_____,_____--'
TO FUSE BLOCK or
"CAN ADAPTOR
.-'-'-'-'-'-'-'-'-'-'-'--'
I .
i YELlOW BATTERY t2V (+) !
j BlACK CHASS*SGROUNOI-) !
• I
! BLUE POWERANTENNA(+) i
!8lUEfMtITE AMPTURK-ON (t) i
! WHITfIBROWN--REVERSELAMP(+) i
I .
i VEUOWIBLUE PARKING BlWl.E H!
i ORANGE ILLUMlNATtOH (t) !
· I
! GRAY RIGHTFRONT(+) i
!
GRAYIBLACK RIGHT FRONT (.) !j
i WHITE LEFTFROHT(+) !
i WHITE/BLACK LEFT fRONT (-) !
i VIOlET AIGHTFRONT{+j !
• I
! VIOLETI9lACK RIGHT FROHT (-) j
! GAEEN LEn REAR ft) i
! GREENIBLACK LEFT REAR (-) i
I •
..... _._._._._._._._._._._._.1
~
GROUND POWER AMPLIFIER
Wiring Notes: __...
Additional hardware and accessories may be required for installation such as STEERING
WHEEL, CAN adapters or wiring harnesses (Not Included)
*Steering wheel controls may not work with some vehicles
*If opting to NOT use a CAN adapter, the IGN wire must be run from the radio to the fuse box. We rec-
ommend tapping into
at least a10Aamp IGN fuse at the fuse box if using this procedure.
POWER HARNESS COLOR CODE:
YELLOW -------------------------------------------------------- BATTERY 12V (+)
B LA CK ------------------------------------------------------- C HASS IS G RO UND (-)
BLUE --------------------------------------------------------- POWER ANTENNA (+)
BLU EIWH ITE ----------------------------------------------------- AM P TU RN-ON (+)
WH ITE/BROWN ----------------------------------------------- REVERSE LAMP (+)
YELLOW /BLU E-----------------------.----------------------- PARKING BRAKE (-)
ORANGE -------------------------------------------------------- I LLUM INATION (+)
SPEAKER COLOR CODE:
G RAY -------------------------------------------------------------- RI G HT FR 0 NT (+)
GRAY/BLACK ---------------------------------------------------- RIGHT FRONT (-)
WH ITE ------------------------------------------------------------ LEFT FRONT (+)
WH ITE/BLACK --------------------------------------------------- LEFT FRONT (-)
VIOLET -------------------------------------------------------- RIGHT FRONT (+)
VIOLET /BLACK --------------------------------------------------- RIGHT FRONT (-)
GREEN ---------------------------------------------------------------- LEFT REAR (+)
GREEN/BLACK ------------------------------------------------ LEFT REAR (-)
Wiring Notes:----_
•The SUBWOOFER audio output
(Blue RCA) is active in all audio
modes and
must be connected
to an external amplifier.
• A
rear viewcamera (not
included) can be connected to
the CAMERA input.
Connect the yellow/blue PARKING
BRAKE wire to brake switch circuit
in order for the in-dash video safety
feature
to function properly.
•NEED HELP?? Call
our Technical
Service Hotline, 1-877-305-8972.
,.....--_ ...... ~
. Orig:.al ElItert..-.ent Med~
5

en
:g
c
o
(,)
Controls
Button Operation
1) EJECT -Press once for DISC ejection
2) MUTE -Press once to MUTE audio, press
again to return audio. The volume icon will
change.
3) VOL /SMART DIAL -Rotate knob 0
or
t> for desired VOLUME level. Rotate
clockwise/counter clockwise to select
desired item
in any MODE and press once to
ENTER. Press and hold to access AUDIO
menu.
4) PLAY/PAUSE -Press play to resume
disc playback, press again to suspend disc
playback.
5) SRC -Press select source. Press and hold
to toggle to rear zone mode ON/OFF
7System Reset
If you experience abnormal operation or your
unit is inoperable, use the tip
of apen to press
the RESET button for 3seconds (upper left hand
corner
of unit). After asystem reset, the unit
restores all factory default settings.
Hidden Touch Screen area while in
~ TUNER mode
Area Acan be used in any mode to access MAIN
menu.
6) MIC -Utilized during operation of aBluetooth
device. Do not obstruct, or spray with any
cleaning solution.
7) NAVI -Press once to enter Navigation
Operation Interface.
8) FM/AM -Press to increment from FM1 ,
FM2, FM3,
AM1 ~FM1. Press and hold to
adjust picture
settings. Press Tor .. to
select desired parameter.
9) PREVIOUS - Press.......... to fast reverse
in DVD mode or to select desired parameter
within each different mode. Press to SEEK
TUNE
in Tuner Mode.
10) NEXT -Press ~~ to fast forward in DVD
mode or to select desired parameter within
each different mode. Press to SEEK TUNE
in
Tuner Mode.
6
mM
··"
... .. .... ..... ' ... /.
" . /J/' '. .. ~
flw-inin:.1 ;nu .. n:<lnmS>f1t rJJMi::o

,.
Remote Control '
7
®
~~~-"'pushln
Back Side
I
Battery Holder
Pull out
I
Battery Holder Push on side
Back Side
1) Mode -Press once to select between TUNER,
DVD, AV1, CAMERA, XM, NAV, BLUETOOTH
and iPod inputs.
2) Mute -Press once to MUTE or restore Audio
3) Open/Close -Open or Close Monitor
4) Power-Power ON/OFF
5) Volume Up -Increase volume
6) Volume Down -Decrease volume
7) Info -Displays system information
8) Band/Stop -Increment BAND or STOP while in
DVD/MP3 mode
9) Audio Select -Enter AUDIO setup mode
10) Picture -BRIGHTNESS setting for Monitor
11) Menu -Enter MAIN system menu
12) Repeat A-B -Repeat playback from frame Ato
frame B
13) Repeat -Playback current
eve chapter
14) Root -Main
eve disc menu
15) Fast Forward -Fast forward
disc content
16) Fast Rewind -Fast rewind
disc contentAngle
17) Sub-Title -Language selection for subtitles
18) Angle -Adjust angle
of TFT Monitor
19) Music (iPod) -Selects iPod music mode
20) Video (iPod) -Selects iPod video mode
21) Zoom -Zoom in/out on
eve image
22) Audio -Change audio language for
eve disc
playback
23) ChapterlTrack Down -Previous chapter/track
24) ChapterlTrack Up -Next chapter/track
25) Title Menu -Enter title menu
on Dve
26) OK -Start/Pause playback or confirm settings
27) UplDown/LeftiRight Select -Navigating system
and DVD menus
28) Escape -Exit current menu
29) Search -Search function for
eve / ce disc
30) Numeric buttons -Access chapter/track/preset
station for current BAND
Keep the battery (+)
slde facing up (;\
Push in ~
.~ .. ~."'---'" ~ f)jj
~
Origi~1 r:ntE::f!(finmeut r~e-di~1
--
•
II
MOOE MUTE
<!>
23VOL' m
iE
456VOL'
I)
789
INFC
D
ml
SRCH
0
.1
SEL
mm
BAND
~
ESC ...
MENU PIC
rEm
~
~
~
OK
~
A-B
IE
m
~
TITLE
....
ROOT
0
II]
g]
g]
im
lm
~ ~ ~
..
~
gj
16
1m
lOOM
AUDIO
ANGLE SUB T
Pull the battery insulation tape out
- before using IR remote
IMain Remote Buttons
<
.
f
1
I
~
I19 0
I
j
t Insert IReplacing the Battery:
t 1. Pull out the battery holder
I 2. Remove battery from holder
~ 3. Install new battery*
.
4. Make sure the (+) side faces up
5. Insert battery holder
i
i: Notes and CAUTION ------ .......
If IR Remote will not be used for a
month or longer
Remove and dispose of battery
properly
• Do not store battery with metallic objects
Ior materials. .
*The remote control uses one 3volt
Lithium CR2025 battery.

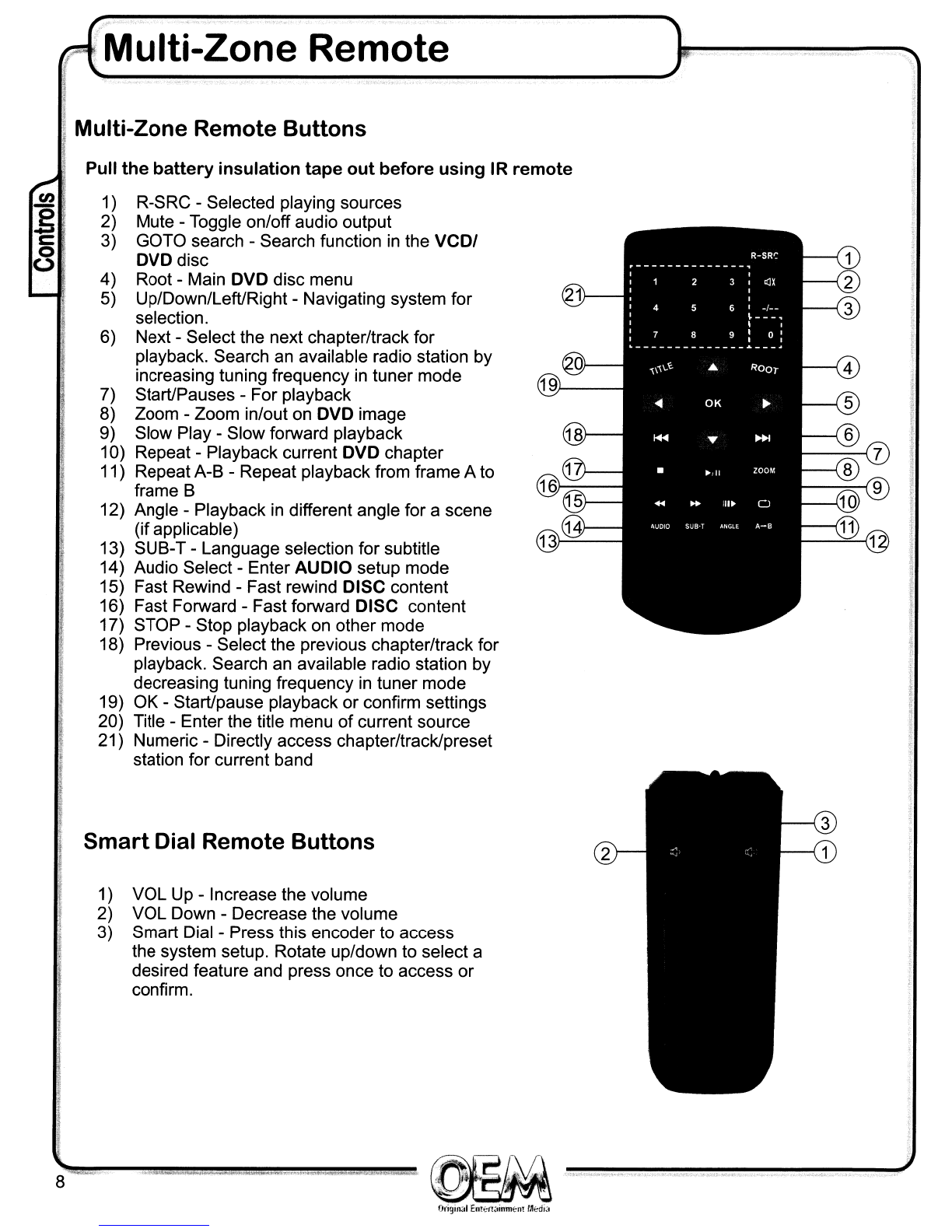

Multi-Zone Remote Buttons
Multi-Zone Remote
R-SR~
II
r--------------"1I
FJ
2I
a:JX
I
I
11
45I
-1--
~---.
II
789IoI
II
L ______________ £ ___ ~
~
iIi\.\O
..
ROOT
II
1m
II
.. OK
~
1m
1+11
...
~
II
W•
~dl
ZOOM
mD
mil
+I
.. ill.
0
1m-
1m
"-UDIO SUB·T
ANGLE
A-.
IDlE
II
Pull the battery insulation tape out before using IR remote
1) R-SRC -Selected playing sources
2) Mute -Toggle on/off audio output
3) GOTO search -Search function
in the VCD/
DVDdisc
4) Root -Main DVD disc menu
5) Up/Down/Left/Right -Navigating system for
selection.
6) Next -Select the next chapter/track for
playback. Search an available radio station by
increasing tuning frequency
in tuner mode
7) Start/Pauses -For playback
8) Zoom -Zoom in/out
on DVD image
9) Slow Play -Slow forward playback
10) Repeat -Playback current DVD chapter
11) Repeat A-B -Repeat playback from frame Ato
frame B
12) Angle -Playback
in different angle for ascene
(if applicable)
13)
SU B-T - Language selection for subtitle
14) Audio Select -Enter AUDIO setup mode
15) Fast Rewind -Fast rewind DISC content
16) Fast Forward -Fast forward DISC content
17) STOP -Stop playback
on other mode
18) Previous -Select the previous chapter/track for
playback. Search
an available radio station by
decreasing tuning frequency
in tuner mode
19) OK -Start/pause playback or confirm settings
20) Title -Enter the title menu
of current source
21) Numeric -Directly access chapter/track/preset
station for current band
Smart Dial Remote Buttons
1) VOL Up -Increase the volume
2) VOL Down -Decrease the volume
3) Smart Dial -Press this encoder to access
the system setup. Rotate up/down to select a
desired feature and press once to access or
confirm.
8
Orfgilkll EOH:f!tiinmf:n! tABdi~

Monitor Operation
Safe MonitorOperation
•The vehicle must be in park and the parking brake applied to view video on the in-dash monitor.
•The video display
of the in-dash unit will not operate while the vehicle is moving. As asafety
feature, ablue "PARKING" screen will show on the display when the vehicle's parking brake is not
engaged. DVD,
AV1 audio can be heard while the vehicle is in motion.
•It is illegal
in most states for the driver to view video while the vehicle is in motion. Refer to local
laws
in your area. See INITIALIZING PARKING BRAKE for more details, page 19.
Image Setting
While in RGB mode, the only parameter that
can
be adjusted is BRIGHTNESS. To access
SHARPNESS, CONTRAST, COLOR,
TINT you
must be
in CVBS (Composite Video Signal) mode.
RGB Brightness
Press PIC on the remote and use .... or ~ to set
to desired BRIGHTNESS or touch
Area A(upper
left hand corner
of monitor) to access main menu.
Playing Source Vicjed9utput Format'
FM / AM TUNER RGB Mode
DVD RGB Mode
NAV RGB Mode
AUXIN CVBS Mode
CAMERA CVBS Mode
iPOD (video) CVBS Mode
XM CVBS Mode
Press SCREEN Setup
Oc:JO~O
~EJ~D~
'i ., !.~~
Touch [-] to DIM TFT
oto +20 is possible
Default is 10
Touch [+] to brighten TFT
Monitor in Rear Camara Mode
When the vehicle is placed in "Reverse" and an optional rear camera is connected to the unit, the
MONITOR will automatically switch to the camera inport source.
~~=~~===·mM·
009;",,1 Enteminm1:01 r.ledia
9

ITEM
RANGE
USER FLAT
JAZZ POP
EO
CLASSIC ROCK
NEWS URBAN
RAVE MOVIE
TECHNO
BASS
-7
+7
TREBLE
-7
+7
FADE
-9
+9
BALANCE
-9
+9
SUB
-7
+7
LOUD
OFF ON
The Loud function compensates for deficiencies in sound
ranges at low levels. When the
Loud function is on, LOUD
is displayed on the screen.
General Operation
Power On I Off
Press the VOL/SMART DIAL once to turn on the unit. Once on, press to MUTE sound, press again to
restore sound.
To turn off, press and hold. The unit can also be turned on using the remote.
Volume Adjustment
Adjust the Volume using the VOL/SMART DIAL knob or the remote to adjust the volume to the desired
listening level. The volume
is set at adefault value. This default memory value can be reset by selecting
the desired volume and then holding down the MENU button until you hear a 1 beep.
Mute
The volume will be muted when the following situations occur:
1) When atelephone call
is received by the car phone or when verbal navigation is performed.
2) When the "MUTE" wire
is connected to acell phone
3) When the power button
on the front panel is pressed once or the MUTE button on the remote is
pressed. The ~ symbol will appear on the Monitor.
Audio Control Menu
You can adjust your audio system to meet the acoustical characteristics of your vehicle which vary on the
type and size
of vehicle. To get the best sound quality, be sure to adjust the settings of your speakers.
Properly setting the FADE and BALANCE will enhance the effects
of the cabin equalizer. To access the
Audio Control Menu, press
Area C, press and hold the Vol/Smart Dial or SEL on your remote. Change
the eqaulizer settings by touching the 0buttons or by pressing
<lIlII or ~ on the remote. Press the .A.
Tbuttons on the remote to select an setting to be adjusted or touch screen to adjust settings.
Touch the arrow
on the screen or ESC or SEL on the remote to exit.
Notes:
The Bass and Treble levels are only
adjustable when EQ
is set to "User" mode.
10

Main Access Menu
Main Access Menu
The MAIN menu can be access by pressing the MENU button on the remote or by touching the Area A
(upper left hand side) on the monitor.
Touch Access Buttons
1) Touch to access AM/FM TUNER mode.
2) Touch to access CD/DVD mode, CD/DVD must
be inserted.
3) Touch to access
XM MODE. (XM Receiver must
be connected to activate).
4) Touch to access iPOD mode. (iPod must be
connected to activate)
5) Touch to access NAVIGATION mode
6) Touch to access CAMERA mode. (If optional
camera isn't connected then "No Video Signal"
will be displayed).
7) Touch to access AUXILIARY
AN INPUT mode.
8) Touch to access BLUETOOTH mode.
(BLUETOOTH must be activated first).
9) Touch to STANDBY screen.
Source Selection
Sources can also be selected by pressing the SRC button on the front panel to change among TUNER,
Disc, iPod,
SAT, AUX IN, CAMERA (rear view video
camera) and NAVI. The source mode is displayed on
the Monitor.
Standby Mode
In the standby mode, the LCD is off with audio input
only. The VOLUME level can
be controlled without
interrupting STANDBY. Touch screen again or any
button to resume display.
Rear Zone
Touch to access the rear zone source menu. Press
and hold the SRC button
on the front panel to toggle
REAR
ZONE mode On.
Exit Rear Zone
Touch the STANDBY button on the rear zone menu.
Selecting FrontZone Source
The Main Menu allows you to select asource for the
front zone.
Access General Setup Menu
Press the SETUP button to access the GENERAL
setup mode
•Select desired parameter you wish to change
Page will return to previous screen after 10 sec.
of
inactivity or by pressing the arrow to exit.
~~~~~~~
Orltll,,:11 ElltH!;li"nll~m rJlf:dn
11

General Set Up Menu
GENERAL Setup Menu Table
Touch USA
[>
Touch arrow to EXIT
Touch GENERAL Setup button
[>
[>
(~~DJj
~
OngJo.:.l fnrei!Jtmncm rnr.di:~
Notes:
The SMART DIAL can also be used by selecting the desired setup button, then pressing to obtain a
submenu. Select the desired value and then pressing again to confirm the setting.
Touch
Area Ato access
GENERAL MENU
Touch setting for your country
USA Korea
Radio S-AMER1 China Set to appropriate setting for your Country
USA S-AMER2 Arabia
Europe
Clock adjust AM HH:MM See adjusting the clock for more details
Clock Mode 12Hr
PM 6:00
12Hr 18:0024Hr
Camera Image Normal Normal Image Normal Reverse Mirror camera input image 180 degrees
AUTO System will auto detect NTSC or
PAL
Video Format Auto NTSC For NTSC compatibility
PAL For PAL compatibility
Bluetooth Off Off Turns off functionality
of Bluetooth
On Activates Bluetooth functions
OSD Menu English English The menus are displayed
in English only
*Not all GENERAL setup features are described in detail
Adjusting TUNER Frequency
1

12 or 24 Hour Clock Mode
Adjusting the Clock
correct hour.
Touch
Area A of
screen
Touch
GENERAL
setup button
Touch AM or
PM to set
Touch 00:00
area
in the
CLOCK row to
set the hour.
Keypad should
appear. Enter
Touch arrow to
EXIT setup
If you desire
24Hr format,
select 24Hr
from CLOCK
MODE
Touch OK.
[>
Touch 00:00
area. Enter
correct minutes.
Screen Setup Menu
•
•
•
Press the SCREEN Setup button to access the
SCREEN SETUP mode
Select desired parameter you wish to change
Page will return back to previous screen after 10 secs
of inactivity or by pressing the RETURN button
~
.
'iOfi· "~ £',
~~
Otigin .... l En!i:(!~inmi;m rJledii!
13

Touch arrow to EXIT
Touch and hold point B
[>
[>
~
~'~ ...
Otigintil cfltNlain\1ICot Mcdi:1
Touch and hold point A
Touch and hold point D
Software version of unit
On Select On to activate the screen saver,
Off to deactivate
Off
Touch SCREEN Setup Button Touch NO in TS Calibration
No Touch Yes to enter the Touch Screen calibration mode
Yes
[> [>
[>
[>
Press the < / > buttons on the remote, touch the (-) or
oto +20 (+) buttons on the screen or rotate the SMART DIAL to
adjust the
BRIGHTNESS to the desired setting
10
No
On
Screen Setup
Brightness
Screen Saver
Touch Screen
Calibration
Version
; Screen Setup Functions
Touch Screen Calibration
" It may become necessary to recalibrate the touch screen.

;J ,
I' Audio Signal Processing (ASP)'
Select desired parameter
C>
C>
C>
G[!]O[!J[J
TU,,",ER ova KM ,Pod H"lVI
D~EJ~[]
SO C4e:RA RUM IN i<llNOSfl'lU STFI ... OSV i
~---,,~ __ '-_-'_-_='J
Scroll down to gain menus
C>
C>
C>
TheASP Configuration Menu allows fine adjustment of your audio.
Accessing ASP Configuration Menu
Touch ASP SETUP button
:ASP Configuration Menu
60Hz, 80Hz, 100Hz, Select the desired frequency to obtain the
130Hz, 150Hz, 200Hz best bass effect.
Treble Freq 15KHz 10KHz, 12.5KHz, Select the desired frequency to obtain the
15KHz, 17KHz best bass effect.
!Sub Filter 80Hz 80Hz, 120Hz, 160Hz Sets acut off frequency
of the subwoofer's
LPF (low pass filter) and the "SMALL"
jspeakers HPF (high pass filter). This setting
~
has no effect ifthe subwoofers are OFF
'4
JSub Phase
0° 0° Subwoofer output IN phase
.~
I180° Subwoofer output OUT OF phase
1.5 1.0, 1.25, 1.5, 2.0 Alters the sharpness of the Bass output
--"'&-,-_ .... ,,.'.~ .""''' ~,.- ... -.,- ~~
Origimtl Enteft<Jinm{:O{ rJledi.1
15

AM/FM Tuner Operation
AM IFM Tuner Screen
".
1) Current souce MODE. Touch to access 11) Up for SEEK TUNE
MAIN menu. TUNER, DVD, XM*, iPod*,
CAMERA,
Bluetooth, NAVi*, AUX are 12) Down for SEEK TUNE
indicated
in the OSD (On Screen Display). 13) Press AS/PS (Auto store /Preset Scan) for 1
2) Current PRESET station indicator. sec to start station PRESET SCAN function,
press AS/PS for 2secs to start AUTO
3) Broadcast indicator for STEREO STORE station preset function
in current
BAND
4) Clock 14) Press BAND to increment from FM1, FM2,
FM3, AM1 ¢FM1.
5) Page up PRESET 15) Indicator for VOLUME
6) Selection for
LOCAUDISTANCE
16) Indicator for LOUD
7) Page down PRESET 17) Equalizer indicator, touch to access AUDIO
8) Auto station SCAN button Setup menu
9) Up for
MANUAL TUNE
18) Current radio frequency indicator
10) Down for
MANUAL TUNE
19) Current radio BAND indicator
*iPod,
XMD1 OOOTM Tuner Module and SNAV-1 must be connected to appear in the MODE selection
string.
(XMD1000™ and SNAV-1 each sold separately)

AM/FM Tuner Operation
Auto Seek Tuning
Press the .utton to auto SEEK up the next strongest station.
Press the
_button to auto SEEK down the next strongest station.
Manual Tuning
Press the _button to manually tune up one step at atime.
Press the
autton to manually tune down one step at atime.
Auto Store (As)
Press and hold AS/PS for more than 2seconds to automatically store the twelve strongest stations
in the current band. Automatic Local tuning is activated during the initial band scan, repeat for other
bands.
17
Scan
Press SCAN to preview strong stations on the current
band, pausing for 5seconds at each station. Press
SCAN again to cancel.
LOC/DX Radio Station
Touch LOC button on the TFT to activate LOC I OX when
the
LOCAL function is on, LOC will appear, only radio
stations with astrong signal are received,
OX is for radio
stations that are far away and/or have weak signals.
Program Scan (PS)
Press AS/PS for less than 2seconds to scan presets
1-12 on the current band, pausing for 5seconds at each.
Press AS/PS again to cancel.
All presets within the current band will be overwritten.
Storing Radio Stations Preset
up to 36 FM stations and 12 AM stations can be stored.
To store astation, select the desired band and station.
Press and hold the desired preset button (1-12) for more
than 2seconds. When stored, the PRESET number will
appear
in the display. The station can be recalled anytime
by pressing the corresponding preset button on the
MONITOR.
Recalling aRadio Station Preset
Touch an corresponding PRESET number for less than 2
secs to recall.
Preset Page Up/Down
Only 6PRESETS can be display at one time, use
PRESET page up/down to access next stored PRESETS
accordingly.
~=========~
OrigiB<i1 £RU~f1(tinmel1! lJli:diz.

eve Information
eve Region Management
Some DVD discs can be played only in certain playback modes according to the intentions of the
software. As the CH-4100 plays discs according to their intentions, some functions may not work
as intended. Please be sure to read the instructions provided with each disc. This player has been
designed to play back
DVD software that has been encoded for specific region areas. It cannot
play back
DVD software encoded for other region areas than the region areas for which it has been
designed.
The CH-4100 will play discs labeled "Region
1" or "All".
!:;~;~ SymbOl-~. ''
.,', J2C{H=Prsc:.PFdpe~r6es'
.,~:" ' ,; J.
': -~ ,"Max. ;elC1y~Time _.
~
Single side single layer (DVD-5)
(MPEG 2 Method)
Single side double layer (DVD-9)
133 minutes
~
Double side single layer (DVD-10) 242 minutes
Double side double layer (DVD-18) 484 minutes
[diSCI
Single side single layer (VCD)
(MPEG1 Method)
lIWLYllID
74 minutes
[~~)
Single side single layer 74 minutes
I;i"
SYr:nbol~ 'j,
,,,,'~.:~;F·~~·iT,,j~ ,'f:'
M~iming.> ,1-', ,j~:lJ.~;}~'
.. ~~~;;;'; ,"
~ "it
~ ,";: ::t; ,
@))
Number of voice languages recorded.
The number inside the icon indicates the number languages on the disc
(maximum of 8).
C~
Number of subtitle languages available on the disc (maximum of 32)
EI1
Number of angles provided (maximum of 9)
116:91 LB I
Aspect ratio available, "LB" stands for Letter Box and ·PS" stands for
Pan/Scan. In the example on the left, the 16:9 video can be converted to
Letter Box video.
Indicates the region code where the disc can be played.
·
Region 1: USA, Canada, East Pacific Ocean islands
·
Region 2: Japan, Western Europe, Northern Europe, Egypt, South
[ALL)
Africa, Middle East
·
Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia,
South-East Asia
·
Region 4: Australia, New Zealand, Middle and South America,
South Pacific Ocean Islands/Oceania
·
Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe,
North Korea, North Africa, North-West Asia
Notes: --------- __
Some DVD discs can be
played only
in certain playback
modes according to the
intentions
of the software.
As the CH-41 00 plays discs
according to their intentions,
some functions may not work
as intended. Please be sure to
read the instructions provided
with each disc.
DVD region codes:
1 - USA, Canada
2 - Japan, Europe, South Africa, Middle East
3 - Rep.
of Korea, Taiwan, Hong Kong, Parts of Southeast Asia
4 - Australia, New Zealand, Mexico, South America
5 - Eastern Europe, Russia, India, Africa
6 - China
18

,"
"
r
11
--
,
... ;._~.~;.~._, __ .. _. w· ~~,.~_ ~_- "N'~"~.' "'~ ~'_''-',""~' .~~~ .. ,_,~..,.,~~"""_~._,,~~ ..... '
Initializing Parking Brake "i~·
~4.-'~'"
1 SAFETYWARNINGA
•
•
•
The video display ofthe in-dash unit will not operate while the vehicle is moving.
As asafety feature, "ENGAGE PARKING BRAKE" blue screen will show on the display when the
vehicle's parking brake is not engaged. Video display
on the front monitor isn't allowed until the
PARKING BRAKE
is active, however, DVD and AV1 audio can be heard while the vehicle is in
motion without engaging the parking brake.
This
is asafety feature to prevent driver distraction. It is illegal in most states for the driver to view
video while the vehicle
is in motion. Refer to local laws in your area.
CAUTION !!!
IT'S UNLAWFUL TO OPERATE AVEHICLE WHILE VIDEO IS
DISPLAYED IN THE DRIVERS VIEWING AREA.
ENGAGE EMERGENCY BRAKE
TO ENJOY VIDEO
Front MonitorVideo Initialization
J' Follow this two initialization procedure carefully to allow video playback on CH-4100 front panel
monitor:
"There are usually two situations that start the PARKING BRAKE Sequence.
Initializing Parking Brake Scenario 1
First situation is while driving:
1) Stop vehicle, put in Park, make sure PARKING BRAKE is off Ireleased
2) Depress PARKING BRAKE for 2to 3seconds
3) Release PARKING BRAKE for 2to 3seconds
4) Depress PARKING BRAKE permanently
Once above procedure 1-4 is completed, approx 3
sec-video will display.
I
"
Initializing Parking Brake Scenario 2
Second situation is while already parked and the PARKING BRAKE is already depressed:
1) Keep vehicle in Park, PARKING BRAKE should be off
2) Release PARKING BRAKE for 2to 3seconds
3) Depress PARKING BRAKE for 2to 3seconds
4) Release PARKING BRAKE for 2to 3seconds
5) Depress PARKING BRAKE permanently
Notes:
------------------- ------.
•Once 2nd procedure is completed, approx 5 sec-video will display.
•This procedure will have to repeated ifthe IGN is turned off.
•The transition time must be less than 2seconds between depressed and released.
•••• .. f,.I.W .. 1l'b\¥.~~:.<;:;i4i_.lJ+~~~ .. ~<..ot~~_.~~..tlIbr~ot.llo£'l" .. ~'TC'"~' .. ~~
~
Original Enttn£Jinmenr ' .. ediil
19

Insert CD/DVD with
label facing upwards
Disc Indicator Light-
Blue light indicates no disc,
otherwise light is red
~
(iII; .. _
!U'~- ~ ~-.' .
l.,- - ,
Ofigin(tl cnteftainmt01 1~t:di:J
DVD Operation
ADVD disc must be inserted to access the
hiddern screen functions
DVD Loading Slot
6Eject button
Notes:
1) If PARENTAL Lock is activated and the disc inserted is not authorized, a4-digit code must be
entered and/or the disc be authorized.( see "RATING MENU")
2) Only one disc can
be inserted at one time.
Inserting aDISC
When inserting aDVD disc, it will play automatically. Other sub-menus may have to be pressed to
access the DVD movie /music content, read the directions
of your specific DVD disc for hidden
features.
Ejecting the DISC
Press the EJECT button
t
fResetting the Loading Mechanism ~
If the disc loads abnormally or an system error occurs, press and hold the eject button for 3seconds to :1
reset the loading mechanism. The disc will eject and normal operation should resume. £
i
20
Hidden Touch Screen area while
in DVD mode
I
IAreas "A-F" can be used in DVD mode to
Iaccess:
A - MAIN menu access
B - Displays DVD track information
C - Selects PREVIOUS chapter
D - Select NEXT chapter
E - Displays the full DVD transport controls
F - GOTO search menu
