Okaysou H13 True HEPA User manual
Model No.: AirMic4S
USER MANUAL
okaysousmile
@Okaysou.okay
www.okaysou.com (Live Chat)
okaysousmile
@Okaysou.okay
www.okaysou.com (Live Chat)
Grab your big smile!
Advanced Medical Grade
H13 True HEPA Air Purifier
Hello guys,
Thanks for purchasing Okaysou Desktop True HEPA Air Purifier. It is our great honor
to meet you in our Okaysou big family.
We value your trust and suggestions. If there is anything we could do for you, please
Facebook: @Okaysou.okay
Instagram: okaysousmile
We are always standing behind you.
We sincerely hope you enjoy your new air purifier and breathe a cleaner air!
Best wishes,
Okaysou
CONTENTS
Package Contents 2
Specification 2
Safety Precautions 4
Power cord Considerations 5
Know Your Air Purifier 6
Control Panel 7
Getting Started 8
About the Filter 9
Replacing the Filterr 10
Maintenance 12
Troubleshooting 13
Warranty Information 14
1
Okaysou AirMic4S Air Purifier
Package Contents
1xAir Purifier
1x3-in-1 medical grade H13 true HEPA filter
1xUser Manual
1xWarranty Card
Power Supply: AC 110~120V, 60Hz
Rated Power: 25W
Effective Area: up to 580 sq.ft
Operating Temperature: -10℃-40℃
Humidity: ＜90%RH
Noise Level: 24dB~51dB
Standby Power: 0.5W
Dimension: 221*221*302mm
Weight: 3kg
Specification
2 3
okaysousmile
@Okaysou.okay
www.okaysou.com (Live Chat)
Do not use solvent-based desktop air purifiers such as alcohol or thinner.
Thanks for purchasing Okaysou desktop air purifier. To reduce the risk of fire, electric
shock or other injury, please follow all instructions and safety guidelines.
Do not place the desktop air purifier in a place where flammable gas is easily leaked to a gas
leak and cause a fire. Do not use in a flammable, explosive or corrosive atmosphere.
The front side of the unit is in the air, and the top is out of the air. Do not block or block the air
inlet and outlet.
Do not use the power cord or plug if it is damaged. Do not touch the power cord with wet
hands.
Regularly check and replace the filter. If the filter is blocked, the air will be ineffective and the
power consumption will increase, causing malfunction.
When not in use for a long time, please turn off the power to avoid exposure to sunlight.
When moving or performing maintenance on the desktop air purifier, be sure to stop the
ooperation and unplug the power cord
If the machine fails, stop using it and turn off the power. First, follow the instructions for
troubleshooting. If it can't be eliminated, please contact the after-sales personnel for inspection.
Please supervise and guide young children to avoid direct operation or contact with desktop
air purifiers.
Do not pull on the power cord while moving or storing.
Do not touch the power cord plug with wet hands.
Do not put your fingers or metal objects in the gaps between the air inlet and the air outlet.
Do not allow volatile substances or combustible materials, such as cigarettes, to float into the
unit.
There is an electric control board on the base, please pay attention to waterproof.
Do not use power beyond the rated voltage( 120V 60Hz). (Otherwise it will cause fire and
electric shock and so on.)
Do not process the power line arbitrarily, bend the power line forcibly, draw, twist and bundle
up the power line.
Do not let the power line approach to the high temperature objects. ( If the power line is
worn, fire and electric shock will occur.)
Do not put the heavy objects on it or press. (Overloading may cause fire and electric shock
and so on.)
Do not use when the power line or power plug is worn and loose. (Otherwise it will cause fire,
electric shock, short circuit and so on.)
Do not insert and pull the power line with wet hands. (Otherwise it will cause electric shock
and so on.)
Do not change the power line without permission. When necessary, please contact with
consumer service center.
Clean regularly the dust on the power plug and socket. (Too much dust and moisture may
cause defective insulation and then fire and electric shock will occur.)
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of
electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Do not attempt to defeat this safety feature. Warn the user to unplug or disconnect the
appliance from the power supply before servicing.
Non-professional personnel should not dismantle the machine without
permission in case of electric shock danger. Pls pull out the power plug
when changing or cleaning the filter set. In case of failure, please follow
the troubleshooting method in the manual. if not, please contact
WARNING
Safety Precautions
READ AND SAVE THESE INSTRUCTIONS
Power cord Considerations
4 5
On/Off Button
Know Your Air Purifier
Turns the air purifier on/off. After the air purifier is turned on, the
buzzer beeps, the wind speed defaults to the lowest, the correspond-
ing function indicator lights, and the ambient light is in the highest
brightness.
Fan Speed Button
Adjusts fan speeds from low, medium, and high.
Sleep Mode Button
Turns sleep function on/off. After pressing the sleep button, all the
indicator lights and the nightlight turns off, and the fan speed
automatically enters the lowest level. 3s later, the indicator light of
sleep mode will turn off. Except the sleep mode and dimmer button, all
other functions are deactivated. Press sleep button again to exist.
Timer Function Button
Customizes working hours from 2/4/8/no timer.
Dimmer Button
Adjusts the ambient light from high, low and off.
Filter Reset Indicator
Lights up when the air filter should be replaced. After changing the
filter, press the button for 3s to reset. The buzzer will sound once and
the reminder light will turn off.
2H 4H 8H
Control Panel
A
F
G
B
C
H
D
E
I
J
KL
N
M
O
A: Low speed indicator
B: Medium speed indicator
C: High speed indicator
D: Timer indicators
E: Timing function switch
F: ON/OFF
G: Fan speed switch
H: Filter reset switch
I: Sleep mode switch
J: Dimmer switch
K: Air Oulet
L: Ambient light
M: Air Inlet
N: 3-in-1 Medical grade filter
O: Filter Cover
76

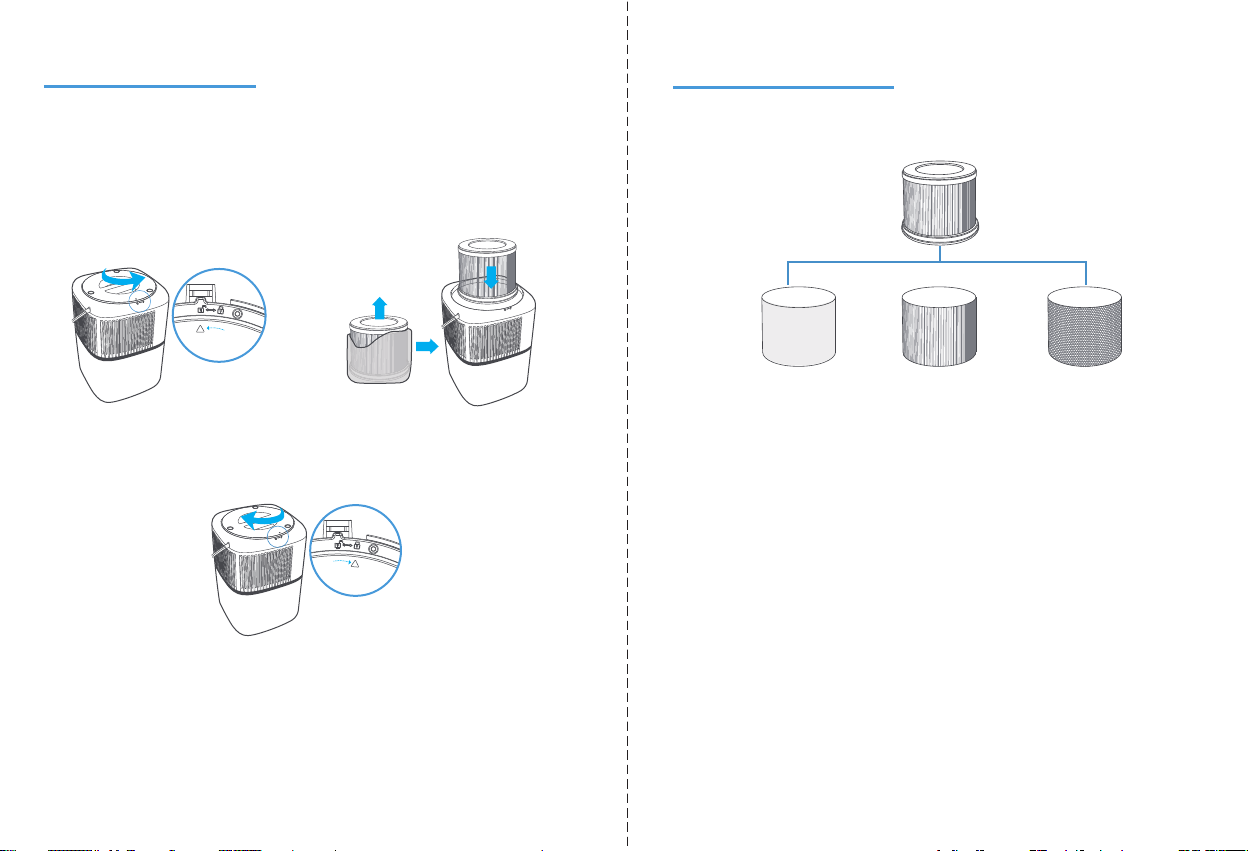

Flip the air purifier over. Twist the filter counterclockwise indicated by the arrow
and remove it. [Figure 1.1]
Remove the plastic package of the filter and place it back into the purifier. This filter
does not have the top or button and can be installed either way. [Figure 1.2]
Replace the filter cover and twist clockwise to lock. [Figure 1.3]
Place the purifier on a flat, stable surface. Keep away from anything that would
block air inlet and outlet.
Plug in and tap the power button to turn on the purifier and enjoy fresh air.
4.
3.
2.
1.
5.
Figure 1.1 Figure 1.2
Getting Started
Figure 1.3
The air purifier uses a 3-stage purification system to purify air.
Washable & Detachable Pre-filter: Captures large particles such as dust,
fibers, pet fur, hair etc. Largely extend the purifier's life. (Pre-installed)
A.
B.
C. High-Efficiency Active Carbon Filter: Effectively absorbs stubborn and
unwanted odors and fumes. Filters compounds such as formaldehyde,
ammonia, hydrogen sulfide, benzene and volatile organic compounds (VOCs).
Home Medical Grade H13 True HEPA Filter: Removes 99.97% of airborne
particles 0.3 micrometers in diameter; Filters small particles such as smoke,
tiny dust particles, mold spores, bacteria, viruses, and allergens such as
pollen, dander and mites.
About the Filter
Figure 2.1
A B C
98
When Should I Replace the Air Filter?
Check Filter Indicator
The filter should be replaced every 6–8 months.
You may need to replace your filter sooner or later depending on how often you use
your air purifier. Using your air purifier in an environment with relatively high pollution
may mean you will need to replace the filter more often, even if the replacement filter
indicator is off.
will light up as a reminder to check the air filter. Depending on how much you use
the air purifier, the indicator should turn on within 6–8 months. You may not need to
replace your filter yet, but you should check it when turns on.
Replacing the Air Filter
Resetting the Filter Replacement Indicator
1. Unplug the air purifier. Flip the air purifier over and remove the filter cover.
2. Remove the old air filter.
3. Clean out any remaining dust or hair inside the purifier using a vacuum hose. Do
not use water or liquids to clean the purifier. [Figure 3.1]
4. Unwrap the new air filter and place it into the housing (see Getting Started, page 8).
5. Replace the cover. Plug in the air purifier.
6. Reset the Check Filter Indicator.
Reset the Check Filter Indicator when it lights up.
1. Replace the air filter.
2. Turn on the air purifier.
3. Press and hold the filter replacement indicator for 3 seconds.
4. Filter replacement indicator will turn off when successfully reset.
You may need to replace your filter if you notice:
•Increased noise when the air purifier is on
•Decreased airflow
• Unusual odors
•A visibly clogged filter
• To maintain the performance of your air purifier, only use official
Okaysou filters. To buy replacement filters, visit Okaysou’s online
.store. Go to okaysou.com for more information.
• Remember to reset after changing the filter.
NOTE
Replacing the Filter
Figure 3.1
10 11
•The H13 True HEPA filter should be cleaned once a month to increase its
efficiency and extend the life.
• The pre-filter is detachable to wash, if washing, please wait it completely dry
before installing
•Clean the inside and outside of the filter with a soft brush or vacuum hose to
remove hair, dust, and large particles.
•It is suggested to replace the filter 6-8 months depending on your surrounding air
condition.
•Do not clean the filter with water or other liquids.
is a reminder for your to
check the filter and will light
up based on how long the
air purifier has been used.If
you run your air purifier
frequently, will turn on
sooner
When the machine is maintained, checked and moved, please stop running and pull
the power plug. Please do not use wet hand to plug in or pull out the power plug.
Otherwise it may cause electric shock and injury.
Problem Problem
Air purifier will not
turn on or fail to
respond to button
controls
Airflow is
significantly
reduced
Air purifier makes
an unusual noise
when the fan is
on
Make sure the filter is
removed from its packaging
and properly in place
Make sure there is at least
50cm of clearance on all
sides of the air purifier
The air purifier may be
damaged, or a foreign object
may be in side. Stop using
the air purifier and contact
customer support. Do not try
to repair the air purifier
Make sure no objects are
blocking the sides or top of
the air purifer(the air inlet or
outlet)
Make sure the filter is
removed from its packaging
and properly in place
Plug the air purifier into a
different outlet
Air purifier is malfunctioning.
Contact customer support
Replace the filter
Possible Solution
Plug in the air purifier
Tap to increase the fan
speed
•Unplug before cleaning.
•Wipe the outside of the air purifier with a soft, dry cloth. If necessary, wipe the .
. housing with a damp cloth, then immediately dry.
•Do not clean with abrasive chemicals or flammable cleaning agents.
Clean the Air Purifier
Clean the Air Filter
Maintenance Troubleshooting
•Pull out the power cord.
•Cover the machine with plastic bag and place it in a dry place for safekeeping.
•Do not store the purifier upside down, or it may lead to product failure.
Long Idle Time
• Do not use too hot water (higher than 40℃), or it may cause fade
deformation.
• Do not wash the air purifier’s body with water.
NOTE
Make sure the air purifier is
placed on a hard, flat surface
Make sure the filter is
properly in place with plastic
packaging removed
Tap to increase the fan
speed
Poor air
purification quality
is still on after
replacing the filter
Reset the filter according to
the guideline
This is due to the design of
the air purifier. This is
normal and will not affect
the air purifier's efficiency
Strange smell
coming from the
purifier
Air does not flow
evenly out of the
air purifier
Close doors and windows
while using the air purifier
Make sure the room is
suitable for air purifier. The
air purifier emay not be as
effective in larger rooms
Make sure not to use your
air purifier in an area with
high humidity or while
diffusing essential oils
Possible Solution
The filter has absored to
much peculiar smell and
dust,change the filter
Clean the filter or replace if
necessary
Contact customer support
turned on
before six months
has not turned
on whithin or after
6 months
is a reminder for your to
check the filter and will light
up based on how long the
air purifier has been used. If
you don't use your air
purifier often, will take
longer to turn on
13
12
Okaysou warrants all products to be of the highest quality in material, craftsmanship,
and service, effective starting from the date of purchase.
Okaysou will replace any product found to be defective due to manufacturer flaws
based on eligibility. Refunds are available within the first 30 days of purchase.
Refunds are only available to the original purchaser of the product.
This warranty is non-transferrable. Okaysou is not responsible in any way for any
damages, losses, or inconveniences caused by equipment failure by user
negligence, abuse, or use noncompliant with the user manual or any additional
safety, use, or warnings included in the product packaging and manual.
Please enter www.okaysou.com/warranty to gain your 1 year addition product
warranty. Enjoy your total 5 years product protection guarantee to be more confidently.
If you are unable to register the warranty successfully, please contact Okaysou
customer support to ask for help.
Okaysou cherishes your truly experience. If you have any questions or concerns
about your air purifier, please feel free to contact our Customer Support.
Email: [email protected]
Website: www.okaysou.com (Live Chat)
This warranty does not apply to the following:
•Damage due to abuse, accident, alteration, misuse, tampering or vandalism.
• Improper or inadequate maintenance.
•Damage in return transit.
Warranty Information
4 years warranty +1 year additional warranty
Customer Support
15
14
This manual suits for next models
1
Table of contents
Other Okaysou Air Cleaner manuals
