Chapter 1 Introduction
Congratulations on your purchase of this outstanding SOHO Router. This product is the perfect choice to
connect a group of PCs to a high-speed Broadband Internet connection or to an Ethernet based Backbone
(ETTH/ETTB: Ethernet To The Home/Building). Configurable as a DHCP server, this product is the only
externally recognized server device on your local area network (LAN). Thus even a non-technical person will
easily configure it to meet the versatile applications.
This product does not only provide a complete solution to share the Internet bandwidth, it also serves as an
Internet Firewall to protect your LAN data from being accessed by outside intruder/hacker (Figure 1-1). Since
all incoming data packets have been inspected/analyzed, all unwanted packet may be filtered-out and be
recorded as an intrusion event. This SOHO Router can also be configured to block some internal LAN user’s
access to the Internet for management purpose.
Figure 1-1 Secure Internet Access via Cable/DSL Modem.
1.1 Features
 Connects to 10/100M Broadband (cable or DSL) modem or Ethernet backbone for Internet
access.
 Multiple WAN connection type:
Static IP : for xDSL lease line or router-to-router interconnect.
DHCP client : for most cable modem service.
PPPoE : for Dial-up xDSL service,
PPTP client : for Layer2-VPN application or certain xDSL service in Europe
 Equipped with a 4-port 10/100M switched Hub (w/ auto MDIX) for LAN users.
 DHCP Server/ DNS proxy support .
All the networked computers in LAN can retrieve TCP/IP setting (IP address, subnet mask, gateway,
DNS,IP…) automatically from this device.

1 WAN + 4 Ports Ethernet SOHO Router P 5
 Simultaneously act as both DHCP Server on the LAN and a DHCP Client on the WAN for most
easy application.
 Connects multiple LAN PCs to the Internet with only one dynamic-assigned IP address (NAT
mode) or a range of legal IP address (NAT/Routing mode)

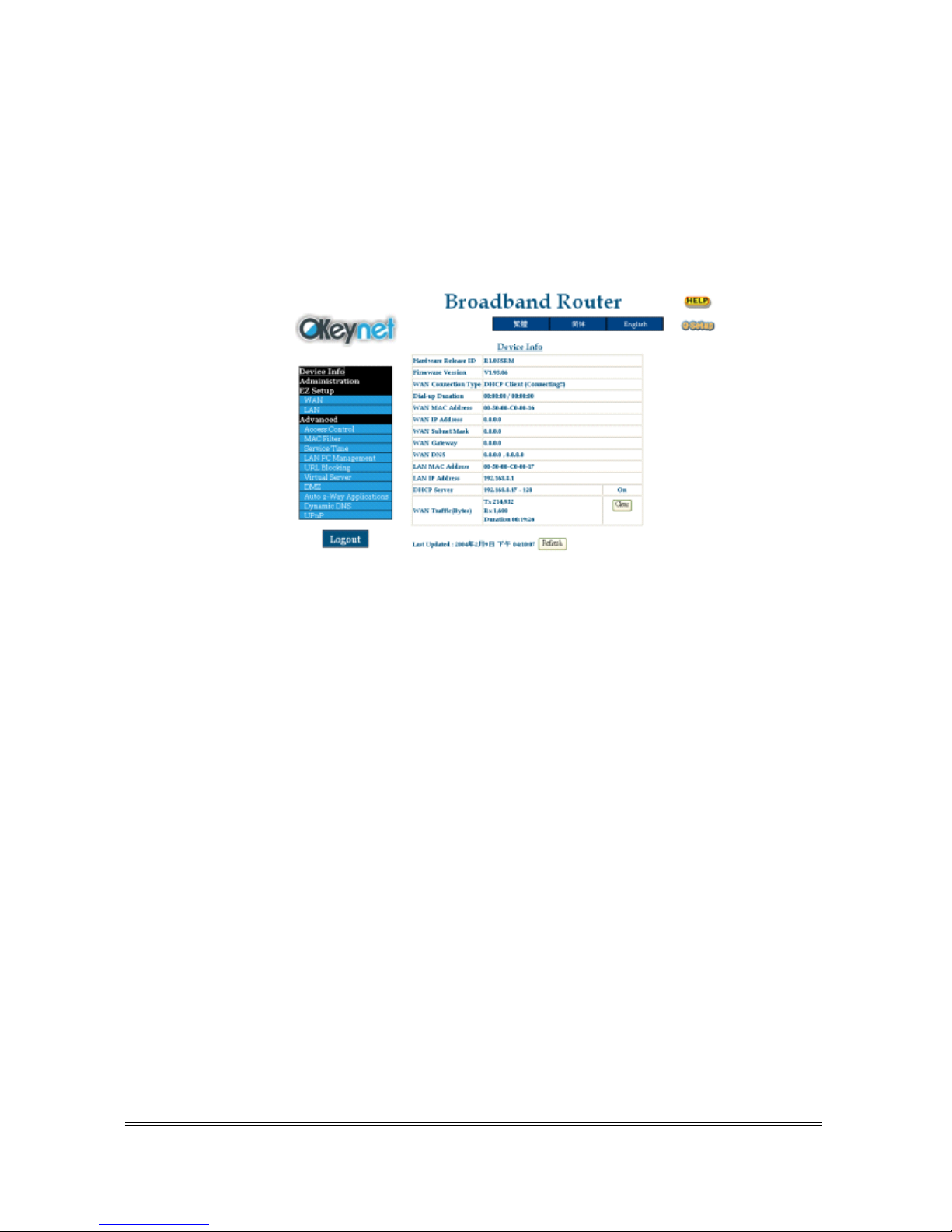

 Web-based Configuring
Configurable through any networked computer’s web browsers using Internet Explorer or Netscape
browser.
 Allow/Deny Web administration through WAN connection by remote Web browser.
 Support Telnet / Console administration from a networked computer in LAN.
 Firewall capability to protect LAN PCs from outside intruder access/attack.
Avoid unwanted packet from WAN and provide a system event log to record intrusion information.
(date/time, source/destination IP address & port …)
 Access right of LAN users
Administrator can arrange interior LAN user’s access right to Internet by MAC address,IP address,
TCP/IP port number, URL keywords and a pre-defined time table.
 Virtual Server (Port forwarding) function
Internet servers (WWW, FTP, E-mail …) in LAN could be virtually exposed to WAN for outside Internet
user. This is a useful and secure network deployment for Internet servers.
 DMZ (De-Militarized Zone) Host
Administrator can totally expose a host PC in LAN to the Internet without any firewall protection
mechanism. This option allows the two-way communication between the local host PC and remote
Internet node. (ex. bi-directional games, video/audio conference, P2P services …)
 Multi DMZ Host support
In static IP configuration with a range of legal IP address, Administrator could totally expose more host
PCs in LAN to the Internet according to LAN/WAN IP address mapping.
 Auto 2-way Special Applications
Provide an automatic mechanism to support some specific application which need one or many
incoming ports when they connect with application servers in Internet. (Like Microsoft Game Zone,
Battle.net, eDonkey/eMuls …)
 Dynamic DNS
Via WWW.DynDns.org DNS service provider, your registered domain name could be updated
automatically whenever system’s WAN IP is changed.
 UPnP (Universal Plug and Plag) supported
1.2 Package Contents
 One SOHO router unit

1 WAN + 4 Ports Ethernet SOHO Router P 6
 One CD-ROM (manual/utility)
 One power adapter
 One CAT-5 UTP cable
1.3 System Requirement
 One Ethernet based broadband Internet connection (like cable/ADSL modem or equivalent )
 One PC with a NIC card, and installed TCP/IP protocol stack.
 Microsoft Internet Explorer 5 or later (Netscape V6/7 or later) web browser.
 All TCP/IP networked computers in LAN.
1.4 Panel Description
1.4.1 Front Panel
Device Indicators
PWR (power): The Power LED illuminates whenever power is good.
Status (ready): The Status LED blink once per second when it is working normally, or it will
blink faster or be off in case the SOHO Router is
something wrong.
WAN Indicators
Lnk/Act Lnk (link):ON means WAN (ADSL/Cable modem) is connected correctly.
Act (activity): Blinking means data communication is happened.
10/100 Indicates 10 or 100Mbps wire speed corresponding to WAN port. (On is 100Mps)
LAN Indicators
Lnk/Act Lnk (link):ON means LAN PC/device is connected correctly to SOHO Router.
Act (activity): Blinking means data communication is happened.
10/100 Indicates 10 or 100Mbps wire speed corresponding to each port. (On is 100Mps)

1 WAN + 4 Ports Ethernet SOHO Router P 7

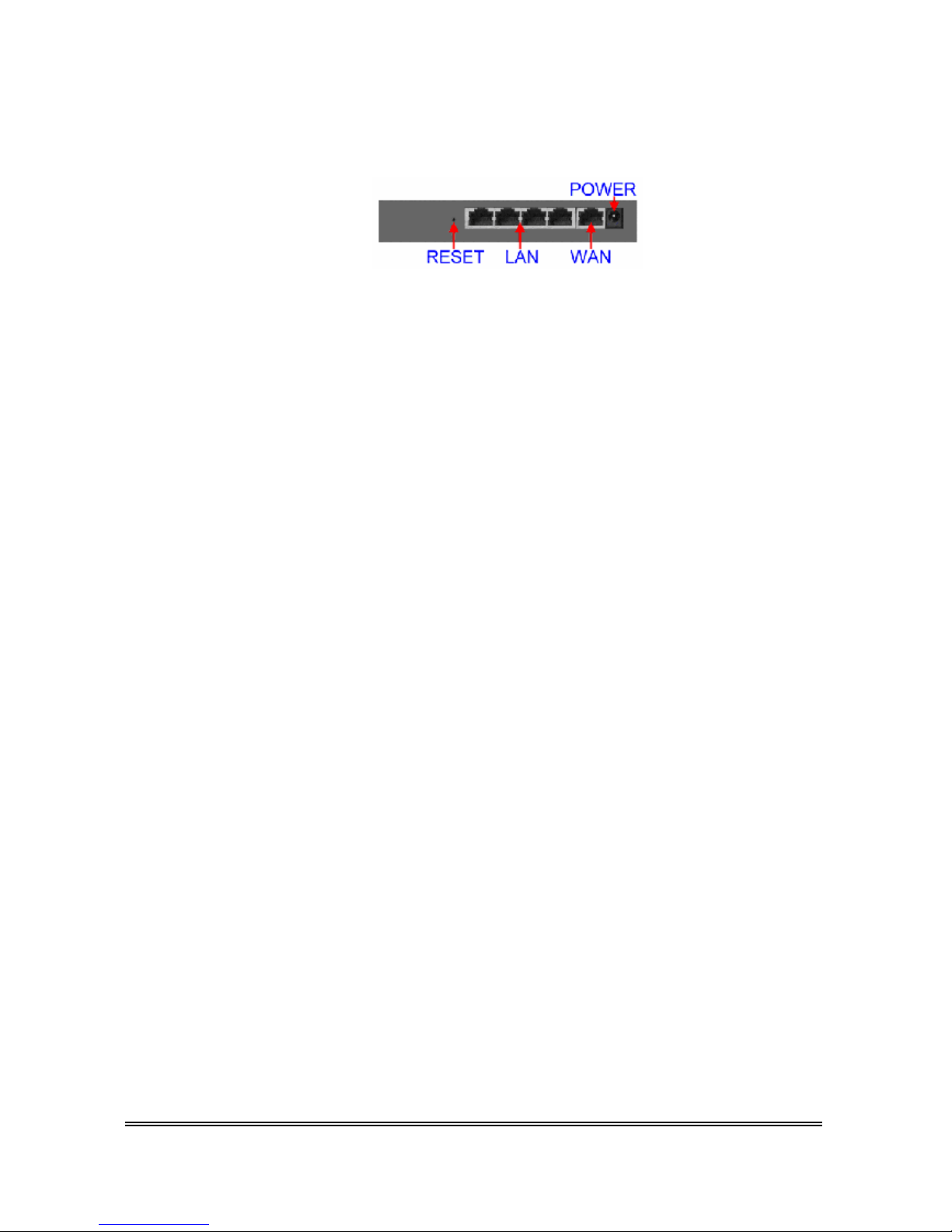

1.4.2 Rear Panel
Reset It is the factory default button. Hold it down continuously more than 5 seconds to reset
the hardware setting into factory default. The LAN IP becomes default
192.168.8.1.
Power Where you will plug the Power adapter.

1 WAN + 4 Ports Ethernet SOHO Router P 8
Chapter 2 Installation
Attaching the power cord into PWR inlet first and follow below sections to setup WAN/LAN connection.
2.1 Hardware Connection to WAN
Connect the network cable from the Cable/ DSL modem to the WAN port of the SOHO Router (Figure 2-1). If
the Link/Act LED is always off, please check the power feeding and the connection cable between the
Cable/DSL modem and WAN port .
Figure 2-1 The hardware connection of WAN interface for SOHO Router.
2.2 Hardware Connection to LAN
Connect the network cable from your computer’s Ethernet port to one of SOHO Router’s 4 LAN ports (Figure
2-2). If it is correctly connected, the responding Link/Act LED will be on.
Figure 2-2 The hardware connection of LAN interface for SOHO Router.

1 WAN + 4 Ports Ethernet SOHO Router P 9
Since all the WAN and 4 LAN ports have the auto crossover capability. You could use the flat RJ-45 cable or
the crossover cable as you wish (please refer to the Appendix C for pin assignment).
Once both WAN/LAN are connected successfully, please hold down the reset button continuously for 5
seconds to make sure SOHO Router is on factory default condition now.
2.3 Network Setting in Administrator’s computer
In order to configure the router with a networked PC in LAN, it is necessary for administrator to have an
accurate network setting PC, then the communication between router and administrator‘s PC could be possible.
The following description assumes router is on factory default condition. (If not, please hold the reset button
down for more than 5 seconds). Router’s LAN IP will become 192.168.8.1 and the DHCP server for LAN user is
on (offered IP range from 192.168.8.17 to 192.168.8.128 by default).

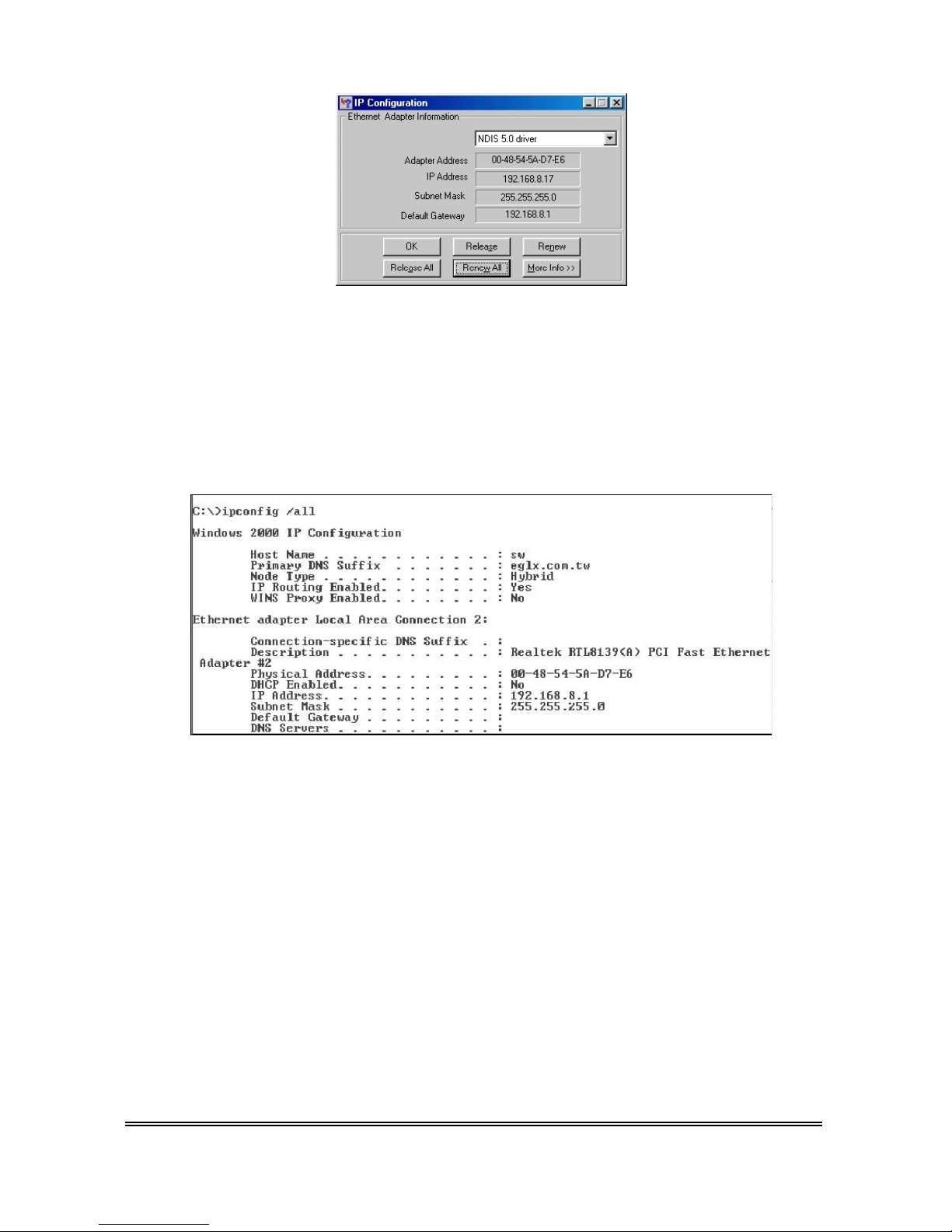

Follow the procedures to set your computer as a DHCP Client. (If the fixed IP mode for administrator’s
computer is desired, please refer to Appendix D.)
Step1:

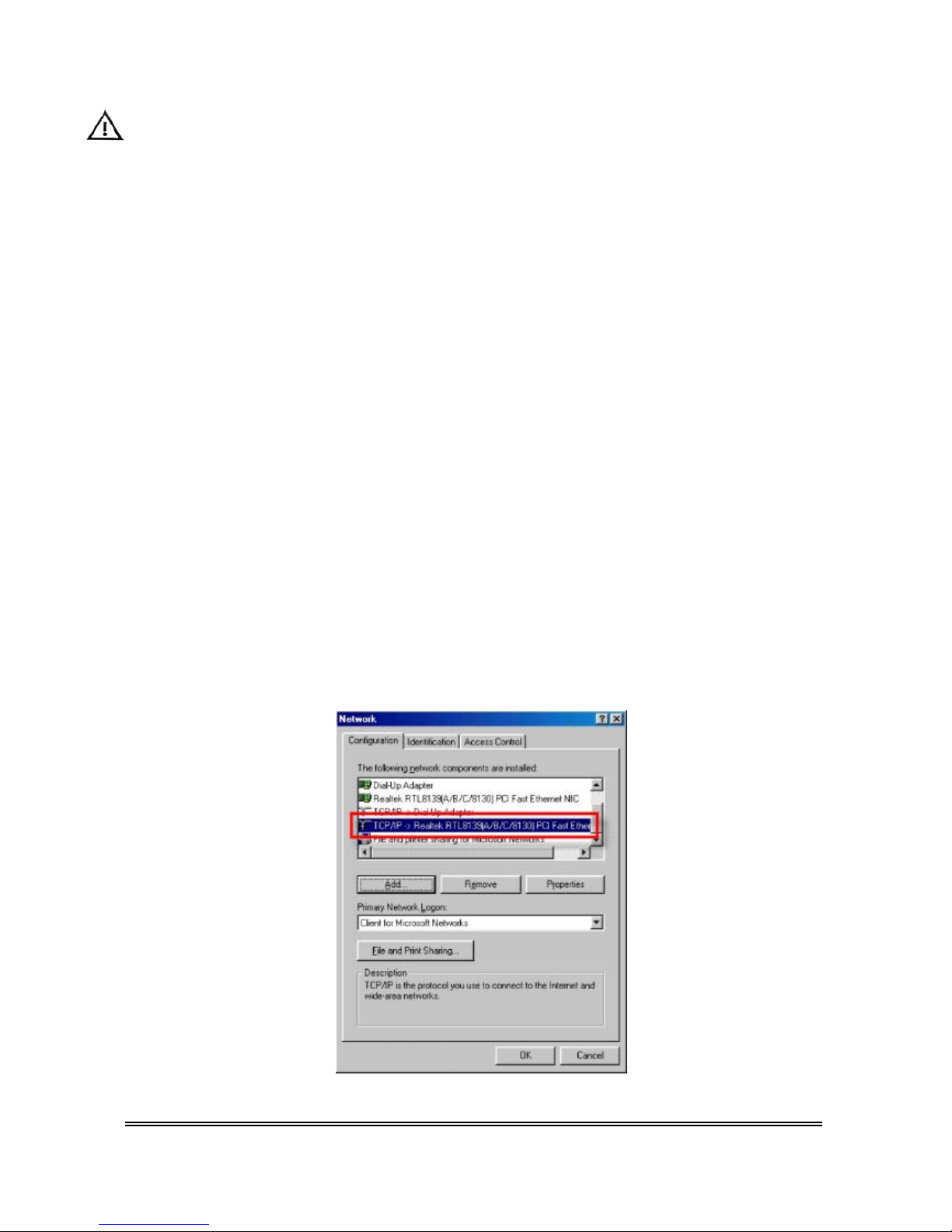

Click Start button, select Settings, and then choose Control Panel. Double click Network icon.
Choose configuration item. Select the TCP/IP protocol option, which is associated with your network
card/adapter. (To install TCP/IP protocol first.)
