Okina USA SEMT-7680 User manual

Copyright © 2010. All Rights Reserved.
www.okinausa.com 1 REV012011-V05
SEMT-7680 680 TVL
SEMT-7610 610 TVL
Day & Night Box Camera
Effio-E with ICR
Quick Setup Guide
PACKAGE CONTENTS
SEM
T
-7680
1/3" Digital Wide Dynamic Color Camera
Sony Exview CCD, Sony Effio-E DSP
Color: 610 TVL, B/W: 630 TVL
Color: 0.03 Lux @ F1.0, B/W: 0.005 Lux @ F1.0
SEMT-7610
1/3" Digital Wide Dynamic Color Camera
Sony Super HAD CCD II, Sony Effio-E DSP
Color: 680 TVL, B/W: 700 TVL
Color: 0.05 Lux @ F1.0, B/W: 0.01 Lux @ F1.0
Mechanical IR Cut Filter (ICR)
Multi-Language OSD Control
ATR Digital Powerful 128x WDR (52dB)
Anti-Headlight (HLC)
2D Noise Reduction
High Contrast Images
Ideal for Backlight Environments
Mosaic Privacy Mask
Advanced Motion Detection Function
Picture Quality Adjustable (Contrast/Sharpness/Hue/Gain)
12V D
C
/
24V A
C,
3
.
5
W
FEATURES
One (1) SEMT-7680 or SEMT-7610 camera
One (1) DC Connector
One (1) CS Mount Ring
One (1) DC Plug
One (1) Allen Wrench
One (1) Warning Sign Sticker
One (1) Quick Setup Guide
One (1) CD with User Manual
*For any returns, please include all components listed above with
original packaging in Resalable Condition. Absolutely No Returns will
be accepted if any components are missing/damaged or if any cable is
cut or tampered with.

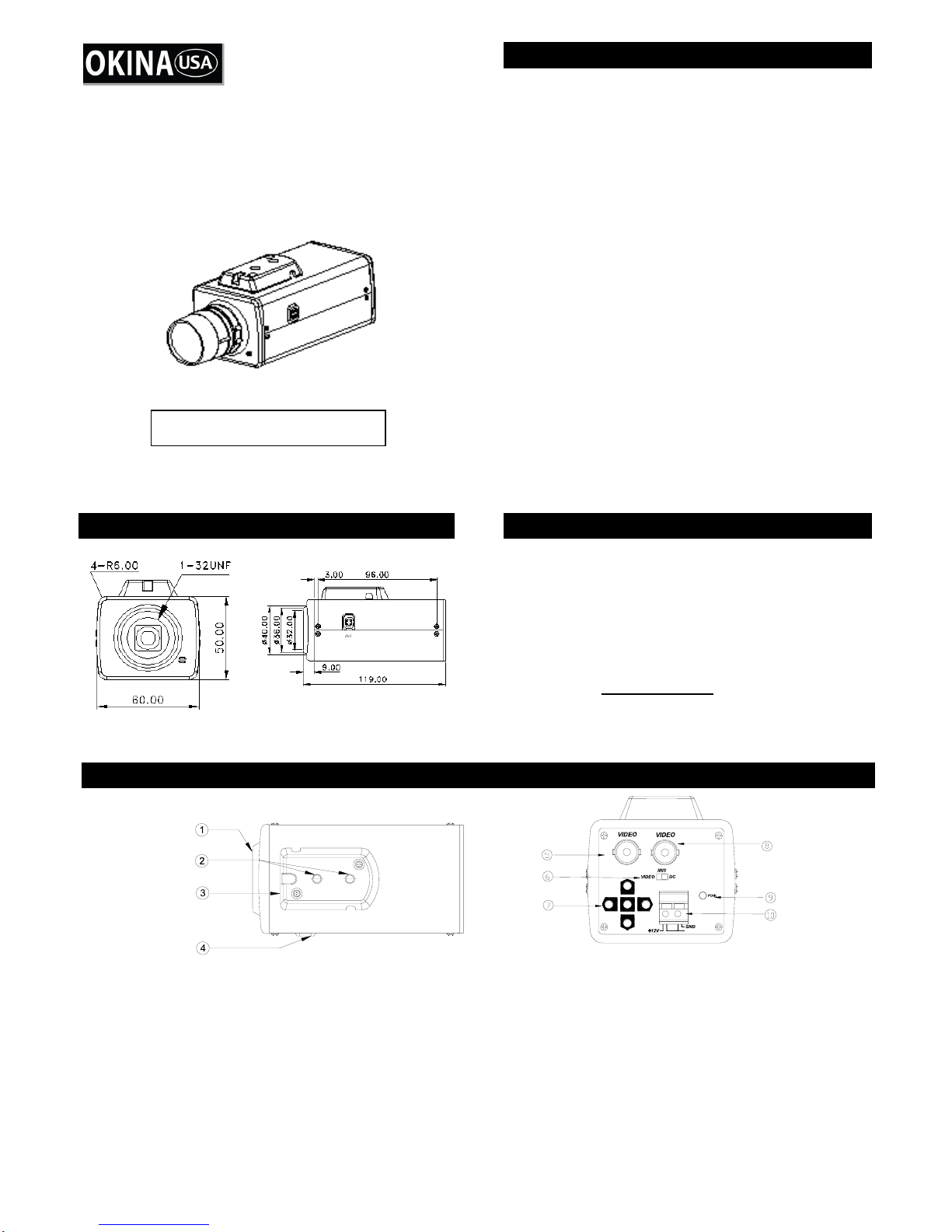

DIMENSIONS
(
Unit: mm
)
DESCRIPTION OF CAMERA PARTS
** Please refer to User Manual CD for detailed information **
① Lens Mount
This mount is used to install a CS-mount lens. CS-adaptor ring is
required when using a C mount lens.
② Camera Mounting Screw Holes
Screw hold for mounting the camera.
③ Mount Adaptor
The adaptor can be attached onto the top or the bottom of the unit.
④ Auto Iris Lens Connector (4-pin type)
The lens connector supplies the auto-iris lens (not supplied) with DC
control signal.
⑤ Video Connector
Video can be outputted via this BNC connector (75Ω).
⑥ Iris Mode Selection
Select DC or VIDEO mode according to the lens.
⑦ OSD Control Buttons
ENTER button
UP & DOWN buttons
LEFT & RIGHT buttons
⑧ Secondary Video Connector
Video can be outputted via this BNC connector (75Ω).
⑨ Power Input Indicator Light
When the camera is connected to a power source, the indicator light
will be on.
⑩ Power Input Terminal
Connect the
p
ower in
p
ut of 12V DC or 12V DC / 24V AC.

Copyright © 2010. All Rights Reserved.
www.okinausa.com 2 REV012011-V05
PIC T-413 T-415
Model SEMT-7680 SEMT-7610
Image Sensor 1/3" Sony 960H Exview CCD 1/3” Sony 760H Super HAD CCD II
Number of Total Pixels NTSC: 1028(H) x 508(V)
PAL: 1024
(
H
)
x 596
(
V
)
NTSC: 811(H) x 508(V)
PAL: 795
(
H
)
x 596
(
V
)
Resolution ; DSP Color: 680 TVL, B/W: 700 TVL ; Sony Effio-E Color: 610 TVL, B/W: 630 TVL ; Sony Effio-E
Minimum Illumination Color: 0.03 Lux @ F1.0, B/W: 0.005 Lux @ F1.0 Color: 0.05 Lux @ F1.0, B/W: 0.01 Lux @ F1.0
Wide Dynamic Range ATR Digital WD (ATR: Adaptive Tone-curve Reproduction) ;
128x Normal Camera (52dB)
Video Output ; Connector 1.0Vp-p Composite, 75Ω; BNC x2
Signal to Noise Ratio More than 52dB (AGC off, Weight on)
Gamma Correction 0.45
Mechanical IR Cut Filter (ICR) Automatically Switches (Switching Lux Level can be adjusted)
IR Compatibility Compatible with Infrared Illuminator
Menu OSD Control
Title TITLE (LOCATION)
Synchronizing System INTERNAL
Digital Day&Night Mode COLOR / B&W / AUTO
Electronic Shutter AUTO (1/50(60)~1/100,000sec.) /
MANUAL: 1/50(60), FL 1/120(100), 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000sec.
Automatic Gain Control AUTO (4 steps)
White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK
Back Light Compensation HLC / BLC / OFF
Flickerless ON / OFF
Dynamic Noise Reduction 2D
Language ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH /
SIMPLIFIED CHINESE
Motion Detection ; Privacy ON / OFF (24x16 Zones, Alarm) ;
ON / OFF
(
8ZonesPro
g
rammable
,
Pol
yg
onal Mosaic
)
Automatic IRIS ; Connecotr VIDEO / DC ; D4 IRIS Jack
Lens Mount C / CS mount (with adaptor)
Lens Not Included
Power Input ; Consumption 12V DC / 24V AC (10.8~39V DC / 24V AC) ; 3.5W
Operation ; Storage Temp. 14˚F~122˚F ; -4˚F~140˚F / -10˚C~50˚C ; -20˚C~60˚C
Operation ; Storage Humidity Maximum: RH80% ; RH90%
Dimensions 2.36”(W) x 1.97”(H) x 4.68”(L) / 60mm(W) x 50mm(H) x 119mm(L)
Net Weight 0.77 lbs / 350g
* Specifications are subject to change without notice.
PAL version also available.
Use OSD Control Buttons to operate OSD and adjust settings.

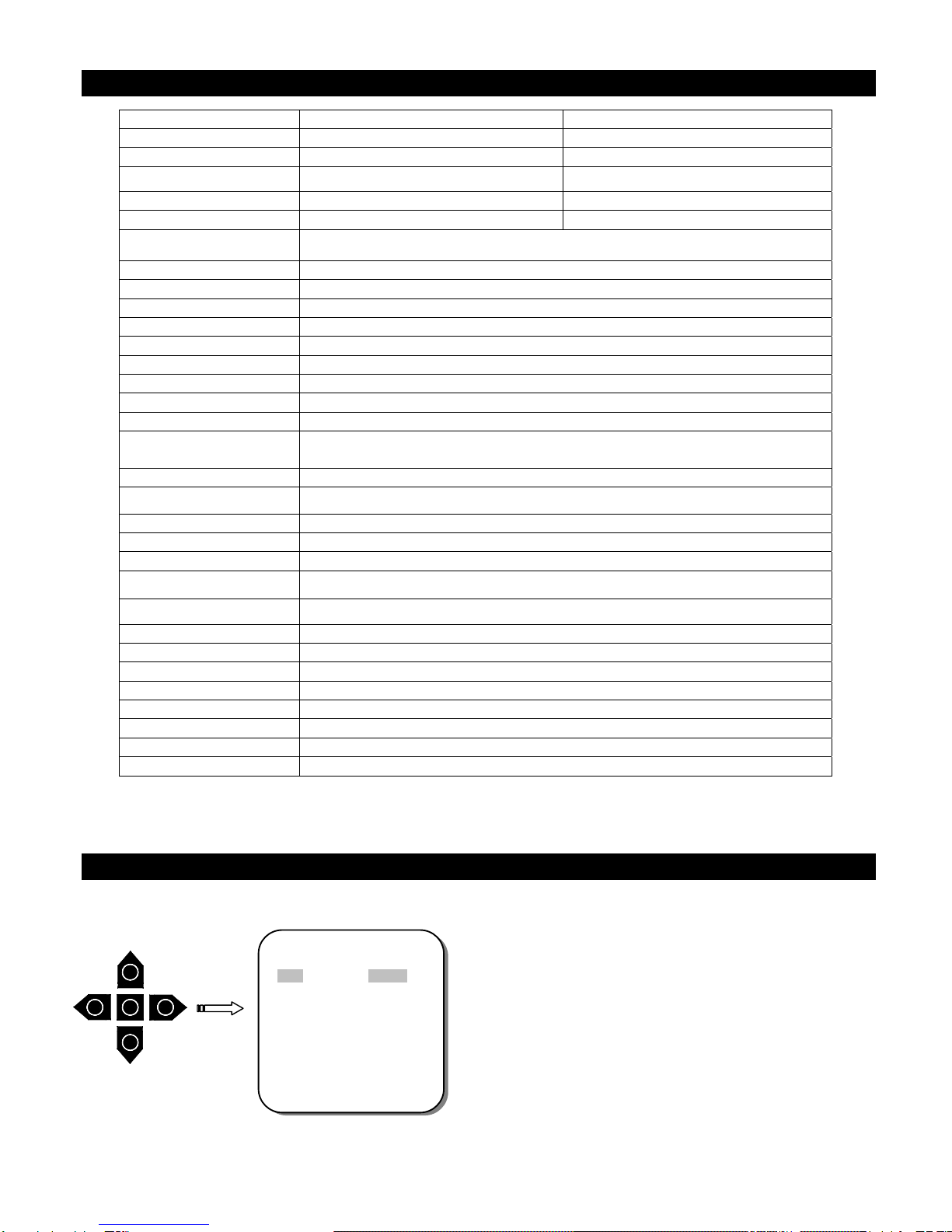

SPECIFICATION
OSD OPERATION
1. Start to operate the OSD menu
Press the ENTER button to bring up the OSD main menu to start
operating OSD menus.
2. Select items with the cursor buttons
yUse buttons cand dto move the cursor up and down.
yUse buttons eand fto switch the modes or to adjust the
parameters or the values of the settings.
3. Switch to the sub-menu
Items with “<┘” symbol in the end contains sub-menus. For further
settings of those items, select the desired item with the button cor d
and press the ENTER button to bring up the sub-menu and edit.
4. Return to the previous page
Select RETURN and press the ENTER button to return to the previous
page.
5. Exit the OSD menu
Select EXIT with the button cor dand press the ENTER button to exit
the OSD menu.
SETUP MENU
LENS AUTO<┘
SHUTTER/AGC AUTO<┘
NR <┘
WHITE BAL ATW<┘
ATR OFF
BACKLIGHT OFF
DAY/NIGHT AUTO<┘
NEXT<┘
EXIT<┘SAVE ALL<┘

Copyright © 2010. All Rights Reserved.
www.okinausa.com 3 REV012011-V05
There are 2 pages of the OSD main menu. Adjust the item with buttons eand f, for the item with sub-menus, click enter to edit it.
Main Menu 1 Main Menu 2
Main Menu 1
yLENS: MANUAL / AUTO<┘
ySHUTTER/AGC: AUTO<┘/ MANUAL<┘
yNR: NR MODE / Y LEVEL / C LEVEL
yWHITE BAL: ATW / PUSH / USER1 / USER2 / ANTI CR /
MANUAL / PUSH LOCK
yATR: OFF / ON<┘
yBACKLIGHT: OFF / BLC / HLC
yDAY/NIGHT: AUTO<┘/ COLOR / B/W
yNEXT<┘: Go to the next page of the main menu.
yEXIT<┘: Exit the OSD menu.
ySAVE ALL<┘: Save all the settings made.
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this may damage the pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could damage the camera.
3. Requires a proper operating environment
This camera is designed for indoor and outdoor use. The allowable temperature range for operation of this camera is between 14˚F~122˚F /
-10°C~50°C and the allowable humidity is 90%RH maximum.
4. Clean the front face to the pick-up device
It is recommended that the pick-up device surface be cleaned before lens installation or whenever the lens is changed. Cleaning should be done by
using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range. (Camera must meet the specifications). Camera must be connected to a surge
protector at all times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch dangerous voltage points of short out parts that could result in a fire or electric
shock. Never spill any kind of liquid on the video product.
7. Servicing
Do not attempt to service this video product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards.
Refer all service to qualified servicing personnel.
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to qualified servicing personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet has been damaged.
e. When the video product exhibits a distinct change in performance.
OKINA USA products are covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the
following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm any information regarding when and where the product was purchased. We have no
other way to verify the purchase record without the serial number on the camera sticker; therefore, it should not be removed.
2. Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner not described in this manual, the warranty will be voided immediately. It is the
customer’s responsibility to keep the camera in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered with. Cutting or modifying of the cables will result in termination of the warranty.
BASIC SETTINGS
CAUTION
WARRANTY
SETUP MENU
LENS AUTO<┘
SHUTTER/AGC AUTO<┘
NR <┘
WHITE BAL ATW<┘
ATR OFF
BACKLIGHT OFF
DAY/NIGHT AUTO<┘
NEXT<┘
EXIT<┘SAVE ALL<┘
SETUP MENU
PICT ADJUST <┘
MOTION DET ON<┘
PRIVACY OFF
CAMERA ID OFF
LANGUAGE ENGLISH
CAMERA RESET
BACK<┘
EXIT<┘SAVE ALL<┘
Main Menu 2
yPICT ADJUST: MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS /
HUE / GAIN
yMOTION DET: DETECT SENSE / BLOCK DISP / MONITOR AREA /
AREA SEL(TOP / BOTTOM / LEFT / RIGHT)
yPRIVACY: AREA SEL(TOP / BOTTOM / LEFT / RIGHT) / COLOR /
TRANSP / MOSAIC
yCAMERA ID: OFF / ON<┘
yLANGUAGE: ENGLISH / 日本語 / DEUTSCH / FRANCAIS РУССКИЙ /
PORTUGUÊS / ESPAÑOL
yCAMERA RESET: Select to restore all the setting to the default values.
yBACK<┘: Go back to the previous page of the main menu.
yEXIT<┘: Exit the OSD menu.
ySAVE ALL<┘: Save all the settings made.
