Okina OK-PTZ-KB300 User manual

OK-PTZ-KB300
Multi-functional
Programmable
Controller
User's Manual
OK-PTZ-KB300
OKINA
OKINA

CONTENTS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION
GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USERS‘S AUTHORITY TO OPERATE THE EQUIPMENT.
FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A
CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGHEND TO
PROVIDE REASONABLE PROTECTION AGAINST HAMRFUL INTERFERENCE WHEN THE EQUIPMENT IS
OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE
RADIO FREQUENCY ENGERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE
INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE
IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCEAT HIS OWN EXPENSE.
WARNING: THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS PRODUCT MAY CAUSE RADIO
INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER ( OR BACK). NO
USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying this unit.
WARNING
CAUTION: BEFORE ATTEMPTING TO CONECT OR OPERATE THIS PRODUCT, PLEASE READ THE
LABEL ON THE BOTTOM AND USER'S MANUAL CAREFULLY
1. Precaution...................................................... 1
2. Features......................................................... 2
3. Packing list..................................................... 2
4. Connection..................................................... 2
5. Operation....................................................... 3
6. Keyboard Setup.............................................. 5
7. Woking with PTZ............................................. 6
8. Working with DVR........................................... 9
9. Working with Multiplexer.................................. 11
10. Connection ............................................... 12
Technical specification are subjects to change without prior notice. This
Manual may contain printing or clerical errors. All trademarks mentioned
belong to their respective owners.
ENGLISH
This Symbol indicates that this product should not be treated as household
waste. When discarding this product, it must be sent to appropriate facilities for
recycling or recovery. By separating this product from other household waste,
you are helping to reduce the volume of waste incinerators and the natural
resource will be conserved.

5. OPERATION 5. OPERATION
ENGLISH
Camera Operation Keys:
Operation Keys:
Extended Function Keys:
Zoom WIDE/ TELE : Zoom-in and -out
FOCUS FAR/ NEAR : Manual focus
IRIS OPEN/ CLOSE : Manual irisl
DVR : Enter the DVR control mode
MUX : Multiplexer mode
MENU : Enter setup menu or PTZ mode
SET : Set preset position
SHOT : Recall preset position
ALM : Alarm Function
GRP : Tour function
OFF : Function Off
ON : Function on
AUTOPAN : Auto pan function
AUX : Auxiliary function
RUN : Function Start
HOLD : Hold
PREV : Previous device
NEXT : Next device
Digit pad:
3-Axis PTZ Joystick:
0-9 : Digit input from 0 to 9
*:*Key
MON : Monitor switch
CAM : Camera switch
CLR : Clear & Cancel
ENTER : Enter key
LEFT / RIGHT: Pan movement
UP / DOWN: Tilt movement
TURN: Zoom in / Out
UP
DOWN
RIGHT
LEFT
WIDE
TELE
ZOOM
3 4
Key Description
Enter Administrator Mode:
0001
ADMIN AUTHORITY
001 0001
PASSWORD:
**********
2. enter your password with the number key and
confirm with [ENTER]
The Default Password is 9876543210
Keyboard Sounds
1. Turn ON the Keyboard Sounds: Press + at the same time
2. Turn OFF the Keyboard Sounds: at the same timePress +
User Mode & Admin Mode
The keyboard will enter automatically into USER MODE after power up, which
allows performing PTZ and DVR control, and restrict user access to keyboard
setup menu. Following message will show:
ON 1
OFF 1
1. Press + at the same time
ON 2
-Vxx<01>
System Keyboard
After power on, keyboard will start the
initialization and self-test. The LC-Display will
show initial screen. Press Menu to start the
operation.
0001
MON--- ALM-
CAM-
001 0001
Operation Screen:
MON: Selected Monitor
CAM: Selected Camera
ALM: Selected Alarm input.
The keyboard provides acustic signal when a button is pressed. Depends on
application it can be activated or deactivated:
After entering the Administrator mode, press [MENU] to enter the setup
menu
LCD Display
with back light
Extended
Function Keys
Digit pad
Operation
Keys
3-Axis Joystick
Camera
Operation Keys
DVR MUX SYS
TxRx
Power
DVR MUX MENU SET SHOT
OK-PTZ-KB300

Start PTZ mode
By default, the keyboard usually starts in PTZ mode (display shows as below). You can
also press [MENU] to change to PTZ mode.
SET KEY LEVEL: Set up the control levels of the controller from 00 to 15. Input the
No. by digit-key. After setting, press ENTER to save or CLR to exit the setting.
SET KEY LEVEL
>01<00 15>
SET MON RANGE: Set up the range of monitors from 0000 to 0239.
Input the No. by digit-key. After setting, press ENTER to save or CLR to exit the
setting.
SET MON RANGE
>0000 0239
SET CAM RANGE: Set up the range of intelligent dome cameras from 0000 to 9999.
Input the No. by digit-key. After setting, press ENTER to save or CLR to exit the
setting.
SET CAM RANGE
>0000 9999
SET ALM RANGE: Set up the range of alarm positions from 0000 to 9999.
Input the No. by digit-key. After setting, press ENTER to save or CLR to exit the
setting.
SET ALM RANGE
>0000 9999
RESET DEFAUL_I?: Set the keyboard setting to factory default.(default password:
is "0123456789". Press ENTER to reset or CLR to exit. This process can take up to
30 sec. till the again Note that after Baud-Rate changing, its is
necessary to restart the keyboard.
controller is available .
RESET DEFAULT_I?
**********
RESET DEFAULT_I?
PLEASE WAIT . . .

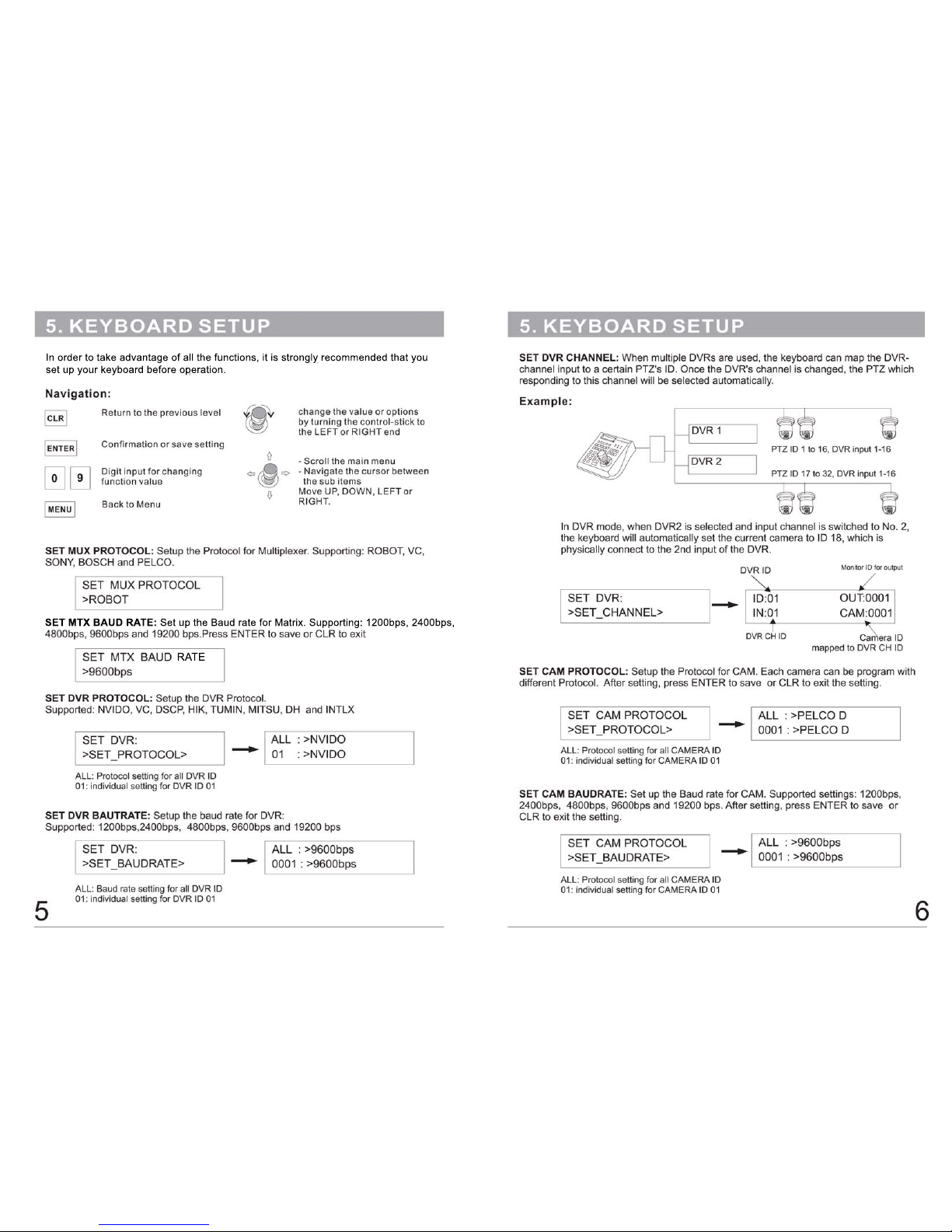

5. KEYBOARD SETUP
SET KEY ID: Set up the ID of the controller from 01 to 63.
Input the No. by digit-key. After setting, press ENTER to save or CLR to exit the
setting.
SET KEY ID
>01<01 63>
78
6.Working with PTZ
0001
MON--- ALM-
CAM-
001 0001
Select / Change current camera
You can change the camera by pressing [CAM]+n+[ENTER]. N represents the
channel number which should be selected
PTZ Mode
0001
CAM+n
001 0001
Change selected camera
Preset function
Add Preset [SET] + n + [ENTER]. n= 1 to 255*
Call a preset: [SHOT] + n + [ENTER]. n= 1 to 255*
Delete a preset: [CLR] + n + [ENTER]. n= 1 to 255*
*The maximum preset number depends on the PTZ device. Please refer to the user's manual for further
information.
0001
SET+n
001 0001 0001
SHOT + n
001 0001
Tour - Sequence
A sequence can store up to 24 preset points with individual dwell time and speed. You
can store a sequence by using this function. ( only availiable in B01 / B02 Protocol)
Press [GRP]+n+[SET]. n= 1 to 4
After entering sequence programming mode, the display shows the preset input and
setting for speed and time.
000
Seq Ti
Pos
001 000000
Spd Seq: Sequence number
Pos: Preset number
Spd: Move speed between 1-8
Ti: Stop time between 0-60 sec
Press [ENTER] to confirm and save the
setting.
Repeat the preset pos input with speed and time setting, and confirm with enter. After
exiting the programming mode, the settings will be saved to dome's memory.

6.Working with PTZ
7. Working with DVR
DVR_ID:01
Virtual PTZ control in DVR mode
DVR_ID:01 IN:01
PTZ Cam:0001
DVR_ID:01.........ID of the DVR
IN:01...................Input 1 of the DVR
PTZ.....................Indicates the virtual PTZ mode
Cam:0001...........Camera or PTZ ID
Enter DVR mode
Change the PTZ assignment in DVR mode
ID:01 OUT:0001
IN:01 CAM:0001
DVR ID output to matrix
DVR Input Channel Assign to
Camera ID
Set DVR ID:
01 < 00 99>
To control DVR, press the DVR-Button and enter the
DVR-mode. The LED with "DVR" tag indicates the
current status, and the LC Display shows the current
selected DVR ID:
Press Button to
enter DVR mode
LED for
DVR Mode
DVR MUX SYS
TxRx
Power
DVR MUX MENU SET SHOT
If you have more than 1 DVR installed and configured, you can switch to other ID by
pressing [NEXT] + n +[ENTER]. For returning to PTZ mode, press [MENU]
Depends on the DVR Model, the function keys might be different. please refer to later
chapter for key assignment.
In this mode, you can control the DVR and PTZ simultaneously: by selecting the
input on the DVR, the PTZ ID assigned to this channel will be automatically selected
and ready for PTZ control ( DVR and PTZ ID assignment need to be set prior to
operation. Please refer to the former chapter "Keyboard Setup" for details.)
Press [DVR] key (in DVR mode) to enter virtual PTZ
Switch the camera input channel: Press [N]* + [ENTER]
For returning to the DVR mode, press again the [DVR] key.
If you are already in Admin-mode, you can change the assignment of the PTZ ID to
the DVR input directy by pressing [NEXT] key.
Select the DVR you need to control or
modify
Press again [NEXT to ]Change the
assignment for DVR input and
camera ID ( admin access required)
910
16 Cut IRIS close
Zoom Wide/Tele Key
Slow playback Aux
Start Recording ALM
Key Left Joystick Left
Key Right Joystick Right
Key Up Joystick Up
Key Down Joystick Down
Playback ON
Keyboard Infomation Run
Function Key
Enter DVR Menu Set
Enter Key Enter
4 Cut Hold
9 Cut Prev
Key Audio Focus Near
Key Search Focus Far
Key Next DVR ID Setting
Clear Keyboard screen CLR
Key Pause Autopan
Keylock SHOT
Power ON/OFF DVR *
Ch. Display 1N (N=0-9) 1+N+ Enter
Ch. Display 0N (N=1-9) 0+N+Enter
Key Plus 3D Joystick Right
Key Minus 3D Joystick Left
Key Stop IRIS Open
Key Rewind GRP
Key Forward OFF
Function key for NVIDO DVR
Note:
- please setup the communication baud-rate and ID in the DVR correctly before connection.
- To prevent signal interference, it is strongly recommended to use RS-485 distributor for
connection
7. Working with DVR
OK-PTZ-KB300

Control Multiplexer in MUX mode
MUX_ID:01
PTZ with Multiplexer in MUX mode
MUX_ID:01 IN:01
PTZ Cam:0001
In MUX mode, press the button [MUX] again, to enter virtual PTZ mode. You can
control the PTZ by switching the input channel. the camera ID will also be switched
accordingly
MUX_ID:01.........ID of the MUX
IN:01...................Input 1 of the MUX
PTZ..................... Control PTZ
Cam:0001...........ID of the Camera
Setup the virtual PTZ control in MUX mode
In MUX mode, press [AUTOPAN] to change
the selected Multiplexer
ID:01 OUT:0001
IN:01 CAM:0001
ID of MUX Monitor ID for output
MUXCHID Camera ID
Press the MUX button to enter the Multiplexer mode.
MULTIPLEXER
Press + to change the channel
NEnter
MUX_ID:01
Set MUX ID:
01 < 00 66>
Press [AUTOPAN] again to setup the PTZ.
(admin access required). press [ENTER]
after every assignment to save the changes.
otherwise the configuration may be lost.
Press Button to
enter MUX mode
LED for
MUX Mode
DVR MUX SYS
TxRx
Power
DVR MUX MENU SET SHOT
2. Select the MUX ID ( if many installed) for
setup.
11
Appendix

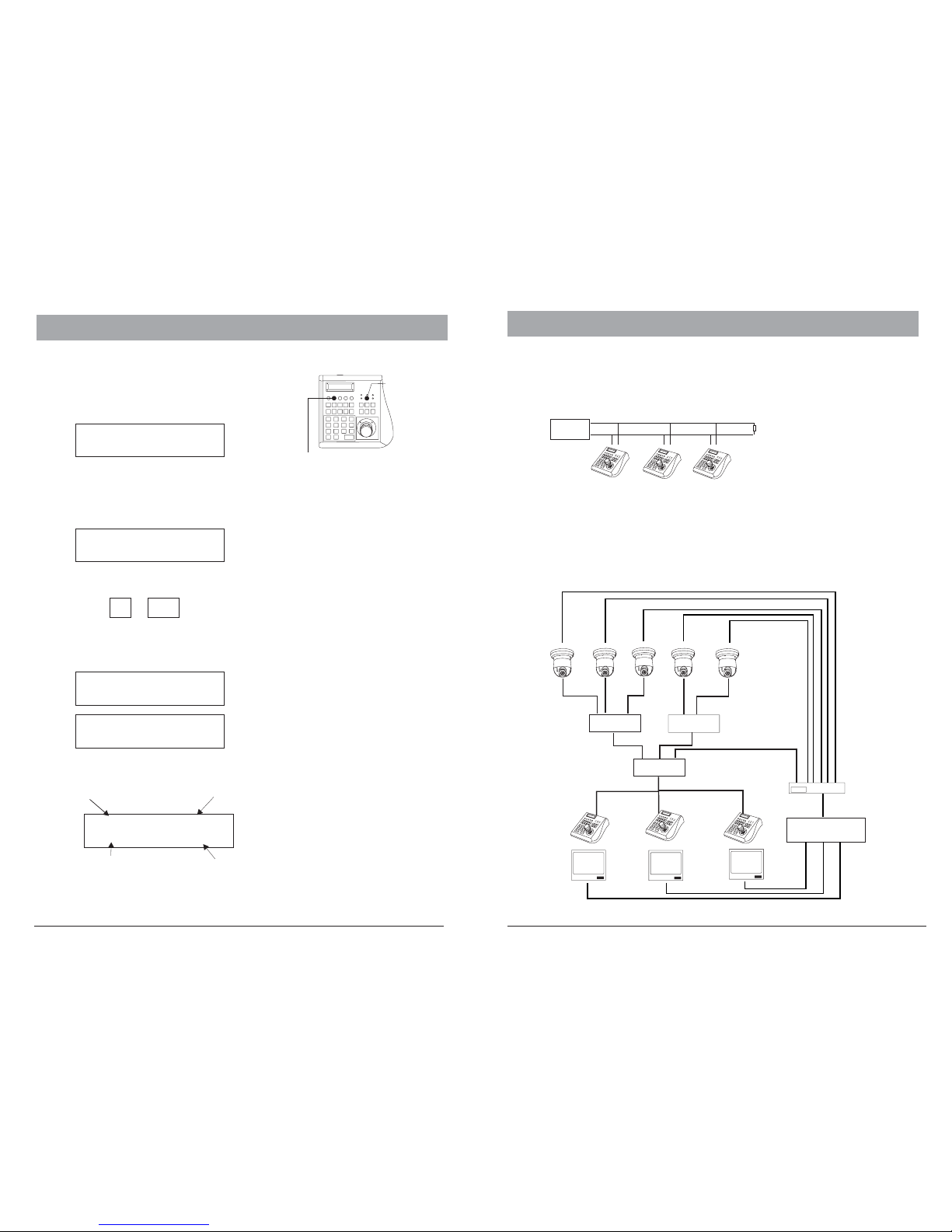

RS-485 Termination
Devices using RS485 control are usually connected in daisy-chain. which reqiuers
termination with 120 resistor on both ends. Following picture illustrates the connection
methods. please note that a daisy-chain connection type shall not exceed 7 meters.
Ω
120 Ω
Resistor
RS 485+
RS 485-
Device 1 Device 2 Device 3
RS485
Distributor
Rs485
Distributor
Video
Distributor
DVR
RS485
RS485
Star-Connection
The star-form connection is mostly used. it enables the connection of different dome
cameras in longer distance. It is recommended to use RS485 distributor to ensure the
telemetric data transmission:
12
OK-PTZ-KB300
OK-PTZ-KB300
OK-PTZ-KB300
OK-PTZ-KB300
OK-PTZ-KB300
OK-PTZ-KB300
OK-PTZ-KB300
