Oktava MKL-5000 User manual

PROFESSIONAL MICROPHONE
МКL-5000
OPERATION MANUAL

3
CONTENT
4
6
8
SAFETY INFORMATION
9
10
13
14
17
delivery INCLUDES
ABOUT factory
SETUP
installation
OPERATION AND STORAGE
trouble and countermeasure
19
18
MANUFACTURER WARRANTy
20
notes
technical data
overview

4
let’s go
ABOUT
factory
The Public Joint Stock Company Oktava is the leading Russian
manufacturer of studio microphones, telephone and microphone
capsules, headsets and hearing aids. The company has long-term
experience and has taken a leading position in the field of
development and manufacturing of acoustic equipment in Russia.
Being established at the dawn of development of broadcast
networks in 1927 in the city of Tula, Oktava became an iconic brand
known throughout the world. Gagarin said his famous “Let's go!” in
the Oktava microphone. The products are popular all over the world,
and even such masters as U2, Sting, Iron Maiden and Radiohead use
Oktava microphone products in their work.

6
SAFETY
INFORMATION
Before using the microphone, carefully read the operation manual.
Keep the manual in a safe place, accessible for all users.
Always handover the operation manual to third parties together
with the microphone.
Use the microphone only for its intended purpose in accordance
with this manual.
The liquid can get into the microphone, cause a short circuit
in the electronic components or damage the mechanical components.
Clean the microphone only with a soft, slightly moistened cloth.
Solvents or cleaning agents may damage the surface or enter
the product.
Do not expose the microphone to extremely low and extremely high
temperatures.
Do not open the microphone body by yourself. The warranty does
not apply to microphones, opened by customers themselves.

7
CAUTION!
Before switching on the power supply unit, please, ensure that the
power supply unit switch 110 V/220 V is switched to the position
corresponding to the mains supply voltage!
It is prohibited to open the microphone and the power supply unit!
The warranty does not apply to items, opened by customers
themselves.
It is prohibited to connect or disconnect the microphone to/from the
power supply if it is energized!
It is prohibited to handle the powered power supply unit by wet
hands!

overview
features
APPLICATION
Microphone МКL-5000 is wide-diaphragm capacitor
microphone with lamp preamplifier designed for
professional studio recordings.
1” large-diaphragm condenser capsule:
2 gold-plateds diaphragms;
microphone pre-amplifier, made on the radio tube;
variable stepped polar response curve; type "circle",
"cardioid", "figure-eight";
robust metal body;
external power supply included in delivery;
made in Russia.
voice/vocal/chorus;
recording of solo instruments;
professional recording studios;
home recording studious.
8

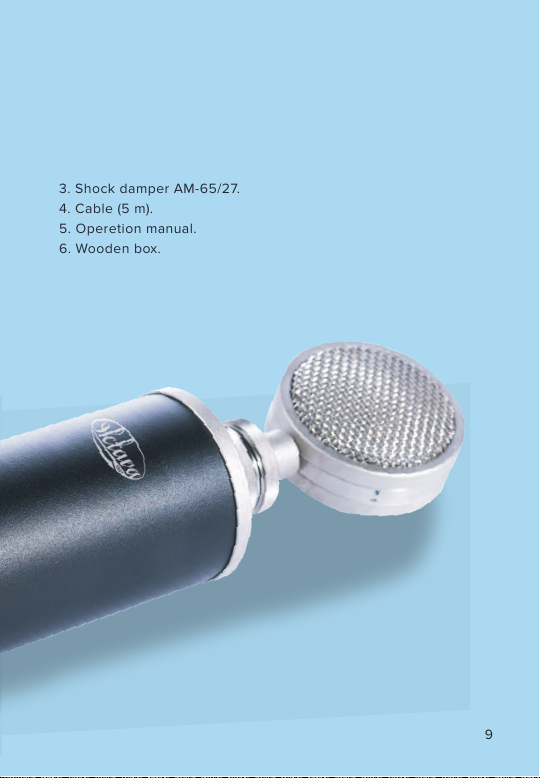

Delivery INCLUDES
1. Microphone МКL-5000.
2. Power supply unit PSU-103.
3. Shock damper AM-65/27.
4. Cable (5 m).
5. Operetion manual.
6. Wooden box.
9

10
SETUP
Fig. 2Fig. 1
MICROPHONE INSTALLATION INTO SHOCK MOUNT
1. Screw the microphone shock absorber onto a sturdy, stable
stand (Fig. 1).
2. Insert the microphone from above in the inner shock absorber
ring and fasten it to the ring with a nut on bottom. To turn the
microphone, use the butterfly thumb screw (Fig. 2).

11
power supply preparation
In the front panel, there are the indicator lamp (1), the input
connector (2), the output connector (3), on the back panel, there
are the mains connector (4) and the mains switch (5).
The mains voltage selector 110V/220V (6) is located on the bottom
panel.
Fig. 3
Fig. 4
6
1
2
3
The power supply unit PSU-103 is designed for conversion
of the mains voltage 220 V or 110 V into the voltage
supplying capacitor microphones with lamp prime amplifier.
The electric safety of the power supply unit meets the
requirements of IEC 60065-2011 for devices of I class.
4
5

12
CONNECTION
1. Set the switch (6) to the position corresponding to the voltage
of the network used.
2. Insert the pin plug into the power filter unit (4).
3. Connect the input terminal (2) to the microphone using the
supplied XLR-5 - XLR-6 cable.
4. To connect the output terminal of the power supply unit to the
mixing console use any XLR-3 microphone cable (Fig. 5).
5. Connect the power supply unit to the mains by plugging the pin
plug into a power outlet.
6. Turn on the power switch (5). The alarm indicator (1) will light up
on the panel.
7. Wait 15 minutes before starting work to warm up the lamp in the
microphone.
Fig.5
DO NOT NETWORK THE POWER SUPPLY UNIT WITHOUT
CONNECTING THE WHOLE EQUIPMENT SET WITH CABLES
AND EARTHING IT.
WARNING! IMPROPER POWER SUPPLY MAY CAUSE DAMAGE
OF THE PRODUCT!

13
installation
Fig. 6
1. Install the microphone on the stand with a microphone clip
or shock mount.
2. Connect the microphone to the equipment using
a microphone cable.
3. Point the microphone toward the sound source.
4. In order to suppress external noise, make sure that there
are no sources of parasitic noise in the microphone active zone
(for example, computer fans).
5. In order to extend the life of the microphone, it is recommended
to use a pop screen when working with vocalists (Fig. 6).

14
Frequency range
Diameter
Sensitivity at 1000 Hz
Polar patterns
Acoustic principle
Impedance
Equivalent sound pressure level
due to self-noise
20 Hz - 20 000 Hz
18 mV/Pa
25 dBA
600 Ohm
64 mm
Length 225 mm
Weight 1,1 kg
Pressure gradient receiver
Maximum sound pressure level
Diaphragm diameter
124 dB
Circle, cardioid, figure-eight
Transducer type Condenser microphone
with lamp preamp
25,4 mm / 1"
technical data
technical data of microphone

15
FREQUENCY RESPONSE
AP «figure-eight»
AP «omni»
AP «cardioid»
Hz
180°90°0°
dB
Hz
180°90°0°
dB
Hz
180°90°0°
dB

12
16
technical data of power supply unit
OUTPUT VOLTAGE
The anode voltage is (100+5) V at the ripple ratio of 0.01% at most.
The filament voltage is (6+0.25) V at the ripple ratio of 0.01% at most.
LOAD CURRENT
3 mA for anode supply and 0.4 A for filament supply.
RATED INPUT
The rated input is 10 W at most, the input current does not exceed 50 mA.
dimensions
116 х 216 х 84 mm.
INSTABILITY FACTOR
The voltage regulation at supply voltage variation within 187-242 V
or within 93-121 V at 50 Hz AC does not exceed: 8% for anode, 5%
for filament.

17
Microphone
is not working
Sound
distortion
Unvoiced
sound
Power supply unit or mixing
console is not connected to
the power line.
Microphone is not connected
to the power supply unit or
the power supply unit is not
connected to the mixing
console.
Input sensitivity or
preamplification of the
subsequent amplifier are
adjusted incorrectly.
Transmission of
structure-borne noise.
Polar response curve is not
taken into account.
Reduce the input sensitivity or
preamplification of the next
device so that there is enough
modulation reserve.
Power is not turned on
on the mixing console or
on the power supply unit.
Check your power supply
network connection.
Check the corresponding
buttons on the mixing console
and power supply unit.
Check that the cables from the
microphone to the power supply
unit and from the power supply
unit to the mixing console are
connected correctly (see page 12).
Use a suitable shock absorber
(see page 10).
Check that microphone is
installed correctly. Microphone
should be directed to the
sound source with the side
with Oktava logo.
Problem Possible
reason
Elimination
recommendations
The 110V/220V switch is in a
position that does not match
the line voltage.
Check that the switch (6) is in the
correct position (see page 11).
trouble and
countermeasure

18
OPERATION
AND STORAGE
The microphone is designed for application in enclosed spaces at an
ambient temperature of 5 °C to 45 °C and a relative humidity of 93%
at an temperature 25 °C.
Do not subject the microphone to sudden shocks or impacts.
Do not allow water to enter the microphone.
Do not use organic solvents (gasoline, dichloroethane, alcohol, etc.)
to clean the microphone.
Do not use or store the microphone in rooms containing acidic or other
aggressive impurities in the air.
Store the microphone in a dry, clean and dust-free room at room
temperature, using the packing included in the package.

19
Oktava PJSC
Russia, 300000,
Tula, Kaminsky str., 24
E-mail: [email protected]
en.oktavatula.ru
MANUFACTURER
WARRANTy
The manufacturer guarantees compliance of the microphone
technical characteristics, if the user observes the conditions
and rules of operation and storage specified in this manual.
The warranty — 24 months from the date of sale.
The manufacturer guarantees a free replacement or repair of a
microphone during the warranty period, if it does not comply with
the requirements of this manual through the manufacturer’s fault.
No claim for a microphone will be accepted without certificate of sale.
Please, dispose of the microphone at the local collection point for
recyclable materials or at the recycling center after the end of its
service life.
