Olansi K08 User manual

User Manual
Air Purifier
Fresh Air Healthy Life
Please read this manual completely before using this product.

01
Performance Index
Product Name Air Purifier
3
488 m /h
95W
2
34~58 m
3
10million/cm
3
90 m /h
Rated Power
Noise
Anion Concentration
Amount of Particulate-
Cleaned Air (CADR)
Amount of Formaldehyde-
Cleaned Air (CADR)
Applicable Area
10.8kg
Suggested Period to
Replace Filters
#1 Filter 2 years
#2&#3 Filters 6 months
Net Weight
400x230x620mm
Product Measurements
Method of Cleaning
Pre-filter, Cold Catalyst Filter,
Cellular -Activated Carbon Filter,
High Efficiency HEPA Filter, 
Sterilizing UV light, Anion Purifier.
Dear Customer,
Thank you for purchasing our air purifier.
In order to facilitate the installation and use of this machine, we recommend that you
carefully read this manual, and keep it stored safely. To ensure that you always enjoy fresh
air, use this manual for qualified and standardized installation, proper use, and maintenance.
This will ensure you always enjoy fresh air.
Our air purifier was developed by our researchers bringing together technology from home
and abroad to give you the latest generation of air purification devices.
If any questions arise from use, please consult this manual. If it is in accordance with the
warranty, we kindly welcome you to contact us with the address and phone number on the
card. We welcome any comments or suggestions you have about our product and service.
Contents
Performance Index ..................................................................................01
Product Features ....................................................................................02
Product Appearance and Structure ...........................................................03
Installing the Filter....................................................................................04
Function Description..................................................................................06
How to Use .............................................................................................08
Precautions............................................................................................09
Prohibited............................................................................................. 10
Mandatory..............................................................................................12
Filter/Dust Sensor/Anion Producer Cleaning and Maintenance...................13
Packaged Items .......................................................................................15
Troubleshooting ........................................................................................16
Rated Voltage
Rated Frequency
220V-240V~
50Hz/60Hz
*Product maintenance and filter replacement cleaning information, please refer to the
instruction manual;
* Purification performance parameters are tested under specific third-party laboratory
conditions with specific dust particles and formaldehyde gas as target pollutants;
* The recommended area is calculated according to (0.07~0.12) xCADR particles, which is
the theoretical value. With the different use environment and building structure,The
applicable area will also change due to various factors such as the degree of indoor
pollution.
Low Speed≤24.0dB(A)
Highest Speed 69dB(A)

Product Appearance and Structure
Air Outlet
Display Screen
Operation Panel
Operation Panel
Handle
Water Tank
Air Inlet (On Both Sides)
Indicator Light of Air Quality
0302
Surface Cover
Air Inlet (On Both Sides)
Product Features
Pre-filter
The primary filtration uses an aluminum alloy filter located in the pre-filter. It is mainly used for filtering
dust larger than 5 microns, including large dust particles, dander, pollen, floating debris, and other
pollutants. It can be washed many times and used repeatedly.
Cold Catalyst Filter
1. The catalytic decomposition reaction of the cold catalyst does not require UV rays, high temperature,
or high pressure. In normal living environments it can play a catalytic effect in controlling air pollution.
2. The main components of the cold catalyst come from additives found in food and pharmaceuticals. It
is non-toxic, non-corrosive, and non-flammable. Under normal temperature conditions, the catalytic
reaction can remove formaldehyde, benzene, xylene, TVOC and other harmful gasses. The reaction
creates water and carbon dioxide. It does not produce any secondary pollution. It is a safe and
environmentally friendly product on the cutting edge, suitable for a healthy home.
3. During the catalytic reaction, the cold catalyst itself is not directly involved in the reaction. The cold
catalyst does not change nor is lost. Because of this, without any external damage, this filter will
effective for more than five years. It is basically synched with the release of the formaldehyde for
long-term control.
Cellular -Activated Carbon Filter
The cellular-activated carbon carries high efficient additives. It has good absorption and dust collection
characteristics.
Antibacterial Cotton Filter
The antibacterial filter is a precision filter trapping particles with a diameter of 5 microns. At the same
time there is an antibacterial agent added into the filter, can effectively killing any airborne germs at an
effectively killing 99% or more of bacteria.
High Efficiency HEPA Filter
The effective HEPA filter filters airborne germs, smoke and dust particles 0.3 microns large at a rate of
99% or more. In combination with the multifunctional filter, the HEPA filter can filter out microscopic
particles larger than 20 nanometers in diameter, including bacterial mold, dust, allergens, and some
viruses, while filtering out smoke. According to the World Health Organization, the avian flu virus,
influenza virus, and Legionella bacteria are greater than 20 nanometers. The HEPA filter can filter them
out.
Sterilizing UV light
UV sterilization using 365 nanometer UV wavelengths light can kill a variety of airborne bacteria. The
UV disinfection lamp is generally used for air, surface, and water disinfection. It can purify the air,
eliminate musty odors, as well as produce a certain amount of anions. This makes the air fresh while
avoiding the spread of viruses in the air or on surfaces.
Anion Purifier
A large amount of anions are released into the air, which oxygen molecules then add to their outer shell
to obtain a negative charge. It has an extraordinary ability to combine with positively charged floating
dust, smoke, bacteria, and viruses indoors. This makes free floating debris fall, thus purifying the air
and environment without harm to humans. These ultrafine particles are difficult to filter out with common
mechanical equipment. Anions in the air have a special ability to capture these harmful substances.
The smaller the size of the particle, the higher the capture rate. It is an effective way to eliminate these
pollutants.
Display Screen

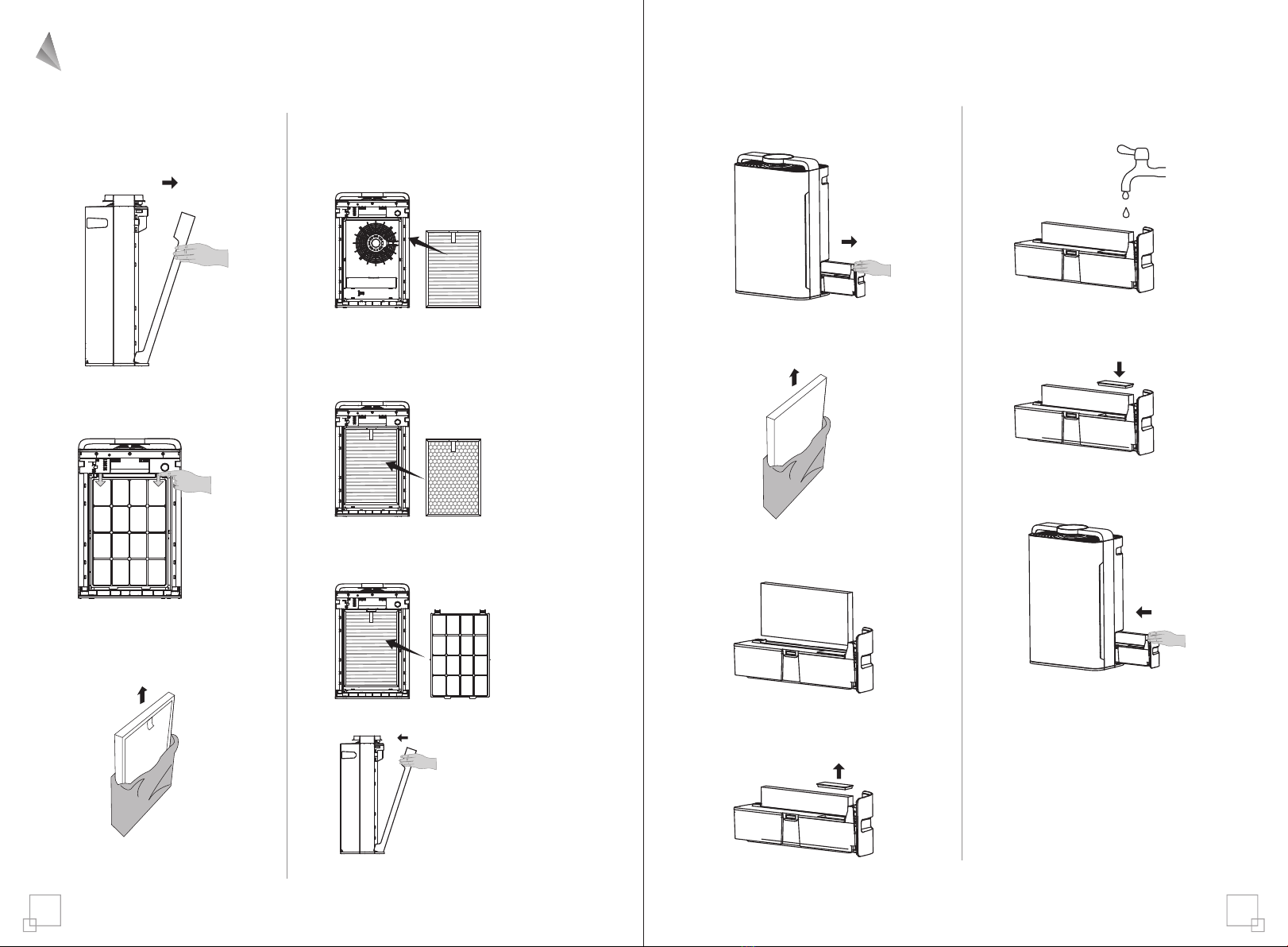

Installing the Filter
A.There are differences between the inside and the
outside of the dust filter 1 (antibacterial cotton
filter and HEPA filter). Attention: The side with a
handle should be placed outwards
B.There are differences between the inside and the
outside of the absorption filter 2 (Cellular -Activated
Carbon Filter and cold catalyst filter).
Attention: The side with a handle should be placed
outwards
C.There are differences between the inside and the
outside of the front filter (pre-filter). Attention: The
side with a handle should be placed outwards
D.Install the front cover
0504
1. Removing the filter from the
plastic bag:
2. Installing the filter and front cover.
A. Remove the front cover.
B. Remove the filter.
C. Take the filter out of the
packaging.
※Make sure to remove plastic bag off the
filter before use. ※The machine will not run if the front panel is
uncovered.
Prepare for humidification
1. Pull the water tank out from the side of the
purifier.
2. Remove the package of the humidifying
filter.
3. Put the humidifying filter into the water tank.
4. Open the rubber lid of the inlet.
5. Add about 1L cold water through the inlet,
filling around 80% of the water tank.
6. After adding water, close the lid.
7. Push the tank back into the purifier.
8. This machine has evaporative
humidifying function.
If water is added into the water tank, the machine
will generate steam automatically. The
humidification effect is related to the wind speed,
and it works better when the machine is operating
at a higher gear. If the water level becomes low, the
indicator light will flash while the machine
continues working normally.

0706
Function Description
1. Powering On
2. Selecting the Operating Mode
When the machine is plugged in and on standby, "POWER" button works to turn on
the machine. After this button being touched for the second time, the machine
turns to standby state. (The icon is red when standby and green when on.)
AUTO
When the machine is on, after "auto" button being touched, negative ion generator
and germicidal lamp will start to work, and the gear will be changed according to
sensor's data. (The icon will stay on when the machine operates in auto mode,
otherwise it will be off.) Attention: If users change "wind speed" under auto mode,
the machine will quit this mode automatically.
Relations Between the Gear and PM2.5 Data
Gear PM2.5 Data
1 0-50
2 51-80
3 81-100
4 101-120
5 121-140
6 141-160
7 161-300
8 301-500
Light Color Gear PM2.5 Data Light Color
Yellow
Red
Green
Blue
TIMER
When the machine is on, every touch of "TIMER" button will add 1 hour to the
timing. When it accumulates to 12 hours, one more touch will turn it off.
(The icon will stay on when the machine operates in timing mode, otherwise
it will be off.)
INOIZER
When the machine is on, pressing "INOIZER" button will turn on negative ion
mode, and pressing one more time will turn it off. (The icon will stay on when the
machine operates in negative ion mode, otherwise it will be off.)
STERILIZE
When the machine is on, pressing "STERILIZE" button will turn on UV sterilization
mode, and pressing one more time will turn it off. (The icon will stay on when the
machine operates in sterilization mode, otherwise it will be off.)
RESET
This machine has a regular reminding function of filter replacement, which works
every 320 hours and 1500 hours. After every 320 hours, the indicator light on the
panel will flash to inform users to clean the filter No.1. After cleaning, press the
"RESET" button for 5 seconds, then the light will stop flashing. After every 1500
hours, the indicator light will stay on to inform users to renew the filter No.2 and
No.3. At that time, press the button for 5 seconds so that the timing can be reset.
The second function of the "RESET" button: When the machine is on, press this
button and the total working time will be shown in hours on the screen. This equals
a check of working time. Since the screen can only display three figures, the
thousands digit will be displayed first, then hundreds, tens and single. Please
read them together.
Power
SLEEP
When the machine is on, it will turn to sleeping mode 5 seconds after the
"SLEEP" button being pressed. In sleeping mode, all the lights turns off and the
machine works at the first gear. Press any button to wake it up and then press
"SLEEP" button to quit sleeping mode, or press "wind speed" button or smart
button to quit after waking it up.
CHILD LOCK
When the machine is on, touch "CHILD LOCK" button to lock all the buttons.
At that time all the buttons have no reaction to any touch, while the machine
still works how it is set before. Press "CHILD LOCK" button for 5 seconds
and the machine will quit this mode. (The icon will stay on when the machine
operates in child-lock mode, otherwise it will be off.)
When the machine is on, touch "+" or "-" to switch the gear and change the
operating speed. After the gear being changed, the motor will work only at the
setting level without being affected by the sensor. (Touch "wind speed"
button, and the machine will quit auto mode)
In auto mode, the machine will turn to sleeping mode 2 minutes after the
surrounding light <5x. It will quit sleeping mode 3 minutes after the
surrounding light >5x, and then continue to work in auto mode.
Wind Speed
Light-sensitive

0908
3. Powering Off
If you press the power button on the operational panel while the machine is
running, the machine will enter into standby mode. (And the icon will turn red)
Power
4. Remote Control
This product is provided with a remote control powered by button cells. (Please
take out the cell if the remote control will not be used for long periods) Attention:
There is a one-to-one correspondence between the buttons on the remote control
and the operation panel. The functions and operation methods are generally the
same. Attention: On first use, please take out the cell cover and remove the
protective film of the cell, then replace the cell and its cover. Otherwise without
power supply the remote control will not work.
1. Auto mode. When the machine is plugged in, press "power" button and "auto" button in
sequence, then it can operate under the control of intellisense. The motor's operating gear
will adjust automatically to the PM2.5 data collected by the sensor. This mode is suitable for
most situations.
2. Compulsory mode. When the machine is plugged in, press "power" button. Press "wind
speed" button to choose the gear, and then choose to turn on or off the negative ion
generator and the UV germicidal lamp. This mode is suitable for the situations where
compulsory purification is needed. The machine cannot change the gear automatically in
this mode.
3. Night mode. In the two modes mentioned above, the machine will turn to work at the first
gear as long as "sleeping" button is touched, making sure there is no noise affecting your
rest. (In auto mode, it will turn to sleeping mode when the environment becomes dark,
sensed by the photosensitive sensor)
4. Timing mode. In the three modes mentioned above, after "timing" button being pressed
and operating time being set, the machine will start to count down. The machine will stop
working after the countdown is finished. (If you need to cancel the countdown, please press
the button until the time displayed is accumulated to 12 hours, then one more touch will
cancel this mode)
5. Child-proof lock mode. In the four modes mentioned above, the machine will turn to child-
proof lock mode after "child-proof lock" button is pressed. Any operation through the panel
or the remote control will be invalid before quitting this mode. (It can be quitted by pressing
"child-proof lock" button for 3 seconds or the unlock button on the remote control.)
During Installation
2. The product must be placed on the floor for pollen and other indoor
dust. Since such particles easily fall near the floor, we recommend placing the product on
a flat surface on the floor.
4. Do not place items on the main unit or it may lead to malfunction.
Be careful not to place magnets or any other metal items on here.
3. For effective room circulation, place the product approximately 30cm
or more away from walls or other objects.Please keep the backside at
least 20cm away from the wall to enable it to work more effectively.
1. Do not place in direct sunlight, facing air conditioner vents, or heated
places. It may cause the unit to warp, deteriorate, discolor, or
malfunction.
Do not place near TVs or radios. This may distort images or produce
noise. Using the purifier remote may cause interference with your TV
or radio. Please place at a distance of 1m or more away from these
devices. In addition, if you are sharing outlets with these devices,
plugging in the purifier may distort images or produce noise. If this
happens, please plug the purifier into a different outlet.
5. Do not block the exhaust vent or supply vent. For example, do not
place an object on top of the exhaust vent or in front of the supply vent.
Sunshine
1m
Item
≥30cm
≥30cm
Precautions
Exhaust Vent
Supply Vent
How to Use

1. Do not pick up or move the machine while it is running. When moving or storing, do not pull
the power cord. This may cause a short circuit or do internal damage to the power cord. This
may lead to a fire or electric shock.
220V~
5A
Prohibited
2. Do not damage power cord or outlet. Do not cut, excessively twist,
pull, or bend the power cord. If the power cord is damaged, for your
safety please call the manufacturer, service department, or a trained
professional to replace it.
3. Do not use power supplies, universal sockets, or connective devices
that exceed the recommended power rating. Use only 220V~ 5A AC
power. Using a universal socket or connected power source that
exceeds this rating may lead to overheating and cause a fire.
4. Do not touch the plug with wet hands. This may result in electrical
shock.
5. Do not place your fingers or metal objects into the air vents. This may
cause electrical shock or injury.
6. To avoid electrical shock or fire, do not allow water, flammable
cleaners, or other liquids enter the product.
11.The two arches at both sides of the operation panel are not handles
and cannot be pulled. The handles are at both sides of the purifier
body.
12.Do not place this machine up-side-down, because there is a liquid humidification
device in it.
13.Do not place in the following locations:
-Unstable places: this may cause the product to topple or fall down. This may lead to injury,
electrical leakage, or fire.
-Hot or humid places, such as the shower: this may result in electrical shock or fire due to
electrical leakage.
-Places like the kitchen that emit fumes.
14、Do not use the air purifier in a room that is using an incense-type insect killer.
-Chemical residue may accumulate in the machine and then be released, causing harm to
physical health.
-After using insect killer or mosquito coils, allow the room to be fully
ventilated before using the air purifier.
1110
√
×
7. This product cannot replace normal ventilation equipment, vacuum
cleaners, or kitchen fans.
8. Please do not use this product near gas appliances, heating
appliances, or stoves.
9. Do not use this product in a humid or hot environment, such as the
shower, restroom, or kitchen.
10. Make sure the remote is placed somewhere children cannot reach to
avoid unintended damage.

12
220V~
5A
Mandatory
1. Should any of the following conditions occur, turn off the machine immediately
(electrical shock, sparks, or smoke may occur):
-Strange noises or vibrations during operation.
-Product is unusually hot, or has a burnt odor.
2. Please clean the plug regularly
If there is dust or moisture on the plug it could damage it. This may result in a fire.
-Unplug the power cord, and wipe it with a dry cloth.
-Unplug the power cord if the appliance is not used for a long period of time.
3. Before electrical maintenance, make sure to unplug the device.
-The product may suddenly turn on, leading to electrical shock or injury.
4. Please plug the power cord securely into the power outlet. If the plug is not
securely seated, this may cause overheating which may lead to electrical shock
and even fire.
-Do not use a damaged plug or loose power outlet.
5. Please unplug the cord using the plug insulator.
-Pulling the power cord to unplug it may cause damage to the
power cord, electrical shock, short circuit, or fire.
6. Should any of the following circumstances arise, please turn off the machine
power immediately and contact the service department:
-A switch does not work.
-Power cord or plug is unusually hot.
-You detect an abnormal sound or vibration.
-Any other abnormalities or malfunctions.
7. To prevent the hazard of electrical shock, only trained professionals should
disassemble the machine.
2. Cellular -Activated Carbon, cold catalyst filter (approximately once every two months)
-Clean the dust from the front of the filter with a vacuum cleaner.
-Place the filter in a ventilated area, this will allow harmful gasses
and germs to dissipate. Do not place under too much sun exposure.
-The filter is delicate. Do not press too hard on the filter while
vacuuming.
-Do not use water to clean this filter.
1. Pre-filter (approximately twice per month)
-Clean the surface of the filter with a vacuum cleaner or wash
with water. Allow to dry thoroughly.
Filter/Dust Sensor/Anion Producer Cleaning and Maintenance
For IEC:This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.Children should be supervised to ensure that they do not play
with the appliance.If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
For EN:This appliance can be used by children aged from 8 years and above and persons
with reduced physical,sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
13

3. Antibacterial cotton, HEPA filter (approximately once every two months)
-Place the filter in a ventilated area, this will allow harmful gasses
and germs to dissipate. Do not place under too much sun exposure.
-Do not use water to clean this filter.
-When you hear the machine produce
a creaking sound, use a #1 or #2
paintbrush as a cleaning tool. Insert
the brush from the ventilation window
above the anion emission head.
Regularly clean the dust all around
the emission head.
4. Anion producer cleaning and maintenance.
Paintbrush
1514
5. Particulate sensor (approximately once every two months).
Wipe the lens with a dry cotton swab periodically to remove any dirt. (Moisture or tobacco smoke residue
may cause it to no longer work properly). First remove the particulate sensor cover, use a dry cotton swab
to wipe the lens.
-Do not insert the cotton swab into any area other than the lens.
-Be sure to unplug the power cord.
-If you are unable to see clearly, please use a light.
Cotton Swab
※Friendly Reminders:
-Before cleaning and maintenance, unplug the power cord.
-Do not operate the machine in absence of a filter. It will not be able to remove the dust. Dust taken into
the machine may cause malfunction.
-When not using the machine for a long period of time, please unplug it. Power is also consumed while
in standby mode.
-You may need to replace filters sooner depending on where and how you use the appliance (such as a
household with a large smoking population or areas with higher air pollution). Replace the filter if
filtration is not noticeable.
1PC
Packaged Items
Body
Remote Control
Filters
Instructional Manual
1PC
3PCS
1PC
Humidification Mesh
1PC

16
Common malfunctions, error code description, and troubleshooting method.
Malfunction Inspect / How to fix
Cannot turn on power or
pressing button has no
response.
1. Is the purifier in a place that cannot easily absorb the dirty air
(dust)? Move it somewhere else.
2. Is the particulate sensor dirty? Clean the particulate sensor.
There is a banging or chirping
sound while running.
1. Is the filter dirty? Clean the filter.
2. Has the filter been replaced in a long time?
Replace the filter.
The purifier has been running for
a long time but has had no
significant improvement in air
quality.
The display shows F1 or F2. Please turn off the power immediately and contact the
maintenance department.
Machine immediately goes to
sleep mode. Deactivate automatic mode.
Troubleshooting
1.Is the Power cord plugged in? Plug in the power cord.
2.Is the purifier covered? Close the front cover.
3.Is the machine placed vertically on the ground? Place the
machine on a flat surface. Is the machine in child-lock mode?
When “Child-lock” appears on the display, hold the lock/reset
button for 5 seconds to turn off the child-lock.
The air is dirty, but the air pollution
indicator says "green". The air
pollution indicator remains "red"
even when continuously running.
Is there too much dust on the anion producer?
Clean the anion producer.
The smell of the supply vent is
unpleasant.
1. Was the plastic bag on the filter removed?
Remove the plastic bag from the filter before using.
2. Is the filter order incorrect?
