OLI NO-TOUCH User manual

NO-TOUCH
User manual
Bedienungsanleitung
Инструкция по применению
AC10000879611.4


3
EN
DE
RU
1 - ЦЕЛЕВАЯ АУДИТОРИЯ
2 - ОБЯЗАТЕЛЬНО ДЛЯ ОЗНАКОМЛЕНИЯ
3 - БЕЗОПАСНОСТЬ И СИМВОЛЫ
4 - ПЕРЕД УСТАНОВКОЙ
5 - УСЛОВИЯ СБОРКИ НА МЕСТЕ
6 - ИЗДЕЛИЕ
7 - ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
8 - ПЕРВОЕ ИСПОЛЬЗОВАНИЕ
9 - ПРИНЦИП ДЕЙСТВИЯ
10 - ФУНКЦИИ И НАСТРОЙКИ
11 - ЭНЕРГИЯ И ДОЛГОВЕЧНОСТЬ
12 - ВЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ
13 - УХОД И ТЕХНИЧЕСКОЕ ОБСЛУЖИВАНИЕ
14 - ОФИЦИАЛЬНОЕ УВЕДОМЛЕНИЕ
1 - ZIELGRUPPE
2 - PFLICHTLEKTÜRE
3 - SICHERHEIT UND SYMBOLE
4 - VOR DER INSTALLATION
5 - MONTAGEBEDINGUNGEN VOR ORT
6 - PRODUKT
7 - TECHNISCHE SPEZIFIKATION
8 - ERSTE BENUTZUNG
9 - FUNKTIONSPRINZIP
10 - FUNKTIONEN UND EINSTELLUNGEN
11 - ENERGIE UND NACHHALTIGKEIT
12 - FEHLERBEHEBUNG
13 - PFLEGE UND WARTUNG
14 - GESCHÄFTSBEDINGUNGEN
1 - TARGET AUDIENCE
2 - REQUIRED READING
3 - SECURITY AND SYMBOLS
4 - BEFORE INSTALLATION
5 - ON-SITE ASSEMBLY CONDITIONS
6 - PRODUCT
7 - TECHNICAL SPECIFICATIONS
8 - FIRST USE
9 - PRINCIPLE OF OPERATION
10 - FUNCTIONS AND SETTINGS
11 - ENERGY AND SUSTAINABILITY
12 - TROUBLESHOOT
13 - CARE AND MAINTENANCE
14 - TERMS & CONDITIONS
5
5
5
6
6
7
8
8 - 9
10
11 - 14
14
15 - 17
18 - 22
22
23
23
23
24
24
25
26
26 - 27
28
30 - 32
32
33 - 35
36 - 40
40
41
41
41
42
42
43
44
44 - 45
46
47 - 50
50
51 - 53
54 - 58
58

4

5
EN
RU
DE
1-TARGET AUDIENCE
These assembly instructions are intended for installation companies specializing in sanitary systems with
electrical components. The product described in these instructions must only be installed by authorized
installation companies in the area of sanitary systems.
2-REQUIRED READING
The installation company is committed to read, understand and observe the assembly instructions and, in
particular, the chapter on safety regulations. If you have any questions, please contact OLI sta.
3-SECURITY AND SYMBOLS
MEANING OF SAFETY NOTICES AND SAFETY STANDARDS
SAFETY NOTES
The pictograms and signs relating to safety instructions, precautions and warnings in the installation
instructions have the following meaning:
Warning! Possible damaging situation, can damage the product or something around it.
Important! Instructions for use and other useful information to facilitate the use of the product
in accordance with the standards.
To test / attention to moisture.
Electrical voltage hazard.
System with hydro generator - Hydroboost
Mains power system - AC

6
EN
RU
DE
4-BEFORE INSTALLATION
Before starting the assembly, read thoroughly and understand the assembly instructions.
The product must be assembled, installed and connected only in accordance with these instructions.
Before applying your system confirm the compatibility of your installation at www.oli-world.com.
When planning and installing sanitary equipment, local, national and international regulations and standards
must be observed and respected.
Examine the contents of the product before beginning the assembly to verify that it is complete.
A product that is incomplete or has visible damage or malfunctions should not be installed. No liability can be
assumed for damages caused by improper transport or by temporary storage.
5-ON-SITE ASSEMBLY CONDITIONS
Water grid pressure 0.5 bar at
max. 10 bar
Water grid pressure 0.5 bar at
max. 10 bar
Mains voltage
110 - 240 VAC / 50-60Hz with a
general switch for all poles
connected to mains supply and
contact opening capacity of 3 mm.

7
EN
RU
DE

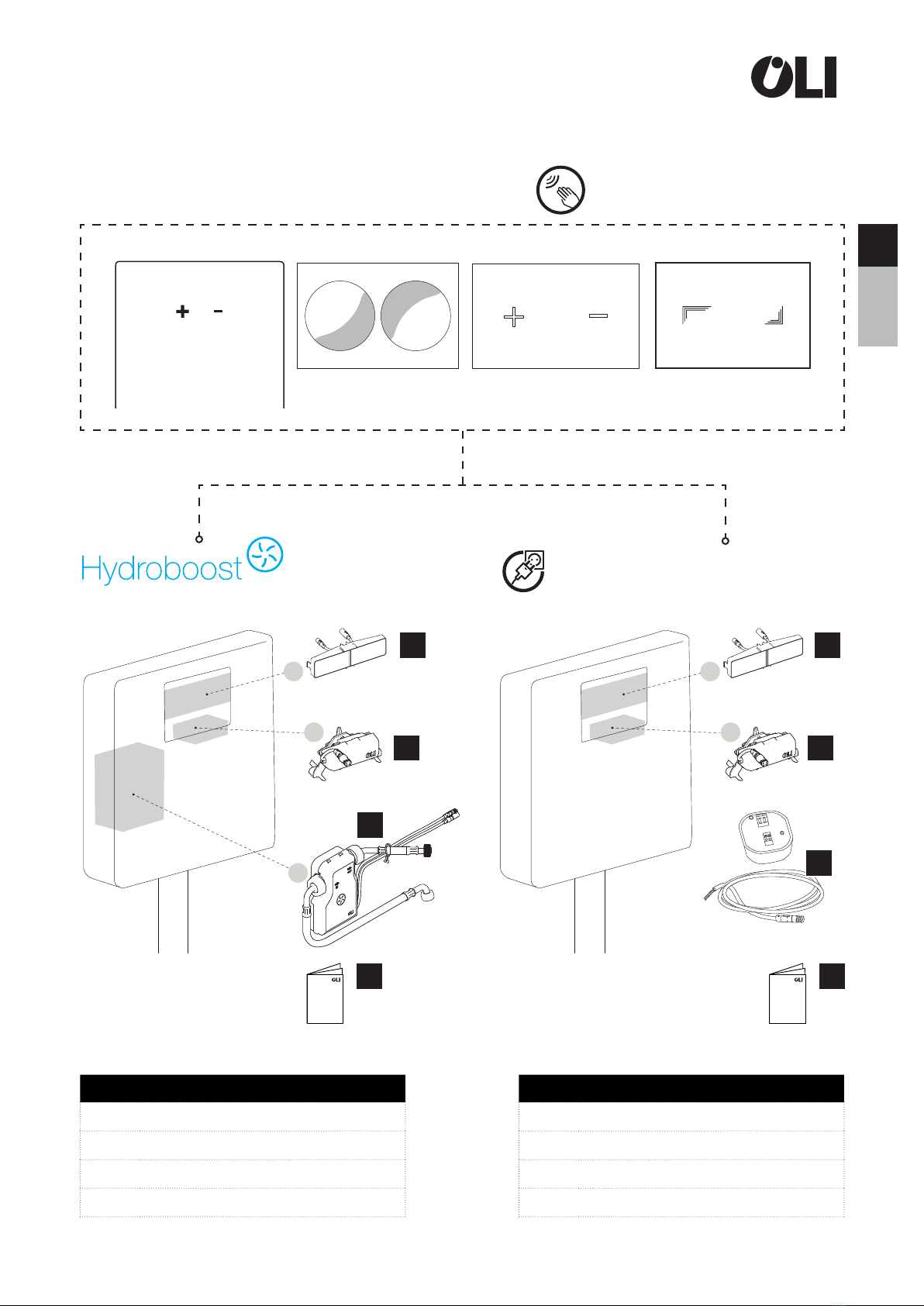

NR DESCRIPTION
1 CAPACITIVE SENSOR
2SERVOMOTOR
3 HYDRO GENERATOR
4 ASSEMBLY INSTRUCTIONS
NR DESCRIPTION
1 CAPACITIVE SENSOR
2SERVOMOTOR
3TRANSFORMER
4 ASSEMBLY INSTRUCTIONS
6-PRODUCT
AC power-mains
1
2
3
44
1
2
3
NO TOUCH
QR-INOX MOON GLASSY TRIBE

8
EN
RU
DE
7-TECHNICAL SPECIFICATIONS
HYDROBOOST
RATED VOLTAGE 6.4V DC
BATTERY TYPE LiFePO4
BATTERY CAPACITY 3000mAh
OPERATION WATER
PRESSURE 0.5 - 10 BAR
REDE ELÉTRICA
OPERATION VOLTAGE 110 -24 0 V AC
GRID VOLTAGE 50-60 HZ
TYPE OF GRID CON-
NECTION BORNE KRE
OPERATION WATER
PRESSURE 0.5 - 10 BAR
• Non-contact electronic flush system
• Capacitive Sensor Dual Flush
• For front flush plate installation GLASSY /
TRIBE / MOO or QR installation QR-INOX
• IP68 protection rate
• Customizable LED lighting
• Configurable hygienic flush
8-FIRST USE
BEFORE ANY USE
For safety and longevity of the system, the battery of the hydro generator is only partially
charged. For optimum use, the full charge of the hydro generator, with the supplied charger, is
advised before any use (see Charging the Battery in the maintenance chapter).

9
EN
RU
DE
Once the sensor is connected to the power
source, it will confirm that it has energy
through 3 consecutive flashes.
After the standby period has elapsed, the
calibration routine starts automatically and
its completion is communicated again by
3 consecutive flashes. The system is ready
for use.
There is a 20-second period in which
the user / installer should complete the
installation and place the system in its final
operating position.
2
Note: For proper operation of the product, calibration must be performed with the sensor /
flush plate in its final operating position. Otherwise, the product may not detect the user or
cause incorrect or unwanted flushes. If any of these symptoms occur, turn o the system and
follow this procedure again.
1
3
X3
00.00
0:00:20.00
CLICK
2
1
X3
CALIBRATION
To ensure correct operation of the flush plate over a variety of environmental conditions - temperature and
humidity - the sensor is equipped with an automatic calibration function (procedure)
In the ceramic flush plate there
is no feedback (the flashes are
not visible in the ceramic flush
plate).
In the ceramic flush plate there
is no feedback (the flashes are
not visible in the ceramic flush
plate).

10
EN
RU
DE

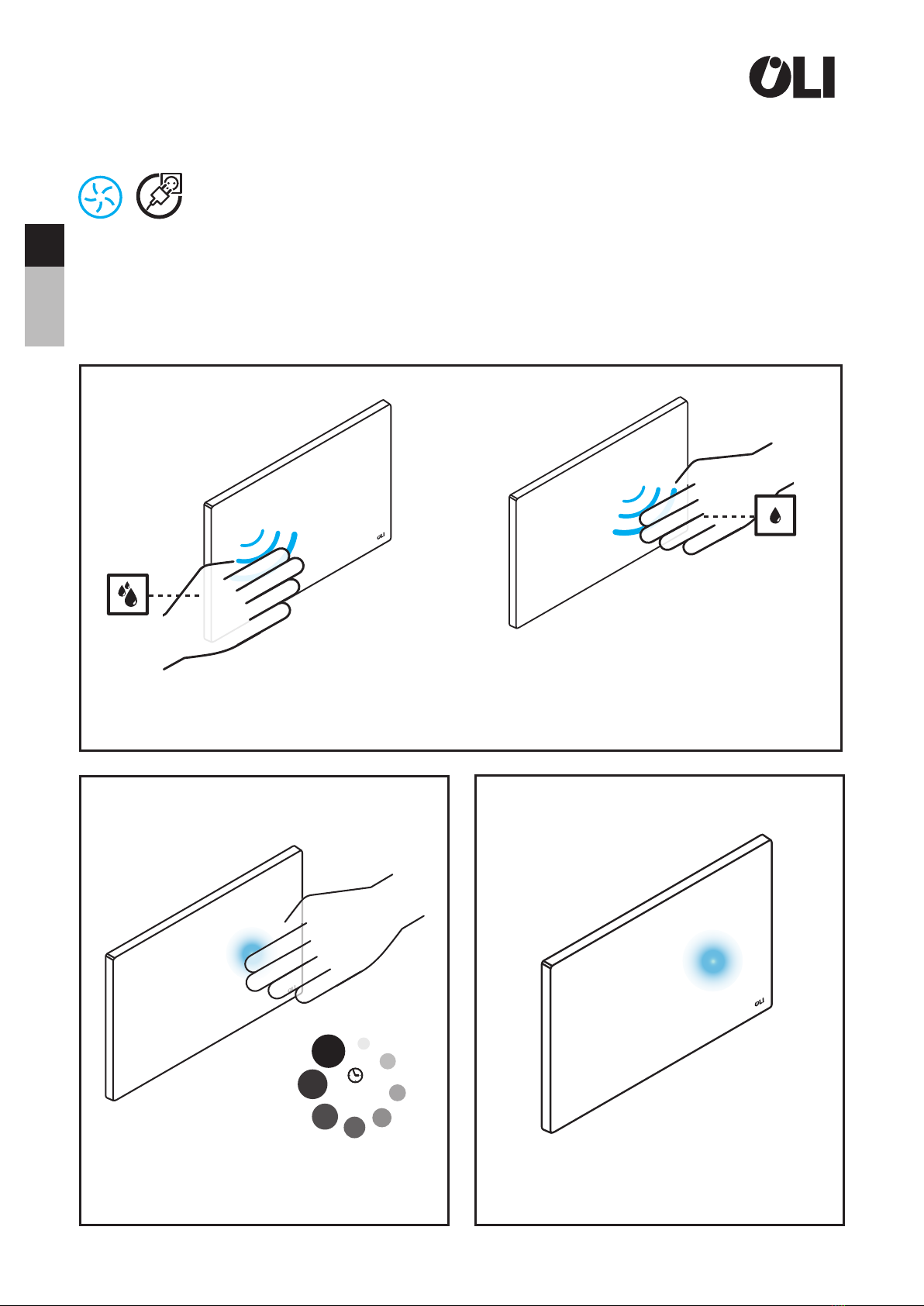

9-PRINCIPLE OF OPERATION
SYSTEM ACTUATION
The realization of no touch flushes is achieved through an electronic system, composed of capacitive
sensors, that senses user inputs. Detection is made up to 30mm from the flush plate.
INTERACTION
1
2
Move your hand close to the flush symbol you want to perform
Remain until the LED lights up or the flush
is performed
Remove your hand
Higher volume flush (full flush)
(left capacitive button)
Lower volume flush (half-flush)
(right capacitive button)
0:00:01.00
3

11
EN
RU
DE

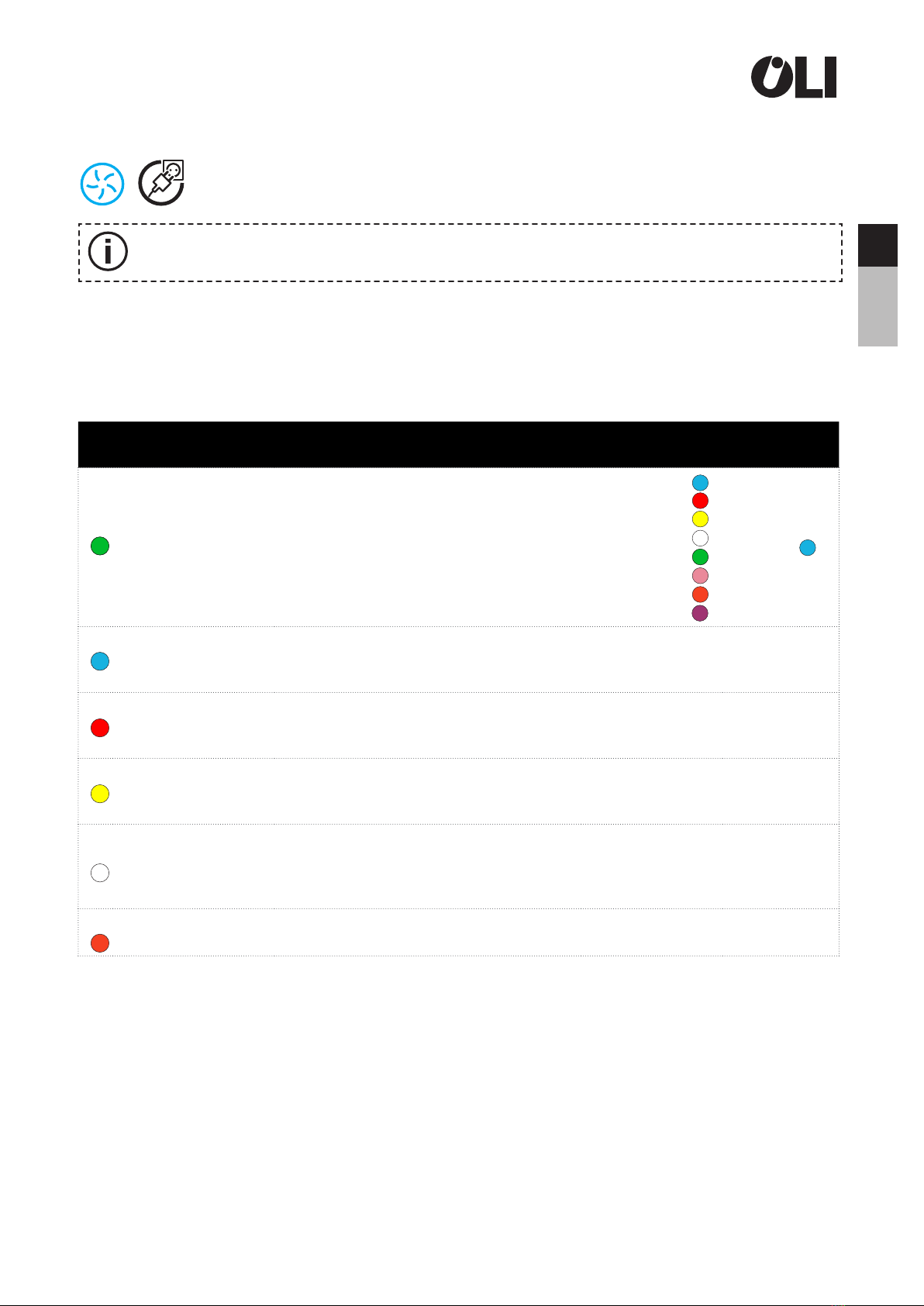

10-FUNCTIONS AND SETTINGS
FUNCTION DESCRIPTION AVAILABLE
SETTINGS
FACTORY
SETTINGS
Colour adjustment
of the LED lights
The following colours can be set: Blue,
Red, Yellow, White, Green, Violet,
Orange, Purple
Blue
Red
Yellow
White
Green
Violet
Orange
Purple
Blue
Sensor sensitivity
adjustment
The sensor allows you to adjust the
detection sensitivity in three levels
Low
Medium
High
High
Enable or disable
duty flush
The sensor allows automatic flushs to be
performed at regular intervals if there is
no frequent usage
ON
OFF OFF
Set automatic/
hygienic flush timing
It is possible to define three regular time
intervals between automatic flushes
3H
24H
72H
24H
Enable or disable
sensor lighting
For greater energy savings (or if the
ceramic flush plate is used), it is possible
to deactivate the sensor illumination
ON
OFF ON
Reset factory
settings
The parameters for all functions are reset
to the factory default values Reset -
MENU NAVIGATION
Navigation through the 6 menus is done using the physical button on the back of the sensor. To activate the
menu, press the button for 5 seconds. The illumination of both sensors will light up and the colour of the LEDs
indicates the active menu.
For functions and settings in the ceramic flush plate, see page 14 to disassemble the flush plate.

12
EN
RU
DE

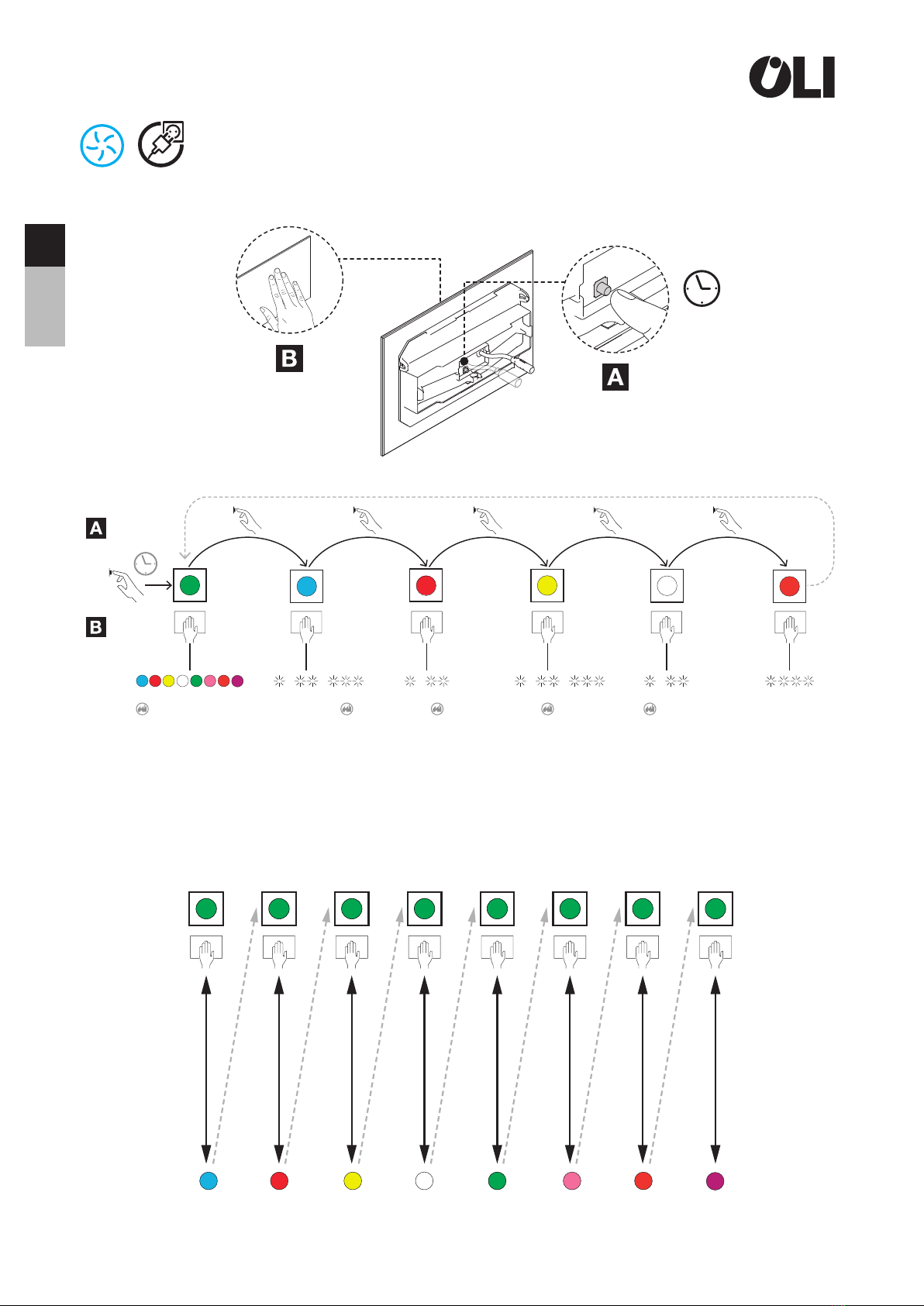

SETTINGS AJUSTMENT
The navigation and settings definition of each function is done on the full flush capacitive button.
After choosing the menu you want, to go through each one of the options you have to proceed as follows,
when approaching your hand to the discharge symbol the first menu option will appear. If you want to
change to another menu option, you always have to bring your hand closer to the discharge symbol.
Check the scheme below:
NAVIGATION BETWEEN MENUS
Low Medium High 3H 24H 72HON OFF ON OFF
START
0:00:05.00
RESET
Baixa Média Elevada 3H 24H 72HON OFF ON OFF
START
0:00:05.00
RESET
Basso Medio Alto 3H 24H 72HON OFF ON OFF
START
0:00:05.00
RESET
Bajo Medio Alto 3H 24H 72HON OFF ON OFF
START
0:00:05.00
RESET
Niedrig Mittel Hoch 3H 24H 72HAn Aus An Aus
START
0:00:05.00
RESET
Низкий Средний Высокий 3 ч. 24 ч. 72 ч.ВКЛЮЧЕНО ВЫКЛЮЧЕНО
START
0:00:05.00
Перезагрузить
систему
ВКЛЮЧЕНО ВЫКЛЮЧЕНО

13
1
X3
With each change made, the flush plate/
sensor reports the new setting status
through the number of flashes (e.g. in
menu , the indication that the high
sensitivity level has been selected is given
by 3 consecutive blue flashes).
To validate your changes and exit the
menu, wait 10 seconds without interacting
with the sensor. The flush plate is ready for
use when the lights go o.
2
0:00:10.00
Note: All settings are stored in the sensor memory even when the sensor is out of power or is
restarted.
EN
RU
DE
After setting the desired menu option, wait, and the system will take your option and return to discharge
mode. As you can verify below:
These procedures are the same for all menus.

14
EN
RU
DE
When the cistern is being filled - when water flows from the angle valve to the filler mechanism - the hydro
generator generates an electric current. This energy is stored in the battery for later use. In turn, this battery
feeds the capacitive sensor for the user interface and actuator mechanism to perform flushes.
The high-capacity battery pack ensures system operation for several months, even with reduced product
usage.
With more frequent use, their lifetime is extended, thanks to the energy generated by the hydro generator - the
surplus energy generated is accumulated in the batteries.
*It is possible to recharge the batteries through the provided charger.
FLUSHES PER DAY CHARGES (2 YEARS)
05
5 4
10 3
15 2
20 1
25 0
11-ENERGY AND SUSTAINABILITY
DISASSEMBLY OF CERAMIC FLUSH PLATE
To access the menu settings on the ceramic flush plate it is necessary to disassemble the flush plate as
instructed.
UNLOCK
UNLOCK
CRACK
12
3
4
-
+-
5

15
EN
RU
DE
12-TROUBLESHOOTING
MALFUNCTION POSSIBLE CAUSE PROCEDURE
Flush plate flashes red after flushing • Low energy level • Recharge battery
Flush plate flashes red and doesn’t flush
• Extremely low energy level • Recharge battery
• Faulty mechanism • Replace flush mechanism
• Obstructed servomotor • Check the flush mechanism (outlet
valve) configuration
Frequent low battery (red flashes) indication • Clogged filter • Verify/clean the filter
• Faulty hydro generator • Replace hydro generator
When interacting with the flush plate, lighting works
but no flush is performed
• Faulty software • Reboot system
• Servomotor misconnection • Check connections
• Faulty servomotor • Replace servomotor
• Empty cistern
• Check angle valve
• Check for eventual blocking in the
filling mechanism (inlet valve)
• Check for water in the grid
When interacting with the flush plate, lighting doesn’t
work but a flush is performed
• Faulty software • Reboot system
• LED function deactivated • Check LED function setting
When interacting with the flush plate, lighting doesn’t
work and no flush is performed
• Faulty software • Restart system
• Drained battery • Recharge battery
• Misconnections • Check connection with hydro
generator
• Faulty hydro generator • Replace hydrogenate
• Poor calibration • Reboot system
• Faulty sensor • Replace sensor / flush plate
When interacting with the flush plate, two flashes in
both sensors are presented and no flush is performed
• Cleaning mode activated due to poor
calibration • Reboot system
• Excessive condensation inside the flush plate • Verify / clean flush plate interior
Ceramic bowl cleaning is not eective • Flush volumes may be set incorrectly
• Check the flush mechanism (outlet
valve) configuration
• Check if the filling mechanism (inlet
valve) is performing correctly
Water runs continuously in ceramic bowl
• Faulty software • Reboot system
• Faulty rubber sealing • Replace rubber sealing
• Faulty flush system • Replace flush system
• Faulty filling mechanism (inlet valve) • Replace filling mechanism (inlet valve)
Unprovoked flushes • Hygienic automatic flush activated • Verify hygienic automatic flush
function setting
• Poor calibration • Reboot system
Incorrect flushes
• Faulty software • Reboot system
• Dirty or wet flush plate • Verify / clean flush plate interior
• Poor calibration • Reboot system
Charger doesn’t show green light
• Faulty wall charger • Replace the wall charger
• Faulty hydro generator • Replace hydro generator

16
EN
RU
DE
12-TROUBLESHOOTING
MALFUNCTION POSSIBLE CAUSE PROCEDURE
Long filling times
• Clogged filter • Verify/clear hydro generator filter
• Low water grid pressure (<2 bar/>120s) • Remove flow regulator from the filling
mechanism (inlet valve)
When interacting with the flush plate, lighting works but no
flush is performed
• Faulty software • Reboot system
• Servomotor misconnection • Check connections
• Faulty servomotor • Replace servomotor
• Empty cistern
• Check angle valve
•Check for eventual blockage in the filling
mechanism (inlet valve)
• Check for water in the grid
When interacting with the flush plate, lighting doesn’t work
but a flush is performed
• Faulty software • Reboot system
• LED function deactivated • Check LED function setting
When interacting with the flush plate, lighting doesn’t work
and no flush is performed
• Faulty software • Reboot system
• Blackout • Check electrical power
• Faulty software • Reboot system
• Faulty software • Check connections to the mains adaptor
• Misconnections • Check connections to the mains adaptor
• Faulty mains adaptor • Replace mains adaptor
• Poor calibration • Reboot system
• Faulty sensor • Replace sensor / flush plate
When interacting with the flush plate, two flashes in both
sensors are present and no flush is performed
• Cleaning mode activated due to poor calibration • Reboot system
• Excessive condensation inside the flush plate • Verify / clean flush plate interior
Ceramic bowl cleaning is not eective • Flush volumes may be set incorrectly
• Check the flush mechanism (outlet valve)
configuration
• Check if the filling mechanism (inlet valve)
is performing correctly
Water runs continuously in ceramic bowl
• Faulty software • Reboot system
• Faulty rubber seal • Replace rubber seal
• Faulty flush system • Replace flush system
• Faulty filling mechanism (inlet valve) • Replace filling mechanism (inlet valve)
Unprovoked flushes
• Hygienic automatic flush activated • Verify hygienic automatic flush function
setting
• Poor calibration • Reboot system
Incorrect flushes
• Faulty software • Reboot system
• Dirty or wet flush plate • Verify / clean flush plate interior
• Poor calibration • Reboot system

17
EN
RU
DE
2
1

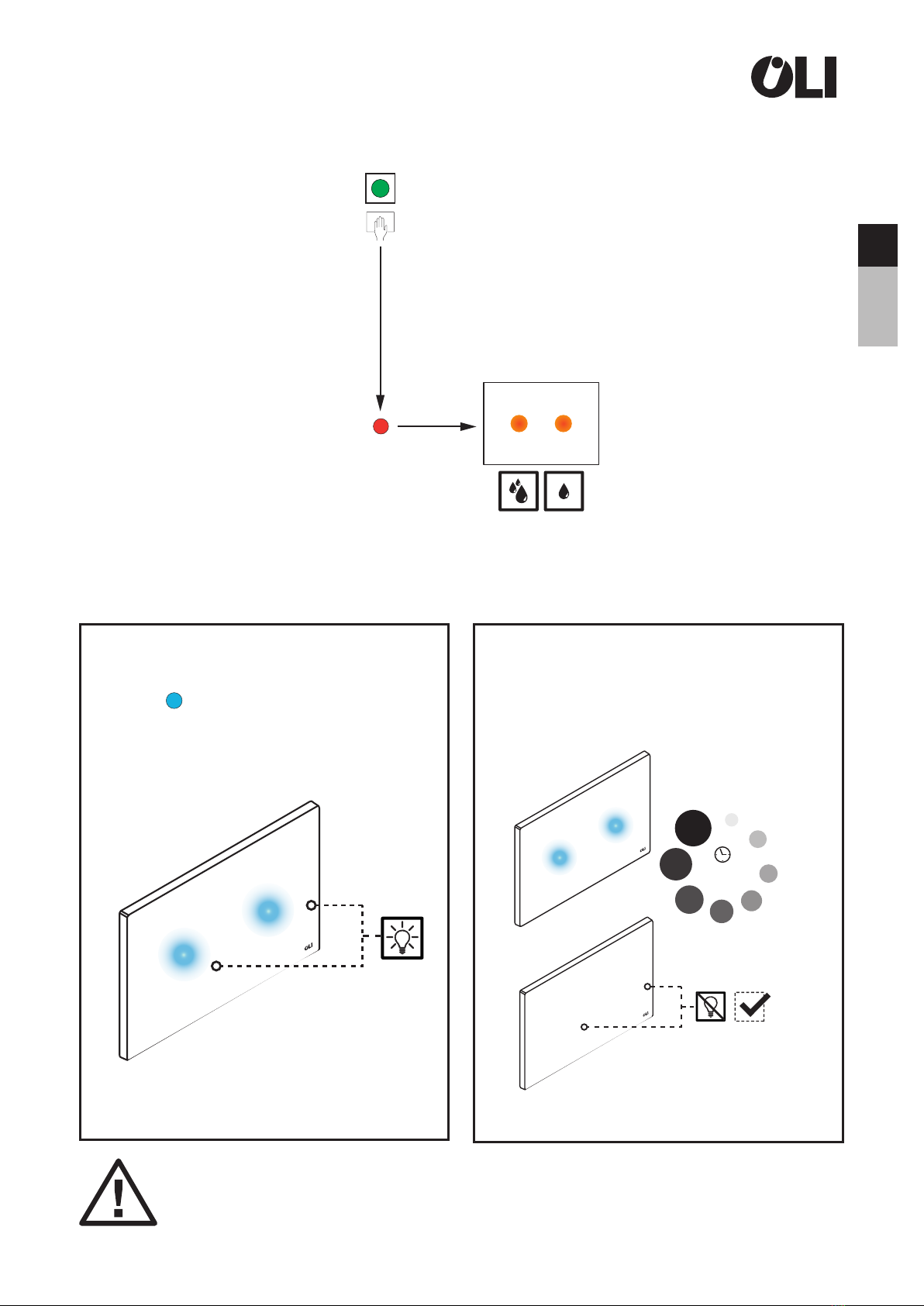

MANUAL CALIBRATION
To calibrate the servomotor you need to press the button at the back of the sensor.
The button should be pressed during 30 seconds or more (1) until the two blue flushes (2) light
up.
After the blue light appears, you can calibrate by placing your hand over one of the capacitive
buttons.
When positioning the hand over the half flush capacitive button (A), the servomotor will move to
the left. If you place your hand over the full flush capacitive button (B) the servomotor will move
to the right.
> 0:00:30.00
12
ZOOCK!!
0º
CHECK

18
EN
RU
DE

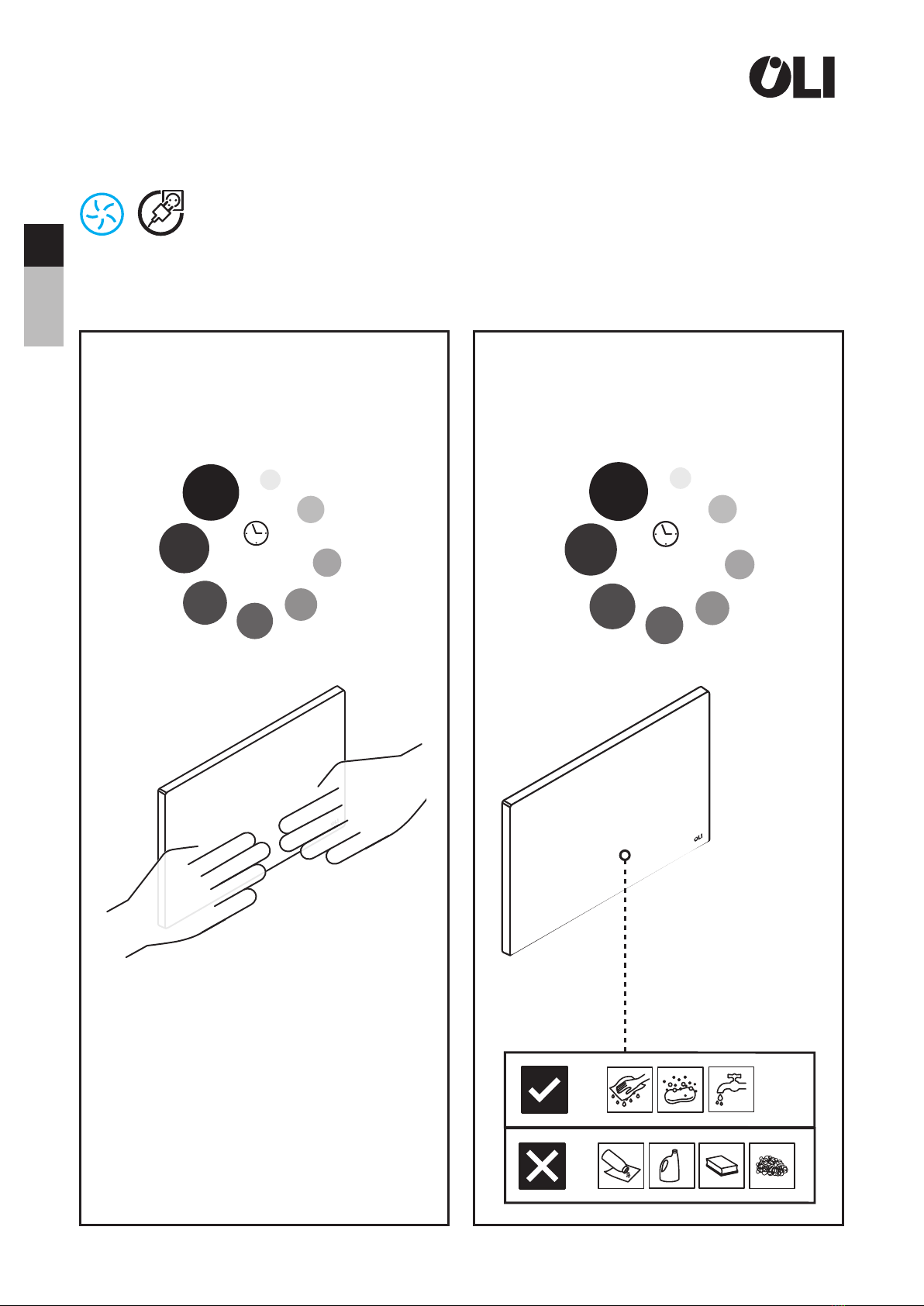

13-CARE AND MAINTENANCE
CLEANING MODE
The flush plate has a cleaning mode that allows the user to clean it without provoking undesired flushes.
Unlike the other functions, this
can be activated directly without
disassembling the flush plate, with
the simultaneous interaction of both
sensors for 10 seconds.
Once the cleaning time has elapsed -
60 seconds - the flush plate returns to
the normal operating mode.
21
0:00:10.00 0:00:60.00

19
EN
RU
DE
CLEANING THE FLUSH PLATE
The surface is simple to clean and care for. Use a soft cloth and soap and water solution for regular care.
Wipe clean with a dry cloth.
Avoid the use of abrasives or solvents, which damage the surface.
Damage caused by improper handling by the user is not covered by our warranty.
CLEANING THE FILTER
For protection of the hydro generator and filling mechanism (inlet valve), the Hydroboost system incorporates
a small particles filter in the water circuit. In case of installation in areas with polluted water/new buildings,
there is the possibility of debris accumulating over time and loss of circuit eciency
Therefore, periodic maintenance is advised.
Open the flush plate.
1disconnect all electrical connections and
remove counterplate.
2
CRACK
12

20
EN
RU
DE
Remove hydro generator
3wash thoroughly with water on both sides.
4
Table of contents
Languages:
Other OLI Plumbing Product manuals
Popular Plumbing Product manuals by other brands

Inta
Inta VR994CP quick start guide

Mora
Mora Izzy 150800 Instruction

Hans Grohe
Hans Grohe Metris Classic 31478 Series Instructions for use/assembly instructions

Toto
Toto TLP02301 Operation manual

HOESCH
HOESCH ERGO+ Series Installation and operation instructions

Salus
Salus SS901ZB Installation & quick start guide

Viega
Viega 8326.16 Instructions for use

Sanela
Sanela SLUN 34 Mounting instructions

Rona
Rona Collection 20035063 Operator's manual

Pfister
Pfister Bellance LF-042-BLL Quick installation guide

FORENO
FORENO FSHR1 quick start guide

Hans Grohe
Hans Grohe AXOR Citterio M 34132000 Instructions for use/assembly instructions
