Oliver Stoner Instruction Manual

STONER
OPERATING
INSTRUCTIONS
MANUAL
Oliver Manufacturing Company, Inc.
Box 512, Rocky Ford, Colorado 81067
[phone]
Fax [phone]

SAFETY PRECAUTIONS FOR
GRAVITY SEPARATORS
Read operator’s manual before using machine.
Always shut off the lock out power when performing maintenance or service.
Never operate machine with air filters removed.
Never operate with deck removed.
Never operate with missing or worn parts.
Never operate with air chest boot removed.
Never operate with worn or damaged decks.
Never use deck as table or workstation.
Never stand on machine.
Always wear face and eye protection when inspecting or adjusting machine.
Always insure machine and components are electrically grounded.
Keep machine clean and properly adjusted.
Inspect for wear and correct operation frequently.
If you have questions call the factory.
Make Safety First
And
Make It Last

STONER OPERATlNG lNSTRUCTlONS
I INTRODUCTlON
II lNSTALLlNG YOUR OLlVER STONER
Uncrating Your Oliver
Foundation Requirements
Electrical Connection
Clean Air Source
III HOW DOES A STONER WORK?
The Process of Stratification
The Theory in Practice
Oliver Steele's Guidelines for Use of
Gravity Separators and Stoners
IV CONTROLS OF THE OLlVER STONER
The Deck
The Four Basic Adjustments
Feed Rate
Tilt
Eccentric Speed
Air Adjustment
V START UP AND OPERATlON
lnitial Starting Procedures
Stoner Starting Procedures
lncreasing Capacity
VI IN CASE OF DlFFlCULTY - TROUBLE-SHOOTING
Feed Rate
Tilt
Eccentric Speed
Air
10 Most Frequent Problems
VII MAlNTENANCE
Decks
Drives
Vari-Speed Assembly
Bearings
Setting Balance Springs
Ordering Repair Parts
VIII AUXlLlARY EQUlPMENT
Dust Control Accessories
Page
1
2
2
2
2
3
4
4
5
7
8
8
9
9
9
9
10
11
11
11
13
14
14
14
14
14
14
17
17
17
18
18
18
19
20
20

I. lNTRODUCTlON
Congratulations! You have just purchased a well built machine that can earn substantial profits for you, if you
take time right now to understand the Oliver Stoner and how it works. The Operating lnstructions Manual con-
tains new, valuabie information that both experienced and inexperienced gravity operators will want to read.
Please take a few minutes to read the instructions to help eliminate many of the problems frequently encoun-
tered.
Keep in mind at all times that the stoner is not a "cure all" for the processor's problems. The stoner is a spe-
cialized piece of machinery designed to do one job very well. THE STONER SEPARATES PARTICLES
OF A SlMlLAR SIZE THAT DlFFER IN WEIGHT, ELlMlNATlNG HEAVY TRASH AND
STONES. THE STONER SHOULD NOT BE USED AS A CLEANlNG MACHINE TO REMOVE
DUST, DIRT, STlCKS AND OTHER REFUSE FREQUENTLY FOUND IN HARVESTED CROPS.
In all processing situations, the best results are obtained from the stoner when the product has been thor-
oughly pre-cleaned and sized, using the proper equipment for these purposes. Under these conditions, the
stoner is then able to show what it can really do!
-1- return to index

II. lNSTALLlNG YOUR OLlVER STONER
All Oliver Stoners are operated on test blocks at the factory for a minimum of two hours. During and after
operation, the drive train and controls are checked to insure that they will operate satisfactorily when you set
them up and punch the switch.
UNCRATlNG YOUR OLlVER
Although your Oliver is built to give years of service, it can be damaged while being uncrated. First the top of
the crate should be carefully removed. Then take off the sides. After the top and sides are withdrawn, the
Oliver Stoner can be disengaged from the bottom of the crate by removing the four 3/8" bolts located on the
mounting flanges of the stoner. While removing the crate, do not put anything on the separating deck. If the
deck is damaged, good separations are impossible. Also, be careful not to puncture the filter screens located
on the sides of the machine. If the filter screens are damaged, dirt may be sucked into the machine and may
plug the deck.
lmmediately after uncrating your Oliver Stoner, inspect for carrier damage. If the machine is impaired in any
way, it was caused in transit and a claim should be filed with the carrier.
The feed hopper, mounting brackets and discharge hoppers are attached to the inside of the crate or the
inside of the stoner. All items securely fastened inside the stoner may be removed by opening the filter
screens and cutting the tie wires.
FOUNDATlON REQUlREMENTS
Asolid foundation is required for your Oliver Stoner. False vibrations from flooring can ruin the separation
quality of the machine. A six inch concrete slab makes an ideal platform but is not essential. Many customers
operate Oliver Stoners on wooden floors with no problems. If you feel that your floor is insecure, please con-
tact the factory for recommendations.
When locating your stoner, be sure that you leave adequate clearance to operate the controls and to remove
the deck for changing or cleaning. To operate the controls and provide normal maintenance, we recommend
a minimum of 30 inches clearance. A space approximately equal to the dimensions of the deck is adequate
for deck removal from the heavy end. Please refer to our layout print at the end of these instructions for
dimensional information.
ELECTRlCAL CONNECTlON
After your stoner is mounted on a secure foundation, you are ready to install the motor and make the connec-
tions. If you ordered your stoner with a motor, it will be installed at the factory; and you will only be required to
make the necessary electrical connections. Factory-installed motors will be wired for 60 cycle, 220 volt, 3-
phase power unless otherwise specified. If your power supply is different and you order a motor, please
inform the factory well in advance of the shipping date, so the motor can be correctly installed. If you supply
your own motor, be sure that it is large enough to carry the load as specified in our literature.
-2- return to index

The motor is mounted directly to the motor mounting board installed for this purpose. Since motors differ in
their mounting requirements, it will be necessary for you to drill holes in the motor mounting board and attach
the motor with the size of bolts recommended by the motor manufacturers. The machine interior is accessible
by removing the filter panels. Be sure that the motor pulley is directly in line with the fan shaft pulley and that
the motor shaft and the fan shaft are parallel. After the motor is mounted, adjust the belts to the proper ten-
sion. When belts are too tight, excessive strain is placed on the bearings and will shorten bearing and belt
life. When belts are too loose, they will slip. This will cause the belts and pulleys to overheat and shorten their
life.
To check for proper belt tension, first turn the machine off. Then apply pressure to the side of the belt midway
between the pulleys. The belts should deflect approximately 1/2 inch. After the machine has operated for 8 to
10 hours, check the belts again. It is normal for new belts to stretch slightly, so the belt tension may have to
be adjusted.
When your electrician wires the motor, be sure that he connects it so that it will run in the proper direction. All
shafts, motor shaft, fan shaft and eccentric shaft, should run counterclockwise when viewed from the side of
the machine where the motor is installed. Proper fan rotation is very important and at least half of the prob-
lems with new stoners can be traced back to incorrect rotation.
CLEAN AIR SOURCE
Some customers need to bring in clean outside air rather than to draw dusty plant air through the filters
installed on the machine. For this purpose we supply an air nipple which can be used to bring air into the
machine. It can be installed by merely removing a filter screen and replacing the screen with an air nipple.
Connect your duct work to the air nipple that came with your machine. We recommend that you keep the duct
work shorter than 20 feet or use a booster fan. The clean air source should have a filter area not less than
the area of the deck surface.
After the stoner is installed and the motor wired so the fans rotate in the proper direction, familiarize yourself
with the theory behind stoner operation and the proper usage of the controls before attempting to make a
separation.
-3- return to index

III. HOW DOES A STONER WORK?
All gravity separators and stoners utilize the same principles to effect a separation. Once these principles are
understood, it is usually a simple step to adjust a stoner to produce an optimum separation. About 250 B.C.,
Archimedes discovered the law of specific gravity, which is "ALL BODlES FLOATlNG IN OR SUBMERGED IN
A LlQUlD ARE BUOYED UP BY A FORCE EXACTLY EQUAL TO THE WElGHT OF THE LlQUlD THEY DIS-
PLACE." The specific gravity of a particle is the ratio of its density to some standard substance, the standard
usually being water with a unit of 1. Particles having a specific gravity of less than 1 will float and particles
with a specific gravity greater than 1 will sink.
Oliver stoners use air as a standard rather than water. Since air is lighter than water, the relative difference
between particles of differing weights is widened. For this reason, the stoner is a very, sensitive machine and,
when operated correctly, can produce a very precise separation.
THE PROCESS OF STRATlFlCATlON
Air is used as the separating medium for the process of stratification. Stratification occurs by forcing air
through the particle mixture so that the particles rise or fall by their relative weight to the air. Figure 1 below
represents a cross section of the stoner directly over a fan. A particle mixture has been introduced on top of
the screen deck with the fans off.
In Figure 2 the fan has been turned on so that the heaviest particles rest on the surface of the deck and the
lightest particles are completely free of the surface of the deck. Proper regulation of the air flow at this time is
critical or all particles will be blended and lifted free from the separating surface by excess air (Figure 3).
-4- return to index

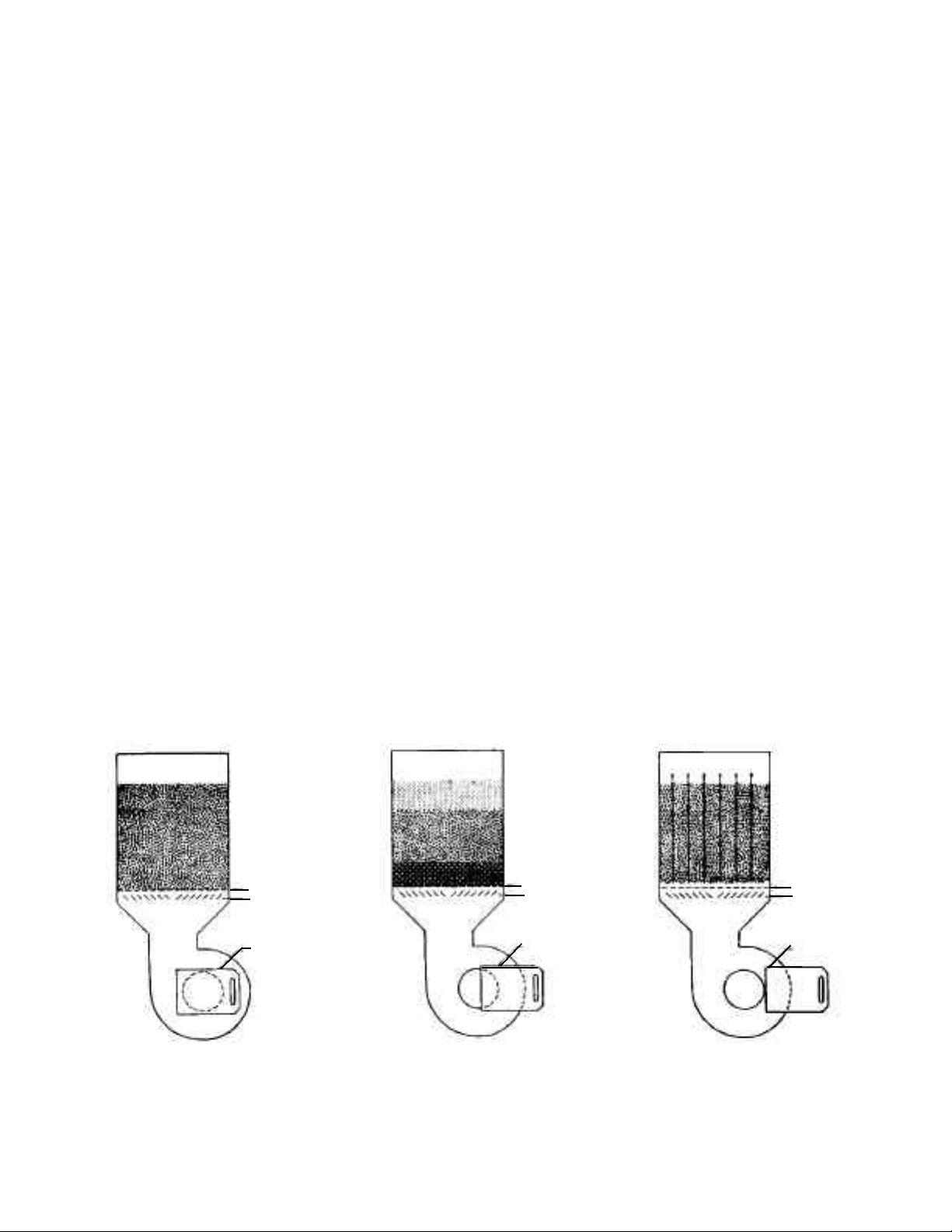

FIGURE 1 FIGURE 2 FIGURE 3
DECK
AIR
DISTRIBUTOR
AIR GATE
DECK
AIR
DISTRIBUTOR
AIR CONTROL
GATE
DECK
AIR
DISTRIBUTOR
AIR CONTROL
GATE

The seed mixture, similar to Figure 1, falls from the feeder onto the deck. The area immediately under the
feeder is called the stratification zone. In this area, the vibration of the deck and the lifting action of the air
combine to stratify the material into layers with heavier layers on the bottom and lighter layers on the top as
shown by Figure 2. Separation cannot occur until the material becomes stratified. The size of the stratification
area will depend on the difficulty of the separation and on the capacity at which you are processing. At no
time should it exceed 1/3 of the deck surface.
The more difficult the separation, the greater is the area that is required to obtain proper stratification. For
example, the stratification area is large when separating mud clods from saleable beans, because there is rel-
atively little difference in weight. However, the stratification area is small when removing rocks or stones from
beans, because there is a large difference in weight. Higher capacities likewise require greater areas for strat-
ification.
Once the material is stratified, the vibrating deck begins pushing the heavier layers in contact with the deck
uphill toward the stone discharge. At the same time, the upper lighter layers, which do not contact the deck,
begin to float downhill toward the clean product discharge.
It should be noted that, since the stratification process is not instantaneous, some of the heavier materials
will be carried down the deck toward the discharge end before they can sink to the bottom of the fluidized
bed. This is normal and acceptable as long as the heavy trash does not flow off the deck with the cleaned
product. When you are not making a proper separation, it is an indication of one of the following problems:
1. Feed rate too high - stratification area too large.
2. Machine improperly adjusted -- improper stratification.
3. Material not suitable for separation on a stoner.
Each of the above is a distinct problem and will be discussed fully in this manual.
-5- return to index
THE THEORY IN PRACTICE

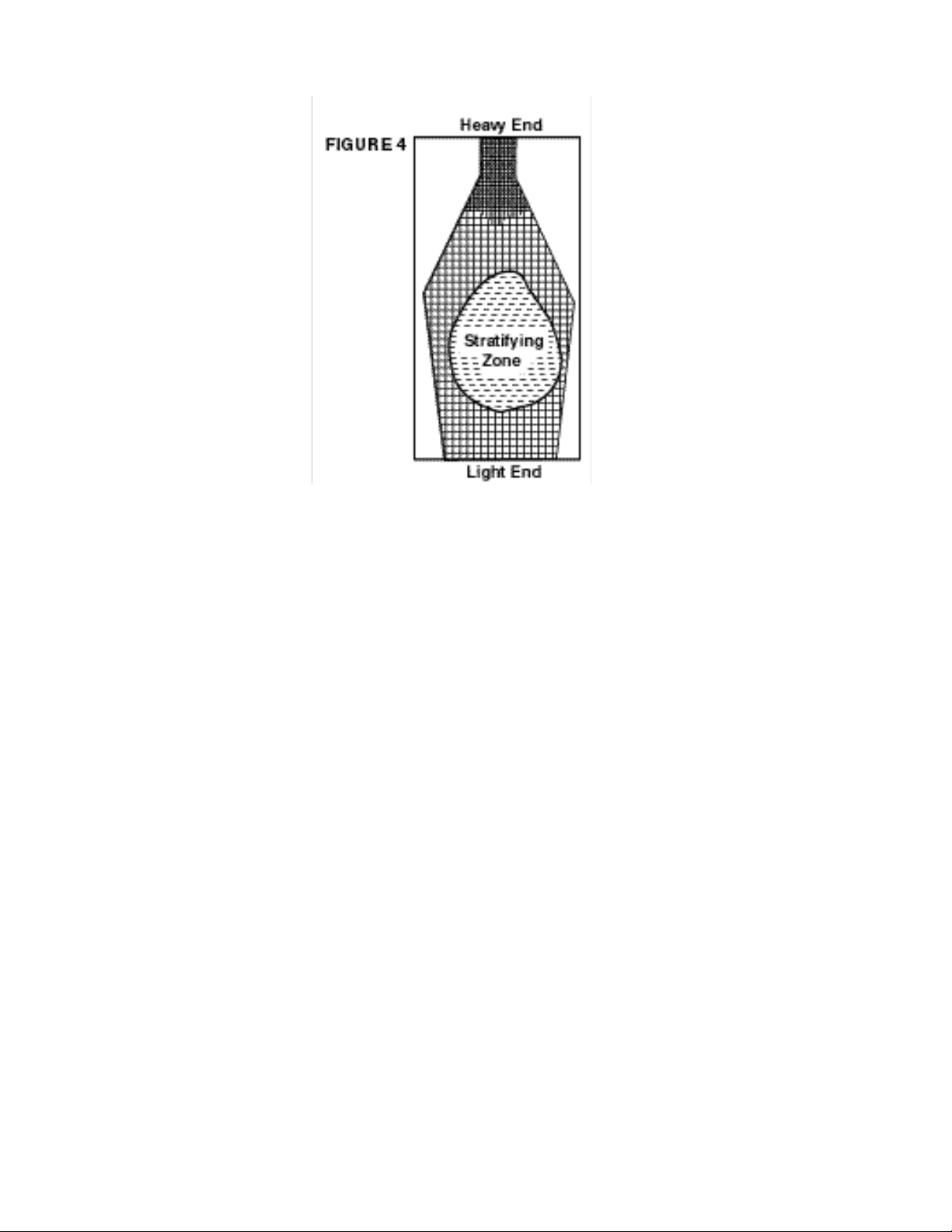

Figure 4 represents a top view of the ideal situation in the operation of a stoner

This sketch is a sectional diagram of what occurs on a stoner deck. Compressed air forced through the mesh
of the deck cover lifts the lighter particles upward, while heavier particles sink against the air currents and
come to rest on the deck surface, providing the air is properly adjusted. The heavier particles are forced to
travel uphill by mechanical action, while the lighter particies float downhill on a film of air.
While stoners have greater capacities than gravity separators, based on square feet of relative deck area,
there is a limit as to the amount of feed flowing to the deck. As the feed is increased, the stratifying area is
also increased. The stratifying area should not occupy more than 1/3 of the entire deck area.
We have already stressed the need for earlier processing of products before they are introduced onto the
stoner. (See p. 1.). This pre-sorting enables separations that are otherwise impossible. There are three guide-
lines developed by the late Oliver W. Steele that state what can be separated and what cannot be separated
on a gravity separator or stoner.
-6- return to index
FIGURE 5
FEED
BACKWARD
FORWARD

return to index
-7-
HEAVY LIGHT
OLIVER STEELE’S GUIDELINES FOR USE OF
GRAVITY SEPARATORS AND STONER
Rule 1. PARTICLES OF THE SAME SIZE BUT DIFFERING SLIGHTLY IN SPECIFIC GRAVITIES CAN BE
SEPARATED.
Acommon example of this would be the separation of similar size stones from seed where the stones are
heavier than the seed.
RULE 2. PARTICLES OF THE SAME SPECIFIC GRAVITIES BUT DIFFERING IN THE SIZE WILL BE
GRADED ACCORDING TO THE SIZE OF THE PARTICLES.
Unlike the gravity separator, a stoner produces a two way separation rather than a continuous grade at dis-
charge. Due to this two way separation, sizing is not done on a stoner, because the accuracy of separation is
poor.
RULE 3. PARTICLES DIFFERING IN SPECIFIC GRAVITIES AND ALSO DIFFERING IN SIZE CANNOT
BE EFFICIENTLY SEPARATED.
An example of this would be the separation of adobe from pinto beans where the particles are nearly the
same size and the weight as well. In cases such as this, the stoner must be operated at a lower capacity; and
one should expect a lower quality separation.

IV. CONTROLS OF THE OLIVER STONER

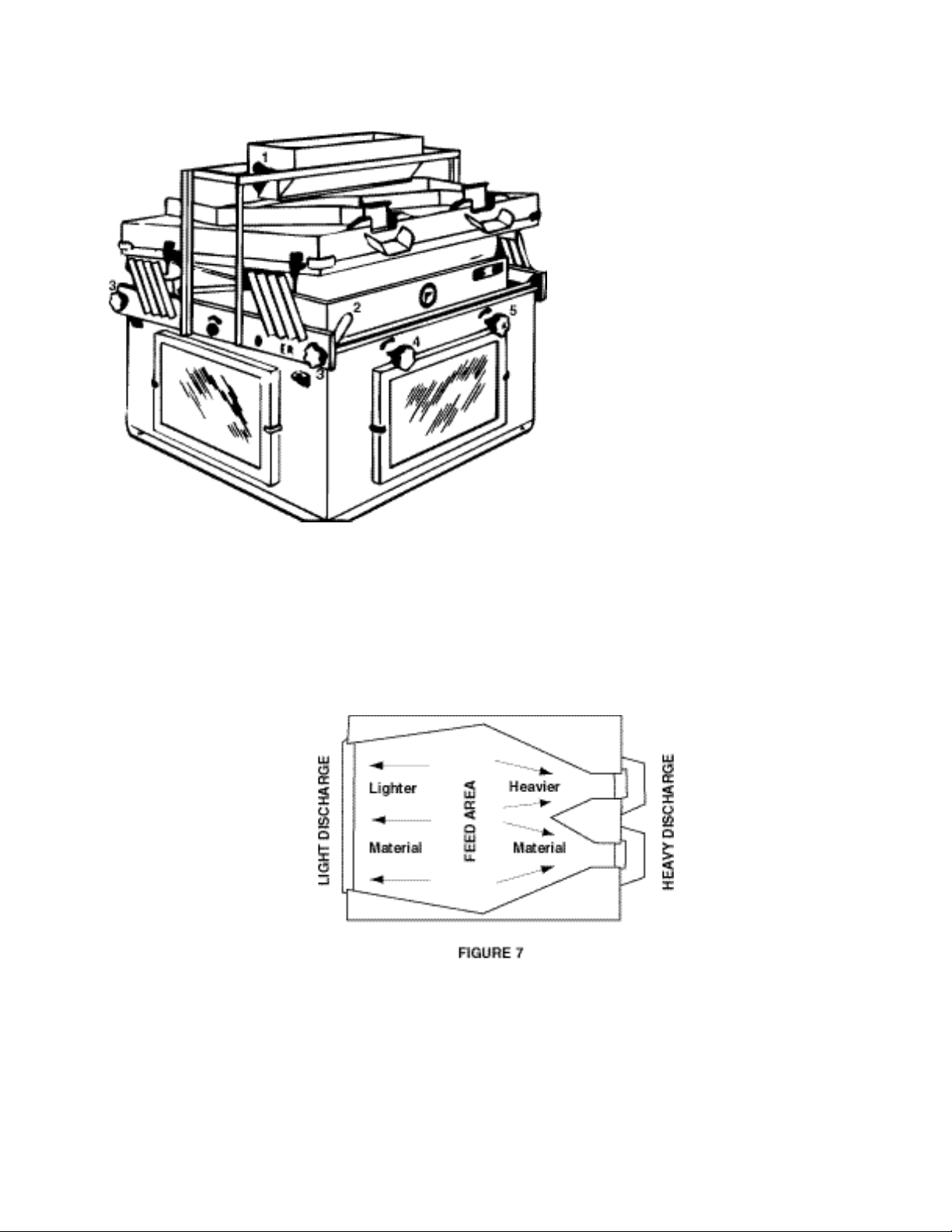

1. Feed Rate Control
2. Tilt Adjustment Handle
3. Tilt Clamping Knobs
4. “More Speed” Control Knob
5. “More Air” Control Knob
Before starting to operate the machine, it is necessary to have a thorough understanding of the controls and
their location on the Oliver Stoner. PROPER REGULATION OF CONTROLS IS THE KEY TO SUCCESSFUL
STONER SEPARATION, AND THE PROPER USE OF THESE CONTROLS SHOULD BE UNDERSTOOD
PRIOR TO ATTEMPTING AN ACTUAL SEPARATION.
THE DECK
The most important part of the stoner is the deck, because it is the main separating surface. It consists of a
carefully constructed wooden frame to counteract false vibrations with a screen or cloth overcover that is the
surface on which the separation takes place.
The highest or uphill end of the deck is the stone discharge and the lower or downhill portion of the deck is
the clean product discharge.
-8- return to index

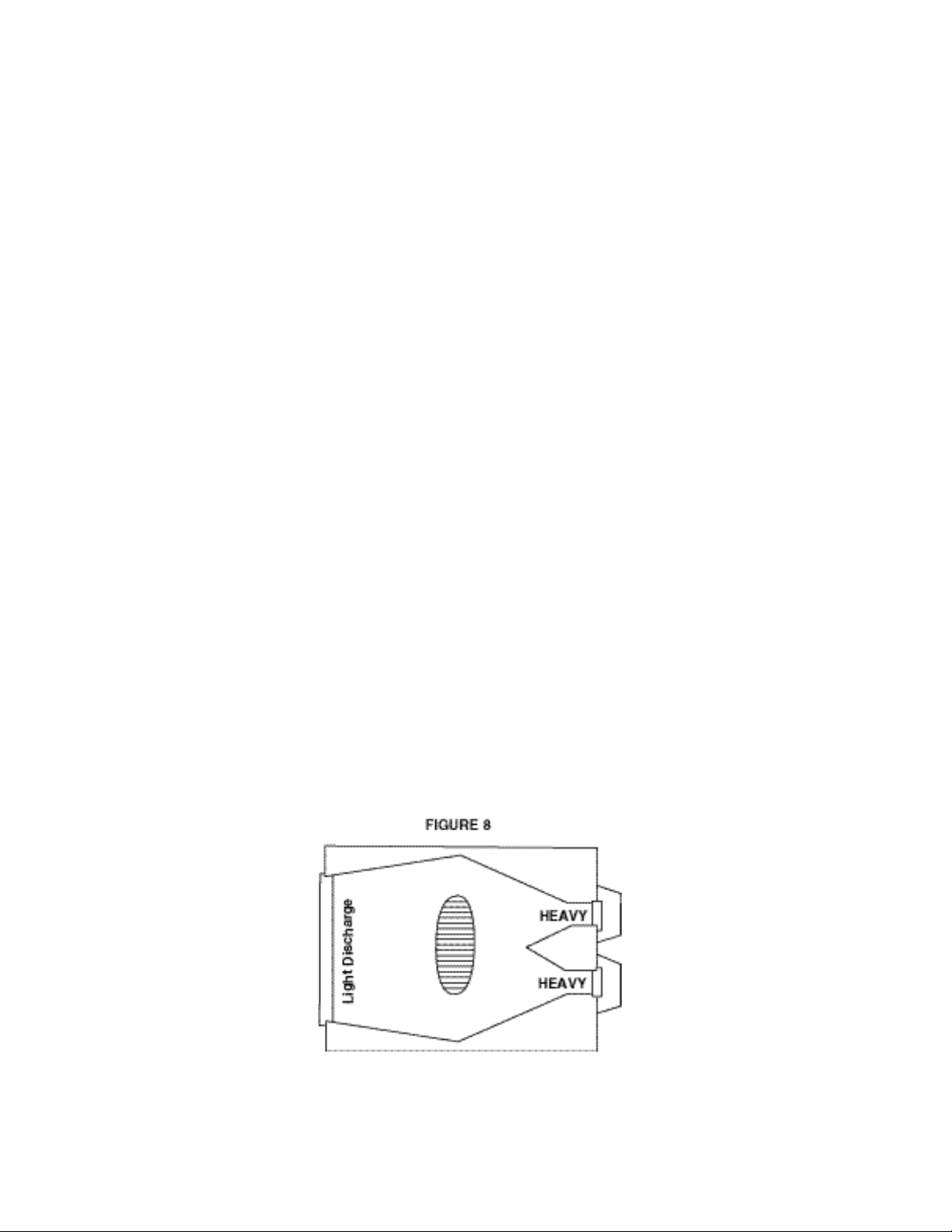

Figure 8

Oliver Stoners have one, two or three stone discharge traps depending on the model. The Oliver Model 2448
Stoner has one stone trap. The Model 3648 Stoner has two stone traps, and the Model 4848 Stoner and the
Model 6048 each have three stone traps.
The features of the deck will be discussed further in these instructions, but knowledge of their location is
important as well as understanding the controls that affect the four variable adjustments in the Oliver Stoner.
THE FOUR ADJUSTMENTS
All Stoners have four variable adjustments that must be properly adjusted and balanced to obtain optimum
separations. These are Feed Rate, Tilt, Eccentric Speed and Air Control. We will discuss the controls for each
of these variables in turn. (Please refer to Figure 6.)
FEED RATE
The feed rate control is located on the feeder and controls the amount fed onto the separating deck. Whether
you use standard Oliver feeders or supply your own feeder, you must have a means of controlling the feed.
The feed rate, whether fast or slow, should be uniform and free of surges. Surges in the incoming feed will
show up in the discharge of the machine as a poor quality separation. We suggest the use of surge bins
above the feeder, if processing will be interrupted.
Generally, the average feed rate is determined by the average capacity of the processing line of equipment.
For optimum separation on your stoner, your feed rate should be as low as possible without falling below the
minimum feed rate at which the deck can be fed and still obtain the necessary separation. When starting your
stoner, always start at the minimum feed rate; obtain your required separation, then increase the feed rate to
the desired capacity.
TILT
Tilt is the difference in the elevation between the high end of the deck and the low end of the deck. Increasing
tilt will cause the material to shift toward the low end of the deck. Decreasing tilt will cause the material to
shift toward the high end of the deck. Normally, the best separations are obtained when the tilt is set at or
near the maximum steepness. However, care should be taken not to set the tilt too steep. The tilt is too
steep when material cannot be made to flow toward the high end of the deck by increasing the eccentric
speed. Too little tilt is shown when all the material moves toward the heavy side of the deck despite a slow
eccentric speed. The tilt is adjusted by loosening the two clamping knobs (3) and moving the tilt adjustment
handle (2) in toward the machine for more tilt and away from the machine for less tilt.
ECCENTRIC SPEED
Eccentric speed and tilt are closely related. Increasing eccentric speed will cause material to be shifted
towards the high side of the deck. Decreasing eccentric speed will cause material to be shifted toward the low
side of the deck. Generally, by increasing eccentric speed (which shifts material toward the high side) and
increasing tilt (which shifts light material back toward the low side) a more precise separation can be
obtained. Too much eccentric speed can be observed when all the material shifts toward the high end of the
deck despite maximum tilt being used. Eccentric speed is adjusted by turning the "More Speed" control knob
(4) located on the side of the machine. Turning the knob counterclockwise increases the speed and turning
the knob clockwise decreases the speed.
-9- return to index

AIR ADJUSTMENT
Air regulation is one of the most important adjustments to be made on a stoner. The most common mistake in
air regulation is the use of too much air. Separation is not made by "blowing" the light material from the heavy
but by using a controlled air flow to create the stratified layers, which are then separated by the vibrating
action of the deck. Too much air will cause a boiling or bubbling action lifting the heavier particles from the
deck and mixing them with the lighter top layers. Too little air will cause the material to appear sluggish and
pile up on the high end of the deck.
With proper air regulation, the bed of material will be almost fluid in appearance. With the exception of the
stratifying zone under the feeder, the material on the surface should be agitated and free flowing. Bubbling
should be kept to a minimum, allowing the vibrating deck to make the separation. All the controls on the ston-
er serve a purpose and must be balanced with the other controls to obtain optimum separation. With this
understanding, we are now able to advance to making an actual separation.
-10- return to index

V. START UP AND OPERATION
INITIAL STARTING PROCEDURES
An experienced Oliver operator should have little trouble starting the stoner and obtaining good results.
However, for many of us, the confusion that results when the machine is initially turned on defies description.
Many of the initial adjustments must be made soon after material is fed onto the deck. Therefore, it is a good
idea to operate the machine empty for a few minutes prior to attempting to make a separation. During this
period, one should listen to the machine to become familiar with the way it sounds during operation. Also,
observe the oscillating action of the deck. Change the speed control to make the deck oscillate faster and
slower.
Locate the tilt control handle. Loosen the clamps and operate the tilt control to increase and decrease the tilt
of the deck. Remember that tilt and eccentric speed must be balanced against each other to create a smooth
uniform bed of material across the deck.
Check the feeding mechanism to insure that you can control the feed rate.
Finally, open and close the air gates. Although this does not produce a visible effect on an empty deck,
changes in air volume may be noted by holding your hand over the deck as the air gate controls are operat-
ed. The air control settings are the most important part of successful stoner operation.
Before turning the machine off, make one final check to insure that the fan shaft is turning in the right direc-
tion. When viewed from the main drive belt side (the belt from the motor to the fan shaft) all shafts should
rotate counterclockwise.
STONER STARTING PROCEDURES
1. Set the eccentric speed and tilt to approximately 3/4 of their maximum setting. Close the air gates com-
pletely for small material and open partially for material larger than 1/8". Open the feed gate slightly and
adjust the eccentric speed so that the material spreads uphill slightly faster than downhill.
2. When 1/3 of the deck is covered, begin opening the air gate controls. As the deck continues to fill, open
the air gates only enough to maintain a minimum fluidization.
-11- return to index

3. On many products a zone of light material will form at the lower edge of the bed as the deck fills. This is
normal and indicates that sufficient air is present. If the percentage of heavy material is high, you may note
the beginnings of a heavy separation in the heavy discharge area.
4. When the deck fills completely, the zone of lighter material at the lower edge of the bed will disappear.
While maintaining a continuous feed and keeping the heavy discharge closed, adjust the eccentric speed, tilt
and air so that the bed is approximately twice as deep on the heavy end as it is on the light end. Always use
the minimum amount of air that will give proper stratification. As the heavy discharge area fills with heavy
material, adjust the outlet(s) to maintain a bed of heavy material that extends from 8 to 12 inches from the
heavy end of the deck.
-12- return to index

INCREASING CAPACITY
The above discussion gives the general procedure for starting and operating an Oliver Stoner. After obtaining
satisfactory results at low capacity, increasing capacity is a relatively simple operation. Only after satisfactory
results are achieved should this be tried.
1. Increasing tilt and eccentric speed.
Begin by increasing the tilt. This will cause the material to shift toward the clean product discharge. To correct
this, increase the eccentric speed until the material is shifted back to the proper pattern. Continue increasing
tilt and eccentric speed alternately until you have the tilt at the maximum amount where you can still maintain
the correct bed depth by adjusting the eccentric control.
2. Increasing the feed rate.
Next open the feed gate slightly. This increases the feed rate and the bed depth will increase. Wait a couple
of minutes to observe the change in the material on deck. As the bed depth increases over the deck, it may
be necessary to increase the air setting slightly to compensate for the thicker bed. Continue increasing the
feed rate until you reach the maximum feed rate where you still obtain the desired separation.
-13- return to index

VI. IN CASE OF DIFFICULTY - TROUBLE-SHOOTING
Most stoner operators can get acceptable separations after working with the machine for a few minutes.
However, in some cases, even experienced operators run into problems that they cannot solve. If your stoner
is not giving satisfactory results, or even if it is, but you would like to see better results, we suggest you read
the following paragraphs.
Many operators expect results too soon on their stoner. When an adjustment is made, you should wait at
least two minutes before deciding whether the adjustment has made any improvement. The reason for this is
that, because of the volume of material on the deck, a certain amount of time is required for the deck surface
to adjust to the new conditions.
Do not attempt to operate the machine without an understanding of why it works. The more one understands
any situation, the better he is able to cope with it. Your stoner makes a separation based on a particle's
weight and its resistance to air flow. Proper adjustment of all the controls is necessary to obtain the best sep-
aration. As we have mentioned, your Oliver Stoner has four adjustments - Feed Rate, Tilt, Eccentric Speed
and Air Control.
FEED RATE determines the capacity of the machine. The minimum feed rate is the lowest rate of feed at
which you can maintain an adequate cover over the entire deck. The maximum rate is the highest rate at
which you still obtain an acceptable separation. Between these limits the quality of the separation generally
goes down as the capacity is increased and up as the capacity is decreased.
TILT is the difference between the high and low ends of the deck. Normally, tilt should be set at the maxi-
mum where you can still maintain an acceptable pattern across the deck. Too much tilt is present when mate-
rial cannot be made to climb to the high end of the deck. Too little tilt is present when you cannot float materi-
al to the low end of the deck.
ECCENTRIC SPEED is the rate of oscillation of the table. Eccentric action provides the agitation so that
the material can be stratified and the reciprocating motion separates the heavier lower layers from the lighter
upper layers of material. Eccentric motion and tilt must be balanced to get the best separating action. Too
much eccentric speed will cause material to flow to the high side of the deck. Insufficient eccentric speed will
not agitate the material enough for proper stratification. Usually, with too little eccentric speed, material will
lay on the table without moving and the table will quickly become overloaded .
AIR is used as the stratifying agent. Unless material is properly stratified initially, a good separation cannot
be obtained. Too much air will cause a bubbling, boiling action that remixes the material as fast as it is strati-
fied. Too little air will not stratify the material properly.
10 MOST FREQUENT PROBLEMS
From conversations with processors over a period of years, we have compiled a list of the ten problems most
generally encountered when setting up a new machine. We list these problems below along with some sug-
gested solutions.
1. Fans running backwards. At least half of the problems with new machines can be traced to backwards rota-
tion of the fans. If it seems that you have a problem with insufficient air, we suggest you check this, as silly as
it seems. When viewed from the side where the motor is located, the fans and shafts should run counter-
clockwise.
2. Blinded decks. If you think you have insufficient air and the fans are running correctly, remove the deck
and clean it. The deck can be cleaned best by blowing the dirt and chaff out from the top down.
-14- return to index

3. Dirty air filters. The air filters on the side of the machine are designed to screen dirt out of the air before it
enters the machine. If they become plugged, the fans cannot pull enough air through them to provide a prop-
er separation. They can be cleaned by removing them from the machine and gently tapping them on the floor.
Amore effective cleaning may be obtained by removing the filters and using compressed air to blow the dirt
out.
4. Inadequate foundations. Although Oliver Stoners are counterbalanced, they must be attached to a secure
foundation. A six inch concrete slab is best but is not absolutely essential. Many processors run Oliver
Stoners on wooden floors with no problems. If you can feel any vibration in the floor while the machine is run-
ning, you probably have too weak a foundation. Weak foundations lower the quality of separation, because
the foundation absorbs some of the oscillating action intended for separation.
5. Operating at too much capacity. Often merely lowering the operating capacity slightly will greatly improve
the separation. Capacity is usually dependent on the standards to be met and the quality of the material
being fed onto the stoner. Quality and capacity are inversely related, that is, increasing capacity usually low-
ers quality and decreasing capacity usually improves quality.
6. Loose clamps. Loose clamps are not a common problem but they occur more often than people realize.
Loose clamps usually occur when an operator makes an adjustment and fails to tighten the clamps sufficient-
ly. The result of loose clamps is false vibrations. False vibrations absorb much of the oscillatory action of the
deck and produce results similar to weak foundations.
7. Using the wrong deck cover. Deck covers are the portion of the machine that actually makes the separa-
tion. Without friction between the deck cover and the material to be separated, no separation will result.
Therefore, a cover must be selected that will perform well with a specific product. Using the wrong cover will
result in poor separation, very low capacity and will sometimes cause sufficient damage to the deck that it
must be rebuilt. Generally, the cover should have a rough surface texture and the openings should be as
large as possible without allowing material to fall through. We make four types of standard decks: cloth for
small grasses and materials smaller than 1/16"; 30 mesh wire for seeds the size of alfalfa (between 1/16" and
1/8" in size); 16 mesh for materials between 1/8" and 1/4" (cereal grains); and 10 mesh wire for materials
larger than 1/4" (beans, for example). We can also supply a variety of special decks to meet your particular
needs.
8. Belts slipping. This is a common occurrence with new machinery. New belts have a tendency to stretch
slightly and should be checked frequently during the first couple weeks of operation. To check a belt, turn the
machine off. Then apply pressure to the back of the belt midway between the two pulleys. The belt should
deflect approximately 1/2 inch.
9. Attempting to separate commodities unsuitable for separation. This is a very rare problem, as normally a
stoner will make some improvement in any seed lot. However, a stoner is a specialized machine designed to
separate particles of varying density and similar sizes. If material does not fall into that classification, then it
probably cannot be separated on a stoner.
10. Wrong adjustment. This is most commonly a problem with new, inexperienced operators. The solution to
this problem is usually more experience. Do not be afraid to make adjustments on the machine. Make an
adjustment. Wait a couple of minutes to determine the effect. Then decide if it is good or bad. If the effect is
good, then try something else for further improvement. If the effect is bad, return to the original setting.
Allow a couple of minutes and then try another adjustment. Finally, remember to make all adjustments in
small increments. It is better to approach the final setting through several small steps than to make one
adjustment that may be too large.
-15- return to index

The final pattern on the deck may vary depending on the seed you are processing. However, for most com-
modities, the overall pattern will generally be similar. We suggest an average depth of material of from 1 to 2
inches for material larger than 1/4 inch; from 1/2 to 1 inch for material ranging from 1/8 to 1/4 inch in diame-
ter; from 1/4 to 1/2 inch for material from 1/16 to 1/8 inch in diameter and less than 1/4 inch for material
smaller than 1/16 inch in size. As a general rule, the bed depth at the high end of the machine should be from
1 to 2 times the depth across the low end of the machine. The average depth under the feeder will normally
be about the same or slightly greater than the depth at the stone discharge. These patterns will not be correct
for all commodities. However, if you can approximate these conditions on the deck surface, you should see a
definite separation. From this point you can make the necessary adjustments to obtain an optimum separa-
tion.
As an additional aid in setting your stoner, we have provided some examples of situations that can occur and
have listed adjustments which help correct the pattern. (See Figures 12-13-14.)
Finally, if you can't get the separation you want, please call the factory [phone]. Our staff will be glad
to give you the approximate settings to separate your product on your machine. If you have specific problems
or questions, let us know. We will be glad to share our thoughts on the subject with you.
For the convenience of our customers, we maintain a laboratory service where we can process your samples.
There is no charge and all samples will be returned if requested. If you have a sample you would like tested,
just call us. Then we can discuss your problem and determine how much of a sample is needed for testing. If
you like, we can set the test dates so that you can be present during the test.
-16- return to index
FIGURE 12
Correct Adjustment FIGURE 13 1. Insufficient Tilt.
2. Too much Eccentric Speed.
3. Too little air.
FIGURE 14
1. Excessive Tilt.
2. Too little eccentric speed.
3. Too much air.

VII. MAINTENANCE
Your Oliver Stoner is designed to give years of trouble-free service. However, as with all machinery, periodic
maintenance is required to keep it in top condition. included below is a list of some areas that can be prob-
lems, if not periodically checked.
DECKS
The deck of your Oliver is that portion of the machine that actually contacts the material and makes a separa-
tion. To maintain optimum separation, the deck should be checked frequently and cleaned or repaired as
needed. Even in very clean atmospheres, dust and dirt will build up on the underside of the deck. This caus-
es a restriction of air flow through the deck and will eventually plug the deck completely. When the deck
becomes plugged, it is necessary to remove the deck from the machine and clean it. The best method of
cleaning the deck is to use compressed air blowing from the top down. Thoroughly clean the entire deck. A
deck that is only partially cleaned will only become plugged sooner. To check if the deck is clean, place a light
on a drop cord under it. If the deck is cleaned, you should be able to see light through every opening of the
deck cover. Dirty areas will show up as dark spots and should be cleaned more thoroughly.
Because decks are in direct contact with the material being separated, they are subjected to abrasive wear.
Inspect your decks frequently for wear.As a deck wears out, the surface becomes smoother and it becomes
more and more difficult to move the heavier seeds out from under the lighter layers. Normally, when the wires
of the deck overcover are worn halfway through, it is time to repair the deck. If the deck cover is worn com-
pletely through, there is danger of ruining the undercover which develops the air pattern. All Oliver decks with
wire overcovers are built with a perforated metal undercover which develops the air pattern and a woven wire
overcover which actually makes the separation. As long as the undercover is not damaged, it is not neces-
sary to replace it.
When rebuilding a deck, always inspect the deck thoroughly. Look at the underside of the deck and inspect
each rib for cracks. If the ribs are cracked, it will be necessary to tear the deck down completely to replace it.
If the ribs are all right, inspect the undercover. As long as it is not damaged, there is no need to replace it.
When removing the overcover, be careful not to damage the undercover. When installing the overcover or
undercover, it is best to place the deck on two sawhorses with a light underneath. By looking through the
screen towards the light you will easily be able to locate the ribs for nailing purposes. Always stretch the
screen tightly. Tight screens give better separation results than loose ones. Finally, inspect the deck trim,
aprons, rails and riffles; and replace what is needed.
DRIVES
There are three sets of belts and sheaves in your Oliver Stoner. These are the main drive belts or fanbelts;
the idler belt from the fanshaft to the vari-speed unit, and the eccentric belt from the vari-speed to the eccen-
tric shaft. New machines should be checked very frequently for the first few weeks, because new belts tend
to stretch as they are broken in. To check belt tension, turn off the machine. Then apply pressure to the out-
side of the belt midway between the two sheaves. The belt should deflect approximately 1/2 inch.
-17- return to index
