Olivetti FL X1 User manual

Termoscanner
FL X1
Document code: DOC0236
Termoscanner FL X1
User Manual

FL X1 User Manual 2
PUBLICATION ISSUED BY:
Olivetti S.p.A.
Telecom Italia Group
Via Monte Navale 2/C - 10015 Ivrea (TO)
Copyright © 2020 Olivetti
All rights reserved

FL X1 User Manual 3
INDICE
INDICE.....................................................................................................................................................3
1OVERVIEW ......................................................................................................................................4
1.1 INTRODUCTION .....................................................................................................................................4
1.2 THE DEVICE – GENERAL FEATURES AND PACKING LIST ................................................................6
2INSTALLATION AND OPERATIONS...............................................................................................9
2.1 INSTALLATION .......................................................................................................................................9
2.1.1 WALL MOUNT INSTALLATION ........................................................................................................... 9
2.1.2 SUPPORT INSTALLATION ................................................................................................................11
2.2 CONNECTING NETWORK ................................................................................................................... 12
2.2.1 CONNECT TO PC DIRECTLY........................................................................................................... 12
2.2.2 CONNECT BY ETHERNET LAN....................................................................................................... 13
2.3 DEVICE SETTINGS .............................................................................................................................. 14
2.3.1 DEVICE INFORMATION ................................................................................................................... 14
2.3.2 PERSONNEL MANAGEMENT.......................................................................................................... 14
2.3.3 DEVICE MANAGEMENT .................................................................................................................. 17
2.3.4 ACCESS CONTROL SETTINGS ...................................................................................................... 19
2.3.5 COMMUNICATION MANAGEMENT ................................................................................................. 20
2.3.6 SYSTEM MANAGEMENT ................................................................................................................. 21
2.4 CONNECTION TO AN ACCESS CONTROL SYSTEM ......................................................................... 22
3TECHNICAL FEATURES...............................................................................................................24
4FAQ ................................................................................................................................................26
5SAFETY INFORMATION ...............................................................................................................27
5.1 SAFETY PRECAUTIONS...................................................................................................................... 27
6CE CONFORMITY .........................................................................................................................28

FL X1 User Manual 4
1OVERVIEW
1.1 INTRODUCTION
The Olivetti FL X1 was specifically designed to measure body temperature and detect temperature
abnormity, without actual physical contact, at different application fields.
It normally alerts in case of
abnormal body temperature
person which doesn’t wear a mask
FL X1 integrates also a facial recognition algorithm. This kind of feature has to be used in
accordance with the Rules and Regulations regarding the personal data protection.
The main FL X1 product features are:
Fast: response time < 0.5s
Accurate:
oAccuracy: 0.1℃(closeness of the measurements to a specific value), best
performer in its category
oPrecision (discrepancy) ±0.3℃(difference between the mean of the measurements
and the reference value)
Functional: horizontal detecting distance 35~50 cm, the most suitable for solutions
integrated with the turnstile
Versatile: abnormal temperature detection, mask detection, facial recognition
Robust and reliable: MTBF > 50.000h
Easily readable: display 8’’
Light: 1,7 Kg
Complete: dual optical/IR cameras
The FL X1 can be set to work in different ways
Abnormal temperature detection + mask detection + facial recognition
Abnormal temperature detection + mask detection
Abnormal temperature detection + facial recognition
Abnormal temperature detection
N.B.: the facial recognition feature must be used in accordance with the Rules and Regulations
regarding the personal data protection; the facial recognition feature can be activated
only if accompanied by correct and complete information to people which will be
recognized and after collecting their necessary consents.
The FL X1 device has a dual camera - optical and infrared - to acquire and display the optical image
and to detect body temperature data.

FL X1 User Manual 5
The camera is able to detect images even in low light and / or backlit conditions, thanks to some
solutions aimed at optimizing the image:
Automatic gain and auto white balance, capable to display true color of image
2D/3D noise reduction and anti fog technology,
Built in dimming light level sensor and front white light, to ensure low light recognition
smoothening capability
Support intelligent lightfilled setting

FL X1 User Manual 6
1.2 THE DEVICE –GENERAL FEATURES AND PACKING LIST
The FL X1 termoscanner is shaped like a PAD, with an 8”colour display.
Enclosed accessories are:
Power cord + DC12V 2A adapter
The electric plug is CEE 7/4 type (commonly called Schuko)
Dimensions:
252(L)*136(W)*26(H)mm
Weight:
1.7KG

FL X1 User Manual 7

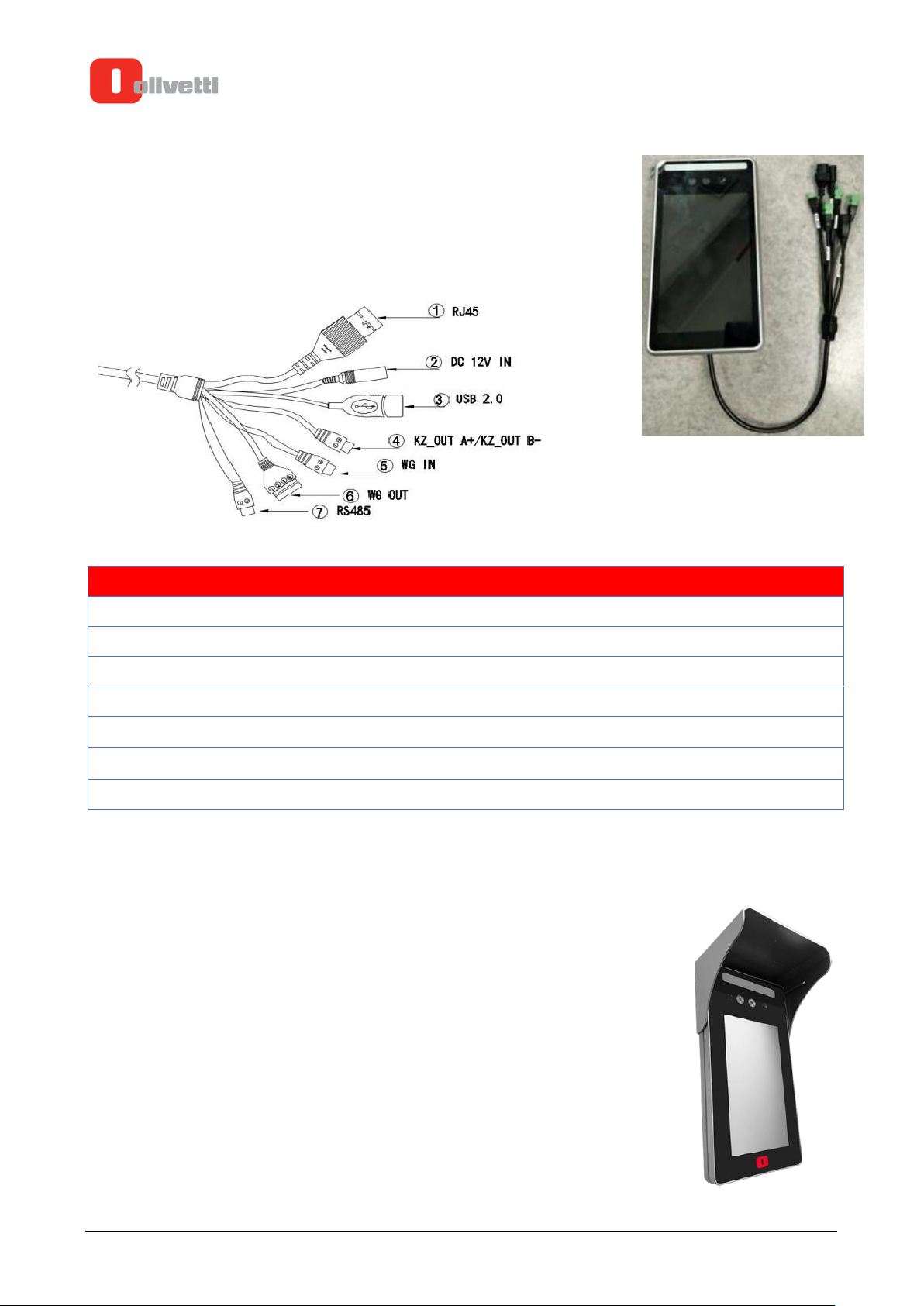

multiple connector cable (Digital Output, WG IN, WG OUT,
RJ45, USB, RS485）to connect the device to the network and
to other devices, as detailed below:
Parte
Nome
Descrizione
Label
①
Network port
RJ45
②
Power supply
DC12V IN
DC12V IN
③
USB
USB 2.0
④
Digital output
A+/B-
KZ_OUT
⑤
Wiegand (WG) IN
vcc12V、GND、D0、D1
WG IN
⑥
Wiegand (WG) OUT
vcc12V、GND、D0、D1
WG OUT
⑦
RS485
RS485+ / RS485
RS485+ / RS485
The KZ_OUT connector is normally used to connect the termoscanner to turnstiles or automatic
doors (see par. 2.4)
protective flap, to be possibily used when the thermoscanner is
located in an environment with direct exposure to sunlight.
The flap can be mounted on the thermoscanner simply by fitting it
from above, without fixing it

FL X1 User Manual 8
wall mount kit
(50 mm x 70 mm –WxH; see par. 2)
metal plate for mounting on Vesa (Video Electronics Standards
Association) standard supports

FL X1 User Manual 9
2INSTALLATION AND OPERATIONS
2.1 INSTALLATION
2.1.1 WALL MOUNT INSTALLATION

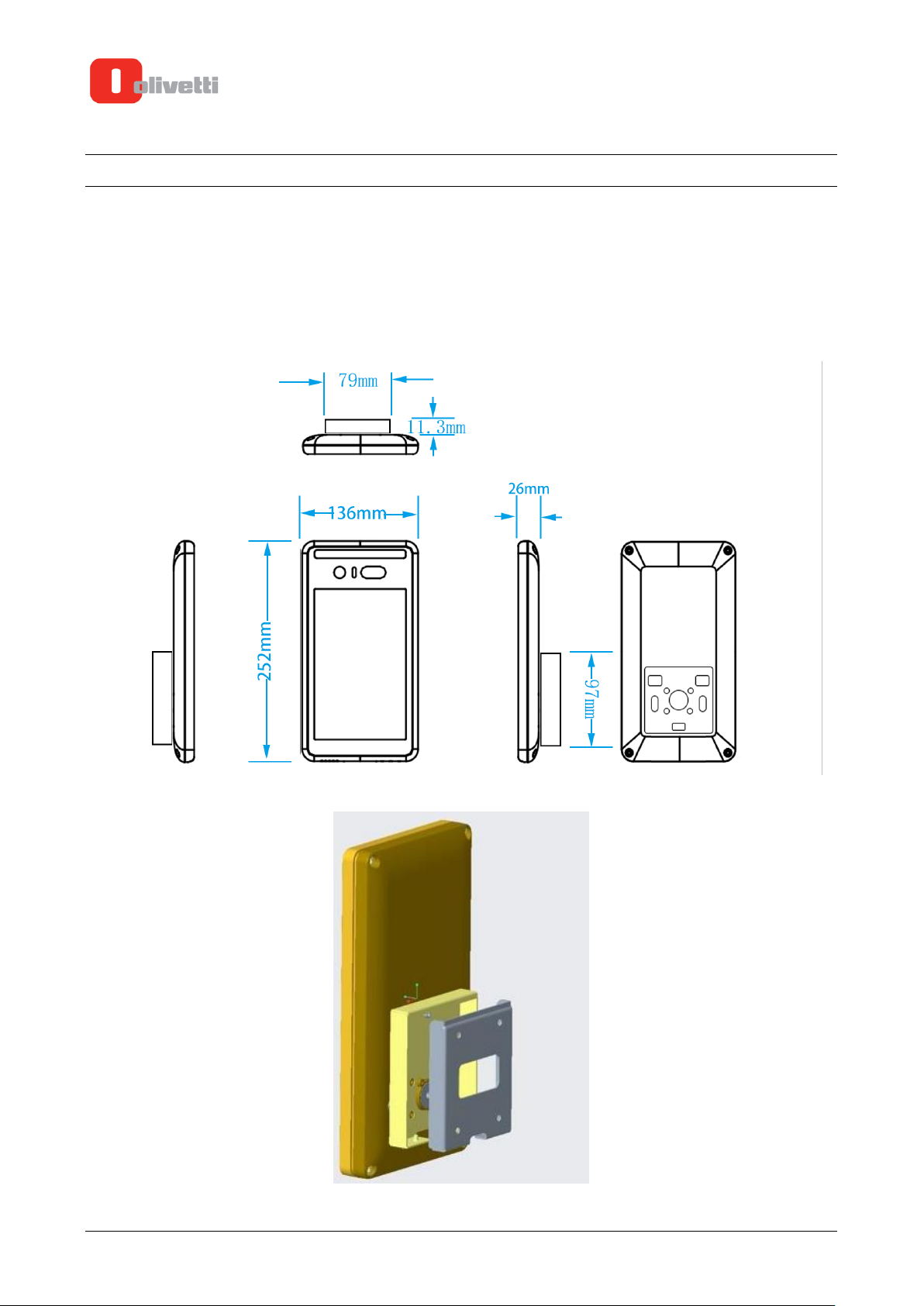

The Olivetti FL X1 is provided with a Wall-Mount kit:

FL X1 User Manual 10
For wall mounting, proceed according to the following diagram and description:
1. Release the 2 screws and take out the wall bracket from the device.
2. Check the installation height of the face recognition monitor. It is recommended to fix the
bracket on the wall about 1.5m height.
3. Carefully align and push the main unit into the bracket mounted on the wall.
4. Align the bracket holes and gently slide it down tightly. After connecting the wires, fix the
bottom cover with screws.
