DIGITAL CAMERA
FE-47/X-43
●Thank you for purchasing an Olympus digital camera. Before you start
to use your new camera, please read these instructions carefully to
enjoy optimum performance and a longer service life. Keep this manual
in a safe place for future reference.
●We recommend that you take test shots to get accustomed to your
camera before taking important photographs.
●In the interest of continually improving our products, Olympus reserves
the right to update or modify information contained in this manual.
●The screen and camera illustrations shown in this manual were
produced during the development stages and may differ from the actual
product.
Instruction Manual

2 EN
Contents
Contents
Step 5
Printing
“Direct printing (PictBridge)” (p. 37)
“Print Reservations (DPOF)” (p. 40)
Step 4
How to Use the Camera
“Camera Settings” (p. 3)
Step 3
Shooting and Playing Back Images
“Shooting, Viewing, and Erasing” (p. 14)
Step 2
Preparing the Camera
“Preparing the Camera” (p. 10)
Names of Parts ..............................6
Preparing the Camera.................10
Shooting, Viewing, and Erasing ...14
Using Shooting Modes................ 20
Using Shooting Functions..........23
Menus for Shooting Functions... 27
¾
¾
¾
¾
¾
¾
Menus for Playback, Editing, and
Printing Functions.......................30
Menus for Other Camera
Settings ........................................32
Printing.........................................37
Usage Tips ...................................42
Appendix......................................46
¾
¾
¾
¾
¾
Step 1
Checking the contents of the box
Other accessories not shown: Instruction Manual (this manual), warranty card.
Contents may vary depending on purchase location.
Digital camera
Strap
AV cable
USB cable
ib CD-ROM
Two AA batteries

3 EN
Camera Settings

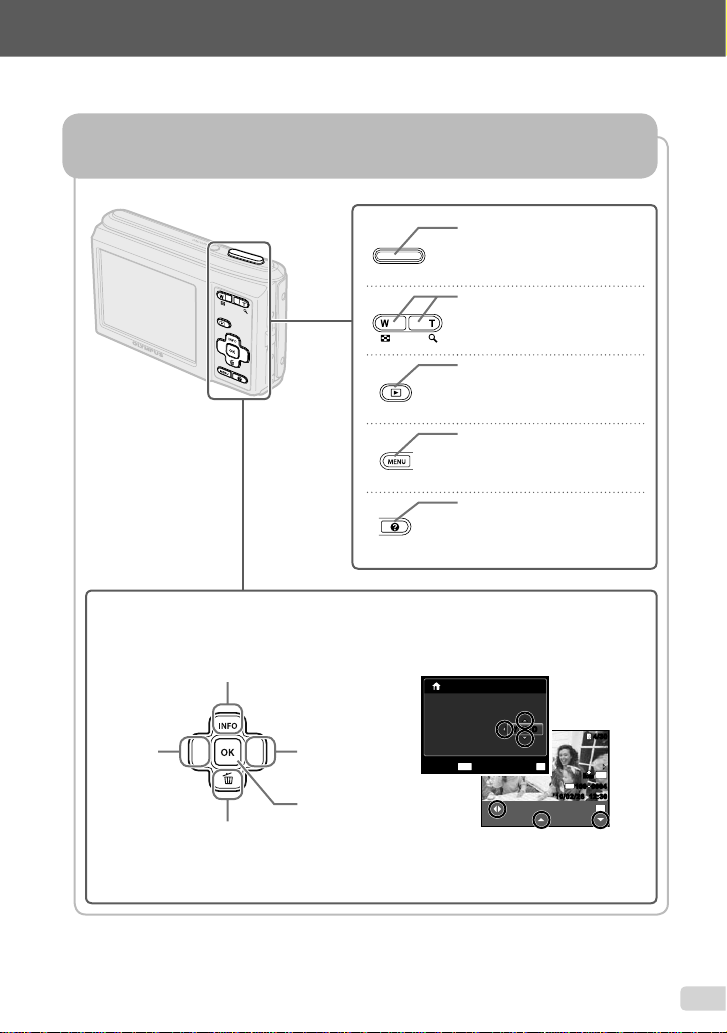

UsingtheDirectButtons
UsingtheDirectButtons
Frequently used functions can be accessed using the direct buttons.
Shutter button (p. 14)
Zoom buttons (p. 16)
qbutton (switch between
shooting and playback) (p. 15)
mbutton (p. 4)
Ebutton (menu guide) (p. 19)
Arrow pad
H(left)
G(down) /
Dbutton (erase) (p. 18)
F(up) /
INFO button (change
information display) (p. 16, 19)
I(right)
Hbutton
(p. 12)
The symbols FGHI displayed for image
selections and settings indicate that the arrow
pad is to be used.
N
ORM
OK
SINGLE PRINT PRINT
4/304/30
MORE
’10/02/26 12:30’10/02/26 12:30
N
ORM
14M
FILE
100 0004100 0004
02 26 12 30:..2010
OK
SET
X
YMDTIME
MENU
CANCEL
Y/M/DY/M/D

4 EN
UsingtheMenu
UsingtheMenu
Use the menu to change camera settings such as the shooting mode.
Press the mbutton to display the function menu. The function menu can be used to set frequently
used shooting and playback functions such as shooting mode.
PERFECT FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
Use FG to select a menu and press
the Hbutton.
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
PROGRAM AUTOPROGRAM AUTO
Shooting Playback
Selected option
To select the shooting mode
Use HI to select a shooting mode and press
the Hbutton.
To select the function menu
Use FG to select a menu and use HI to
select a menu option. Press the Hbutton to
set the function menu.
o[SETUP]
menu
Function
menu
Shooting
mode
In the [SETUP] menu, various camera functions can be set,
including shooting and playback functions not displayed in the
function menu, and other settings such as date, time and screen
display.
1Select [SETUP] and then press the H
button.
The [SETUP] menu is displayed.
FINE ZOOM OFF
ROFF
ICON GUIDE ON
AF MODE FACE/iESP
MENU OK
SETEXIT
1
2
3
COMPRESSIONCOMPRESSION NORMALNORMAL
2Press Hto highlight the page tabs. Use
FG to select the desired page tab and
press I.
1
2
3
OFF
MENU OK
SETEXIT
POWER SAVE
BATTERY TYPE ALKALINE
Page tab
1
2
3
MENU OK
SETEXIT
BATTERY TYPE ALKALINE
OFFOFFPOWER SAVEPOWER SAVE
Submenu 1
3Use FG to select the desired submenu 1
and then press the Hbutton.
1
2
3
MENU OK
SETEXIT
BATTERY TYPE ALKALINE
POWER SAVEPOWER SAVE OFFOFF
1
2
3
OK
SET
BATTERY TYPE ALKALINE
MENU
BACK
OFFOFFPOWER SAVEPOWER SAVE
POWER SAVE
ON
OFFOFF
Submenu 2
●
4Use FG to select the desired submenu 2
and then press the Hbutton.
Once a setting is selected, the display returns
to the previous screen.
There may be additional operations.
“Menu Settings” (p. 27 to 36)
1
2
3
MENU OK
SETEXIT
BATTERY TYPE ALKALINE
ONONPOWER SAVEPOWER SAVE
5Press the mbutton to complete the
setting.
Some functions cannot be used in some
shooting modes. In such cases, the
following message is displayed after
setting.
1
2
3
FINE ZOOM OFF
ROFF
ICON GUIDE ON
MENU OK
AF MODE FACE/iESP
COMPRESSIONCOMPRESSION NORMALNORMAL
SETEXIT
CONFLICTING SETTINGS
●

5 EN
Menu Index
Menus for Shooting Functions
1Shooting mode
P(PROGRAM AUTO).......p.14
M(iAUTO)....................p.20
N(DIS MODE)...............p.20
s(SCENE MODE) ......p.20
P(MAGIC FILTER).....p.21
~(PANORAMA)...............p.22
A(MOVIE).......................p.15
2Flash..................................p.23
3Macro ................................p.23
4Self-timer...........................p.24
5Exposure compensation....p.24
6White balance....................p.25
7ISO....................................p.25
8Image size (Still images)...p.26
9o(SETUP) X
z(Shooting)/A(Movie)
IMAGE SIZE (Movies).......p.27
COMPRESSION (Still images)
.......................................p.27
1SLIDESHOW.....................p.30
2PERFECT FIX...................p.30
3EDIT..................................p.30
4ERASE..............................p.30
Menus for Playback, Editing, and Printing Functions
5o(SETUP) Xq(Playback)
PRINT ORDER..................p.31
0(Protect).....................p.31
y(Rotate).........................p.31
R(Add sound to still images)
.......................................p.31
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
PROGRAM AUTOPROGRAM AUTO
PERFECT FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
6
7
3
2
1
5
4
1r(Settings 1)
MEMORY FORMAT/
FORMAT............................p.32
BACKUP............................p.32
W(Language).................p.32
RESET...............................p.32
USB CONNECTION..........p.33
qPOWER ON ................p.33
SAVE SETTINGS..............p.33
Menus for Other Camera Settings
2s(Settings 2)
PW ON SETUP.................p.33
SOUND SETTINGS ..........p.34
PIXEL MAPPING...............p.34
s(Monitor).....................p.34
X(Date/time)..................p.34
WORLD TIME....................p.35
VIDEO OUT.......................p.35
3t(Settings 3)
POWER SAVE...................p.36
BATTERY TYPE................p.36
FRAME RATE (Movies).....p.27
AF MODE..........................p.28
FINE ZOOM ......................p.28
IS MOVIE MODE...............p.28
R(Still images)..................p.29
R(Movies).........................p.29
ICON GUIDE.....................p.29
8
9
1
2
3
FINE ZOOM OFF
ROFF
ICON GUIDE ON
AF MODE FACE/iESP
COMPRESSION NORMAL
MENU OK
SETEXIT
5
1
2
3
IMAGE SIZE VGA
IS MOVIE MODE OFF
ON
FRAME RATE 30fps
MENU OK
SETEXIT
R
1
2
3
SAVE SETTINGS NO
MENU
OK
SETEXIT
BACKUP ENGLISH
RESET
USB CONNECTION
W
STORAGE
qPOWER ON NO
FORMAT
3
2
1
3
2
1
4
1
2
3
MENU OK
SETEXIT
PRINT ORDER
y
0
R

6 EN

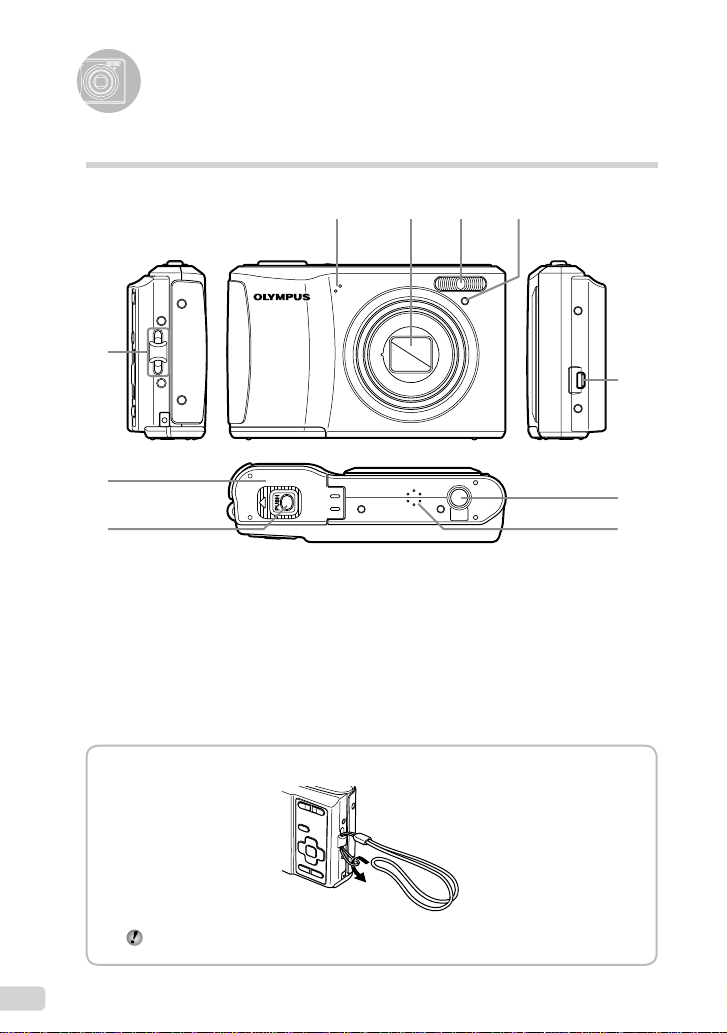

Names of Parts
1Strap eyelet
2Battery/card compartment cover...p. 10
3Battery/card compartment lock.....p. 10
4Microphone.............................p. 29, 31
5Lens........................................p. 46, 58
Camera unit
8
9
10
1
4 5 6 7
2
3
6Flash.............................................p. 23
7Self-timer lamp..............................p. 24
8Multi-connector .................p. 11, 35, 37
9Tripod socket
10 Speaker
Attaching the camera strap
Pull the strap tight so that it does not come loose.

7 EN
2
1
3
4
6
8
9
7
5
1nbutton ........................p. 12, 14
2 Monitor....................................p. 14, 42
3 mbutton...................................p. 4
4 Ebutton (menu guide).................p. 19
5 Shutter button ...............................p. 14
6Zoom buttons................................p. 16
7 qbutton (switch between shooting
and playback)................................p. 15
8 Hbutton (OK)..........................p. 3, 12
9 Arrow pad........................................p. 3
INFO button (change information
display).............................p. 16, 19
Dbutton (erase) ....................p. 18

8 EN
Monitor
Shooting mode display
F3.51/1001/100 F3.5
PP
44
N
ORM
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
0:340:34 ONON
0.00.0
AUTO
WB
AUTO
WB
VGA
1 2 1 2
3
4
5
6
7
8
9
10
4
5
6
7
10
121415 1213915
16 16
17
18
1920
17
11
Still image
Movie
1 Battery check................................p. 10
2 Shooting mode........................p. 14, 20
3 Flash.............................................p. 23
Flash standby/flash charge...........p. 42
4Macro............................................p. 23
5 Self-timer.......................................p. 24
6 Exposure compensation ...............p. 24
7 White balance...............................p. 25
8 ISO................................................p. 25
9 Image size...............................p. 26, 27
10 [SETUP] menu............................p. 4, 5
11 Recording with sound (movies)
....................................................p. 29
12 World time.....................................p. 35
13 Digital image stabilization ........... .p. 28
14 Compression (still images)............p. 27
15 Number of storable pictures (still
images).........................................p. 14
Continuous recording length (movies)
....................................................p. 15
16 Current memory............................p. 47
17 AF target mark..............................p. 14
18 Camera shake warning....................... -
19 Aperture value...............................p. 14
20 Shutter speed................................p. 14

9 EN

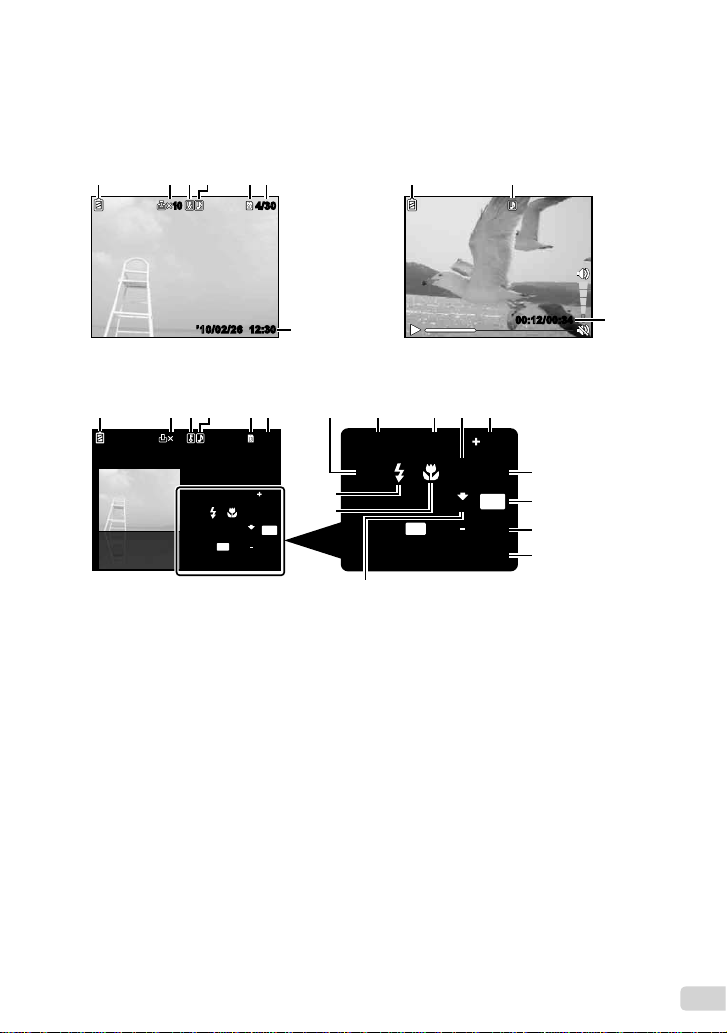

Playback mode display
Normal display
1010
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
00:12/00:3400:12/00:34
1 65432 1
15
6
4
Still image Movie
Detailed display
1010
4/304/30
1/1000 F3.5 2.0
AUTO
WB
AUTO
ISO
P
N
ORM
14 M
FILE
100 0004
’10/02/26 12:30
1/1000 F3.5 2.0
AUTO
WB
AUTO
ISO
P
N
ORM
14M
FILE
100 0004
’10/02/26 12:30
1 6 87 9 11105432
12
13
14
15
16
17
18
●
●
1 Battery check................................p. 10
2 Print reservation/
number of prints...................p. 40/p. 39
3 Protect...........................................p. 31
4 Adding sound..........................p. 29, 31
5 Current memory............................p. 47
6 Frame number/total number of images
(still images)..................................p. 16
Elapsed time/total recording time
(movies)........................................p. 17
7 Shooting mode........................p. 14, 20
8 Shutter speed................................p. 14
9 Aperture value...............................p. 14
10 ISO................................................p. 25
11 Exposure compensation ...............p. 24
12 White balance...............................p. 25
13 Image size...............................p. 26, 27
14 File number......................................... -
15 Date and time................................p. 12
16 Compression (still images)............p. 27
Frame rate (movies)......................p. 27
17 Macro............................................p. 23
18 Flash.............................................p. 23

10 EN
Preparing the Camera
3
For the types of batteries that can be used,
see “Battery handling precautions” (p. 46).
When using NiMH batteries, be sure they
are fully charged, and select [NiMH] for
[BATTERY TYPE].
[BATTERY TYPE] (p. 36)
Turn off the camera before opening the
battery/card compartment cover.
When using the camera, be sure to close
the battery/card compartment cover.
When to replace the batteries
Replace the batteries when the error
message shown below appears.
Monitor top left Error message
Flashes in red
44
BATTERY EMPTY

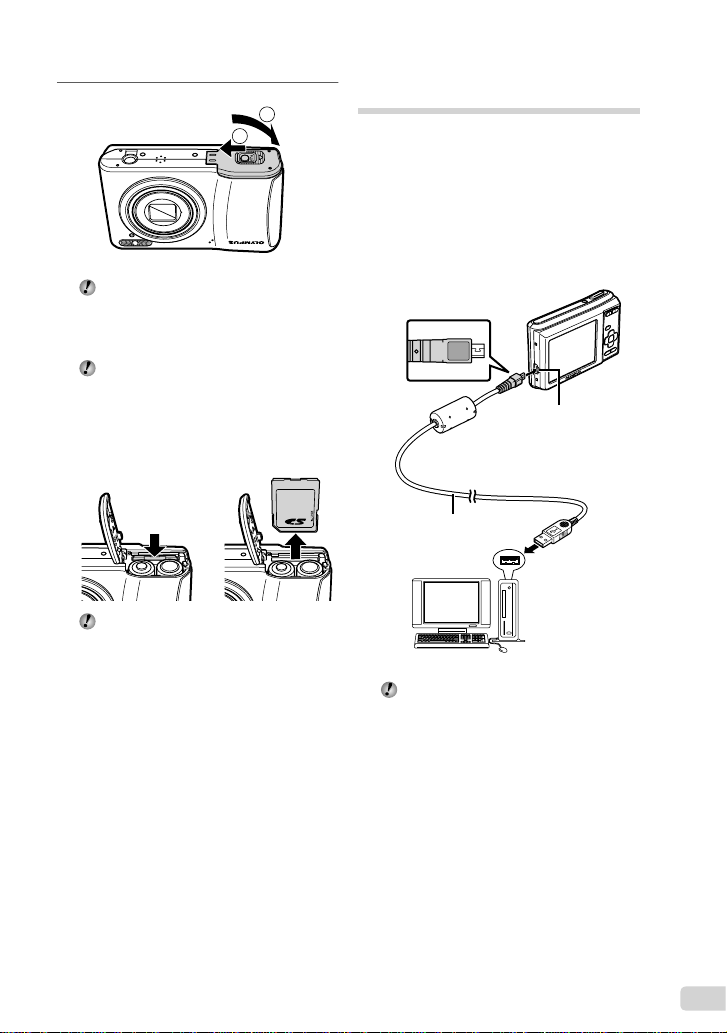

Inserting the battery and the
SD/SDHC memory card (sold
separately)
Always use SD/SDHC memory cards with
this camera. Do not insert any other types of
memory card.
1
1
3
2
Battery/card
compartment
cover
Battery/card
compartment lock
2Write-protect
switch
Insert the card straight until it clicks into
place.
Do not touch the contact area directly.
