Olympus CAMEDIA D-630 Zoom Installation guide

D-630 ZOOM
FE-5500
X-600
DIGITAL CAMERA
Shoot and Play!
Basic
Manual
2
26
50
74
ENGLISH
d4261_e_basic_01_cover_abc_7.fm Page 1 Tuesday, February 15, 2005 5:16 PM

2
En
For customers in North and South America
For customers in Europe
Trademarks
• IBM is a registered trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer Inc.
• xD-Picture Card™ is a trademark.
• All other company and product names are registered trademarks and/or
trademarks of their respective owners.
• The standards for camera file systems referred to in this manual are the “Design
Rule for Camera File System/DCF” standards stipulated by the Japan
Electronics and Information Technology Industries Association (JEITA).
“CE” mark indicates that this product complies with the European requirements
for safety, health, environment and customer protection. “CE” mark cameras are
intended for sales in Europe.
This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate
collection of waste electrical and electronic equipment in the EU countries.
Please do not throw the equipment into the domestic refuse.
Please use the return and collection systems available in your country for the
disposal of this product.
This product and bundled accessories conform to WEEE standards.
• Thank you for purchasing an Olympus digital camera. Before you start to use your
new camera, please read these instructions carefully to enjoy optimum performance
and a longer service life.
• This manual explains shooting and playback basics. For details on functions, read the
advanced manual. Keep this manual in a safe place for future reference.
• We recommend that you take test shots to get accustomed to your camera before
taking important photographs.
• The screen and camera illustrations shown in this manual were produced during the
development stages and may differ from the actual product.
For customers in USA
Declaration of Conformity
Model Number : D-630 ZOOM/FE-5500/X-600
Trade Name : OLYMPUS
Responsible Party :
Address : Two Corporate Center Drive, P.O. Box 9058, Melville, NY
11747-9058 U.S.A.
Telephone Number : 1-631-844-5000
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
For customers in Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
d4261_e_basic_02_hajimeni_7.fm Page 2 Thursday, April 14, 2005 1:39 PM

3
En
Manual Contents
Safety Precautions....................................................... 4

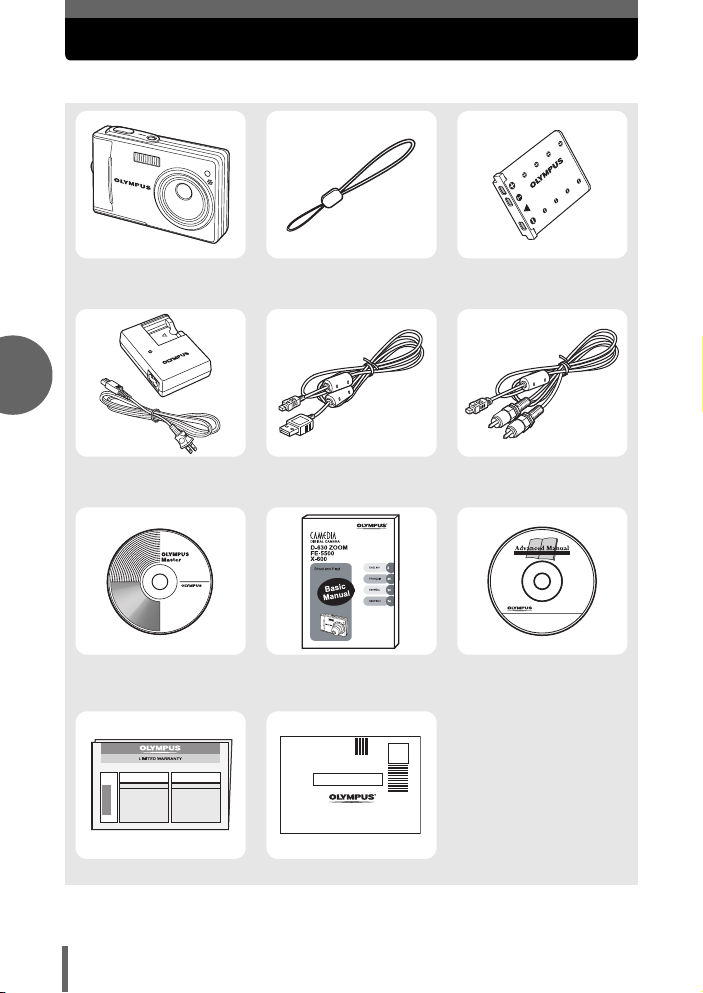

UNPACKING THE BOX CONTENTS...................10
CHARGING THE BATTERY .............................12
LOADING THE BATTERY ...............................13
TURNING THE CAMERA ON ...........................15
TAKING A PICTURE......................................17
REVIEWING A PICTURE ................................19
TURNING THE CAMERA OFF ..........................20
Enjoy the camera more.............................................. 21
Things you can do with this camera
Installing OLYMPUS Master Software
Specifications ............................................................. 23
d4261_basic_e_00_bookfile_7.book Page 3 Tuesday, February 15, 2005 5:13 PM

4
En
Safety Precautions
Read All Instructions — Before you use the product, read all operating
instructions.
Save These Instructions — Save all safety and operating instructions for future
reference.
Heed Warnings — Read carefully and follow all warning labels on the product and
those described in the instructions.
Follow Instructions — Follow all instructions provided with this product.
Cleaning — Always unplug this product from the wall outlet before cleaning. Use
only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner,
or any type of organic solvent to clean this product.
Attachments — For your safety, and to avoid damaging the product, use only
accessories recommended by Olympus.
Water and Moisture — Never use this product around water (near a bathtub,
kitchen sink, laundry tub, wet basement, swimming pool or in the rain). For
precautions on products with weatherproof designs, read the weatherproofing
sections of their manuals.
Location — To avoid damage to the product and prevent personal injury, never
place this product on an unstable stand, tripod, bracket, table or cart. Mount
only on a stable tripod, stand, or bracket. Follow the instructions that describe
how to safely mount the product, and use only the mounting devices
recommended by the manufacturer.
General Precautions
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.
Lightning flash with an arrowhead, enclosed in a triangle, alerts you to the presence of uninsulated voltage
points inside the product which could cause a serious electrical shock.
An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in
the documentation provided with the product.
WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER EXPOSE THIS PRODUCT TO WATER OR
OPERATE IN A HIGH HUMIDITY ENVIRONMENT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
d4261_basic_e_00_bookfile_7.book Page 4 Tuesday, February 15, 2005 5:13 PM

Safety Precautions
5
En
Power Sources — Connect this product only to the power source described on
the product label. If you are not sure about the type of power supply in your
home, consult your local power company. Refer to your operating instructions
for information on using the product with a battery.
Grounding, Polarization — If this product can be used with a specified AC
adapter, the adapter may be equipped with a polarized alternating current line
plug (a plug with one blade wider than the other). This safety feature allows the
plug to fit into the power outlet only one way. If you cannot insert the plug into
the wall outlet, pull it out, reverse it, and then reinsert it. If the plug still fails to
fit, contact an electrician and have the receptacle replaced.
Protecting the Power Cord — The power supply cord should be placed so it will
not be walked on. Never put a heavy object on the power cord or wrap it around
the leg of a table or chair. Keep the area around the power cord connection
points, at the power outlet, and at the product connection, free of all AC adapter
or accessory power cords.
Lightning — If a lightning storm occurs while using a specified AC adapter,
remove it from the wall outlet immediately. To avoid damage from unexpected
power surges, always unplug the AC adapter from the power outlet and
disconnect it from the camera when the camera is not in use.
Overloading — Never overload wall outlets, extension cords, power strips, or
other power connection points with too many plugs.
Foreign Objects, Liquid Spillage — To avoid personal injury caused by fire or
electrical shock from contact with internal high voltage points, never insert a
metal object into the product. Avoid using the product where there is a danger
of spillage.
Heat — Never use or store this product near any heat source such as a radiator,
heat register, stove, or any type of equipment or appliance that generates heat,
including stereo amplifiers.
Servicing — Refer all servicing to qualified personnel. Attempting to remove the
covers or disassemble the product, could expose you to dangerous high
voltage points.
Damage Requiring Service — If you notice any of the conditions described below
while using a specified AC adapter, unplug it from the wall outlet and refer
servicing to qualified service personnel:
a) Liquid has been spilled onto the product or some other object has fallen into
the product.
b) The product has been exposed to water.
c) The product does not operate normally despite following operating
instructions. Adjust only the controls described in the operating instructions
as improper adjustment of other controls could damage the product and
require extensive repair work by a qualified technician.
d) The product has been dropped or damaged in any way.
e) The product exhibits a distinct change in performance.
d4261_basic_e_00_bookfile_7.book Page 5 Tuesday, February 15, 2005 5:13 PM

Safety Precautions
6
En
Replacement Parts — When replacement parts are required, make sure that the
service center uses only parts with the same characteristics as the originals, as
recommended by the manufacturer. Unauthorized substitution of parts could
result in fire, electrical shock, or create other hazards.
Safety Check — Upon completion of servicing or repairs, ask the service
technician to perform safety checks to determine that the product is in good
working order.
WARNING
(Do not use the camera near flammable or explosive gases.
• To avoid causing a fire or explosion, never use the camera near flammable
or explosive gases.
(Do not use the flash on people (infants, small children, etc.) at
close range.
• Use caution when taking flash pictures at close range. When you fire the
flash, you must be at least 1 m (3 ft.) away from the faces of your subjects,
especially when taking pictures of infants and small children. Firing the flash
too close to the subject’s eyes could cause a momentary loss of vision.
(Keep young children and infants away from the camera.
• Always use and store the camera out of the reach of young children and
infants to prevent the following dangerous situations which could cause
serious injury:
• Becoming entangled in the camera strap, causing strangulation.
• Accidentally swallowing the battery, cards or other small parts.
• Accidentally firing the flash into their own eyes or those of another child.
• Accidentally being injured by the moving parts of the camera.
(Do not look at the sun or strong lights with the camera.
• To avoid damaging your eyes, never aim the camera directly into the sun,
or any other extremely bright light source.
DANGER
If the product is used without observing the information given under this
symbol, serious injury or death may result.
WARNING
If the product is used without observing the information given under this
symbol, injury or death may result.
CAUTION
If the product is used without observing the information given under this
symbol, minor personal injury, damage to the equipment, or the loss of
valuable data may result.
Handling the Camera
d4261_basic_e_00_bookfile_7.book Page 6 Tuesday, February 15, 2005 5:13 PM

Safety Precautions
7
En
(Do not touch charging battery (included in some areas) or the
battery charger until charging is finished and the battery has
cooled.
• The battery and battery charger become hot while charging. A specified AC
adapter also becomes hot during long use. At these times, they may cause
minor burns.
(Do not use or store the camera in dusty or humid places.
• Using or storing the camera in dusty or humid places may result in a fire or
electric shock.
(Do not cover the flash with a hand while firing.
• Do not cover the flash with a hand while firing or touch it after it has just been
fired. It may be hot and cause minor burns. Avoid using the flash for
extended periods.
(Do not take apart or modify the camera.
• Never attempt to disassemble the camera. The internal circuits contain high
voltage points which could cause serious burns or electrical shock.
(Do not let water or foreign objects inside the camera.
• If the camera is accidentally dropped in water, or if liquid is spilled into the
camera, stop using it, allow it to dry, and then remove the battery. Contact
the nearest authorized Olympus service center.
CAUTION
(Stop using the camera immediately if you notice any unusual
odors, noise, or smoke around it.
• If you notice any unusual odors, noise, or smoke around the camera during
operation, switch it off immediately – and disconnect a specified AC adapter
(if attached). Allow the camera to sit idle for a few minutes to cool. Take the
camera outdoors, away from flammable objects, and carefully remove the
battery. Never remove the battery with bare hands, which may cause a fire
or burn your hands. Contact the nearest Olympus service center
immediately.
(Do not use the camera with wet hands.
• To avoid dangerous electrical shock, never hold or operate the camera with
wet hands.
(Do not leave the camera in places where it may be subject to
extremely high temperatures.
• Doing so may cause parts to deteriorate and, in some circumstances, cause
the camera to catch fire. Do not use the charger or AC adapter if it is covered
(such as a blanket). This could cause overheating, resulting in fire.
d4261_basic_e_00_bookfile_7.book Page 7 Tuesday, February 15, 2005 5:13 PM

Safety Precautions
8
En
(Handle the camera with care to avoid getting a low-temperature
burn.
• When the camera contains metal parts, overheating can result in a low-
temperature burn. Pay attention to the following:
• When used for a long period, the camera will get hot. If you hold on to the
camera in this state, a low-temperature burn may be caused.
• In places subject to extremely cold temperatures, the temperature of the
camera’s body may be lower than the environmental temperature. If
possible, wear gloves when handling the camera in cold temperatures.
(Be careful with the strap.
• Be careful with the strap when you carry the camera. It could easily catch
on stray objects – and cause serious damage.
(Use only the AC adapter specified by Olympus.
• Never use any AC adapter except one specified by Olympus. Using a
different AC adapter may damage the camera or power source, or result in
accidents or fire. Ensure the adapter used is designed for your region or
country. For more information, contact the nearest Olympus service center
or the store of purchase. Olympus makes no representations or warranties
regarding any damages caused by AC adapters not recommended by
Olympus.
(Do not damage the power-supply cord.
• Never pull or modify the power-supply cord of the AC adapter or
accessories. Make sure only the plug is securely held during insertion and
removal from the outlet. Stop using the camera immediately, and contact the
nearest Olympus service center or the store of purchase if:
• The power-supply cord becomes hot, or it gives off smoke or unusual
odors.
• The power-supply cord is cut or damaged, or the plug has a faulty
contact.
DANGER
• This camera uses a lithium ion battery specified by Olympus. Charge batteries
with the specified charger. Do not use any other chargers.
• Never heat or incinerate the battery.
• Take precautions when carrying or storing battery to prevent the battery from
coming into contact with any metal objects such as jewelry, pins, fasteners, etc.
• Never store the battery where the battery will be exposed to direct sunlight, or
subjected to high temperatures in a hot vehicle, near a heat source, etc.
Battery handling precautions
Follow these important guidelines to prevent battery from leaking, overheating,
burning, exploding, or causing electrical shocks or burns.
d4261_basic_e_00_bookfile_7.book Page 8 Tuesday, February 15, 2005 5:13 PM

Safety Precautions
9
En
• To prevent causing battery leaks or damaging their terminals, carefully follow all
instructions regarding the use of battery. Never attempt to disassemble a battery
or modify it in any way, by soldering, etc.
• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold
running water and seek medical attention immediately.
• Always store battery out of the reach of small children. If a child accidentally
swallows a battery, seek medical attention immediately.
WARNING
• Keep battery dry at all times. Never allow them to come into contact with fresh
or salt water.
• Do not touch or hold the battery with wet hands.
• To prevent the battery from leaking, overheating, or causing a fire or explosion,
use only the battery recommended for use with this product.
• Insert the battery carefully as described in the operating instructions. Never load
the battery with its +/- terminals reversed. Never force the battery into the battery
compartment.
• If the battery is not charged within the specified time, stop charging it and do not
use it.
• Do not use a battery if it is cracked or broken.
• If a battery leaks, becomes discolored or deformed, or becomes abnormal in
any other way during operation, stop using the camera and consult your dealer
or an authorized Olympus service center. Continued use may result in fire or
electric shock.
• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush
the affected area with clean, running cold water immediately. If the fluid burns
your skin, seek medical attention immediately.
• Never attempt to modify the battery compartment on the camera, never insert
anything (other than the recommended battery) into the battery compartment.
• Never subject battery to strong shocks or continuous vibration.
CAUTION
• Before loading, always inspect the battery carefully for leaks, discoloration,
warping, or any other abnormality.
• The battery may become hot during prolonged use. To avoid minor burns, do not
remove it immediately after using the camera.
• Remove the battery from the camera if it is not going to be used for a long time.
d4261_basic_e_00_bookfile_7.book Page 9 Tuesday, February 15, 2005 5:13 PM

10
En
UNPACKING THE BOX CONTENTS
If you find any contents missing or damaged, contact the place of purchase.
Contents vary depending on the area where you purchased this camera.
Digital Camera Strap Lithium ion Battery
(LI-40B)
Lithium ion Battery
Charger (LI-40C)
USB Cable AV Cable
OLYMPUS Master
CD-ROM
Basic Manual
(this manual)
Advanced Manual
(CD-ROM)
Warranty Card Registration Card
d4261_basic_e_00_bookfile_7.book Page 10 Tuesday, February 15, 2005 5:13 PM

UNPACKING THE BOX CONTENTS
11
En
1Attach the strap as shown.
Note
Be careful with the strap when you carry the camera, as it can easily catch on
stray objects, causing injury or damage.
Attach the strap correctly as shown above. Olympus is not responsible for any
damages resulting from the strap coming loose due to incorrect attachment.
Attaching the strap
Pull the strap tight so that it does not come loose.
Strap
d4261_basic_e_00_bookfile_7.book Page 11 Tuesday, February 15, 2005 5:13 PM

12
En
CHARGING THE BATTERY
The battery is not fully charged at the time of purchase. Charge the
battery fully with the LI-40C charger before use.
1Insert the battery into the charger.
2Connect the power cable.
TIPS
The LI-40B battery takes approximately 210 minutes to charge.
Note
This camera uses an Olympus LI-40B lithium ion battery. No other type of
battery can be used.
Use only the specified charger.
Battery life varies depending on shooting conditions, etc.
The charger can be used within the range of AC100V to AC240V (50/60Hz).
When using the charger abroad, you may need a plug adapter to convert the
plug to the shape of the AC wall outlet. For details, ask at your local electrical
shop or travel agent.
Do not use voltage converters sold in stores traveling overseas as this could
damage your charger.
Smark Lithium ion Battery (LI-40B)
Lithium ion Battery
Charger (LI-40C)
Power cable
AC wall outlet
n
o
Charging indicator
When charging starts, the indicator lights red.
When fully charged, the indicator turns off.
d4261_basic_e_00_bookfile_7.book Page 12 Tuesday, February 15, 2005 5:13 PM

13
En
LOADING THE BATTERY
1Make sure the camera is turned off.
2Open the battery compartment/card cover.
3Insert the battery.
The lens is retracted.
The monitor is off.
The lamp is off.
Battery compartment/card cover
Slide Lift
o
n
Battery compartment/
card cover
Battery lock knob
To remove the battery
Slide the lock knob as
shown. The battery pops up
allowing you to grasp it.
Battery lock
knob
The battery is locked into place
when inserted correctly.
d4261_basic_e_00_bookfile_7.book Page 13 Tuesday, February 15, 2005 5:13 PM

LOADING THE BATTERY
14
En
4Close the battery compartment/card cover.
Note
Be careful to catch finger in the battery compartment/card cover.
Note
Power consumption by the camera varies depending on which functions are
used.
Power is consumed continuously during the conditions described below
causing battery to become exhausted quickly.
The zoom is used repeatedly.
The shutter button is pressed halfway repeatedly in shooting mode,
activating the auto focus.
The camera is played back still pictures or movies for a long time.
The camera is connected to a computer or printer.
If you use an exhausted battery, the camera may turn off without displaying
the battery level warning.
Close
n
Press down on the center of the cover when sliding.
Slide
o
The battery
d4261_basic_e_00_bookfile_7.book Page 14 Tuesday, February 15, 2005 5:13 PM

15
En
TURNING THE CAMERA ON
1Press the POWER switch.
Note
To save battery power, the camera automatically enters sleep mode and
stops operating after about 3 minutes of non-operation. The camera activates
again as soon as you operate the shutter button or zoom button.
15 minutes after the camera enters sleep mode, the camera turns off
automatically. Turn the camera on to use.
The lens extends.
The monitor turns on.
The lamp on the camera lights orange.
POWER switch
Shooting mode
Battery check indicator
Number of storable still picture
Lamp
d4261_basic_e_00_bookfile_7.book Page 15 Tuesday, February 15, 2005 5:13 PM

TURNING THE CAMERA ON
16
En
Setting the date and time
The first time you use the camera, [Y/M/D]
is displayed prompting you to set the date
and time. See “Setting the date and time” in
Chapter 6 of the Advanced Manual. The
camera can be operated without making
this setting.
Languages available on the camera
Available languages may vary according to
where you purchased the camera. The
instructions given in this manual and the
Advanced Manual apply to the camera
screens in English. See “Changing the
display language” in Chapter 6 of the
Advanced Manual.
The battery check indicator is displayed for 3 seconds when the camera
is turned on. And the indicator changes according to how much power is
remaining especially when the battery power is low.
When you first turn on the camera
Battery check indicator
ef
Lit (green)
(Disappears after a
while.)
Ready to shoot. No power is left. Charge the
battery.
(When no battery power is
left, the lamp of the camera
blinks alternately green and
orange.)
Blinking (red)
The battery needs charging
soon.
[BATTERY EMPTY]
is displayed.
d4261_basic_e_00_bookfile_7.book Page 16 Tuesday, February 15, 2005 5:13 PM

17
En
TAKING A PICTURE
1Compose your picture.
2Focus on your subject.
Position the AF target mark on your
subject using the monitor.
AF target mark
[IN]: Indicates that pictures are recorded
in the camera’s internal memory.
Shutter button
Lamp
The green lamp lights when the
focus and exposure are locked.
(focus lock)
The #mark lights when the flash is
about to fire.
Press the shutter button halfway and
hold.
#mark
Green lamp
d4261_basic_e_00_bookfile_7.book Page 17 Tuesday, February 15, 2005 5:13 PM

TAKING A PICTURE
18
En
3Take the picture.
Note
Press the shutter button gently. If it is pressed forcefully, the camera may
move causing the picture to blur.
Recorded pictures are saved in the camera regardless of whether the camera
is turned off or the battery is replaced or removed.
Never open the battery compartment/card cover, remove the battery or
disconnect the AC adapter while the lamp on the camera is blinking orange.
Doing so could destroy stored pictures and prevent storage of pictures you
have just taken.
When taking pictures against strong backlight, the area of the picture in
shadow may appear colored.
The camera takes the picture. The
lamp on the camera blinks orange
while the picture is recorded.
Press the shutter button fully.
d4261_basic_e_00_bookfile_7.book Page 18 Tuesday, February 15, 2005 5:13 PM

19
En
REVIEWING A PICTURE
1Press $.
2Use the arrow pad to display the picture you want.
The lamp on the camera lights green
and playback mode is enabled. Last
picture taken is displayed.
Press #when you are ready to take
another picture.
Shooting button (#)
Playback button
Lamp
Next picturePrevious picture
10 pictures back
10 pictures forward
d4261_basic_e_00_bookfile_7.book Page 19 Tuesday, February 15, 2005 5:13 PM

20
En
TURNING THE CAMERA OFF
1Press the POWER switch.
The monitor and the lamp
on the camera turn off.
The lens retracts.
POWER switch
Now that you have mastered how to shoot and
play, refer to the Advanced Manual for additional
camera features and applications.
And to get the most out of your digital images, be
sure to install the OLYMPUS Master software on
the supplied CD-ROM for enhanced editing,
storing, and sharing of your images.
d4261_basic_e_00_bookfile_7.book Page 20 Tuesday, February 15, 2005 5:13 PM
