Olympus SH-2 User manual

Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a safe
place for future reference.
We recommend that you take test shots to get accustomed to your camera
before taking important photographs.
The screen and camera illustrations shown in this manual were produced
during the development stages and may differ from the actual product.
Instruction Manual
DIGITAL CAMERA
SH-2

2 EN

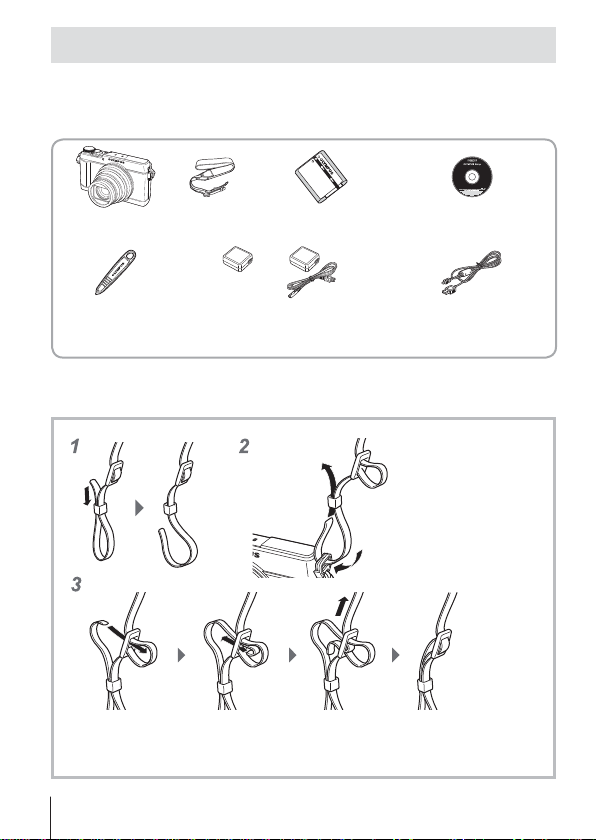

Unpack the box contents
The following items are included with the camera.
If anything is missing or damaged, contact the dealer from whom you
purchased the camera.
Digital camera Strap Lithium Ion Battery
(LI-92B) OLYMPUS Setup CD-ROM
or
Stylus pen USB-AC adapter (F-2AC) USB cable (CB-USB8)
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
• The touch panel can be used for operations marked with in this manual.
Attaching the camera strap
• Attach the strap to the other eyelet in the same manner.
• Pull the strap tight so that it does not come loose.

3 EN
Names of parts
1Connector cover
2Strap eyelet
3Self-timer lamp/AF illuminator
4Lens
5Built-in flash
6Flash switch
7Stereo microphone
8Indicator lamp
9nbutton
0Zoom lever
aShutter button
bMode dial
cMonitor (Touch screen)
dR(Movie) button
eq(Playback) button
fAbutton
gINFO (Information display) button
h/Wi-Fi button
iMulti-connector
jHDMI micro connector
k Speaker
lBattery/card compartment lock
mBattery/card compartment cover
nTripod socket
oArrow pad
pF(Up) /F(Exposure
compensation) button
qI(Right) /#(Flash) button
rH(Left) button
sG(Down) /jY(Sequential
shooting/Self-timer) / (Erase)
button
• FGHI instruct to press the up/down/left/right arrow pad.

4 EN
Preparations for shooting

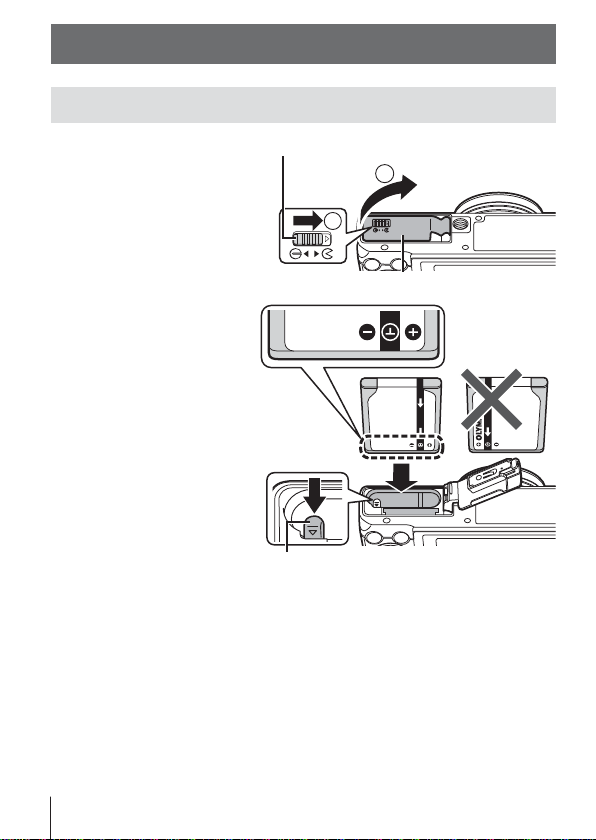

Inserting and removing the battery and card
1
Follow Steps 1 and 2
to open the battery/card
compartment cover.
• Turn off the camera before
opening the battery/card
compartment cover.
12
1
Battery/card compartment cover
Battery/card compartment lock
2
Insert the battery
while sliding the
battery lock knob in
the direction of the
arrow.
• Insert the battery as
illustrated with the C
mark toward the battery
lock knob.
• If you insert the battery
in the wrong direction,
the camera is not
turned on. Be sure to
insert it in the correct
direction. Battery lock knob
• Slide the battery lock knob in the direction of the arrow to unlock, and
then remove the battery.

5 EN
3
Insert the card straight until it
clicks into place.
• Do not touch the metallic parts of the
card directly.
• Always use the specified cards with
this camera. Do not insert other types
of memory cards.
Write-protect
switch
Cards compatible with this camera
SD/SDHC/SDXC/Eye-Fi (with Wireless LAN function) card (commercially
available) (maximum capacity: 128 GB)
(for compatibility card details, visit the Olympus website.)
• This camera can be used without a card by storing images in its internal
memory. g“Using the card” (P. 99)
To remove the card
Press the card in until it clicks
and comes out slightly, then
remove the card.
12
4
Follow Steps 1 and
2to close battery/card
compartment cover.
• When using the camera, be
sure to close the battery/
card compartment cover.
12
1

6 EN
Charging the battery
1
Check that the battery is in the camera, and connect the USB
cable and USB-AC adapter.
• The battery is not fully charged at shipment. Before use, be sure to
charge the battery until the indicator lamp turns off (up to 4.5 hours).
Connecting the camera AC outlet
USB cable (supplied)
Connector cover
Multi-connector
Indicator lamp
On: Charging
Off: Charged
or
For charging the battery abroad, see “Using your charger and USB-AC
adapter abroad” (P. 98).
Never use any cable other than supplied or Olympus-designated USB cable.
This may cause smoking or burning.
The included F-2AC USB-AC adapter (hereafter referred to as USB-AC
adapter) differs depending on the region where you purchased the camera. If
you received a plug-in type USB-AC adapter, plug it directly into AC outlet.
Be sure to unplug the power plug of the USB-AC adapter from the wall outlet
when the charging is complete or the playback ends.
For details on the battery, see “Handling the Battery” (P. 106). For details on the
USB-AC adapter, see “USB-AC adapter” (P. 108).

7 EN
• If the indicator lamp does not light, check the USB cable and USB-AC adapter
connections.
• If “No Connection” is displayed on the back monitor, disconnect the USB
cable and set [Storage] in [USB Connection] (P. 67) before connecting the cable
again.

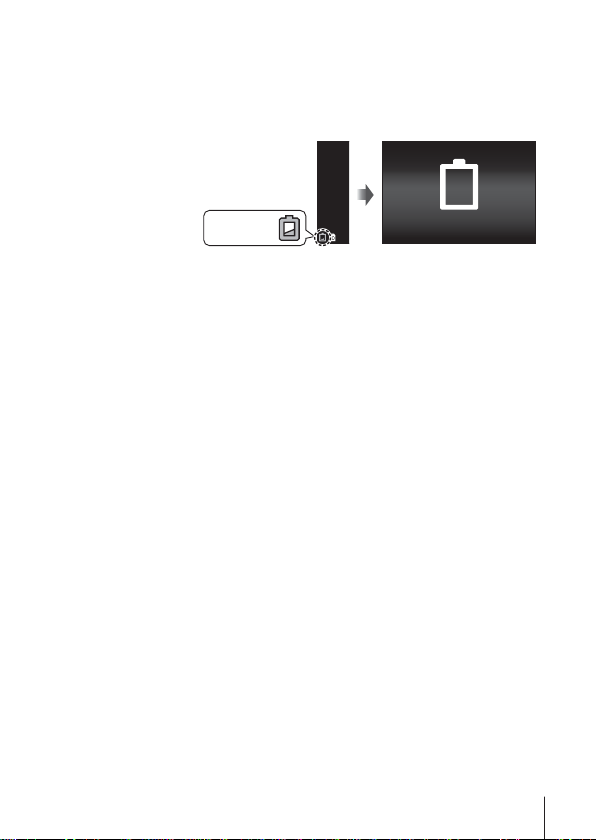

When to charge the batteries
Charge the battery when the
error message shown on the
right appears.
Error message
Battery Empty
Flashes in
red

8 EN
Turning on the camera and making the initial
settings
When you turn on the camera for the first time, a screen appears enabling
to set the language for the menus and messages displayed in the monitor,
and the date and time.
To change the selected date and time, see “Setting the date and time
d[X]” (P. 69).
1
Press the nbutton to turn on the camera, press
FGHI of the arrow pad to select your language and press
the Abutton.
• In the case that the power is not turned on when you press the n
button, check the direction of the battery.
g“Inserting and removing the battery and card” (P. 4)
2

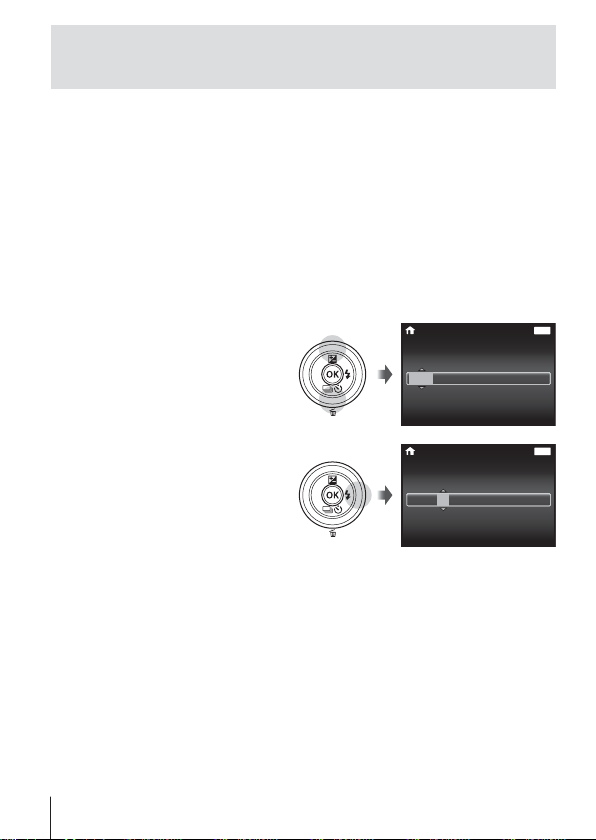

Press FG of the arrow
pad to select the year for
[Y].
X
MENU
Back
Y/M/D
YMDTime
-- -- -- --
:.. 2015
3
Press Iof the arrow pad
to save the setting for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:.. 2015
4
As in Steps 2 and 3, press FGHI of the arrow pad to
set [M] (month), [D] (day), [Time] (hours and minutes), and
[Y/M/D] (date order), and then press the Abutton.
• For precise time setting, press the Abutton as the time signal strikes
00 seconds.

9 EN
5
Use HI (arrow pad) to
select the time zone and
then press the Abutton.
• Use
FG (arrow pad) to
turn daylight saving time
([Summer]) on or off.
’15.02.26 12:30
Summer

10 EN
Using basic functions
Taking photographs
1
Press the nbutton to turn on the camera.
When the camera is turned on, the monitor will turn on.
2
Set the mode dial to P.
In mode P, the camera automatically adjusts
shutter speed and aperture in response to
subject brightness.
3
Frame the shot.
• When holding the camera, take care not
to cover the flash, microphone or other
important parts with your fingers, etc.
4
Press the shutter button
halfway down to focus.
The camera was unable to focus
if the AF target mark flashes red.
Try focusing again.
• The shutter speed and
aperture value are displayed
in red if the camera is unable
to achieve optimal exposure.
PP
F6.9F6.91/4001/400
Shutter speed
Aperture value
AF target
Press halfway
5
To take the picture, gently
press the shutter button all the
way down while being careful
not to shake the camera.
Press
halfway Press the rest of
the way down
• You can also take photographs using the touch screen.
g“Shooting using touch panel” (P. 42)

11 EN
 Viewing photographs (Playing back images)
Turn on the camera.
Press the qbutton.
• Your most recent photograph is displayed.
• Press HI (arrow pad) to select an image.
q button Arrow pad
Displays the
previous frame Displays the next frame
’ 15/02/26 12:30
4/304/30
Still image
You can view later frames and earlier frames using the
touch screen.
• Drag the screen to left to advance one frame, and
drag the screen to right to rewind one frame.
4/304/30
’ 15/02/26 12:30
Index display
• In single-frame playback, turn the zoom lever to W for
Index playback.
• Use FGHI (arrow pad) to move the cursor.
• Turn the zoom lever to T for single-frame playback.
12:30’15/02/26
Tap to display Index playback.
• Tap .-on the right to view the next or previous page.
• Tap an image to view it full frame.

12 EN
Close-up playback
• In single-frame playback, turn the zoom lever to T to
zoom in up to 10×; turn to W to zoom out. Press the A
button to return to single-frame playback.
• Press FGHI (arrow pad) to scroll an image to the
direction of the button you pressed.
4/304/30
’ 15/02/26 12:30
Tap for playback zoom.
• Use your finger to scroll the display when the picture is zoomed in.
• Tap Zto return to single-frame playback.
Erasing images during playback
1
Display the image you want to erase and press .
• To erase a movie, select
the movie to erase and
press .
MENU
Erase
Erase
Cancel
4/304/30
100-0004100-0004
Back
2
Press FG (arrow pad) to select [Erase], and press the A
button.
• Grouped images are erased as a group (P. 17).
• Multiple images or all images can be erased at a time (P. 64).

13 EN
Recording movies
1
Press the R(movie) button
to start recording.
• The movie is shot in the set
shooting mode. Note that the
shooting mode effects may not
be obtained for some shooting
modes.
• Sound is also recorded.
• When using a camera with a
CMOS image sensor, moving
objects may appear distorted
due to the rolling shutter
phenomenon.
0:00
RECREC
0:00 0:340:34
0:000:00
RECREC
0:340:34
Lights up
red when
recording Recording time
Recording length (P. 100)
This is a physical phenomenon whereby distortion occurs in the filmed
image when shooting a fast-moving subject or due to camera shaking. In
particular, this phenomenon becomes more noticeable when using a long
focal length.
2
Press the R(movie) button again to stop recording.

14 EN
Movie playback
Select a movie, and press the
Abutton.
• Turn the zoom lever to the
T side to display the movie
index. Use FGHI (arrow
pad) to select the frame to
start playback.
00:12/00:3400:12/00:34
During playbackMovie
’15/02/26’15/02/26 12:3012:30
4/30
4/30
Pausing and restarting
playback
Press the Abutton to pause playback. During
pause, fast forward or reverse, press the Abutton
to restart playback.
Fast forward Press I(arrow pad) to fast forward. Press I
(arrow pad) again to increase the fast forward
speed.
Rewind Press H(arrow pad) to rewind. Press H(arrow
pad) again to increase the rewind speed.
Adjusting the volume Use FG (arrow pad) to adjust the volume.
Operations while playback is paused
During pause
00:12/00:3400:12/00:34
Elapsed time/Total shooting time
Jump Press FG (arrow pad) to jump to the previous/
next index.
Advancing and
rewinding one frame at
a time
Press Ior H(arrow pad) to advance or rewind
one frame at a time. Hold Ior H(arrow pad)
pressed for continuous advance or rewind.
Resuming playback Press the Abutton to resume playback.
• During a pause, turn the zoom lever to the W side for the split index display.

15 EN
To stop movie playback
Press the button.
• To play back movies on the computer, the supplied PC software is
recommended. For the first use of the PC software, connect the camera to the
computer, then launch the software.
Playing back movies using touch panel
Tap the following icon.
Play back movies. Tap again to pause playback.
(/*Tap (or *to fast forward or rewind.
&/)Tap &or )to advance or rewind one frame.
OGo back to the beginning of the movie.
+Display movie index.

16 EN
Playing back panorama and grouped
images
Playing back panorama images
Panorama images that were combined together using [Auto] or [Manual]
can be scrolled for viewing.
1
Select a panorama image during
playback.
2
Press the Abutton.
4/304/30
12:30’15/02/26
To control panorama image playback
Stop playback: Press the button.
Pause: Press the Abutton.
Control while paused
Press FGHI (arrow pad) to scroll the image
in the direction of the pressed button.
Turn the zoom lever to enlarge/shrink the image.
Press the Abutton to restart scrolling. Viewing area
Tapping also scrolls panorama images for viewing.

17 EN
Playing back grouped images
With sequential shooting, interval shooting and Photo in Movie, the taken
images are displayed as a group during playback.
T side Expands.
• Expand to view the frames of a group in index view.
• Tapping Kalso expands the frames.
• If you want to delete images from the grouped images, you
can expand the group and delete the images individually.
• Select the image and press the Abutton to display the
images respectively.
• Use HI (arrow pad) to view the previous/next frame.
Abutton Plays back the grouped images in sequence automatically or
pauses playback.
Tapping also plays back grouped images.
Sequential/ Interval images frame
• Shot images are played back automatically.
• Expand to view the images in index view.
Sequential images frame
4/304/30
’15/02/26’15/02/26 12:30
12:30
Photo in Movie frame
• The movie and the still images are played back.
• Expand to view the images in index view.
• Pause the playback and turn the zoom lever to the W side to display the still
images as a chapter index of the movie. Select the still image and press the
Abutton to play back the movie from that point.

18 EN
Monitor display
Shooting screen displays
F6.9F6.91/1001/100
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
SCNSCN
0:00:340:00:34
zz
Date
44
N ORM
4:3
1 2
5
6
7
8
9
10
11
12
18202122 19 13
1617 1523
24
25
27
26
28
2930
14
34
When the shutter button is pressed halfway down
Reading a histogram
If the peak fills too much of
the frame, the image will
appear mostly white.
If the peak fills too much
of the frame, the image
will appear mostly black.
The green section shows luminance
distribution within the screen’s center.
Switching the displays
The displays change in the order of Normal →Detailed →No info. →Level
Gauge each time the INFO button is pressed. gP. 71

19 EN
No. Name Normal Detailed No info. Level
Gauge
1Shooting mode RR ––
2Connection to Smartphone RRRR
3Sub mode RR ––
4Picture Mode RR ––
5Flash RR ––
6Exposure compensation RR ––
7White balance RR ––
8ISO sensitivity RR ––
9o/YRR ––
10 Image size (still images) RR ––
11 Aspect RR ––
12 Image size (movies) RR ––
13 Recording with sound/
wind noise reduction RR ––
14 Movie recording length RR ––
15 Movie recording icon RR ––
16 World time –R––
17 Image stabilization –R––
18 Metering –R––
19 Date stamp RR ––
20 Compression RR ––
21 Number of storable still
pictures RR ––
22 Current memory RR ––
23 Battery check RR ––
24 Histogram –R––
25 AF target mark RRRR
26 Touch Shutter RRRR
27 Grid Guide –R––
28 Aperture value RRRR
29 Shutter speed RRRR
30 Camera shake warning RRRR

20 EN
Playback mode display
• Normal
1010
4/304/30
12:30’15/02/26’15/02/26 12:30
RAWRAW
98
324576
23
22 21 23
Still image
• Detailed
100-0004100-0004
4/30
2.02.01/10001/1000
4608 34564608 3456
AUTO
WB
125
ISO
N
ORM
AUTO
WB
125
ISO
N
ORM
PP
’15/02/26 12:30
F6.9F6.9
1010
RAW
100-0004100-0004
2.0
2.01/10001/1000
4608 34564608 3456
AUTO
WB
125
ISO
N
ORM
AUTO
WB
125
ISO
N
ORM
PP
’15/02/26 12:30
F6.9F6.9
987 1211 1310 14 15 16
22 21
1718
20 19
123 54 6
23
23
