Olympus SP-720 User manual

Instruction Manual
DIGITAL CAMERA
●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these
instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for
future reference.
●We recommend that you take test shots to get accustomed to your camera before taking important photographs.
●In the interest of continually improving products, Olympus reserves the right to update or modify information
contained in this manual.
SP-720UZ

2
EN
Checking the contents of the box
or
Digital camera Strap Lens cap and
lens cap strap Lithium Ion Battery
(LI-50B)
USB cable
(CB-USB8) AV cable (CB-AVC3) USB-AC adapter
(F-2AC)
OLYMPUS Setup
CD-ROM
Names of Parts
Names of Parts
Camera unit
5
6
4
1
2
7
8
3

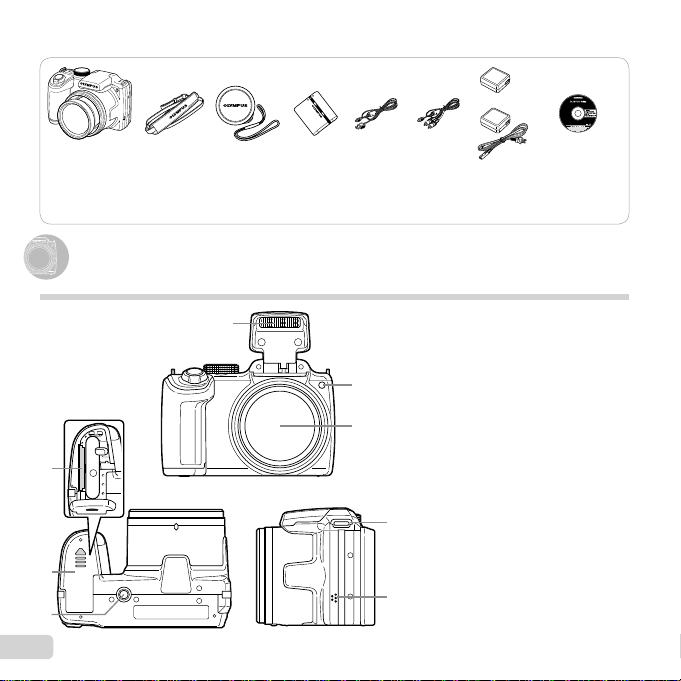

1Flash
2AF illuminator
Self-timer lamp
3Lens
4Card slot
5Battery/card cover
6Tripod socket
7Strap eyelet
8Speaker
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.

3
EN
1
7
8
9
10
11
12
14
13
3
6
4
5
2
1Monitor
2button
3Rbutton (record movies)
4qbutton (switching
between shooting and
playback)
5Abutton (OK)
6Arrow pad
INFO button (changing
information display)
button (erase)
7Multi-connector
8HDMI micro connector
9Connector cover
10 Microphone
11 Mode dial
12 Zoom lever
13 Shutter button
14 nbutton
Indicator lamp
Attaching the camera strap and lens cap
Attaching the camera strap and lens cap
12
34
• Attach the strap to the other
eyelet in the same manner.
5
Pull the strap tight so that it does not come loose.

4
EN
Monitor
Shooting mode display
Shooting mode display
F3.2F3.21/1001/100
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
00:3400:34
DATE
44
N
ORM
1010
321
4
5
6
7
8
9
10
11
12
182021
22 19 1315
23
25
24
262728
141617
zz

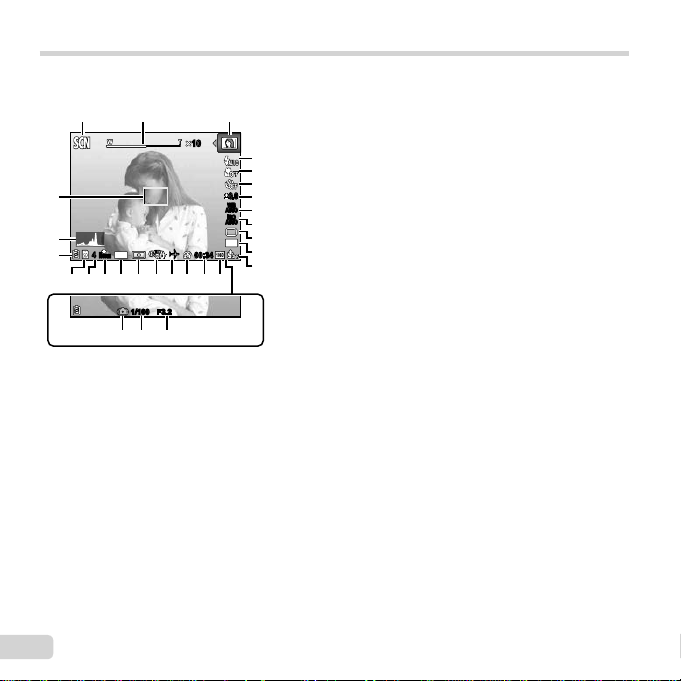

1 Shooting mode.......p. 16, 24
2 Zoom bar......................p. 18
3 mode...................p. 24
4 Flash.............................p. 19
Flash standby/flash charge
....................................p. 56
5 Macro/super macro ......p. 30
6 Self-timer......................p. 30
7 Exposure compensation
....................................p. 31
8 White balance...............p. 31
9 ISO...............................p. 32
10 Drive.............................p. 32
11 Image size (still images)
..............................p. 33, 63
12 Recording with sound
(movies)......................p. 39
13 Image size (movies)
..............................p. 39, 64
14 Continuous recording length
(movies)......................p. 17
15 Movie recording icon....p. 17
16 World time ....................p. 50
17 Image stabilization
(still images)................p. 37
18 Metering .......................p. 36
19 Date stamp...................p. 38
20 Compression (still images)
..............................p. 35, 63
21 Number of storable still
pictures (still images)
....................................p. 16
22 Current memory ...........p. 62
23 Battery check..........p. 13, 57
24 Histogram.....................p. 20
25 AF target mark..............p. 16
26 Aperture value..............p. 16
27 Shutter speed...............p. 16
28 Camera shake warning

5
EN
Playback mode display
Playback mode display
●Standard display 1Battery check..........p. 13, 57
23D image......................p. 34
3Eye-Fi transferred.........p. 44
4Protect..........................p. 42
5Adding sound ...............p. 40
6Upload order.................p. 43
7Print reservation/number of
prints..................p. 54/p. 53
8Current memory ...........p. 62
9Frame number/total number
of images (still images)
....................................p. 20
Elapsed time/total shooting
time (movies)..............p. 21
10Pmode..................p. 25
11 Shutter speed...............p. 16
12Shooting mode.......p. 16, 24
13ISO...............................p. 32
14Aperture value..............p. 16
15Histogram.....................p. 20
16 Exposure compensation
....................................p. 31
17Shadow Adjustment
Technology..................p. 35
18 White balance...............p. 31
19 File number
20 Compression (still images)
...............................p. 35, 63
21 Date and time.........p. 15, 50
22 Image size
..................p. 33, 39, 63, 64
23 Volume ...................p. 21, 46
12:30’12/02/26’12/02/26 12:30
4/30
4/30
10103D3D
98
21
1 2 3 4 6 75
Still image
00:12/00:3400:12/00:34
1
23
9
Movie
●Advanced display
4/304/30
14 M
2.02.0F3.2F3.21/10001/1000
100-0004
100-0004
AUTO
WB
AUTO
WB
100
ISO
100
ISO
N
ORM
1
MAGICMAGIC
’12/02/26 12:30
10103D3D
14 M
2.02.0F3.2F3.21/10001/1000
100-0004
100-0004
AUTO
WB
AUTO
WB
100
ISO
100
ISO
1
MAGICMAGIC
’12/02/26 12:30
N
ORM
1 982 34 6 75 12 1511 1310 14
1
6
19
18
21
22
17
20

6
EN
Camera Settings
Camera Settings
UsingtheButtons
UsingtheButtons
Frequently used functions can be accessed using the buttons.
Mode dial
Changing the shooting mode (p. 24)
Zoom lever (p. 18, 22)
Shutter button (p. 16, 56)
Rbutton (shooting movies) (p. 17)
qbutton (switching between
shooting and playback) (p. 17,
20, 45)
button (p. 9)
G(down) /
button (erase) (p. 22)
F(up) /INFO button
(changing information display) (p. 20, 23)
I(right)
Abutton
Arrow pad
H(left)

7
EN
Operation guide
The symbols FGHI displayed for image selections
and settings indicate that the arrow pad (p. 6) is to be
used.
02 26 12 30:..
MENU
2012
XBack
Y/M/D
Y M D Time

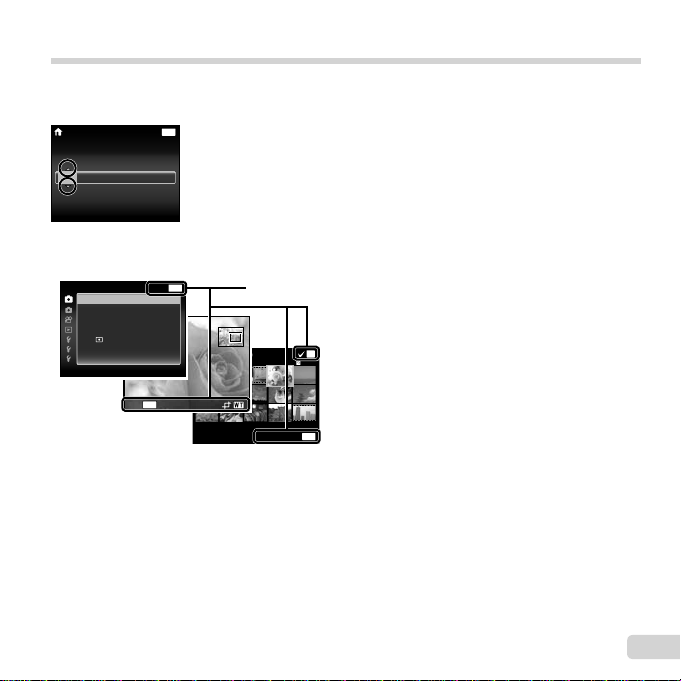

Operation guides displayed on the screen indicate that
the button, Abutton, or zoom lever can be used.
Sel. Image (1)
Erase/Cancel
OK
MENU
4/30
MENU
Back
MENU
Camera Menu 1 Back
ResetReset
ESP
OnImage Stabilizer
Compression
Shadow Adjust
AF Mode
Digital Zoom
ESP/
Normal
Auto
Face/iESP
Off
Operation guide

8
EN
UsingtheMenu
UsingtheMenu
Use the menu to change camera settings.
There may be menus that are unavailable depending on other related settings or the shooting mode (p. 24).
Function menu
Function menu

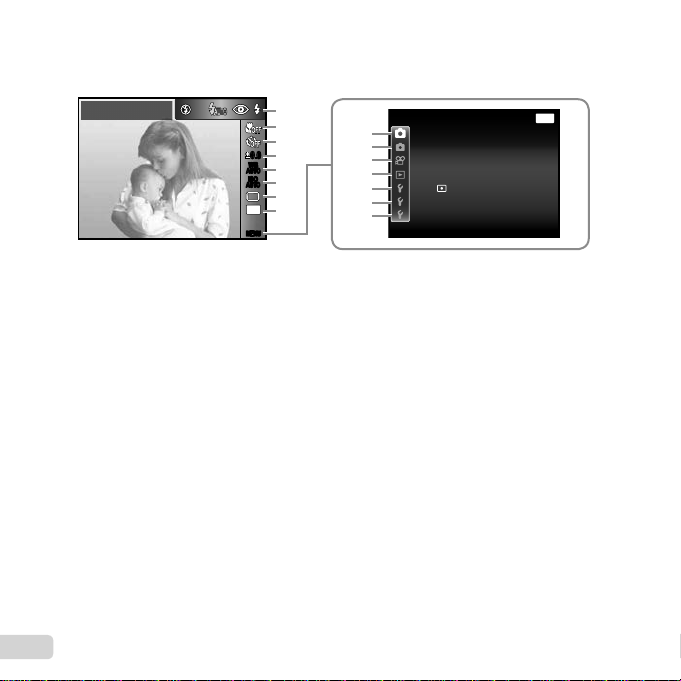

Press Hduring shooting to display the function menu. The function menu provides access to frequently used
shooting settings.
To select the function menu
Use FG to select a menu and use HI to select a menu option. Press the Abutton
to set the function menu.
0.00.0
MENUMENU
14 M
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
Flash Auto
Shooting
Selected option
Function menu
Setup menu

9
EN
1Press the button.
●The setup menu is displayed.
MENU
Camera Menu 1 Back
ResetReset
ESP
OnImage Stabilizer
Compression
Shadow Adjust
AF Mode
Digital Zoom
ESP/
Normal
Auto
Face/iESP
Off
2Press Hto select the page tabs. Use FG
to select the desired page tab and press I.
MENU
Settings Menu 2 Back
Pixel Mapping
Power SavePower Save
TV Out NTSC
English
Off
World TimeWorld Time
X
Page tab
Pixel Mapping
MENU
Settings Menu 2 Back
NTSC
English
Off
Power SavePower Save
World TimeWorld Time
TV Out
X
Submenu 1
3Use FG to select the desired submenu 1
and then press the Abutton.
MENU
Settings Menu 2
Pixel Mapping
Back
Power SavePower Save Off
TV Out NTSC
English
World TimeWorld Time
X
Power SavePower Save
Pixel Mapping
MENU
Settings Menu 2 Back
World TimeWorld Time
TV Out
X
On
Off
Submenu 2
4Use FG to select the desired submenu 2
and then press the Abutton.
●Once a setting is selected, the display returns to
the Submenu 1.
There may be additional operations. “Menu
Settings” (p. 35 to 50)
MENU
Settings Menu 2 Back
Power SavePower Save On
Pixel Mapping
TV Out NTSC
English
World TimeWorld Time
X
5Press the button to complete the
setting.
Setup menu
Setup menu
Press the button during shooting or playback to display the setup menu. The setup menu provides access
to a variety of camera settings, including options not listed in the function menu, display options, and the time and
date.

10
EN
Menu Index
1Flash.................................p.19
2Macro ...............................p.30
3Self-timer..........................p.30
4Exposure compensation...p.31
5White balance...................p.31
6ISO...................................p.32
7Drive.................................p.32
8Image Size .......................p.33
9z(Camera Menu 1)........p.35
Reset
Compression
Shadow Adjust
AF Mode
ESP/n
Digital Zoom
Image Stabilizer
0z(Camera Menu 2)........p.37
AF Illuminat.
Rec View
Pic Orientation
Icon Guide
Date Stamp
aA(Movie Menu)..............p.39
Image Size
IS Movie Mode
R(Movie sound recording)
bq(Playback Menu) ........p.40
Slideshow
Edit
Erase
Print Order
R(Protect)
y(Rotate)
Upload Order
c d(Settings Menu 1)......p.44
Memory Format/Format
Backup
Eye-Fi
USB Connection
qPower On
Sound Settings
File Name
dd(Settings Menu 2)......p.47
Pixel Mapping
s(Monitor)
TV Out
Power Save
l(Language)
X(Date/time)
World Time
ed(Settings Menu 3)......p.50
Beauty Settings
0.00.0
MENUMENU
14 M
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
Flash Auto
6
7
3
2
1
5
4
8
MENU
Camera Menu 1
ResetReset
Compression Normal
Back
ESP
OnImage Stabilizer
Shadow Adjust
AF Mode
Digital Zoom
ESP/
Auto
Face/iESP
Off
e
b
a
0
9
d
c

11
EN
Preparing the Camera
Preparing the Camera
Inserting the battery and card
1
2
Battery/card cover
Battery lock knob
Write-protect switch
Insert the battery as illustrated with the Bmark
toward the battery lock knob.
Damage to the battery exterior (scratches, etc.) may
produce heat or an explosion.
Insert the battery while sliding the battery lock knob in
the direction of the arrow.
Insert the card straight until it clicks into place.
Turn off the camera before opening the battery/card
cover.
When using the camera, be sure to close the battery/
card cover.
Slide the battery lock knob in the direction of the
arrow to unlock, and then remove the battery.
Always use SD/SDHC/SDXC cards or Eye-Fi card
with this camera. Do not insert other types of memory
cards. “Using the card” (p. 62)
Do not touch the contact area of the card directly.
This camera can be used without a card by storing
images in its internal memory.
3
“Number of storable pictures (still images)/Continuous
recording length (movies) in the internal memory and
cards” (p. 63, 64)

12
EN

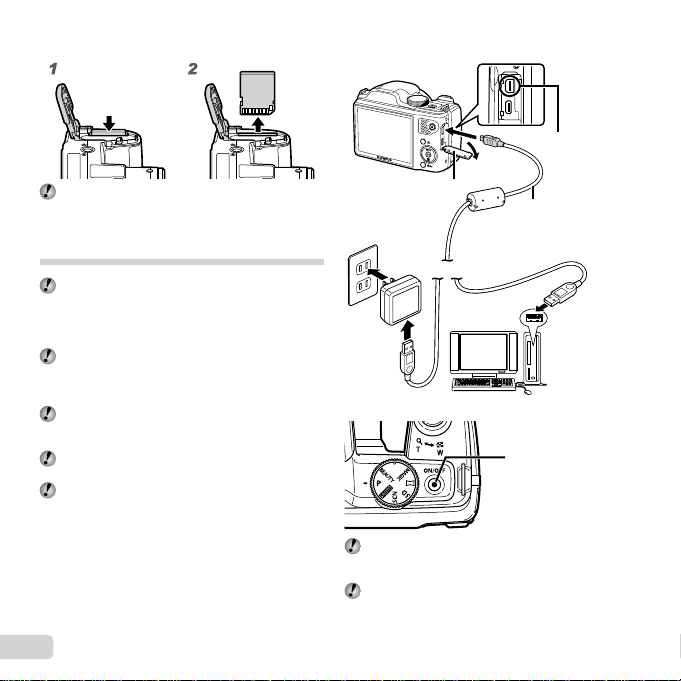

To remove the card
To remove the card
Press the card in until it clicks and comes out slightly,
then remove the card.
Charging the battery with the
included USB-AC adapter
The included F-2AC USB-AC adapter (hereafter
referred to as USB-AC adapter) differs depending
on the region where you purchased the camera. If
you received a plug-in type USB-AC adapter, plug it
directly into AC outlet.
The included USB-AC adapter has been designed
to be used for charging and playback. Do not take
pictures while the USB-AC adapter is connected to
the camera.
Be sure to unplug the power plug of the USB-AC
adapter from the wall outlet when the charging is
complete or the playback ends.
For details on the battery and the USB-AC adapter,
see “Battery and USB-AC adapter” (p. 61).
The battery can be charged while the camera is
connected to the computer. Charging time varies
depending on the performance of a computer. (There
may be cases in which it takes approx. 10 hours.)
Connecting the camera
Connecting the camera
AC outlet
USB cable
(supplied)
Multi-connector
Connector cover
Indicator lamp
Indicator lamp
The battery is not fully charged at shipment. Before
use, be sure to charge the battery until the indicator
lamp turns off (up to 5 hours).
If the indicator lamp does not light, the USB-AC
adapter is not connected to the camera correctly,
or the battery, camera, or USB-AC adapter may be
broken.
Indicator lamp
On: Charging
Off: Charged

13
EN

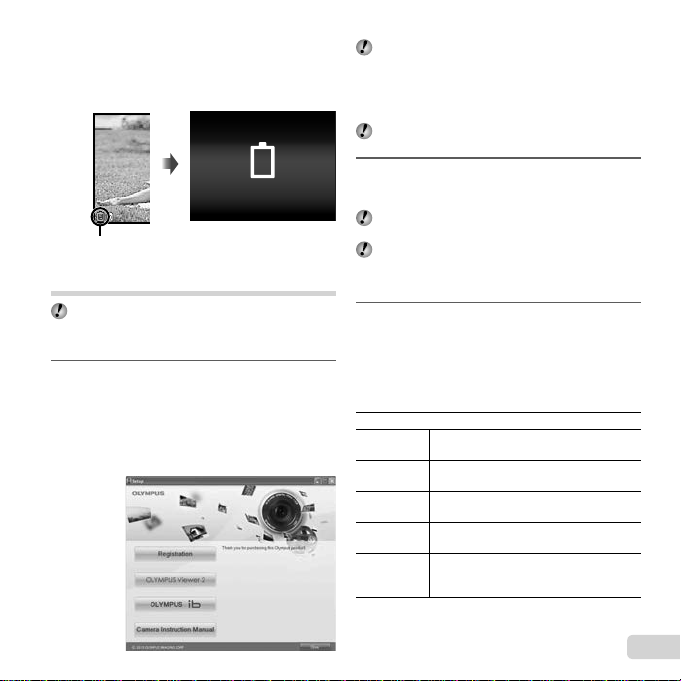

When to charge the batteries
When to charge the batteries
Charge the battery when the error message shown below
appears.
Error message
Flashes in red
Battery Empty
Installing the PC software and
registering user
Installation of [ib] computer software using the
supplied CD is available on Windows computers only.
Windows
Windows
1Insert the supplied CD in a CD-ROM drive.
Windows XP
●A “Setup” dialog will be displayed.
Windows Vista/Windows 7
●An Autorun dialog will be displayed. Click “OLYMPUS
Setup” to display the “Setup” dialog.
If the “Setup” dialog is not displayed, select “My
Computer” (Windows XP) or “Computer” (Windows
Vista/Windows 7) from the start menu. Double-click
the CD-ROM (OLYMPUS Setup) icon to open the
“OLYMPUS Setup” window and then double-click
“Launcher.exe”.
If a “User Account Control” dialog is displayed, click
“Yes” or “Continue”.
2Register your Olympus product.
●Click the “Registration” button and follow the on-
screen instructions.
To register the camera must be connected to the
computer. “Connecting the camera” (p. 12)
If nothing is displayed on the camera screen even
after connecting the camera to the computer, the
battery may be exhausted. Charge the battery and
then connect the camera again.
3Install OLYMPUS Viewer 2 and [ib] computer
software.
●Check the system requirements before beginning
installation.
●Click the “OLYMPUS Viewer 2” or “OLYMPUS ib”
button and follow the on-screen instructions to
install the software.
OLYMPUS Viewer 2
Operating
System Windows XP (Service Pack 2 or later)/ Windows Vista/Windows 7
Processor Pentium 4 1.3 GHz or better (Core 2 Duo
2.13 GHz or better required for movies)
RAM 1 GB or more (2 GB or more
recommended)
Free Hard
Drive Space 1 GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 65,536 colors (16,770,000
colors recommended)

14
EN
[ib]
Operating
System Windows XP (Service Pack 2 or later)/ Windows Vista/Windows 7
Processor Pentium 4 1.3 GHz or better (Core 2 Duo 2.13 GHz or better required
for movies)
RAM
512 MB or more (1 GB or more
recommended)
(1 GB or more required for movies—2 GB
or more recommended)
Free Hard
Drive Space 1 GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 65,536 colors (16,770,000
colors recommended)
Graphics A minimum of 64 MB video RAM with
DirectX 9 or later.
* See online help for information on using the software.
4Install the camera manual.
●Click the “Camera Instruction Manual” button and
follow the on-screen instructions.

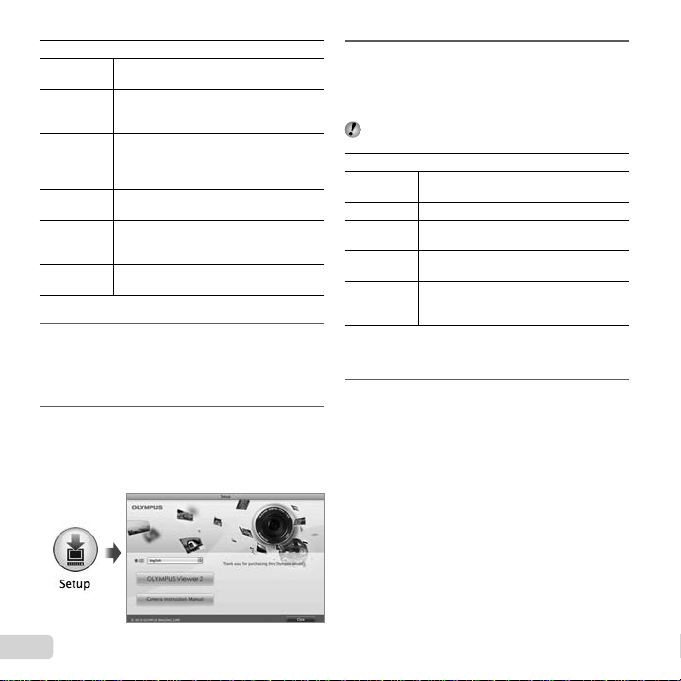

Macintosh
Macintosh
1Insert the supplied CD in a CD-ROM drive.
●Double-click the CD (OLYMPUS Setup) icon on
the desktop.
●Double-click the “Setup” icon to display the “Setup”
dialog.
2Install OLYMPUS Viewer 2.
●Check the system requirements before beginning
installation.
●Click the “OLYMPUS Viewer 2” button and follow
the on-screen instructions to install the software.
You can register via “Registration” in OLYMPUS
Viewer 2 “Help”.
OLYMPUS Viewer 2
Operating
System Mac OS X v10.4.11–v10.7
Processor Intel Core Solo/Duo 1.5 GHz or better
RAM 1 GB or more (2 GB or more
recommended)
Free Hard
Drive Space 1 GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 32,000 colors (16,770,000
colors recommended)
* Other languages can be selected from the language
combo box. For information on using the software, see
online help.
3Copy the camera manual.
●Click the “Camera Instruction Manual” button to
open the folder containing the camera manuals.
Copy the manual for your language to the computer
.

15
EN
Language, date, time and time zone
You can also choose the language for the menus and
messages displayed in the monitor. The date and time
set here are saved to image file names, date prints, and
other data.
1Press the ON/OFF button to turn on the
camera, use FGHI to select your
language and press the Abutton.
The menus can be used to change the selected
language. [l] (p. 49)
2Use FG to select the year for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:..2012
Date and time setting screen
3Press Ito save the setting for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:..2012
4As in Steps 2 and 3, use FGHI to set
[M] (month), [D] (day), [Time] (hours and
minutes), and [Y/M/D] (date order), and then
press the Abutton.
For precise time setting, press the Abutton as the
time signal strikes 00 seconds.
To change the date and time, adjust the setting from
the menu. [X] (Date/time) (p. 50)
5Use HI to select the [x] time zone and
then press the Abutton.
●Use FG to turn daylight saving time ([Summer])
on or off.
MENU
’12.02.26 12:30 Back
Summer
Seoul
Tokyo
The menus can be used to change the selected time
zone. [World Time] (p. 50)

16
EN

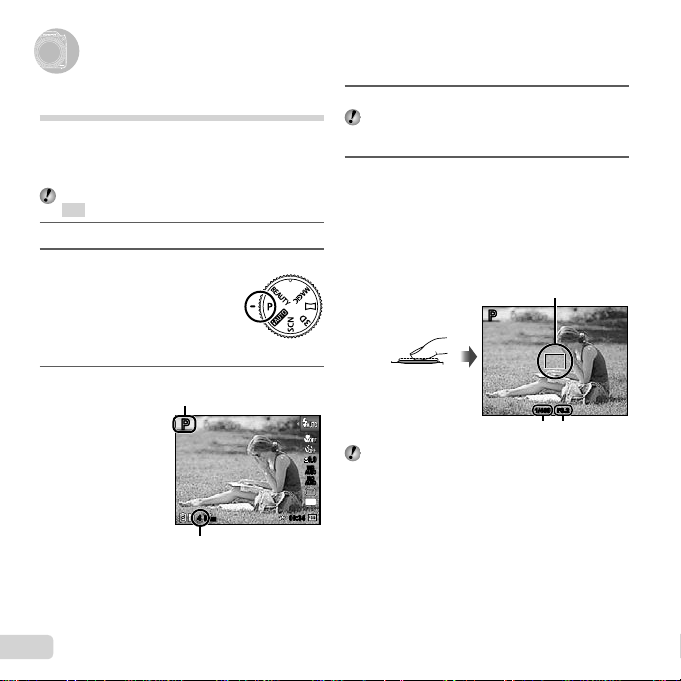

Shooting with the optimum aperture
value and shutter speed (Pmode)
In this mode, automatic shooting settings are activated
while also allowing changes to a wide range of
other shooting menu functions, such as exposure
compensation, white balance, etc. as needed.
The default settings of the function are highlighted in
.
1
Remove the lens cap.
2
Set the mode dial to P .
3
Press the nbutton to turn on the camera.
Pmode indicator
44
N
ORM
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
00:3400:34
P
PP
Number of storable still pictures (p. 63)
Monitor (standby mode screen)
4Hold the camera and compose the shot.
When holding the camera, take care not to cover
the flash, microphone and AF illuminator with your
fingers, etc.
5Press the shutter button halfway down to
focus on the subject.
●When the camera focuses on the subject, the
exposure is locked (shutter speed and aperture
value are displayed), and the AF target mark
changes to green.
●The camera was unable to focus if the AF target
mark flashes red. Try focusing again.
Press halfway
P
F3.2F3.21/4001/400
PP
Shutter speed
AF target mark
Aperture value
“Focusing” (p. 58)
Shooting, Playback, and Erasing
Shooting, Playback, and Erasing

17
EN
Shooting movies
1Press the Rbutton to start recording.
00:00
RECREC
00:00
00:3400:34
00:3400:34
00:0000:00
RECREC
Lights up red
when recording
Recording time
Continuous recording
length (p. 64)
The effects of the set shooting mode can be used
when shooting movies. When the set shooting mode
is p, W, (some modes), P(some modes)
or Q, shooting is performed in Pmode.
Sound will also be recorded.
2Press the Rbutton again to stop recording.
6To take the picture, gently press the shutter
button all the way down while being careful
not to shake the camera.
Press fully
Image review screen
To view images during shooting
To view images during shooting
Pressing the qbutton enables playback of images. To
return to shooting, either press the qbutton or press the
shutter button halfway down.
To turn off the camera
To turn off the camera
Press the nbutton again.

18
EN
[Off] selected for [Digital Zoom]:
Image size Zoom bar
14M Optical zoom range
Other The magnification ratio changes
depending on the image size setting.*1
[On] selected for [Digital Zoom]:
Image size Zoom bar
14M Digital zoom range
Other The magnification
ratio changes
depending on the
image size setting.*1Digital zoom range
*1 If [Image Size] is less than the full resolution, after
reaching the maximum optical zoom, the camera will
automatically resize and crop the image to the selected
[Image Size], then enter the digital zoom range if [Digital
Zoom] is [On].
Photographs taken with the zoom bar displayed in
red may appear “grainy”.
Using the zoom
Turning the zoom lever adjusts the shooting range.
W side T side
PP
1010
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
2626
44
00:3400:34
44
00:3400:34
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
Zoom bar
Optical zoom: 26×
Digital zoom: 4×
To take larger images [Digital Zoom] (p. 36)
To take larger images [Digital Zoom] (p. 36)
The type and amount of zoom can be identified from
the appearance of the zoom bar. The display differs
depending on the options selected for [Digital Zoom]
(p. 36) and [Image Size] (p. 33).

19
EN
Using the flash
The flash functions can be selected to best match the
shooting conditions.
1Lift up the flash unit manually.
To turn off the flash
To turn off the flash
Press the flash down back into the camera.
2Select the flash option in the function menu.
0.00.0
MENUMENU
14 M
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
Flash Auto
3Use HI to select the setting option, and
press the Abutton to set.
Option Description
Flash Auto The flash fires automatically in low-
light or backlight conditions.
Redeye Pre-flashes are emitted to reduce the occurrence of red eye in your
photos.
Fill In The flash fires regardless of the
available light.
Flash Off The flash does not fire.

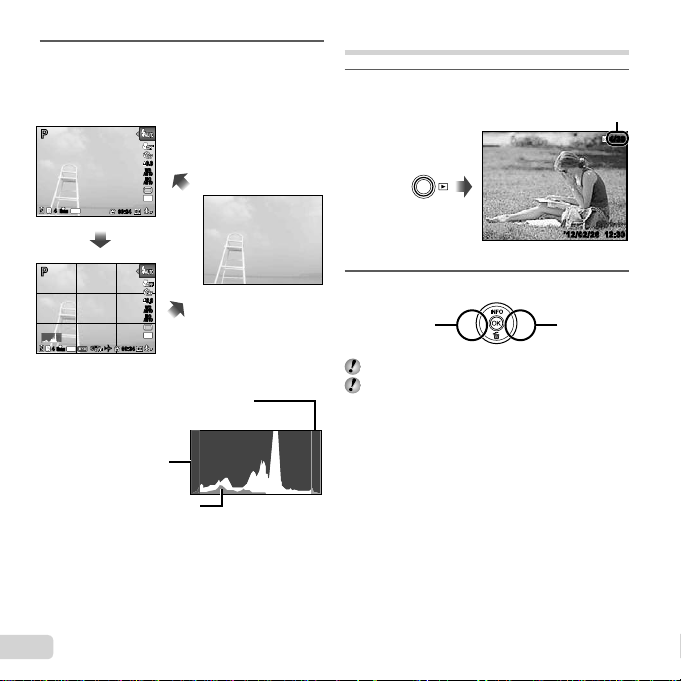

Changing the shooting information
display
The display of the screen information can be changed to
best match the situation, for example, the need for a clear
view of the screen or for making a precise composition by
using the grid display.

20
EN
Viewing images
1Press the q button. Number of frames/
Total number of images
12:30’12/02/26’12/02/26 12:30
4/30
4/30
Playback image
2Use HI to select an image.
Displays
previous
Displays next
Hold Ito fast forward and hold Hto reverse.
The display size of the images can be changed.
“Index view and close-up view” (p. 22)
1Press F(INFO).
●The displayed shooting information changes in
the order shown below each time the button is
pressed. “Shooting mode display” (p. 4)
PP
P
P
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
00:3400:34
00:3400:34
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
zz
DATE
44
N
ORM
DATE
44
N
ORM
Normal
No information
Detailed
Reading a histogram
Reading a histogram
If the peak fills too much of the frame, the
image will appear mostly white.
If the peak fills too much
of the frame, the image
will appear mostly black.
The green section shows
luminance distribution within
the screen’s center.
