Instruction Manual
STYLUS TOUGH-8010 /
μ TOUGH-8010
STYLUS TOUGH-6020 / μ TOUGH-6020
STYLUS TOUGH-3000 / μ TOUGH-3000
DIGITAL CAMERA
Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a
safe place for future reference.
The application software and instruction manual PDF file are stored on
the internal memory of the camera.
We recommend that you take test shots to get accustomed to your
camera before taking important photographs.
In the interest of continually improving products, Olympus reserves the
right to update or modify information contained in this manual.
The screen and camera illustrations shown in this manual were produced
during the development stages and may differ from the actual product.
Unless otherwise specified, the explanation about these illustrations is
provided for STYLUS TOUGH-8010/TOUGH-8010.

2 EN
Contents
Contents
Step 5
Printing
“Direct printing (PictBridge)” (p. 53)
“Print Reservations (DPOF)” (p. 56)
Step 4
How to Use the Camera
“Camera Settings” (p. 3)
Step 3
Shooting and Playing Back Images
“Shooting, Playback, and Erasing” (p. 16)
Step 2
Preparing the Camera
“Preparing the Camera” (p. 11)
Names of Parts .............................. 7
Preparing the Camera ................. 11
Shooting, Playback, and
Erasing ......................................... 16
Using Shooting Modes................ 23
Using Shooting Functions.......... 28
Menus for Shooting Functions... 33
¾
¾
¾
¾
¾
¾
Menus for Playback, Editing, and
Printing Functions....................... 38
Menus for Other Camera
Settings ........................................ 44
Printing ......................................... 53
Usage Tips ................................... 58
Appendix ...................................... 63
¾
¾
¾
¾
¾
Step 1

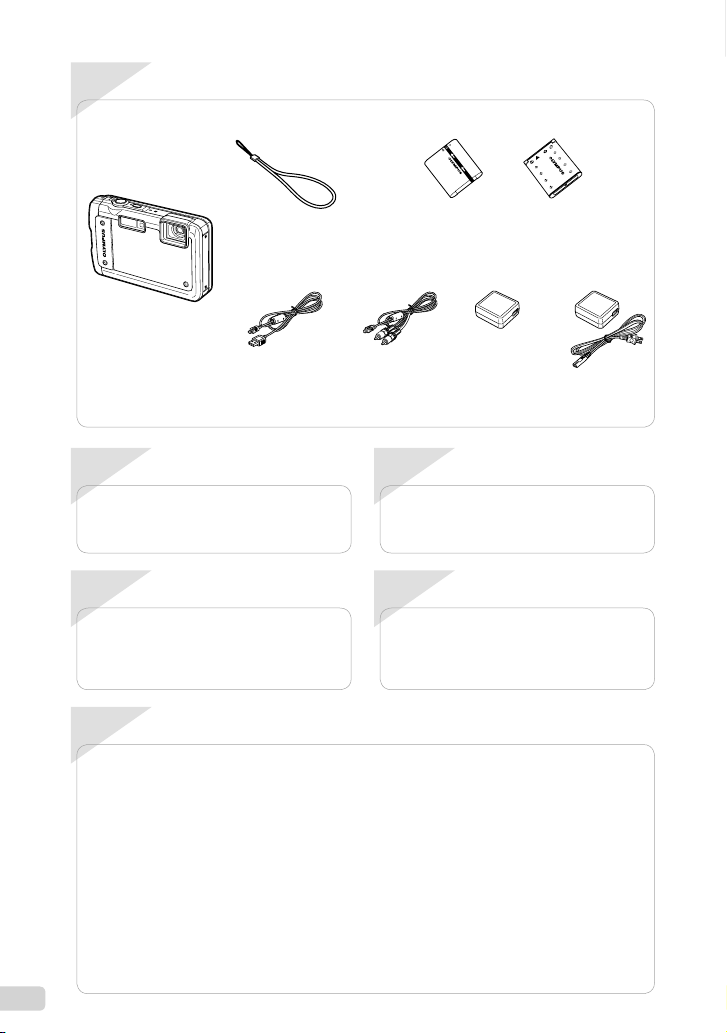

Checking the contents of the box
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
Digital camera
USB cable
(CB-USB6)
AV cable
(CB-AVC3)
Strap
USB-AC adapter (F-2AC)
or
Lithium Ion Battery
*1 STYLUS TOUGH-8010/TOUGH-8010 and
STYLUS TOUGH-6020/TOUGH-6020
*2 STYLUS TOUGH-3000/TOUGH-3000
or
LI-50B*1 LI-42B*2

3 EN
Camera Settings

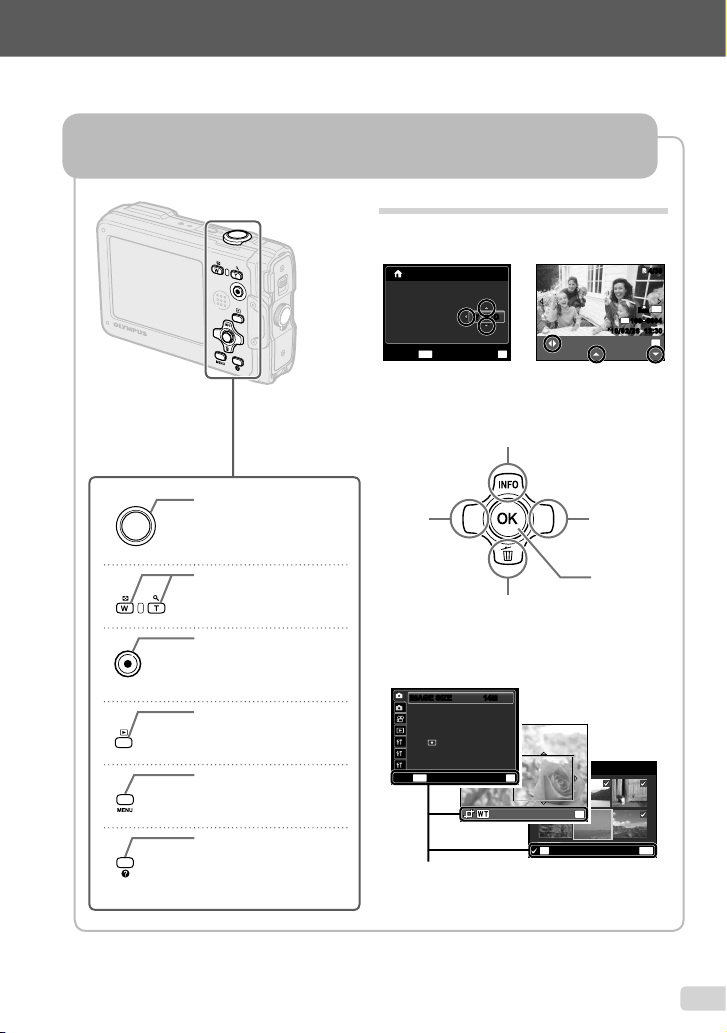

Using the Direct Buttons
Using the Direct Buttons
Frequently used functions can be accessed using the direct buttons.
Operation guide
The symbols FGHI displayed for image selections
and settings indicate that the arrow pad is to be used.
N
ORM
OK
SINGLE PRINT
PRINT
4/304/30
MORE
’10/02/26 12:30’10/02/26 12:30
N
ORM
14M
FILE
100 0004100 0004
02 26 12 30:..2010
MENU OK
SETCANCEL
X
YMDTIME
Y/M/DY/M/D
Arrow pad
H(left)
G(down) /
Dbutton (erase) (p. 20)
F(up) /
INFO button (changing
information display) (p. 18, 21)
I(right)
Abutton
Operation guides displayed at the bottom of the screen
indicate that the mbutton, Abutton, or zoom
buttons can be used.
MENU OK
SEL. IMAGE
ERASE/CANCEL
Operation guide
OK
SET
SHADOW ADJUST AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE 14M14M
Shutter button (p. 16, 58)
Zoom buttons (p. 17, 20)
Movie record button (p. 17)
qbutton (switching
between shooting and
playback) (p. 17, 18, 45)
mbutton (p. 4)
Ebutton (camera guide/
menu guide) (p. 22)

4 EN

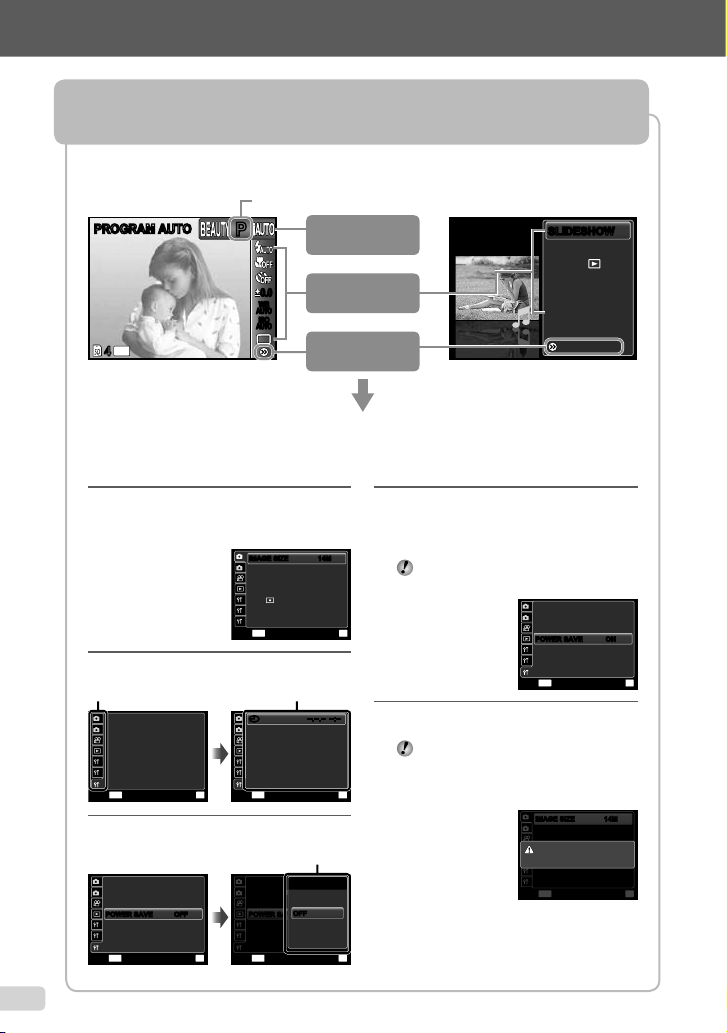

Using the Menu
Using the Menu
Use the menu to change camera settings such as the shooting mode.
Press the mbutton to display the function menu. The function menu can be used to set frequently
used shooting and playback functions such as shooting mode.
PHOTO SURFING
EVENT
BEAUTY FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
Use FG to select a menu and press
the Abutton.
14 M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
Shooting Playback
Selected option
To select the shooting mode
Use HI to select the shooting mode and
press the Abutton.
To select the function menu
Use FG to select a menu and use HI to
select a menu option. Press the Abutton to
set the function menu.
o[SETUP]
menu
Shooting
mode
In the [SETUP] menu, various camera functions can be set,
including shooting and playback functions not displayed in the
function menu, and other settings such as date, time and screen
display.
Function
menu
1Select [SETUP] and then press the A
button.
The [SETUP] menu is displayed.
SHADOW ADJUST AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE 14M14M
2Press Hto select the page tabs. Use FG
to select the desired page tab and press I.
x
--.--.-- --:--X
MENU OK
SETEXIT
WORLD TIME
TV OUT
OFFPOWER SAVE
1
2
3
1
2
Page tab
MENU OK
SETEXIT
TV OUT
1
2
3
1
2
OFFPOWER SAVE
x
--.--.-- --:----.--.-- --:--XX--.--.-- --:----.--.-- --:--XX
WORLD TIME
Submenu 1
3Use FG to select the desired submenu 1
and then press the Abutton.
MENU OK
SETEXIT
1
2
3
1
2
--.--.-- --:--X
WORLD TIME
TV OUT
x
OFFPOWER SAVEPOWER SAVE OFF
MENU OK
SETEXIT
1
2
3
1
2
HOME
--.--.-- --:--X
WORLD TIME
VIDEO OUTTV OUT
OFFPOWER SAVEPOWER SAVE OFF
POWER SAVE
ON
OFFOFF
Submenu 2

4Use FG to select the desired submenu 2
and then press the Abutton.
Once a setting is selected, the display returns
to the previous screen.
There may be additional operations.
“Menu Settings” (p. 33 to 52)
MENU OK
SETEXIT
1
2
3
1
2
--.--.-- --:--X
WORLD TIME
TV OUT
x
ON
ONPOWER SAVEPOWER SAVE
5Press the mbutton to complete the
setting.
Some functions cannot be used in some
shooting modes. In such cases, the
following message is displayed after
setting.
SHADOW ADJUST AUTO
AF MODE iESP
ESP/*1 ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
CONFLICTING SETTINGS
IMAGE SIZEIMAGE SIZE 14M14M


5 EN

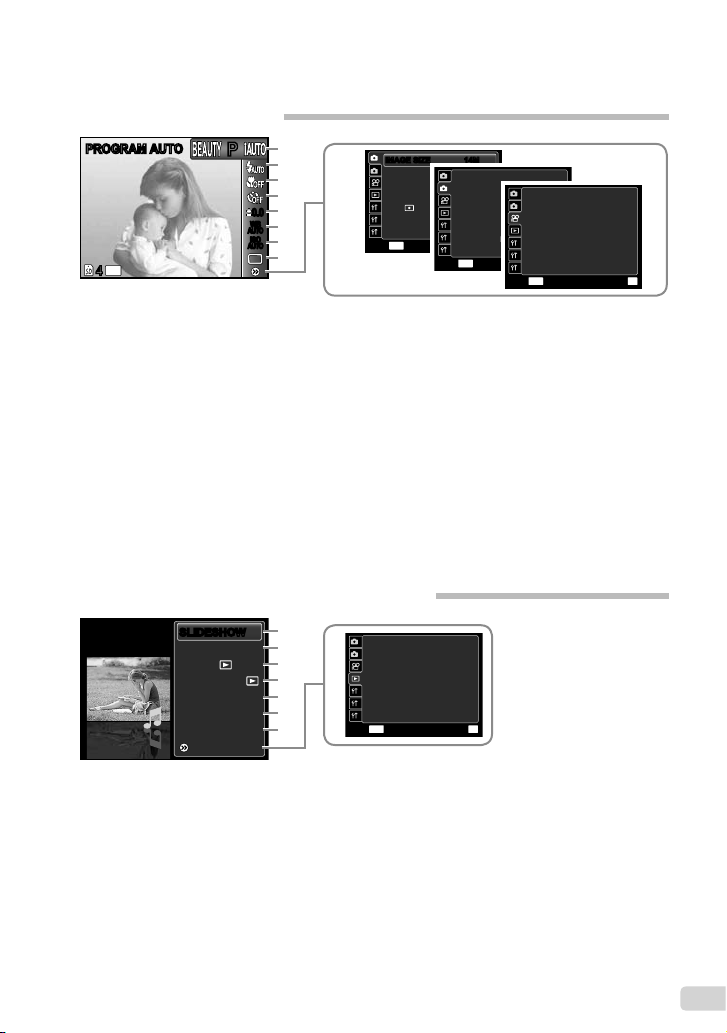

Menu Index
Menus for Shooting Functions
1Shooting mode
P(PROGRAM AUTO)....... p. 16
M(iAUTO).................... p. 23
s(SCENE MODE) ...... p. 23
P(MAGIC FILTER)..... p. 24
p(PANORAMA)............... p. 25
Q(BEAUTY) ................ p. 27
2Flash.................................. p. 28
3Macro ................................ p. 28
4Self-timer ........................... p. 30
5Exposure compensation.... p. 30
6White balance.................... p. 30
7ISO .................................... p. 31
8Drive .................................. p. 32
9o(SETUP)
IMAGE SIZE (Still images)
....................................... p. 33
IMAGE SIZE (Movies) .......p. 33
COMPRESSION (Still images)
....................................... p. 33
IMAGE QUALITY (Movies)
....................................... p. 33
SHADOW ADJUST ........... p. 34
AF MODE .......................... p. 34
ESP/n............................ p. 34
FINE ZOOM ...................... p. 35
1SLIDESHOW..................... p. 38
2PHOTO SURFING............. p. 38
3EVENT q........................ p. 39
4COLLECTION q............. p. 39
5BEAUTY FIX...................... p. 40
Menus for Playback, Editing, and Printing Functions
6EDIT .................................. p. 40
7ERASE .............................. p. 42
8o(SETUP)
PRINT ORDER ..................p. 42
0(Protect) ..................... p. 42
14 M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
PHOTO SURFING
EVENT
COLLECTION
BEAUTY FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
6
7
3
2
1
5
4
DIGITAL ZOOM ................. p. 35
R(Still images).................. p. 35
R(Movies)......................... p. 36
IMAGE STABILIZER
(Still images)/
IS MOVIE MODE
(Movies)............................. p. 36
REC VIEW......................... p. 36
PIC ORIENTATION*1 .........p. 37
ICON GUIDE ..................... p. 37
REMOTE FLASH*2 ............ p. 37
8
9
8
3
2
1
4
MENU OK
SETEXIT
PRINT ORDER
y
0
R
1
2
3
1
2
SHADOW ADJUST AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE 14M14M
REC VIEW ON
PIC ORIENTATION ON
IMAGE STABILIZER ON
ICON GUIDE
ON
REMOTE FLASH ON
ROFF
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZE VGA
IS MOVIE MODE
OFF
ON
IMAGE QUALITY
NORMAL
MENU OK
SETEXIT
R
1
2
3
1
2
6
5
7
y(Rotate).........................p. 43
R(Add sound to still images)
....................................... p. 43
*1 STYLUS TOUGH-8010/TOUGH-8010 and STYLUS TOUGH-6020/TOUGH-6020 only
*2 STYLUS TOUGH-8010/TOUGH-8010 only

6 EN
1r(Settings 1)
INTERNAL/SD................... p. 44
MEMORY FORMAT/
FORMAT............................p. 44
DATA REPAIR ...................p. 44
uCOPY..................... p. 44
l(Language) ................ p. 44
RESET...............................p. 45
USB CONNECTION.......... p. 45
2s(Settings 2)
qPOWER ON ................ p. 45
SAVE SETTINGS .............. p. 45
PW ON SETUP .................p. 45
Menus for Other Camera Settings
SOUND SETTINGS .......... p. 46
FILE NAME ....................... p. 46
PIXEL MAPPING ...............p. 47
s(Monitor) ..................... p. 47
3t(Settings 3)
X(Date/time).................. p. 47
WORLD TIME.................... p. 48
TV OUT ............................. p. 48
POWER SAVE...................p. 50
MANOMETER*1 ................. p.50
TAP CONTROL*2 ............... p.51
LED ILLUMINATOR*2......... p.52
COPY
ENGLISH
RESET
USB CONNECTION PC
MENU
OK
MEMORY FORMAT
SETEXIT
INTERNAL/SD
DATA REPAIR
AUTO
1
2
1
2
3
3
2
1
*1 STYLUS TOUGH-8010/TOUGH-8010 only
*2 STYLUS TOUGH-8010/TOUGH-8010 and STYLUS TOUGH-6020/TOUGH-6020 only
Operating the camera by tapping the
Operating the camera by tapping the
body
body
(p. 51)
(p. 51)
(STYLUS TOUGH-8010/TOUGH-8010 and
STYLUS TOUGH-6020/TOUGH-6020 only)
You can operate the camera by tapping the body when
[TAP CONTROL] is [ON].

7 EN

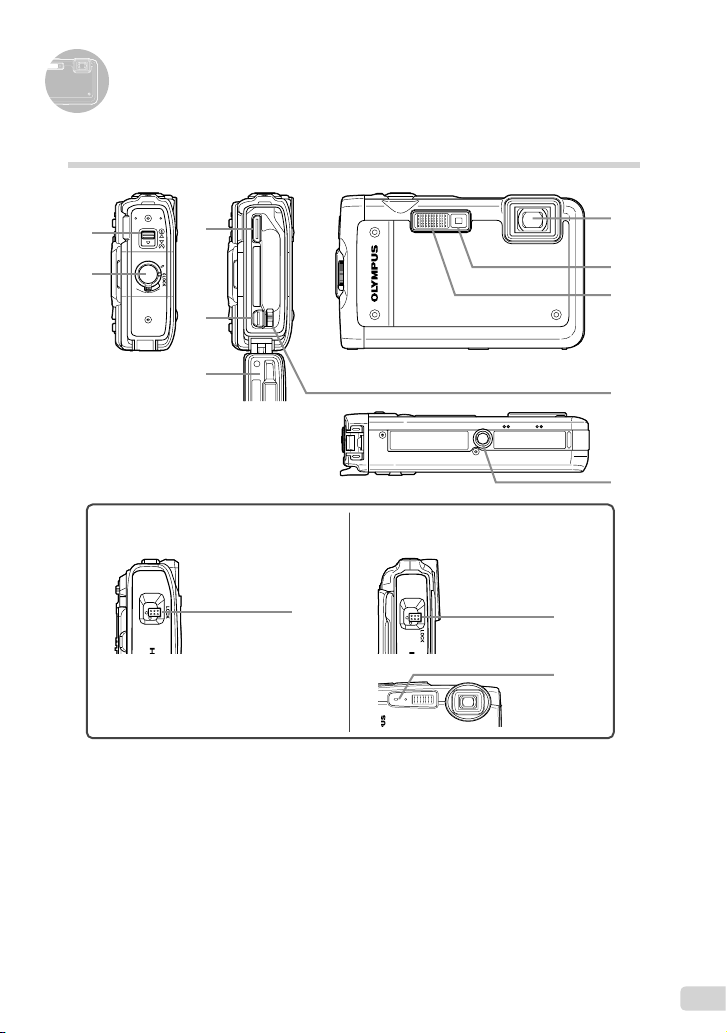

Names of Parts
1Battery/card/connector cover lock
.................................................... p. 11
2LOCK knob*1................................. p. 11
3HDMI mini connector.................... p. 49
4Multi-connector........... p. 12, 13, 49, 53
5Battery/card/connector cover
........................................ p. 11, 49, 71
Camera unit
11
1
1
1
2
3
4
5
6
10
7
8
9
STYLUS TOUGH-6020/
μTOUGH-6020
STYLUS TOUGH-3000/
μTOUGH-3000
6Lens .............................................p. 63
7Self-timer lamp/
LED illuminator*2 ...........p. 30/ p. 32, 52
8Flash ............................................p. 28
9Battery lock knob.......................... p. 11
10 Tripod socket
11 Microphone*3 ..........................p. 35, 43
*1 STYLUS TOUGH-8010/TOUGH-8010 only
*2 STYLUS TOUGH-8010/TOUGH-8010 and STYLUS TOUGH-6020/TOUGH-6020 only
*3 STYLUS TOUGH-3000/TOUGH-3000

8 EN
1
6
10
11
8
2
3
4
5
7
9
12
13
14
2
STYLUS TOUGH-6020/μTOUGH-6020
1nbutton........................ p. 14, 16
2Microphone*1 ..........................p. 35, 43
3 Monitor ......................... p. 9, 16, 47, 58
4Speaker
5 qbutton (switching between shooting
and playback)...................p. 17, 18, 45
6 Abutton (OK) ............................... p. 3
7 Indicator lamp......................... p. 12, 13
8 Shutter button......................... p. 16, 58
9Zoom buttons ......................... p. 17, 20
10 Movie record button .....................p. 17
11 Strap eyelet ....................................p. 8
12 Arrow pad.......................................p. 3
INFO button (changing information
display) .............................p. 18, 21
Dbutton (erase) ....................p. 20
13 Ebutton
(camera guide/menu guide) ......... p. 22
14 mbutton .............................. p. 3, 4
Attaching the camera strap
Pull the strap tight so that it does not come loose.
*1 STYLUS TOUGH-8010/TOUGH-8010 and STYLUS TOUGH-6020/TOUGH-6020

9 EN

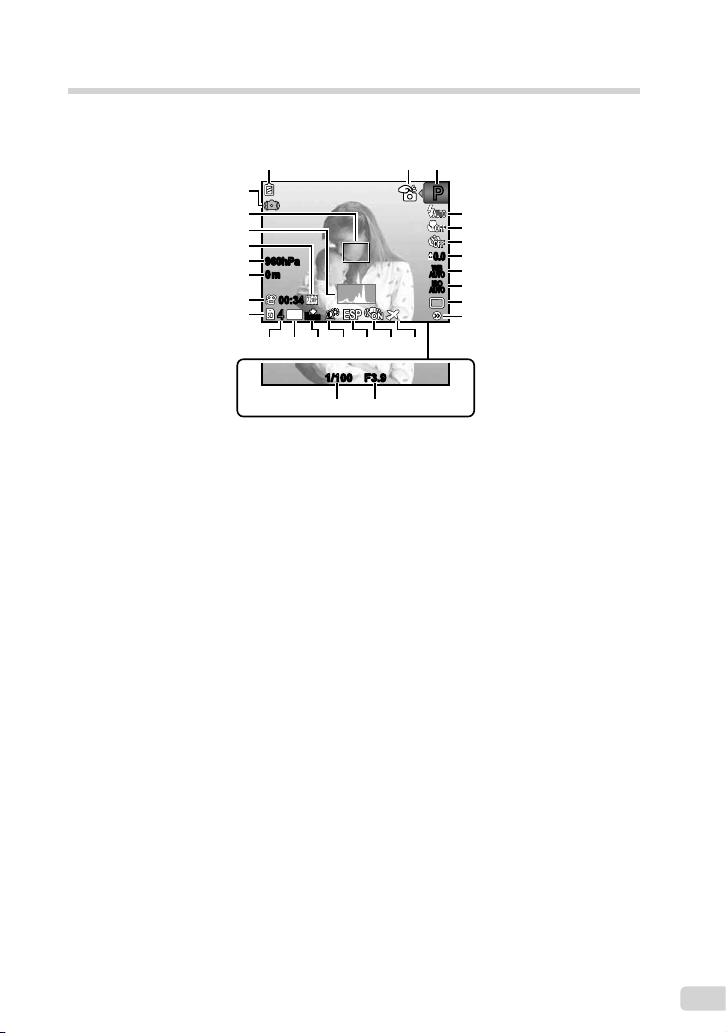

Monitor
Shooting mode display
F3.91/1001/100 F3.9
PP
14 M
44
N
ORM
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34
1 32
4
5
6
7
8
9
10
11
15161718 14 13 12
19
2728
20
22
21
24
23
25
26
960hPa
0m
1 Battery check .........................p. 13, 59
2Tap control*1.............................. p. 6, 51
3 Shooting mode .......................p. 16, 23
4 Flash ............................................p. 28
Flash standby/flash charge ..........p. 58
5Macro/super macro/
S-macro LED mode*1.................... p. 28
6 Self-timer...................................... p. 30
7 Exposure compensation............... p. 30
8 White balance ..............................p. 30
9 ISO ............................................... p. 31
10 Drive............................................. p. 32
11 [SETUP] menu ....................... p. 4, 5, 6
12 World time ....................................p. 48
13 Image stabilization (still images)/
Digital image stabilization (movies)
.................................................... p. 36
14 Metering .......................................p. 34
15 Shadow Adjustment Technology
.................................................... p. 34
16 Compression (still images)
.................................. p. 33, 66, 67, 68
17 Image size (still images)
.................................. p. 33, 66, 67, 68
18 Number of storable still pictures
(still images) .................................p. 16
19 Current memory ........................... p. 65
20 Remaining recording time
(movies) .......................................p. 17
21 Altitude/water depth*2 ...................p. 50
22 Atmospheric/
hydraulic pressure*2 ......................p. 50
23 Image size (movies) ...p. 33, 66, 67, 68
24 Histogram..................................... p. 18
25 AF target mark .............................p. 16
26 Camera shake warning
27 Aperture value..............................p. 16
28 Shutter speed...............................p. 16
*1 STYLUS TOUGH-8010/μTOUGH-8010 and STYLUS TOUGH-6020/μTOUGH-6020 only
*2 STYLUS TOUGH-8010/μTOUGH-8010 only

10 EN
Playback mode display
Standard display
1010
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
00:12/00:34
00:12/00:3400:12/00:34
1 65432
17
1
6
Still image Movie
Advanced display
1010
4/304/30
1/1000 F3.9 2.0
AUTO
WB
AUTO
ISO
P
N
ORM
14 M
FILE
100 0004
’10/02/26 12:30
1/1000 F3.9 2.0
AUTO
WB
AUTO
ISO
P
FILE
100 0004
’10/02/26 12:30
N
ORM
14 M
1 6 8 9 11105432
7
12
14
16
17
18
19
20 13
15
22
21
24
23 960hPa
0m
●
●
1 Battery check .........................p. 13, 59
2 Print reservation/
number of prints .................. p. 56/p. 55
3 Protect..........................................p. 42
4 Adding sound ...................p. 35, 36, 43
5 Current memory ........................... p. 65
6 Frame number/total number of images
(still images) .................................p. 18
Elapsed time/total recording time
(movies) .......................................p. 19
7 Histogram..................................... p. 18
8 Shutter speed...............................p. 16
9 Aperture value..............................p. 16
10 ISO ............................................... p. 31
11 Exposure compensation............... p. 30
12 White balance ..............................p. 30
13 Compression (still images)
.................................. p. 33, 66, 67, 68
Image quality (movies)
.................................. p. 33, 66, 67, 68
14 Image size..................p. 33, 66, 67, 68
15 Drive............................................. p. 32
16 File number
17 Date and time.........................p. 14, 47
18 Metering .......................................p. 34
19 Shadow Adjustment Technology
...................................................p. 34
20 Flash ............................................p. 28
21 Shooting mode .......................p. 16, 23
22 Macro ...........................................p. 28
23 Altitude/water depth*.....................p. 50
24 Atmospheric/
hydraulic pressure*.......................p. 50
* STYLUS TOUGH-8010/μTOUGH-8010 only

11 EN
Preparing the Camera
3
STYLUS TOUGH-8010/
TOUGH-8010
STYLUS TOUGH-6020/
TOUGH-6020
STYLUS TOUGH-3000/
TOUGH-3000
1
23
1
2
Insert the battery by putting in the marked
side first, with the Bmarks toward the
battery lock knob.
Damage to the battery exterior (scratches,
etc.) may produce heat or an explosion.
Insert the battery while sliding the battery
lock knob in the direction of the arrow.
Slide the battery lock knob in the direction
of the arrow to unlock, and then remove the
battery.
When removing the battery or card, be sure
to turn off the camera before opening or
closing the battery/card/connector cover.
When using the camera, be sure to close
the battery/card/connector cover.
Battery charge and camera
setup
Connect the camera to the computer to charge
the battery and setup the camera.
System requirements
Windows XP (SP2 or later)/
Windows Vista/Windows 7
When using another system other than the
above or no computer, see “Charging the
battery with the included USB-AC adapter”
(p. 13).
Inserting the battery
1
STYLUS TOUGH-8010/
TOUGH-8010
STYLUS TOUGH-6020/
TOUGH-6020
STYLUS TOUGH-3000/
TOUGH-3000
3
21
Battery/card/
connector cover lock
Battery/card/
connector cover
LOCK knob 2
1
Battery/card/
connector cover lock
Battery/card/
connector cover
2
STYLUS TOUGH-8010/TOUGH-8010
Battery lock knob
STYLUS TOUGH-6020/TOUGH-6020
STYLUS TOUGH-3000/TOUGH-3000
Battery lock knob
STYLUS TOUGH-6020/
TOUGH-6020
STYLUS TOUGH-3000/
TOUGH-3000

12 EN
Do not insert SD/SDHC memory cards
before the camera setup.
Do not format the internal memory until the
camera setup is complete. Doing so will
erase the camera instruction manual and
the PC software (ib) data that are stored on
the internal memory.
Check that your computer meets the
following system requirements:
Windows XP (SP2 or later)/
Windows Vista/Windows 7
Refer to the PC software (ib) help guide for
details on how to use the PC software (ib).
2Select and execute “OLYMPUS
Camera Initialization”, which is
displayed on the computer screen
when the camera is recognized by
the computer.
If nothing is displayed on the camera screen
even after connecting the camera to the
computer, the battery may be exhausted.
Leave the camera connected to the
computer until the battery has charged, then
disconnect and reconnect the camera.
Even if a computer has USB ports, proper
operation is not guaranteed in the following
cases:
Computers with USB ports installed using an
expansion card, etc.
Computers without a factory-installed OS and
home-built computers
Double-click the icon for the camera drive
(Removable Disk), and then execute
Setup.exe to start the camera setup.
3Follow the instructions on the
computer screen and setup the
camera.



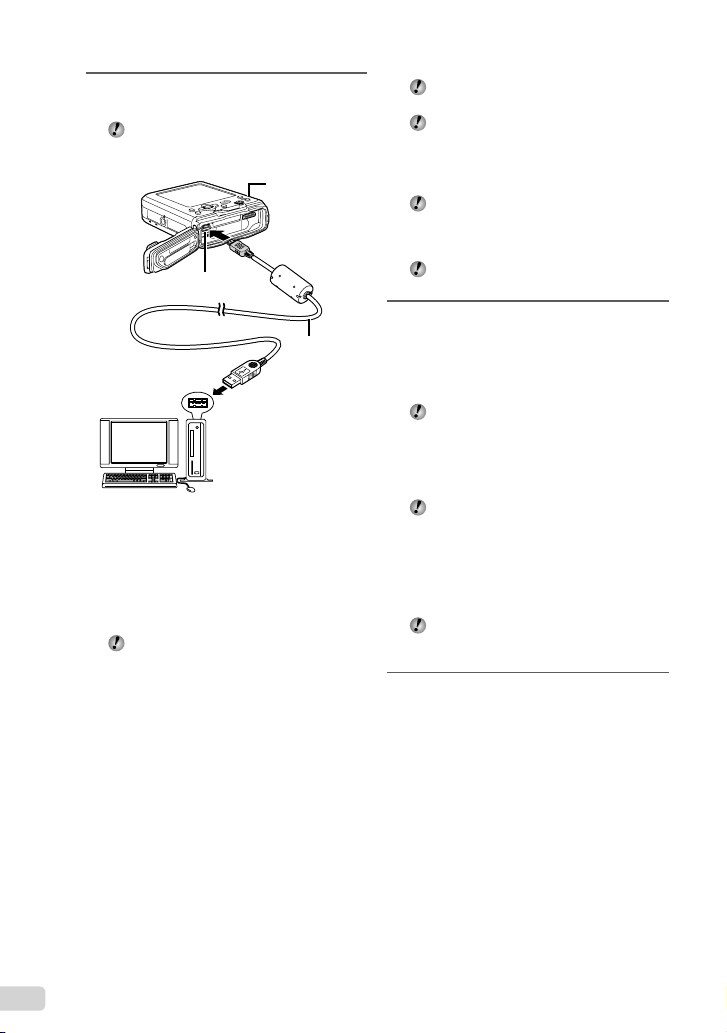

1Connect the camera to the
computer.
When connecting the camera to the
computer via USB cable, face the lens
downward.
Multi-connector
USB cable
(supplied)
Computer (on
and running)
Indicator lamp
Charging the battery
When the camera is connected to the
computer, the battery in the camera will be
charged.
When charging, the indicator lamp light. When
charging is complete, the indicator lamp will turn
off.
If the indicator lamp does not light, the
camera may be incorrectly connected, or
the battery, camera, computer or USB cable
may not be functioning correctly.
Camera setup
Set the camera date and time, time zone
and display language automatically; install
the camera instruction manual and PC
software (ib).


13 EN

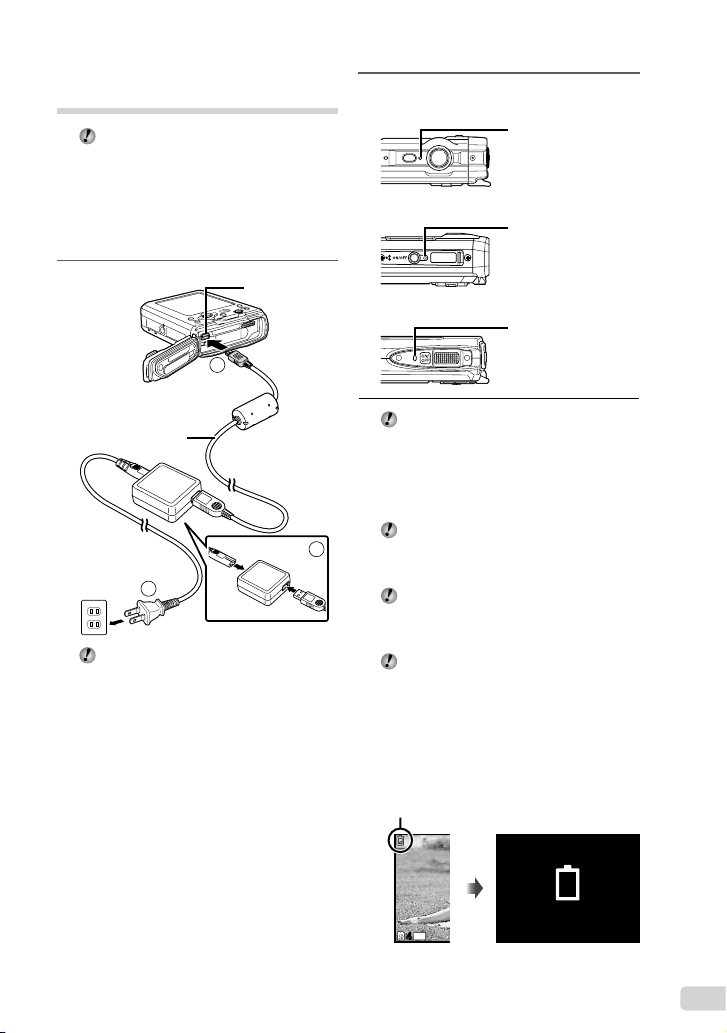

Charging the battery with the
included USB-AC adapter
The included USB-AC adapter (F-2AC)
(hereafter referred as AC adapter) has
been designed to be used for charging
and playback. Make sure that shooting
is not being used while the AC adapter is
connected to the camera.
Example: AC adapter with an AC cable
1
1
2
3
Multi-connector
AC outlet
USB cable (supplied)
When connecting the camera to the
computer via USB cable, face the lens
downward.
2
STYLUS TOUGH-8010/TOUGH-8010
Indicator lamp
On: Charging
Off: Charged
STYLUS TOUGH-6020/TOUGH-6020
Indicator lamp
On: Charging
Off: Charged
STYLUS TOUGH-3000/TOUGH-3000
Indicator lamp
On: Charging
Off: Charged
The battery is not fully charged at
shipment. Before use, be sure to charge
the battery until the indicator lamp turns off
(STYLUS TOUGH-8010/TOUGH-8010,
STYLUS TOUGH-6020/TOUGH-6020:
up to 3 hours, STYLUS TOUGH-3000/
TOUGH-3000: up to 2.5 hours).
If the indicator lamp does not light, the AC
adapter is not connected to the camera
correctly, or the battery, camera, or AC
adapter may be broken.
For details on the battery and the AC
adapter, see “Battery, USB-AC adapter
(included), Charger (sold separately)”
(p. 63).
Battery can be charged by connecting
the camera to the computer. However,
when charging with the system other than
Windows XP (SP2 or later)/Windows Vista/
Windows 7, charging takes much time.
When to charge the batteries
Charge the battery when the error message
shown below appears.
Monitor top left Error message
Flashes in red
44
BATTERY EMPTY
14 M

14 EN
When not using a computer
See the next section under “Setting the date,
time and time zone.”
When using a computer with system
other than Windows XP (SP2 or later)/
Windows Vista/Windows 7
Connect the camera to the computer and
copy the instruction manual PDF file for
your language in the “Manual” folder in the
internal memory of the camera.
Setting the date, time and
time zone
The date and time set here are saved to image
file names, date prints, and other data.
1Press the nbutton to turn on
the camera.
The date and time setting screen is displayed
when the date and time are not set.
Date and time setting screen
X
Y/M/D
YMDTIME
-- -- -- --:..
MENU
CANCEL
--------
2Use FG to select the year for [Y].
-- -- -- --:.
MENU
CANCEL
X
.
Y/M/D
YMDTIME
20102010

3Press Ito save the setting for [Y].
-- -- --:..2010
X
Y/M/D
Y M D TIME
MENU
CANCEL
0000
4As in Steps 2 and 3, use FGHI
and the Abutton to set [M]
(month), [D] (day), [TIME] (hours
and minutes), and [Y/M/D] (date
order).
For precise time setting, press the Abutton
as the time signal strikes 00 seconds.
To change the date and time, adjust the
setting from the menu. [X] (Date/time)
(p. 47)
5Use HI to select the [x] time
zone and then press the Abutton.
Use FG to turn daylight saving time ([SUMMER])
on or off.
’10.02.26 12:30
SUMMER
OK
SET
Seoul
Tokyo
Seoul
Tokyo
The menus can be used to change the
selected time zone. [WORLD TIME] (p. 48)


15 EN
Changing the display language
The language for the menu and error messages
displayed on the monitor is adjustable.
1Display the [SETUP] menu.
“Using the Menu” (p. 4)
2Use FG to select the r(Settings
1) tab and then press I.
COPY
ENGLISH
RESET
USB CONNECTION PC
MENU
OK
MEMORY FORMAT
DATA REPAIR
SETEXIT
1
2
3
1
2
INTERNAL/SDINTERNAL/SD AUTOAUTO
3Use FG to select [l] and press
the Abutton.
4Use FGHI to select your
language and press the Abutton.
5Press the mbutton.
Inserting the SD/SDHC
memory card (sold separately)
Always use SD/SDHC memory cards with
this camera. Do not insert other types of
memory card. “Using a SD/SDHC memory
card” (p. 64)
Although the camera can store images in
internal memory, SD/SDHC memory cards
(sold separately) can be also used to store
pictures.
1
Insert the card straight until it clicks into
place.
Do not touch the contact area directly.
2
STYLUS TOUGH-8010/
TOUGH-8010
STYLUS TOUGH-6020/
TOUGH-6020
STYLUS TOUGH-3000/
TOUGH-3000
1
2 3
1
2
Close the battery/card/connector cover
firmly so that lock makes the clicking sound.
“Number of storable pictures (still images)/
Continuous recording length (movies) in the
internal memory and SD/SDHC memory
cards” (p. 66)
To remove the SD/SDHC memory card
12
Press the card in until it clicks and comes
out slightly, then remove the card.
Write-protect switch
Contact area
Write-protect switch
Contact area

16 EN
Shooting, Playback, and Erasing
2Hold the camera and compose the
shot.
Horizontal grip
Vertical grip
Monitor
When holding the camera, take care not to
cover the flash with your fingers, etc.
3Press the shutter button halfway
down to focus on the subject.
When the camera focuses on the subject, the
exposure is locked (shutter speed and aperture
value are displayed), and the AF target mark
changes to green.
The camera was unable to focus if the AF target
mark flashes red. Try focusing again.
PP
1/400 F3.91/400 F3.9
AF target mark
Press halfway
Shutter speed Aperture value
“Focusing” (p. 60)



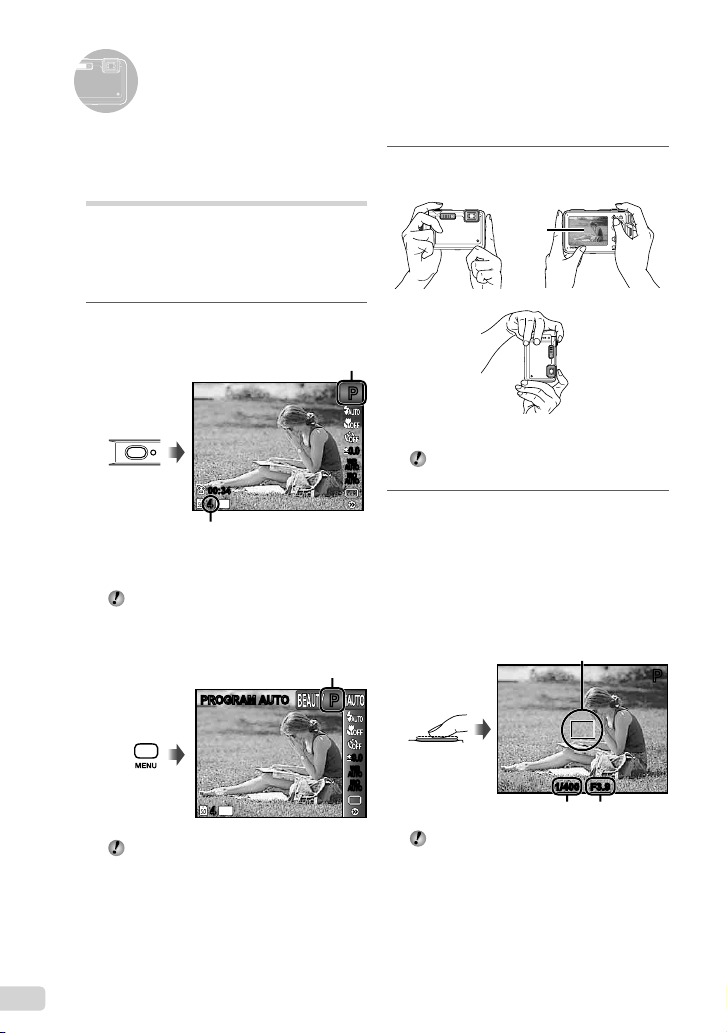

Shooting with the optimum
aperture value and shutter
speed (Pmode)
In this mode, automatic shooting settings are
activated while also allowing changes to a wide
range of other shooting menu functions, such
as exposure compensation, white balance, etc.
as needed.
1Press the nbutton to turn on
the camera.
Pmode indicator
14 M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34
Number of storable still pictures (p. 66, 67, 68)
Monitor
(standby mode screen)
If Pmode is not displayed, press the m
button to display the function menu screen
and then set the shooting mode to P. “Using
the Menu” (p. 4)
Current shooting mode display
44
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
14 M
PP
Press the nbutton again to turn off
the camera.

17 EN
4To take the picture, gently press
the shutter button all the way down
while being careful not to shake the
camera.
PP
1/400 F3.91/400 F3.9
Image review screen
Press fully
To view images during shooting
Pressing the qbutton enables playback of
images. To return to shooting, either press
the qbutton or press the shutter button
halfway down.
Shooting movies
1Press the movie record button to
start recording.
00:1200:12
RECREC
00:3400:34
Lights up red when recording
Recording time
Continuous recording length
(p. 66, 67, 68)
The effects of the set shooting mode can
be used when shooting movies (when
Pmode, pmode or Qmode is
set, shooting is performed with the Pmode
setting).
2Press the movie record button
again to stop recording.
Sound will also be recorded.
When recording sound in a movie, the
sound of the lens triggering and camera
operating may be recorded.
STYLUS TOUGH-3000/μTOUGH-3000:
During sound recording, only the digital
zoom can be used. To record a movie with
optical zoom, set [R] (movies) (p. 36) to
[OFF].
Using the zoom
Pressing the zoom buttons adjusts the shooting
range.
Pressing the wide
(W) button
Pressing the telephoto
(T) button
14 M
4444
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14 M
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34 00:3400:34
Zoom bar
Model No. Optical zoom Digital zoom
STYLUS TOUGH-8010/
μTOUGH-8010 5× 5×
STYLUS TOUGH-6020/
μTOUGH-6020 5× 5×
STYLUS TOUGH-3000/
μTOUGH-3000 3.6× 5×
To take larger images without reducing
image quality
[FINE ZOOM] (p. 35)

18 EN
To take larger images
[DIGITAL ZOOM] (p. 35)

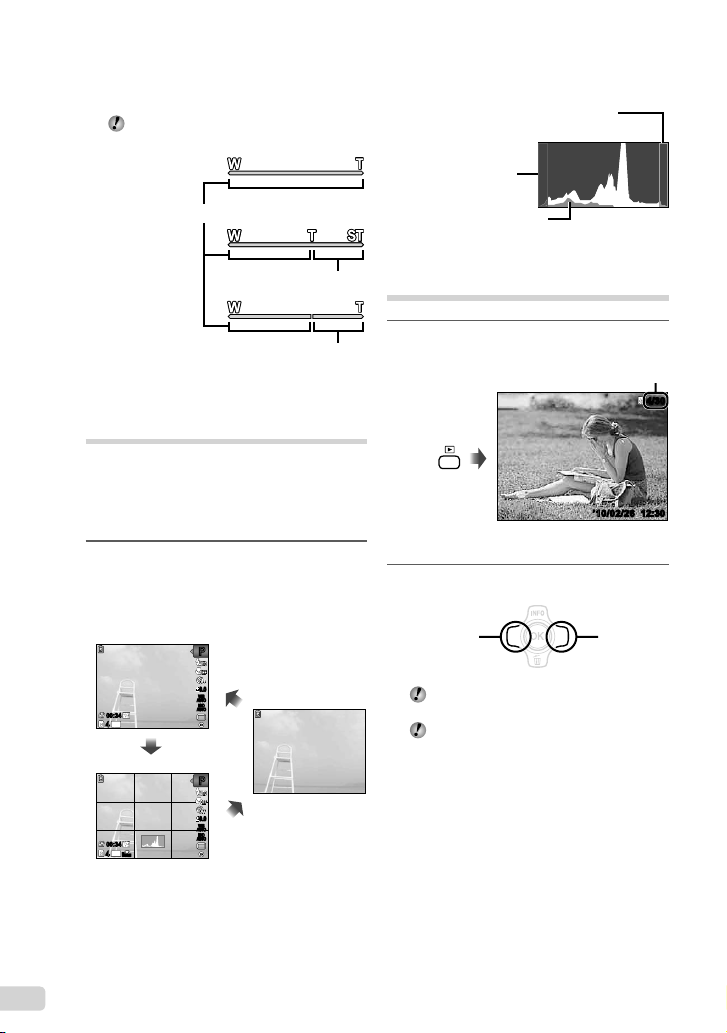

The zoom bar appearance identifies the
status of the fine zoom/digital zoom.
Fine zoom
range
Digital zoom
range
When using
optical zoom
When using
fine zoom
When using
digital zoom
Optical zoom range
Changing the shooting
information display
The display of the screen information can
be changed to best match the situation, for
example, the need for a clear view of the screen
or for making a precise composition by using the
grid display.
1Press F(INFO).
The displayed shooting information changes in
the order shown below each time the button is
pressed. “Shooting mode display” (p. 9)
14M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14M
44
N ORM
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34
00:3400:34
Normal
Detailed
No information

Reading a histogram
If the peak fills too much of the frame,
the image will appear mostly white.
If the peak fills too
much of the frame,
the image will
appear mostly black.
The green section shows
luminance distribution
within the screen’s center.
Viewing images
1Press the q button.
Number of frames/
Total number of images
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
Playback image
2Use HI to select an image.
Displays
previous
Displays
next image
Hold Ito fast forward and hold Hto
reverse.
The display size of the images can be
changed. “Index view, close-up view, and
event index” (p. 20)

19 EN
Pausing and
restarting
playback
Press the Abutton to pause
playback. During pause, fast
forward or reverse, press the
Abutton to restart playback.
Fast forward
Press Ito fast forward. Press
Iagain to increase the fast
forward speed.
Rewind
Press Hto rewind. The speed
at which the recording rewinds
increases each time His
pressed.
Adjusting the
volume
Use FG to adjust the
volume.
Operations while playback is paused
During pause
00:14/00:3400:14/00:34
Cueing
Use Fto display the first
frame and press Gto display
the last frame.
Advancing
and rewinding
one frame at
a time
Press Ior Hto advance or
rewind one frame at a time.
Hold Ior Hpressed for
continuous advance or rewind.
Resuming
playback
Press the Abutton to resume
playback.
To stop movie playback
Press the mbutton.
To play sound recordings
To play sound recorded with an image,
select the image and press the Abutton. A
!icon appears on images with which sound
has been recorded.
[R] (still images) (p. 35, 43)
During audio playback
To play back movies
Select a movie, and press the Abutton.
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
OK
MOVIE PLAYMOVIE PLAY
Movie
Operations during movie playback
00:12/00:3400:12/00:34
During playback
Elapsed time/
Total recording
time

20 EN
Erasing images during
playback (Single image erase)
1Display the image you want to erase
and press G(D).
MENU OK
ERASE
SEL. IMAGE
ALL ERASE
CANCEL
CANCEL
ERASE
SETBACK
2Press FG to select [ERASE], and
press the Abutton.
[ALL ERASE] (p. 42) and [SEL. IMAGE]
(p. 42) can be used to erase multiple images
at the same time.
Index view, close-up view, and
event index
Index view enables quick selection of a desired
image. Close-up view (up to 10× magnification)
allows checking of image details. In event
index*1, images are grouped by the shooting
dates and representative images for an event
can be displayed.
*1 Pictures with different dates can be grouped into the
same event using the PC software (ib).
1Press the zoom buttons.
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
’10/02/26
’10/02/26 12:30’10/02/26 12:30
2
44
’10/02/26
42
WT
WT
W
T
2
24
WT
4/304/30
’10/02/26
Index view
Single-image view Close-up view
Event index
