Olympus TG-4 User manual

Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a safe
place for future reference.
We recommend that you take test shots to get accustomed to your camera
before taking important photographs.
The screen and camera illustrations shown in this manual were produced
during the development stages and may differ from the actual product.
Instruction Manual
DIGITAL CAMERA
TG-4

2 EN
Unpack the box contents
The following items are included with the camera.
If anything is missing or damaged, contact the dealer from whom you
purchased the camera.
Digital camera Strap Lithium Ion Battery
(LI-92B)
OLYMPUS Setup
CD-ROM
or
USB-AC adapter (F-2AC) USB cable (CB-USB8)
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
Attaching the camera strap
• Pull the strap tight so that it does not come loose.

3 EN
Names of parts
1Connector cover
2Connector cover lock
3LOCK knob
4 Speaker
5Strap eyelet
6Lens
7Self-timer lamp/LED Illuminator/
AF illuminator
8Flash
9Stereo microphone
0GPS antenna
anbutton
bIndicator lamp
cShutter button
dZoom lever
eMonitor
fINFO (Information display) button
gR(Movie) button
hMode dial
iq(Playback) button
jAbutton
k/Wi-Fi button
lMulti-connector
mHDMI micro connector
nTripod socket
oBattery/card compartment cover
pBattery/card compartment cover
lock
qArrow pad
rF(Up) / F(Exposure
compensation) button
sI(Right) /#(Flash) button
tG(Down) /
jY(Sequential shooting/Self-
timer) / (Erase) button
uH(Left) button
• FGHI instruct to press the up/down/left/right arrow pad.

4 EN

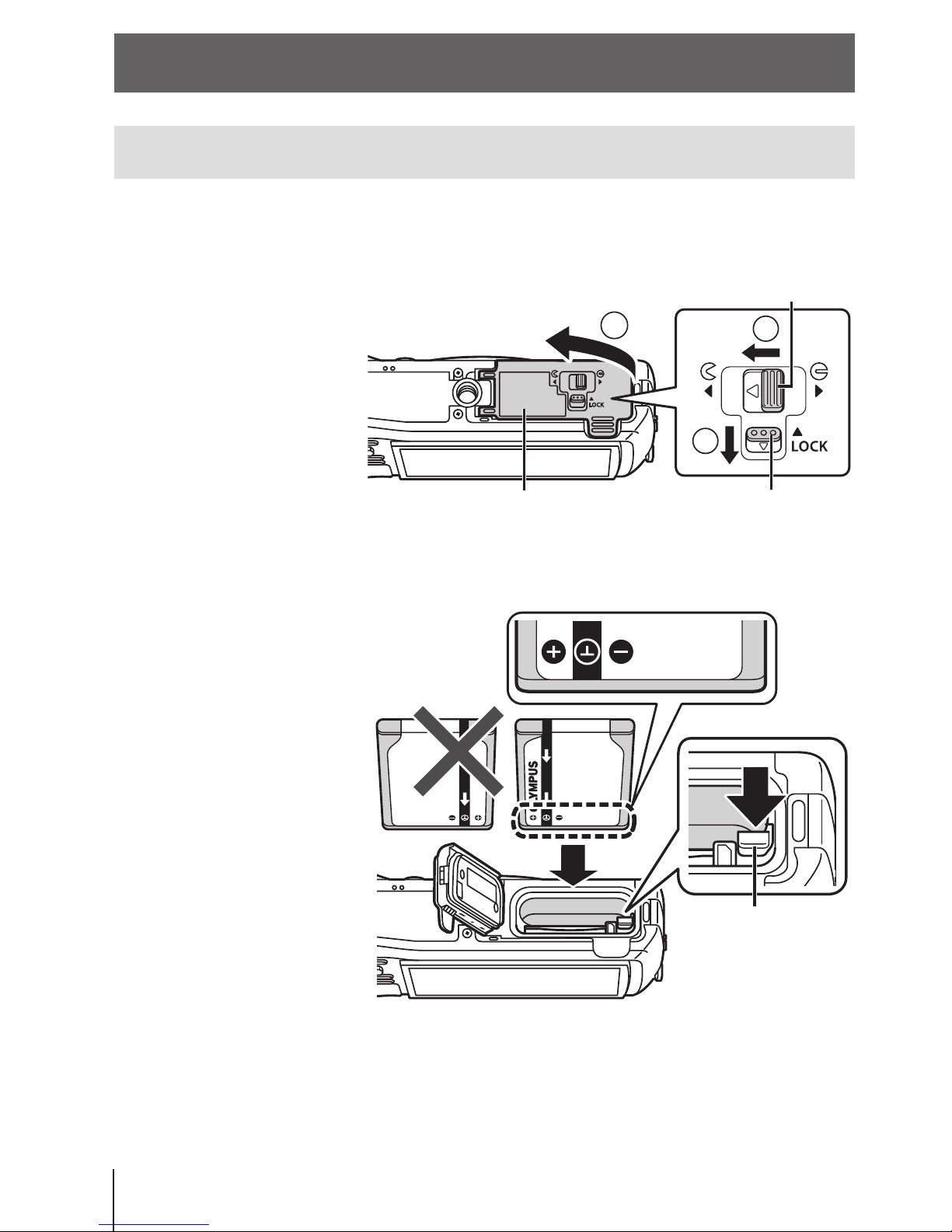

Preparations for shooting
Inserting and removing the battery and card
1
Follow Steps 1, 2and 3to open the battery/card
compartment cover.
• Turn off the
camera before
opening the
battery/card
compartment
cover.
3
1
2
Battery/card compartment cover
Battery/card compartment cover lock
LOCK knob
2
Insert the battery while sliding the battery lock knob in the
direction of the arrow.
• Insert the battery
as illustrated
with the Cmark
toward the battery
lock knob.
• If you insert the
battery in the
wrong direction,
the camera is not
turned on. Be sure
to insert it in the
correct direction.
• Slide the battery
lock knob in the
direction of the
arrow to unlock,
and then remove
the battery.
Battery
lock knob

5 EN

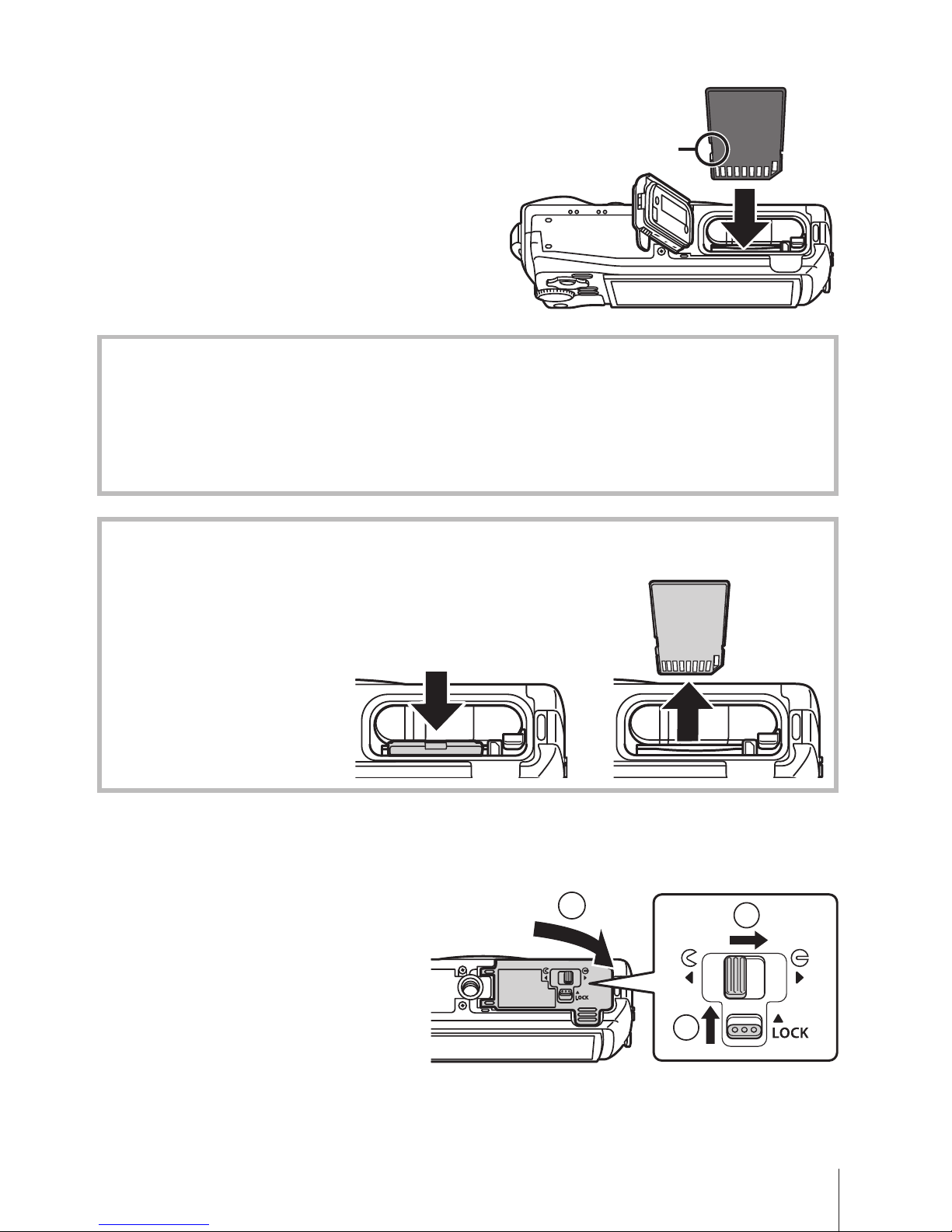

3
Insert the card straight until it clicks into place.
• Do not touch the metallic parts of
the card directly.
• Always use the specified cards
with this camera. Do not insert
other types of memory cards.
Write-protect
switch
Cards compatible with this camera
SD/SDHC/SDXC/Eye-Fi (with Wireless LAN function) card (commercially
available) (for compatibility card details, visit the Olympus website.)
• This camera can be used without a card by storing images in its internal
memory. g“Checking the image saving location” (P. 96)
To remove the card
Press the card in until
it clicks and comes out
slightly, then remove
the card.
21
4
Follow Steps 1, 2and 3to close battery/card compartment
cover.
• When using the camera,
be sure to close the
battery/card compartment
cover.
11
3
2

6 EN

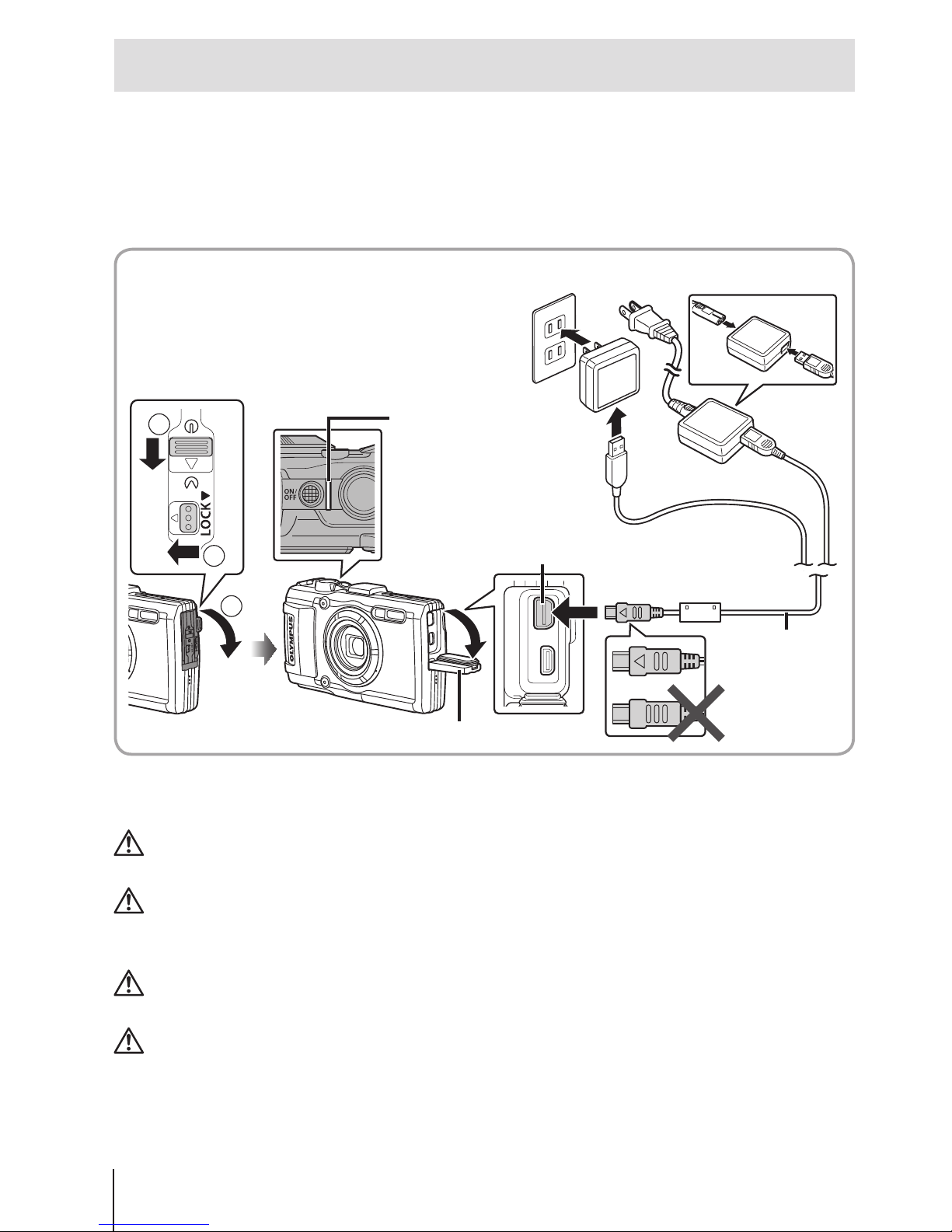

Charging the battery
1
Check that the battery is in the camera, and connect the USB
cable and USB-AC adapter.
• The battery is not fully charged at shipment. Before use, be sure to
charge the battery until the indicator lamp turns off (up to 5 hours).
Connecting the camera
3
1
2
AC outlet
USB cable
(supplied)
Multi-connector
Indicator lamp
On: Charging
Off: Charged or
Connector cover
For charging the battery abroad, see “Using your charger and USB-AC
adapter abroad” (P. 95).
Never use any cable other than supplied or Olympus-designated USB cable.
This may cause smoking or burning.
The included F-2AC USB-AC adapter (hereafter referred to as USB-AC
adapter) differs depending on the region where you purchased the camera. If
you received a plug-in type USB-AC adapter, plug it directly into AC outlet.
Be sure to unplug the power plug of the USB-AC adapter from the wall outlet
when the charging is complete or the playback ends.
For details on the battery, see “Handling the Battery” (P. 107). For details on the
USB-AC adapter, see “USB-AC adapter” (P. 110).

7 EN
• If the indicator lamp does not light, reconnect the USB cable and USB-AC
adapter to the camera.
• If “No Connection” is displayed on the back monitor, disconnect the USB
cable and set [Storage] in [USB Connection] (P. 58) before connecting the cable
again.

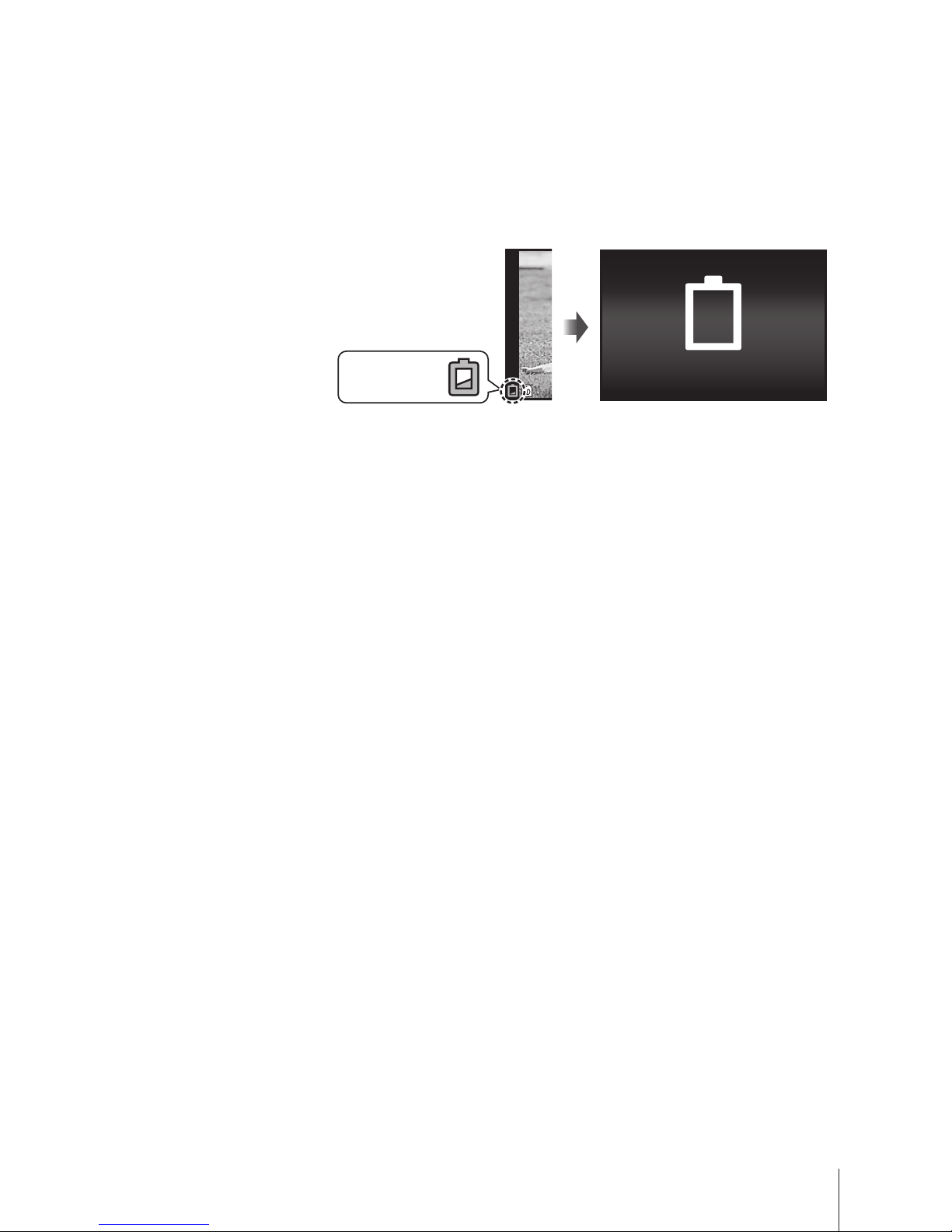

When to charge the batteries
Charge the battery when
the error message shown
on the right appears.
Error message
Battery Empty
Flashes in
red

8 EN

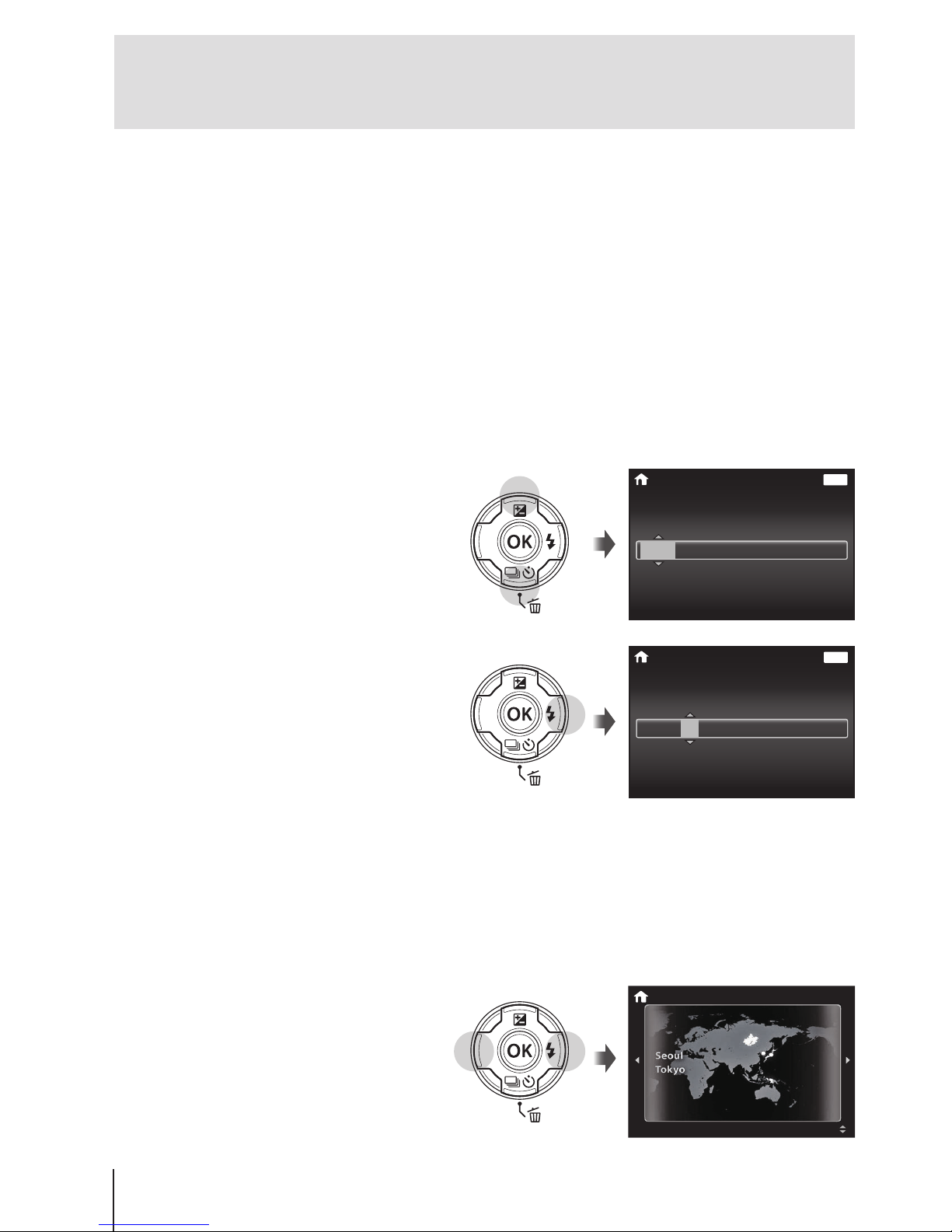

Turning on the camera and making the initial
settings
When you turn on the camera for the first time, a screen appears enabling
to set the language for the menus and messages displayed in the monitor,
and the date and time.
To change the selected date and time, see “Setting the date and time
d[X]” (P. 60).
1
Press the nbutton to turn on the camera, press
FGHI of the arrow pad to select your language and press
the Abutton.
• In the case that the power is not turned on when you press the n
button, check the direction of the battery. g“Inserting and removing
the battery and card” (P. 4)
2
Press FG of the arrow
pad to select the year for
[Y].
X
MENU
Back
Y/M/D
YMDTime
-- -- -- --
:.. 2015
3
Press Iof the arrow
pad to save the setting
for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:.. 2015
4
As in Steps 2 and 3, press FGHI of the arrow pad to
set [M] (month), [D] (day), [Time] (hours and minutes), and
[Y/M/D] (date order), and then press the Abutton.
• For precise time setting, press the Abutton as the time signal strikes
00 seconds.
5
Use HI (arrow pad) to
select the time zone and
then press the Abutton.
• Use FG (arrow pad) to
turn daylight saving time
([Summer]) on or off.
’15.02.26 12:30
Summer

9 EN
Using basic functions
Taking photographs (Pmode)
1
Press the nbutton to turn on the camera.
When the camera is turned on, the monitor will turn on.
2
Set the mode dial to P.
In mode P, the camera automatically
adjusts shutter speed and aperture in
response to subject brightness.
3
Frame the shot.
• When holding the camera, take
care not to cover the flash,
microphone or other important
parts with your fingers, etc.
4
Press the shutter button
halfway down to focus.
The camera was unable to focus
if the AF target mark flashes red.
Try focusing again.
• The shutter speed and
aperture value are displayed
in red if the camera is unable
to achieve optimal exposure.
Press halfway
PP
F6.9F6.91/4001/400
Shutter
speed
Aperture
value
AF target
5
To take the picture, gently
press the shutter button all the
way down while being careful
not to shake the camera.
Press
halfway
Press the rest of
the way down

10 EN

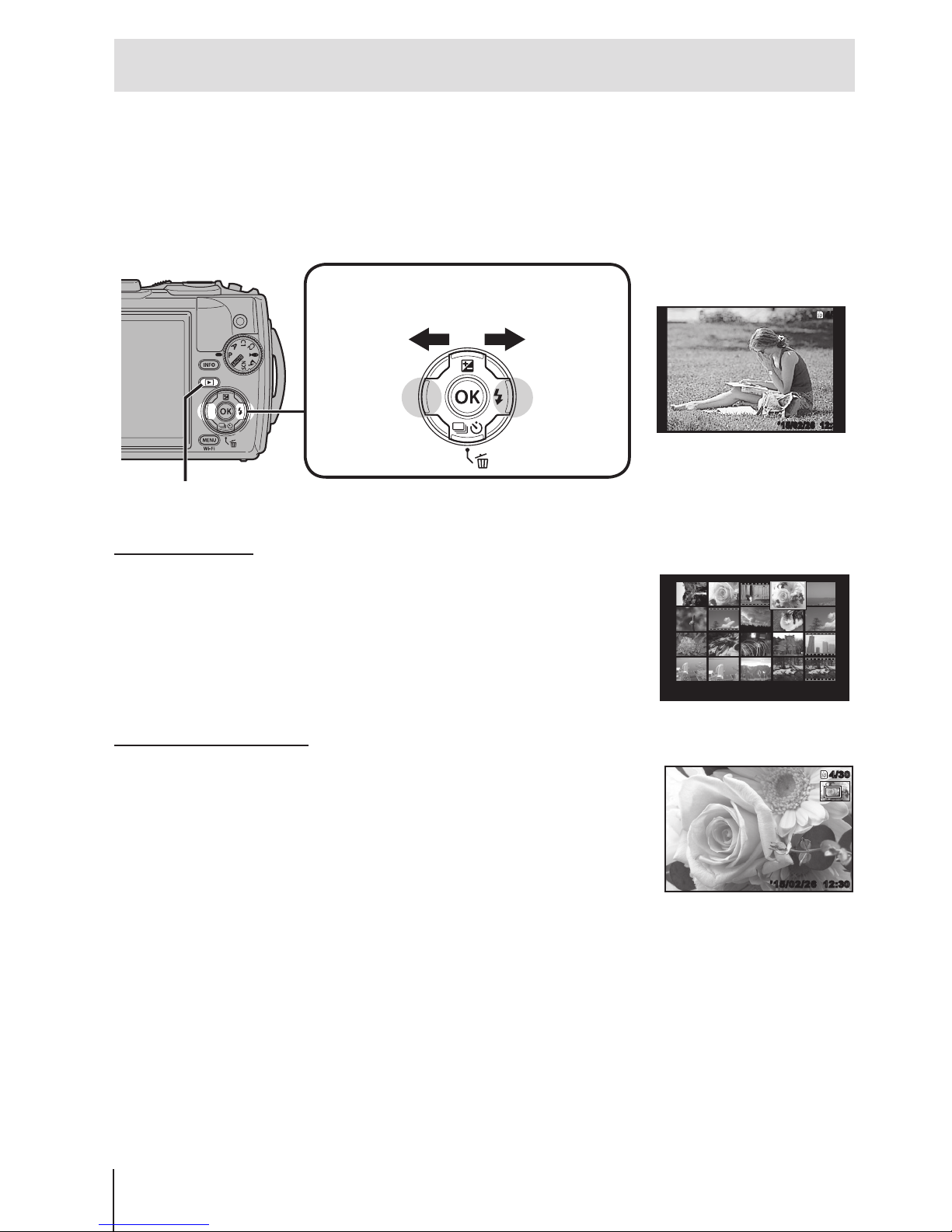

Viewing photographs (Playing back images)
Turn on the camera.
Press the qbutton.
• Your most recent photograph is displayed.
• Press HI (arrow pad) to select an image.
q button Arrow pad
Displays the
previous frame
Displays the
next frame
’ 15/02/26 12:30
4/30
4/30
Still image
Index display
• In single-frame playback, press the zoom lever to the
W side for Index playback.
• Use FGHI (arrow pad) to move the cursor.
• Press the zoom lever to the T side, or press the A
button for single-frame playback.
’15/02/26’15/02/26 12:30
Close-up playback
• In single-frame playback, press the zoom lever to the
T side to zoom in up to 10×; press the W side to zoom
out. Press the Abutton to return to single-frame
playback.
• Press FGHI (arrow pad) to scroll an image to the
direction of the button you pressed.
12:30’15/02/26’15/02/26 12:30
4/30
4/30

11 EN
Recording movies
1
Press the R(movie) button
to start recording.
• The movie is shot in the set
shooting mode. Note that the
shooting mode effects may not
be obtained for some shooting
modes.
• Sound is also recorded.
• When using a camera with a
CMOS image sensor, moving
objects may appear distorted
due to the rolling shutter
phenomenon. This is a physical
phenomenon whereby distortion
occurs in the filmed image when
shooting a fast-moving subject
or due to camera shaking. In
particular, this phenomenon
becomes more noticeable when
using a long focal length.
0:00
RECREC
0:00 0:340:34
0:000:00
RECREC
0:340:34
Lights up
red when
recording Recording time
Recording length
(P. 97)
2
Press the R(movie) button again to stop recording.

12 EN

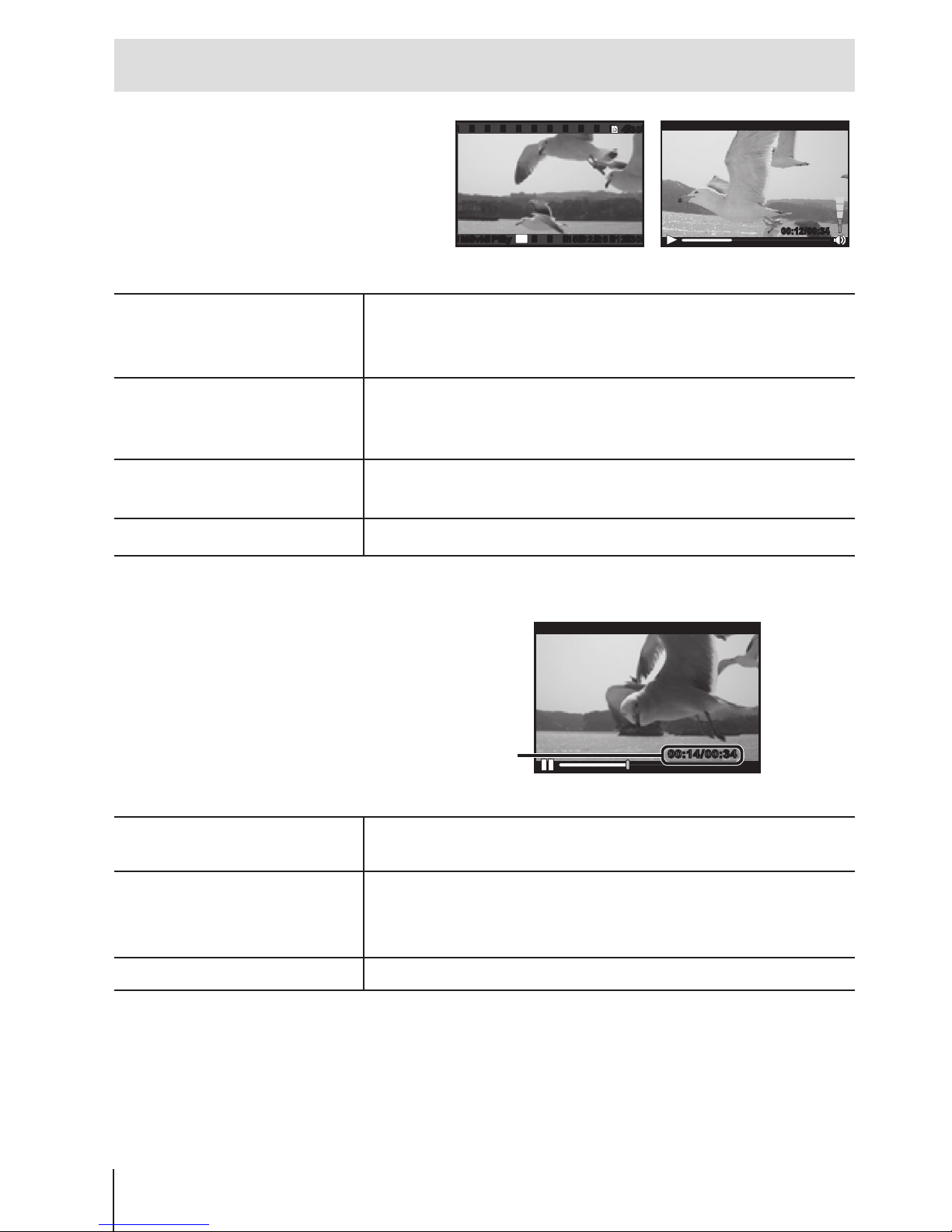

Movie playback
Select a movie in the Playback
mode, and press the Abutton.
00:12/00:3400:12/00:34
During playbackMovie
’15/02/26 12:3012:30
4/30
4/30
’15/02/26
OK
Movie PlayMovie Play
Pausing and restarting
playback
Press the Abutton to pause playback. During
pause, fast forward or reverse, press the Abutton
to restart playback.
Fast forward
Press I(arrow pad) to fast forward. Press I
(arrow pad) again to increase the fast forward
speed.
Rewind Press H(arrow pad) to rewind. Press H(arrow
pad) again to increase the rewind speed.
Adjusting the volume Use FG (arrow pad) to adjust the volume.
Operations while playback is paused
During pause
00:14/00:3400:14/00:34
Elapsed time/Total shooting time
Cueing Use F(arrow pad) to display the first frame and
press Gto display the last frame.
Advancing and
rewinding one frame at
a time
Press Ior H(arrow pad) to advance or rewind
one frame at a time. Hold Ior H(arrow pad)
pressed for continuous advance or rewind.
Resuming playback Press the Abutton to resume playback.
To stop movie playback
Press the button.
• To play back movies on the computer, the supplied PC software is
recommended. For the first use of the PC software, connect the camera to the
computer, then launch the software.

13 EN

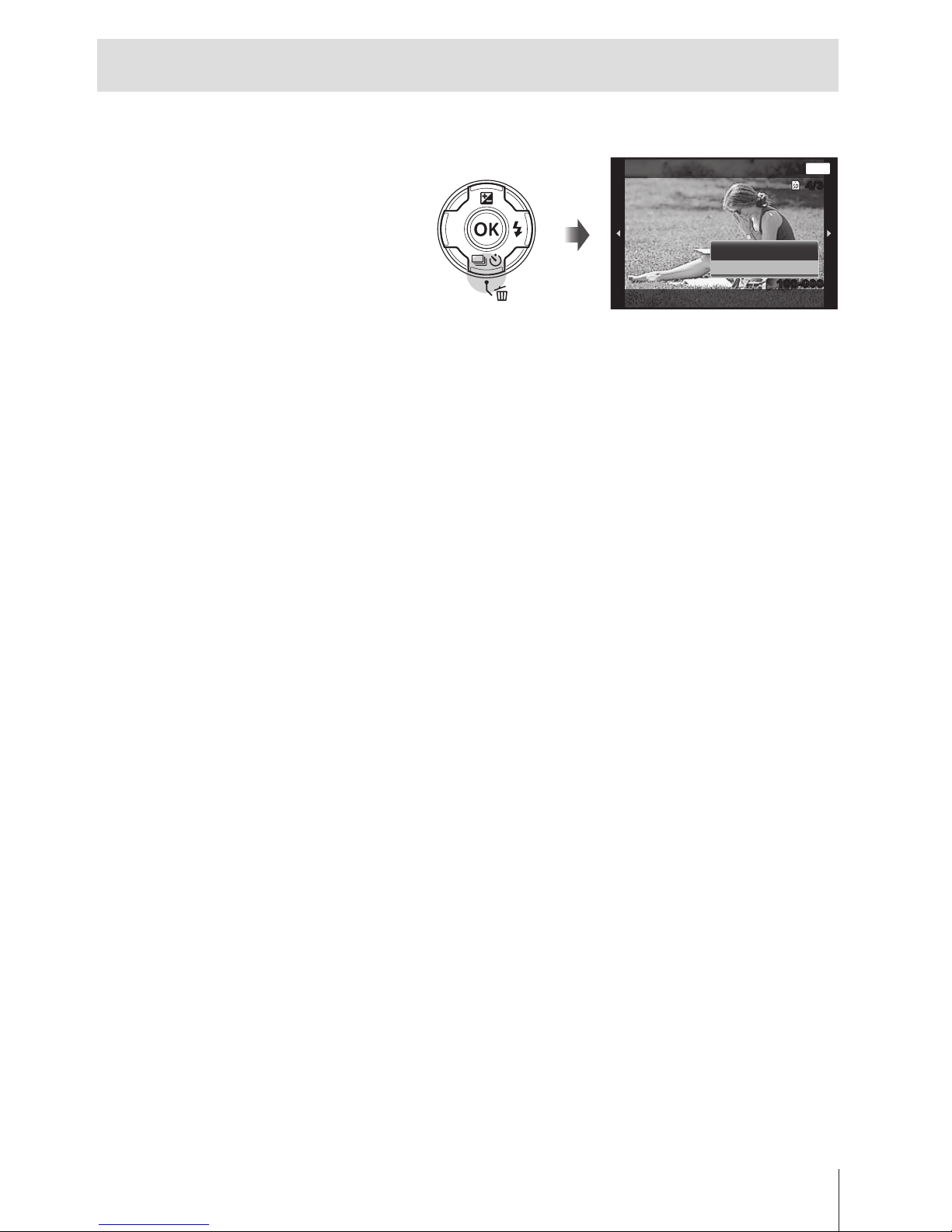

Erasing images during playback
1
Display the image you want to erase and press .
• To erase a movie, select
the movie to erase and
press .
MENU
Erase
Erase
Cancel
4/304/30
100-0004100-0004
Back
2
Press FG (arrow pad) to select [Erase], and press the A
button.
• Grouped images are erased as a group (P. 54).
• Multiple images or all images can be erased at a time (P. 54).

14 EN

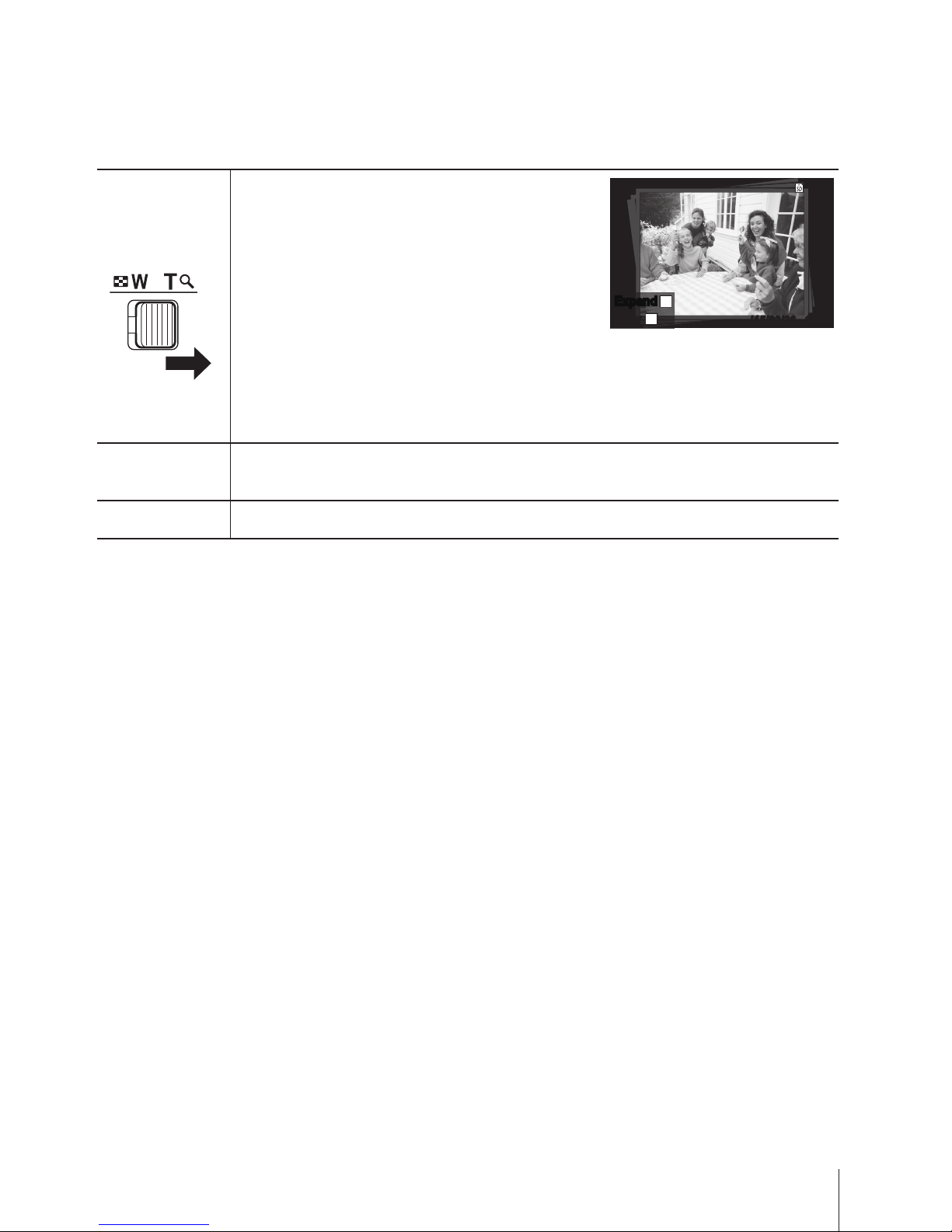

Playing back panorama and grouped images
Playing back panorama images
Panorama images that were combined together using [Auto] or [Manual]
can be scrolled for viewing.
1
Select a panorama image during
playback.
2
Press the Abutton.
4/304/30
OK
Replay
’15/02/26 12:30
To control panorama image playback
Stop playback: Press the button.
Pause: Press the Abutton.
Control while paused
Press FGHI (arrow pad) to scroll the image
in the direction of the pressed button.
Press the zoom lever to enlarge/shrink the
image.
Press the Abutton to restart scrolling.
Viewing area

15 EN
Playing back grouped images
With sequential shooting (j/c/d) (P. 32) and [pFocus BKT] (P. 23) in
k(Microscope mode), the taken images are displayed as a group during
playback.
T side
Expands.
• Expand to view the frames of a
group in index view.
• If you want to delete images from
the grouped images, you can
expand the group and delete the
images individually. Sequential images frame
’15/02/26’15/02/26 12:30
12:30
4/30
PlayPlay
ExpandExpand
OK
T
• Select the image and press the Abutton to display the
images respectively.
• Use HI (arrow pad) to view the previous/next frame.
Abutton Plays back the grouped images in sequence automatically or
pauses playback.
button Stops playback.

16 EN
Monitor display
Shooting screen displays
F6.9F6.91/1001/100
0.00.0
SCNSCN
0:00:340:00:34
Date
44
N
ORM
zz
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16 M
4:3
n
nG
880hPa 1200m880hPa 1200m
1 2
7
8
9
10
11
12
13
14
212324
25
22 151920 18
26
27
30
34
31
35
3637
17
56
16
32
33
28
29
3 4
When the shutter button is pressed halfway down
Reading a histogram
If the peak fills too much of
the frame, the image will
appear mostly white.
If the peak fills too much
of the frame, the image
will appear mostly black.
The green section shows luminance
distribution within the screen’s center.
Switching the displays
The displays change in the order of Normal →Detailed →No info. →
Measurement position information each time the INFO button is pressed.
g[GPS Settings] (P. 64)

17 EN
No. Name Normal Detailed No info.
1Shooting mode RR –
2Connection to Smartphone RRR
3Latitude RR –
4Longitude RR –
5Sub mode RR –
6Picture Mode RR –
7Flash RR –
8Flash Compensation RR –
9Exposure compensation RR –
10 White balance RR –
11 ISO sensitivity RR –
12 o/YRRR
13 Image size (still images) RR –
14 Aspect RR –
15
Recording with sound/wind noise reduction
RR –
16 Image size (movies) RR –
17 Movie recording length RR –
18 Movie recording icon RR –
19 GPS icon RR –
20 Direction information RR –
21 Conversion Lens RR –
22 Date stamp RR –
23 Compression RR –
24 Number of storable still pictures RR –
25 Current memory RR –
26 Battery check RR –
27 Histogram – R–
28 Metering – R–
29 Atmospheric/Hydraulic pressure – R–
30 Altitude/Water depth – R–
31 Image stabilization – R–
32 World time – R–
33 AF target mark RRR
34 Grid Guide – R–
35 Aperture value RRR
36 Shutter speed RRR
37 Camera shake warning RRR

18 EN

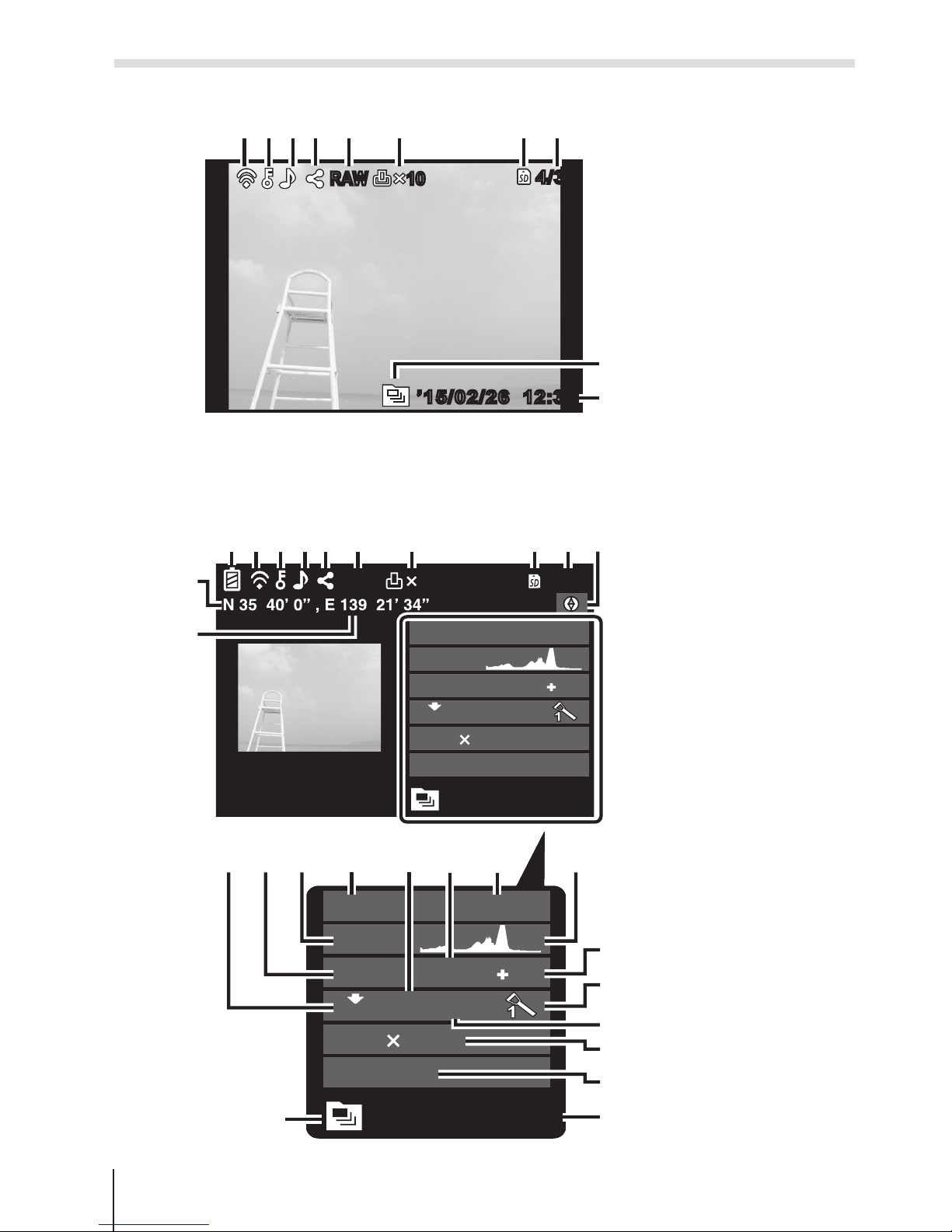

Playback mode display
• Normal
12:30’15/02/26’15/02/26 12:30
1010
4/304/30
RAWRAW
98
26
2
7
23 764 5
Still image
• Detailed
100-0004
4/304/30
2.01/1000
4608 3456
AUTO
WB
100
ISO
N
ORM
P
’15/02/26 12:30
F3.9
1010
880hpa 1200m
RAW
’15/02/26 12:30
100-0004
2.0
1/1000
4608 3456
AUTO
WB
100
ISO
N
ORM
P
F3.9
880hpa 1200m
9108
1615 171413 18 19 20
2627
2
5
123 54
24
23
22
6 7
21
12
11

19 EN
• No information
2
7
Switching the
displays
The displays change
in the order of Normal
→Detailed →No info.
each time the INFO
button is pressed.
No. Name Normal Detailed No info.
1Battery check – R–
2Eye-Fi transfer data/Wi-Fi RR –
3Protect RR –
4Adding sound RR –
5Share order RR –
6RAW file RR –
7Print reservation/number of prints RR –
8Current memory RR –
9Frame number/total number of images RR –
10 Direction information – R–
11 Longitude – R–
12 Latitude – R–
13 Compression/Image size (movies) – R–
14 Shutter speed – R–
15 Shooting mode – R–
16 Atmospheric/Hydraulic pressure – R–
17 ISO sensitivity – R–
18 Aperture value – R–
19 Altitude/Water depth – R–
20 Histogram – R–
21 Exposure compensation – R–
22 Picture mode – R–
23 White balance – R–
24 Image size (still images) – R–
25 File name – R–
26 Recording date and time RR –
27 Grouped images RRR

20 EN
Shooting using basic functions
Using the shooting modes
Selecting shooting mode
Turn the mode dial to set the shooting mode to
the indicator.
• After selecting ^, O, or k, select the sub mode.
List of shooting mode
• The default settings of the function are highlighted in .
Shooting mode Sub mode
A (iAUTO mode) –P. 21
P(Program mode) –P. 9
A(A mode) –P. 21
C1 (Custom mode 1) –P. 21
C2 (Custom mode 2) –P. 21
^
(Underwater mode)
]ZSnapshot/\ZWide1/[ZWide2/
wZMacro/_ZHDR P. 22
k(Microscope mode) mMicroscope/oFocus Stacking/
pFocus BKT/nMicroscope Control P. 23
O(Scene Mode)
BPortrait/ee-Portrait/FLandscape/
1Interval Shooting/#Live Composite/
HHand-Held Starlight/GNight Scene/
UNight+Portrait/CSport/2Indoor/
3Self Portrait/`Sunset/XFireworks/
_Cuisine/^Documents/gBeach & Snow/
sSnow/sPanorama/EBacklight HDR
P. 24
• “List of settings available in each shooting mode” (P. 103), “List of ^
settings” (P. 104), “List of Osettings” (P. 105)
• In certain shooting modes, the camera may take a few moments for image
processing after taking a picture.
