Omcan Ce-cn-0350-240v User manual

Revised - 07/19/2023

Flat and Ribbed Grills

are both included

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Electric Char Broilers

Models CE-CN-0350-240V, 0610-DN

Items 49885, 46886

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 5

-------------------------------------------------------------------------------------------- 6

--------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------- 7 - 9

---------------------------------------------------------------------- 10 - 11

------------------------------------------------------------------------------------------- 12 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

Troubleshooting

Parts Breakdown

Electrical Schematics

Notes

Warranty Registration

Model CE-CN-0350-240V / Model CE-CN-0610-DN

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

General Information

Safety and Warranty

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Please take notice that the unit will still be too hot to handle immediately after use.

If the power cord is damaged, it must be replaced by qualied technician.

RESIDENTIAL USERS: vendor assumes no liability for parts or labor coverage for component failure

or other damages resulting from installation in non-commercial or residential applications. The right

is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as

5

Safety and Warranty

possible.

1 YEAR PARTS AND LABOUR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without di󰀩culty.

In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model CE-CN-0350-240V CE-CN-0610-DN

Power 3.6 kW

Temperature Range 137.8 - 298.9°C / 280 - 570°F

Cooking Area 14” x 19” / 356 x 483mm 24” x 19” / 610 x 483mm

Electrical 240V / 60Hz / 1

Weight 94.8 lbs. / 43 kgs. 125.7 lbs. / 57 kgs.

Packaging Weight 98.1 lbs. / 44.5 kgs. 133.4 lbs. / 60.5 kgs.

Dimensions 16.3” x 28” x 12.8” / 414 x 711 x 325mm 26.3” x 28” x 9” / 668 x 711 x 229mm

Packaging Dimensions 30” x 19” x 15.5” / 762 x 483 x 394mm 30” x 29” x 15.5” / 762 x 737 x 394mm

Item Number 49885 46886

6

Operation

Maintenance

Troubleshooting

Plug in the unit, the red light turns on. Turn the thermostat dial to the max setting about 30 minutes. Place the

food you wish to cook on the char broiler. When nished cooking, turn o󰀨 the thermostat and unplug the unit.

The char broiler should be cleaned using warm, soapy water after each day’s operation.

For cleaning the grilling plate, please use warm soapy water while still warm. Do not use cold water on a warm

plate.

Do not immerse completely in water to clean. Do not clean with a water jet.

If the char broiler does not work, please check the following:

1. The power supply is correct and the unit is turned on.

2. The thermostat is turned to the desired temperature.

3. The element is clean.

Installation

Take out the char broiler from the packaging and locate the unit on a rm level surface.

When this appliance is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative

nished, etc., it is recommended that they be made of non-combustible material, if not, they shall be clad with

a suitable non-combustible heat-insulating material, and that the closet attention be paid to re prevention

regulations.

Once the appliance has been placed in position by consulting international standards and regulations.

Cleaning the cast iron griller/griddle thoroughly is advised. Warm up the cast iron plate for 30 minutes until all

smoke and/or odor has dissipated, unplug the unit, after the griller/griddle is cool down, take out the griller/

griddle from the unit, Scrub the surface with steel wool and detergent to remove the coating. Then use warm,

soapy water to clean and make it dry and put back the griller/griddle on the unit.

NEVER USE COLD WATER ON THE HOT PLATE.

The unit is ready to use.

7

Parts Breakdown

Model CE-CN-0350-240V 49885

8

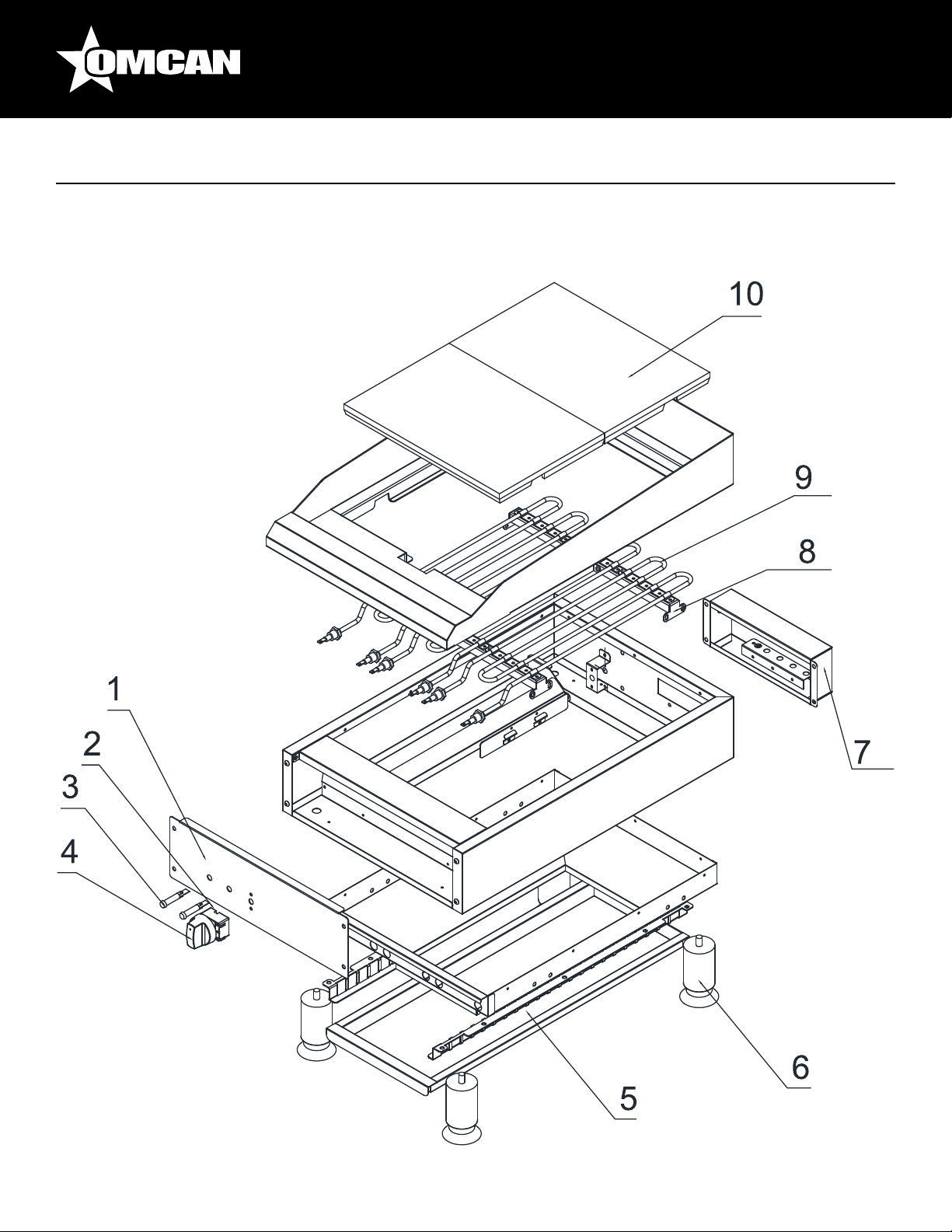

Parts Breakdown

Model CE-CN-0610-DN 46886

9

Parts Breakdown

Model CE-CN-0350-240V 49885

Model CE-CN-0610-DN 46886

Item No. Description Position Item No. Description Position Item No. Description Position

AG131 Front Panel for 49885 1 AG135 Tray for 49885 5 AG139 Element for 49885 9

AG132 Thermostat for 49885 2 AG136 Feet for 49885 6 AG140 Griddle Plate Flat for 49885 10

AG133 Indicator Light for 49885 3 AG145 Power Box for 49885 7 AG141 Grill Plate Ribbed for 49885 10

AG134 Knob for 49885 4 AG138 Element Support Frame for 49885 8 AG148 Plug and Lead for 49885 11

Item No. Description Position Item No. Description Position Item No. Description Position

AG143 Front Panel for 46886 1 AG144 Tray for 46886 5 AG139 Element for 46886 9

AG132 Thermostat for 46886 2 AG136 Feet for 46886 6 AG146 Griddle Plate Flat for 46886 10

AG133 Indicator Light for 46886 3 AG145 Power Box for 46886 7 AG147 Grill Plate Ribbed for 46886 10

AG134 Knob for 46886 4 AG138 Element Support Frame for 46886 8 AG148 Plug and Lead for 46886 11

10

Electrical Schematics

Model CE-CN-0350-240V 49885

11

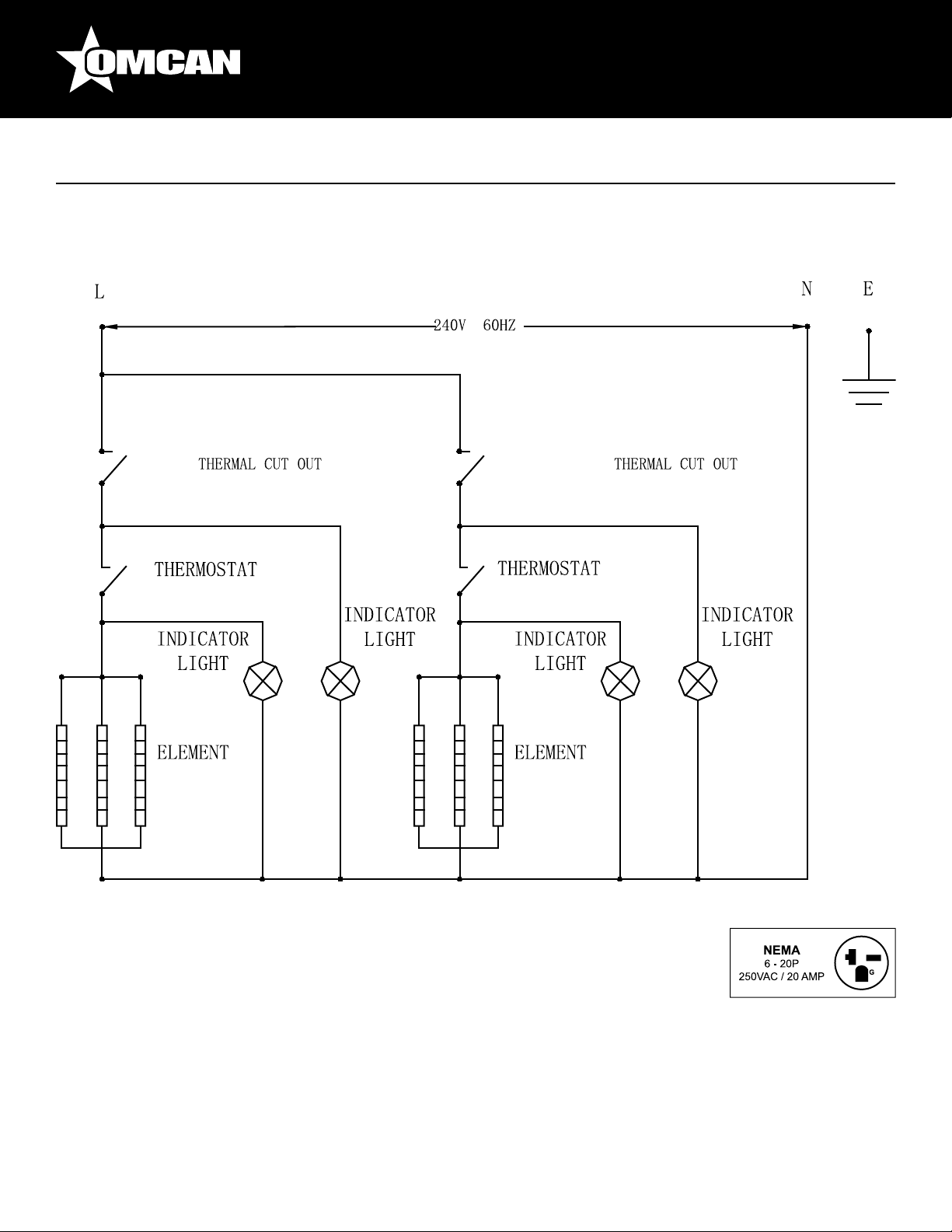

Electrical Schematics

Model CE-CN-0610-DN 46886

12

Notes

________________________________________________________________________________________

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

https://omcan.com/warranty-registration/

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour di󰀨usion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 6,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 6500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 6,500 productos con origen a nivel mundial.

Omcan CE-CN-0350-240V User manual

Popular Broiler manuals by other brands
