Omega OCC64TCOM User manual

INSTRUCTION MANUAL FOR OMEGA
CERAMIC COOKTOP
OCC64TCOM

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE AP P LIAN CE.
It is important that you retain these instructions, proof of purchase as well as other important documents
about this product for future reference.
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect
installation or improper use of the appliance.
Due to continual product development, Omega reserves the right to alter specifications and appearances without
notice.
CONTENTS
IMPORTANT SAFETY WARNINGS ..........................................................................................................1
APPLIANCE DETAILS ..............................................................................................................................2
INSTALLATION ....................................................................................................................................4-4
ELECTRICAL CONNECTION ....................................................................................................................6
OPERATING INSTRUCTIONS ...............................................................................................................7-9
MAINTENANCE AND CLEANING.................................................................................................... 11-11
WARRANTY .........................................................................................................................................13
DISPOSAL INFORMATION
•Most of the packaging materials are recyclable. Please dispose of these materials through your local
recycling depot or by placing them into appropriate collection containers.
•If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

1
IMPORTANT SAFETY WARNINGS
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the
contents of this carton.
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. After removing the packaging, make sure to check if there is any damage to the appliance. If there is any damage (including cracked
glass), never attempt to use the appliance and immediately contact your Authorised Service Centre. As packaging materials can be
dangerous to children, they need to be collected immediately and put out of reach.
3. In certain circumstances electrical appliances may be a danger hazard. Check the conformity of voltage and power settings, which are
specified on the information plate attached to the appliance and/or packaging, with the usage conditions available.
4. Do not place heavy objects in or on these appliances, use for storage or as a cutting surface. This appliance is designed for cooking
food only. Use flat based, stable cooking pots only.
5. This appliance is designed for domestic household use only and for the cooking of domestic food products. Use as a commercial
appliance will void the warranty. It should not to be used in a marine environment or outdoors and must be fully built in. Do not use the
appliances until fully installed.
6. A means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
7. The electrical connection must be accessible after installation. The appliance must be electrically isolated before any maintenance
can be performed.
8. The appliance is not intended to be operated by means of an external timer or separate remote control system.
9. Electrical connection must be made as per local wiring rules and regulations. Do not disconnect the appliance with wet hands or bare
feet, and do not disconnect the power cord with extreme force.
10. Ensure that the kitchen is well ventilated or mechanical ventilation is in use while cooking on this appliance.
11. Do not store or use flammable materials or aerosols near the cooktop. Items made from aluminium, plastic or plastic film should also
be kept away from the appliance, as they may fuse to the surface.
12. WARNING – The surface temperature of this appliance exceeds 95°C. To avoid a hazard, under bench access must be restricted.
Aboard must be installed underneath the cooktop.
13. WARNING - The cooktop will become hot during and directly after use. Do not touch the surface during this time, as it may be hot and
can cause burns. To avoid burns, children should be kept away.
14. Cleaning may only be commenced on the appliance once it has cooled down and is turned off. Do not use a steam jet or any other
high pressure cleaning equipment to clean the appliance.
15. When the appliance is not being used, turn the appliance off.
16. Where this appliance is installed in a caravan, it shall NOT be used as a space heater.
17. Do not modify this appliance.
18. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass surface as they can scratch the surface, which may
result in the glass shattering. Clean the glass using a warm damp cloth (e.g. dishcloth) and dry it with a soft dry tea towel.
19. All cabinetry and materials used in the installation must be able to withstand a minimum temperature of 100°C above the ambient
temperature of the room it is located in, whilst in use. Certain types of vinyl or laminate kitchen furniture are particularly prone to heat
damage or discolouration at temperatures below the guidelines given above. Any damage caused by the appliance being installed
without adhering to the temperature limits set out above will be the liability of the owner. To avoid any hazards, limit access to the
under-bench section of the cooktop.
20. The appliance must be installed and put into operation by an authorised technician under the conditions provided by the manufacturer
in this manual. The manufacturer cannot be held responsible for any damage that might occur due to faulty installation.
21. Damage can occur to bench tops if pots and pans are allowed to overlap the bench top. This can result in heat being transferred to
the bench top. Ensure that correct sized pots & pans are used. Cast iron and cast aluminium cookware with damaged bases may
scratch the cooktop surface if they are dragged across it. Pans should be lifted on and off the cooktop surface and not dragged.
Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty for any length of
time.
22. If any cracking is noticed on the vitro-ceramic cooktop, turn the appliance off immediately and call your Authorised Service Centre.
23. Do not leave the cooktop while cooking with solid or liquid oils. There may be flaming up in conditions of extreme heating.
24. Never pour water onto the flames occurring from oil. Immediately turn the cooktop off and cover the pan with a lid or fire blanket in
order to smother the flame.
25. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never
conduct the operation by yourself.
26. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
27. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
28. The wall and induced heating zone above the work surface shall withstand heat.
29. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
30. A steam cleaner is not to be used.

2
APPLIANCE DETAILS
General Information
Before installing and operating the rangehood, carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed to exhaust cooking fumes externally. Before installation, please ensure that the
following have been supplied and that the tools listed below are readily available.
Specifications
Model
OCC64TCOM
Cooking Zones
4 Zones
Supply Voltage
220-240V~ 50 / 60Hz
380-415V 3N~ 50 / 60Hz
Rated Power
5500-6600W
Product Size D×W×H (mm)
590X520X55
Top View
1. Max. 1200W Zone
3. Glass Plate
2. Max. 1800W Zone
4. On / Off
3. Max. 1200W Zone
5. Control Panel
4. Max. 1800W Zone
Control Panel
1. On / Off
2. Power Regulating Controls
3. Child lock
4. Timer Regulating Controls

3

4
INSTALLATION

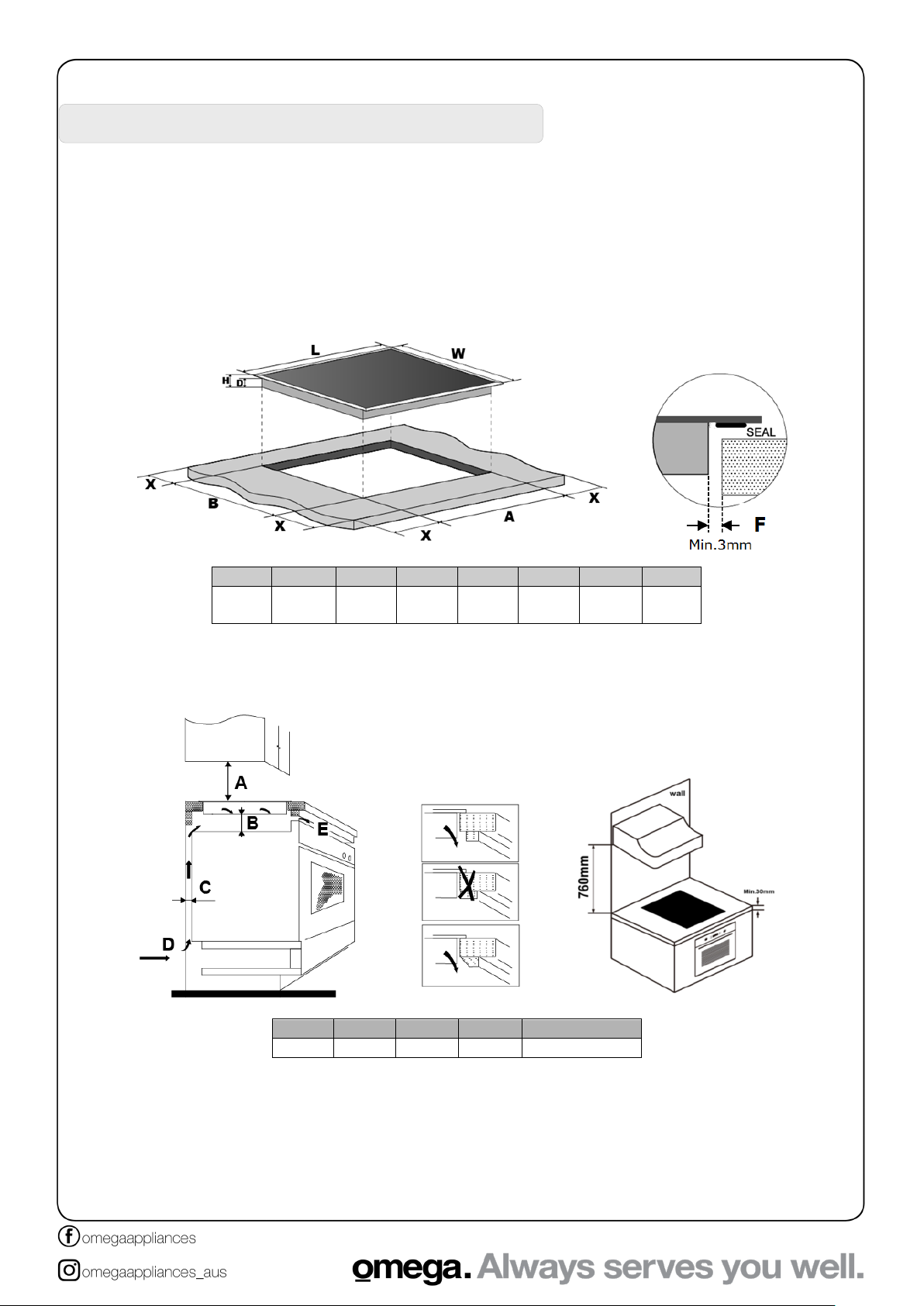

Cut out the work surface according to the sizes shown in the image below.
Ensure that there is a minimum of 50mm of space around the cutout.
The thickness of the bench should be at least 30mm. Please select heat-resistant and insulated bench materials
(Wood and similar fibrous or hygroscopic materials should not be used as the bench material unless impregnated)
to avoid the electrical shock and larger deformation caused by heat radiation from the hotplate.
Note: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least
3mm.
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
F(mm)
590 520 55 51
560+4
+1
490+4
+1 50 min. 3 min.
Important: Ensure that the cooktop is well ventilated and that the air inlet and outlet are not blocked.
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 min.
20 min.
Air inlet
Air outlet (5mm)

5
INSTALLATION
In order to avoid accidentally touching the hot underside of the cooktop, or getting an unexpected electric shock, it
is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the
cooktop.
There are ventilation holes around outside of the cooktop. Ensure that these holes are not blocked by the bench
when you install the cooktop.
Be aware that any glue used on the bench must be resistant to a minimum temperature of 150°C.
The rear wall, adjacent and surrounding surfaces must therefore be able to withstand a temperature of 90°C.
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls
protruding from the hob.
Fix the hob to the bench by screwing the four brackets to the bottom of the cooktop (see image) after installation.
A
B
C
D
Screw
Bracket
Screw hole
Base
Adjust the bracket position to suit for different bench thicknesses.
The brackets should not touch the bench after installation (see image above).

6
ELECTRICAL CONNECTION
The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker.
The method of connection is shown below.
1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the
proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be
installed with a minimum gap of 3mm between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies with
safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualified person.

7
OPERATING INSTRUCTIONS
Touch Controls
•The controls respond to touch, so you don’t need to apply any pressure.
•Use the pad of your finger, not the tip.
•You will hear a beep each time a touch is registered.
•Make sure the controls are always clean, dry, and that there are no objects (e.g. a utensil or a cloth)
covering them. Even a thin film of water may make the controls difficult to operate.

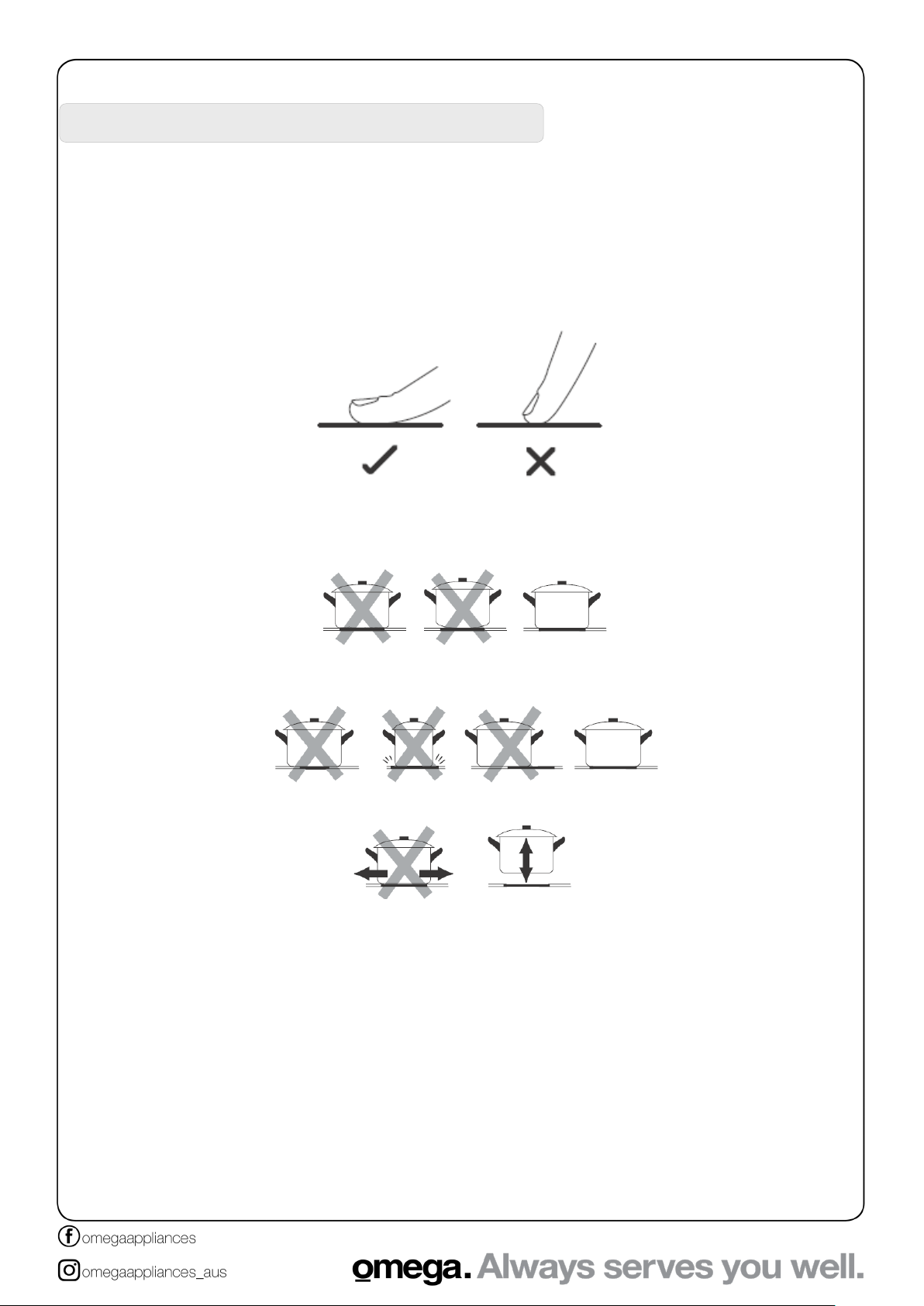

Choosing the Right Cookware
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking
zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

8
OPERATING INSTRUCTIONS
Using the Cooktop
When the power is connected you will hear a beep and all the lights will come on for one second and then go out.
This indicates that the cooktop has entered standby mode.
Turn the cooktop on by t
ouching the On / Off button. A
ll indicators
will
show “-“.
Place a suitable pan on the cooking zone that
you wish to use. Make
sure
that the bottom of the pan and the surface of the cooking zone
are clean and dry.
Select a heat setting by touching the “+” or “-” buttons. You can
modify the heat setting at any time during
cooking. By holding down
either of these buttons, the value will adjust up or down.
Note
: If you don’t choose a heat setting within one minute, the
ceramic hob will automatically switch off.
Turn the cooking
zone off by scrolling down to “0” or touching the “+”
and “
-” buttons together.
Turn the whole cooktop off by touching
the On/Off button.
Beware of hot surfaces
“
H” will indicate which cooking zone is hot to touch. It will disappear
when the surface has cooled
down to a safe temperature.
Safety Lock
The controls can be locked to prevent accidental use and to protect children. When the controls are locked, all
buttons except for the On/Off button are disabled.
•To lock the controls, press the lock button. The timer indicator will display “Lo”.
•To unlock the controls, press and hold the lock button while the cooktop is turned on.

9
OPERATING INSTRUCTIONS
Using the Timer
The timer can be used in two different ways:
•You can use it as an alarm. In this case it will not turn any cooking zones off.
•You can use it to automatically turn off a cooking zone after the timer has finished.
The timer can be set to a maximum of 99 minutes.
Using the Timer as an Alarm
Adjust the timer with the “+” and “-“ buttons. The timer display will
start flashing.
When the time is set, the timer will begin counting down immediately.
The display will show the remaining time and the timer indicator will
flash for five seconds.
To cancel the timer, hold the “+” and “-“ buttons together. The display
will change to “--“.
Once the timer has elapsed, the buzzer will sound for 30 seconds.
The display will change to “--“.
Hint:
•Touch the “+” or “-“ buttons once to change the timer by one minute.
•Touch and hold the “+” or “-“ buttons to change the timer by ten minutes.
•If the setting exceeds 99 minutes, the timer will automatically return to 0 minutes.

10
OPERATING INSTRUCTIONS
Setting the Timer to turn one or more Cooking Zones Off

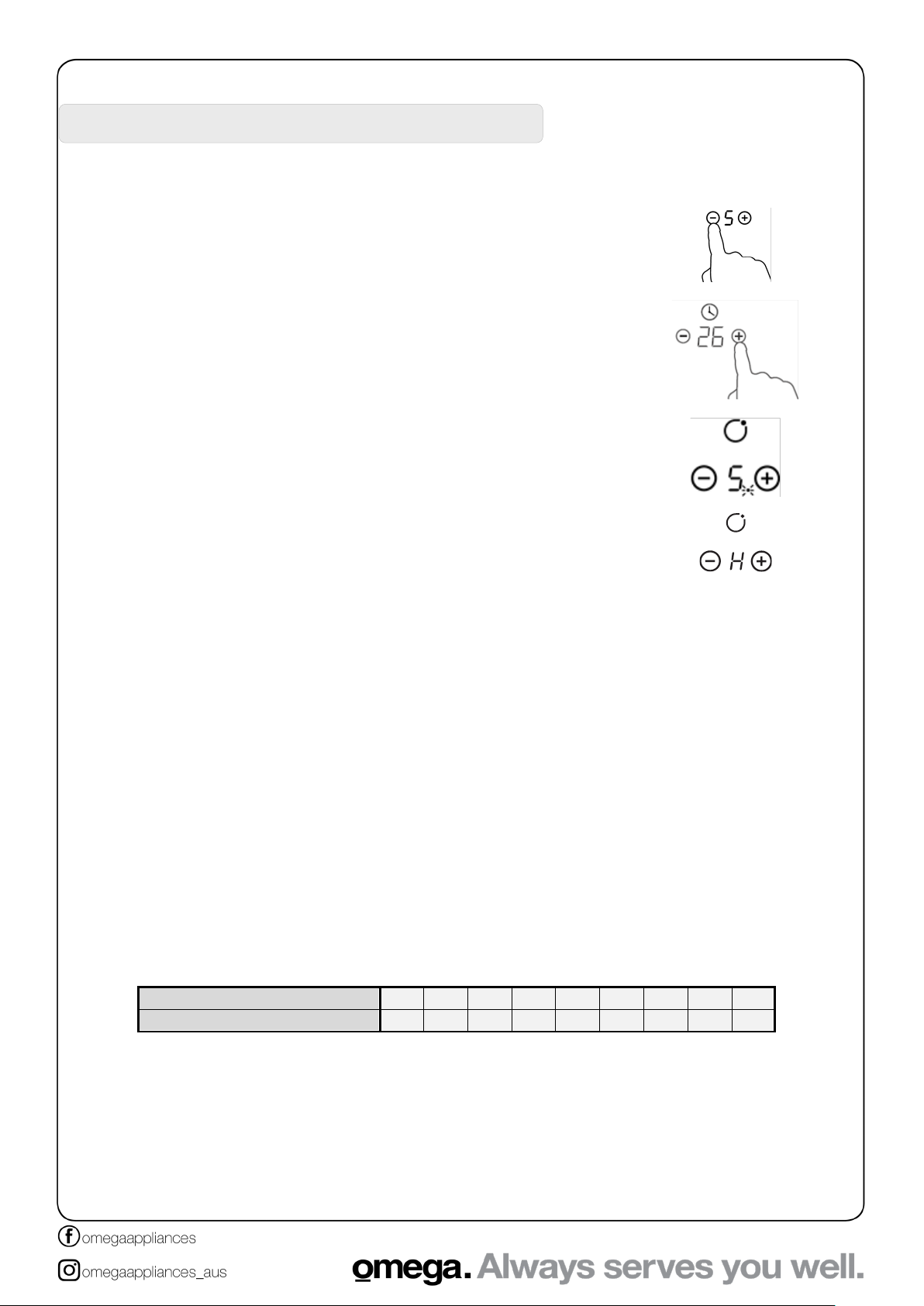

Touch the “+” or “
-“ button of the cooking zone you wish to set the timer for.
Set the timer as described on the previous page.
A red dot next to the power level for the corresponding cooking zone will
illuminate to
indicate that the timer has been set for it.
When the timer has elapsed the corresponding cooking zone will switch off
automatically. The cooking zone display will show “H” which means that it is still
hot.
Note: If you wish to change the timer once it has been set, you need to start from the beginning.
Multiple Timers
If more than one cooking zone is using the automatic timer function, the timer display will show the shortest time
remaining. The red dot next to the power indicator will flash to show to currently displayed timer.
When the shortest timer has elapsed, the corresponding the display will show the next shortest time.
Over-Temperature Protection
This cooktop is equipped with a temperature sensor which can detect when the cooktop is at an excessive heat. If
this happens, the sensor will automatically switch off a cooking zone.
Residual Heat Warning
When a cooking zone is switched off but still hot, its display will show “H” to indicate that it is still hot.
Default Working Times
In the event that you forget to turn off a cooking zone, there is an automatic shut off safety feature that will
automatically turn the cooking zone off after a period of time. See the table below for the working times.
Power level
1
2
3
4
5
6
7
8
9
Default working timer (hour)
8
8
8
4
4
4
2
2
2

11
MAINTENANCE AND CLEANING
Cleaning
Problem
Resolution
Important
Everyday soiling on glass
(fingerprints, marks, stains
left by food or non-sugary
spillovers on the glass)
1. Switch the power to the cooktop off.
2. Apply a cooktop cleaner while the
glass is still warm (but not hot!)
3. Rinse and wipe dry with a clean cloth
or paper towel.
4. Switch the power to the cooktop back
on.
•When the power to the cooktop is
switched off, there will be no ‘hot
surface’ indication but the cooking
zone may still be hot! Take extreme
care.
•Heavy-duty scourers, some nylon
scourers and harsh/abrasive cleaning
agents may scratch the glass. Always
read the label to check if your cleaner
or scourer is suitable.
•Never leave cleaning residue on the
cooktop: the glass may become
stained.
Boil-overs, melts, and hot
sugary spills on the glass
Remove these immediately with a fish
slice, palette knife or razor blade scraper
suitable for Ceramic glass cooktops, but
beware of hot cooking zone surfaces:
1. Switch the power to the cooktop off at
the wall.
2. Hold the blade or utensil at a 30°
angle and scrape the soiling or spill to
a cool area of the cooktop.
3. Clean the soiling or spill up with a
dish cloth or paper towel.
4. Follow steps 2 to 4 for ‘Everyday
soiling on glass’ above.
•Remove stains left by melts and
sugary food or spillovers as soon as
possible. If left to cool on the glass,
they may be difficult to
remove or even
permanently damage the glass
surface.
•Cut hazard: when the safety cover is
retracted, the blade in a scraper is
razor-sharp. Use with extreme care
and always store safely and out of
reach of children.
Spillovers on the touch
controls
1. Switch the power to the cooktop off.
2. Soak up the spill
3. Wipe the touch control area with a
clean damp sponge or cloth.
4. Wipe the area completely dry with a
paper towel.
5. Switch the power to the cooktop back
on.
•The cooktop may beep and turn itself
off, and the touch controls may not
function while there is liquid on them.
Make sure you wipe the touch control
area dry before turning the cooktop
back on.

12
MAINTENANCE AND CLEANING
Troubleshooting
Problem
Possible causes
What to do
The cooktop cannot be
turned on. No power.
Make sure the ceramic hob is connected to
the power supply and that it is switched on.
Check whether there is a power outage in
your home or area. If you’ve checked
everything and the problem persists, call a
qualified technician.
The touch controls are
unresponsive. The controls are locked.
Unlock the controls. See section ‘Operating
Instructions’ for instructions.
The touch controls are
difficult to operate.
There may be a slight film of water
over the controls or you may be
using the tip of your finger when
touching the controls.
Make sure the touch control area is dry and
use the ball of your finger when touching the
controls.
The glass is being
scratched.
•Rough-edged cookware.
•Unsuitable, abrasive scourer or
cleaning products being used.
Use cookware with flat and smooth bases.
See ‘Choosing the Right Cookware’.
Some pans make
crackling or clicking
noises.
This may be caused by the
construction of your cookware
(layers of different metals
contracting
and expanding differently).
This is normal for cookware and does not
indicate a fault.

13
WARRANTY
AUSTRALIAN AND NEW ZEALAND PRODUCT WARRANTY
STATEMENT OF STANDARD WARRANTY CONDITIONS
AUSTRALIAN CUSTOMERS
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
NEW ZEALAND CUSTOMERS
Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantee Act 1993.
OUR WARRANTY
This product is also covered by the manufacturer's warranty set out in this document (Our Warranty).
Our Warranty is for a period of twenty four (24) months from the date of purchase. This is in addition to (and does not exclude, restrict or modify)
any rights or remedies to which you may already be entitled to under the Australian consumer law or the New Zealand Consumer Guarantee act
1993 relating to this product. Our warranty (which is subject to the conditions below) covers rectification free of charge of any fault arising from
defective materials or components or faulty workmanship. The product will be repaired or replaced at the option of Omega.
Our warranty is subject to the following conditions:
1. That the purchaser contact Omega prior to any product repair.
2. That the purchaser carefully follows all instructions provided with the product and complies with all relevant electrical & plumbing
regulations in their State when installing the product.
3. That the purchaser carefully follows the instructions provided in the owner's handbook relating to the proper use and care of the
product and does not use the product for any purpose other than the DOMESTIC use for which it has been designed. If the appliance
is used in commercial applications or for rental purposes, Our Warranty is limited to a warranty of Twelve (12) months covering all
parts with Three (3) months on any labour cost of service or repair.
WHAT IS COVERED: By Our Warranty
During the warranty period, Omega or its authorised Service Centre will, at no extra charge, if your appliance is readily accessible without the
need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.
WHAT IS NOT COVERED: By Our Warranty
1. Products installed damaged or incomplete or not in compliance with the relevant electrical & plumbing regulations in their State.
2. Normal wear and tear e.g. cleaning, light globes, filters etc.
3. Failure resulting from power surges and electrical storms.
4. Insect or vermin infestation.
5. Unauthorised repairs or use of non- genuine Omega parts.
6. Any failure caused by the product not being used in accordance with the instruction and the installation manual provided with the
product.
7. Misuse or abuse, including failure to properly maintain or service.
8. The clearing of blockages in pumps and hoses.
9. Damage which occurs during delivery or installation.
10. Claims to product surface coating due to liquid or solid spill-overs, accidental damage or damage caused from cleaning products not
recommended by Omega.
HOW TO CLAIM YOUR WARRANTY
Please refer to our website address below for Omega in Australia or New Zealand to register your warranty online.
If you are contacting Omega regarding any warranty claims and spare parts inquiries, please make sure you have the following information on
hand:
1. Product Name/Model Number
2. Serial Number/s
3. Purchase Date (as per invoice or proof of purchase)
4. Purchased From
5. Warranty Registration Number
IN AUSTRALIA
www.omegaappliances.com.au/customer/warranty
Omega is division of Shriro Australia PTY LTD
ABN 28 002 386 129
Customer care: 1300 739 033
Email: custom[email protected]u
IN NEW ZEALAND
www.omegaappliances.co.nz/customer
Omega is division of Monaco Corporation Limited
(Member of Shriro Australia PTY LTD)
Phone: [phone]
Email: custom[email protected].nz
