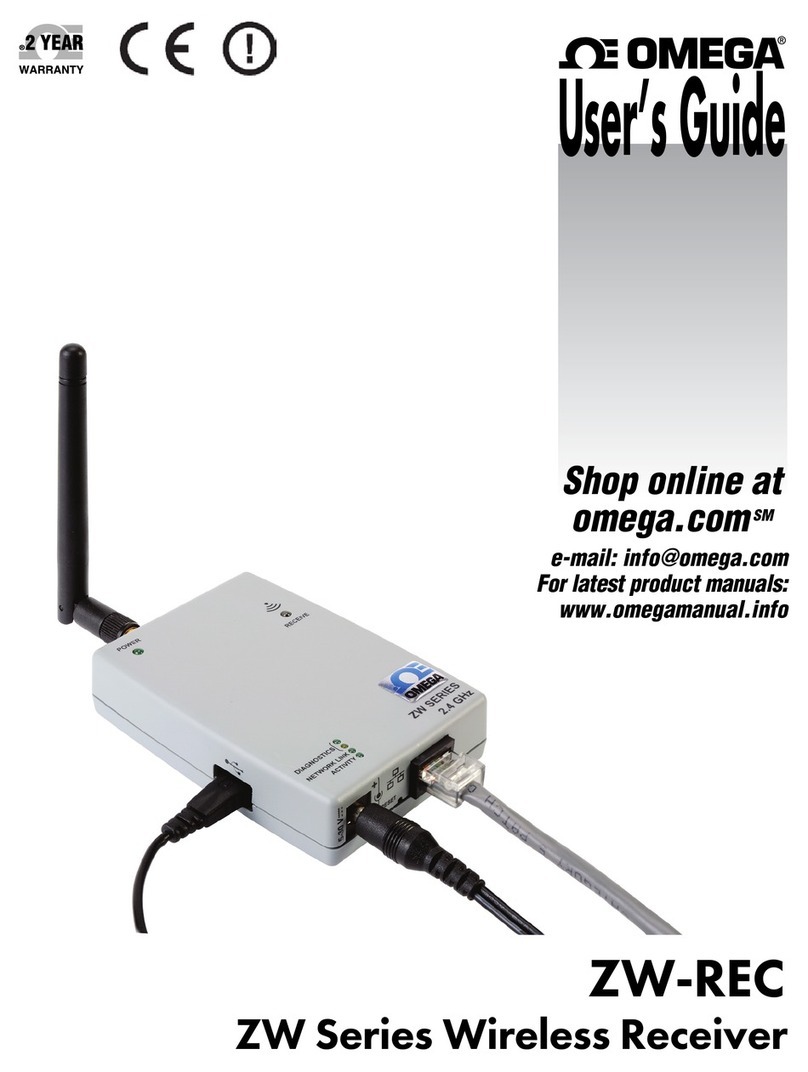

ZW-REC
zwSERIES WIRELESS RECEIVER
TM
Shop online at
omega.com
User’s Guide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide

1 | P a g e
TABLE OF CONTENTS
TABLE OF CONTENTS............................................................................................................................................ 1
LIST OF FIGURES AND TABLES .............................................................................................................................. 2
NOTES, CAUTIONS & WARNINGS ........................................................................................................................ 3
1 INTRODUCTION................................................................................................................................................. 3
1.1 SAFETY AND EMC CONSIDERATIONS ..........................................................................................................................3
1.2 ENVIRONMENTAL AND OPERATING CONDITIONS...........................................................................................................3
1.3 BEFORE BEGINING ..................................................................................................................................................4
1.4 INCLUDED WITH THE ZW-REC.................................................................................................................................4
1.5 DESCRIPTION .........................................................................................................................................................5
2 HARDWARE....................................................................................................................................................... 6
2.1 ZW-REC DIAGRAM...............................................................................................................................................6
2.2 DIP SWITCHES .......................................................................................................................................................7
2.3 RESET BUTTON ......................................................................................................................................................8
2.4 DIMENSIONS AND MOUNTING ..................................................................................................................................9
3 INITIAL SETUP ................................................................................................................................................. 10
3.1 ANTENNA WARNING.............................................................................................................................................10
3.2 CHOOSING A NETWORK ID.....................................................................................................................................10
3.3 CONNECTING TO THE ZW-REC ...............................................................................................................................10
3.4 DEFAULT PASSWORDS ...........................................................................................................................................11
3.5 NAVIGATING THE WEBPAGE ...................................................................................................................................11
4 END DEVICE READINGS AND CONFIGURATION ............................................................................................... 12
4.1 END DEVICE READINGS PAGE..................................................................................................................................12
4.2 CHANGING END DEVICE SETTINGS ..........................................................................................................................13
4.3 END DEVICE STATUS .............................................................................................................................................15
4.4 CHART PAGE .......................................................................................................................................................16
5 SYSTEM PAGE ................................................................................................................................................. 18
5.1 SYSTEM INFORMATION ..........................................................................................................................................18
5.2 NETWORK SETUP..................................................................................................................................................19
5.3 CLIENT CONNECTION.............................................................................................................................................20
5.4 R ADIO ...............................................................................................................................................................21
5.5 MEASUREMENT UNITS..........................................................................................................................................21
6 SECURITY PAGE ............................................................................................................................................. 22
6.1 USERNAMES AND PASSWORDS................................................................................................................................22
6.2 ENCRYPTION........................................................................................................................................................23
7 SPECIFICATIONS .............................................................................................................................................. 24
APPENDIX A CERTIFICATE CONFIGURATION....................................................................................................... 26
APPENDIX B FIRMWARE UPDATES..................................................................................................................... 27
B.1 UPGRADING FROM VERSION 1.X.............................................................................................................................27
B.2 UPGRADING VERSION 2.0 AND ABOVE .....................................................................................................................28
B. 3 UPDATING ZWSERIES END DEVICES ........................................................................................................... ............. 30

2 | P a g e
APPENDIX C RF TOPICS ...................................................................................................................................... 31
C.1 RF CHANNEL SELECTION........................................................................................................................................31
C.2 SIGNAL STRENGTH INDICATOR.................................................................................................................................31
C.3 MAXIMIZING RANGE ...........................................................................................................................................32
APPENDIX D WIRELESS CERTIFICATIONS ............................................................................................................ 33
D.1 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ...........................................................................33
D.1 INDUSTRY CANADA STATEMENT..............................................................................................................................34
D.2 CE STATEMENT ...................................................................................................................................................34
LIST OF FIGURES AND TABLES
Figure 1. Included Items............................................................................................................................ 4
Figure 2. ZW-REC Parts Diagram ............................................................................................................... 6
Figure 3. DIP Switch Detail ........................................................................................................................ 7
Table 1. Network ID DIP Switches............................................................................................................. 7
Figure 4. Reset Button................................................................................................................................ 8
Figure 5. Mounting Dimensions ................................................................................................................ 9
Table 2. Default Passwords ..................................................................................................................... 11
Figure 6. End Device Readings (Blank) .................................................................................................... 11
Figure 7. End Device Readings (Populated) ............................................................................................ 12
Figure 8. End Device Settings .................................................................................................................. 13
Figure 9. End Device Status..................................................................................................................... 15
Figure 10. Chart Page .............................................................................................................................. 16
Figure 11. Chart Toolbar ......................................................................................................................... 17
Figure 12. Chart Axis Dialog .................................................................................................................... 17
Figure 13. System Information................................................................................................................ 18
Figure 14. Network Configuration........................................................................................................... 19
Figure 15. Client Connection Configuration............................................................................................ 20
Figure 16. Radio Configuration ............................................................................................................... 21
Figure 17. Measurement Units ............................................................................................................... 21
Figure 18. Authentication ....................................................................................................................... 22
Figure 19. Change Password Dialog ........................................................................................................ 22
Table 3. Default Strong Passwords.......................................................................................................... 22
Figure 20. Certificate Warning ................................................................................................................ 23
Figure 21. Certificate Configuration........................................................................................................ 26
Figure 22. Old Firmware Upgrade Page .................................................................................................. 27
Figure 23. Old Firmware Upload Page .................................................................................................... 28
Figure 24. Old Upload Success Page ....................................................................................................... 28
Figure 25. Firmware Upgrade Dialog ...................................................................................................... 29
Figure 26. Firmware Upload Page........................................................................................................... 29
Figure 27. Upload Success Page.............................................................................................................. 29
Figure 28. 2.4GHz Spectrum Map ........................................................................................................... 31
Figure 29. Received Power Chart............................................................................................................ 32

3 | P a g e
NOTES, CAUTIONS & WARNINGS
Information that is especially important is identified by the following labels:
Symbol
Description
NOTE: Information that is important to successfully setup and
use the zwSeries Wireless System.
CAUTION: Risk of electrical shock.
WARNING: May effect the functionality of the device.
INTRODUCTION
1.1 Safety and EMC Considerations
ESD Warning
Warning: The following parts of the unit are ESD sensitive:
• The Antenna
• Metal connectors for the Antenna, USB Port, and Power
EMC Considerations:
• Whenever EMC is an issue, always use shielded cables.
• Never run signal and power wires in the same conduit.
• Use twisted-pair wires for differential signal connections.
• Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems persist.
• Failure to follow all instructions and warnings may result in injury.
1.2 Environmental and Operating Conditions
The ZW-REC is designed to be fixed mounted and operated in a clean and dry environment.
Care should be taken to prevent the components of the device from being exposed to
moisture, toxic chemicals, extreme cold or hot temperature that are outside the specification
listed in this manual. Refer to Section 7 for more information on allowable Environmental and
Operating Conditions.
The following is a list of basic good practices when operating this Wireless System.
• Do not operate the wireless device in flammable or explosive environments.
• Do not use the wireless device in medical, nuclear or any other critical application
where failure can cause damage or harm.
• Always operate the device within the recommended environmental limits specified in
this manual.
• Do not operate the device with a battery or AC adapter other than what’s supplied or

4 | P a g e
specified in this manual or on the battery compartment label.
• Keep each wireless device at least 8 inches (20 cm) from other radio transmitters,
antennas, and people.
• The wireless approvals for this device specifies the specific antenna supplied with this
device.
1.3 Before Begining
Inspecting the Shipment
Remove the packing slip and verify that you have received everything listed. Inspect the
container and equipment for signs of damage as soon as you receive the shipment. Note any
evidence of rough handling in transit. Immediately report any damage to the shipping agent.
The carrier will not honor damage claims unless all shipping material is saved for inspection.
After examining and removing the contents, save the packing material and carton in the event
reshipment is necessary.
If you need assistance, please contact the Customer Service Department nearest you.
Obtaining User Manuals and Software
A quick start guide is included with the ZW-REC. The latest user manual, firmware upgrades
and free software, such as Omega Dashboard, are available at the website listed on the cover
page of this manual.
1.4 Included with the ZW-REC
• ZW-REC Wireless Receiver
• Universal AC Adaptor with US, EU and GB prongs
• Mounting Kit including screws, anchors, mounting bracket and feet.
• 2.4GHz Antenna
• Quick Start Guide
Figure 1. Included Items

5 | P a g e
1.5 Description
The new, high-performance, long range, OMEGATM ZW-REC wireless receiver provides
Web-based monitoring of OMEGA’s IEEE 802.15.4 compliant wireless End Devices including
the zSeries, UW Series
1
and zwSeries.
The ZW-REC is IEEE 802.15.4 compliant and operates at 2.4 GHz. It is designed to
communicate up to 1000m
2
(3280') to various wireless sensors including the all new ZW-ED.
The ZW-REC connects directly to an Ethernet network to serve active web pages and display
the data. It enables monitoring and recording of Temperature, Humidity, and Barometric
Pressure over an Ethernet network or the Internet without any special software—just a Web
Browser. OMEGA offers a wide variety of different wireless sensors and transmitters to suit
every application.
The ZW-REC offers expanded functionality over previous wireless receivers. The ZW-REC can
connect to up to 128
3
wireless End Devices at once. The built in web server supports
encryption to protect your sensitive data. The all new web pages run HTML5 and are ready to
use on mobile devices. The ZW-REC can also wirelessly update firmware for compatible End
Devices and Sensors.
The ZW-REC is designed to require no software to setup and run. A standard web browser can
be used to monitor and chart all sensor readings. The browser can also be used to configure
the device’s IP address, passwords for access and overall configuration parameters. Firmware
updates for the ZW-REC itself, compatible End Devices and sensors are loaded directly from
the web browser. The web server supports HTTP over TLS (HTTPS) which provides a secure,
encrypted, connection between web browser and ZW-REC receiver.
Each ZW-REC receiver can support up to 128 End Devices and up to 8 receivers can be setup in
one area allowing for networks of up to 1024 total End Devices. The Omega Dashboard web
server software can monitor and log data from one or more receivers from a single webpage.
The Omega OPC Server is available for customers with existing SCADA systems, to connect the
ZW-REC directly to their PLC or Historian. A free trial of the OPC Server is available for
evaluation purposes. Please contact Customer Service for more information.
1Refer to the Omega Website for a list of compatible UW Series devices.
2Without obstructions or interferences
3Requires end devices that support IDs 32-127.

6 | P a g e
HARDWARE
2.1 ZW-REC Diagram
Item
Description
Item
Description
1
Antenna Connector
9
Mounting Bracket Holes
2
Power LED
10
Serial Number
3
USB Connector1
11
Network ID DIP Switches
4
Network / Diagnostic LEDs
12
Network ID Label
5
Power Connector
13
MAC Address Label
6
Reset Button
14
IP Address Label
7
Ethernet Connector
15
Configuration DIP Switches
8
Wireless Link LED
16
Analog / Alarm Output (Optional)
1Factory Use Only
Figure 2. ZW-REC Parts Diagram
TM

7 | P a g e
2.2 DIP Switches
The ZW-REC has two banks of DIP switched located on the back of the unit for easy
configuration. Figure 3 shows a close up view of the switches. To change the DIP switches, use
a tweezer or small screwdriver to gently push the switch. Do not apply excessive force.
Setting the Network ID
The set of 8 switches on the left selects the Network ID. The Network ID (NID) identifies which
End Devices the ZW-REC communicates with. If there are multiple Receivers deployed in the
same area each one must be assigned a unique NID. Make sure the same NID is selected on
the ZW-REC and the End Devices. Only switches 5 to 8 are used. Do not use switches 1 to 4.
zSeries End devices only support NIDs 0 to 7. UW Series End Devices require a 5 digit NID
referred to as a PAN ID for configuration. The PAN ID corresponding to each NID is listed in
Table 1 . Consult the user manual of each specific End Device for more information.
Table 1. Network ID DIP Switches
Warning: The NID may be set with a different set of switches depending on the
type of End Device. Please refer to the user manual for the End Device to
determine which switches correspond to the NID.
Switch
NID
PAN
ID
Switch
NID
PAN
ID
8
7
6
5
8
7
6
5
OFF
OFF
OFF
OFF
0
13106
ON
OFF
OFF
OFF
8
13114
OFF
OFF
OFF
ON
1
13107
ON
OFF
OFF
ON
9
13115
OFF
OFF
ON
OFF
2
13108
ON
OFF
ON
OFF
10
13116
OFF
OFF
ON
ON
3
13109
ON
OFF
ON
ON
11
13117
OFF
ON
OFF
OFF
4
13110
ON
ON
OFF
OFF
12
13118
OFF
ON
OFF
ON
5
13111
ON
ON
OFF
ON
13
13119
OFF
ON
ON
OFF
6
13112
ON
ON
ON
OFF
14
13120
OFF
ON
ON
ON
7
13113
ON
ON
ON
ON
15
13121
Figure 3. DIP Switch Detail

8 | P a g e
DHCP and Defaults
The set of 4 switches near the Ethernet port are for basic configuration. Switches 1 and 4 are
reserved and should not be used.
Switch 2 is used to reset the ZW-REC to factory defaults. This is useful if the IP address or
password to the ZW-REC is lost. To set the Receiver to factory default settings perform the
following steps:
• Remove power from the ZW-REC.
• Slide DIP switch #2 to ON position.
• Power the ZW-REC on and wait about 10 seconds until the Receiver fully boots up.
• Set the DIP switch #2 back to OFF position
Note: Make sure that the DIP switch is set to OFF before resuming normal
operation. When the switch is on, every time the unit is power-cycled the factory
settings are loaded. The switch may be changed while the unit is running but this
has no effect until the ZW-REC is reset or power cycled.
Switch 3 is used to force DHCP on. Changing Switch 3 to ON enables DHCP the next time the
ZW-REC is powered or reset. Turning on DHCP in the manner overwrites the webpage setting.
This is useful for situations where it is not possible to connect to the default IP address. Please
see Section 3.3 for more information on requirement to use DHCP.
To disable forced DHCP change Switch 3 to OFF and reset the device. DHCP remains on until it
is changed from the webpage or the device is reset to defaults.
2.3 Reset Button
Pushing the Reset Button while the ZW-REC is powered reboots the device. Holding the Reset
Button for 9 seconds resets the ZW-REC to its factory default settings. To access the Reset
Button carefully use a small screw driver or paperclip to depress the switch through the
pinhole shown in Figure 4 . Do not apply excessive force as this may damage the device.
Figure 4. Reset Button
