INSTALLATION, OPERATION AND MAINTENANCE
INSTRUCTIONS FOR OMEGA RANGE HOODS ORSWXA
CONTENTS
SECTION PAGE NO.
Important Safety Instructions……………… 3
Appliance Details ………………………… 4
General Information …………………….. 4
What Is Supplied ………….……………… 4
What May Be Needed For Installation … 4
Installation Instructions....................................5-6
Operating Instructions …………………… 6
Replacing The Bulbs …………………….. 7
Cleaning …………………………………… 7
Troubleshooting ................................................ 7
It is important that you retain these instructions, proof ofpurchase as
well asother important documents about this product for future
reference.
Due tocontinual product development, OMEGA serves the right to alter
specifications or appearances without notice.
Disposeofpackaging responsibly – recycle where facilities are available.

IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the assembly instruction section and safety precautions of
this booklet
carefully before removing the contents of this carton.
1. In certain circumstances electrical appliances may be a safety hazard.
2. This appliance is notintended for use by persons (including children) with reduced physical,
sensory ormental capabilities, or lack ofexperience or knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a person
responsible for their safety. Young children should be supervised toensure that they do not
play with the appliance.
3. Do not check the status of the filters while the range hood isoperating.
4. Do not touch the light bulbs after appliance use.
5. Do not disconnect the appliance with wet hands and do not disconnect the power cord
with extreme force.
6. Do not flambé underneath range hood.
7. Avoid free flame, as it may causedamage tothe filters and be a fire hazard.
8. If frying food, ensuretocheck regularly toavoid the oil overheating and becoming a fire
hazard.
9. Unplug the appliance before carrying out maintenance or replacing lamps.
10. If the power cord is damaged, itmust be replaced by the manufacturer, an authorised
service centre or similarly qualified persons to avoid a hazard.
11. Indoor use only.
12. When the appliance isnot in use and before cleaning, unplug the appliance from theoutlet.
13. It is recommended to operate the range hood prior tocooking.
14. It is recommended to leave the range hood in operation for 15 minutes after cooking is
terminated in order tocompletely eliminate cooking vapours and odours.
15. Turn off the range hood when not inuse.
16. Don’t use the range hood if itisdamaged, especially the supply cord and the case.
17. Don’t immerse the range hood in liquid.
18. The exhaust air must notbe discharged into aflue which is used for exhausting fumes from
appliance burning gas or other fuels (not applicable to appliances that only discharge the
air back into the room).
19. Regulations concerning the discharge of air have to be fulfilled. There shall be adequate
ventilation of the room when the range hood is used at the same time as appliances
burning gas of other fuels (not applicable to appliances that only discharge the air back
into theroom).
20. Clean the surface of the range hood regularly using cloth moistened with denatured alcohol
ofnon- abrasive liquid detergent.
21. For hoods using optional charcoal filters, replace the filters approximately every 3 - 4
months.
22. There is afire risk ifcleaning is not carried out inaccordance with theinstruction.
23. The range hood isintended for use above hobs with four elements.
24. If the instruction for the minimum distance between the supporting surface of the cooking
vessels on the hob and the lowest part ofthe range hood are specified by hob instructions,
these instructions should be taken into account.
25. CAUTION: Accessible parts may become hotwhen used with cooking appliances.

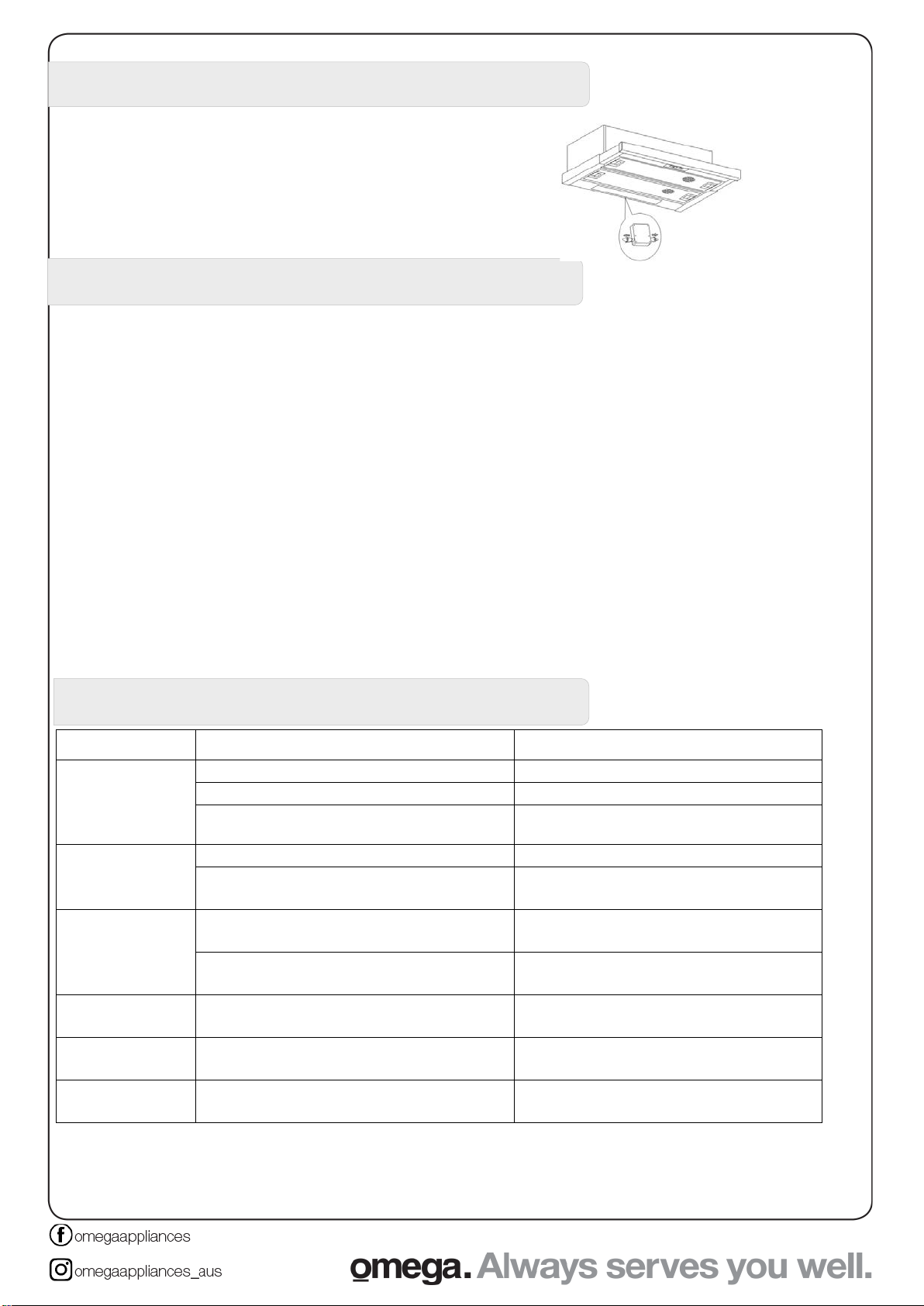

APPLIANCE DETAILS
Voltage:
220-240V
Frequency:
50Hz
Lamp Max:
2x28W E14 Halogen
Rated Input Power:
256W
GENERAL INFORMATION
Before installing and operating the range hood, carefully read the following important
information regarding installation safety and maintenance. Keep this information booklet
accessible for further consultations.
The appliance has been designed to exhaust cooking fumes through the hole in the top ofthe
range hood only. The fumes can be exhausted externally using optional ducting, or itmay be
used tore-circulate theair back into theroom (charcoal filters are required for re-circulating
installation).
Before installation, please ensure that the following have been supplied and that the tools
listed below are readily available.
WHAT IS SUPPLIED
Range hood (including one way valve for ducting) x 1
Installation kit (long screws x 4, short screws x 2, long bolts x 6, short bolts x 2, washers x 6,
plastic plugs x 4, small brackets x 2, long bracket x 1) x 1
Instruction booklet x 1
Note: Flexible tubing and charcoal filters are NOT supplied with the unit.
WHAT MAY BE NEEDED FOR INSTALLATION
Electric Drill
Duct Tape
Tape Measure
Jig Saw
Spirit Level
Ladder
Screwdrivers
Torch (If natural lighting is minimal)
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTION BOOKLET

INSTALLATION INSTRUCTIONS
Please ensure that all power is switched off before installing the
range hood. Installation must be in accordance to the local
electrical authority and codes.
The switched power outlet for the range hood should be positioned toenable the user toturn
the power off, toenable cleaning and any maintenance required.
The switched power outlet should be installed within 600mm from the rear ofthe range hood.
Ensure that when installing the range hood, that it is protected from any possible damage from
tools etc. Ducting for this range hood must be installed in accordance tothe local authority.
Ensure that the fixings used for this range hood are suitable.
Check the area where the range hood is to be fitted, toensure that itis
structurally sound. Before using the appliance, remove the plastic coatings
protecting the stainless steel finish.
The OMEGA ORS6WXA range hoods are intended to be fitted into kitchen cabinetry. They can
also be installed directly onto a wall ifrequired.
INSTALLATION OF THE OMEGA ORS6WXA RANGE HOOD DIRECTLY TO A WALL
Ensure that the wall is structurally sound, and is capable of carrying the weight ofthe range
hood. The range hood can be placed at a minimum of600mm away from anelectric
cooktop, or 650mm minimum from agas cook top.
Measure the distance between the two fixing holes on the back ofthe range hood.Due to
manufacturing processes, there may be slight variations on each range hood produced.
Mark the distance on the wall in the desired location, at the correct distance above the cooktop.
For timber framed houses, the range hood should be attached toa wall stud. Drill holes of a
suitable size to fix the screws into, which will take the weight of the range hood. Using a
screwdriver, attach the screws to the studs in the pre drilled holes, leaving an adequate amount
for the range hood torest on. Locate the range hood onto the screws, via the mounting holes in
the back of the range hood.
For masonry walls, mark the position ofthe holes onthe wall, and drill holes of a suitable size, to
accept the size of masonry anchor tobe used.Alternatively, awall plug of a suitable size may be
fitted. Fitthe masonry anchor (if being used) into the hole, orifusing wall plugs, attach a screw
into the plug. Allow an adequate amount of the screw oranchor out for the range hood to be
fitted onto. Locate the range hood onto the anchor orthe screw, via the mounting holes in the
back ofthe range hood.Fit the right angled brackets onto either side of the range hood using
the short 10mm bolts. Mark the position required onto the wall tofit the brackets. Drill the
holes in the wall, to accept either a screw or wall plug, depending on the wall structure. Attach
screws through the brackets and into the hole orwall plug drilled previously.
Fit the one way valve onto the range hood, ready for the ducting to be installed. Ifno ducting is
used, itis recommended that the optional charcoal filters be installed to clean the air being
exhausted back into the room.
See diagram below for any clarification required.

INSTALLATION OF THE OMEGA ORS6WXA RANGE HOOD TO A CABINET
The diagram below shows the distance required between the holes in the top of the range hood. Due
to manufacturing procedures, itisrecommended that the dimension be checked on the range hood
before installing. Please note that the exhaust air MUST flow through the opening at the top of the
range hood,either viaflexible ducting tothe outside, orinto the room through the cupboard itself
(using optional charcoal filters).
Drill the 6 x Ø4mm mounting holes & Ø130mm venting hole into the bottom of the cupboard. For a
ducted installation, drill a Ø120-Ø130mm hole for the ducting toexit. For a recycling installation, a
Ø120- Ø130mm hole should be cut out atthe top ofthe cabinet to allow the exhaust tore-enter the
room.
Fit the one way valve onto the range hood.
Install the range hood tothe bottom of the cupboard using the 35mm bolt supplied with the range
hood. The holes inthe range hood are already threaded. Fully tighten the bolts. Install the flashing
plate supplied with the range hood, tothe back of the range hood and underneath of the cupboard
using the 12mm screws. This is used to hide any gaps that may exist after fitting the range hood.
Ducting & charcoal filters can then be fitted (if needed) before the range hood isconnected tothe
power supply &turned on.
See diagram below forany clarification required.
OPERATING INSTRUCTIONS
Note: Before the range hood can be operated, itmust
either be ducted or, if the model isinstalled asa re-
circulating range hood, itmust be fitted with charcoal
filters. Connect the plug into the power.
Below isa diagram of the light and fan functions, with an
explanation of how the light and the fan functions
operate. Retractable filter must be fully extended prior
to operation.
To operate the light, push the switch ① into “I” position to switch the light on,or into “0” to turn
the light off. Tooperate the fan, push the switch ② onto either:
I – Low Fan Speed
II – High Fan Speed
0 – To turn the fanOff.
If your range hood does not function correctly when attempting any ofthe above, please ensure that
your power ison and isfunctioning correctly. Ifthe power seems to be functioning correctly in the
house, there may be a problem with the range hood. Please call your authorised service centre in this
case to organise a service call orreplacement range hood.

TROUBLE SHOOTING
REPLACING THE BULBS
1. Switch the range hood off and disconnect from the
mains power.
2. Open the aluminium filter.
3. Unscrew the light bulb carefully and replace it
with a similarly rated halogen light bulb (230V E14 base
28W MAX).
4. Replace the aluminium filter.
CLEANING
SAFETY PRECAUTION
Before cleaning your range hood or performing any maintenance, please ensure that the range hood is
turned off at the power point.
Do not use abrasive cleaners to clean the range hood. The use of warm soapy water and a cloth are
recommended. Ensure that the range hood is cleaned regularly, as a build-up of grease and fat may
occur otherwise.
The filters on the range hood must be cleaned regularly to maintain efficiency, and prevent grease
build up. It is recommended that this is undertaken every 4 – 6 weeks, depending on frequency of
use.
The filters can be cleaned with warm soapy water or a cloth, or they may be washed in a dishwasher. If
washed in a dishwasher, discolouration may occur to the mesh and frame.
Cleaning of the range hood must be performed as described above, otherwise there is a possibility of a
fire hazard due to grease and fat build up.
If the range hood is fitted with charcoal filters (for re-circulating) it is recommended that the filters be
changed every 3 – 4 months. Filter replacement will ensure correct function of the range hood, and
ensure that the air being re- circulated back into the room is clean.
Fault
Possible Cause
Solution
Light on, but
motor does not
work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact Everdure Service.
Motor failed
Contact Everdure Service.
Light does not
work, motor
does not work
House fuses blown
Reset/Replace fuses.
Power cord loose or disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the air ventilation
entrance are not tightly sealed
Take down the one way valve and seal
with sealant.
Leakage from the connection of U-shaped
section and cover
Take U-shaped section down and seal.
Lights not
working
Broken/Faulty globes
Replace globes as per this instruction.
Insufficient
suction
The distance between the range hood and
the gas top is too far
Refit the range hood to the correct
distance.
The Range hood
inclines
The fixing screw not tight enough
Tighten the hanging screw and make it
horizontal.
NOTE: Any electrical repairs to this appliance must conform toyour local, state and
federal laws. Pleasecontact the service centre if in any doubt before undertaking any of
the above.
Always disconnect the range hood from the power source when opening the range hood.
